ISO OSI 7層の実例：自動車用診断通信(diagnostics communication) Ethernet(53) 通信(104)

ISOのOSI７層は、通信を分類する上で役立つ。

ISO Diagnosticsの規格には２種類の表がある。

二つの表には共通部分もある。

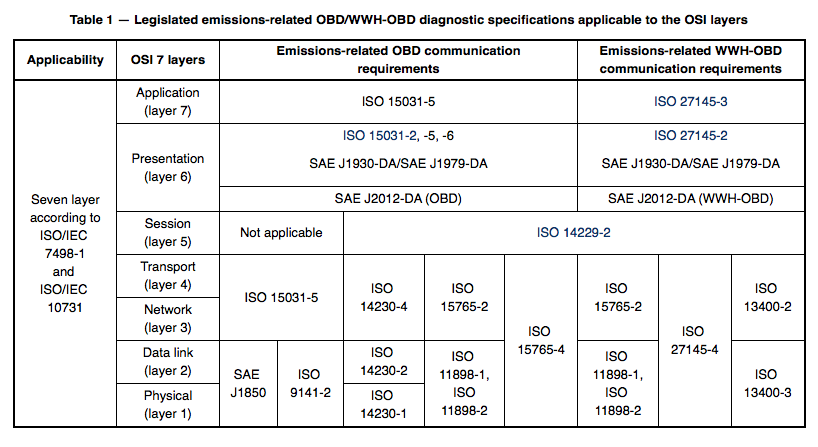

1. emissions-related diagnostics

ISO 15031-6:2015 Road vehicles - Communication between vehicle and external equipment for emissions-related diagnostics - Part 6: Diagnostic trouble code definitions
https://qiita.com/kaizen_nagoya/items/9db02028c8e8c2858411
https://www.iso.org/standard/66369.html

はじめ、いくつかの規格でISO OSI 7層対応表をつけている。

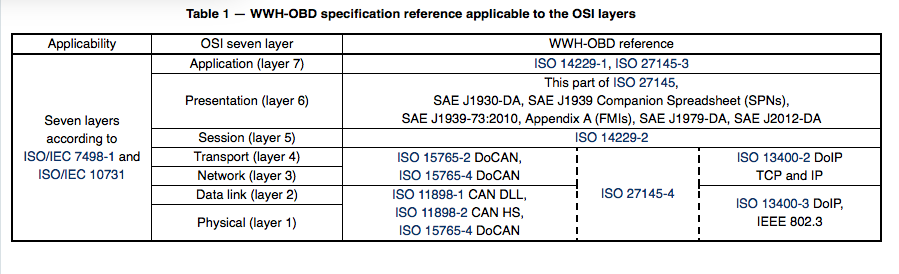

2. WWH-OBD

ISO 27145-2:2012 Road vehicles - Implementation of World-Wide Harmonized On-Board Diagnostics (WWH-OBD) communication requirements - Part 2: Common data dictionary
https://qiita.com/kaizen_nagoya/items/11ed6a5bd614e183de34
https://www.iso.org/standard/46276.html

一覧

Qiitaの欄は、次の二つの資料で示す番号

ISO Diagnostics 文献（Normative Reference and Bibliography）集め
https://qiita.com/kaizen_nagoya/items/535a0144a343df2c99df

ISO Diagnostics 用語定義(Terms and Definition)と短縮名(short name)集め
https://qiita.com/kaizen_nagoya/items/83cae62d1cb528c3c816

1-1	2	3	4	5	6	7	2-1	2	3	4	5	6	7	Qiita	Doc.	Title
1																14230-1 Road vehicles — Diagnostic communication over K-Line (DoK-Line) — Part 1: Physical layer
1	1	1	1				1	1	1	1				8	7	ISO 15765-4, Road vehicles - Diagnostic communication over Controller Area Network (DoCAN) - Part 4: Requirements for emissions-related systems
1	1	1	1											12	10	ISO 27145-4, Road vehicles - Implementation of World-Wide Harmonized On-Board Diagnostics (WWH-OBD) communication requirements - Part 4: Connection between vehicle and test equipment
1	1						1	1							9	ISO 11898-1, Road vehicles - Controller area network (CAN) - Part 1: Data link layer and physical signalling
1	1						1	1							9	ISO 11898-2, Road vehicles - Controller area network (CAN) - Part 2: High-speed medium access unit
1	1						1	1						2	1	ISO 13400-3, Road vehicles - Diagnostic communication over Internet Protocol (DoIP) - Part 3: Wired vehicle interface based on IEEE 802.3
1	1													17	20	ISO 9141-2:1994, Road vehicles - Diagnostic systems - Part 2: CARB requirements for interchange of digital information, and its Amendment 1:1996.
1	1															SAE J1850 Access to vehicle networks for onboard-diagnostics (OBD)
	1														7	ISO 14230-2, Road vehicles - Diagnostic communication over K-Line (DoK-Line) - Part 2: Data link layer
		1	1		1	1								7	13	ISO 15031-5, Road vehicles - Communication between vehicle and external equipment for emissions-related diagnostics - Part 5: Emissions-related diagnostic services https://qiita.com/kaizen_nagoya/items/88bc27aa82710c8a2376
		1	1				1	1	1	1					7	ISO 14230-4:2000, Road vehicles - Diagnostic systems - Keyword Protocol 2000 - Part 4: Requirements for emission-related systems
		1	1						1	1				1	6	ISO 13400-2:2012, Road vehicles - Diagnostic communication over Internet Protocol (DoIP) - Part 2: Transport protocol and network layer services
		1	1						1	1				21	7	ISO 15765-2, Road vehicles - Diagnostic communication over Controller Area Network (DoCAN) - Part 2: Transport protocol and network layer services
				1							1			5	10	ISO 14229-2, Road vehicles - Unified diagnostic services (UDS) - Part 2: Session layer interfaces
					1							1		10	12	ISO 27145-2, Road vehicles - Implementation of World-Wide Harmonized On-Board Diagnostics (WWH-OBD) communication requirements - Part 2: Common data dictionary
					1							1			13	SAE J1930-DA, J1930 Electrical/Electronic Systems Diagnostic Terms, Definitions, Abbreviations, and Acronyms Web Tool Spreadsheet
					1							1			7	SAE J1979-DA, Digital Annex of E/E Diagnostic Test Modes
					1							1			7	SAE J2012-DA, Digital Annex of Diagnostic Trouble Code Definitions and Failure Type Byte Definitions
					1									13	7	ISO 15031-2, Road vehicles - Communication between vehicle and external equipment for emissions-related diagnostics - Part 2: Guidance on terms, definitions, abbreviations and acronyms
					1									16	13	ISO 15031-6, Road vehicles - Communication between vehicle and external equipment for emissions-related diagnostics - Part 6: Diagnostic trouble code definitions
						1							1	11	10	ISO 27145-3, Road vehicles - Implementation of World-Wide Harmonized On-Board Diagnostics (WWH-OBD) communication requirements - Part 3: Common message dictionary
							1	1							2	IEEE 802.3-2015, IEEE Standard for Ethernet
							1	1						4	5	ISO 14229-1, Road vehicles - Unified diagnostic services (UDS) - Part 1: Application layer
									1						1	IETF RFC 791:1981, Internet Protocol - DARPA Internet Program - Protocol Specification
										1					1	IETF RFC 793, Transmission Control Protocol - DARPA Internet Program - Protocol Specification https://datatracker.ietf.org/doc/html/rfc793
												1			7	SAE J1930-DA, Digital Annex of Electrical/Electronic Systems Diagnostic Terms, Definitions, Abbreviations, and Acronyms
												1			10	SAE J1939-73:2010, Application layer - Diagnostics
												1			10	SAE J1939, Companion Spreadsheet
