Wifi Antennaでresearchgateで文献調査
https://qiita.com/kaizen_nagoya/items/2cff082e2ef214f2b377

Design of a dual band printed dipole antenna for WIFI application
Oct 2017, Norun Abdul Malek, S.A. Karsin, Sarah Mohamad, Athirah Mohd Ramly
http://journal.utem.edu.my/index.php/jtec/article/view/1803/2332

空中線(antenna)の指向性は、方位(azimuth)と仰角(elevation)の2つの2次元空間で3次元特性を示す。

上記文献には、 elevation and azimuthという語順で並んでいる。

下図は実測ではなく、模擬試験である。

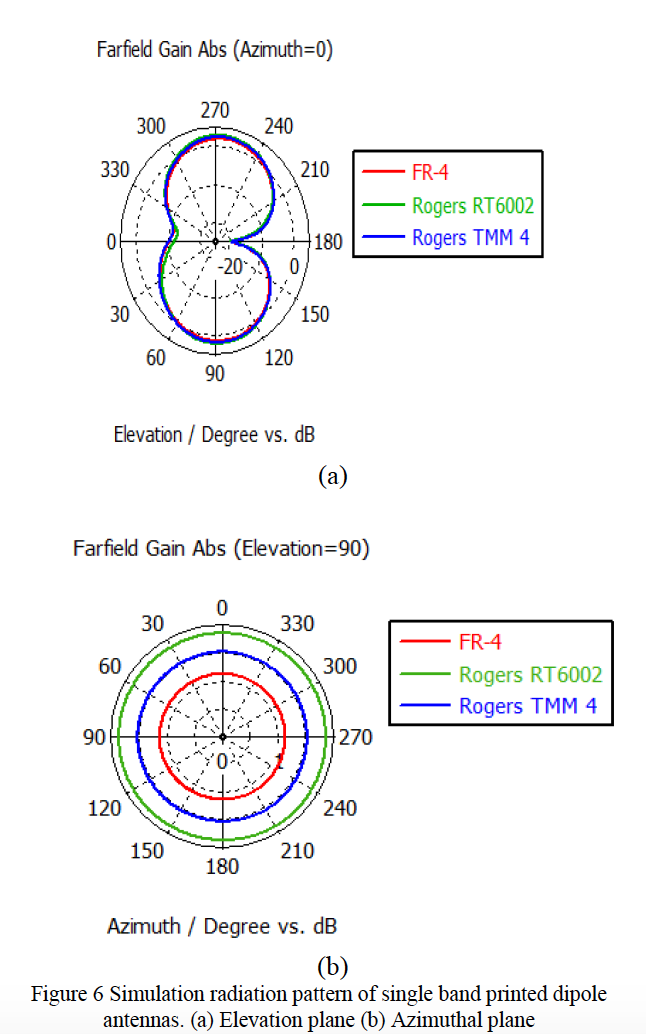

antena1.png Figure 6 Simulation radiation pattern of single band printed dipole antennas. (a) Elevation plane (b) Azimuthal plane antenna2.png Figure 11: Simulated radiation pattern of dual band printed dipole antennas at 5 GHz. (a) Elevation and (b) azimuthal plane
