@vm35 (vm 35)posted at 2022-12-13

ipvsadmのテーブルを設定してもOSを再起動すると戻ってしまう

Q&A

Closed

概要

ipvsadmのテーブルを設定し、サービスの再起動では設定情報をクリアーしてリストアできるのですが、OSを再起動するとテーブル情報がリストアされません。
OS再起動後も設定を維持する方法はありますでしょうか。

１．バージョン確認

# cat /etc/redhat-release
Rocky Linux release 8.7 (Green Obsidian)

# yum list installed | grep ipvsadm
ipvsadm.x86_64                       1.31-1.el8                             @appstream

# yum list installed | grep keepalived
keepalived.x86_64                    2.1.5-9.el8                            @appstream

２．サービスの状態確認

# systemctl status ipvsadm
● ipvsadm.service - Initialise the Linux Virtual Server
   Loaded: loaded (/usr/lib/systemd/system/ipvsadm.service; enabled; vendor preset: disabled)
   Active: active (exited) since Tue 2022-12-13 11:18:36 JST; 2h 38min ago

３．サービススクリプト

# less /usr/lib/systemd/system/ipvsadm.service
[Unit]
Description=Initialise the Linux Virtual Server
After=syslog.target network.target

[Service]
Type=oneshot
ExecStart=/bin/bash -c "exec /sbin/ipvsadm-restore < /etc/sysconfig/ipvsadm"
ExecStop=/bin/bash -c "exec /sbin/ipvsadm-save -n > /etc/sysconfig/ipvsadm"
ExecStop=/sbin/ipvsadm -C
RemainAfterExit=yes

[Install]
WantedBy=multi-user.target

４．テーブル設定を追加

# ipvsadm -L
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.100.100:http sh
  -> 192.168.100.101:http         Route   1      0          0
  -> 192.168.100.102:http         Route   1      0          0
  -> 192.168.100.103:http         Route   1      0          0
  -> 192.168.100.104:http         Route   1      0          0
TCP  192.168.100.100:https sh
  -> 192.168.100.101:https        Route   1      0          0
  -> 192.168.100.102:https        Route   1      0          0
  -> 192.168.100.103:https        Route   1      0          0
  -> 192.168.100.104:https        Route   1      0          0

５．サービス停止 -> ipvsadmテーブルの状態

# systemctl stop ipvsadm
# ipvsadm -L
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn

６．サービス開始 -> ipvsadmテーブルの状態

# systemctl start ipvsadm
# ipvsadm -L
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn
TCP  192.168.100.100:http sh
  -> 192.168.100.101:http         Route   1      0          0
  -> 192.168.100.102:http         Route   1      0          0
  -> 192.168.100.103:http         Route   1      0          0
  -> 192.168.100.104:http         Route   1      0          0
TCP  192.168.100.100:https sh
  -> 192.168.100.101:https        Route   1      0          0
  -> 192.168.100.102:https        Route   1      0          0
  -> 192.168.100.103:https        Route   1      0          0
  -> 192.168.100.104:https        Route   1      0          0

７．OS再起動 -> ipvsadmテーブルの状態

# ipvsadm -L
IP Virtual Server version 1.2.1 (size=4096)
Prot LocalAddress:Port Scheduler Flags
  -> RemoteAddress:Port           Forward Weight ActiveConn InActConn

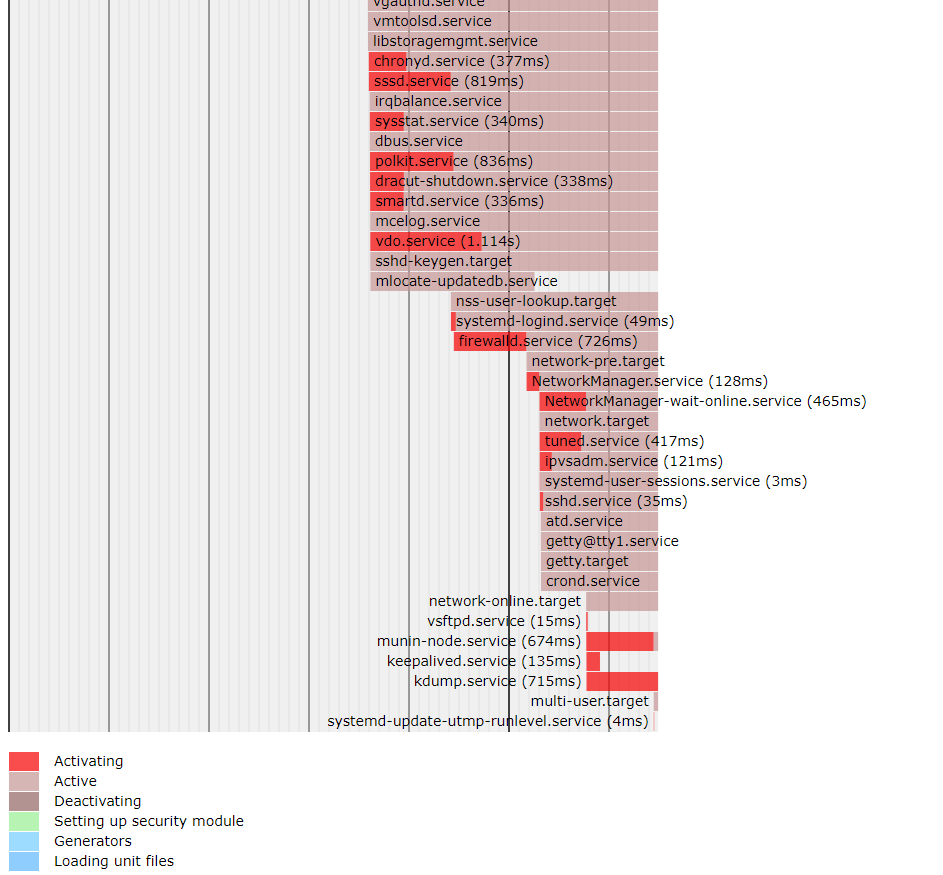

８．サービスの起動順序

サービスの起動順序を変更する方法もあるようですが、原因を特定出来ない状態です。
ご教授頂けますと助かります。
