Dronecode - PX4環境構築

Last updated at Posted at 2020-07-04

ドローンの自律飛行を実現するには、DronecodeとMAVSDKを試してみます。

目次

  1. PX4環境構築
  2. uORB Messaging
  3. QGroundControlの使い方(ユーザーガイド)
  4. MAVLinkの入門
  5. QGroundControlのカスタマイズ開発

動作環境

  • Ubuntu 18.04
  • ROS Melodic

PX4環境構築

ユーザ権限の設定、dialoutグループに追加

$ sudo usermod -a -G dialout $USER

ユーザ権限反映には、Logout and Loginしてください

Gazebo, JMAVSim and NuttX (Pixhawk) Targets

  1. Download ubuntu.sh and requirements.txt from the PX4
  2. Run the ubuntu.sh to install
wget https://raw.githubusercontent.com/PX4/Firmware/v1.10.0/Tools/setup/ubuntu.sh
wget https://raw.githubusercontent.com/PX4/Firmware/v1.10.0/Tools/setup/requirements.txt
source ubuntu.sh

ROS/Gazebo

  1. Download ubuntu_sim_ros_melodic.sh
  2. Run the ubuntu_sim_ros_melodic.sh to install

install ROS/Gazebo ("Melodic") for use with PX4

$ wget https://raw.githubusercontent.com/PX4/Devguide/v1.9.0/build_scripts/ubuntu_sim_ros_melodic.sh

$ source ubuntu_sim_ros_melodic.sh

Downloading PX4 Source Code

$ git clone https://github.com/PX4/Firmware.git

First Build (Using the jMAVSim Simulator)

use java 8

$ sudo apt install openjdk-8-jdk
$ sudo update-alternatives --config java # choose java-8

PX4 Make Build Targets

make [VENDOR_][MODEL][_VARIANT] [VIEWER_MODEL_DEBUGGER]
VENDOR: The manufacturer of the board: px4(Pixhawk), intel, parrot, etc.
MODEL: The board model : sitl, fmu-v2, etc.
VARIANT: Indicates particular configurations: rtps, lpe, default, and may be omitted.

VIEWER: This is the simulator : gazebo, jmavsim
MODEL: The vehicle model : iris (default), rover, etc.
DEBUGGER: Debugger to use: none (default), ide, gdb, lldb, ddd, valgrind, callgrind

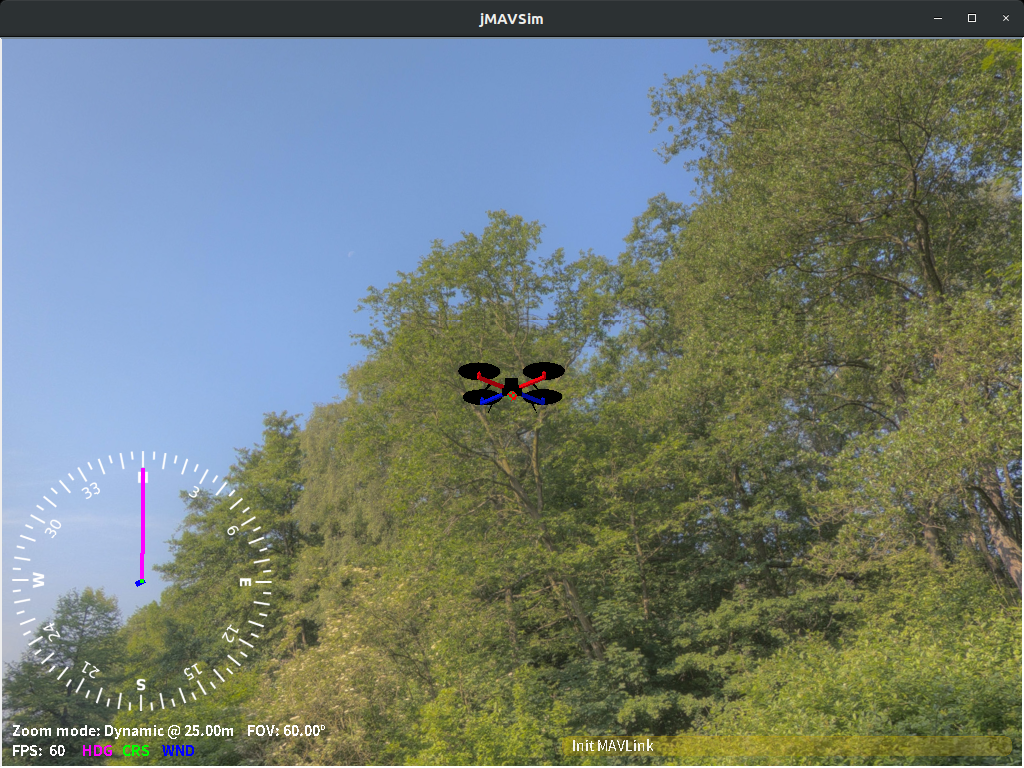

Use jMAVSim Simulation

$ cd Firmware
$ make px4_sitl jmavsim

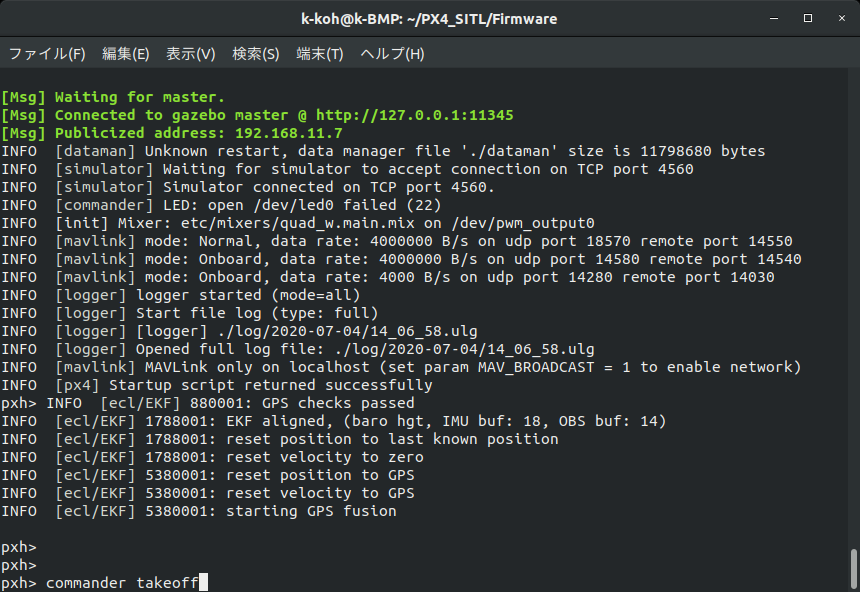

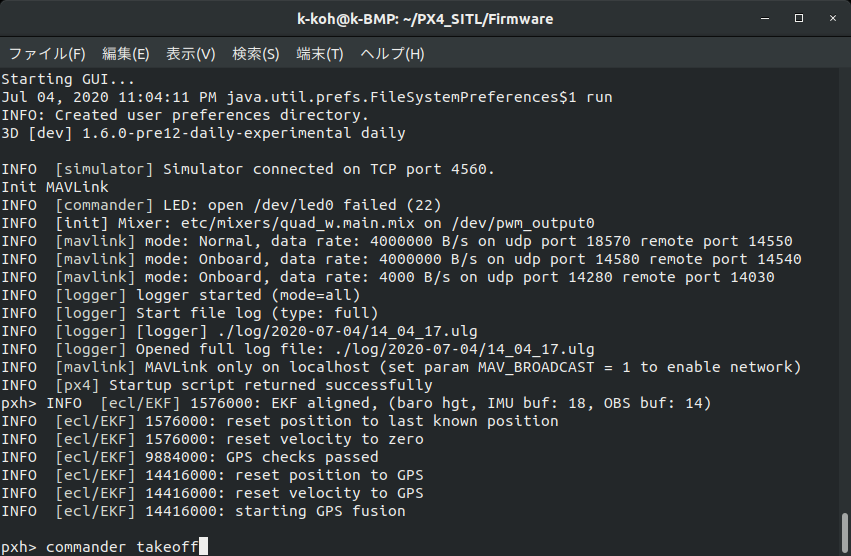

pxh> commander takeoff

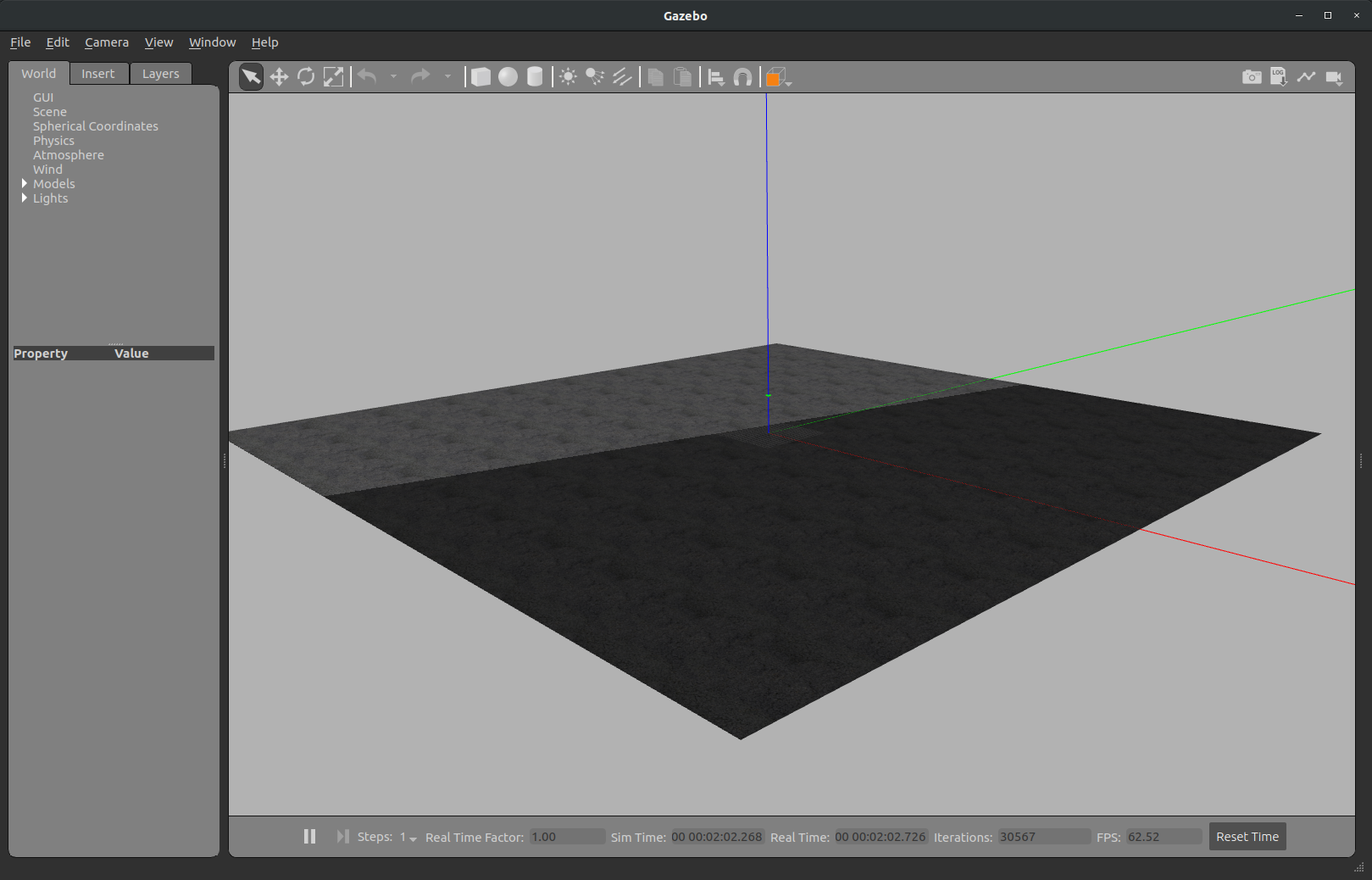

Use Gazebo Simulation

$ make px4_sitl gazebo
pxh> commander takeoff



Fast RTPS のインストール

eProsima Fast RTPSとは、RTPS (Real Time Publish Subscribe) protocolです。

Fast RTPS を使ってPX4 uORB topicsのデータを各モジュールの間で共有する。

eProsima Fast RTPSを使用には、Java(Java JDK 8推奨)が必要です。

Installation from Sources

  • foonathan_memory のインストール
$ git clone https://github.com/foonathan/memory.git
$ cd memory
$ git submodule update --init --recursive
$ mkdir build && cd build
$ cmake -DCMAKE_CXX_FLAGS=-fPIC ..
$ cmake --build . --target install
  • Fast-RTPS のインストール
$ git clone -b master https://github.com/eProsima/Fast-RTPS
$ mkdir Fast-RTPS/build && cd Fast-RTPS/build
$ sudo apt-get install gradle
$ cmake -DBUILD_JAVA=ON -DCOMPILE_EXAMPLES=ON -DPERFORMANCE_TESTS=ON -DTHIRDPARTY=ON -DCMAKE_PREFIX_PATH=/usr/local/lib/ ..
$ make
$ sudo make install

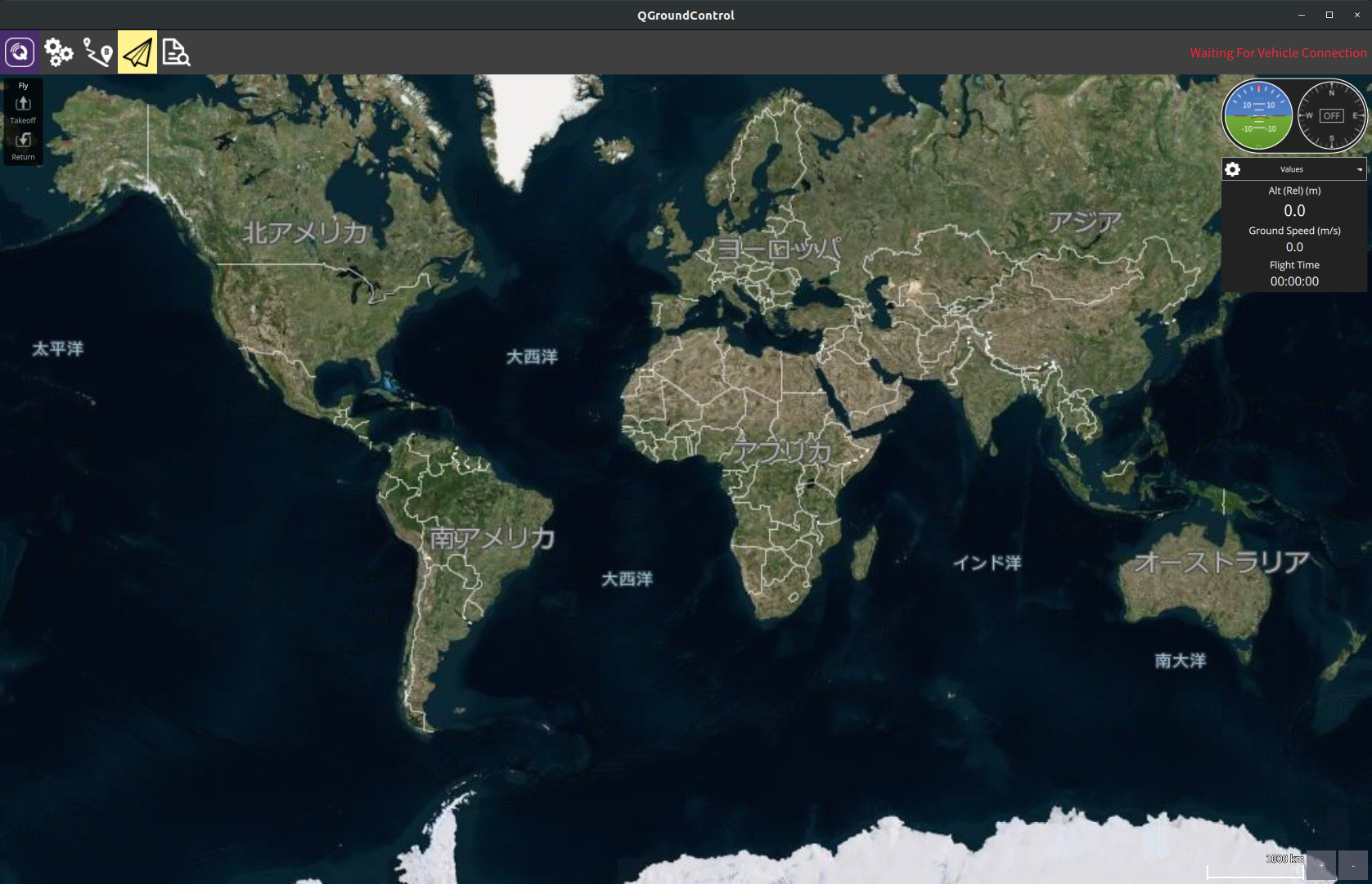

QGroundControl のインストール

sudo usermod -a -G dialout $USER
sudo apt-get remove modemmanager -y
sudo apt-get install gstreamer1.0-plugins-bad gstreamer1.0-libav gstreamer1.0-gl -y
  1. Download QGroundControl.AppImage.
  2. Install (and run) using the terminal commands:
chmod +x ./QGroundControl.AppImage
./QGroundControl.AppImage  (or double click)


Next: uORB Messaging
