第6章 データストア設計・IAM設計(DynamoDB/S3/IAM)
本章はDynamoDB/S3/IAMの構築です。

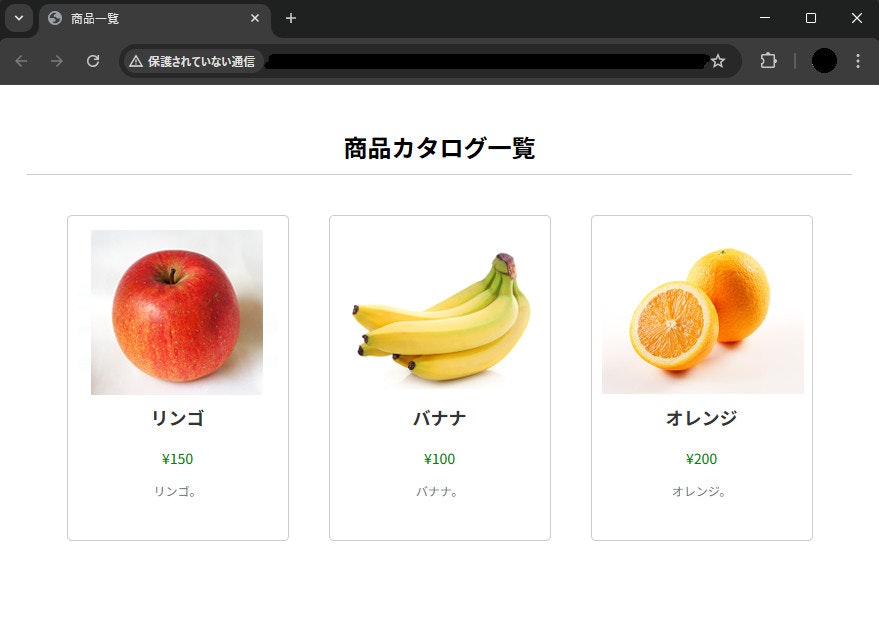

この章で作成していたwebページが完成します。
①構成の説明
②S3(静的Webサイトホスティング)/フロントエンド
③VPC関連
④Docker/バックエンド
⑤ECS + ALB
⑥DynamoDB・S3連携
⑦CI/CD(アプリケーション)
⑧CI/CD(インフラ)
目次
1. 構成の説明
何をしたいか
ECS(Fargate)上で動作するアプリケーションから、
- 構造化データ を DynamoDB に保存・参照
- ファイルデータ を S3 に保存・取得

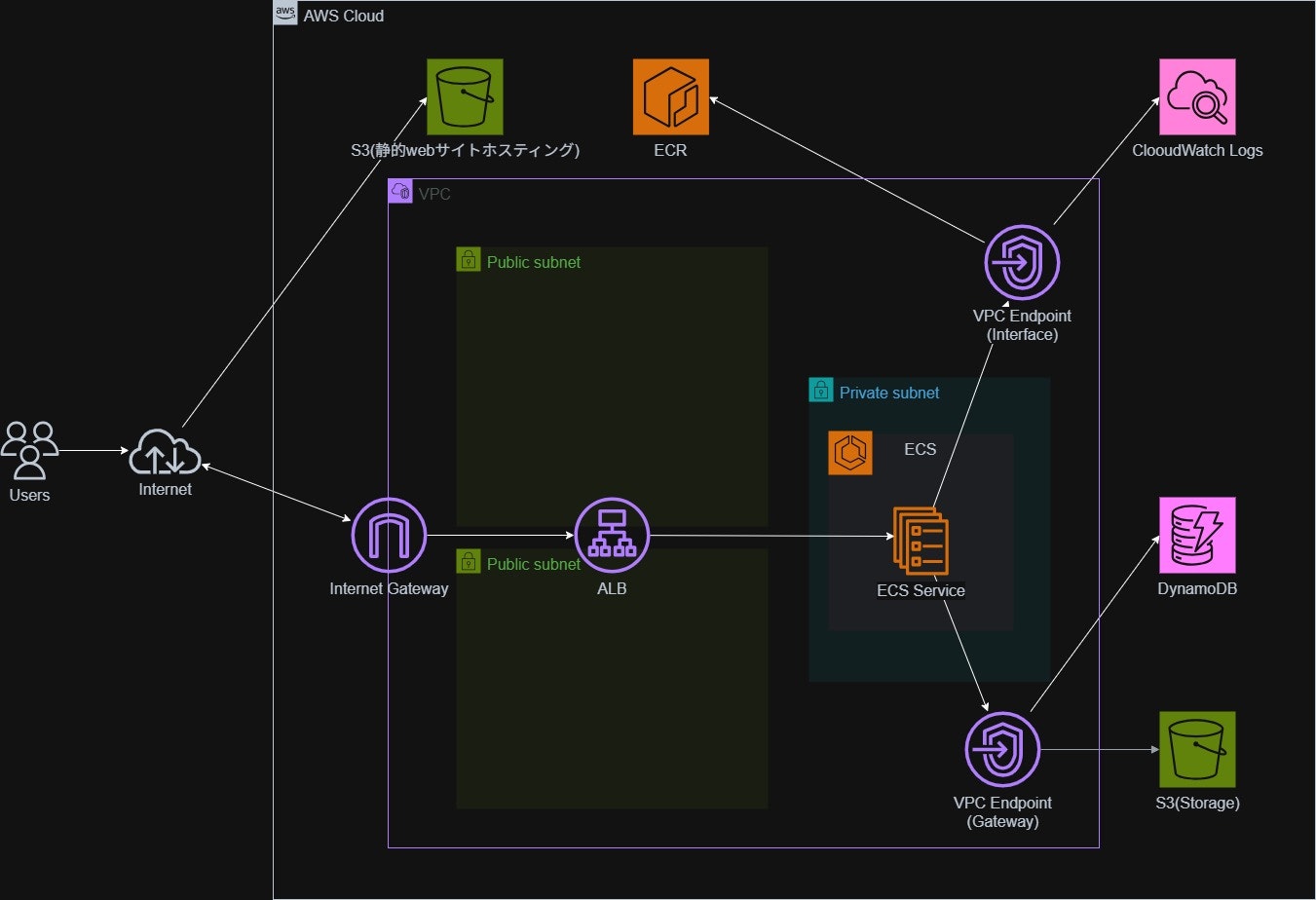

どんな構成か・何ができるか
- ECS タスクは IAM ロール(タスクロール) を通じて DynamoDB / S3 にアクセス
- 認証情報(アクセスキー等)をアプリケーションに持たせない
構成上のポイントは以下の通り。
- IAM ロールベース認可 によるセキュアなアクセス制御
- 永続データはすべてマネージドサービスで管理
2. 作成方法
前提条件
以下がローカル環境にインストールされていることを前提とする。
- Terraform
構築順序
- DynamoDB テーブルの作成
- S3 バケットの作成
- DynamoDB / S3 へのアクセス用 IAM ポリシーの作成
- ECS タスクロールの作成
- タスクロールへのポリシーアタッチ
- S3に画像ファイルをアップロード, DynamoDBにデータ保存
6.について補足
S3に下記構成でフォルダをアップロード
※画像はご用意ください。
images/
├── apple.jpg
├── banana.jpg
└── orange.jpg
DynamoDBに下記データを追加
{
"id": {
"S": "1"
},
"price": {
"S": "100"
},
"title": {
"S": "バナナ"
},
"description": {
"S": "バナナ。"
},
"image_key": {
"S": "images/banana.jpg"
}
}
{
"id": {
"S": "2"
},
"title": {
"S": "リンゴ"
},
"price": {
"N": "150"
},
"description": {
"S": "リンゴ。"
},
"image_key": {
"S": "images/apple.jpg"
}
}
{
"id": {
"S": "3"
},
"title": {
"S": "オレンジ"
},
"price": {
"N": "200"
},
"description": {
"S": "オレンジ。"
},
"image_key": {
"S": "images/orange.jpg"
}
}
主要な設定内容と注意点
DynamoDB
- 課金モード:オンデマンド
S3
- バージョニング:無効(学習用途のため)
- サーバーサイド暗号化:有効(AES256)
-
force_destroy = trueを設定(学習用途のため)
※本番用途では force_destroy は非推奨
IAM
| 分類 | リソース名 | 許可アクション | 権限の対象(Resource) | 役割・用途 |
|---|---|---|---|---|
| ポリシー | s3_access_policy |
ListBucket, GetObject, PutObject, DeleteObject | S3バケット本体および配下のオブジェクト | S3の読み書き・一覧表示 |
| ポリシー | dynamodb_access_policy |
Scan, GetItem, Query, DescribeTable | 指定したDynamoDBテーブル | DynamoDBのデータ読み取り |
| ロール | ecs_task_execution_role |
ECRからのイメージ取得、CloudWatch Logsへの出力など | AWS管理ポリシーにより定義 | ECS自体がコンテナを起動するために使う権限 |
| ロール | ecs_task_role |
上記2つのS3/DynamoDB操作 | S3バケット・DynamoDBテーブル | コンテナ内のアプリがAWSリソースを操作するための権限 |
- ECS タスクロールを使用
- 最小権限の原則に従い、操作を限定
3. Terraform構成
フォルダ構成(例)
terraform/
├── modules/
│ ├── dynamodb/
│ ├── s3/
│ └── iam/
├── backend.tf
├── provider.tf
├── main.tf
├── variables.tf
└── outputs.tf
6.コード全体にterraform配下のコードも掲載しています。
実際に構築される方は参考にしてください。
※terraform配下のコードについての説明は省略します。
コードの解説
DynamoDB
aws_dynamodb_table
resource "aws_dynamodb_table" "app_table" {
name = var.table_name
billing_mode = var.billing_mode # オンデマンドモードを指定
hash_key = var.hash_key # パーティションキー
range_key = var.range_key # ソートキー
# --- 略 ---
}
- 常時アクセスがあるわけではないのでオンデマンドモードを選択し、コスト最適化
パーティションキー (Hash Key)
役割: データをどの物理的なサーバー(パーティション)に保存するかを決めるための鍵。
ソートキー (Range Key)
役割: 同じパーティションキーの中で、データを並べ替えるための鍵。
dynamic "attribute"
dynamic "attribute" {
for_each = var.attributes
content {
name = attribute.value.name
type = attribute.value.type
}
}
変数(リストやマップ)の中身に合わせて、attribute ブロックを自動的に量産する。
テーブルによってキーの数や名前が変わるため、dynamic ブロックを使用して汎用性を持たせている。
具体的な値は varialbles.tfでリスト形式で渡している。
dynamic "global_secondary_index"
dynamic "global_secondary_index" {
for_each = var.global_secondary_indexes
content {
name = global_secondary_index.value.name
hash_key = global_secondary_index.value.hash_key
range_key = global_secondary_index.value.range_key
projection_type = global_secondary_index.value.projection_type
}
}
本構成では使用しないが、将来的に別のテーブルでGSIを使えるように記述。
GSI
本来のパーティションキー(ユーザーIDなど)以外の項目を使って、特定の項目をキーとして機能させて高速に検索するための仕組み。
point_in_time_recovery
point_in_time_recovery {
enabled = var.point_in_time_recovery
}
過去35日間の任意の時点にデータを復元できる**機能の有効化設定
server_side_encryption
server_side_encryption {
enabled = var.server_side_encryption
}
サーバー側の暗号化を設定
S3
resource "aws_s3_bucket" "storage_bucket" {
bucket = var.storage_bucket_name
force_destroy = true
}
学習用途で頻繁に作成・削除を行うため、force_destroyを有効化
※実運用では非推奨
resource "aws_s3_bucket_server_side_encryption_configuration" "storage_bucket_sse" {
bucket = aws_s3_bucket.storage_bucket.id
rule {
apply_server_side_encryption_by_default {
sse_algorithm = "AES256"
}
}
}
暗号化設定を明示的に定義
IAM
S3アクセス用ポリシー
resource "aws_iam_policy" "s3_access_policy" {
name = var.s3_access_policy_name
description = "IAM policy for S3 access"
policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Effect = "Allow",
Action = ["s3:ListBucket"],
Resource = var.storage_s3_arn
},
{
Effect = "Allow",
Action = ["s3:GetObject", "s3:PutObject", "s3:DeleteObject"],
Resource = "${var.storage_s3_arn}/*"
}
]
})
}
S3のIAMポリシーで、バケット名のみの指定(arn:aws:s3:::bucket-name)と、末尾にスラッシュとワイルドカードを付けた指定(arn:aws:s3:::bucket-name/*)を使い分けている理由は、「操作の対象が、箱(バケット)なのか、中身(オブジェクト)なのか」という違いがあるからです。
| アクション | 対象 (Resource) | 権限の種類 | 内容 |
|---|---|---|---|
s3:ListBucket |
バケット自体 | バケット単位 | バケット内のファイル一覧(リスト)を取得する。 |
s3:GetObject |
バケットの中身 (/*) |
オブジェクト単位 | ファイルを読み取る(ダウンロードする)。 |
s3:PutObject |
バケットの中身 (/*) |
オブジェクト単位 | ファイルを保存・更新(アップロード)する。 |
s3:DeleteObject |
バケットの中身 (/*) |
オブジェクト単位 | ファイルを削除する。 |
DynamoDBアクセス用ポリシー
resource "aws_iam_policy" "dynamodb_access_policy" {
name = var.dynamodb_access_policy_name
description = "IAM policy for DynamoDB access"
policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Effect = "Allow",
Action = [
"dynamodb:Scan",
"dynamodb:GetItem",
"dynamodb:Query",
"dynamodb:DescribeTable"
],
Resource = var.dynamodb_table_arn
}
]
})
}
| アクション | 意味 | 内容 |
|---|---|---|
dynamodb:GetItem |
1件取得 | パーティションキーを指定して、特定の1件のデータを直接取得。 |
dynamodb:Query |
条件検索 | キーを使って、特定の範囲のデータを効率的に検索。 |
dynamodb:Scan |
全件取得 | テーブルにあるすべてのデータを端から順に読み出す。 |
dynamodb:DescribeTable |
設定確認 | テーブルのステータス(起動中かなど)や項目数、サイズなどの情報を取得。 |
ECSタスクロール
resource "aws_iam_role" "ecs_task_role" {
name = var.ecs_task_role_name
assume_role_policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Action = "sts:AssumeRole",
Effect = "Allow",
Principal = {
Service = "ecs-tasks.amazonaws.com"
}
}
]
})
}
resource "aws_iam_role_policy_attachment" "ecs_task_role_dynamodb_access" {
role = aws_iam_role.ecs_task_role.name
policy_arn = aws_iam_policy.dynamodb_access_policy.arn
}
resource "aws_iam_role_policy_attachment" "ecs_task_role_s3_access" {
role = aws_iam_role.ecs_task_role.name
policy_arn = aws_iam_policy.s3_access_policy.arn
}
ECSタスクロールを作成し、S3,DynamoDBアクセス用ポリシーをアタッチ。
ECSタスク実行ロール
resource "aws_iam_role" "ecs_task_execution_role" {
name = var.ecs_task_execution_role_name
assume_role_policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Action = "sts:AssumeRole",
Effect = "Allow",
Principal = {
Service = "ecs-tasks.amazonaws.com"
}
}
]
})
}
resource "aws_iam_role_policy_attachment" "ecs_task_execution_role_policy" {
role = aws_iam_role.ecs_task_execution_role.name
policy_arn = "arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy"
}
ECSタスク実行ロールを作成し、AWS管理のECS実行ロールポリシーをアタッチ。
4. 振り返り
改善できる点
- DynamoDB のアクセス権限がやや広い
- S3 のバージョニング・ライフサイクル未設定
次にやりたいこと
次章では、
CI/CDパイプラインを実装し、Github Actions経由で自動テスト・自動デプロイ 可能にします。
- ①構成の説明
- ②S3(静的Webサイトホスティング)/フロントエンド
- ③VPC関連
- ④Docker/バックエンド
- ⑤ECS + ALB
- ⑥DynamoDB・S3連携
- ⑦CI/CD(アプリケーション)
- ⑧CI/CD(インフラ)
5. 参照
6. コード全体
- terraform/provider.tf
- terraform/backend.tf
- terraform/variables.tf
- terraform/main.tf
- terraform/modules/dynamodb/variables.tf
- terraform/modules/dynamodb/main.tf
- terraform/modules/s3/variables.tf
- terraform/modules/s3/main.tf
- terraform/modules/iam/variables.tf
- terraform/modules/iam/main.tf
terraform/provider.tf
provider "aws" {
region = var.aws_region
}
terraform {
required_version = ">= 1.10.0, < 2.0.0"
}
terraform/backend.tf
terraform {
backend "s3" {
key = "dev/terraform.tfstate"
region = "ap-northeast-1"
encrypt = true
}
}
terraform/variables.tf
variable "aws_region" {
description = "AWS region"
type = string
default = "ap-northeast-1"
}
variable "aws_account_id" {
description = "AWS Account ID"
type = string
default = "123456789012" # サンプル値に変更
}
variable "environment" {
description = "Environment (e.g. dev, stg, prod)"
type = string
default = "dev"
}
variable "vpc_cidr" {
description = "CIDR block for VPC"
type = string
default = "10.0.0.0/16"
}
variable "public_subnets" {
description = "Public subnets map"
type = map(object({
cidr = string
az = string
}))
default = {
"public-subnet-1a" = { cidr = "10.0.1.0/24", az = "ap-northeast-1a" },
"public-subnet-1c" = { cidr = "10.0.2.0/24", az = "ap-northeast-1c" },
}
}
variable "private_subnets" {
description = "Private subnets map"
type = map(object({
cidr = string
az = string
}))
default = {
"private-subnet-1a" = { cidr = "10.0.3.0/24", az = "ap-northeast-1a" },
"private-subnet-1c" = { cidr = "10.0.4.0/24", az = "ap-northeast-1c" },
}
}
variable "alb_ingress_source_ip" {
description = "Allowed source IP for ALB ingress"
type = string
default = "0.0.0.0/0" # サンプルとして広範囲なIPに変更
}
variable "s3_web_bucket_access_ip" {
description = "IP CIDR allowed to access web S3 bucket"
type = string
default = "0.0.0.0/0" # サンプルとして広範囲なIPに変更
}
variable "web_bucket_name" {
description = "Web S3 bucket name"
type = string
default = "your-web-s3-bucket-name-example" # サンプル値に変更
}
variable "storage_bucket_name" {
description = "Storage S3 bucket name"
type = string
default = "your-storage-s3-bucket-name-example" # サンプル値に変更
}
variable "api_ecr_image_tag" {
description = "ECR repository image_tag"
type = string
default = "latest" # サンプル値に変更
}
terraform/main.tf
module "vpc" {
source = "./modules/vpc"
region = var.aws_region
vpc_name = "${var.environment}-net-vpc-01"
vpc_cidr = var.vpc_cidr
enable_dns_support = true
enable_dns_hostnames = true
igw_name = "${var.environment}-net-igw-01"
s3_gateway_endpoint_name = "${var.environment}-net-s3-gateway-01"
public_route_table_name = "${var.environment}-net-public-route-table-01"
private_route_table_name = "${var.environment}-net-private-route-table-01"
environment = var.environment
public_subnets = var.public_subnets
private_subnets = var.private_subnets
}
module "vpc_endpoint" {
source = "./modules/vpc_endpoint"
region = var.aws_region
vpce_sg_id = module.sg.vpce_sg_id
vpc_id = module.vpc.vpc_id
private_subnet_ids = module.vpc.private_subnet_ids
}
module "sg" {
source = "./modules/sg"
vpc_id = module.vpc.vpc_id
alb_sg_name = "${var.environment}-net-sg-alb-01"
alb_ingress_cidr = var.alb_ingress_source_ip
ecs_sg_name = "${var.environment}-net-sg-ecs-01"
environment = var.environment
vpc_cidr = var.vpc_cidr
}
module "s3" {
source = "./modules/s3"
web_bucket_name = var.web_bucket_name
storage_bucket_name = var.storage_bucket_name
web_bucket_access_ip_cidr = var.s3_web_bucket_access_ip
environment = var.environment
}
module "iam" {
source = "./modules/iam"
aws_region = var.aws_region
aws_account_id = var.aws_account_id
s3_access_policy_name = "${var.environment}-sec-iam-policy-s3-access"
dynamodb_access_policy_name = "${var.environment}-sec-iam-policy-dynamodb-access"
web_s3_arn = module.s3.web_bucket_arn
storage_s3_arn = module.s3.storage_bucket_arn
dynamodb_table_arn = module.dynamodb.table_arn
ecs_task_execution_role_name = "${var.environment}-sec-iam-role-ecs-task-exe-01"
ecs_task_role_name = "${var.environment}-sec-iam-role-ecs-task-01"
environment = var.environment
}
module "dynamodb" {
source = "./modules/dynamodb"
table_name = "${var.environment}-app-data-table"
hash_key = "id"
billing_mode = "PAY_PER_REQUEST"
attributes = [
{
name = "id"
type = "S"
}
]
point_in_time_recovery = true
server_side_encryption = true
environment = var.environment
}
module "alb" {
source = "./modules/alb"
vpc_id = module.vpc.vpc_id
public_subnet_ids = module.vpc.public_subnet_ids
alb_name = "${var.environment}-api-alb-01"
alb_security_group_id = module.sg.alb_sg_id
listener_port = 80
listener_protocol = "HTTP"
target_group_name = "${var.environment}-api-alb-tg-01"
target_group_port = 3000
target_group_protocol = "HTTP"
health_check_path = "/"
environment = var.environment
}
module "ecs" {
source = "./modules/ecs"
region = var.aws_region
ecs_cluster_name = "${var.environment}-api-ecs-cluster-01"
task_definition_family = "${var.environment}-api-ecs-task-01"
task_cpu = 512
task_memory = 1024
ecs_task_execution_role_arn = module.iam.ecs_task_execution_role_arn
ecs_task_role_arn = module.iam.ecs_task_role_arn
container_name = "${var.environment}-api-ecs-task-container-01"
ecr_repository_url = module.ecr.ecr_repository_url
container_image_tag = var.api_ecr_image_tag
container_port = 3000
ecs_service_name = "${var.environment}-api-ecs-service-01"
desired_task_count = 1
private_subnet_ids = module.vpc.private_subnet_ids
ecs_security_group_id = module.sg.ecs_sg_id
alb_target_group_arn = module.alb.target_group_arn
dynamodb_table_name = module.dynamodb.table_name
s3_storage_bucket_name = module.s3.storage_bucket_name
environment = var.environment
ecr_repository_name = module.ecr.api_ecr_repository_name
}
module "ecr" {
source = "./modules/ecr"
ecr_name = "${var.environment}-api-ecr-01"
}
terraform/modules/dynamodb/variables.tf
variable "table_name" {
description = "Name of the DynamoDB table"
type = string
}
variable "billing_mode" {
description = "Controls how you are charged for read and write throughput"
type = string
default = "PAY_PER_REQUEST"
}
variable "hash_key" {
description = "The attribute to use as the hash (partition) key"
type = string
}
variable "range_key" {
description = "The attribute to use as the range (sort) key"
type = string
default = null
}
variable "attributes" {
description = "List of nested attribute definitions"
type = list(object({
name = string
type = string
}))
default = []
}
variable "global_secondary_indexes" {
description = "Describe a GSI for the table"
type = list(object({
name = string
hash_key = string
range_key = string
projection_type = string
}))
default = []
}
variable "point_in_time_recovery" {
description = "Whether to enable point-in-time recovery"
type = bool
default = true
}
variable "server_side_encryption" {
description = "Whether to enable server-side encryption"
type = bool
default = true
}
variable "environment" {
description = "Environment name"
type = string
}
terraform/modules/dynamodb/main.tf
resource "aws_dynamodb_table" "app_table" {
name = var.table_name
billing_mode = var.billing_mode
hash_key = var.hash_key
range_key = var.range_key
dynamic "attribute" {
for_each = var.attributes
content {
name = attribute.value.name
type = attribute.value.type
}
}
dynamic "global_secondary_index" {
for_each = var.global_secondary_indexes
content {
name = global_secondary_index.value.name
hash_key = global_secondary_index.value.hash_key
range_key = global_secondary_index.value.range_key
projection_type = global_secondary_index.value.projection_type
}
}
point_in_time_recovery {
enabled = var.point_in_time_recovery
}
server_side_encryption {
enabled = var.server_side_encryption
}
tags = {
Environment = var.environment
Name = var.table_name
}
}
terraform/modules/s3/variables.tf
variable "storage_bucket_name" {
description = "Name of the S3 bucket for storage"
type = string
}
variable "environment" {
description = "Environment tag"
type = string
}
terraform/modules/s3/main.tf
resource "aws_s3_bucket" "storage_bucket" {
bucket = var.storage_bucket_name
force_destroy = true
tags = {
Name = var.storage_bucket_name
Environment = var.environment
}
}
resource "aws_s3_bucket_versioning" "storage_bucket_versioning" {
bucket = aws_s3_bucket.storage_bucket.id
versioning_configuration {
status = "Suspended" # バージョニング無効化
}
}
resource "aws_s3_bucket_server_side_encryption_configuration" "storage_bucket_sse" {
bucket = aws_s3_bucket.storage_bucket.id
rule {
apply_server_side_encryption_by_default {
sse_algorithm = "AES256"
}
}
}
terraform/modules/iam/variables.tf
variable "aws_account_id" {
description = "AWS Account ID"
type = string
}
variable "aws_region" {
description = "AWS region"
type = string
}
variable "s3_access_policy_name" {
description = "Name of the S3 access IAM policy"
type = string
}
variable "dynamodb_access_policy_name" {
description = "Name of the DynamoDB access IAM policy"
type = string
}
variable "web_s3_arn" {
description = "ARN of the S3 web bucket"
type = string
}
variable "storage_s3_arn" {
description = "ARN of the S3 storage bucket"
type = string
}
variable "ecs_task_execution_role_name" {
description = "Name of the ECS task execution role"
type = string
}
variable "ecs_task_role_name" {
description = "Name of the ECS task role"
type = string
}
variable "environment" {
description = "Environment tag"
type = string
}
variable "dynamodb_table_arn" {
description = "ARN of the DynamoDB table"
type = string
}
terraform/modules/iam/main.tf
# ECSタスクロールにアタッチするS3アクセス用のIAMポリシーの作成
resource "aws_iam_policy" "s3_access_policy" {
name = var.s3_access_policy_name
description = "IAM policy for S3 access"
policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Effect = "Allow",
Action = ["s3:ListBucket"],
Resource = var.storage_s3_arn
},
{
Effect = "Allow",
Action = ["s3:GetObject", "s3:PutObject", "s3:DeleteObject"],
Resource = "${var.storage_s3_arn}/*"
}
]
})
tags = {
Name = var.s3_access_policy_name
Environment = var.environment
}
}
# ECSタスクロールにアタッチするDynamoDBアクセス用のIAMポリシーの作成
resource "aws_iam_policy" "dynamodb_access_policy" {
name = var.dynamodb_access_policy_name
description = "IAM policy for DynamoDB access"
policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Effect = "Allow",
Action = [
"dynamodb:Scan",
"dynamodb:GetItem",
"dynamodb:Query",
"dynamodb:DescribeTable"
],
Resource = var.dynamodb_table_arn
}
]
})
tags = {
Name = var.dynamodb_access_policy_name
Environment = var.environment
}
}
resource "aws_iam_role" "ecs_task_execution_role" {
name = var.ecs_task_execution_role_name
assume_role_policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Action = "sts:AssumeRole",
Effect = "Allow",
Principal = {
Service = "ecs-tasks.amazonaws.com"
}
}
]
})
tags = {
Name = var.ecs_task_execution_role_name
Environment = var.environment
}
}
resource "aws_iam_role_policy_attachment" "ecs_task_execution_role_policy" {
role = aws_iam_role.ecs_task_execution_role.name
policy_arn = "arn:aws:iam::aws:policy/service-role/AmazonECSTaskExecutionRolePolicy"
}
# ECSタスクロールの作成
resource "aws_iam_role" "ecs_task_role" {
name = var.ecs_task_role_name
assume_role_policy = jsonencode({
Version = "2012-10-17",
Statement = [
{
Action = "sts:AssumeRole",
Effect = "Allow",
Principal = {
Service = "ecs-tasks.amazonaws.com"
}
}
]
})
tags = {
Name = var.ecs_task_role_name
Environment = var.environment
}
}
# DynamoDBアクセス用のポリシーのアタッチメント
resource "aws_iam_role_policy_attachment" "ecs_task_role_dynamodb_access" {
role = aws_iam_role.ecs_task_role.name
policy_arn = aws_iam_policy.dynamodb_access_policy.arn
}
# S3アクセス用のポリシーのアタッチメント
resource "aws_iam_role_policy_attachment" "ecs_task_role_s3_access" {
role = aws_iam_role.ecs_task_role.name
policy_arn = aws_iam_policy.s3_access_policy.arn
}
