ros2をarm環境で動かす

Last updated at Posted at 2025-11-07

目的

arm環境でros2を動作させる

※ちなみにOperating System とありますが、OSではなくてただのミドルウェアです

環境

  • fedora 42
  • QEMU 9.2.3

手順

ダウンロード

git clone -b kirkstone --depth=1 git://git.yoctoproject.org/poky
cd poky
git clone -b kirkstone --depth=1 https://github.com/ros/meta-ros.git
git clone -b kirkstone --depth=1 https://github.com/openembedded/meta-openembedded.git

つまりこんな感じ

[working directory]
 └─ poky
     ├─ meta
     ├─ meta-poky
     ├─ meta-ros
     ├─ meta-openembedded
     ├─ ...
    ...

パッチを当てる

fedora42はgcc15が入っているので殆ど15対応
ubuntuやredhatなどだともっと少なくてすむと思う

差分
diff --git a/meta/recipes-core/gettext/gettext_0.21.bb b/meta/recipes-core/gettext/gettext_0.21.bb
index 364e6a5..30da759 100644
--- a/meta/recipes-core/gettext/gettext_0.21.bb
+++ b/meta/recipes-core/gettext/gettext_0.21.bb
@@ -48,6 +48,7 @@ EXTRA_OECONF += "--without-lispdir \
                  --without-cvs \
                  --without-git \
                  --cache-file=${B}/config.cache \
+                 CFLAGS=-std=gnu11 \
                 "
 EXTRA_OECONF:append:class-target = " \
                  --with-bisonlocaledir=${datadir}/locale \
diff --git a/meta/recipes-core/ncurses/files/0005-cpp.patch b/meta/recipes-core/ncurses/files/0005-cpp.patch
new file mode 100644
index 0000000..e84888d
--- /dev/null
+++ b/meta/recipes-core/ncurses/files/0005-cpp.patch
@@ -0,0 +1,17 @@
+diff --git a/include/curses.h.in b/include/curses.h.in
+index 6acf2d03..ec7e2da5 100644
+--- a/include/curses.h.in
++++ b/include/curses.h.in
+@@ -284,9 +284,12 @@ typedef @cf_cv_type_of_bool@ NCURSES_BOOL;
+ #define NCURSES_BOOL bool
+ #else
+ /* there is no predefined bool - use our own */
++#ifdef __cplusplus
++#else
+ #undef bool
+ #define bool NCURSES_BOOL
+ #endif
++#endif
+
+ #endif /* !__cplusplus, etc. */
+
diff --git a/meta/recipes-core/ncurses/ncurses_6.3+20220423.bb b/meta/recipes-core/ncurses/ncurses_6.3+20220423.bb
index 68a845f..ac14ef0 100644
--- a/meta/recipes-core/ncurses/ncurses_6.3+20220423.bb
+++ b/meta/recipes-core/ncurses/ncurses_6.3+20220423.bb
@@ -7,6 +7,7 @@ SRC_URI += "file://0001-tic-hang.patch \
            file://CVE-2023-50495.patch \
            file://CVE-2023-45918.patch \
            file://CVE-2025-6141.patch \
+           file://0005-cpp.patch \
            "
 # commit id corresponds to the revision in package version
 SRCREV = "a0bc708bc6954b5d3c0a38d92b683c3ec3135260"
diff --git a/meta/recipes-core/readline/readline.inc b/meta/recipes-core/readline/readline.inc
index 7f2f1a0..f3958b1 100644
--- a/meta/recipes-core/readline/readline.inc
+++ b/meta/recipes-core/readline/readline.inc
@@ -18,7 +18,7 @@ SRC_URI += "file://inputrc"
 inherit autotools texinfo

 EXTRA_AUTORECONF += "--exclude=autoheader"
-EXTRA_OECONF += "bash_cv_termcap_lib=ncurses"
+EXTRA_OECONF += "bash_cv_termcap_lib=ncurses CFLAGS=-std=gnu11"

 LEAD_SONAME = "libreadline.so"

diff --git a/meta/recipes-devtools/createrepo-c/createrepo-c_0.19.0.bb b/meta/recipes-devtools/createrepo-c/createrepo-c_0.19.0.bb
index 8235125..87f1368 100644
--- a/meta/recipes-devtools/createrepo-c/createrepo-c_0.19.0.bb
+++ b/meta/recipes-devtools/createrepo-c/createrepo-c_0.19.0.bb
@@ -21,6 +21,8 @@ EXTRA_OECMAKE = " -DPYTHON_INSTALL_DIR=${PYTHON_SITEPACKAGES_DIR} -DPYTHON_DESIR

 BBCLASSEXTEND = "native nativesdk"

+CFLAGS:append = " -Wno-error=incompatible-pointer-types "
+
 # Direct createrepo to read rpm configuration from our sysroot, not the one it was compiled in
 do_install:append:class-native() {
         create_wrapper ${D}/${bindir}/createrepo_c \
diff --git a/meta/recipes-devtools/e2fsprogs/e2fsprogs_1.46.5.bb b/meta/recipes-devtools/e2fsprogs/e2fsprogs_1.46.5.bb
index 68c620c..e7690d9 100644
--- a/meta/recipes-devtools/e2fsprogs/e2fsprogs_1.46.5.bb
+++ b/meta/recipes-devtools/e2fsprogs/e2fsprogs_1.46.5.bb
@@ -17,7 +17,8 @@ UPSTREAM_CHECK_GITTAGREGEX = "v(?P<pver>\d+\.\d+(\.\d+)*)$"
 EXTRA_OECONF += "--libdir=${base_libdir} --sbindir=${base_sbindir} \
                 --enable-elf-shlibs --disable-libuuid --disable-uuidd \
                 --disable-libblkid --enable-verbose-makecmds \
-                --with-crond-dir=no"
+                --with-crond-dir=no \
+                CFLAGS=-std=gnu11 "

 EXTRA_OECONF:darwin = "--libdir=${base_libdir} --sbindir=${base_sbindir} --enable-bsd-shlibs"

diff --git a/meta/recipes-devtools/elfutils/elfutils_0.186.bb b/meta/recipes-devtools/elfutils/elfutils_0.186.bb
index b945766..a945374 100644
--- a/meta/recipes-devtools/elfutils/elfutils_0.186.bb
+++ b/meta/recipes-devtools/elfutils/elfutils_0.186.bb
@@ -25,6 +25,7 @@ SRC_URI = "https://sourceware.org/elfutils/ftp/${PV}/${BP}.tar.bz2 \
            file://0001-debuginfod-debuginfod-client.c-use-long-for-cache-ti.patch \
            file://CVE-2025-1352.patch \
            file://CVE-2025-1372.patch \
+           file://0010-arraysize.patch \
            "
 SRC_URI:append:libc-musl = " \
            file://0003-musl-utils.patch \
diff --git a/meta/recipes-devtools/elfutils/files/0010-arraysize.patch b/meta/recipes-devtools/elfutils/files/0010-arraysize.patch
new file mode 100644
index 0000000..6d67a68
--- /dev/null
+++ b/meta/recipes-devtools/elfutils/files/0010-arraysize.patch
@@ -0,0 +1,26 @@
+diff --git a/backends/i386_regs.c b/backends/i386_regs.c
+index 7ec93bb..4bca1b1 100644
+--- a/backends/i386_regs.c
++++ b/backends/i386_regs.c
+@@ -83,7 +83,7 @@ i386_register_info (Ebl *ebl __attribute__ ((unused)),
+
+   switch (regno)
+     {
+-      static const char baseregs[][2] =
++      static const char baseregs[][3] =
+ 	{
+ 	  "ax", "cx", "dx", "bx", "sp", "bp", "si", "di", "ip"
+ 	};
+diff --git a/backends/x86_64_regs.c b/backends/x86_64_regs.c
+index ef987da..b68bcf7 100644
+--- a/backends/x86_64_regs.c
++++ b/backends/x86_64_regs.c
+@@ -80,7 +80,7 @@ x86_64_register_info (Ebl *ebl __attribute__ ((unused)),
+
+   switch (regno)
+     {
+-      static const char baseregs[][2] =
++      static const char baseregs[][4] =
+ 	{
+ 	  "ax", "dx", "cx", "bx", "si", "di", "bp", "sp"
+ 	};
diff --git a/meta/recipes-devtools/libcomps/libcomps_0.1.18.bb b/meta/recipes-devtools/libcomps/libcomps_0.1.18.bb
index dd0a1f8..ce644af 100644
--- a/meta/recipes-devtools/libcomps/libcomps_0.1.18.bb
+++ b/meta/recipes-devtools/libcomps/libcomps_0.1.18.bb
@@ -19,5 +19,7 @@ DEPENDS += "libxml2 expat libcheck"
 EXTRA_OECMAKE = " -DPYTHON_INSTALL_DIR=${PYTHON_SITEPACKAGES_DIR} -DPYTHON_DESIRED=3"
 OECMAKE_SOURCEPATH = "${S}/libcomps"

+CFLAGS:append = " -Wno-error=incompatible-pointer-types "
+
 BBCLASSEXTEND = "native nativesdk"

diff --git a/meta/recipes-devtools/m4/m4-1.4.19.inc b/meta/recipes-devtools/m4/m4-1.4.19.inc
index 2adf4de..f6d6166 100644
--- a/meta/recipes-devtools/m4/m4-1.4.19.inc
+++ b/meta/recipes-devtools/m4/m4-1.4.19.inc
@@ -9,6 +9,7 @@ inherit autotools texinfo ptest gettext
 SRC_URI = "${GNU_MIRROR}/m4/m4-${PV}.tar.gz \
            file://ac_config_links.patch \
            file://0001-sigsegv-Fix-build-on-ppc-musl.patch \
+           file://c11.patch \
            "
 SRC_URI:append:class-target = " file://run-ptest \
                                 file://serial-tests-config.patch \
@@ -25,7 +26,7 @@ LIC_FILES_CHKSUM = "file://COPYING;md5=1ebbd3e34237af26da5dc08a4e440464\
 # Fix "Argument list too long" error when len(TMPDIR) = 410
 acpaths = "-I ./m4"

-EXTRA_OECONF += "--without-libsigsegv-prefix"
+EXTRA_OECONF += "--without-libsigsegv-prefix "

 EXTRA_OEMAKE += "'infodir=${infodir}'"

diff --git a/meta/recipes-devtools/m4/m4/c11.patch b/meta/recipes-devtools/m4/m4/c11.patch
new file mode 100644
index 0000000..4bc58aa
--- /dev/null
+++ b/meta/recipes-devtools/m4/m4/c11.patch
@@ -0,0 +1,33 @@
+diff --git a/configure b/configure
+index f5a428f..5c86afd 100755
+--- a/configure
++++ b/configure
+@@ -6111,18 +6111,23 @@ fi
+ { printf "%s\n" "$as_me:${as_lineno-$LINENO}: result: $ac_cv_prog_cc_g" >&5
+ printf "%s\n" "$ac_cv_prog_cc_g" >&6; }
+ if test $ac_test_CFLAGS; then
+-  CFLAGS=$ac_save_CFLAGS
++  CFLAGS="${ac_save_CFLAGS} -std=gnu11"
++    echo "##### passed ${LINENO}"
+ elif test $ac_cv_prog_cc_g = yes; then
+   if test "$GCC" = yes; then
+-    CFLAGS="-g -O2"
++    CFLAGS="-g -O2 -std=gnu11"
++    echo "##### passed ${LINENO}"
+   else
+-    CFLAGS="-g"
++    CFLAGS="-g -std=gnu11"
++    echo "##### passed ${LINENO}"
+   fi
+ else
+   if test "$GCC" = yes; then
+-    CFLAGS="-O2"
++    CFLAGS="-O2 -std=gnu11"
++    echo "##### passed ${LINENO}"
+   else
+-    CFLAGS=
++    CFLAGS="-std=gnu11"
++    echo "##### passed ${LINENO}"
+   fi
+ fi
+ ac_prog_cc_stdc=no
diff --git a/meta/recipes-devtools/pkgconfig/pkgconfig_git.bb b/meta/recipes-devtools/pkgconfig/pkgconfig_git.bb
index 7e5860c..98fb2cd 100644
--- a/meta/recipes-devtools/pkgconfig/pkgconfig_git.bb
+++ b/meta/recipes-devtools/pkgconfig/pkgconfig_git.bb
@@ -27,6 +27,7 @@ inherit autotools
 # so just continue that behaviour.
 #
 EXTRA_OECONF += "--disable-indirect-deps"
+CFLAGS:append += "-std=gnu11 -Wno-error=unused-result"

 PACKAGECONFIG ??= "glib"
 PACKAGECONFIG:class-native = ""
diff --git a/meta/recipes-devtools/rust/rust-llvm.inc b/meta/recipes-devtools/rust/rust-llvm.inc
index 416a07c..05b7238 100644
--- a/meta/recipes-devtools/rust/rust-llvm.inc
+++ b/meta/recipes-devtools/rust/rust-llvm.inc
@@ -5,6 +5,7 @@ HOMEPAGE = "http://www.rust-lang.org"
 SRC_URI += "file://0002-llvm-allow-env-override-of-exe-path.patch;striplevel=2 \
             file://0001-AsmMatcherEmitter-sort-ClassInfo-lists-by-name-as-we.patch;striplevel=2 \
             file://0003-Support-Add-missing-cstdint-header-to-Signals.h.patch;striplevel=2 \
+            file://0010-cstdint.patch;striplevel=2 \
 "

 S = "${RUSTSRC}/src/llvm-project/llvm"
diff --git a/meta/recipes-devtools/rust/rust-llvm/0010-cstdint.patch b/meta/recipes-devtools/rust/rust-llvm/0010-cstdint.patch
new file mode 100644
index 0000000..ecc9878
--- /dev/null
+++ b/meta/recipes-devtools/rust/rust-llvm/0010-cstdint.patch
@@ -0,0 +1,24 @@
+diff --git a/llvm/include/llvm/ADT/SmallVector.h b/llvm/include/llvm/ADT/SmallVector.h
+index b8a11030f..18419a19d 100644
+--- a/llvm/include/llvm/ADT/SmallVector.h
++++ b/llvm/include/llvm/ADT/SmallVector.h
+@@ -28,6 +28,7 @@
+ #include <iterator>
+ #include <limits>
+ #include <memory>
++#include <cstdint>
+ #include <new>
+ #include <type_traits>
+ #include <utility>
+diff --git a/llvm/lib/Target/X86/MCTargetDesc/X86MCTargetDesc.h b/llvm/lib/Target/X86/MCTargetDesc/X86MCTargetDesc.h
+index 35604cd3e..238a6ea55 100644
+--- a/llvm/lib/Target/X86/MCTargetDesc/X86MCTargetDesc.h
++++ b/llvm/lib/Target/X86/MCTargetDesc/X86MCTargetDesc.h
+@@ -15,6 +15,7 @@
+
+ #include <memory>
+ #include <string>
++#include <cstdint>
+
+ namespace llvm {
+ class formatted_raw_ostream;
diff --git a/meta/recipes-devtools/unifdef/unifdef_2.12.bb b/meta/recipes-devtools/unifdef/unifdef_2.12.bb
index b42051b..ec51a90 100644
--- a/meta/recipes-devtools/unifdef/unifdef_2.12.bb
+++ b/meta/recipes-devtools/unifdef/unifdef_2.12.bb
@@ -12,6 +12,8 @@ SRC_URI = "http://dotat.at/prog/${BPN}/${BP}.tar.xz"
 SRC_URI[md5sum] = "ae8c0b3b4c43c1f6bc5f32412a820818"
 SRC_URI[sha256sum] = "43ce0f02ecdcdc723b2475575563ddb192e988c886d368260bc0a63aee3ac400"

+CFLAGS:append = " -std=gnu11 "
+
 UPSTREAM_CHECK_REGEX = "unifdef-(?P<pver>((\d+\.*)+)(?![a-f0-9]{6,})).tar"

 do_install() {
diff --git a/meta/recipes-extended/bash/bash.inc b/meta/recipes-extended/bash/bash.inc
index 18874a0..6769b9c 100644
--- a/meta/recipes-extended/bash/bash.inc
+++ b/meta/recipes-extended/bash/bash.inc
@@ -8,7 +8,8 @@ DEPENDS = "ncurses bison-native virtual/libiconv"
 inherit autotools gettext texinfo update-alternatives ptest

 EXTRA_AUTORECONF += "--exclude=autoheader"
-EXTRA_OECONF = "--enable-job-control --without-bash-malloc bash_cv_wexitstatus_offset=8"
+EXTRA_OECONF = "--enable-job-control --without-bash-malloc bash_cv_wexitstatus_offset=8 CFLAGS=-std=gnu17"
+EXTRA_OEMAKE = " CFLAGS=-std=gnu17 CFLAGS_FOR_BUILD=-std=gnu17 "

 # If NON_INTERACTIVE_LOGIN_SHELLS is defined, all login shells read the
 # startup files, even if they are not interactive.
@@ -20,7 +21,7 @@ CFLAGS += "-DHEREDOC_PIPESIZE=65536"

 # Disable bracketed paste mode by default (enabled by default in bash 5.1). It
 # causes a lot of garbage in non-interactive shells
-CFLAGS += "-DBRACKETED_PASTE_DEFAULT=0"
+CFLAGS += "-DBRACKETED_PASTE_DEFAULT=0 -std=gnu17"

 ALTERNATIVE:${PN} = "bash sh"
 ALTERNATIVE_LINK_NAME[bash] = "${base_bindir}/bash"
diff --git a/meta/recipes-extended/bash/bash/0010-signal_names.patch b/meta/recipes-extended/bash/bash/0010-signal_names.patch
new file mode 100644
index 0000000..c9ce948
--- /dev/null
+++ b/meta/recipes-extended/bash/bash/0010-signal_names.patch
@@ -0,0 +1,16 @@
+diff --git a/support/signames.c b/support/signames.c
+index aba4842..40f5efc 100644
+--- a/support/signames.c
++++ b/support/signames.c
+@@ -44,7 +44,11 @@
+  */
+ #define LASTSIG NSIG+2
+
++#ifdef BUILDTOOL
+ char *signal_names[2 * (LASTSIG)];
++#else
++extern char *signal_names[2 * (LASTSIG)];
++#endif
+
+ #define signal_names_size (sizeof(signal_names)/sizeof(signal_names[0]))
+
diff --git a/meta/recipes-extended/bash/bash_5.1.16.bb b/meta/recipes-extended/bash/bash_5.1.16.bb
index ab1ecff..5535e30 100644
--- a/meta/recipes-extended/bash/bash_5.1.16.bb
+++ b/meta/recipes-extended/bash/bash_5.1.16.bb
@@ -17,8 +17,11 @@ SRC_URI = "${GNU_MIRROR}/bash/${BP}.tar.gz;name=tarball \
            file://makerace2.patch \
            file://CVE-2022-3715.patch \
            file://0001-changes-to-SIGINT-handler-while-waiting-for-a-child-.patch \
+           file://0010-signal_names.patch \
            "

+EXTRA_OEMAKE:append = " CFLAGS=-std=gnu17 "
+
 SRC_URI[tarball.sha256sum] = "5bac17218d3911834520dad13cd1f85ab944e1c09ae1aba55906be1f8192f558"

 DEBUG_OPTIMIZATION:append:armv4 = " ${@bb.utils.contains('TUNE_CCARGS', '-mthumb', '-fomit-frame-pointer', '', d)}"
diff --git a/meta/recipes-extended/libtirpc/libtirpc_1.3.2.bb b/meta/recipes-extended/libtirpc/libtirpc_1.3.2.bb
index 6980135..82392d9 100644
--- a/meta/recipes-extended/libtirpc/libtirpc_1.3.2.bb
+++ b/meta/recipes-extended/libtirpc/libtirpc_1.3.2.bb
@@ -20,6 +20,10 @@ inherit autotools pkgconfig

 EXTRA_OECONF = "--disable-gssapi"

+do_configure:prepend() {
+    export CFLAGS="${CFLAGS} -std=gnu11 "
+}
+
 do_install:append() {
 	test -e ${D}${sysconfdir}/netconfig && chown root:root ${D}${sysconfdir}/netconfig
 }
diff --git a/meta/recipes-extended/unzip/unzip/c11.patch b/meta/recipes-extended/unzip/unzip/c11.patch
new file mode 100644
index 0000000..7f657f3
--- /dev/null
+++ b/meta/recipes-extended/unzip/unzip/c11.patch
@@ -0,0 +1,13 @@
+diff --git a/unix/Makefile b/unix/Makefile
+index f09647e..dce97c3 100644
+--- a/unix/Makefile
++++ b/unix/Makefile
+@@ -47,7 +47,7 @@ LD = $(CC)#	must match, else "unresolved symbol:  ___main" is possible)
+ AS = as
+ LOC = $(D_USE_BZ2) $(LOCAL_UNZIP)
+ AF = $(LOC)
+-CFLAGS =
++CFLAGS = -std=gnu11
+ CF_NOOPT = -I. -I$(IZ_BZIP2) -DUNIX $(LOC)
+ CF = $(CFLAGS) $(CF_NOOPT)
+ LFLAGS1 =
diff --git a/meta/recipes-extended/unzip/unzip_6.0.bb b/meta/recipes-extended/unzip/unzip_6.0.bb
index 0f73cfa..9c25059 100644
--- a/meta/recipes-extended/unzip/unzip_6.0.bb
+++ b/meta/recipes-extended/unzip/unzip_6.0.bb
@@ -33,6 +33,7 @@ SRC_URI = "${SOURCEFORGE_MIRROR}/infozip/UnZip%206.x%20%28latest%29/UnZip%206.0/
         file://CVE-2022-0530.patch \
         file://0001-unix-configure-fix-detection-for-cross-compilation.patch \
         file://0001-configure-Add-correct-system-headers-and-prototypes-.patch \
+        file://c11.patch \
 "
 UPSTREAM_VERSION_UNKNOWN = "1"

@@ -52,7 +53,7 @@ S = "${WORKDIR}/unzip60"
 # configure to be -O3.
 #
 EXTRA_OEMAKE = "-e MAKEFLAGS= STRIP=true LF2='' \
-                'CF_NOOPT=-I. -Ibzip2 -DUNIX ${CFLAGS}'"
+                'CF_NOOPT=-I. -Ibzip2 -std=gnu11 -DUNIX ${CFLAGS} -std=gnu11'"

 export LD = "${CC}"
 LD:class-native = "${CC}"
diff --git a/meta/recipes-support/gdbm/gdbm_1.23.bb b/meta/recipes-support/gdbm/gdbm_1.23.bb
index a080797..efeab55 100644
--- a/meta/recipes-support/gdbm/gdbm_1.23.bb
+++ b/meta/recipes-support/gdbm/gdbm_1.23.bb
@@ -19,6 +19,7 @@ inherit autotools gettext texinfo lib_package ptest

 # Needed for dbm python module
 EXTRA_OECONF = "--enable-libgdbm-compat --without-readline"
+CFLAGS:append += "-std=gnu11"

 # Stop presence of dbm/nbdm on the host contaminating builds
 CACHED_CONFIGUREVARS += "ac_cv_lib_ndbm_main=no ac_cv_lib_dbm_main=no"
diff --git a/meta/recipes-support/gmp/gmp/c11.patch b/meta/recipes-support/gmp/gmp/c11.patch
new file mode 100644
index 0000000..290b6fc
--- /dev/null
+++ b/meta/recipes-support/gmp/gmp/c11.patch
@@ -0,0 +1,15 @@
+diff --git a/configure.ac b/configure.ac
+index 5f5f594..93cd658 100644
+--- a/configure.ac
++++ b/configure.ac
+@@ -461,8 +461,8 @@ abilist="standard"
+ #
+ cclist="gcc cc"
+
+-gcc_cflags="-O2 -pedantic"
+-gcc_64_cflags="-O2 -pedantic"
++gcc_cflags="-O2 -pedantic -std=gnu17"
++gcc_64_cflags="-O2 -pedantic -std=gnu17"
+ cc_cflags="-O"
+ cc_64_cflags="-O"
+
diff --git a/meta/recipes-support/gmp/gmp_6.2.1.bb b/meta/recipes-support/gmp/gmp_6.2.1.bb
index 2905549..ab2e22e 100644
--- a/meta/recipes-support/gmp/gmp_6.2.1.bb
+++ b/meta/recipes-support/gmp/gmp_6.2.1.bb
@@ -15,6 +15,7 @@ SRC_URI = "https://gmplib.org/download/${BPN}/${BP}${REVISION}.tar.bz2 \
            file://0001-Append-the-user-provided-flags-to-the-auto-detected-.patch \
            file://0001-confiure.ac-Believe-the-cflags-from-environment.patch \
            file://cve-2021-43618.patch \
+           file://c11.patch \
            "
 SRC_URI[md5sum] = "28971fc21cf028042d4897f02fd355ea"
 SRC_URI[sha256sum] = "eae9326beb4158c386e39a356818031bd28f3124cf915f8c5b1dc4c7a36b4d7c"
diff --git a/meta/recipes-support/gnutls/gnutls_3.7.4.bb b/meta/recipes-support/gnutls/gnutls_3.7.4.bb
index 8c8e088..566af3b 100644
--- a/meta/recipes-support/gnutls/gnutls_3.7.4.bb
+++ b/meta/recipes-support/gnutls/gnutls_3.7.4.bb
@@ -68,6 +68,7 @@ EXTRA_OECONF = " \
 # Otherwise the tools try and use HOSTTOOLS_DIR/bash as a shell.
 export POSIX_SHELL="${base_bindir}/sh"

+EXTRA_OEMAKE = "CFLAGS=-std=gnu17"
 LDFLAGS:append:libc-musl = " -largp"

 do_configure:prepend() {
diff --git a/meta/recipes-support/libgpg-error/libgpg-error_1.44.bb b/meta/recipes-support/libgpg-error/libgpg-error_1.44.bb
index 41adad0..3841f51 100644
--- a/meta/recipes-support/libgpg-error/libgpg-error_1.44.bb
+++ b/meta/recipes-support/libgpg-error/libgpg-error_1.44.bb
@@ -27,6 +27,7 @@ inherit autotools binconfig-disabled pkgconfig gettext multilib_header multilib_

 MULTILIB_SCRIPTS = "${PN}-dev:${bindir}/gpgrt-config"

+EXTRA_OEMAKE = "CFLAGS=-std=gnu17"
 CPPFLAGS += "-P"

 do_install:append() {

ビルド

おまじない

. oe-init-build-env
# 自動でbuildディレクトリに移動する

conf/bblayers.confの修正

ros関連の追加

# POKY_BBLAYERS_CONF_VERSION is increased each time build/conf/bblayers.conf
# changes incompatibly
POKY_BBLAYERS_CONF_VERSION = "2"

BBPATH = "${TOPDIR}"
BBFILES ?= ""

BBLAYERS ?= " \
  ${TOPDIR}/../meta \
  ${TOPDIR}/../meta-poky \
  ${TOPDIR}/../meta-yocto-bsp \
  ${TOPDIR}/../meta-openembedded/meta-oe \
  ${TOPDIR}/../meta-openembedded/meta-python \
  ${TOPDIR}/../meta-ros/meta-ros-common \
  ${TOPDIR}/../meta-ros/meta-ros2 \
  ${TOPDIR}/../meta-ros/meta-ros2-humble \
  "

conf/local.conf の修正

コメント除外すると以下
MACHINE 指定と ros関連の追加

MACHINE ?= "qemuarm64"
DISTRO ?= "poky"
PACKAGE_CLASSES ?= "package_rpm"
EXTRA_IMAGE_FEATURES ?= "debug-tweaks"
USER_CLASSES ?= "buildstats"
PATCHRESOLVE = "noop"
BB_DISKMON_DIRS ??= "\
    STOPTASKS,${TMPDIR},1G,100K \
    STOPTASKS,${DL_DIR},1G,100K \
    STOPTASKS,${SSTATE_DIR},1G,100K \
    STOPTASKS,/tmp,100M,100K \
    HALT,${TMPDIR},100M,1K \
    HALT,${DL_DIR},100M,1K \
    HALT,${SSTATE_DIR},100M,1K \
    HALT,/tmp,10M,1K"
PACKAGECONFIG:append:pn-qemu-system-native = " sdl"
CONF_VERSION = "2"
BB_NUMBER_THREADS ?= "8"
PARALLEL_MAKE ?= "-j8"
IMAGE_INSTALL:append = " ros-core"
ROS_DISTRO = "humble"

ビルド実行

bitbake ros-image-core

実行

runqemu qemuarm64 ros-image-core-humble ext4

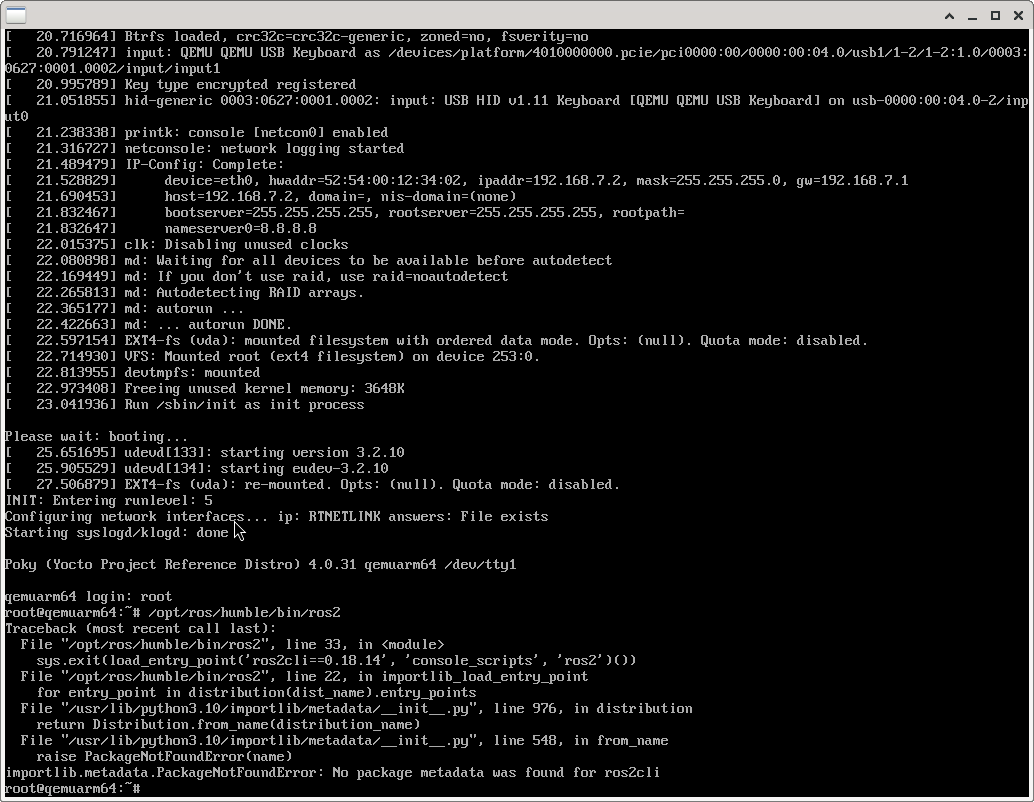

こんな出力

runqemu - INFO - Running MACHINE=qemuarm64 bitbake -e ...
runqemu - INFO - Continuing with the following parameters:
KERNEL: [/home/tyano/workspace/yocto/poky/build/tmp/deploy/images/qemuarm64/Image]
MACHINE: [qemuarm64]
FSTYPE: [ext4]
ROOTFS: [/home/tyano/workspace/yocto/poky/build/tmp/deploy/images/qemuarm64/ros-image-core-humble-qemuarm64.ext4]
CONFFILE: [/home/tyano/workspace/yocto/poky/build/tmp/deploy/images/qemuarm64/ros-image-core-humble-qemuarm64.qemuboot.conf]

runqemu - INFO - Setting up tap interface under sudo
runqemu - INFO - Network configuration: ip=192.168.7.2::192.168.7.1:255.255.255.0::eth0:off:8.8.8.8
runqemu - INFO - Running /home/tyano/workspace/yocto/poky/build/tmp/work/x86_64-linux/qemu-helper-native/1.0-r1/recipe-sysroot-native/usr/bin/qemu-system-aarch64 -device virtio-net-pci,netdev=net0,mac=52:54:00:12:34:02 -netdev tap,id=net0,ifname=tap0,script=no,downscript=no -object rng-random,filename=/dev/urandom,id=rng0 -device virtio-rng-pci,rng=rng0 -drive id=disk0,file=/home/tyano/workspace/yocto/poky/build/tmp/deploy/images/qemuarm64/ros-image-core-humble-qemuarm64.ext4,if=none,format=raw -device virtio-blk-pci,drive=disk0 -device qemu-xhci -device usb-tablet -device usb-kbd  -machine virt -cpu cortex-a57 -smp 4 -m 256 -serial mon:vc -serial null -display sdl,show-cursor=on -device virtio-gpu-pci -kernel /home/tyano/workspace/yocto/poky/build/tmp/deploy/images/qemuarm64/Image -append 'root=/dev/vda rw  mem=256M ip=192.168.7.2::192.168.7.1:255.255.255.0::eth0:off:8.8.8.8  '

runqemu - INFO - Host uptime: 563693.25

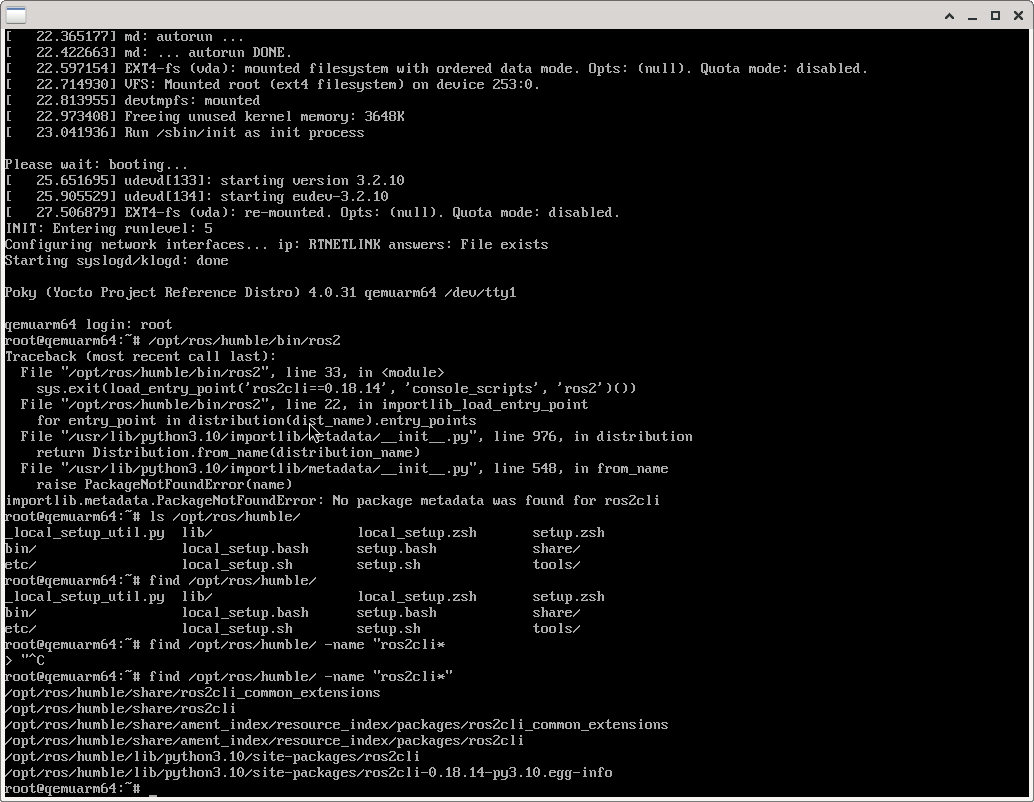

もの自体はあるので設定は追々

追記 しました


ros2の設定

追加インストール

作業しやすいように以下を追加する

  • sshd
  • bash

conf/local.conf の IMAGE_INSTALL:append を修正する

IMAGE_INSTALL:append = " ros-core openssh bash "

もう一回ビルドして実行

bitbake ros-image-core

runqemu qemuarm64 ros-image-core-humble ext4

サンプル作成

qemuが起動したら 一般ユーザを adduser で作成する

ホストから sshで接続する

ssh 192.168.7.2

送信側の作成

publisher.py
#!/usr/bin/env python3
import rclpy
from std_msgs.msg import String

rclpy.init()
node = rclpy.create_node('minimal_publisher')
pub = node.create_publisher(String, 'chatter', 10)

i = 0
while rclpy.ok():
    msg = String()
    msg.data = f'Hello {i}'
    pub.publish(msg)
    node.get_logger().info(msg.data)
    i += 1
    rclpy.spin_once(node, timeout_sec=1.0)

受信側の作成

subscriber.py
#!/usr/bin/env python3
import rclpy
from std_msgs.msg import String

rclpy.init()
node = rclpy.create_node('minimal_subscriber')

def callback(msg):
    node.get_logger().info(f'I heard: {msg.data}')

sub = node.create_subscription(String, 'chatter', callback, 10)

while rclpy.ok():
    rclpy.spin_once(node, timeout_sec=1.0)

サンプル実行

qemu上を一つ使うかsshを2本つなげるなどしてターミナルを2つ用意する

# 作成したユーザに切り替え
su tyano

# yoctoのデフォルトはbusyboxなのでbash に切り替える
bash

# 環境設定
. /opt/ros/humble/setup.bash

# 送信側はこれを実行
python3 publisher.py

# 受信側はこれを実行
python3 subscriber.py

こんな感じで表示されます

qemuarm64:~$ python3 subscriber.py
[INFO] [1762743437.520687936] [minimal_subscriber]: I heard: Hello 5
[INFO] [1762743437.906498448] [minimal_subscriber]: I heard: Hello 6
[INFO] [1762743439.044557648] [minimal_subscriber]: I heard: Hello 7
[INFO] [1762743440.164722192] [minimal_subscriber]: I heard: Hello 8
[INFO] [1762743441.330913200] [minimal_subscriber]: I heard: Hello 9
[INFO] [1762743442.422331264] [minimal_subscriber]: I heard: Hello 10
[INFO] [1762743443.636326432] [minimal_subscriber]: I heard: Hello 11
[INFO] [1762743444.733855168] [minimal_subscriber]: I heard: Hello 12
[INFO] [1762743445.874569632] [minimal_subscriber]: I heard: Hello 13
[INFO] [1762743447.020346928] [minimal_subscriber]: I heard: Hello 14
[INFO] [1762743448.206775920] [minimal_subscriber]: I heard: Hello 15

その他

ビルドに必要な最低容量は50Gくらいです

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
