重心を考慮して長方形を配置していきたい(訂正)

import matplotlib.pyplot as plt
import matplotlib.patches as patches
import pandas as pd
import csv
import tkinter
import time
import numpy as np
import openpyxl
import random

# ファイルを開く
filename = "実行結果final2.xlsx"
workbook = openpyxl.load_workbook(filename)

# 利用可能なシート名のリストを取得
sheet_names = workbook.sheetnames

# ランダムにシートを選択
selected_sheet_name = random.choice(sheet_names)
sheet = workbook[selected_sheet_name]

# シートのデータを読み取る
data = []
for row in sheet.iter_rows(values_only=True):
    data.append(row)


import pandas as pd
df = pd.DataFrame(data[1:], columns=data[0])
df

def intersection_NFP(p, q):
    if q[0][0] < p[0][1] < q[0][1] and p[1][0] < q[1][1] < p[1][1]:
        return (p[0][1], q[1][1])
    if p[0][0] < q[0][1] < p[0][1] and q[1][0] < p[1][1] < q[1][1]:
        return (q[0][1], p[1][1])
    return False

#p=[(x1,x2),(y1,y2)]　NFPとx軸の交点を求め、 BL点候補点とする。
def intersection_x(p):
    if p[0][0] < 0:
        return (0, p[1][1])
    return False

#p=[(x1,x2),(y1,y2)]　NFPとy軸の交点を求め、 BL点候補点とする。
def intersection_y(p):
    if p[1][0] < 0:
        return (p[0][1], 0)
    return False

#p=(a,b) q=[(x1,x2),(y1,y2)]　点pが領域q内に含まれているか、いないか。（境界線は含まない）
def include_p(p, q):
    return q[0][0] < p[0] < q[0][1] and q[1][0] < p[1] < q[1][1]

#p=(a,b) q=[(x1,x2),(y1,y2)]　点pが領域q内に含まれているか、いないか。（境界線は含む）
def include_p_e(p, q):
    return q[0][0] <= p[0] <= q[0][1] and q[1][0] <= p[1] <= q[1][1]

#p=(a,b) q=[{(x1,x2),(y1,y2)},{(x3,x4),(y3,y4)},...]
#点pが領域配列qのいずれか1つに含まれているか、いないか。（境界線は含まない）
def include_p_n(p, q, n):
    for i in range(n):
        if include_p(p, q[i]) == True:
            ans = True
            break
        ans = False
    return ans

class Rect:
    def __init__(self, x, y, w, h, weight,name):
        self.x = x
        self.y = y
        self.w = w
        self.h = h
        self.weight=weight
        self.name=name

    #未配置の長方形jの高さhb横幅wb配列　既に配置されている長方形iの高さha横幅ba配列
    def NFP(self, b):
        return [(self.x-b.w, self.x+self.w), (self.y-b.h, self.y+self.h)]

    #箱の中に収まる範囲 UBはHの上界値
    def include_room(self, W, H):
        return [(0, W-self.w), (0, H-self.h)]

    #長方形nにおいて既存に配置されている長方形とのNFPを計算
    def NFP_r2(self, rects_after):
        cand = []
        if not rects_after:
            return cand
        else:
            for rect in rects_after:
                p = Rect.NFP(rect, self)
                cand.append(p)
        return cand

    #p=(a,b) [(x1,y1),(x2,y2),...(xn, yn)] 求めたBL候補点pが既に使われていないか。
    def point_search(rects_after, p):
        for rect in rects_after:
            if p[0] == rect.x and p[1] == rect.y:
                return True
        return False

    #既存にm個の長方形が配置されている状態に長方形nのBL点を求める
    def BL_method(self, rects_after, W, UB):
        if not rects_after:
            return (0, 0)
        BL_point = []
        #print(f'{n}')
        #print((w[n],h[n]))
        a = self.NFP_r2(rects_after)
        #print(a)
        m = len(rects_after)
        for i in range(m):
            if not intersection_y(a[i]) == False \
            and include_p_e(intersection_y(a[i]), self.include_room(W, UB)) == True \
            and Rect.point_search(rects_after, intersection_y(a[i])) == False:
                BL_point.append(intersection_y(a[i]))
            if not intersection_x(a[i]) == False \
            and include_p_e(intersection_x(a[i]), self.include_room(W, UB)) == True \
            and Rect.point_search(rects_after, intersection_x(a[i])) == False:
                BL_point.append(intersection_x(a[i]))
            for j in range(i):
                if not intersection_NFP(a[j], a[i]) == False \
                and include_p_e(intersection_NFP(a[j], a[i]), self.include_room(W, UB)) == True \
                and Rect.point_search(rects_after, intersection_NFP(a[j], a[i])) == False:
                    BL_point.append(intersection_NFP(a[j], a[i]))

        BL_point = sorted(BL_point, key=lambda t:t[0])
        BL_point = sorted(BL_point, key=lambda t:t[1])
        #print('BL候補点')
        #print(BL_point)
        for BL in BL_point:
            if include_p_n(BL, a, m) == False:
         #中心の底辺を計算
                bottom_center_x = BL[0] + self.w / 2
                bottom_center_y = BL[1]

        #他の長方形との重なりチェック
                overlap = False
                for rect in rects_after:
                    if rect.x <= bottom_center_x <= rect.x + rect.w and \
                       rect.y <= bottom_center_y <= rect.y + rect.h:
                        overlap = True
                        break

                #箱の境界との重なりチェック
                if bottom_center_x == 0 or bottom_center_x == W or \
                   bottom_center_y == 0 or bottom_center_y == UB:
                        overlap = True





                if overlap:
                    p = (BL[0], BL[1])
                    return p


n=len(df)
W=44.5
sort_key="weight"

h = df['高さ'].values
print('高さ')
print(h[:n])
print('--------------------')

w=df['横幅'].values
print('横幅')
print(w[:n])
print('--------------------')

weight= df['重さ'].values

item=np.ones(n,dtype="int8")
print(item)
name=df['名前'].values

before_list = []
for i in range(len(item)):
    for j in range(item[i]):
        before_list.append((w[i], h[i], weight[i],name[i]))

n = len(before_list)

print('before sort')
print(before_list)
print('--------------------')

# UB=sum(h[i] for i in range(n))

UB=n*max(h)

rects_before=[]
for i in range(n):
    new_rect = Rect(None, None, before_list[i][0], before_list[i][1],before_list[i][2],before_list[i][3])
    rects_before.append(new_rect)


    rects_before = sorted(rects_before, key=lambda t:t.h, reverse=True)
    rects_before = sorted(rects_before, key=lambda t:t.w, reverse=True)
    rects_before = sorted(rects_before, key=lambda t:t.weight, reverse=True)

print('配置前')
for rect in rects_before:
    print(rect)

start = time.time()

rects_after = []

for rect in rects_before:
    BL_point = Rect.BL_method(rect, rects_after, W, UB)
    rect1 = Rect(BL_point[0], BL_point[1], rect.w, rect.h ,rect.weight,rect.name)
    rects_after.append(rect1)

print('-----------------')
print('配置後')
for rect in rects_after:
    print(rect)

H = max(rects_after[i].y+rects_after[i].h for i in range(n))
print(f'H={H}')

elapsed_time = time.time() - start
print("実行時間 = {:.3f} (秒)".format(elapsed_time))

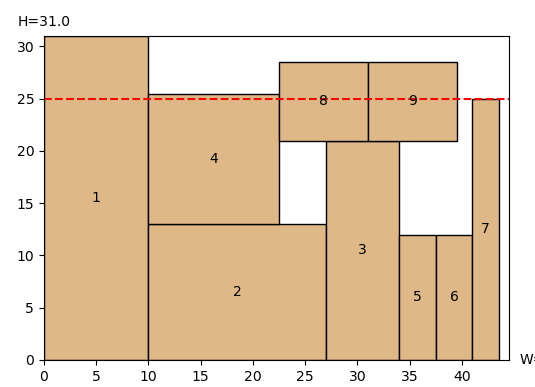

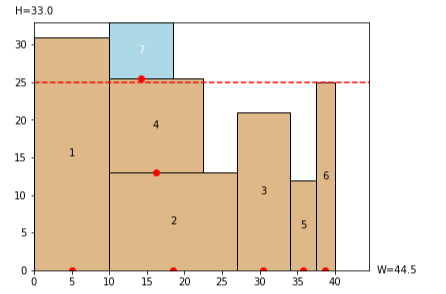

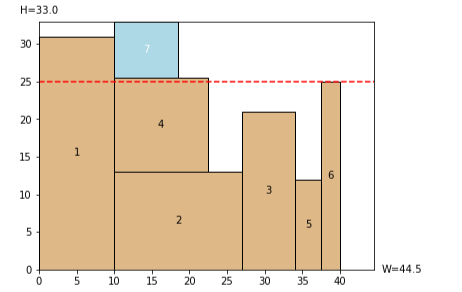

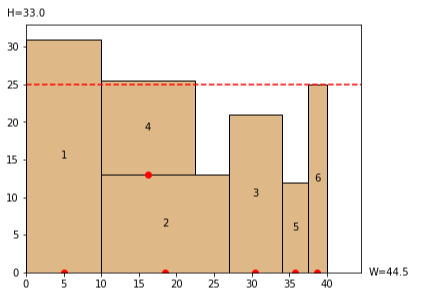

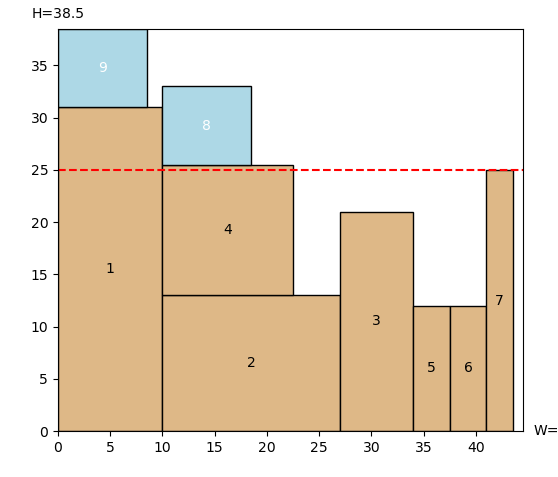

%matplotlib inline
fig = plt.figure(figsize=(6,6))
ax = fig.add_subplot(111,aspect='equal')
ax.set_xlim ([0,W])
ax.set_ylim ([0,H])

name = 0


for rect in rects_after:
    name = name + 1
    #ax.text(rect.x+rect.w/2, rect.y+rect.h/2, f'{name}', horizontalalignment="center", verticalalignment="center")
    #rect1 = plt.Rectangle((rect.x,rect.y),rect.w,rect.h,fc="burlywood",ec="black")
    #ax.add_patch(rect1)

    if rect.y <= 24.9:
        ax.text(rect.x+rect.w/2, rect.y+rect.h/2, f'{name}', horizontalalignment="center", verticalalignment="center")
        rect_color = 'burlywood'
    else:
        ax.text(rect.x+rect.w/2, rect.y+rect.h/2, f'{name}', horizontalalignment="center", verticalalignment="center", color='white')
        rect_color = 'lightblue'


    rect1 = plt.Rectangle((rect.x,rect.y),rect.w,rect.h,fc=rect_color,ec="black")
    ax.add_patch(rect1)
    ax.plot(rect.x + rect.w / 2, rect.y, 'ro')


ax.text(0, H+1, f'H={H}', horizontalalignment="center")
ax.text(W+1, 0, f'W={W}', verticalalignment="center")

ax.axhline(y=25, color='red', linestyle='--')

# ...（プロットに関する他のコード）
plt.show()

TypeError                                 Traceback (most recent call last)
Input In [13], in <cell line: 183>()
    183 for rect in rects_before:
    184     BL_point = Rect.BL_method(rect, rects_after, W, UB)
--> 185     rect1 = Rect(BL_point[0], BL_point[1], rect.w, rect.h ,rect.weight,rect.name)
    186     rects_after.append(rect1)
    188 print('-----------------')

TypeError: 'NoneType' object is not subscriptable
