PXEBOOT
以下のパッケージを組合せPXEBootによるLinuxとWindowsのインストール環境を実現する。
- dnsmasq
- tftpd
- apache2
- samba
- iPXE
以下、実行に必要な追加パッケージ
- syslinux-common、syslinux-efi、pxelinux
- grub-common、grub-efi-amd64、grub-pc-bin
- rsync
- 7zip、bzip2、gzip、lz4、lzop、xz-utils、zstd
- ベースとなる仮想環境はこの手順で作成
- SELinuxの関係でdnsmasqのtftp機能は使用しない
- Windowsを扱うのでiPXEを使用する
- syslinuxのmemdiskはUEFI環境に対応していないので使用しない
システム構築は別途シェルを準備しある程度は自動化する
参照: GitHub office-itou Linux/shell-script/mk_pxeboot_conf.sh

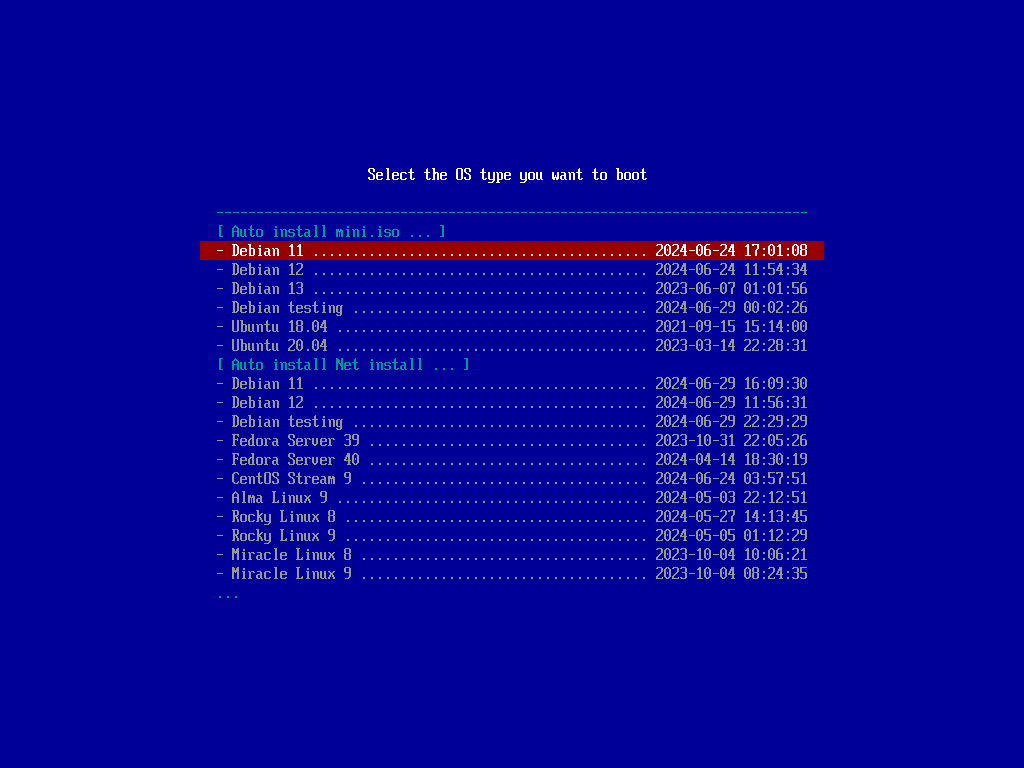

表示例
iPXE版
| スクリーンショット |
|---|
 |
システム構成
ソフトウェア
| 使用目的 | 項目 | 詳細 |
|---|---|---|
| Host PC | Windows | Windows 10 Pro 22H2 |
| Virtual system | VMware Workstation 16 Pro | |
| Guest PC (Server) | Linux | Debian 12 (stable) |
| DNS/DHCP | dnsmasq 2.89 | |
| TFTP | tftpd-hpa 5.2 | |
| HTTP | apache2 2.4.59 | |
| SMB/CIFS | samba 4.17.12 | |
| iPXE | undionly.kpxe 3.70 or newer | |
| ipxe.efi | ||
| wimboot 2.8.0 |
ハードウェア
| 使用目的 | 項目 | 詳細 |
|---|---|---|
| Host PC | Processor | Intel Core i7-6700 CPU @ 3.40GHz |
| Memory | 32GiB | |
| Storage | ||
| Network | ||
| Guest PC (Client) | Processor | 1 processor / 2 cores (i7-6700) |
| Memory | 4GiB (Live mode is 8GiB) | |
| Storage | NVMe 64 GiB / SATA 20GiB | |
| Network | NIC1 e1000e / NIC2 e1000e | |
| Guest PC (Server) | Processor | 1 processor / 2 cores (i7-6700) |
| Memory | 4GiB | |
| Storage | NVMe 20 GiB / SATA 500GiB | |
| Network | NIC1 e1000e / NIC2 - | |
| Guest PC (Server) | Processor | 1 processor / 2 cores (i7-6700) |
| Application Test | Memory | 4GiB |
| Storage | NVMe 64 GiB / SATA 20GiB | |
| Network | NIC1 e1000e / NIC2 e1000e |
ネットワーク
| 使用目的 | 項目 | 詳細 |
|---|---|---|
| Guest PC (Server) | Interface | ens160 |
| IP address | 192.168.1.10 | |
| Netmask | 24 (255.255.255.0) | |
| DHCP server | 192.168.1.254 (Router) | |
| DNS server | 192.168.1.10,192.168.1.254 | |
| Domain name | workgroup | |
| Guest PC (Server) | Interface | ens160 |
| Application Test | IP address | 192.168.1.12 |
| Netmask | 24 (255.255.255.0) | |
| DHCP server | 192.168.1.254 (Router) | |
| DNS server | 192.168.1.12,192.168.1.254 | |
| Domain name | workgroup |
Note:
- Test Applications: DNS / DHCP Proxy / TFTP / WEB / Samba
Tree図
Tree図
~/share/
|-- back ---------------------- backup directory
|-- conf ---------------------- configuration file
| |-- _template
| | |-- kickstart_common.cfg
| | |-- nocloud-ubuntu-user-data
| | |-- preseed_debian.cfg
| | |-- preseed_ubuntu.cfg
| | `-- yast_opensuse.xml
| |-- autoyast
| |-- kickstart
| |-- nocloud
| |-- preseed
| |-- script
| | `-- late_command.sh
| `-- windows
| |-- bypass.cmd
| |-- inst_w10.cmd
| |-- inst_w11.cmd
| |-- shutdown.cmd
| |-- startnet.cmd
| |-- unattend.xml
| `-- winpeshl.ini
|-- html ---------------------- html contents
| |-- conf -> ../conf
| |-- imgs -> ../imgs
| |-- isos -> ../isos
| |-- load -> ../tftp/load
| `-- rmak -> ../rmak
|-- imgs ---------------------- iso file extraction destination
|-- isos ---------------------- iso file
|-- orig ---------------------- backup directory (original file)
|-- rmak ---------------------- remake file
|-- temp ---------------------- temporary directory
`-- tftp ---------------------- tftp contents
|-- autoexec.ipxe --------- ipxe script file (menu file)
|-- memdisk --------------- memdisk of syslinux
|-- boot
| `-- grub
| |-- bootx64.efi --- bootloader (i386-pc-pxe)
| |-- grub.cfg ------ menu base
| |-- menu.cfg ------ menu file
| |-- pxelinux.0 ---- bootloader (x86_64-efi)
| |-- fonts
| | `-- unicode.pf2
| |-- i386-pc
| |-- locale
| `-- x86_64-efi
|-- imgs -> ../imgs
|-- ipxe ------------------ ipxe module
| |-- ipxe.efi
| |-- undionly.kpxe
| `-- wimboot
|-- isos -> ../isos
|-- load ------------------ load module
|-- menu-bios
| |-- syslinux.cfg ------ syslinux configuration for mbr environment
| |-- boot -> ../load
| |-- imgs -> ../imgs
| |-- isos -> ../isos
| |-- load -> ../load
| `-- pxelinux.cfg
| `-- default -> ../syslinux.cfg
`-- menu-efi64
|-- syslinux.cfg ------ syslinux configuration for uefi(x86_64) environment
|-- boot -> ../load
|-- imgs -> ../imgs
|-- isos -> ../isos
|-- load -> ../load
`-- pxelinux.cfg
`-- default -> ../syslinux.cfg
/var/lib/
`-- tftpboot -> ${HOME}/share/tftp
/var/www/
`-- html -> ${HOME}/share/html
/etc/dnsmasq.d/
`-- pxe.conf ------------------ pxeboot dnsmasq configuration file
構成ファイル
/etc/dnsmasq.d/pxe.conf
/etc/dnsmasq.d/pxe.conf
# --- log ---------------------------------------------------------------------
#log-queries # dns query log output
#log-dhcp # dhcp transaction log output
#log-facility= # log output file name
# --- dns ---------------------------------------------------------------------
#port=5353 # listening port
bogus-priv # do not perform reverse lookup of private ip address on upstream server
domain-needed # do not forward plain names
domain=workgroup # local domain name
expand-hosts # add domain name to host
filterwin2k # filter for windows
interface=lo,ens160 # listen to interface
listen-address=::1,127.0.0.1,192.168.1.10 # listen to ip address
#server=8.8.8.8 # directly specify upstream server
#server=8.8.4.4 # directly specify upstream server
#no-hosts # don't read the hostnames in /etc/hosts
#no-poll # don't poll /etc/resolv.conf for changes
#no-resolv # don't read /etc/resolv.conf
strict-order # try in the registration order of /etc/resolv.conf
bind-dynamic # enable bind-interfaces and the default hybrid network mode
# --- dhcp --------------------------------------------------------------------
dhcp-range=192.168.1.0,proxy,24 # proxy dhcp
#dhcp-range=192.168.1.64,192.168.1.79,12h # dhcp range
#dhcp-option=option:netmask,255.255.255.0 # 1 netmask
dhcp-option=option:router,192.168.1.254 # 3 router
dhcp-option=option:dns-server,192.168.1.10,192.168.1.254 # 6 dns-server
dhcp-option=option:domain-name,workgroup # 15 domain-name
#dhcp-option=option:28,192.168.1.255 # 28 broadcast
#dhcp-option=option:ntp-server,133.243.238.164 # 42 ntp-server
#dhcp-option=option:tftp-server,192.168.1.10 # 66 tftp-server
#dhcp-option=option:bootfile-name, # 67 bootfile-name
dhcp-no-override # disable re-use of the dhcp servername and filename fields as extra option space
# --- pxe boot ----------------------------------------------------------------
#pxe-prompt="Press F8 for boot menu", 0 # pxe boot prompt
#pxe-service=x86PC , "PXEBoot-x86PC" , boot/grub/pxelinux # 0 Intel x86PC
#pxe-service=PC98 , "PXEBoot-PC98" , # 1 NEC/PC98
#pxe-service=IA64_EFI , "PXEBoot-IA64_EFI" , # 2 EFI Itanium
#pxe-service=Alpha , "PXEBoot-Alpha" , # 3 DEC Alpha
#pxe-service=Arc_x86 , "PXEBoot-Arc_x86" , # 4 Arc x86
#pxe-service=Intel_Lean_Client, "PXEBoot-Intel_Lean_Client", # 5 Intel Lean Client
#pxe-service=IA32_EFI , "PXEBoot-IA32_EFI" , # 6 EFI IA32
#pxe-service=BC_EFI , "PXEBoot-BC_EFI" , boot/grub/bootx64.efi # 7 EFI BC
#pxe-service=Xscale_EFI , "PXEBoot-Xscale_EFI" , # 8 EFI Xscale
#pxe-service=x86-64_EFI , "PXEBoot-x86-64_EFI" , boot/grub/bootx64.efi # 9 EFI x86-64
#pxe-service=ARM32_EFI , "PXEBoot-ARM32_EFI" , # 10 ARM 32bit
#pxe-service=ARM64_EFI , "PXEBoot-ARM64_EFI" , # 11 ARM 64bit
# --- ipxe block --------------------------------------------------------------
dhcp-match=set:iPXE,175 #
pxe-prompt="Press F8 for boot menu", 0 # pxe boot prompt
pxe-service=tag:iPXE ,x86PC , "PXEBoot-x86PC" , /autoexec.ipxe # 0 Intel x86PC (iPXE)
pxe-service=tag:!iPXE,x86PC , "PXEBoot-x86PC" , ipxe/undionly.kpxe # 0 Intel x86PC
pxe-service=tag:!iPXE,BC_EFI , "PXEBoot-BC_EFI" , ipxe/ipxe.efi # 7 EFI BC
pxe-service=tag:!iPXE,x86-64_EFI, "PXEBoot-x86-64_EFI", ipxe/ipxe.efi # 9 EFI x86-64
# --- tftp --------------------------------------------------------------------
#enable-tftp=ens160 # enable tftp server
#tftp-root=/var/lib/tftpboot # tftp root directory
#tftp-lowercase # convert tftp request path to all lowercase
#tftp-no-blocksize # stop negotiating "block size" option
#tftp-no-fail # do not abort startup even if tftp directory is not accessible
#tftp-secure # enable tftp secure mode
# --- dnsmasq manual page -----------------------------------------------------
# https://thekelleys.org.uk/dnsmasq/docs/dnsmasq-man.html
# --- eof ---------------------------------------------------------------------
/var/lib/tftpboot/autoexec.ipxe
/var/lib/tftpboot/autoexec.ipxe
#!ipxe
cpuid --ext 29 && set arch amd64 || set arch x86
dhcp
set optn-timeout 3000
set menu-timeout 0
isset ${menu-default} || set menu-default exit
:start
:menu
menu Select the OS type you want to boot
item --gap -- --------------------------------------------------------------------------
item --gap -- [ Auto install mini.iso ... ]
item -- debian-mini-11 - Debian 11 .......................................... 2024-06-24 17:01:08
item -- debian-mini-12 - Debian 12 .......................................... 2024-06-24 11:54:34
item -- debian-mini-13 - Debian 13 .......................................... 2023-06-07 01:01:56
item -- debian-mini-testing - Debian testing ..................................... 2024-06-29 00:02:26
item -- ubuntu-mini-18.04 - Ubuntu 18.04 ....................................... 2021-09-15 15:14:00
item -- ubuntu-mini-20.04 - Ubuntu 20.04 ....................................... 2023-03-14 22:28:31
item --gap -- [ Auto install Net install ... ]
item -- debian-netinst-11 - Debian 11 .......................................... 2024-06-29 16:09:30
item -- debian-netinst-12 - Debian 12 .......................................... 2024-06-29 11:56:31
item -- debian-netinst-testing - Debian testing ..................................... 2024-06-29 22:29:29
item -- fedora-netinst-39 - Fedora Server 39 ................................... 2023-10-31 22:05:26
item -- fedora-netinst-40 - Fedora Server 40 ................................... 2024-04-14 18:30:19
item -- centos-stream-netinst-9 - CentOS Stream 9 .................................... 2024-06-24 03:57:51
item -- almalinux-netinst-9 - Alma Linux 9 ....................................... 2024-05-03 22:12:51
item -- rockylinux-netinst-8 - Rocky Linux 8 ...................................... 2024-05-27 14:13:45
item -- rockylinux-netinst-9 - Rocky Linux 9 ...................................... 2024-05-05 01:12:29
item -- miraclelinux-netinst-8 - Miracle Linux 8 .................................... 2023-10-04 10:06:21
item -- miraclelinux-netinst-9 - Miracle Linux 9 .................................... 2023-10-04 08:24:35
item -- opensuse-leap-netinst-15.5 - openSUSE Leap 15.5 ................................. 2023-05-23 15:09:21
item -- opensuse-leap-netinst-15.6 - openSUSE Leap 15.6 ................................. 2024-06-20 11:42:39
item -- opensuse-tumbleweed-netinst - openSUSE Tumbleweed ................................ 2024-06-28 17:16:06
item --gap -- [ Auto install DVD media ... ]
item -- debian-11 - Debian 11 .......................................... 2024-06-29 16:10:15
item -- debian-12 - Debian 12 .......................................... 2024-06-29 11:57:27
item -- debian-testing - Debian testing ..................................... 2024-06-24 04:56:14
item -- ubuntu-server-18.04 - Ubuntu 18.04 Server ................................ 2021-09-16 00:01:34
item -- ubuntu-live-18.04 - Ubuntu 18.04 Live Server ........................... 2021-09-15 20:42:12
item -- ubuntu-live-20.04 - Ubuntu 20.04 Live Server ........................... 2023-03-14 23:02:35
item -- ubuntu-live-22.04 - Ubuntu 22.04 Live Server ........................... 2024-02-16 23:52:36
item -- ubuntu-live-23.10 - Ubuntu 23.10 Live Server ........................... 2023-10-11 04:52:01
item -- ubuntu-live-24.04 - Ubuntu 24.04 Live Server ........................... 2024-04-23 12:46:14
item -- ubuntu-live-oracular - Ubuntu oracular Live Server ........................ 2024-06-27 08:31:59
item -- fedora-39 - Fedora Server 39 ................................... 2023-11-01 01:01:16
item -- fedora-40 - Fedora Server 40 ................................... 2024-04-14 22:54:06
item -- centos-stream-9 - CentOS Stream 9 .................................... 2024-06-24 04:11:56
item -- almalinux-9 - Alma Linux 9 ....................................... 2024-05-03 22:26:18
item -- rockylinux-8 - Rocky Linux 8 ...................................... 2024-05-27 15:14:45
item -- rockylinux-9 - Rocky Linux 9 ...................................... 2024-05-05 22:41:50
item -- miraclelinux-8 - Miracle Linux 8 .................................... 2023-10-04 10:06:21
item -- miraclelinux-9 - Miracle Linux 9 .................................... 2023-10-04 09:37:20
item -- opensuse-leap-15.5 - openSUSE Leap 15.5 ................................. 2023-05-23 15:21:52
item -- opensuse-leap-15.6 - openSUSE Leap 15.6 ................................. 2024-06-20 11:56:54
item -- opensuse-tumbleweed - openSUSE Tumbleweed ................................ 2024-06-28 17:18:52
item -- windows-10 - Windows 10
item -- windows-11 - Windows 11
item --gap -- [ Live media Install mode ... ]
item -- debian-live-11 - Debian 11 Live ..................................... 2024-06-29 15:22:22
item -- debian-live-12 - Debian 12 Live ..................................... 2024-06-29 09:06:14
item -- debian-live-testing - Debian testing Live ................................ 2024-06-24 02:13:06
item -- ubuntu-desktop-20.04 - Ubuntu 20.04 Desktop ............................... 2023-03-16 15:58:09
item -- ubuntu-desktop-22.04 - Ubuntu 22.04 Desktop ............................... 2024-02-20 19:39:40
item -- ubuntu-desktop-23.10 - Ubuntu 23.10 Desktop ............................... 2023-10-16 11:31:22
item -- ubuntu-desktop-24.04 - Ubuntu 24.04 Desktop ............................... 2024-04-24 11:29:21
item -- ubuntu-desktop-oracular - Ubuntu oracular Desktop ............................ 2024-06-28 06:57:28
item -- ubuntu-legacy-23.10 - Ubuntu 23.10 Legacy Desktop ........................ 2023-10-10 04:57:59
item --gap -- [ Live media Live mode ... ]
item -- live-debian-live-11 - Debian 11 Live ..................................... 2024-06-29 15:22:22
item -- live-debian-live-12 - Debian 12 Live ..................................... 2024-06-29 09:06:14
item -- live-debian-live-testing - Debian testing Live ................................ 2024-06-24 02:13:06
item -- live-ubuntu-desktop-20.04 - Ubuntu 20.04 Desktop ............................... 2023-03-16 15:58:09
item -- live-ubuntu-desktop-22.04 - Ubuntu 22.04 Desktop ............................... 2024-02-20 19:39:40
item -- live-ubuntu-desktop-23.10 - Ubuntu 23.10 Desktop ............................... 2023-10-16 11:31:22
item -- live-ubuntu-desktop-24.04 - Ubuntu 24.04 Desktop ............................... 2024-04-24 11:29:21
item -- live-ubuntu-desktop-oracular - Ubuntu oracular Desktop ............................ 2024-06-28 06:57:28
item -- live-ubuntu-legacy-23.10 - Ubuntu 23.10 Legacy Desktop ........................ 2023-10-10 04:57:59
item --gap -- [ System tools ... ]
item -- memtest86+ - Memtest86+
item -- winpe-x64 - WinPE x64
item -- ati2020x64 - ATI2020x64
item -- ati2020x86 - ATI2020x86
item --gap -- [ System command ]
item -- shell - iPXE shell
#item -- shutdown - System shutdown
item -- restart - System reboot
item --gap -- --------------------------------------------------------------------------
choose --timeout ${menu-timeout} --default ${menu-default} selected || goto menu
goto ${selected}
:debian-mini-11
echo Loading Debian 11 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile mini-bullseye-amd64.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-mini-11
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/linux ${options} --- || goto error
initrd ${knladdr}/initrd.gz || goto error
boot || goto error
exit
:debian-mini-12
echo Loading Debian 12 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile mini-bookworm-amd64.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-mini-12
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/linux ${options} --- || goto error
initrd ${knladdr}/initrd.gz || goto error
boot || goto error
exit
:debian-mini-13
echo Loading Debian 13 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile mini-trixie-amd64.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-mini-13
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/linux ${options} --- || goto error
initrd ${knladdr}/initrd.gz || goto error
boot || goto error
exit
:debian-mini-testing
echo Loading Debian testing ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile mini-testing-amd64.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-mini-testing
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/linux ${options} --- || goto error
initrd ${knladdr}/initrd.gz || goto error
boot || goto error
exit
:ubuntu-mini-18.04
echo Loading Ubuntu 18.04 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile mini-bionic-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_ubuntu_server_old.cfg
set netname sv-ubuntu.workgroup
set network sv-ubuntu.workgroup netcfg/target_network_config=NetworkManager
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-mini-18.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/linux ${options} --- || goto error
initrd ${knladdr}/initrd.gz || goto error
boot || goto error
exit
:ubuntu-mini-20.04
echo Loading Ubuntu 20.04 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile mini-focal-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_ubuntu_server_old.cfg
set netname sv-ubuntu.workgroup
set network sv-ubuntu.workgroup netcfg/target_network_config=NetworkManager
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-mini-20.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/linux ${options} --- || goto error
initrd ${knladdr}/initrd.gz || goto error
boot || goto error
exit
:debian-netinst-11
echo Loading Debian 11 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-11.10.0-amd64-netinst.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-netinst-11
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install.amd/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install.amd/initrd.gz || goto error
boot || goto error
exit
:debian-netinst-12
echo Loading Debian 12 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-12.6.0-amd64-netinst.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-netinst-12
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install.amd/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install.amd/initrd.gz || goto error
boot || goto error
exit
:debian-netinst-testing
echo Loading Debian testing ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-testing-amd64-netinst.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-netinst-testing
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install.amd/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install.amd/initrd.gz || goto error
boot || goto error
exit
:fedora-netinst-39
echo Loading Fedora Server 39 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Fedora-Server-netinst-x86_64-39-1.5.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/fedora-netinst-39
set install inst.ks=http://${svraddr}/conf/kickstart/ks_fedora-39_net.cfg
set netname sv-fedora.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/fedora-netinst-39
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:fedora-netinst-40
echo Loading Fedora Server 40 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Fedora-Server-netinst-x86_64-40-1.14.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/fedora-netinst-40
set install inst.ks=http://${svraddr}/conf/kickstart/ks_fedora-40_net.cfg
set netname sv-fedora.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/fedora-netinst-40
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:centos-stream-netinst-9
echo Loading CentOS Stream 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile CentOS-Stream-9-latest-x86_64-boot.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/centos-stream-netinst-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_centos-stream-9_net.cfg
set netname sv-centos.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/centos-stream-netinst-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:almalinux-netinst-9
echo Loading Alma Linux 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile AlmaLinux-9-latest-x86_64-boot.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/almalinux-netinst-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_almalinux-9_net.cfg
set netname sv-almalinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/almalinux-netinst-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:rockylinux-netinst-8
echo Loading Rocky Linux 8 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Rocky-8.10-x86_64-boot.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/rockylinux-netinst-8
set install inst.ks=http://${svraddr}/conf/kickstart/ks_rockylinux-8_net.cfg
set netname sv-rockylinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/rockylinux-netinst-8
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:rockylinux-netinst-9
echo Loading Rocky Linux 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Rocky-9-latest-x86_64-boot.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/rockylinux-netinst-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_rockylinux-9_net.cfg
set netname sv-rockylinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/rockylinux-netinst-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:miraclelinux-netinst-8
echo Loading Miracle Linux 8 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile MIRACLELINUX-8.8-rtm-minimal-x86_64.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/miraclelinux-netinst-8
set install inst.ks=http://${svraddr}/conf/kickstart/ks_miraclelinux-8_net.cfg
set netname sv-miraclelinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/miraclelinux-netinst-8
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:miraclelinux-netinst-9
echo Loading Miracle Linux 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile MIRACLELINUX-9.2-rtm-minimal-x86_64.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/miraclelinux-netinst-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_miraclelinux-9_net.cfg
set netname sv-miraclelinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/miraclelinux-netinst-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:opensuse-leap-netinst-15.5
echo Loading openSUSE Leap 15.5 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile openSUSE-Leap-15.5-NET-x86_64-Media.iso
set install autoyast=http://${svraddr}/conf/autoyast/autoinst_leap-15.5_net.xml
set netname sv-opensuse.workgroup
set network ifcfg=eth0=192.168.1.1/24,192.168.1.254,192.168.1.254,workgroup hostname=${netname}
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 load_ramdisk=1 showopts ramdisk_size=4096
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/opensuse-leap-netinst-15.5
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/boot/x86_64/loader/linux ${options} --- || goto error
initrd ${knladdr}/boot/x86_64/loader/initrd || goto error
boot || goto error
exit
:opensuse-leap-netinst-15.6
echo Loading openSUSE Leap 15.6 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile openSUSE-Leap-15.6-NET-x86_64-Media.iso
set install autoyast=http://${svraddr}/conf/autoyast/autoinst_leap-15.6_net.xml
set netname sv-opensuse.workgroup
set network ifcfg=eth0=192.168.1.1/24,192.168.1.254,192.168.1.254,workgroup hostname=${netname}
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 load_ramdisk=1 showopts ramdisk_size=4096
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/opensuse-leap-netinst-15.6
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/boot/x86_64/loader/linux ${options} --- || goto error
initrd ${knladdr}/boot/x86_64/loader/initrd || goto error
boot || goto error
exit
:opensuse-tumbleweed-netinst
echo Loading openSUSE Tumbleweed ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile openSUSE-Tumbleweed-NET-x86_64-Current.iso
set install autoyast=http://${svraddr}/conf/autoyast/autoinst_tumbleweed_net.xml
set netname sv-opensuse.workgroup
set network ifcfg=ens160=192.168.1.1/24,192.168.1.254,192.168.1.254,workgroup hostname=${netname}
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 load_ramdisk=1 showopts ramdisk_size=4096
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/opensuse-tumbleweed-netinst
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/boot/x86_64/loader/linux ${options} --- || goto error
initrd ${knladdr}/boot/x86_64/loader/initrd || goto error
boot || goto error
exit
:debian-11
echo Loading Debian 11 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-11.10.0-amd64-DVD-1.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-11
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install.amd/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install.amd/initrd.gz || goto error
boot || goto error
exit
:debian-12
echo Loading Debian 12 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-12.6.0-amd64-DVD-1.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-12
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install.amd/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install.amd/initrd.gz || goto error
boot || goto error
exit
:debian-testing
echo Loading Debian testing ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-testing-amd64-DVD-1.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_server.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-testing
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install.amd/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install.amd/initrd.gz || goto error
boot || goto error
exit
:ubuntu-server-18.04
echo Loading Ubuntu 18.04 Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-18.04.6-server-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_ubuntu_server_old.cfg
set netname sv-ubuntu.workgroup
set network sv-ubuntu.workgroup netcfg/target_network_config=NetworkManager
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-server-18.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install/netboot/ubuntu-installer/amd64/linux ${options} --- || goto error
initrd ${knladdr}/install/netboot/ubuntu-installer/amd64/initrd.gz || goto error
boot || goto error
exit
:ubuntu-live-18.04
echo Loading Ubuntu 18.04 Live Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-18.04.6-live-server-amd64.iso
set isoaddr url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_server_old
set netname sv-ubuntu.workgroup
set network ip=ens160,192.168.1.1,255.255.255.0,192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-live-18.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-live-20.04
echo Loading Ubuntu 20.04 Live Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-20.04.6-live-server-amd64.iso
set isoaddr url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_server
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-live-20.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-live-22.04
echo Loading Ubuntu 22.04 Live Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-22.04.4-live-server-amd64.iso
set isoaddr url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_server
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-live-22.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-live-23.10
echo Loading Ubuntu 23.10 Live Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-23.10-live-server-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_server
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-live-23.10
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-live-24.04
echo Loading Ubuntu 24.04 Live Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-24.04-live-server-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_server
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-live-24.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-live-oracular
echo Loading Ubuntu oracular Live Server ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile oracular-live-server-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_server
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-live-oracular
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:fedora-39
echo Loading Fedora Server 39 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Fedora-Server-dvd-x86_64-39-1.5.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/fedora-39
set install inst.ks=http://${svraddr}/conf/kickstart/ks_fedora-39_web.cfg
set netname sv-fedora.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/fedora-39
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:fedora-40
echo Loading Fedora Server 40 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Fedora-Server-dvd-x86_64-40-1.14.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/fedora-40
set install inst.ks=http://${svraddr}/conf/kickstart/ks_fedora-40_web.cfg
set netname sv-fedora.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/fedora-40
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:centos-stream-9
echo Loading CentOS Stream 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile CentOS-Stream-9-latest-x86_64-dvd1.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/centos-stream-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_centos-stream-9_web.cfg
set netname sv-centos.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/centos-stream-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:almalinux-9
echo Loading Alma Linux 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile AlmaLinux-9-latest-x86_64-dvd.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/almalinux-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_almalinux-9_web.cfg
set netname sv-almalinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/almalinux-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:rockylinux-8
echo Loading Rocky Linux 8 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Rocky-8.10-x86_64-dvd1.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/rockylinux-8
set install inst.ks=http://${svraddr}/conf/kickstart/ks_rockylinux-8_web.cfg
set netname sv-rockylinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/rockylinux-8
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:rockylinux-9
echo Loading Rocky Linux 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile Rocky-9-latest-x86_64-dvd.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/rockylinux-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_rockylinux-9_web.cfg
set netname sv-rockylinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/rockylinux-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:miraclelinux-8
echo Loading Miracle Linux 8 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile MIRACLELINUX-8.8-rtm-x86_64.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/miraclelinux-8
set install inst.ks=http://${svraddr}/conf/kickstart/ks_miraclelinux-8_web.cfg
set netname sv-miraclelinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/miraclelinux-8
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:miraclelinux-9
echo Loading Miracle Linux 9 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile MIRACLELINUX-9.2-rtm-x86_64.iso
set isoaddr inst.stage2=http://${svraddr}/imgs/miraclelinux-9
set install inst.ks=http://${svraddr}/conf/kickstart/ks_miraclelinux-9_web.cfg
set netname sv-miraclelinux.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:none,auto6 nameserver=192.168.1.254
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/miraclelinux-9
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/images/pxeboot/vmlinuz ${options} --- || goto error
initrd ${knladdr}/images/pxeboot/initrd.img || goto error
boot || goto error
exit
:opensuse-leap-15.5
echo Loading openSUSE Leap 15.5 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile openSUSE-Leap-15.5-DVD-x86_64-Media.iso
set isoaddr install=http://${svraddr}/imgs/opensuse-leap-15.5
set install autoyast=http://${svraddr}/conf/autoyast/autoinst_leap-15.5_dvd.xml
set netname sv-opensuse.workgroup
set network ifcfg=eth0=192.168.1.1/24,192.168.1.254,192.168.1.254,workgroup hostname=${netname}
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 load_ramdisk=1 showopts ramdisk_size=4096
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/opensuse-leap-15.5
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/boot/x86_64/loader/linux ${options} --- || goto error
initrd ${knladdr}/boot/x86_64/loader/initrd || goto error
boot || goto error
exit
:opensuse-leap-15.6
echo Loading openSUSE Leap 15.6 ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile openSUSE-Leap-15.6-DVD-x86_64-Media.iso
set isoaddr install=http://${svraddr}/imgs/opensuse-leap-15.6
set install autoyast=http://${svraddr}/conf/autoyast/autoinst_leap-15.6_dvd.xml
set netname sv-opensuse.workgroup
set network ifcfg=eth0=192.168.1.1/24,192.168.1.254,192.168.1.254,workgroup hostname=${netname}
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 load_ramdisk=1 showopts ramdisk_size=4096
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/opensuse-leap-15.6
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/boot/x86_64/loader/linux ${options} --- || goto error
initrd ${knladdr}/boot/x86_64/loader/initrd || goto error
boot || goto error
exit
:opensuse-tumbleweed
echo Loading openSUSE Tumbleweed ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile openSUSE-Tumbleweed-DVD-x86_64-Current.iso
set isoaddr install=http://${svraddr}/imgs/opensuse-tumbleweed
set install autoyast=http://${svraddr}/conf/autoyast/autoinst_tumbleweed_dvd.xml
set netname sv-opensuse.workgroup
set network ifcfg=ens160=192.168.1.1/24,192.168.1.254,192.168.1.254,workgroup hostname=${netname}
set locales locale=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 load_ramdisk=1 showopts ramdisk_size=4096
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/opensuse-tumbleweed
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/boot/x86_64/loader/linux ${options} --- || goto error
initrd ${knladdr}/boot/x86_64/loader/initrd || goto error
boot || goto error
exit
:windows-10
echo Loading Windows 10 ...
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server} ||
set cfgaddr http://${svraddr}/conf/windows
set knladdr http://${svraddr}/imgs/windows-10
echo Loading kernel and initrd ...
kernel ipxe/wimboot
initrd ${cfgaddr}/unattend.xml unattend.xml || goto error
initrd ${cfgaddr}/shutdown.cmd shutdown.cmd || goto error
initrd -n install.cmd ${cfgaddr}/inst_w10.cmd install.cmd || goto error
initrd ${cfgaddr}/winpeshl.ini winpeshl.ini || goto error
initrd ${knladdr}/boot/bcd BCD || goto error
initrd ${knladdr}/boot/boot.sdi boot.sdi || goto error
initrd -n boot.wim ${knladdr}/sources/boot.wim boot.wim || goto error
boot || goto error
exit
:windows-11
echo Loading Windows 11 ...
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server} ||
set cfgaddr http://${svraddr}/conf/windows
set knladdr http://${svraddr}/imgs/windows-11
echo Loading kernel and initrd ...
kernel ipxe/wimboot
initrd ${cfgaddr}/unattend.xml unattend.xml || goto error
initrd ${cfgaddr}/shutdown.cmd shutdown.cmd || goto error
initrd -n install.cmd ${cfgaddr}/inst_w11.cmd install.cmd || goto error
initrd ${cfgaddr}/winpeshl.ini winpeshl.ini || goto error
initrd ${knladdr}/boot/bcd BCD || goto error
initrd ${knladdr}/boot/boot.sdi boot.sdi || goto error
initrd -n boot.wim ${knladdr}/sources/boot.wim boot.wim || goto error
boot || goto error
exit
:debian-live-11
echo Loading Debian 11 Live ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-live-11.10.0-amd64-lxde.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_desktop.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-live-11
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/d-i/vmlinuz ${options} --- || goto error
initrd ${knladdr}/d-i/initrd.gz || goto error
boot || goto error
exit
:debian-live-12
echo Loading Debian 12 Live ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-live-12.6.0-amd64-lxde.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_desktop.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-live-12
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install/initrd.gz || goto error
boot || goto error
exit
:debian-live-testing
echo Loading Debian testing Live ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-live-testing-amd64-lxde.iso
set isoaddr fetch=http://${svraddr}/isos/${isofile}
set install auto=true url=http://${svraddr}/conf/preseed/ps_debian_desktop.cfg
set netname sv-debian.workgroup
set network netcfg/disable_autoconfig=true netcfg/choose_interface=ens160 netcfg/get_hostname=${netname} netcfg/get_ipaddress=192.168.1.1 netcfg/get_netmask=255.255.255.0 netcfg/get_gateway=192.168.1.254 netcfg/get_nameservers=192.168.1.254
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-live-testing
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/install/vmlinuz ${options} --- || goto error
initrd ${knladdr}/install/initrd.gz || goto error
boot || goto error
exit
:ubuntu-desktop-20.04
echo Loading Ubuntu 20.04 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-20.04.6-desktop-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt auto=true url=http://${svraddr}/conf/preseed/ps_ubiquity_desktop.cfg
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:static:192.168.1.254
set locales debian-installer/locale=ja_JP.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-20.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-desktop-22.04
echo Loading Ubuntu 22.04 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-22.04.4-desktop-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt auto=true url=http://${svraddr}/conf/preseed/ps_ubiquity_desktop.cfg
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:static:192.168.1.254
set locales debian-installer/locale=ja_JP.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-22.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-desktop-23.10
echo Loading Ubuntu 23.10 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-23.10.1-desktop-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_desktop
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-23.10
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-desktop-24.04
echo Loading Ubuntu 24.04 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-24.04-desktop-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_desktop
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-24.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-desktop-oracular
echo Loading Ubuntu oracular Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile oracular-desktop-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt autoinstall ds=nocloud-net;s=http://${svraddr}/conf/nocloud/ubuntu_desktop
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0::ens160:static:192.168.1.254 hostname=${netname}
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-oracular
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:ubuntu-legacy-23.10
echo Loading Ubuntu 23.10 Legacy Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-23.10-desktop-legacy-amd64.iso
set isoaddr iso-url=http://${svraddr}/isos/${isofile}
set install automatic-ubiquity noprompt auto=true url=http://${svraddr}/conf/preseed/ps_ubiquity_desktop.cfg
set netname sv-ubuntu.workgroup
set network ip=192.168.1.1::192.168.1.254:255.255.255.0:${netname}:ens160:static:192.168.1.254
set locales debian-installer/locale=ja_JP.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-legacy-23.10
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:live-debian-live-11
echo Loading Debian 11 Live ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-live-11.10.0-amd64-lxde.iso
set isoaddr boot=live components fetch=http://${svraddr}/imgs/debian-live-11/live/filesystem.squashfs
set network ip=dhcp
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-live-11
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/live/vmlinuz-5.10.0-30-amd64 ${options} --- || goto error
initrd ${knladdr}/live/initrd.img-5.10.0-30-amd64 || goto error
boot || goto error
exit
:live-debian-live-12
echo Loading Debian 12 Live ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-live-12.6.0-amd64-lxde.iso
set isoaddr boot=live components fetch=http://${svraddr}/imgs/debian-live-12/live/filesystem.squashfs
set network ip=dhcp
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-live-12
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/live/vmlinuz ${options} --- || goto error
initrd ${knladdr}/live/initrd.img || goto error
boot || goto error
exit
:live-debian-live-testing
echo Loading Debian testing Live ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile debian-live-testing-amd64-lxde.iso
set isoaddr boot=live components fetch=http://${svraddr}/imgs/debian-live-testing/live/filesystem.squashfs
set network ip=dhcp
set locales locales=ja_JP.UTF-8 timezone=Asia/Tokyo keyboard-layouts=jp keyboard-model=jp106
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/debian-live-testing
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/live/vmlinuz ${options} --- || goto error
initrd ${knladdr}/live/initrd.img || goto error
boot || goto error
exit
:live-ubuntu-desktop-20.04
echo Loading Ubuntu 20.04 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-20.04.6-desktop-amd64.iso
set isoaddr boot=casper maybe-ubiquity iso-url=http://${svraddr}/isos/${isofile}
set network ip=dhcp
set locales debian-installer/locale=ja_JP.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-20.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:live-ubuntu-desktop-22.04
echo Loading Ubuntu 22.04 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-22.04.4-desktop-amd64.iso
set isoaddr boot=casper maybe-ubiquity iso-url=http://${svraddr}/isos/${isofile}
set network ip=dhcp
set locales debian-installer/locale=ja_JP.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-22.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:live-ubuntu-desktop-23.10
echo Loading Ubuntu 23.10 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-23.10.1-desktop-amd64.iso
set isoaddr boot=casper layerfs-path=minimal.standard.live.squashfs iso-url=http://${svraddr}/isos/${isofile}
set network ip=dhcp
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-23.10
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:live-ubuntu-desktop-24.04
echo Loading Ubuntu 24.04 Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-24.04-desktop-amd64.iso
set isoaddr boot=casper layerfs-path=minimal.standard.live.squashfs iso-url=http://${svraddr}/isos/${isofile}
set network ip=dhcp
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-24.04
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:live-ubuntu-desktop-oracular
echo Loading Ubuntu oracular Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile oracular-desktop-amd64.iso
set isoaddr boot=casper layerfs-path=minimal.standard.live.squashfs iso-url=http://${svraddr}/isos/${isofile}
set network ip=dhcp
set locales debian-installer/locale=en_US.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-desktop-oracular
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:live-ubuntu-legacy-23.10
echo Loading Ubuntu 23.10 Legacy Desktop ...
set root tftp
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server}' ||
set isofile ubuntu-23.10-desktop-legacy-amd64.iso
set isoaddr boot=casper maybe-ubiquity iso-url=http://${svraddr}/isos/${isofile}
set network ip=dhcp
set locales debian-installer/locale=ja_JP.UTF-8 keyboard-configuration/layoutcode=jp keyboard-configuration/modelcode=jp106
set ramdisk root=/dev/ram0 ramdisk_size=1500000
set options ${isoaddr} ${install} ${network} ${locales} ${ramdisk} fsck.mode=skip
set knladdr http://${svraddr}/imgs/ubuntu-legacy-23.10
form Configure Boot Options
item options Boot Options
present ||
echo Loading kernel and initrd ...
kernel ${knladdr}/casper/vmlinuz ${options} --- || goto error
initrd ${knladdr}/casper/initrd || goto error
boot || goto error
exit
:memtest86+
echo Loading Memtest86+ ...
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server} ||
set knladdr http://${svraddr}/imgs/memtest86+
iseq ${platform} efi && set knlfile ${knladdr}/EFI/BOOT/memtest || set knlfile ${knladdr}/boot/memtest
echo Loading kernel ...
kernel ${knlfile} || goto error
boot || goto error
exit
:winpe-x64
echo Loading WinPE x64 ...
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server} ||
set knladdr http://${svraddr}/imgs/winpe-x64
echo Loading kernel and initrd ...
kernel ipxe/wimboot
initrd ${knladdr}/Boot/BCD BCD || goto error
initrd ${knladdr}/Boot/boot.sdi boot.sdi || goto error
initrd -n boot.wim ${knladdr}/sources/boot.wim boot.wim || goto error
boot || goto error
exit
:ati2020x64
echo Loading ATI2020x64 ...
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server} ||
set knladdr http://${svraddr}/imgs/ati2020x64
echo Loading kernel and initrd ...
kernel ipxe/wimboot
initrd ${knladdr}/Boot/BCD BCD || goto error
initrd ${knladdr}/Boot/boot.sdi boot.sdi || goto error
initrd -n boot.wim ${knladdr}/sources/boot.wim boot.wim || goto error
boot || goto error
exit
:ati2020x86
echo Loading ATI2020x86 ...
set svraddr 192.168.1.10
isset ${next-server} && set svraddr ${next-server} ||
set knladdr http://${svraddr}/imgs/ati2020x86
echo Loading kernel and initrd ...
kernel ipxe/wimboot
initrd ${knladdr}/Boot/BCD BCD || goto error
initrd ${knladdr}/Boot/boot.sdi boot.sdi || goto error
initrd -n boot.wim ${knladdr}/sources/boot.wim boot.wim || goto error
boot || goto error
exit
:shell
echo "Booting iPXE shell ..."
shell
goto start
:shutdown
echo "System shutting down ..."
poweroff
exit
:restart
echo "System rebooting ..."
reboot
exit
:error
prompt Press any key to continue
exit
:exit
exit
実行結果
| Media | File name | kernel | Lood | Boot | Inst | Note |
|---|---|---|---|---|---|---|
| mini.iso | mini-buster-amd64.iso | 4.19.0 | O | X | - | Crash during startup |
| mini-bullseye-amd64.iso | 5.10.0 | O | O | O | Network installation only | |
| mini-bookworm-amd64.iso | 6.1.0 | O | O | O | " | |
| mini-trixie-amd64.iso | 6.1.0 | - | - | - | Kernel module mismatch | |
| mini-testing-amd64.iso | 6.8.12 | O | O | O | Network installation only | |
| mini-bionic-amd64.iso | 4.15.0 | O | X | - | Crash during startup | |
| mini-focal-amd64.iso | 5.4.0 | O | X | - | " | |
| Net install | debian-10.13.0-amd64-netinst.iso | 4.19.0 | O | X | - | Crash during startup |
| debian-11.9.0-amd64-netinst.iso | 5.10.0 | O | O | X | Unable to detect media | |
| debian-12.5.0-amd64-netinst.iso | 6.1.0 | O | O | X | " | |
| debian-testing-amd64-netinst.iso | 6.8.12 | O | O | X | " | |
| Fedora-Server-netinst-x86_64-39-1.5.iso | 6.5.6 | O | O | O | No special mention | |
| Fedora-Server-netinst-x86_64-40-1.14.iso | 6.8.5 | O | O | O | " | |
| CentOS-Stream-9-latest-x86_64-boot.iso | 5.14.0 | O | O | O | " | |
| AlmaLinux-9-latest-x86_64-boot.iso | 5.14.0 | O | O | O | " | |
| Rocky-8.9-x86_64-boot.iso | 4.18.0 | O | X | - | Crash during startup | |
| Rocky-9-latest-x86_64-boot.iso | 5.14.0 | O | O | O | No special mention | |
| MIRACLELINUX-8.8-rtm-minimal-x86_64.iso | 4.18.0 | O | X | - | Crash during startup | |
| MIRACLELINUX-9.2-rtm-minimal-x86_64.iso | 5.14.0 | O | O | O | No special mention | |
| openSUSE-Leap-15.5-NET-x86_64-Media.iso | 5.14.21 | O | O | O | No special mention | |
| openSUSE-Leap-15.6-NET-x86_64-Media.iso | 6.4.0 | O | O | O | " | |
| openSUSE-Tumbleweed-NET-x86_64-Current.iso | 6.9.5 | O | O | O | " | |
| DVD | debian-10.13.0-amd64-DVD-1.iso | 4.19.0 | O | X | - | Crash during startup |
| debian-11.9.0-amd64-DVD-1.iso | 5.10.0 | O | O | X | Unable to detect media | |
| debian-12.5.0-amd64-DVD-1.iso | 6.1.0 | O | O | X | " | |
| debian-testing-amd64-DVD-1.iso | 6.8.12 | O | O | X | " | |
| ubuntu-18.04.6-server-amd64.iso | 4.15.0 | O | X | - | Crash during startup | |
| ubuntu-18.04.6-live-server-amd64.iso | 4.15.0 | O | X | - | " | |
| ubuntu-20.04.6-live-server-amd64.iso | 5.4.0 | O | X | - | " | |
| ubuntu-22.04.4-live-server-amd64.iso | 5.15.0 | O | X | - | Hangs during startup | |
| ubuntu-23.10-live-server-amd64.iso | 6.5.0 | O | O | O | No special mention | |
| ubuntu-24.04-live-server-amd64.iso | 6.8.0 | O | O | O | " | |
| oracular-live-server-amd64.iso | 6.8.0 | O | O | O | " | |
| Fedora-Server-dvd-x86_64-39-1.5.iso | 6.5.6 | O | O | O | No special mention | |
| Fedora-Server-dvd-x86_64-40-1.14.iso | 6.8.5 | O | O | O | " | |
| CentOS-Stream-9-latest-x86_64-dvd1.iso | 5.14.0 | O | O | O | " | |
| AlmaLinux-9-latest-x86_64-dvd.iso | 5.14.0 | O | O | O | " | |
| Rocky-8.9-x86_64-dvd1.iso | 4.18.0 | O | X | - | Crash during startup | |
| Rocky-9-latest-x86_64-dvd.iso | 5.14.0 | O | O | O | No special mention | |
| MIRACLELINUX-8.8-rtm-x86_64.iso | 4.18.0 | O | X | - | Crash during startup | |
| MIRACLELINUX-9.2-rtm-x86_64.iso | 5.14.0 | O | O | O | No special mention | |
| openSUSE-Leap-15.5-DVD-x86_64-Media.iso | 5.14.21 | O | O | O | No special mention | |
| openSUSE-Leap-15.6-DVD-x86_64-Media.iso | 6.4.0 | O | O | O | " | |
| openSUSE-Tumbleweed-DVD-x86_64-Current.iso | 6.9.5 | O | O | O | " | |
| Win10_22H2_Japanese_x64.iso | - | O | O | O | samba connection requires manual operation | |
| Win11_23H2_Japanese_x64v2_custom.iso | - | O | O | O | " | |
| Live DVD | debian-live-10.13.0-amd64-lxde.iso | 4.19.0 | O | X | - | Crash during startup |
| debian-live-11.9.0-amd64-lxde.iso | 5.10.0 | O | O | X | Unable to detect media | |
| debian-live-12.5.0-amd64-lxde.iso | 6.1.0 | O | O | X | " | |
| debian-live-testing-amd64-lxde.iso | 6.7.12 | O | O | X | " | |
| ubuntu-20.04.6-desktop-amd64.iso | 5.15.0 | O | O | X | Unable to detect media | |
| ubuntu-22.04.4-desktop-amd64.iso | 6.5.0 | O | O | X | " | |
| ubuntu-23.10.1-desktop-amd64.iso | 6.5.0 | O | O | O | Minimum memory is 8GiB | |
| ubuntu-24.04-desktop-amd64.iso | 6.8.0 | O | O | X | Unable to start install mode | |
| ubuntu-23.10-desktop-legacy-amd64.iso | 6.5.0 | O | O | O | No special mention | |
| oracular-desktop-amd64.iso | 6.8.0 | O | O | X | Hangs during install | |
| Live mode | debian-live-10.13.0-amd64-lxde.iso | 4.19.0 | O | X | - | Crash during startup |
| debian-live-11.9.0-amd64-lxde.iso | 5.10.0 | O | O | - | Boot of live mode | |
| debian-live-12.5.0-amd64-lxde.iso | 6.1.0 | O | O | - | " | |
| debian-live-testing-amd64-lxde.iso | 6.7.12 | O | O | - | " | |
| ubuntu-20.04.6-desktop-amd64.iso | 5.15.0 | O | - | - | Unable to detect media | |
| ubuntu-22.04.4-desktop-amd64.iso | 6.5.0 | O | - | - | " | |
| ubuntu-23.10.1-desktop-amd64.iso | 6.5.0 | O | O | - | Boot of live mode | |
| ubuntu-24.04-desktop-amd64.iso | 6.8.0 | O | O | - | Unable to start live mode | |
| ubuntu-23.10-desktop-legacy-amd64.iso | 6.5.0 | O | O | - | Minimum memory is 8GiB | |
| oracular-desktop-amd64.iso | 6.8.0 | O | O | - | " | |
| System tools | mt86plus_7.00_64.grub.iso | - | O | O | - | No special mention |
| WinPEx64.iso | - | O | O | - | " | |
| WinPE_ATI2020x64.iso | - | O | O | - | " | |
| WinPE_ATI2020x86.iso | - | O | O | - | " |
Note:
- Ubuntu Desktop minimum memory is 8GiB
参照
| Application | URL |
|---|---|
| Markdown | https://qiita.com/Qiita/items/c686397e4a0f4f11683d |
| Dnsmasq | https://man.archlinux.org/man/dnsmasq.8 |
| iPXE(WinPE) | https://ipxe.org/howto/winpe |
構成ファイルの詳細については各マニュアルを参照
参考
最小限の環境で確認する場合はこの手順でも可能
