Raspberry PiとPythonでLCD(16x2)ゲームを作成する

Last updated at Posted at 2020-08-27

Raspberry PiとPythonでLCD(16x2)ゲームを作成する

はじめに

Mac環境の記事ですが、Windows環境も同じ手順になります。環境依存の部分は読み替えてお試しください。

目的

LCD1602A 16x2 I2Cを使用して、算数ゲームを作成します。

この記事を最後まで読むと、次のことができるようになります。

No. 概要 キーワード
1 電子回路
2 LCD制御 SMBus
3 ボタン制御 gpiozero

仕様

画面 ボタン1 ボタン2
メニュー 足し算、引き算の選択 決定
足し算 次問題の表示、11問目の表示でメニューへ戻る 答えの表示
引き算 次問題の表示、11問目の表示でメニューへ戻る 答えの表示

完成イメージ

メニュー 足し算 引き算

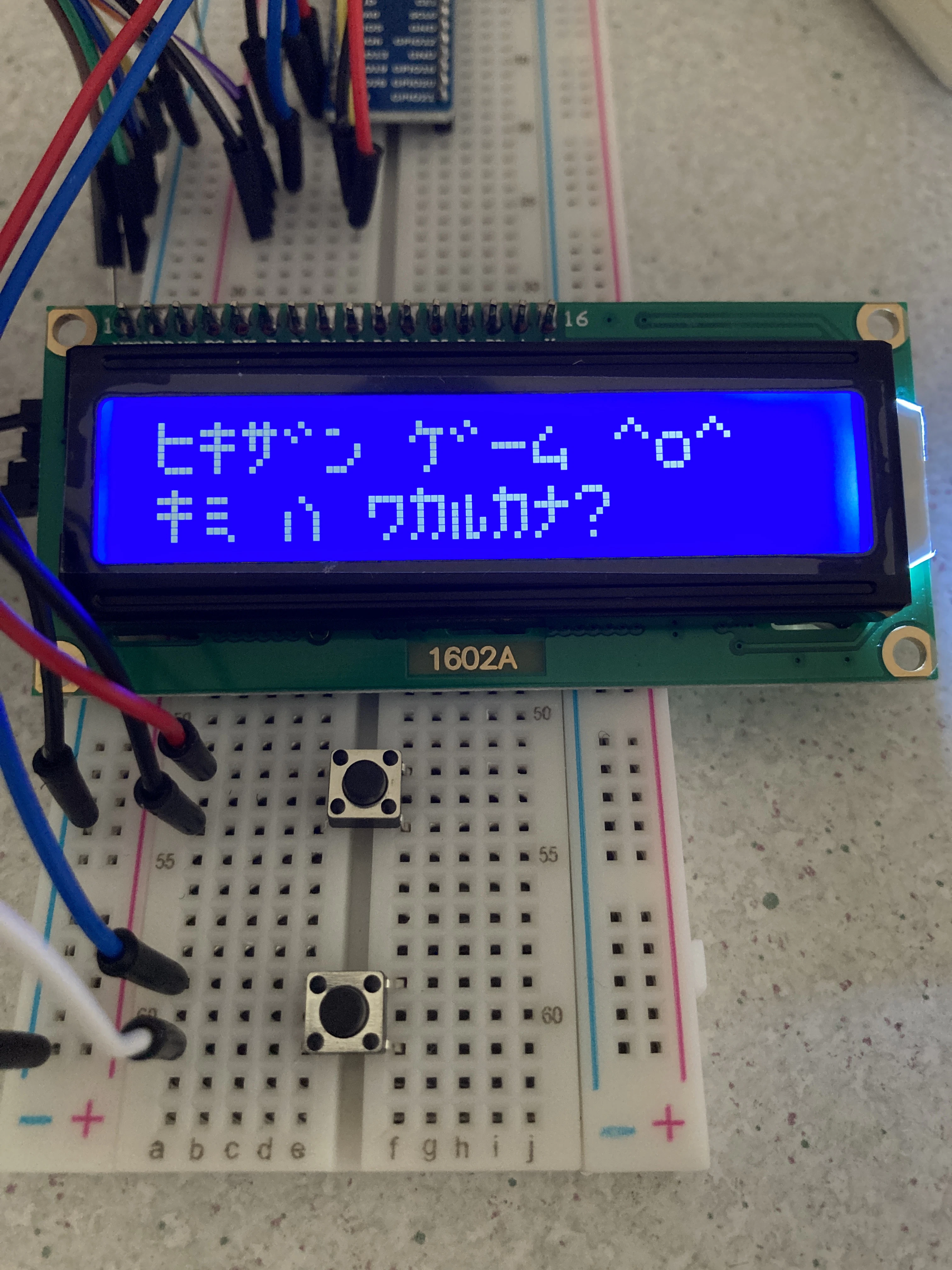

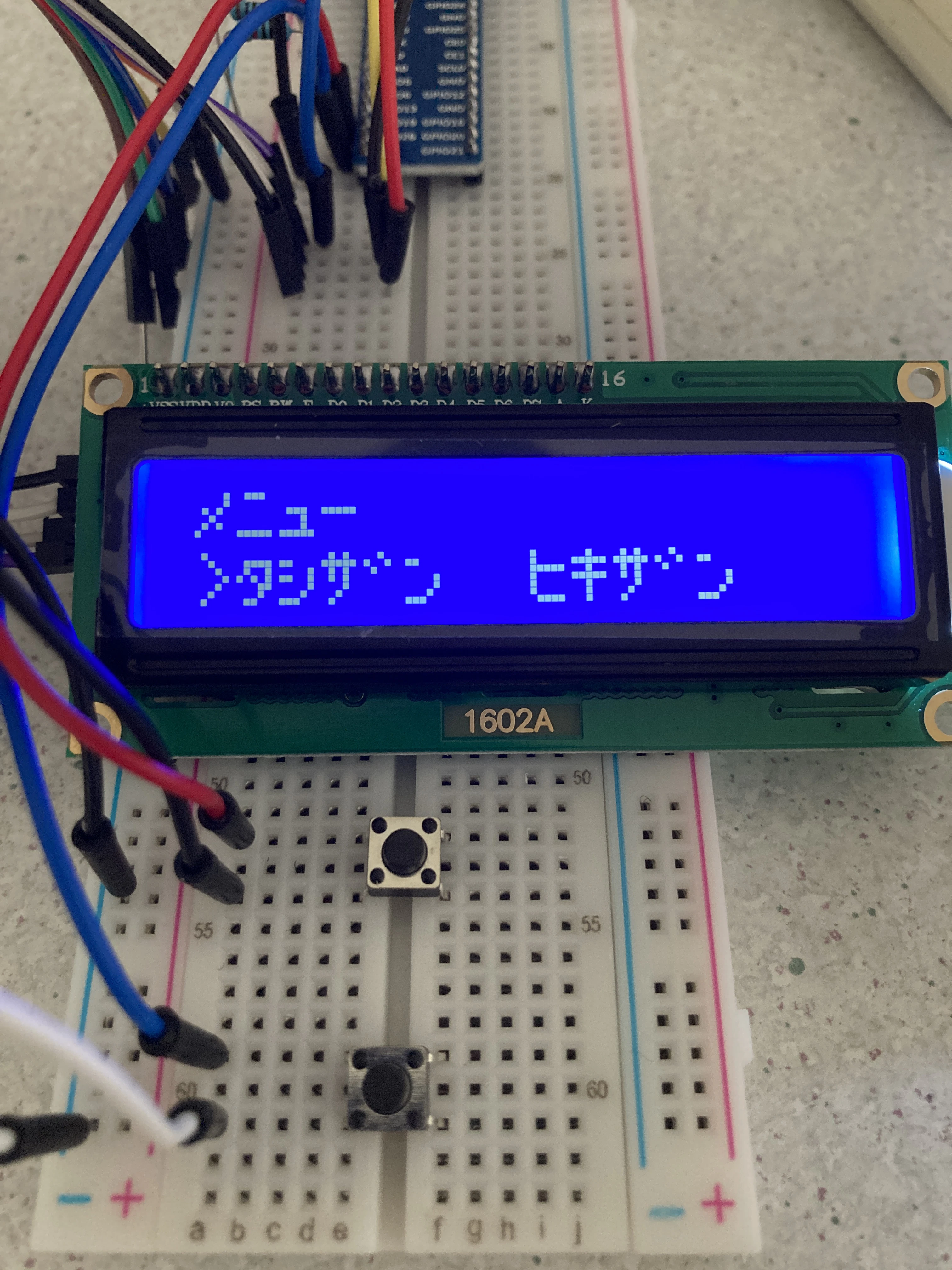

IMG_4772.PNG IMG_4781.JPG IMG_4778.JPG
IMG_4782.PNG IMG_4774.JPG IMG_4776.JPG

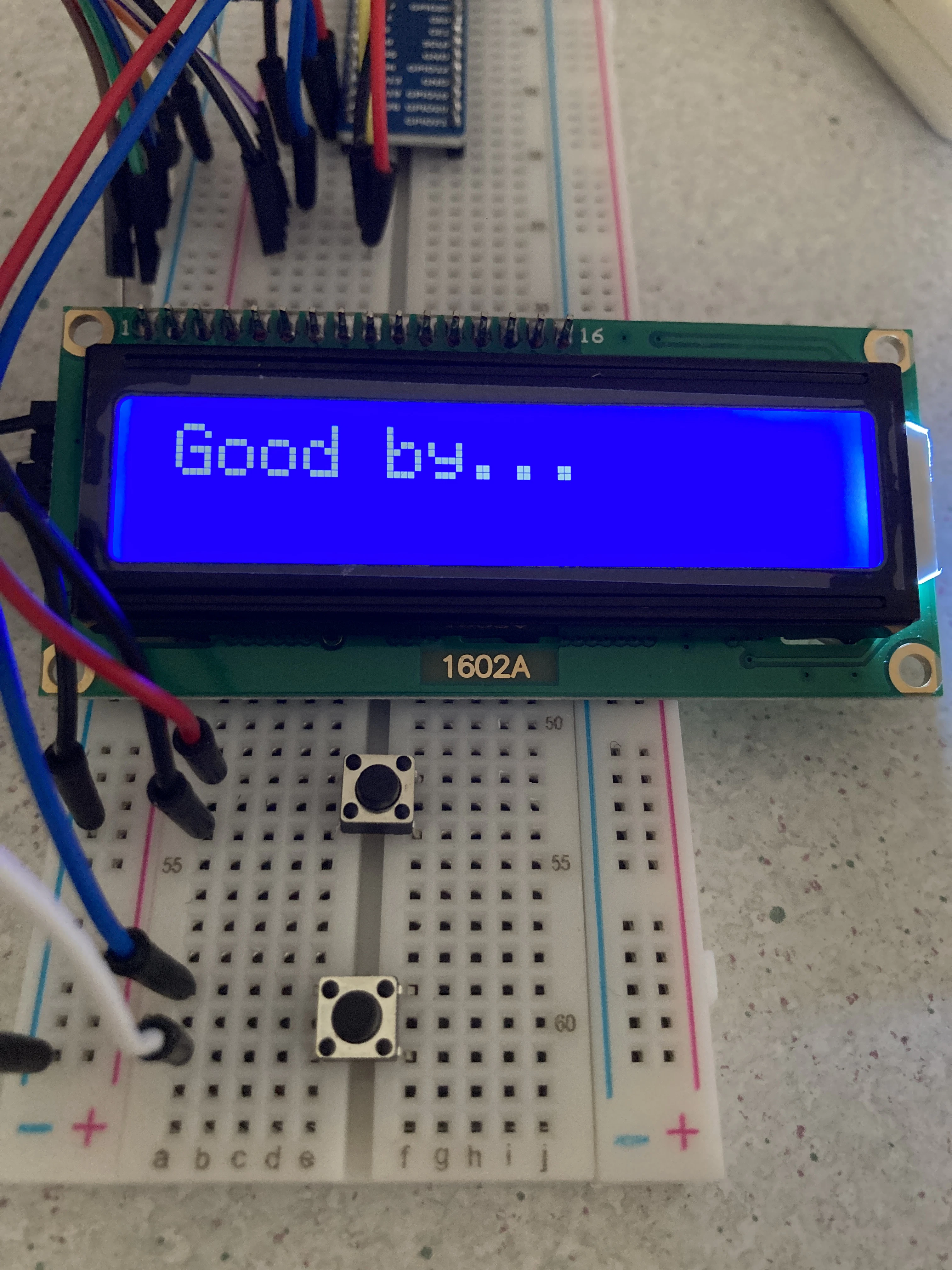

IMG_4779.PNG IMG_4775.JPG IMG_4777.JPG

実行環境

環境 Ver.
macOS Catalina 10.15.6
Raspberry Pi 4 Model B 4GB RAM -
Raspberry Pi OS (Raspbian) 10
Python 3.7.3
gpiozero 1.5.1
RPi.GPIO 0.7.0
smbus2 0.3.0

ソースコード

実際に実装内容やソースコードを追いながら読むとより理解が深まるかと思います。是非ご活用ください。

GitHub

関連する記事

電子回路

LCD電子回路

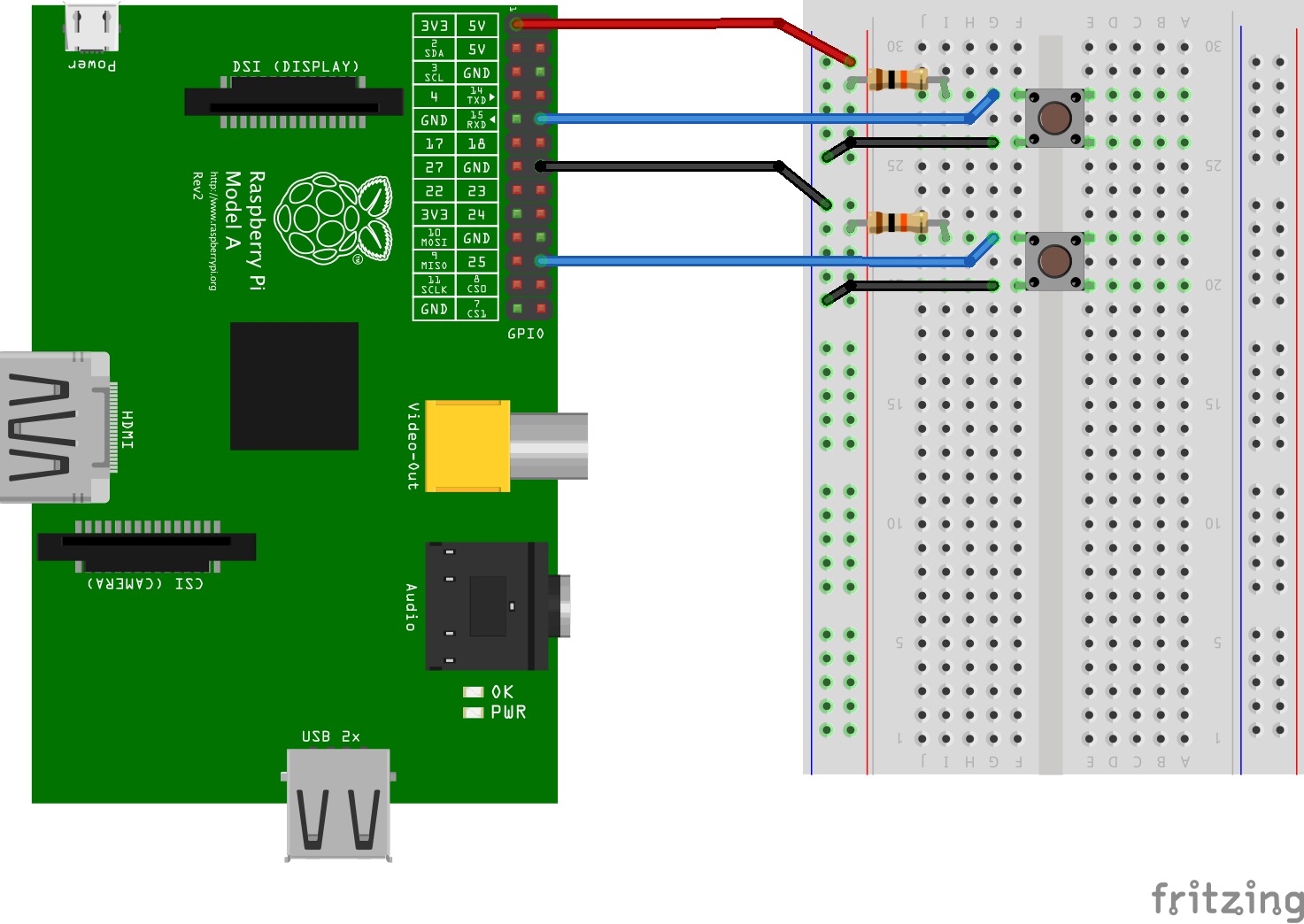

ボタン電子回路


I2C設定

Raspberry Pi Software Configuration Tool起動

command.sh
~$ sudo raspi-config

I2C有効化

  1. 5 Interfacing Optionsを選択
  2. P5 I2Cを選択

再起動

command.sh
~$ sudo reboot

I2C通信アドレス確認

command.sh
~$ sudo i2cdetect -y 1
     0  1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
00:          -- -- -- -- -- -- -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- 27 -- -- -- -- -- -- -- --
30: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
40: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --

I2C通信アドレスは0x27となる

ハンズオン

command.sh
~$ git clone https://github.com/nsuhara/raspi-lcdgame.git -b master
~$ cd raspi-lcdgame

~$ python -m venv .venv
~$ source .venv/bin/activate
~$ pip install -r requirements.txt
~$ source config

~$ python app/main.py

~$ Control Key + C

アプリ構成

target.sh
/app
├─ addition.py
├─ i2clcd1602a
│      ├─ __init__.py
│      ├─ katakana.py
│      └─ pcf8574t.py
├─ main.py
├─ menu.py
├─ story_board.py
└─ subtraction.py

LCD

target.sh
/app
└─ i2clcd1602a
       ├─ __init__.py
       ├─ katakana.py
       └─ pcf8574t.py

LCD制御

pcf8574t.py
"""i2clcd1602a/pcf8574t.py
"""
import time

from smbus2 import SMBus

from i2clcd1602a.katakana import convert


class LCD():
    """LCD
    """
    SMBUS_REV1 = 0
    SMBUS_REV2 = 1

    I2C_ADDR = 0x27

    ENABLE_BIT = 0b00000100

    LINE_1 = 0x80
    LINE_2 = 0xC0
    LINE_SIZE = 16

    MODE_COMMAND = 0
    MODE_CHAR = 1
    MODE_OPTION_BACKLIGHT = 0x08

    CMD_INITIALISE = 0x33
    CMD_SET_4_BIT_MODE = 0x32
    CMD_CURSOR_MOVE_DIRECTION = 0x06
    CMD_TURN_CURSOR_OFF = 0x0C
    CMD_2_LINE_DISPLAY = 0x28
    CMD_CLEAR_DISPLAY = 0x01
    CMD_WAIT = 0.0005

    def __init__(self):
        self.smbus = SMBus(self.SMBUS_REV2)

        self._send(mode=self.MODE_COMMAND, bits=self.CMD_INITIALISE)
        self._send(mode=self.MODE_COMMAND, bits=self.CMD_SET_4_BIT_MODE)
        self._send(mode=self.MODE_COMMAND, bits=self.CMD_CURSOR_MOVE_DIRECTION)
        self._send(mode=self.MODE_COMMAND, bits=self.CMD_TURN_CURSOR_OFF)
        self._send(mode=self.MODE_COMMAND, bits=self.CMD_2_LINE_DISPLAY)
        self._send(mode=self.MODE_COMMAND, bits=self.CMD_CLEAR_DISPLAY)

    def destroy(self):
        """destroy
        """
        self._send(mode=self.MODE_COMMAND, bits=self.CMD_CLEAR_DISPLAY)
        self.smbus.close()

    def message(self, message, line):
        """message
        """
        message = convert(message=message)
        message = message[0:self.LINE_SIZE]
        message = message.ljust(self.LINE_SIZE, ' ')

        self._send(mode=self.MODE_COMMAND | self.MODE_OPTION_BACKLIGHT,
                   bits=line)

        for char in message:
            self._send(mode=self.MODE_CHAR | self.MODE_OPTION_BACKLIGHT,
                       bits=ord(char))

    def clear(self):
        """close
        """
        self._send(mode=self.MODE_COMMAND | self.MODE_OPTION_BACKLIGHT,
                   bits=self.CMD_CLEAR_DISPLAY)

    def off(self):
        """off
        """
        self.destroy()

    def _send(self, mode, bits):
        """_send
        """
        higher_bits = mode | (bits & 0xF0)
        self._write(bits=higher_bits)

        lower_bit = mode | ((bits << 4) & 0xF0)
        self._write(bits=lower_bit)

    def _write(self, bits):
        """_write
        """
        self.smbus.write_byte(self.I2C_ADDR, bits)
        time.sleep(self.CMD_WAIT)

        self.smbus.write_byte(self.I2C_ADDR, (bits | self.ENABLE_BIT))
        time.sleep(self.CMD_WAIT)

        self.smbus.write_byte(self.I2C_ADDR, (bits & ~self.ENABLE_BIT))
        time.sleep(self.CMD_WAIT)

    def loop(self):
        """loop
        """
        while True:
            self.message(message='1234567890123456', line=self.LINE_1)
            self.message(message='abcdefghijklmnop', line=self.LINE_2)
            time.sleep(2)

            self.message(message='ABCDEFGHIJKLMNOP', line=self.LINE_1)
            self.message(message='アイウエオカキクケコサシスセソタ', line=self.LINE_2)
            time.sleep(2)


if __name__ == '__main__':
    lcd = LCD()
    try:
        print('start')
        lcd.loop()
    except KeyboardInterrupt:
        lcd.destroy()
        print('stop')

カタカナ制御

katakana.sh
"""i2clcd1602a/katakana.py
"""

SP_CODE = 0xfec0


def convert(message):
    """convert
    """
    converted = []
    for char in message:
        if ord(char) > SP_CODE:
            converted.append(chr(ord(char)-SP_CODE))
        else:
            converted.append(char)
    return ''.join(converted)

メイン

target.sh
/app
└─ main.py

メイン制御

main.py
"""app/main.py
"""

from signal import pause
from time import sleep

from gpiozero import Button

from addition import Addition
from i2clcd1602a.pcf8574t import LCD
from menu import Menu
from subtraction import Subtraction


class Raspi():
    """Raspi
    """
    GPIO_BCM_BUTTON1 = 15
    GPIO_BCM_BUTTON2 = 25

    def __init__(self):
        self.lcd = LCD()

        self.button1 = Button(self.GPIO_BCM_BUTTON1)
        self.button1.when_pressed = self.button1_pressed
        self.button1.when_released = self.button1_released

        self.button2 = Button(self.GPIO_BCM_BUTTON2)
        self.button2.when_pressed = self.button2_pressed
        self.button2.when_released = self.button2_released

        self.status = 'menu'

        self.display = {
            'menu': Menu(self),
            'addition': Addition(self),
            'subtraction': Subtraction(self)
        }

        self.display.get(self.status).top()

    def destroy(self):
        """destroy
        """
        self.lcd.off()

    def button1_pressed(self):
        """button1_pressed
        """
        self.display.get(self.status).button1_pressed()

    def button1_released(self):
        """button1_released
        """
        self.display.get(self.status).button1_released()

    def button2_pressed(self):
        """button2_pressed
        """
        self.display.get(self.status).button2_pressed()

    def button2_released(self):
        """button2_released
        """
        self.display.get(self.status).button2_released()

    def pause(self):
        """pause
        """
        pause()


if __name__ == '__main__':
    app = Raspi()
    try:
        print('start')
        app.pause()
    except KeyboardInterrupt:
        app.lcd.clear()
        app.lcd.message(message='Good by...', line=app.lcd.LINE_1)
        sleep(1)
        app.destroy()
        print('stop')

共通

target.sh
/app
└─ story_board.py

抽象クラス

story_board.py
"""app/story_board.py
"""

import abc


class StoryBoard(metaclass=abc.ABCMeta):
    """StoryBoard
    """

    def __init__(self):
        pass

    @abc.abstractmethod
    def top(self):
        pass

    @abc.abstractmethod
    def button1_pressed(self):
        pass

    @abc.abstractmethod
    def button1_released(self):
        pass

    @abc.abstractmethod
    def button2_pressed(self):
        pass

    @abc.abstractmethod
    def button2_released(self):
        pass

メニュー

target.sh
/app
├─ menu.py
└─ story_board.py

メニュー制御

menu.py
"""app/menu.py
"""

from story_board import StoryBoard


class Menu(StoryBoard):
    """Menu
    """

    def __init__(self, app):
        super().__init__()

        self.app = app
        self.lcd = app.lcd

        self.status = None

    def top(self):
        """top
        """
        self.lcd.message(message='メニュー', line=self.lcd.LINE_1)
        self.lcd.message(message='>タシザン  ヒキザン', line=self.lcd.LINE_2)
        self.status = 'addition'

    def button1_pressed(self):
        """button1_pressed
        """
        if self.status == 'addition':
            self.lcd.message(message=' タシザン >ヒキザン', line=self.lcd.LINE_2)
            self.status = 'subtraction'
        else:
            self.lcd.message(message='>タシザン  ヒキザン', line=self.lcd.LINE_2)
            self.status = 'addition'

    def button1_released(self):
        """button1_released
        """
        print('>>> button1_released')

    def button2_pressed(self):
        """button2_pressed
        """
        if self.status == 'addition':
            self.app.status = 'addition'
        else:
            self.app.status = 'subtraction'
        self.app.display.get(self.app.status).top()

    def button2_released(self):
        """button2_released
        """
        print('>>> button2_released')

足し算

target.sh
/app
├─ addition.py
└─ story_board.py

足し算制御

addition.py
"""app/addition.py
"""

from random import randint

from story_board import StoryBoard


class Addition(StoryBoard):
    """Addition
    """
    MAXIMUM = 5

    def __init__(self, app):
        super().__init__()

        self.app = app
        self.lcd = app.lcd

        self.question = 0
        self.num1 = 0
        self.num2 = 0

    def top(self):
        """top
        """
        self.question = 0
        self.num1 = 0
        self.num2 = 0
        self.lcd.message(message='タシザン ゲーム ^o^', line=self.lcd.LINE_1)
        self.lcd.message(message='キミ ハ ワカルカナ?', line=self.lcd.LINE_2)

    def button1_pressed(self):
        """button1_pressed
        """
        self.question = self.question + 1

        if self.question > 10:
            self.app.status = 'menu'
            self.app.display.get(self.app.status).top()
            return

        self.num1 = randint(1, self.MAXIMUM)
        self.num2 = randint(1, self.MAXIMUM)

        self.lcd.message(message='Q{}) {} + {} = ?'.format(str(self.question).zfill(2), self.num1,
                                                           self.num2), line=self.lcd.LINE_1)
        self.lcd.message(message='コタエ)', line=self.lcd.LINE_2)

    def button1_released(self):
        """button1_released
        """
        print('>>> button1_released')

    def button2_pressed(self):
        """button2_pressed
        """
        if self.num1 == 0 or self.num2 == 0:
            return
        self.lcd.message(message='コタエ) {}'.format(
            self.num1+self.num2), line=self.lcd.LINE_2)

    def button2_released(self):
        """button2_released
        """
        print('>>> button2_released')

引き算

target.sh
/app
├─ story_board.py
└─ subtraction.py

引き算制御

subtraction.py
"""app/subtraction.py
"""

from random import randint

from story_board import StoryBoard


class Subtraction(StoryBoard):
    """Subtraction
    """
    MAXIMUM = 5

    def __init__(self, app):
        super().__init__()

        self.app = app
        self.lcd = app.lcd

        self.question = 0
        self.num1 = 0
        self.num2 = 0

    def top(self):
        """top
        """
        self.question = 0
        self.num1 = 0
        self.num2 = 0
        self.lcd.message(message='ヒキザン ゲーム ^o^', line=self.lcd.LINE_1)
        self.lcd.message(message='キミ ハ ワカルカナ?', line=self.lcd.LINE_2)

    def button1_pressed(self):
        """button1_pressed
        """
        self.question = self.question + 1

        if self.question > 10:
            self.app.status = 'menu'
            self.app.display.get(self.app.status).top()
            return

        self.num1 = randint(1, self.MAXIMUM)
        self.num2 = randint(1, self.MAXIMUM)
        if self.num1 < self.num2:
            temp = self.num1
            self.num1 = self.num2
            self.num2 = temp

        self.lcd.message(message='Q{}) {} - {} = ?'.format(str(self.question).zfill(2), self.num1,
                                                           self.num2), line=self.lcd.LINE_1)
        self.lcd.message(message='コタエ)', line=self.lcd.LINE_2)

    def button1_released(self):
        """button1_released
        """
        print('>>> button1_released')

    def button2_pressed(self):
        """button2_pressed
        """
        if self.num1 == 0 or self.num2 == 0:
            return
        self.lcd.message(message='コタエ) {}'.format(
            self.num1-self.num2), line=self.lcd.LINE_2)

    def button2_released(self):
        """button2_released
        """
        print('>>> button2_released')
2
2
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
2
2

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
