Standalone Engine install & troubleshooting manual
OL Virutalization Managerの設定（2025年８月現在）
非常に苦労しましたので、備忘録として記載しておきます。
尚、下記のOracle公式サイトを参考にしております。
https://docs.oracle.com/en/virtualization/oracle-linux-virtualization-manager/?utm_source=chatgpt.com
<以下、本文>
Oracle Linux Virtualization Manager (OLVM) 4.5 on Oracle Linux 8
Purpose: A practical, copy‑paste manual for installing Standalone Engine OLVM 4.5 on Oracle Linux 8 (on‑prem), plus fixes for the most common DNF/module issues we hit.
Audience: Admins deploying OLVM in labs or production.
１ Overview & Architecture
• Standalone Engine (recommended): The Manager (ovirt‑engine) runs on its own OL8 VM/host. KVM hosts are separate machines you add later.
• Do not install the engine on a hypervisor OS (unless doing Self‑Hosted Engine, which is a different workflow).
２ Prerequisites
Engine host (Manager):
• Oracle Linux 8.8+ Minimal Install.
• FQDN resolvable forward & reverse (e.g., olvm.example.com).
• Time sync: chronyd running and correct timezone.
• SELinux: Enforcing (required).
• IPv6: enabled (do not disable on the Manager).
• Outbound access to Oracle repos (or a local mirror).
Quick checks (run on the Engine host):
hostname -f
getent hosts $(hostname -f)
timedatectl
sudo systemctl enable --now chronyd
getenforce
sysctl net.ipv6.conf.all.disable_ipv6 # expect 0
３ Repositories
Install the OLVM 4.5 release RPM (enables the correct repos):
sudo dnf install -y oracle-ovirt-release-45-el8
sudo dnf clean all && sudo dnf makecache
Confirm the repos:
sudo dnf repolist | egrep -i 'ovirt|baseos|appstream|kvm|gluster'
# Expect these enabled:
# ol8_baseos_latest, ol8_appstream, ol8_kvm_appstream,
# ovirt-4.5, ovirt-4.5-extra, ol8_gluster_appstream
Repo hygiene (avoid conflicts during install):
# Disable older or noisy repos during installation
sudo dnf config-manager --disable 'ovirt-4.4*' '*epel*' ol8_codeready_builder
Tip: Avoid setting module_hotfixes=1 globally in repo files. Use one‑shot flags only when absolutely necessary.
４ Pin Module Streams (prevents dependency fights)
Lock to the streams OLVM 4.5 expects on OL8:
sudo dnf module reset -y postgresql perl maven javapackages-tools
sudo dnf module enable -y postgresql:12 perl:5.26 maven:3.8 javapackages-tools:201801
５ Install the Manager
sudo dnf install -y ovirt-engine
sudo engine-setup
Recommended answers in engine-setup:
• Engine on this host: Yes
• ovirt‑provider‑ovn: Yes (default)
• WebSocket Proxy: Yes
• Data Warehouse: Yes (local)
• VM Console Proxy: Yes
• Grafana: Yes
• Keycloak: No for simplest first install (can add later)
• Firewall changes: Yes
• Accept defaults for local PostgreSQL; provide the Engine FQDN; set the admin password
If engine-setup asks you to update its own setup packages, run:
sudo dnf update -y ovirt-engine-setup ovirt-engine-setup-plugin-websocket-proxy ovirt-engine-dwh-setup ovirt-engine-dwh-grafana-integration-setup ovirt-engine-keycloak-setup
Rerun sudo engine-setup afterward.
Login:
• URL: https://<engine-fqdn>/ovirt-engine
• User: admin
• Profile: internal
• Password: set during engine-setup
If you need to reset/unlock admin:
sudo ovirt-aaa-jdbc-tool user password-reset admin --password 'NewStrongPass!'
sudo ovirt-aaa-jdbc-tool user unlock admin

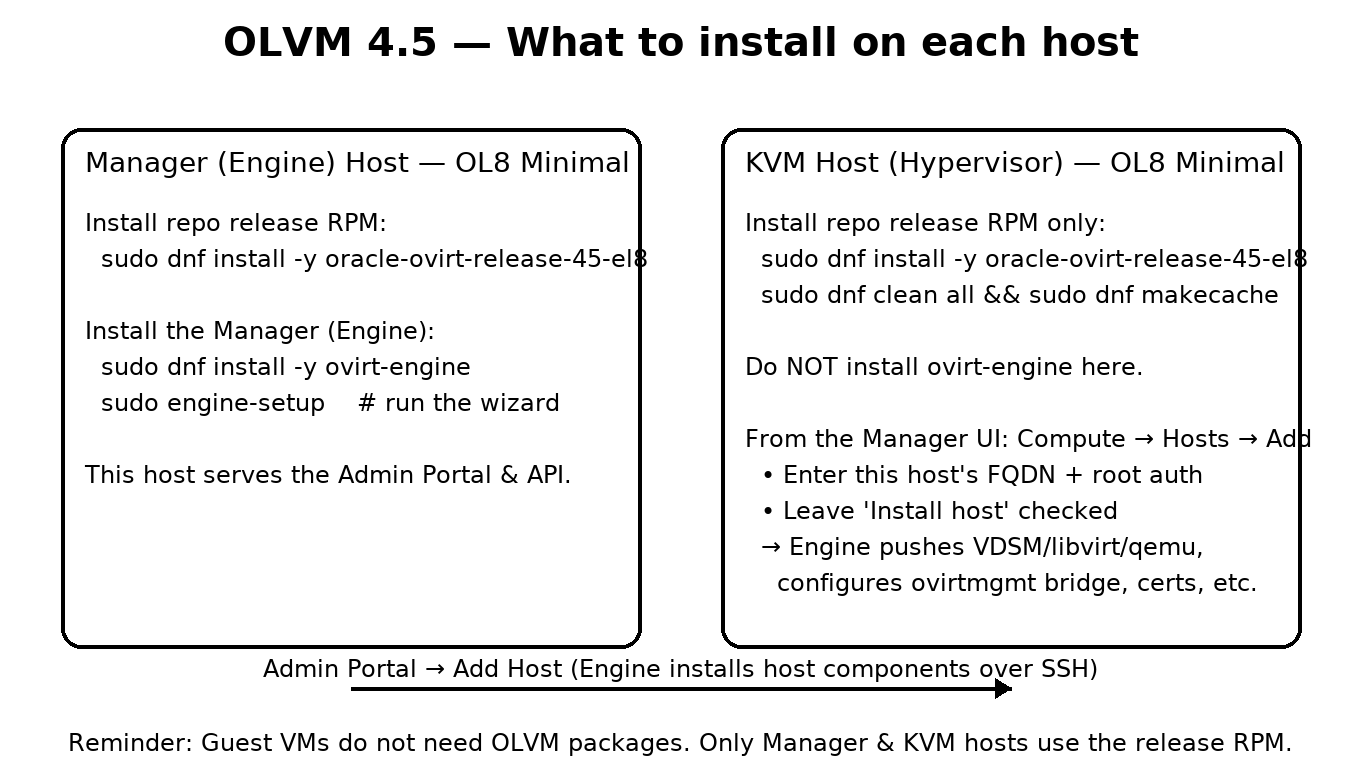

This is overall picture.
#Reminder: Guest VMs do not need OLVM packages. Only Manager & KVM hosts use the release RPM.
・Do NOT install it inside guest VMs.
Guests are just normal OSes.
６ Add Your First KVM Host (separate machine)
On the KVM host (OL8 Minimal):
sudo dnf install -y oracle-ovirt-release-45-el8
sudo dnf clean all && sudo dnf makecache
hostname -f; timedatectl; getenforce
In the Admin Portal:
- Compute → Hosts → Add
- Enter FQDN, choose Default cluster, provide root password or SSH key
- Keep Install host checked; wait until the host status becomes Up (may reboot once)
７ Networking
• Compute → Hosts → → Network Interfaces → Setup Host Networks
• Attach ovirtmgmt to a physical NIC (OLVM creates a Linux bridge). Note that the NIC will briefly bounce.
８ Storage Domain (example: NFS)
On an NFS server:
sudo mkdir -p /srv/ovirt/data
echo '/srv/ovirt/data *(rw,sync,no_root_squash)' | sudo tee -a /etc/exports
sudo exportfs -rav
In Admin Portal:
• Storage → Domains → New
- Type: NFS, Role: Data
- Host: NFS server IP/FQDN; Path:
/srv/ovirt/data - Save, then Activate domain if needed
(For iSCSI: choose iSCSI, Discover target, select a LUN, Role=Data, and create the domain.)
９ Create a VM (quick)
• Compute → Virtual Machines → New
- Choose OS type, memory/CPU, add a disk on the Data domain
- NIC: attach to
ovirtmgmt - Boot from CD‑ROM (ISO) or Attached Disk (cloud image)
• Start VM → open Console (VNC or SPICE)
１０ Troubleshooting (battle‑tested fixes)
A) DNF lock: “Waiting for process with pid …”
ps -fp <PID>
sudo systemctl stop packagekit dnf-makecache.service dnf-makecache.timer
sudo kill <PID> || sudo kill -9 <PID>
B) “All matches were filtered out by modular filtering”
List/reset modules:
sudo dnf module list --enabled
sudo dnf module reset -y <module>
sudo dnf module enable -y <module>:<stream>
One‑shot bypass for a single install (use sparingly):
sudo dnf --setopt=<repo>.module_hotfixes=1 install -y <pkg>
C) Jackson / Maven mismatch (OL8 AppStream)
If a package requires mvn(com.fasterxml.jackson.core:jackson-databind) and it’s filtered:
sudo dnf module reset -y maven javapackages-tools
sudo dnf module enable -y maven:3.8 javapackages-tools:201801
sudo dnf clean all && sudo dnf makecache
optional one-shot if still hidden
sudo dnf --setopt=ol8_appstream.module_hotfixes=1 install -y jackson-databind
D) SLF4J conflict when updating ovirt-engine-extension-aaa-jdbc
There is no OL8 slf4j-jdk14 ≥ 1.7.32. Remove the binding and update the core libs:
sudo dnf remove -y slf4j-jdk14
sudo dnf install -y slf4j jcl-over-slf4j # will pick 1.7.32+ from AppStream
E) PostgreSQL 16 vs Perl 5.32 ABI conflict
Pin the supported streams and replace PG16 with PG12:
sudo dnf --disablerepo='*' --enablerepo=ol8_appstream,ol8_baseos_latest module switch-to -y perl:5.26 postgresql:12
Fallback if switch-to not available:
sudo dnf module reset -y perl postgresql
sudo dnf module enable -y perl:5.26 postgresql:12
sudo dnf distro-sync -y 'perl*' 'postgresql*' --allowerasing
If dnf update keeps trying to pull PG16, remove any module_hotfixes=1 lines from /etc/yum.repos.d/.repo, clean metadata, and redo the enable commands above.
F) engine-setup keeps asking to update setup packages
Update the specific setup RPMs, then re-run:
sudo dnf update -y ovirt-engine-setup ovirt-engine-setup-plugin-websocket-proxy ovirt-engine-dwh-setup ovirt-engine-dwh-grafana-integration-setup ovirt-engine-keycloak-setup
sudo engine-setup
G) Can’t log in to the UI
• Use admin with Profile = internal.
• Reset/unlock if needed:
sudo ovirt-aaa-jdbc-tool user password-reset admin --password 'NewStrongPass!'
sudo ovirt-aaa-jdbc-tool user unlock admin
１１ Handy Commands
Services & logs
sudo systemctl status ovirt-engine
sudo tail -f /var/log/ovirt-engine/engine.log
Engine DB backup
sudo engine-backup --mode=backup --file=/var/lib/ovirt-engine/backups/engine-$(date +%F).tgz --log=-
Repo sanity
sudo dnf repolist
Module sanity
sudo dnf module list --enabled
１２ Notes & Best Practices
• Keep Engine, hosts, and storage on reliable DNS & time.
• Avoid globally disabling IPv6 on the Manager.
• Prefer separate storage for Data, ISO, Export (NFS/iSCSI/FC).
• For production, use external DBs only if you already operate managed PostgreSQL; otherwise keep the default local DB for simplicity.
• After first login, create named users and roles; avoid daily work as admin@internal.
End of guide.
＜参考＞ 尚、OLVM4.5はOL8であることがMustですが、OLKVMもOLVMで管理するなら、OL８でないとダメ。逆に言うと、OL９をOLKVMとして使用する事は可能だが、その場合は、OLVMで管理できない。
詳細は下記。
OLVM vs. OL KVM — Supported OS versions (brief)
What runs where
OLVM 4.5 Engine (Manager)
Must run on Oracle Linux 8.8 or later (OL8). Install ovirt-engine and run engine-setup.
https://docs.oracle.com/en/virtualization/oracle-linux-virtualization-manager/getstart/getstarted-manager-install-prepare.html?utm_source=chatgpt.com
KVM hosts managed by OLVM 4.5
Must also be Oracle Linux 8.8 or later (OL8). Do a fresh OL8 install on each host, enable the OLVM 4.5 repos, then add the host from the Admin Portal (the Engine pushes VDSM/libvirt/qemu).
https://docs.oracle.com/en/virtualization/oracle-linux-virtualization-manager/getstart/getstarted-manager-install-kvm.html?utm_source=chatgpt.com
Guest VMs
Any supported guest OS. They do not require OLVM packages.
What is not supported
Oracle Linux 9 (OL9) as KVM hosts for OLVM 4.5 is not supported. Oracle’s docs for preparing a KVM host explicitly require OL8.8 (or later OL8). The OLVM 4.5 release comms also say it “supports Oracle Linux 8 KVM compute hosts.”
https://docs.oracle.com/en/virtualization/oracle-linux-virtualization-manager/getstart/getstarted-manager-install-kvm.html?utm_source=chatgpt.com
If you must stay on OL9 for the hypervisor
Use stand-alone KVM management (no OLVM):
Cockpit “Virtual Machines” GUI (cockpit-machines) on OL9, or libvirt/virsh tooling. Oracle’s OL9 KVM docs cover this unmanaged workflow.
chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://docs.oracle.com/en/operating-systems/oracle-linux/9/kvm-user/OL9-KVM-USER.pdf?utm_source=chatgpt.com
10-second takeaway
・OLVM 4.5 = OL8 for Engine + OL8 for KVM hosts.
・OL9 hosts ≠ managed by OLVM 4.5. Use stand-alone KVM tools if sticking with OL9.
