概要
Terraformを使用してOCIのPostgreSQLデータベースを構築し、そのコンフィグ情報をOCI Vaultのシークレットに自動で保存する手順を説明します。
これにより、セキュリティを保つたまま自動化された構成を実現できます。
Terraformの流れ
一度に下記を実行します。
- TerraformでOCI Database with PostgreSQLを構築
- データベースサービスのパラメータ情報をTerraformで取得
- TerraformでVaultシークレットにパラメータ情報を自動追加
事前準備
事前に作成必要です。
- VCN(プライベートサブネット)
- Vault
- VaultのAESのマスター暗号化キー

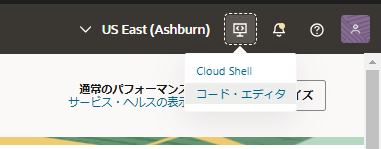

Terraformの実行はOCIコンソール画面右上のコードエディタからが便利です。
デフォルトでterraformが使えます。
Terraformスクリプト
まず以下のファイルを作っていきます。
provider.tf
provider "oci" {
tenancy_ocid = var.tenancy_ocid
user_ocid = var.user_ocid
fingerprint = var.fingerprint
private_key_path = var.private_key_path
region = var.region
}
variables.tf
variable "compartment_id" {
description = "The OCID of the compartment in which to create resources."
type = string
}
variable "tenancy_ocid" {
description = "The OCID of the tenancy."
type = string
}
variable "user_ocid" {
description = "The OCID of the user."
type = string
}
variable "fingerprint" {
description = "The fingerprint of the API key used for authentication."
type = string
}
variable "private_key_path" {
description = "The path to the private API key file."
type = string
}
variable "region" {
description = "The OCI region in which to create resources (e.g., 'us-phoenix-1')."
type = string
}
variable "secret_name" {
description = "The name of the secret in the Vault."
type = string
}
variable "key_id" {
description = "The OCID of the key to encrypt or decrypt data in the Vault."
type = string
}
variable "vault_id" {
description = "The OCID of the Vault used for managing secrets and keys."
type = string
}
variable "secret_content_name" {
description = "The name of the content stored in the secret."
type = string
}
variable "secret_content_type" {
description = "The content type of the secret (e.g., 'PLAIN_TEXT' or 'APPLICATION_JSON')."
type = string
}
variable "db_system_credentials_username" {
description = "The username for the database administrator (e.g., 'admin')."
type = string
}
variable "db_system_credentials_password_details_password_type" {
description = "The type of password for the database (e.g., 'PLAIN_TEXT')."
type = string
default = "PLAIN_TEXT"
}
variable "db_system_credentials_password_details_password" {
description = "The password for the database administrator."
type = string
sensitive = true
}
variable "db_system_db_version" {
description = "The version of the database to deploy"
type = string
}
variable "db_system_display_name" {
description = "The display name of the database system."
type = string
}
variable "db_system_network_details_subnet_id" {
description = "The OCID of the subnet in which to create the database system."
type = string
}
variable "db_system_shape" {
description = "The shape of the database system."
type = string
}
variable "db_system_storage_details_is_regionally_durable" {
description = "Whether the database system storage is regionally durable."
type = bool
default = true
}
variable "db_system_storage_details_system_type" {
description = "The storage system type for the database."
type = string
}
variable "db_system_source_source_type" {
description = "The source type for the database system."
type = string
}
terraform.tfvars
tenancy_ocid = "(your_tenancy_ocid)"
user_ocid = "(your_user_ocid)"
fingerprint = "(your_fingerprint)"
private_key_path = "~/.oci/oci_api_key.pem"
region = "us-ashburn-1"
compartment_id = "(your_compartment_id)"
db_system_credentials_password_details_password = "YourSecurePassword123"
db_system_credentials_username = "admin"
db_system_db_version = "15"
db_system_display_name = "example-db-system"
db_system_network_details_subnet_id = "(ポスグレを配置するプライベートサブネットOCID)"
db_system_shape = "PostgreSQL.VM.Standard.E4.Flex.2.32GB"
db_system_storage_details_is_regionally_durable = true
db_system_storage_details_system_type = "OCI_OPTIMIZED_STORAGE"
db_system_source_source_type = "NONE"
key_id= "(vaultのマスター暗号化キーOCID)"
vault_id = "(vaultのOCID)"
secret_name = "tfmake"
secret_content_name = "tfmake_content"
secret_content_type = "BASE64"
main.tf
# 1. DBシステムの作成
resource "oci_psql_db_system" "test_db_system" {
compartment_id = var.compartment_id
credentials {
password_details {
password_type = var.db_system_credentials_password_details_password_type
password = var.db_system_credentials_password_details_password
}
username = var.db_system_credentials_username
}
db_version = var.db_system_db_version
display_name = var.db_system_display_name
network_details {
subnet_id = var.db_system_network_details_subnet_id
}
shape = var.db_system_shape
storage_details {
is_regionally_durable = var.db_system_storage_details_is_regionally_durable
system_type = var.db_system_storage_details_system_type
}
source {
source_type = var.db_system_source_source_type
}
}
# 2. DBシステムの接続詳細を取得
data "oci_psql_db_system_connection_detail" "test_db_system_connection_detail" {
db_system_id = oci_psql_db_system.test_db_system.id
}
# 3. Vaultシークレットに接続情報を登録
resource "oci_vault_secret" "test_secret" {
compartment_id = var.compartment_id
key_id = var.key_id
secret_content {
content_type = var.secret_content_type
content = base64encode(
jsonencode({
fqdn = data.oci_psql_db_system_connection_detail.test_db_system_connection_detail.primary_db_endpoint[0].fqdn
ip_address = data.oci_psql_db_system_connection_detail.test_db_system_connection_detail.primary_db_endpoint[0].ip_address
port = data.oci_psql_db_system_connection_detail.test_db_system_connection_detail.primary_db_endpoint[0].port
})
)
name = var.secret_content_name
}
secret_name = var.secret_name
vault_id = var.vault_id
}

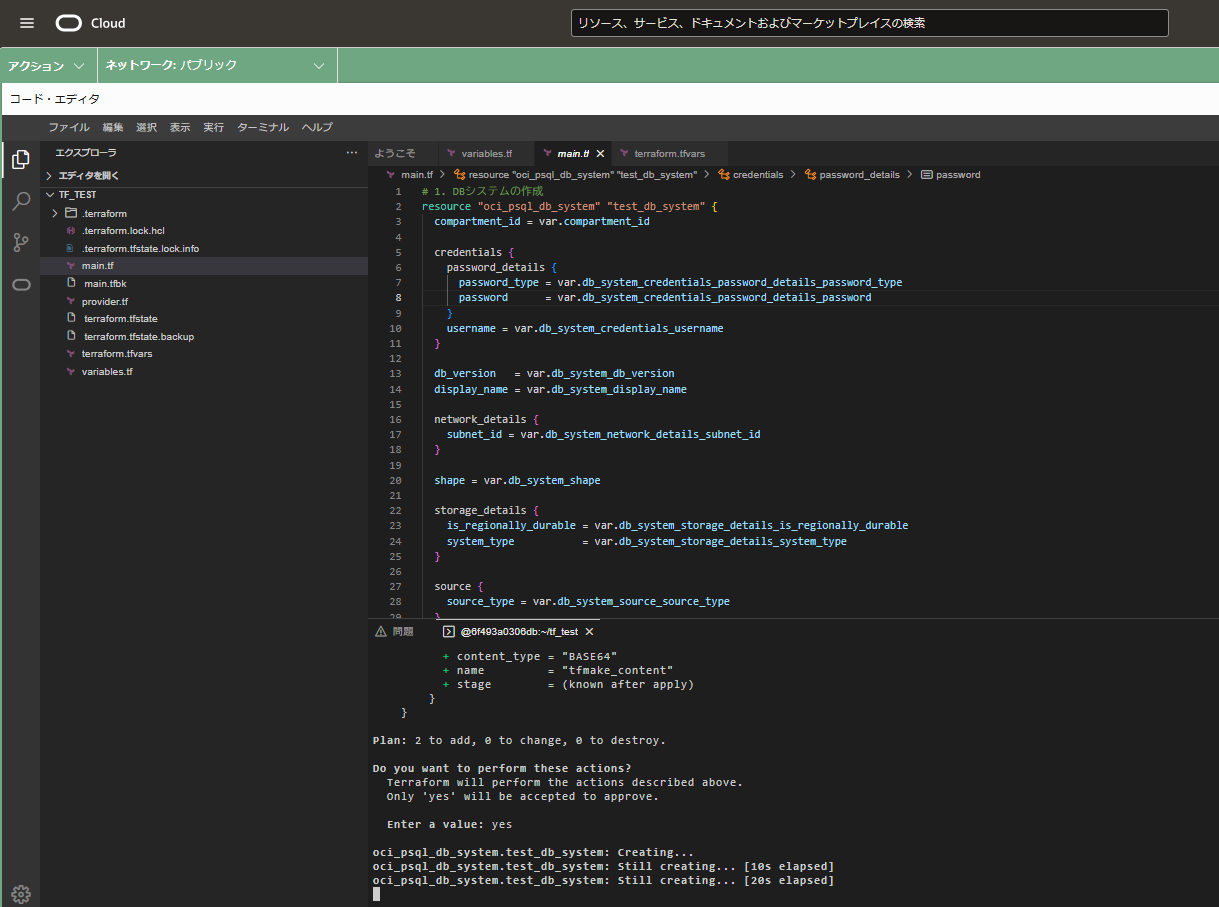

Terraform実行
あとは下記を実行していくのみです。
- terraform init
- terraform plan
- terraform apply
実行結果
ポスグレDBが作成され、かつシークレットも作成されました。

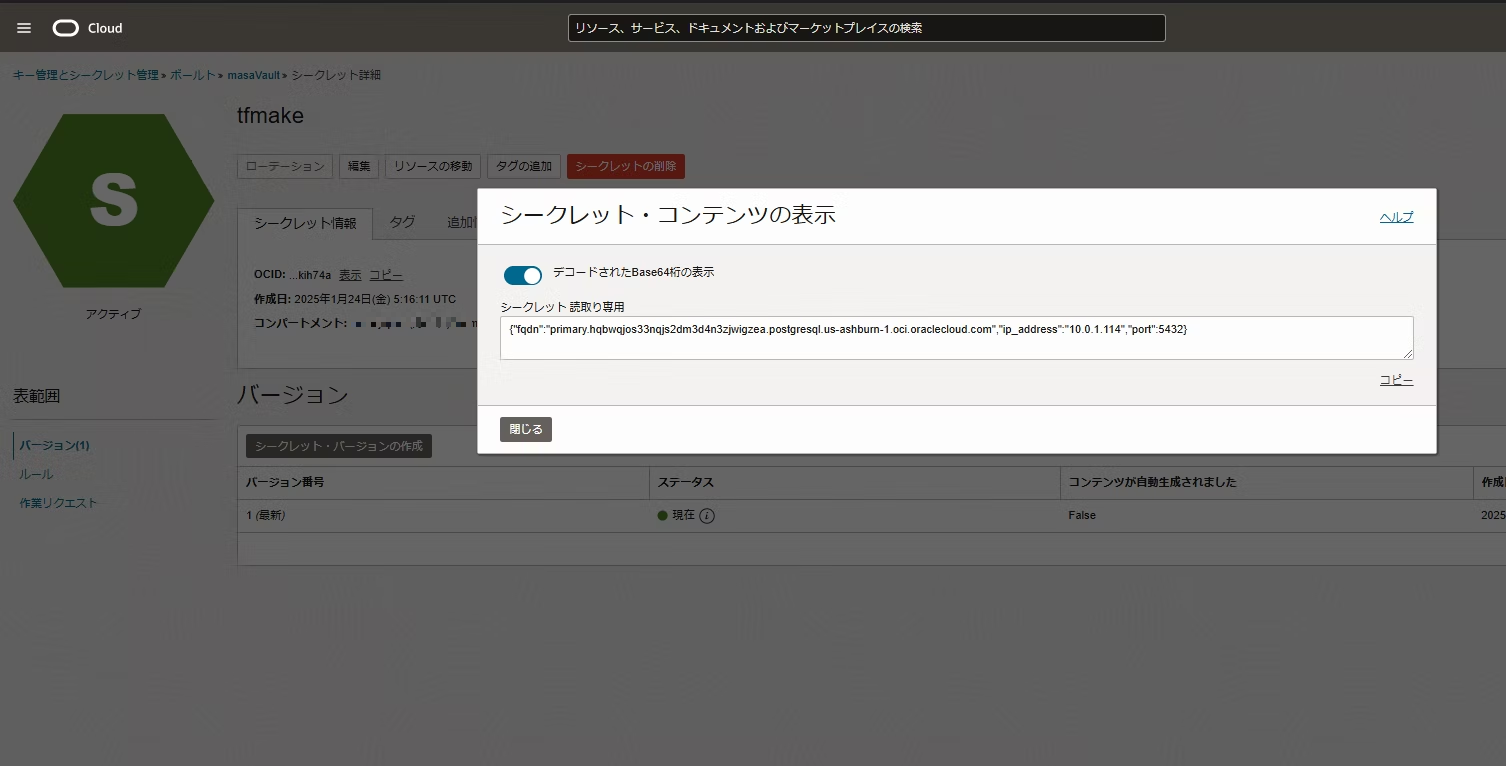

シークレット中身を見ていくと、作成されたポスグレDBのエンドポイント情報がシークレットに保存できました。
参考リンク
- Terraform
- Vault
