アナログ センサー(水分 / 温度) +NTP時計 , with ATmega328P

Last updated at Posted at 2017-01-15

esp8266+ MCU(ATmega328P)連携の作例となり。
3.3V系arduino/softwareSerial/ arduinoライブラリ等 を使用した製作事例の一部となります。


アナログ(水分センサ＋温度センサ)、NTP時計でDeepSleep(省エネ)版

Youtube

Parts

Analog- Soli Moisture Sensor
Analog Temperature Sensor : LM60BIZ
I2C 0.96 inch OLED display

arduino Library:

Time: http://playground.arduino.cc/code/time
TimeLib
WiFiUdp
Adafruit_SSD1306

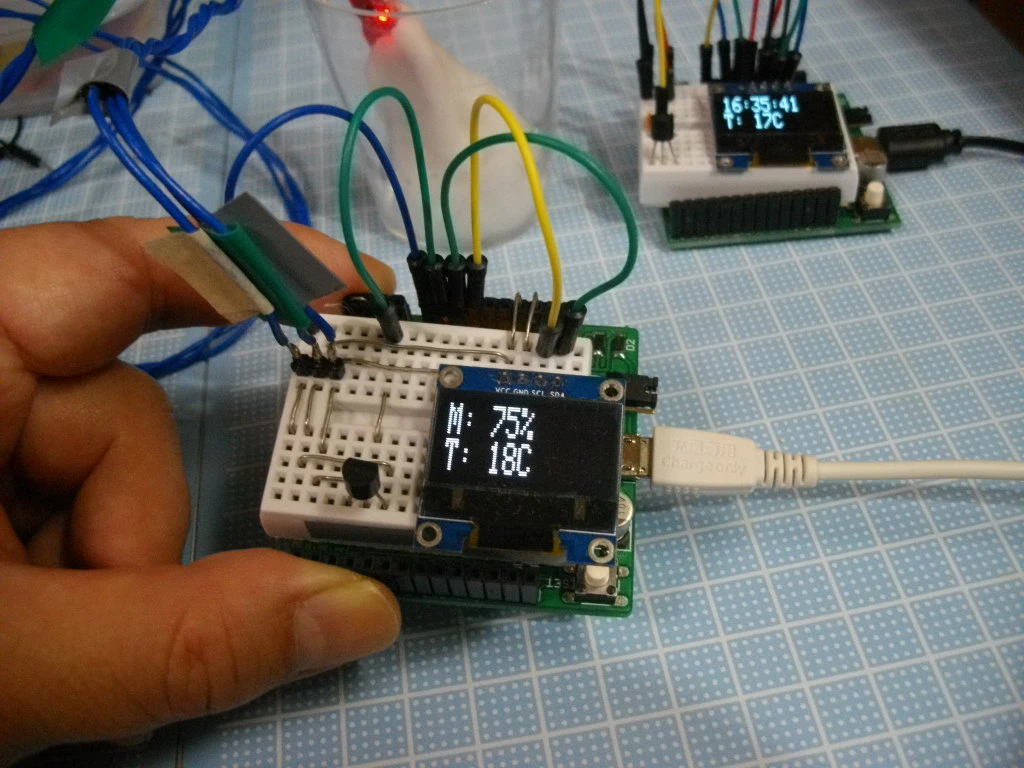

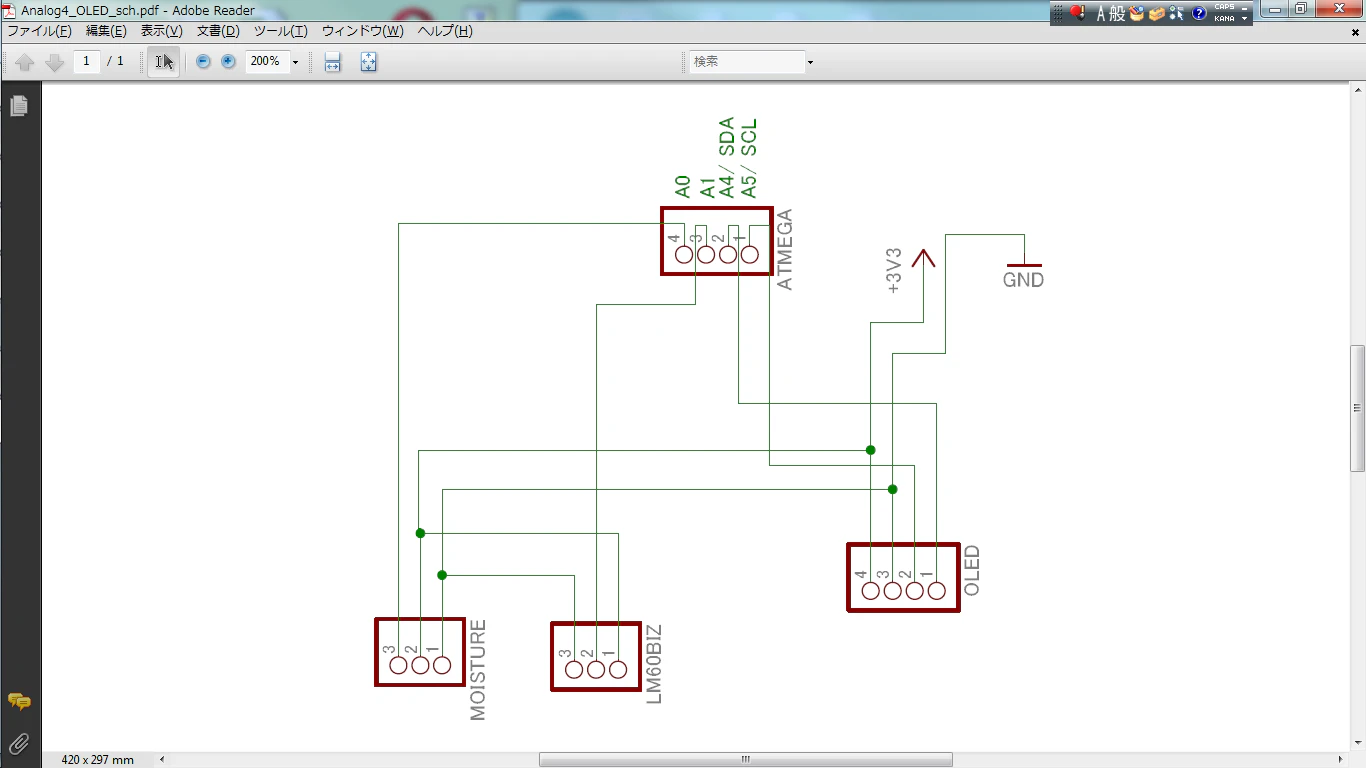

Schematic


Driver ,Git

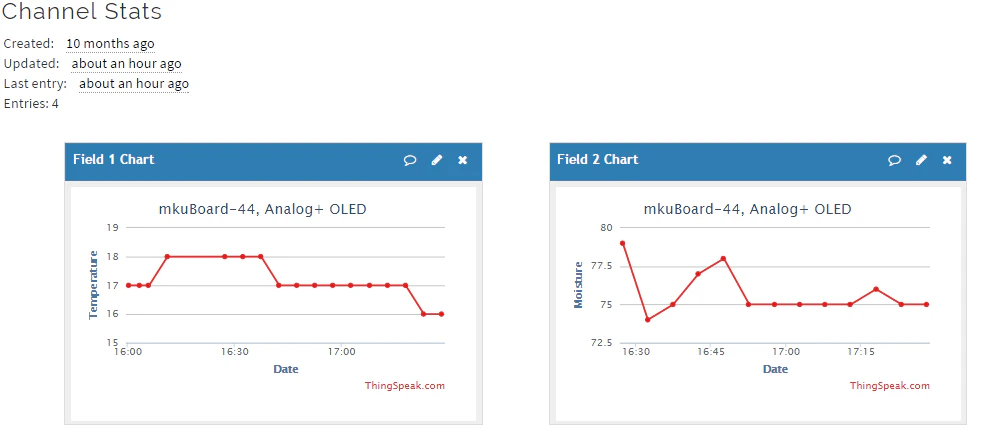

Analog DATA


[related- Parts ] mkuBoard-44
http://kuc-arc-f.com/make/?p=1070
