目的
Kubernetesクラスタの構成ファイルを手動で取得するのではなく、Veleroによる一括バックアップを検証し、バックアップデータが正しく取得・保存されていることを確認
IBMCloudのドキュメントに流れの記載はあるがイマイチわかりにくいため、検証する
1. Velero CLIのインストール
以下のドキュメントを参考にMacOSにインストールします
https://velero.io/docs/v1.14/basic-install/#install-the-cli
#brew install velero
==> Downloading https://ghcr.io/v2/homebrew/core/velero/manifests/1.15.0
####################################################################################################################################################################################################################### 100.0%
==> Fetching velero
==> Downloading https://ghcr.io/v2/homebrew/core/velero/blobs/sha256:f6e745d1d8d7918875b381b1b02b6413950eb2e20cdd803e047c30c1ec456e30
####################################################################################################################################################################################################################### 100.0%
==> Pouring velero--1.15.0.arm64_sonoma.bottle.tar.gz
==> Caveats
zsh completions have been installed to:
/opt/homebrew/share/zsh/site-functions
==> Summary
🍺 /opt/homebrew/Cellar/velero/1.15.0: 10 files, 66.5MB
==> Running `brew cleanup velero`...
Disable this behaviour by setting HOMEBREW_NO_INSTALL_CLEANUP.
Hide these hints with HOMEBREW_NO_ENV_HINTS (see `man brew`).
==> `brew cleanup` has not been run in the last 30 days, running now...
2. IBM Cloud Kubernetes Service CLIのインストール
以下のドキュメントを参考にMacOSにインストールします
https://kubernetes.io/docs/tasks/tools/install-kubectl-macos/#install-kubectl-on-macos
% brew install kubectl
==> Downloading https://formulae.brew.sh/api/formula.jws.json
####################################################################################################################################################################################################################### 100.0%
==> Downloading https://formulae.brew.sh/api/cask.jws.json
kubernetes-cli 1.31.1 is already installed but outdated (so it will be upgraded).
==> Downloading https://ghcr.io/v2/homebrew/core/kubernetes-cli/manifests/1.32.0
####################################################################################################################################################################################################################### 100.0%
==> Fetching kubernetes-cli
==> Downloading https://ghcr.io/v2/homebrew/core/kubernetes-cli/blobs/sha256:3c077fc014d4684fcb56068a0871be83e39258a184a5bbd2e950474af6dca2a7
####################################################################################################################################################################################################################### 100.0%
==> Upgrading kubectl
1.31.1 -> 1.32.0
==> Pouring kubernetes-cli--1.32.0.arm64_sonoma.bottle.tar.gz
==> Caveats
zsh completions have been installed to:
/opt/homebrew/share/zsh/site-functions
==> Summary
🍺 /opt/homebrew/Cellar/kubernetes-cli/1.32.0: 255 files, 60.7MB
==> Running `brew cleanup kubernetes-cli`...
Disable this behaviour by setting HOMEBREW_NO_INSTALL_CLEANUP.
Hide these hints with HOMEBREW_NO_ENV_HINTS (see `man brew`).
Removing: /opt/homebrew/Cellar/kubernetes-cli/1.31.1... (237 files, 60.2MB)
Removing: /Users/kh/Library/Caches/Homebrew/kubernetes-cli_bottle_manifest--1.31.1... (9.3KB)
==> Upgrading 1 dependent of upgraded formula:
Disable this behaviour by setting HOMEBREW_NO_INSTALLED_DEPENDENTS_CHECK.
Hide these hints with HOMEBREW_NO_ENV_HINTS (see `man brew`).
minikube 1.32.0 -> 1.34.0
==> Downloading https://ghcr.io/v2/homebrew/core/minikube/manifests/1.34.0
Already downloaded: /Users/kh/Library/Caches/Homebrew/downloads/8836daab937b9a94737b9577a592cf1b4b24420187c8a0a949e94da2f4018009--minikube-1.34.0.bottle_manifest.json
==> Checking for dependents of upgraded formulae...
==> No broken dependents found!
インストール、バージョン確認
% kubectl version --client
Client Version: v1.32.0
Kustomize Version: v5.5.0
3. 保存先用IBM Cloud Object Storageインスタンスの作成

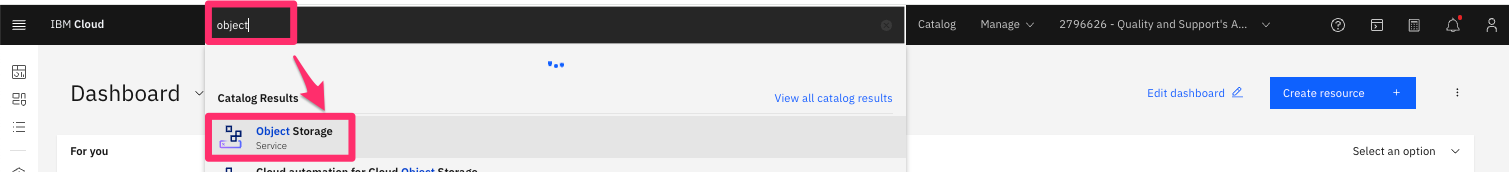

IBMCloud Portalの検索メニューより、「Object Storage」を選択

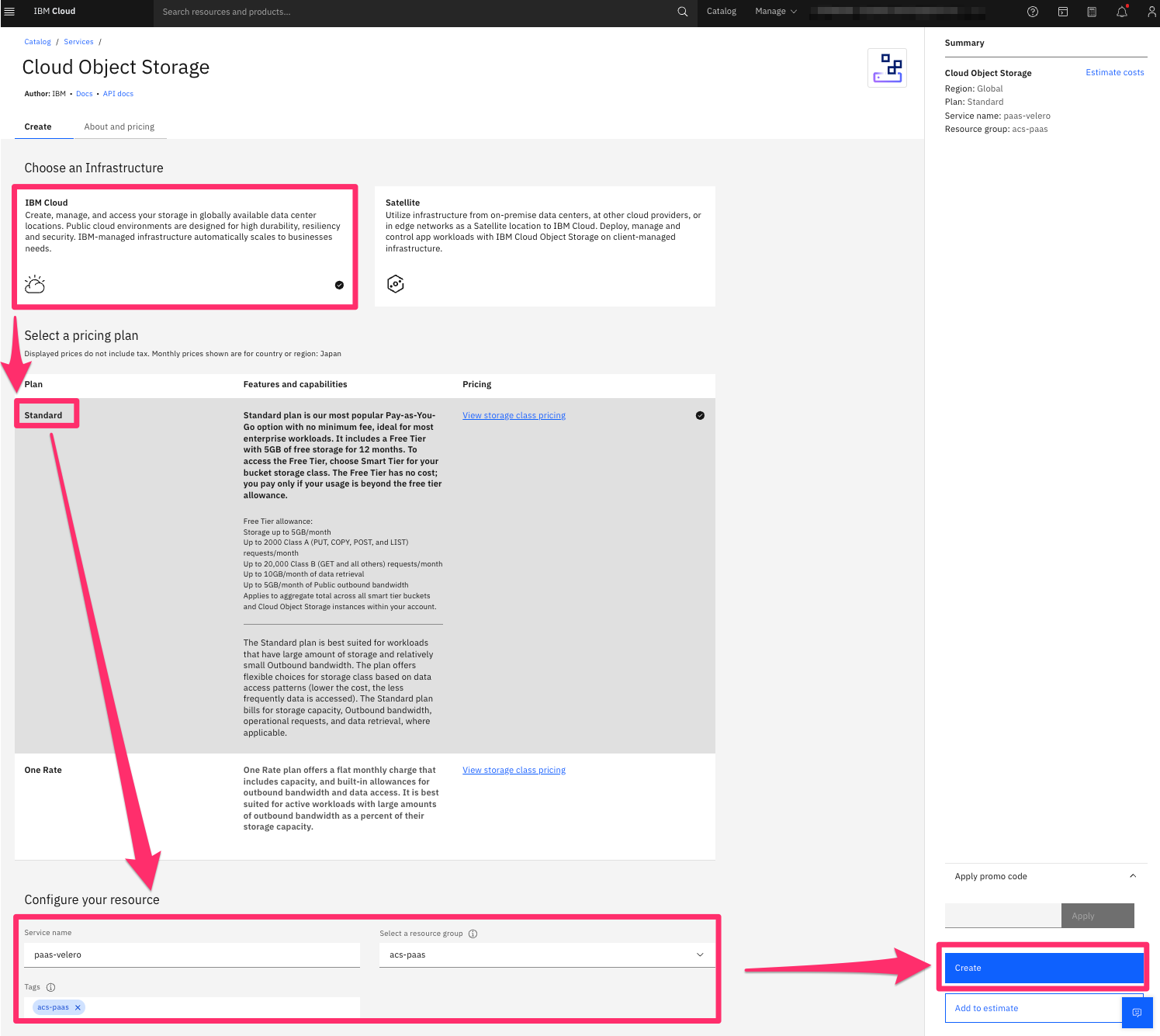

[IBMCloud] -> [Standard]を選択
任意のサービス名を入力し、環境に合わせたリソースグループを選択後、[Create]を押下
4. バケットの作成
作成したCloud Object Storageのページよりバケットを作成する

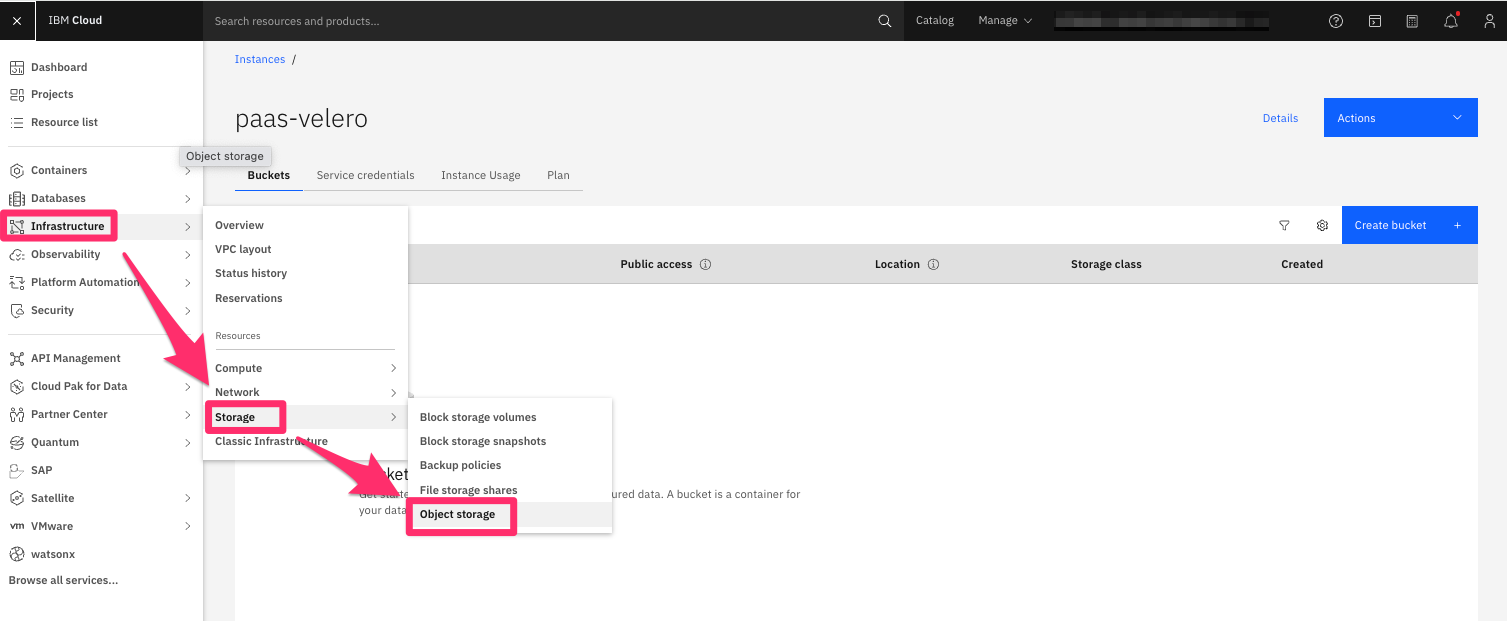

IBMCloud Portal -> [Infrastructure] -> [Storage] -> [Object storage]を選択

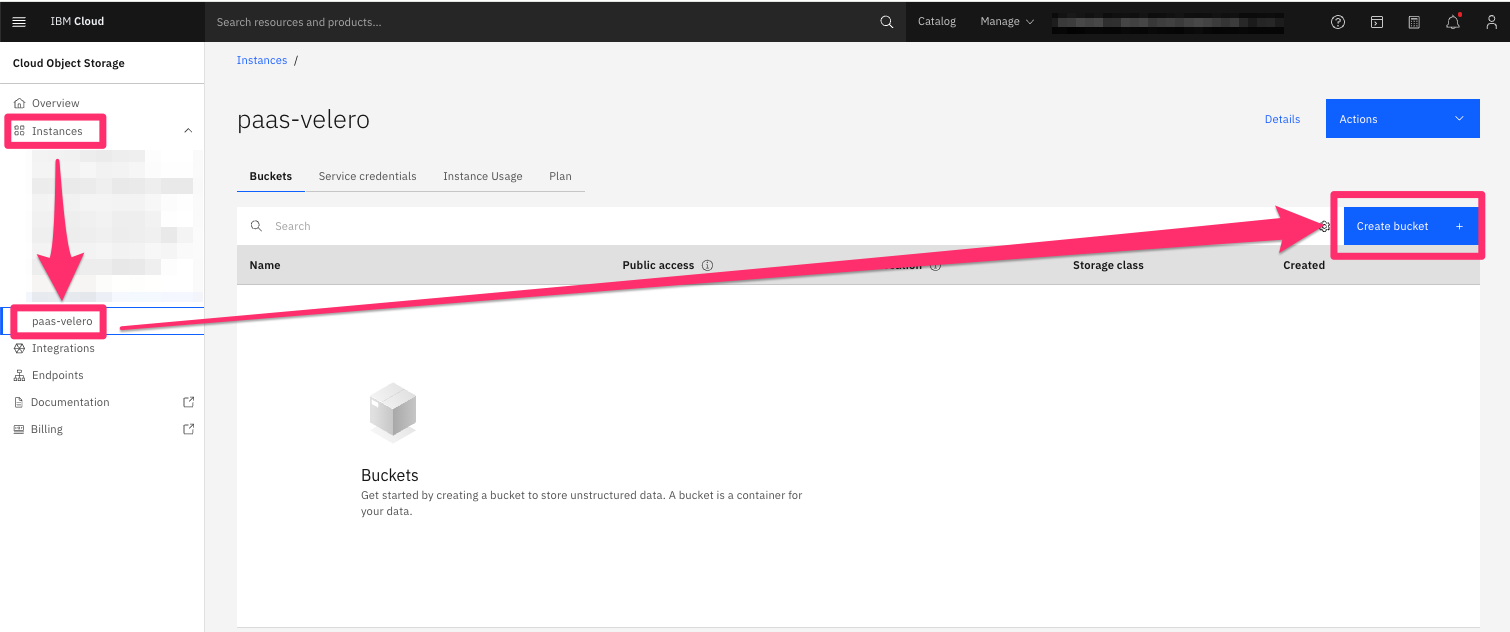

[Instance] -> [作成したInstance名] -> [Create bucket]を選択

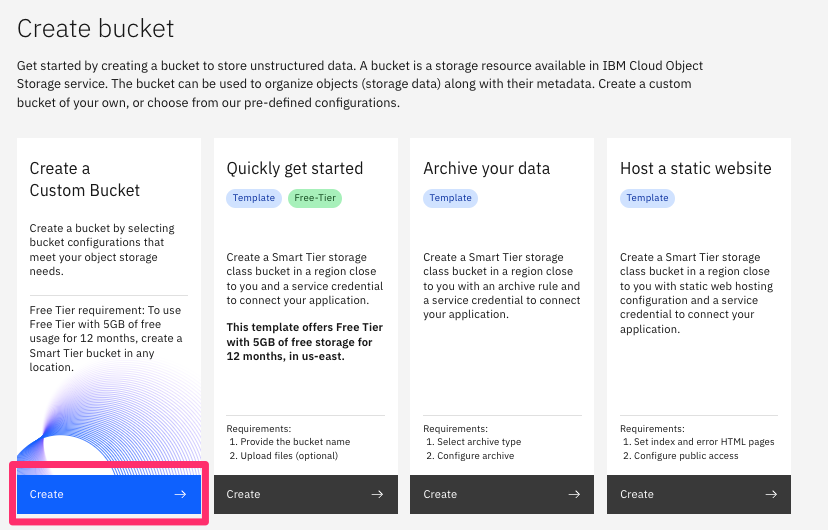

[Create a Custom Bucket]の[Create]を選択

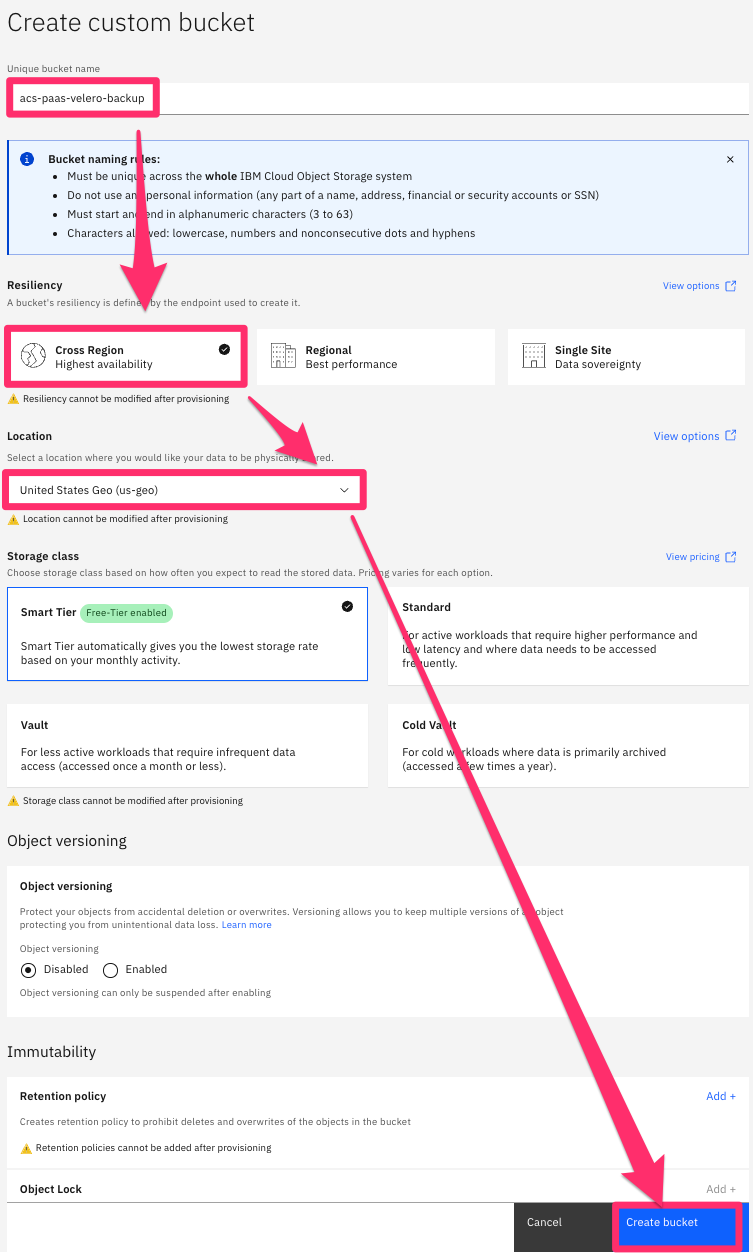

[Unique bucket name]に任意名を入力
Resiliencyは[Cross Region]を選択
Locationは[United State Geo(us-geo)]を選択
その他は必要に応じて選択し、最後に[Create bucket]を押下
5. サービスクレデンシャルの作成

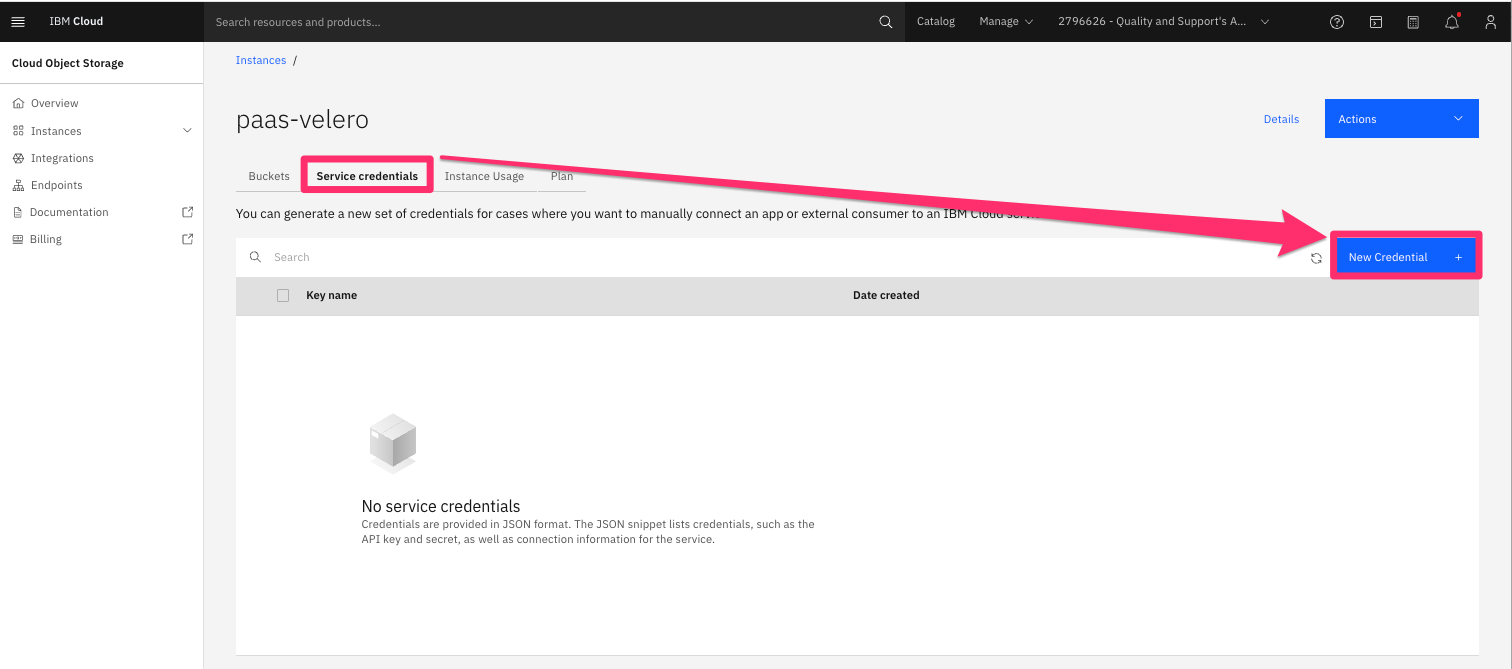

Instanceのページから[Service credentials]を選択し、[New Credential]を押下

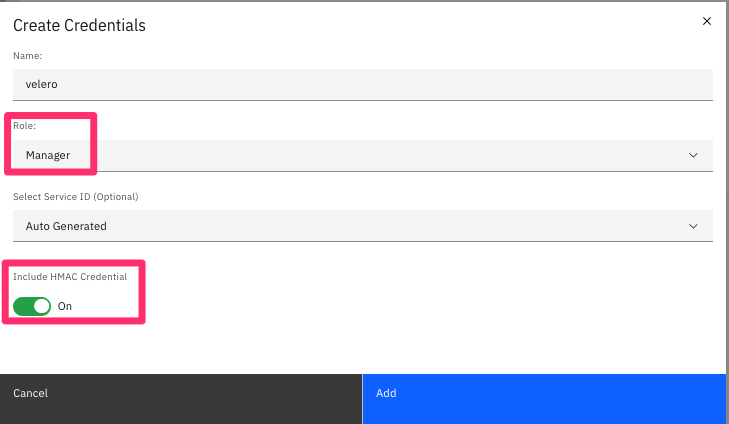

[Name]に任意名を入力
[Role]は[Manager]を選択
Service IDがあればそちらを選択し、新規作成であれば[Auto Generated]を選択
Include HMAC Credentialを[ON]にし、[Add]を押下
6. VeleroからObject Storageへのアクセス用資格情報ファイルの作成
Veleroをインストールする端末でファイルを作成する

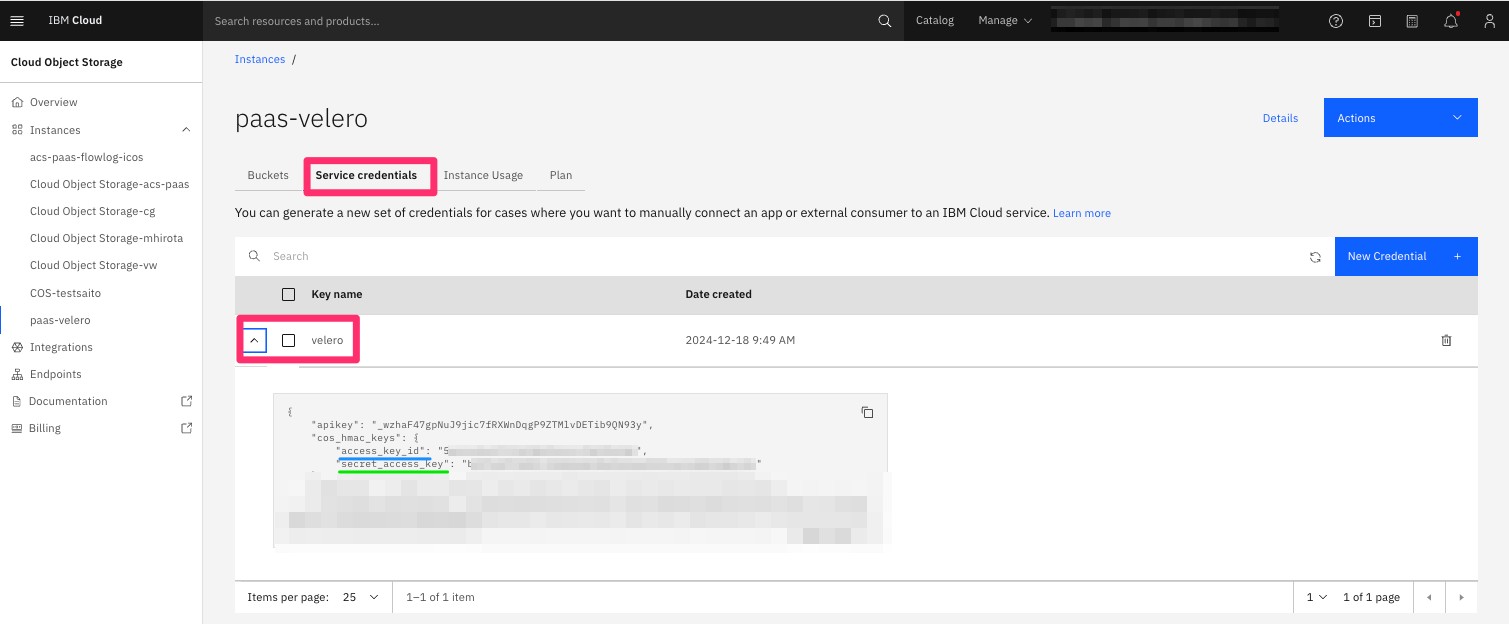

作成したInstanceのService credentialsにある
access_key_idをaws_access_key_idにコピペ
secret_access_keyをaws_secret_access_keyにコピペ
% cat velero-credential
[default]
aws_access_key_id=<blue-access_key_id>
aws_secret_access_key=<green-secret_access_key>
7. IAMグループの作成

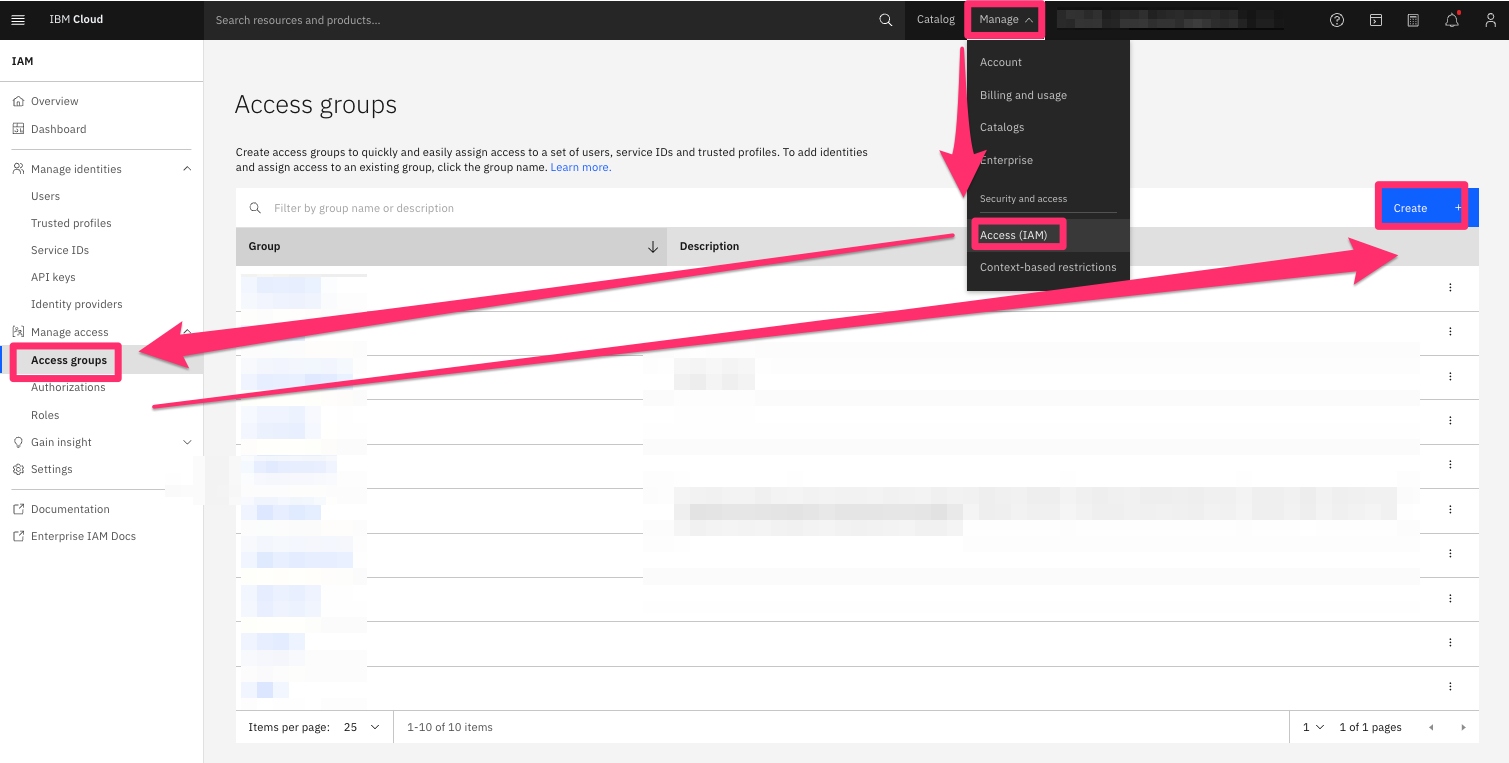

IBMCloud Portalから[Manage] -> [Access(IAM)] -> [Access groups] -> [Create]を押下

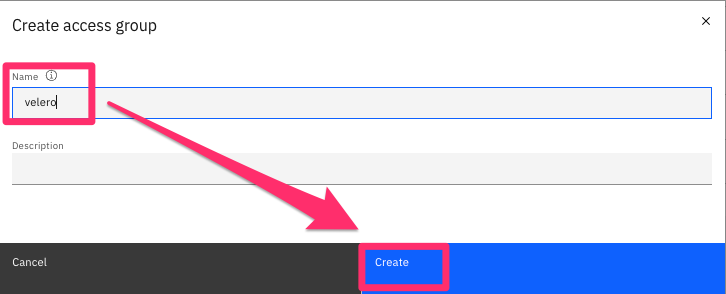

任意の[Name]を入力し、[Create]を押下

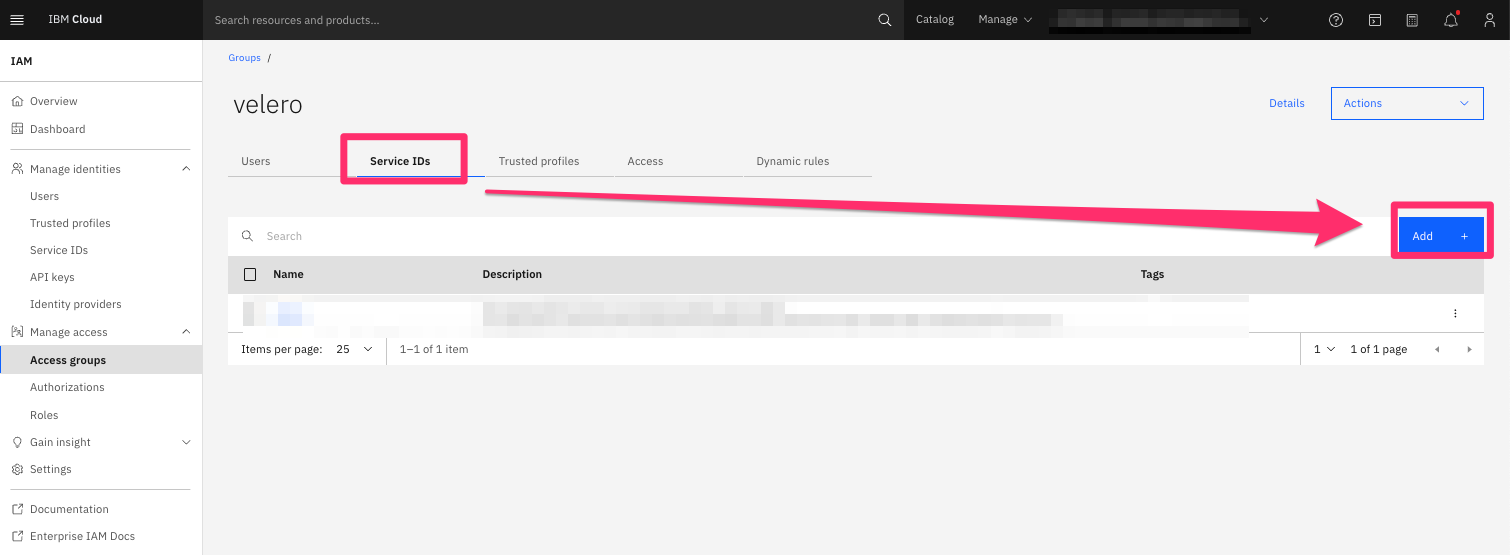

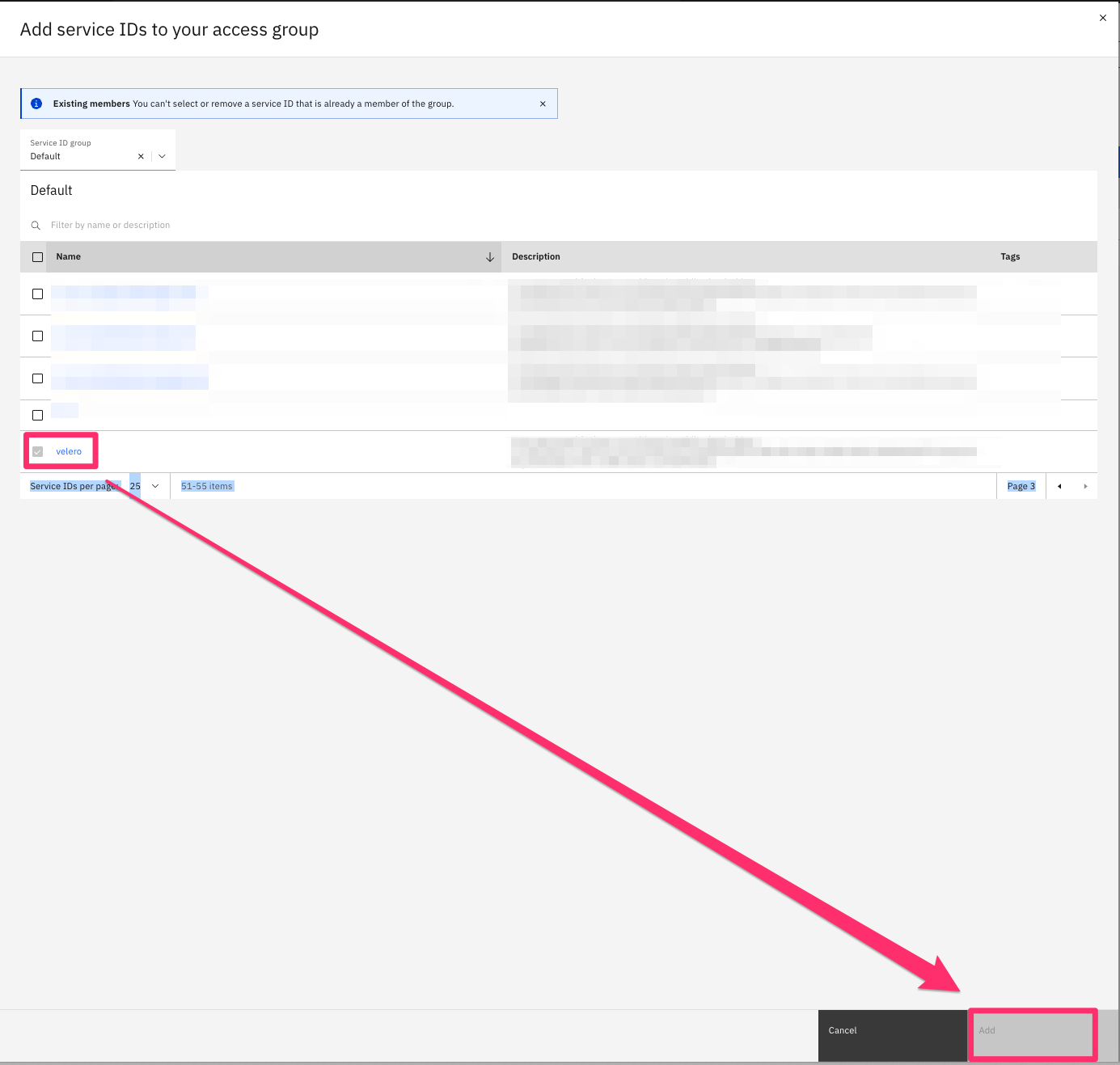

[Service IDs]を選択し、[Add]を押下
サービスクレデンシャルの作成で作成した名前を選択し、[Add]を押下

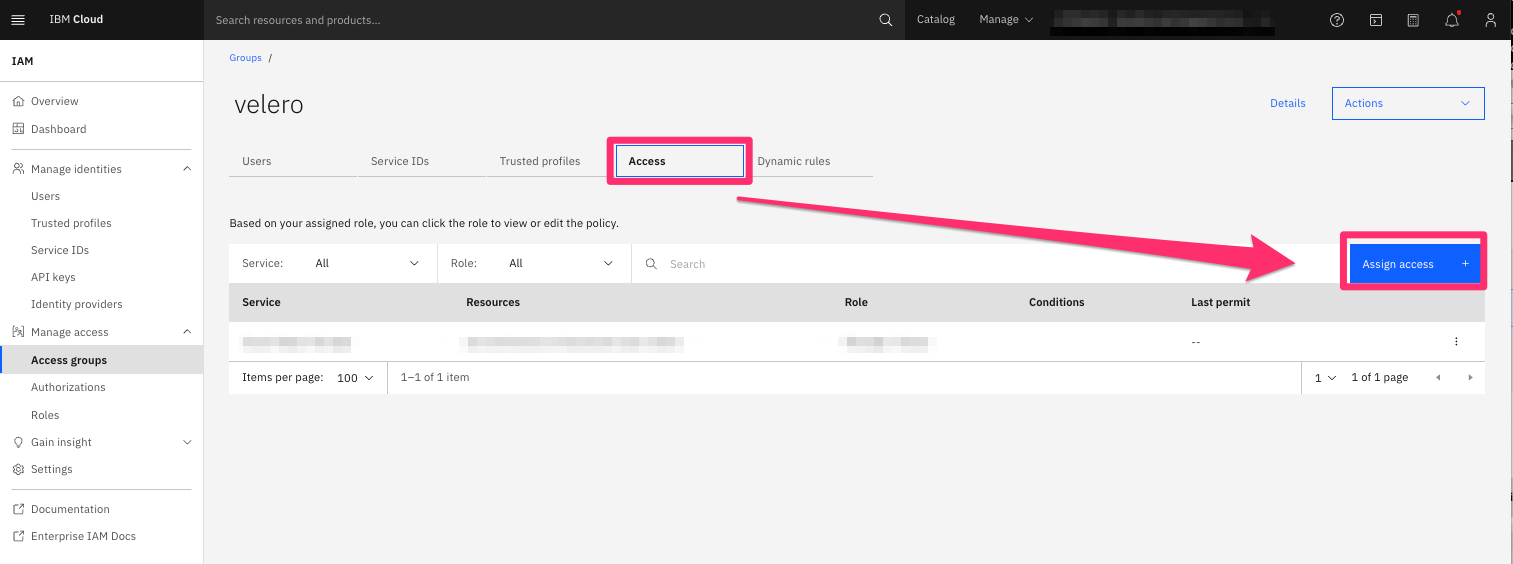

[Access]のタブを選択し、[Assign access]を押下
[Service] -> Cloud Object Storage
[Resources] -> Service Instanceを選択し、作成したObject Storageのインスタンスを選択
[Roles and actions]
-> Service accessで[Manager]にチェック
-> Platform accessで[Viwer]にチェック
最後に、[Assign]を押下
8. Veleroのインストール
インストール時のパラメータ修正
velero install --provider aws --bucket <bucket-name> --secret-file <hmac-credentials-file> --use-volume-snapshots=false --default-volumes-to-fs-backup --use-node-agent --plugins velero/velero-plugin-for-aws:v1.9.0 --image velero/velero:v1.13.0 --backup-location-config region=us-geo,s3ForcePathStyle="true",s3Url=https://s3.direct.us.cloud-object-storage.appdomain.cloud
--buckert = 作成したバケット名を入力
--secret-file = ローカルに作成した資格情報ファイルを指定
[default]
aws_access_key_id=<blue-access_key_id>
aws_secret_access_key=<green-secret_access_key>
インストールの実行
% velero install --provider aws --bucket acs-paas-velero-backup --secret-file velero-credential --use-volume-snapshots=false --default-volumes-to-fs-backup --use-node-agent --plugins velero/velero-plugin-for-aws:v1.9.0 --image velero/velero:v1.13.0 --backup-location-config region=us-geo,s3ForcePathStyle="true",s3Url=https://s3.direct.us.cloud-object-storage.appdomain.cloud
CustomResourceDefinition/backuprepositories.velero.io: attempting to create resource
CustomResourceDefinition/backuprepositories.velero.io: attempting to create resource client
CustomResourceDefinition/backuprepositories.velero.io: created
CustomResourceDefinition/backups.velero.io: attempting to create resource
CustomResourceDefinition/backups.velero.io: attempting to create resource client
CustomResourceDefinition/backups.velero.io: created
CustomResourceDefinition/backupstoragelocations.velero.io: attempting to create resource
CustomResourceDefinition/backupstoragelocations.velero.io: attempting to create resource client
CustomResourceDefinition/backupstoragelocations.velero.io: created
CustomResourceDefinition/deletebackuprequests.velero.io: attempting to create resource
CustomResourceDefinition/deletebackuprequests.velero.io: attempting to create resource client
CustomResourceDefinition/deletebackuprequests.velero.io: created
CustomResourceDefinition/downloadrequests.velero.io: attempting to create resource
CustomResourceDefinition/downloadrequests.velero.io: attempting to create resource client
CustomResourceDefinition/downloadrequests.velero.io: created
CustomResourceDefinition/podvolumebackups.velero.io: attempting to create resource
CustomResourceDefinition/podvolumebackups.velero.io: attempting to create resource client
CustomResourceDefinition/podvolumebackups.velero.io: created
CustomResourceDefinition/podvolumerestores.velero.io: attempting to create resource
CustomResourceDefinition/podvolumerestores.velero.io: attempting to create resource client
CustomResourceDefinition/podvolumerestores.velero.io: created
CustomResourceDefinition/restores.velero.io: attempting to create resource
CustomResourceDefinition/restores.velero.io: attempting to create resource client
CustomResourceDefinition/restores.velero.io: created
CustomResourceDefinition/schedules.velero.io: attempting to create resource
CustomResourceDefinition/schedules.velero.io: attempting to create resource client
CustomResourceDefinition/schedules.velero.io: created
CustomResourceDefinition/serverstatusrequests.velero.io: attempting to create resource
CustomResourceDefinition/serverstatusrequests.velero.io: attempting to create resource client
CustomResourceDefinition/serverstatusrequests.velero.io: created
CustomResourceDefinition/volumesnapshotlocations.velero.io: attempting to create resource
CustomResourceDefinition/volumesnapshotlocations.velero.io: attempting to create resource client
CustomResourceDefinition/volumesnapshotlocations.velero.io: created
CustomResourceDefinition/datadownloads.velero.io: attempting to create resource
CustomResourceDefinition/datadownloads.velero.io: attempting to create resource client
CustomResourceDefinition/datadownloads.velero.io: created
CustomResourceDefinition/datauploads.velero.io: attempting to create resource
CustomResourceDefinition/datauploads.velero.io: attempting to create resource client
CustomResourceDefinition/datauploads.velero.io: created
Waiting for resources to be ready in cluster...
Namespace/velero: attempting to create resource
Namespace/velero: attempting to create resource client
Namespace/velero: created
ClusterRoleBinding/velero: attempting to create resource
ClusterRoleBinding/velero: attempting to create resource client
ClusterRoleBinding/velero: created
ServiceAccount/velero: attempting to create resource
ServiceAccount/velero: attempting to create resource client
ServiceAccount/velero: created
Secret/cloud-credentials: attempting to create resource
Secret/cloud-credentials: attempting to create resource client
Secret/cloud-credentials: created
BackupStorageLocation/default: attempting to create resource
BackupStorageLocation/default: attempting to create resource client
BackupStorageLocation/default: created
Deployment/velero: attempting to create resource
Deployment/velero: attempting to create resource client
Deployment/velero: created
DaemonSet/node-agent: attempting to create resource
DaemonSet/node-agent: attempting to create resource client
DaemonSet/node-agent: created
Velero is installed! ⛵ Use 'kubectl logs deployment/velero -n velero' to view the status.
PODの動作確認
% kubectl get pods -n velero
NAME READY STATUS RESTARTS AGE
node-agent-6v7wk 1/1 Running 0 24m
node-agent-rwdsn 1/1 Running 0 24m
velero-7f4f557fdd-rrf82 1/1 Running 0 24m
9. バックアップの実施
defaultネームスペースのすべてのPVC、PV、ポッドをバックアップ
% velero backup create mybackup --include-resources pvc,pv,pod --default-volumes-to-fs-backup --snapshot-volumes=false --include-namespaces default --exclude-namespaces kube-system,test-namespace
Backup request "mybackup" submitted successfully.
Run `velero backup describe mybackup` or `velero backup logs mybackup` for more details.
バックアップの確認
% velero backup describe mybackup
Name: mybackup
Namespace: velero
Labels: velero.io/storage-location=default
Annotations: velero.io/resource-timeout=10m0s
velero.io/source-cluster-k8s-gitversion=v1.30.7+IKS
velero.io/source-cluster-k8s-major-version=1
velero.io/source-cluster-k8s-minor-version=30
Phase: Completed
Namespaces:
Included: default
Excluded: kube-system, test-namespace
Resources:
Included: pvc, pv, pod
Excluded: <none>
Cluster-scoped: auto
Label selector: <none>
Or label selector: <none>
Storage Location: default
Velero-Native Snapshot PVs: false
Snapshot Move Data: false
Data Mover: velero
TTL: 720h0m0s
CSISnapshotTimeout: 10m0s
ItemOperationTimeout: 4h0m0s
Hooks: <none>
Backup Format Version: 1.1.0
Started: 2024-12-18 10:25:53 +0900 JST
Completed: 2024-12-18 10:26:22 +0900 JST
Expiration: 2025-01-17 10:25:53 +0900 JST
Total items to be backed up: 10
Items backed up: 10
Backup Volumes:
<error getting backup volume info: Get "https://s3.direct.us.cloud-object-storage.appdomain.cloud/acs-paas-velero-backup/backups/mybackup/mybackup-volumeinfo.json.gz?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=5ae1ed4a475744f8b95da1a78d99628a%2F20241218%2Fus-geo%2Fs3%2Faws4_request&X-Amz-Date=20241218T012741Z&X-Amz-Expires=600&X-Amz-SignedHeaders=host&x-id=GetObject&X-Amz-Signature=b45171aa19b67479fee7465b20d801d4eae01ebb72e34344b5013add6a6e6ab0": context deadline exceeded>
HooksAttempted: 0
HooksFailed: 0
