AKS を Azure Monitor (kusto) で監視する方法を Workbooks から学ぶ

Last updated at 2020-02-27Posted at 2020-02-20

Intro

コンテナ向けに用意されている Azure Monitor for Containers では、最初から以下4つの Workbooks が提供されている。

ディスク容量
ディスクIO
Kubelet
ネットワーク

この記事では、これらの既に出来上がっている Workbooks から、Kustoクエリをひたすら参考にしていきたい。このデフォルトの Workbooks はいつでもどのクラスターでも参照できるので、チートシート的に使うととても便利である。以下に紹介する kusto クエリを隅々まで覚える必要は全くない。

Azure Monitor Workbooksとは

ログクエリ結果やグラフを複数まとめてレポート形式にできるもの。作成したレポートはチーム内で共有できるので、新メンバーがログのクエリ方法がわからない！という場合でも、「ああこのテレメトリを見れば○○がわかるのか」といったように監視に必要な知識も伝えることができる。

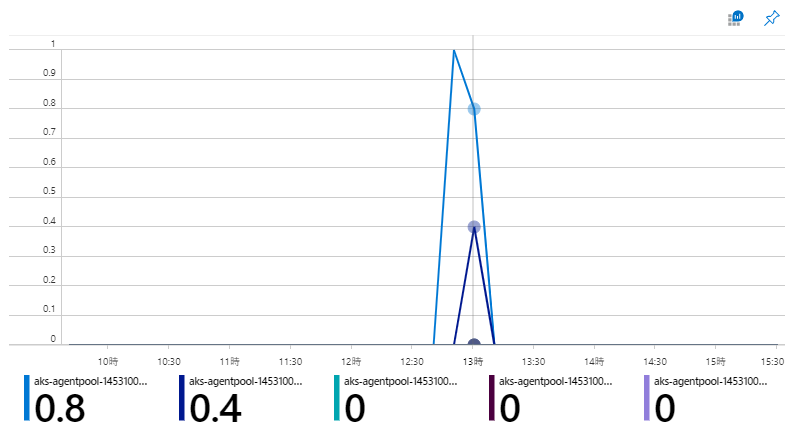

例えば以下は、ネットワークのWorkbooks画面。
1. クエリを定義してグラフを見せる。
2. それをレポート化する。
3. 画面上にセレクトボックスがあるように、クエリ条件をパラメータ化したりもできる。

最低限の Azure Monitor 基礎知識

クエリの書き方基本

基本的なクエリ
スキーマの概要
フィルター処理 e.g. | where hogehoge == "hugahuga"
並び替え e.g. | sort
グループ化と集計 e.g. | summarize
グラフ
クエリの保存と読み込み
列の選択と計算 e.g. | project column1, column2, column3
追加の列を定義 e.g. | extend NewColumn1=substring(OriginalColumn1, 0, 5)
時間列でグループ化（ビン分割） e.g. | summarize avg(CounterValue) by bin(TimeGenerated, 1h)

収集データについて

ディスク容量、ディスクIO、ネットワーク、といったテレメトリは、InfluxData Telegraf エージェントによって収集されていて、これらは、InsightMetrics というカスタムメトリックスとしてクエリできる。
（参考：InfluxData Telegraf エージェントによって送信される仕組み https://docs.microsoft.com/ja-jp/azure/azure-monitor/platform/collect-custom-metrics-linux-telegraf

この InsightMetrics ログの Tags プロパティの中に各値が入っていて、Name と NameSpace でフィルタすることで各メトリクスを取得できる仕掛けになっている。これについては GitHub の奥深くに情報があったので、引用しておく。それぞれ InfluxData Telegraf ドキュメントへのリンクがついている。

Disk metrics

Name	Namespace	Description
`used`	`container.azm.ms/disk`	more info
`free`	`container.azm.ms/disk`	more info
`used_percent`	`container.azm.ms/disk`	more info

Disk IO metrics

Name	Namespace	Description
`reads`	`container.azm.ms/diskio`	more info
`read_bytes`	`container.azm.ms/diskio`	more info
`read_time`	`container.azm.ms/diskio`	more info
`writes`	`container.azm.ms/diskio`	more info
`write_bytes`	`container.azm.ms/diskio`	more info
`write_time`	`container.azm.ms/diskio`	more info
`io_time`	`container.azm.ms/diskio`	more info
`iops_in_progress`	`container.azm.ms/diskio`	more info

Host network metrics

Name	Namespace	Description
`bytes_sent`	`container.azm.ms/net`	more info
`bytes_received`	`container.azm.ms/net`	more info
`err_in`	`container.azm.ms/net`	more info
`err_out`	`container.azm.ms/net`	more info

Kubelet metrics

Name	Namespace	Description
`kubelet_docker_operations`	`container.azm.ms/prometheus`	Cumulative number of Docker operations by operation type
`kubelet_docker_operations_errors`	`container.azm.ms/prometheus`	Cumulative number of Docker operation errors by operation type

（参考元： https://github.com/microsoft/OMS-docker/blob/vishwa/june19agentrel/docs/InsightsMetrics.md）

他のコンテナーレコードは以下ドキュメントに詳細がある。
https://docs.microsoft.com/ja-jp/azure/azure-monitor/insights/container-insights-log-search

ホストとコンテナーのパフォーマンス: Perf
コンテナーインベントリ: ContainerInventory
コンテナーログ: ContainerLog
コンテナーノードインベントリ: ContainerNodeInventory
Kubernetes クラスター内のポッドのインベントリ: KubePodInventory
Kubernetes クラスター内のノード部分のインベントリ: KubeNodeInventory
Kubernetes イベント: KubeEvents
Kubernetes クラスター内のサービス: KubeServices
Kubernetes クラスターのノード部分のパフォーマンスメトリック: Perf | where ObjectName == “K8SNode”
Kubernetes クラスターのコンテナー部分のパフォーマンスメトリック: Perf | where ObjectName == “K8SContainer”
カスタムメトリック: InsightsMetrics

Prometheus サポート

Azure Monitor for containers では Prometheus サーバー無しで Prometheusメトリックを収集することができる。しかし、残念ながら Workbook にPrometheusメトリクスのクエリが無いので、ここでは設定方法とクエリ方法のドキュメントを紹介するにとどめる。

構成方法
https://docs.microsoft.com/ja-jp/azure/azure-monitor/insights/container-insights-prometheus-integration#query-prometheus-metrics-data
ConfigMap にメトリクス収集するための設定を構成するだけである。

クエリ方法
Prometheus メトリックデータのクエリを実行する
InsightsMetrics の名前空間 prometheus をフィルタすると、同様に Tags プロパティの中に JSON でメトリクスが入っている。

InsightsMetrics
| where Namespace == "prometheus"
| extend tags=parse_json(Tags)
| summarize count() by Name

Workbooks を開く

Azure Kubernetes Service 選択後の左メニュー > 分析情報（Insights） > 右上セレクトボックス View Workbooks

それでは、各Workbookを順番に見て行こう。

ディスク容量 Workbooks

以下6行はグラフ合計値表示のためのおまじないだと思って読み飛ばしてよい。ディスク容量の全グラフで共通である。

| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.device))
| extend NodeDisk = strcat(HostName, Device)
| where "*" in ('*') or HostName in ('*')
| where "*" in ('*') or Device in ('*')
| where NodeDisk in (selectedStateDisks) or '*' in (selectedStateDisks);

注目ポイント

where Origin == 'container.azm.ms/telegraf'
ディスク容量関連は、where Namespace == 'disk' or Namespace =~ 'container.azm.ms/disk'

Top 3 Disks by Used Disk %

let selectedStateDisks = dynamic(["*"]);
let data = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'disk' or Namespace =~ 'container.azm.ms/disk'
| where Name == 'used_percent'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.device))
| extend NodeDisk = strcat(HostName, Device)
| where "*" in ('*') or HostName in ('*')
| where "*" in ('*') or Device in ('*')
| where NodeDisk in (selectedStateDisks) or '*' in (selectedStateDisks);
let mostUsedDisks = data
| top-nested 3 of NodeDisk by MaxVal = max(Val);
data
| where NodeDisk in (mostUsedDisks)
| make-series ['Used Disk %'] = max(Val) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by NodeDisk

Disk Capacity Overview

（クエリが多いので割愛）

Used Disk %

let selectedStateDisks = dynamic(["*"]);
let usedPercent = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'disk' or Namespace =~ 'container.azm.ms/disk'
| where Name == 'used_percent'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.device))
| extend NodeDisk = strcat(HostName, Device)
| where "*" in ('*') or HostName in ('*')
| where "*" in ('*') or Device in ('*')
| where NodeDisk in (selectedStateDisks) or '*' in (selectedStateDisks);
let row = dynamic(
{
    "Kind":"Unselected"});
    let worstDiskAcrossNodes = usedPercent
    | summarize UsedPercent = max(Val) by NodeDisk
    | top 1 by UsedPercent desc;
    usedPercent
    | where (row.Kind == 'Unselected') or (row.Kind == 'Node' and row.Id == HostName) or (row.Kind == 'Device' and row.Id == NodeDisk)
    | make-series ['Used Disk %'] = max(Val) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by NodeDisk
    | where NodeDisk contains iff(row.Kind == 'Unselected', toscalar(worstDiskAcrossNodes
    | project NodeDisk), '')

Free Disk Space (GiB)

let selectedStateDisks = dynamic(["*"]);
let data = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'disk' or Namespace =~ 'container.azm.ms/disk'
| where Name == 'used_percent' or Name == 'free'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.device))
| extend NodeDisk = strcat(HostName, Device)
| where "*" in ('*') or HostName in ('*')
| where "*" in ('*') or Device in ('*')
| where NodeDisk in (selectedStateDisks) or '*' in (selectedStateDisks);
let usedPercent = data
| where Name == 'used_percent';
let free = data
| where Name == 'free'
| extend Val = Val / 1073741824;
let row = dynamic(
{
    "Kind":"Unselected"});
    let worstDiskAcrossNodes = usedPercent
    | summarize UsedPercent = max(Val) by NodeDisk
    | top 1 by UsedPercent desc;
    free
    | where (row.Kind == 'Unselected') or (row.Kind == 'Node' and row.Id == HostName) or (row.Kind == 'Device' and row.Id == NodeDisk)
    | make-series ['Free Disk Space'] = min(Val) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by NodeDisk
    | where NodeDisk contains iff(row.Kind == 'Unselected', toscalar(worstDiskAcrossNodes
    | project NodeDisk), '')

ディスクIO Workbooks

以下7行はグラフ合計値表示のためのおまじないだと思って読み飛ばしてよい。ディスクIOの全グラフで共通である。

| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize

注目ポイント

where Origin == 'container.azm.ms/telegraf'
ディスクIO関連は、where Namespace == 'container.azm.ms/diskio'

Disk IO Overview

（クエリが多いので割愛）

Read Bytes/sec

let bytesReadPerSec = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'read_bytes'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1), iif(PrevVal == Val, 0.0, (Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1)))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Device, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
bytesReadPerSec
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device

Write Bytes/sec

let bytesWritePerSec = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'write_bytes'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1), iif(PrevVal == Val, 0.0, (Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1)))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Device, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
bytesWritePerSec
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device

Total Bytes Read (10m intervals)

let bytesReadTotal = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'read_bytes'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / 1, iif(PrevVal == Val, 0.0, (Val - PrevVal) / 1))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Device, Rate;
let sum = bytesReadTotal
| make-series Val = sum(Rate) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device;
sum

Total Bytes Written (10m intervals)

let bytesWrittenTotal = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'write_bytes'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / 1, iif(PrevVal == Val, 0.0, (Val - PrevVal) / 1))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Device, Rate;
let sum = bytesWrittenTotal
| make-series Val = sum(Rate) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device;
sum

Milliseconds Per Bytes Read

let msPerByteRead = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'read_bytes'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, pow(Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1000 * 1), -1), pow((Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1000 * 1), -1))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Device, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
msPerByteRead
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device

Milliseconds Per Bytes Written

let msPerByteWritten = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'write_bytes'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(TimeGenerated == PrevTimeGenerated or (Val - PrevVal) == 0, 0.0, iif(PrevVal > Val, pow(Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1000 * 1), -1), pow((Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1000 * 1), -1)))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Device, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
msPerByteWritten
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device

IOPS In Progress

let iops = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'iops_in_progress'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| project TimeGenerated, HostName, Device, Val;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
iops
| make-series Val = iif(avgOn != -1, avg(Val), iif(maxOn != -1, max(Val), min(Val))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Device
| extend Name = strcat(HostName, Device)
| project-away HostName, Device

% Disk Busy

let ioTime = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/diskio'
| where Name == 'io_time'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Device = strcat('/dev/', tostring(Tags.name))
| extend NodeDisk = strcat(HostName, Device)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Device in ('*')
| order by NodeDisk asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(NodeDisk) != NodeDisk, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(NodeDisk) != NodeDisk, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1000), (Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1000)) * 100
| where isnotnull(Rate)
| project TimeGenerated, NodeDisk, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
ioTime
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by NodeDisk
| extend Name = NodeDisk
| project-away NodeDisk

Kubelet Workbooks

注目ポイント

where Origin == 'container.azm.ms/telegraf'
Kubelet 関連は、where Namespace == 'container.azm.ms/prometheus'

Overview By Node

let data = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/prometheus'
| where Name == 'kubelet_docker_operations' or Name == 'kubelet_docker_operations_errors'
| extend Tags = todynamic(Tags)
| extend OperationType = tostring(Tags['operation_type']), HostName = tostring(Tags.hostName)
| where '*' in ('aks-agentpool-14531005-0','aks-agentpool-14531005-1','aks-agentpool-14531005-2') or HostName in ('aks-agentpool-14531005-0','aks-agentpool-14531005-1','aks-agentpool-14531005-2')
| where '*' in ('*') or OperationType in ('*')
| extend partitionKey = strcat(HostName, '/' , Name, '/', OperationType)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val, Val - PrevVal)
| where isnotnull(Rate)
| project TimeGenerated, Name, HostName, Rate;
let operationData = data
| where Name == 'kubelet_docker_operations';
let totalOperationsByNode = operationData
| summarize Rate = sum(Rate) by HostName
| project HostName, TotalOperations = Rate;
let totalOperationsByNodeSeries = operationData
| make-series TotalOperationsSeries = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by HostName
| project-away TimeGenerated;
let errorData = data
| where Name == 'kubelet_docker_operations_errors';
let totalErrorsByNode = errorData
| summarize Rate = sum(Rate) by HostName
| project HostName, TotalErrors = Rate;
let totalErrorsByNodeSeries = errorData
| make-series TotalErrorsSeries = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by HostName
| project-away TimeGenerated;
totalOperationsByNode
| join kind=inner
(
    totalErrorsByNode
)
on HostName
| join kind = inner
(
    totalOperationsByNodeSeries
)
on HostName
| join kind = inner
(
    totalErrorsByNodeSeries
)
on HostName
| project-away HostName1, HostName2, HostName3
| extend TotalSuccessfulOperationsSeries = series_subtract(TotalOperationsSeries, TotalErrorsSeries)
| extend SuccessPercentage = round(iif(TotalOperations == 0, 1.0, 1 - (TotalErrors / TotalOperations)), 4), SuccessPercentageSeries = series_divide(TotalSuccessfulOperationsSeries, TotalOperationsSeries)
| extend SeriesOfEqualLength = range(1, array_length(TotalOperationsSeries), 1)
| extend SeriesOfOneHundo = series_multiply(series_divide(SeriesOfEqualLength, SeriesOfEqualLength), 100)
| extend SuccessfulOperationsEqualsTotalOperationsSeries = series_equals(TotalSuccessfulOperationsSeries, TotalOperationsSeries)
| extend SuccessPercentageSeries = array_iff(SuccessfulOperationsEqualsTotalOperationsSeries, SeriesOfOneHundo, SuccessPercentageSeries)
| project HostName, TotalOperations, TotalErrors, SuccessPercentage, SuccessPercentageSeries
| order by SuccessPercentage asc, HostName asc
| project-rename Node = HostName, ['Total Operations'] = TotalOperations, ['Total Errors'] = TotalErrors, ['Success %'] = SuccessPercentage, ['Success % Trend'] = SuccessPercentageSeries

Overview By Operation Type

let data = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/prometheus'
| where Name == 'kubelet_docker_operations' or Name == 'kubelet_docker_operations_errors'
| extend Tags = todynamic(Tags)
| extend OperationType = tostring(Tags['operation_type']), HostName = tostring(Tags.hostName)
| where '*' in ('aks-agentpool-14531005-0','aks-agentpool-14531005-1','aks-agentpool-14531005-2') or HostName in ('aks-agentpool-14531005-0','aks-agentpool-14531005-1','aks-agentpool-14531005-2')
| where '*' in ('*') or OperationType in ('*')
| extend partitionKey = strcat(HostName, '/' , Name, '/', OperationType)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val, Val - PrevVal)
| where isnotnull(Rate)
| project TimeGenerated, Name, OperationType, Rate;
let operationData = data
| where Name == 'kubelet_docker_operations';
let totalOperationsByType = operationData
| summarize Rate = sum(Rate) by OperationType
| project OperationType, TotalOperations = Rate;
let totalOperationsByTypeSeries = operationData
| make-series TotalOperationsByTypeSeries = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by OperationType
| project-away TimeGenerated;
let errorsData = data
| where Name == 'kubelet_docker_operations_errors';
let totalErrorsByType = errorsData
| summarize Rate = sum(Rate) by OperationType
| project OperationType, TotalErrors = Rate;
let totalErrorsByTypeSeries = errorsData
| make-series TotalErrorsByTypeSeries = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by OperationType
| project-away TimeGenerated;
let seriesLength = toscalar(   totalErrorsByTypeSeries
| extend ArrayLength = array_length(TotalErrorsByTypeSeries)
| summarize Array_Length = max(ArrayLength)  );
totalOperationsByType
| join kind=leftouter
(
    totalErrorsByType
)
on OperationType
| project-away OperationType1
| extend TotalErrors = iif(isempty(TotalErrors), 0.0, TotalErrors)
| join kind=leftouter
(
    totalErrorsByTypeSeries
)
on OperationType
| project-away OperationType1
| extend SeriesOfEqualLength = range(1, seriesLength, 1)
| extend SeriesOfZeroes = series_subtract(SeriesOfEqualLength, SeriesOfEqualLength)
| extend SeriesOfOneHundo = series_multiply(series_divide(SeriesOfEqualLength, SeriesOfEqualLength), 100)
| extend TotalErrorsByTypeSeries = iif(isempty(TotalErrorsByTypeSeries), SeriesOfZeroes, TotalErrorsByTypeSeries)
| join kind=leftouter
(
    totalOperationsByTypeSeries
)
on OperationType
| project-away OperationType1
| extend TotalSuccessfulOperationsByTypeSeries = series_subtract(TotalOperationsByTypeSeries, TotalErrorsByTypeSeries)
| extend SuccessPercentage = round(iif(TotalOperations == 0, 1.0, 1 - (TotalErrors / TotalOperations)), 4), SuccessPercentageSeries = series_divide(TotalSuccessfulOperationsByTypeSeries, TotalOperationsByTypeSeries)
| extend SuccessfulOperationsEqualsTotalOperationsSeries = series_equals(TotalSuccessfulOperationsByTypeSeries, TotalOperationsByTypeSeries)
| extend SuccessPercentageSeries = array_iff(SuccessfulOperationsEqualsTotalOperationsSeries, SeriesOfOneHundo, SuccessPercentageSeries)
| project OperationType, TotalOperations, TotalErrors, SuccessPercentage, SuccessPercentageSeries
| order by SuccessPercentage asc, OperationType asc
| project-rename ['Operation Type'] = OperationType, ['Total Operations'] = TotalOperations, ['Total Errors'] = TotalErrors, ['Success %'] = SuccessPercentage, ['Success % Trend'] = SuccessPercentageSeries

ネットワーク Workbooks

以下7行はグラフ合計値表示のためのおまじないだと思って読み飛ばしてよい。ネットワークの全グラフで共通である。

| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize

注目ポイント

where Origin == 'container.azm.ms/telegraf'
ネットワーク関連は、where Namespace == 'container.azm.ms/net'

Network Overview

（クエリが多いので割愛）

Sent Bytes/sec

let bytesSentPerSecond = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'bytes_sent'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1), (Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
bytesSentPerSecond
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, Interface)
| project-away HostName, Interface

Received Bytes/sec

let bytesReceivedPerSecond = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'bytes_recv'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1), (Val - PrevVal) / (datetime_diff('Second', TimeGenerated, PrevTimeGenerated) * 1))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
bytesReceivedPerSecond
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, Interface)
| project-away HostName, Interface

Total Bytes Sent (by 10m intervals)

let bytesSentTotal = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'bytes_sent'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / 1, (Val - PrevVal) / 1)
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
bytesSentTotal
| make-series Val = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, '/', Interface)
| project-away HostName, Interface

Total Bytes Received (by 10m intervals)

let bytesReceivedTotal = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'bytes_recv'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / 1, (Val - PrevVal) / 1)
| where isnotnull(Rate)
| project TimeGenerated, HostName, Rate;
let sum = bytesReceivedTotal
| make-series Val = sum(Rate) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName
| extend Name = strcat(HostName, ':', 'Sum')
| project-away HostName;
sum

Errors Out/sec

※キャプチャ取った際に0件だったので画面は省略

let errorsOutPerSecond = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'err_out'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / datetime_diff('Second', TimeGenerated, PrevTimeGenerated), (Val - PrevVal) / datetime_diff('Second', TimeGenerated, PrevTimeGenerated))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
errorsOutPerSecond
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, Interface)
| project-away HostName, Interface

Errors In/sec

※キャプチャ取った際に0件だったので画面は省略

let errorsInPerSecond = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'err_in'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val / datetime_diff('Second', TimeGenerated, PrevTimeGenerated), (Val - PrevVal) / datetime_diff('Second', TimeGenerated, PrevTimeGenerated))
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
let maxOn = indexof("Average", 'Max');
let avgOn = indexof("Average", 'Average');
let minOn = indexof("Average", 'Min');
errorsInPerSecond
| make-series Val = iif(avgOn != -1, avg(Rate), iif(maxOn != -1, max(Rate), min(Rate))) default=0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, Interface)
| project-away HostName, Interface

Total Errors Out (by 10m intervals)

※キャプチャ取った際に0件だったので画面は省略

let totalErrorsOut = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'err_out'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val, Val - PrevVal)
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
totalErrorsOut
| make-series Val = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, '/', Interface)
| project-away HostName, Interface

Total Errors In (by 10m intervals)

let totalErrorsIn = InsightsMetrics
| where Origin == 'container.azm.ms/telegraf'
| where Namespace == 'container.azm.ms/net'
| where Name == 'err_in'
| extend Tags = todynamic(Tags)
| extend HostName = tostring(Tags.hostName), Interface = tostring(Tags.interface)
| where '*' in ('*') or HostName in ('*')
| where '*' in ('*') or Interface in ('*')
| extend partitionKey = strcat(HostName, '/', Interface)
| order by partitionKey asc, TimeGenerated asc
| serialize
| extend PrevVal = iif(prev(partitionKey) != partitionKey, 0.0, prev(Val)), PrevTimeGenerated = iif(prev(partitionKey) != partitionKey, datetime(null), prev(TimeGenerated))
| where isnotnull(PrevTimeGenerated) and PrevTimeGenerated != TimeGenerated
| extend Rate = iif(PrevVal > Val, Val, Val - PrevVal)
| where isnotnull(Rate)
| project TimeGenerated, HostName, Interface, Rate;
totalErrorsIn
| make-series Val = sum(Rate) default = 0 on TimeGenerated from ago(21600s) to now() step 10m by HostName, Interface
| extend Name = strcat(HostName, '/', Interface)
| project-away HostName, Interface

参照情報まとめ

You get articles that match your needs
You can efficiently read back useful information
You can use dark theme

What you can do with signing up

AKS を Azure Monitor (kusto) で監視する方法を Workbooks から学ぶ

Intro

Azure Monitor Workbooksとは

最低限の Azure Monitor 基礎知識

クエリの書き方 基本

目次

収集データについて

Prometheus サポート

Workbooks を開く

ディスク容量 Workbooks

注目ポイント

Top 3 Disks by Used Disk %

Disk Capacity Overview

Used Disk %

Free Disk Space (GiB)

ディスクIO Workbooks

注目ポイント

Disk IO Overview

Read Bytes/sec

Write Bytes/sec

Total Bytes Read (10m intervals)

Total Bytes Written (10m intervals)

Milliseconds Per Bytes Read

Milliseconds Per Bytes Written

IOPS In Progress

% Disk Busy

Kubelet Workbooks

注目ポイント

Overview By Node

Overview By Operation Type

ネットワーク Workbooks

注目ポイント

Network Overview

Sent Bytes/sec

Received Bytes/sec

Total Bytes Sent (by 10m intervals)

Total Bytes Received (by 10m intervals)

Errors Out/sec

Errors In/sec

Total Errors Out (by 10m intervals)

Total Errors In (by 10m intervals)

参照情報まとめ

クエリの書き方基本
