【PythonでGUI】PyQt5 -カスタムウィジェット-

More than 3 years have passed since last update.

前回の続き

Custom widgets
こちらのサイトを日本語でざっくりとまとめていきます。

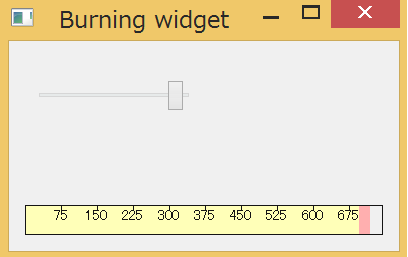

【バーニングウィジェット】

Burning_widget.py
#!/usr/bin/python3
# -*- coding: utf-8 -*-


import sys
from PyQt5.QtWidgets import (QWidget, QSlider, QApplication,
    QHBoxLayout, QVBoxLayout)
from PyQt5.QtCore import QObject, Qt, pyqtSignal
from PyQt5.QtGui import QPainter, QFont, QColor, QPen


class Communicate(QObject):

    updateBW = pyqtSignal(int)


class BurningWidget(QWidget):

    def __init__(self):
        super().__init__()

        self.initUI()


    def initUI(self):

        # バーニングウィジェットの最小のサイズを設定
        self.setMinimumSize(1, 30)
        # 色の着く位置を設定
        self.value = 75
        # 目盛り設定
        self.num = [75, 150, 225, 300, 375, 450, 525, 600, 675]


    def setValue(self, value):

        self.value = value


    def paintEvent(self, e):

        qp = QPainter()
        qp.begin(self)
        self.drawWidget(qp)
        qp.end()


    def drawWidget(self, qp):

        # フォント設定
        font = QFont('Serif', 7, QFont.Light)
        qp.setFont(font)

        # バーニングウィジェットのサイズ設定
        size = self.size()
        w = size.width()
        h = size.height()

        step = int(round(w / 10.0))

        # 色付けされる全体の領域
        till = int(((w / 750.0) * self.value))
        # 赤で色付けされる領域
        full = int(((w / 750.0) * 700))

        # 赤で色付けされる領域の色設定
        if self.value >= 700:

            qp.setPen(QColor(255, 255, 255))
            qp.setBrush(QColor(255, 255, 184))
            qp.drawRect(0, 0, full, h)
            qp.setPen(QColor(255, 175, 175))
            qp.setBrush(QColor(255, 175, 175))
            qp.drawRect(full, 0, till-full, h)

        # 赤で色付けされる領域以外の色設定
        else:

            qp.setPen(QColor(255, 255, 255))
            qp.setBrush(QColor(255, 255, 184))
            qp.drawRect(0, 0, till, h)

        # バーニングウィジェットの背景
        pen = QPen(QColor(20, 20, 20), 1,
            Qt.SolidLine)

        qp.setPen(pen)
        qp.setBrush(Qt.NoBrush)
        qp.drawRect(0, 0, w-1, h-1)

        j = 0

        # 目盛りを書く
        for i in range(step, 10*step, step):

            qp.drawLine(i, 0, i, 5)
            metrics = qp.fontMetrics()
            fw = metrics.width(str(self.num[j]))
            qp.drawText(i-fw/2, h/2, str(self.num[j]))
            j = j + 1


class Example(QWidget):

    def __init__(self):
        super().__init__()

        self.initUI()


    def initUI(self):

        sld = QSlider(Qt.Horizontal, self)
        sld.setFocusPolicy(Qt.NoFocus)
        sld.setRange(1, 750)
        sld.setValue(75)
        sld.setGeometry(30, 40, 150, 30)

        self.c = Communicate()
        self.wid = BurningWidget()
        self.c.updateBW[int].connect(self.wid.setValue)

        # スライダーを移動するとchangeValue関数の呼び出し
        sld.valueChanged[int].connect(self.changeValue)
        hbox = QHBoxLayout()
        hbox.addWidget(self.wid)
        vbox = QVBoxLayout()
        vbox.addStretch(1)
        vbox.addLayout(hbox)
        self.setLayout(vbox)

        self.setGeometry(300, 300, 390, 210)
        self.setWindowTitle('Burning widget')
        self.show()


    def changeValue(self, value):

        # スライダーの現在の値を送る
        self.c.updateBW.emit(value)
        self.wid.repaint()


if __name__ == '__main__':

    app = QApplication(sys.argv)
    ex = Example()
    sys.exit(app.exec_())
