Pessimistic lock on NW ABAP from Java via JCo

I've checked SAP NetWeaver ABAP's pessimistic lock using stateful/stateless call from Java via JCo(SAP Java Connector). When

Development Environment

  • IDE: Eclipse(Oxygen.2 Release (4.7.2))
  • JDK: Oracle JDK 1.8.0_152(not SAP JDK)
  • JCo: SAP Java Connector 3.0.17

A lock object on NW ABAP AS

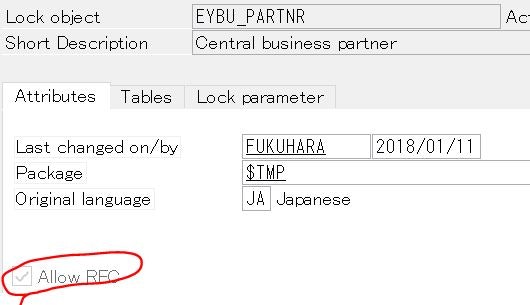

Copied a SAP lock object "EBU_PARTNER". Just changed "Allow RFC".


Stateful Call

After calling lock module, there is a sleep time on java and I checked the lock is active.

StatefulLock.java
package test00;

import java.io.File;
import java.io.FileOutputStream;
import java.util.Properties;

import com.sap.conn.jco.AbapException;
import com.sap.conn.jco.JCoContext;
import com.sap.conn.jco.JCoDestination;
import com.sap.conn.jco.JCoDestinationManager;
import com.sap.conn.jco.JCoException;
import com.sap.conn.jco.ext.DestinationDataProvider;
import com.sap.conn.jco.JCoFunction;

public class StatefulLock {

    static String ABAP_AS = "ABAP_AS_WITHOUT_POOL_RSM";

//  SAP system information
    static
    {
        Properties connectProperties = new Properties();
        connectProperties.setProperty(DestinationDataProvider.JCO_ASHOST, "XXX"); //host name
        connectProperties.setProperty(DestinationDataProvider.JCO_SYSNR,  "00");
        connectProperties.setProperty(DestinationDataProvider.JCO_CLIENT, "100");
        connectProperties.setProperty(DestinationDataProvider.JCO_USER,   "fukuhara");
        connectProperties.setProperty(DestinationDataProvider.JCO_PASSWD, "XXX"); //password
        connectProperties.setProperty(DestinationDataProvider.JCO_LANG,   "en");
        createDataFile(ABAP_AS, "jcoDestination", connectProperties);
    }

//  Create SAP system property file
    static void createDataFile(String name, String suffix, Properties properties)
    {
        File cfg = new File(name+"."+suffix);
        if(!cfg.exists())
        {
            try
            {
                FileOutputStream fos = new FileOutputStream(cfg, false);
                properties.store(fos, "for tests only !");
                fos.close();
            }
            catch (Exception e)
            {
                throw new RuntimeException("Unable to create the destination file " + cfg.getName(), e);
            }
        }
    }

    public static void step3SimpleCall() throws JCoException
    {
        // Set Destination
        JCoDestination destination = JCoDestinationManager.getDestination(ABAP_AS);

        // Set lock function module
        JCoFunction function = destination.getRepository().getFunction("ENQUEUE_EYBU_PARTNR");
        if(function == null)
            throw new RuntimeException("ENQUEUE_EYBU_PARTNR not found in SAP.");

        // Set Import Parameters
        function.getImportParameterList().setValue("PARTNER", "0000000101"); // Partner Number
        function.getImportParameterList().setValue("_SCOPE", "3");           // Lock scope

        try {

            // Begin Stateful Session
            JCoContext.begin(destination);
            try {

                // Call function module
                function.execute(destination);
                try {

                    // sleep for checking the lock
                    System.out.println("Stop 15 senconds");
                    Thread.sleep(15000);
                    System.out.println("Restarted");
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            } catch (AbapException e) {
                System.out.println(e.toString());
                return;
            }
        } catch (JCoException ex) {

        } finally {

            // Finish stateful session
            JCoContext.end(destination);
        }

        System.out.println("ENQUEUE_EYBU_PARTNR finished:");
        System.out.println();


    }

    public static void main(String[] args) throws JCoException {
        step3SimpleCall();
    }

}

Stateless call

After calling lock module, lock disappears, since SAP server doesn't have any states.

StatelessLock.java
package test00;

import java.io.File;
import java.io.FileOutputStream;
import java.util.Properties;

import com.sap.conn.jco.AbapException;
import com.sap.conn.jco.JCoDestination;
import com.sap.conn.jco.JCoDestinationManager;
import com.sap.conn.jco.JCoException;
import com.sap.conn.jco.ext.DestinationDataProvider;
import com.sap.conn.jco.JCoFunction;

public class StatelessLock {

    static String ABAP_AS = "ABAP_AS_WITHOUT_POOL_RSM";

//  SAP system information
    static
    {
        Properties connectProperties = new Properties();
        connectProperties.setProperty(DestinationDataProvider.JCO_ASHOST, "XXX"); //host
        connectProperties.setProperty(DestinationDataProvider.JCO_SYSNR,  "00");
        connectProperties.setProperty(DestinationDataProvider.JCO_CLIENT, "100");
        connectProperties.setProperty(DestinationDataProvider.JCO_USER,   "fukuhara");
        connectProperties.setProperty(DestinationDataProvider.JCO_PASSWD, "XXX");
        connectProperties.setProperty(DestinationDataProvider.JCO_LANG,   "en");
        createDataFile(ABAP_AS, "jcoDestination", connectProperties);
    }

//  Create SAP system property file
    static void createDataFile(String name, String suffix, Properties properties)
    {
        File cfg = new File(name+"."+suffix);
        if(!cfg.exists())
        {
            try
            {
                FileOutputStream fos = new FileOutputStream(cfg, false);
                properties.store(fos, "for tests only !");
                fos.close();
            }
            catch (Exception e)
            {
                throw new RuntimeException("Unable to create the destination file " + cfg.getName(), e);
            }
        }
    }

    public static void step3SimpleCall() throws JCoException
    {
        // Set Destination
        JCoDestination destination = JCoDestinationManager.getDestination(ABAP_AS);

        // Set lock function module
        JCoFunction function = destination.getRepository().getFunction("ENQUEUE_EYBU_PARTNR");
        if(function == null)
            throw new RuntimeException("ENQUEUE_EYBU_PARTNR not found in SAP.");

        // Set Import Parameters
        function.getImportParameterList().setValue("PARTNER", "0000000101");
        function.getImportParameterList().setValue("_SCOPE", "3");

        try
        {
            //Call lock function module
            function.execute(destination);
        }
        catch(AbapException e)
        {
            System.out.println(e.toString());
            return;
        }

        System.out.println("ENQUEUE_EYBU_PARTNR finished:");
        System.out.println();

        // Sleep for checking locks
        try {
            System.out.println("Stop 15 senconds");
            Thread.sleep(15000);
            System.out.println("Restarted");
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

    }

    public static void main(String[] args) throws JCoException {
        step3SimpleCall();
    }

}
