はじめに

Oracle Cloudのシステム構成図を作成する際にトポロジと図のグラフィックを使用しているのですが、個別アイコンとしてQiitaにまとめてみました。サービスラインナップのご理解にもお役立てください。

icons

Compute

Service	icon	reference
Compute VM
Virtual Machine		Standard Shape
Flex Virtual Machine (VM)		Flexible Shape
Burstable Virtual Machine (VM)		Burstable Shape
Compute BM
Bare Metal Compute		Bare Metal Shape
Scaling
Auto Scaling		Auto Scaling
InstancePools		InstancePools
Container
Container Engine For Kubernetes		Container Engine for Kubernetes
Containers		Container Engine for Kubernetes
Container Registry		Container Registry
Serverless
Functions		Functions

Storage

Service	icon	reference
Block Storage		Block Storage
Object Storage		Object Storage
File Storage		File Storage
Storage Gateway		Storage Gateway
Data Transfer		Data Transfer

Database

Service	icon	reference
DBCS
Database System		Database System
Autonomous
Autonomous Database		ADB
Autonomous Transaction Processing ATP		ATP
Autonomous Data Warehouse		ADW
MySQL
MySQL Database Service		MySQL Database Service
Heatwave		Heatwave
No SQL
No SQL Database		No SQL Database
ExaCS
Exadata Cloud Service Database		ExaCS
General
Database-On Premise
Database-Cloud
Pluggable Database		Pluggable Database

Integration & Migration

Service	icon	reference
Data Integration		Data Integration
Database Migration		Database Migration
Golden Gate		Golden Gate
Streaming		Streaming
Data Flow		Data Flow
Data Catalog		Data Catalog

Analytics

Service	icon	reference
Oracle Analytics Cloud		Oracle Analytics Cloud

Network

Service	icon	reference
Virtual Cloud Network
Virtual Cloud Network		Virtual Cloud Network
Route Table		Route Table
Security Lists		Security Lists
Network Security Group		Network Security Group
Internet Gateway		Internet Gateway
Service Gateway		Service Gateway
NAT Gateway		NAT Gateway
Closed Network
Site - to - Site VPN		Site - to - Site VPN
FastConnect		FastConnect
Customer Premises Equipment		Customer Premises Equipment
Dynamic Routing Gateway		Dynamic Routing Gateway
Load Distribution
Load Balancer		Load Balancer
Domain Name System		Domain Name System

Security

Service	icon	reference
IAM
IAM		IAM
IAM Groups		IAM Groups
IAM User		IAM User
IAM Policies		IAM Policies
WAF		WAF
Cloud Guard		Cloud Guard
DDoS Protection		DDoS Protection
Key Vault		Key Vault
Maximum Security Zone		Maximum Security Zone

Observability & Management

Service	icon	reference
Logging		Logging
Monitoring		Monitoring
Notifications		Notifications
Alarms		Alarms
Logging Analytics		Logging Analytics
Events		Events
VCN Flow Logs		VCN Flow Logs
Application Performance Monitoring		Application Performance Monitoring
OCI Database Management		OCI Database Management
Resource Manager		Resource Manager

Governance

Service	icon	reference
Compartments		Compartments
Oracle Cloud Identifier (OCID)		Oracle Cloud Identifier
Tagging		Tagging
Auditing		Auditing

Integration & API Services

Service	icon	reference
API Gateway		API Gateway
Integrations		Integrations

Application & Development

Service	icon	reference
APEX		APEX
OCI-DevOps		OCI-DevOps
Content Management		Content Management

Other

Service	icon	reference
ERP		Oracle Enterprise Resource Planning（ERP）
HCM		Oracle Human Capital Management（HCM）
Fusion		Oracle Fusion Middleware

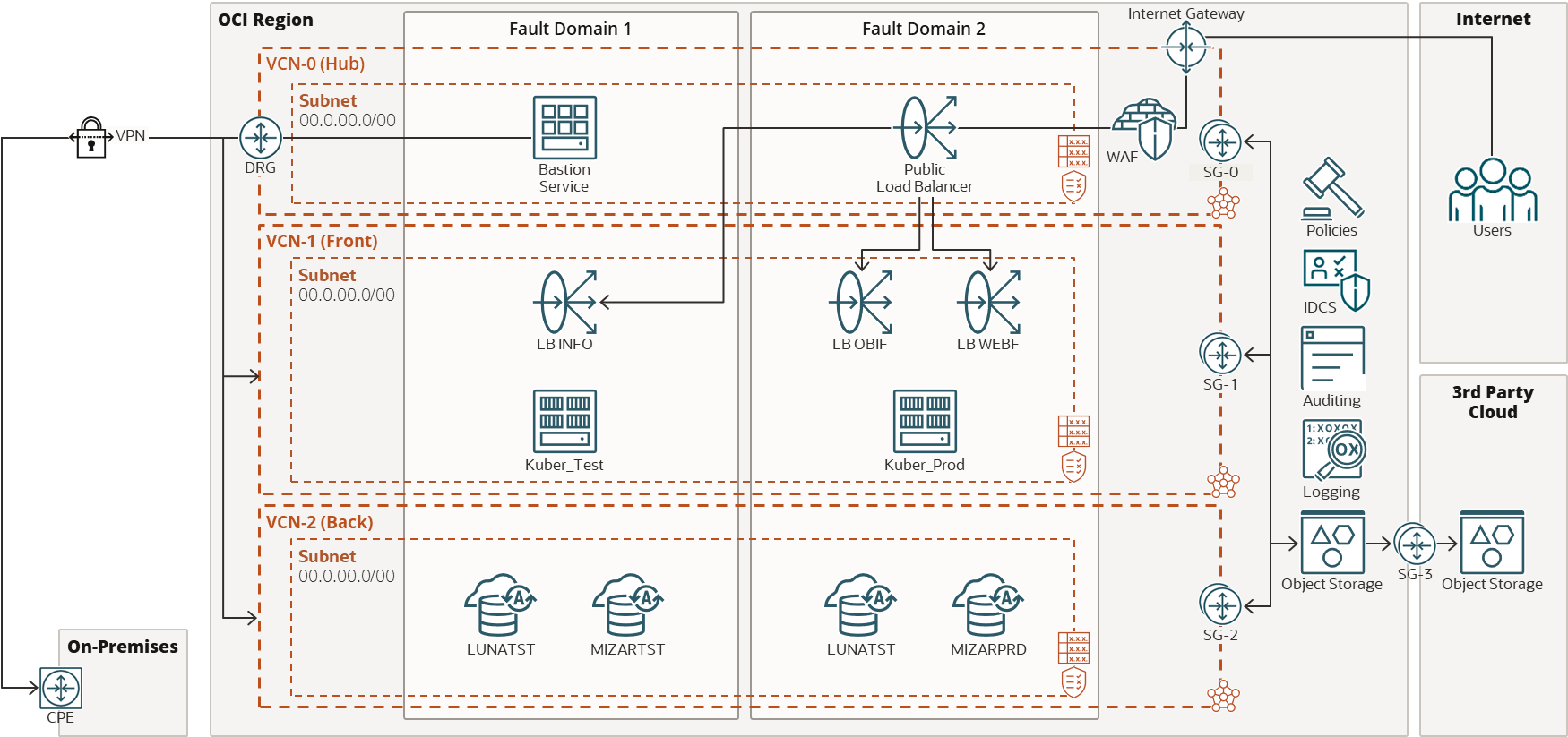

Sample Diagram

Oracle Cloud Infrastructure Architecture Center
