GO言語のgo-echartsパッケージを使ってヒートマップを出力する方法

はじめに

go-echarts

を使ってチャートを出力するシリーズの２つ目の記事です。

１つ目は、

です。

今回は、曜日と時間帯ごとのデータの量を色で表現するヒートマップを出力する方法です。数値が多いところを赤く表示し少ないところを青系にするようなチャートです。

ヒートマップの出力

ヒートマップは、

package main

import (
	"os"

	"github.com/go-echarts/go-echarts/v2/charts"
	"github.com/go-echarts/go-echarts/v2/opts"
)

var (
	hmData = [][3]int{
		{0, 0, 5}, {0, 1, 1}, {0, 2, 0}, {0, 3, 0}, {0, 4, 0}, {0, 5, 0},
		{0, 6, 0}, {0, 7, 0}, {0, 8, 0}, {0, 9, 0}, {0, 10, 0}, {0, 11, 2},
		{0, 12, 4}, {0, 13, 1}, {0, 14, 1}, {0, 15, 3}, {0, 16, 4}, {0, 17, 6},
		{0, 18, 4}, {0, 19, 4}, {0, 20, 3}, {0, 21, 3}, {0, 22, 2}, {0, 23, 5},
		{1, 0, 7}, {1, 1, 0}, {1, 2, 0}, {1, 3, 0}, {1, 4, 0}, {1, 5, 0},
		{1, 6, 0}, {1, 7, 0}, {1, 8, 0}, {1, 9, 0}, {1, 10, 5}, {1, 11, 2},
		{1, 12, 2}, {1, 13, 6}, {1, 14, 9}, {1, 15, 11}, {1, 16, 6}, {1, 17, 7},
		{1, 18, 8}, {1, 19, 12}, {1, 20, 5}, {1, 21, 5}, {1, 22, 7}, {1, 23, 2},
		{2, 0, 1}, {2, 1, 1}, {2, 2, 0}, {2, 3, 0}, {2, 4, 0}, {2, 5, 0}, {2, 6, 0},
		{2, 7, 0}, {2, 8, 0}, {2, 9, 0}, {2, 10, 3}, {2, 11, 2}, {2, 12, 1}, {2, 13, 9},
		{2, 14, 8}, {2, 15, 10}, {2, 16, 6}, {2, 17, 5}, {2, 18, 5}, {2, 19, 5},
		{2, 20, 7}, {2, 21, 4}, {2, 22, 2}, {2, 23, 4}, {3, 0, 7}, {3, 1, 3},
		{3, 2, 0}, {3, 3, 0}, {3, 4, 0}, {3, 5, 0}, {3, 6, 0}, {3, 7, 0},
		{3, 8, 1}, {3, 9, 0}, {3, 10, 5}, {3, 11, 4}, {3, 12, 7}, {3, 13, 14},
		{3, 14, 13}, {3, 15, 12}, {3, 16, 9}, {3, 17, 5}, {3, 18, 5}, {3, 19, 10},
		{3, 20, 6}, {3, 21, 4}, {3, 22, 4}, {3, 23, 1}, {4, 0, 1}, {4, 1, 3},
		{4, 2, 0}, {4, 3, 0}, {4, 4, 0}, {4, 5, 1}, {4, 6, 0}, {4, 7, 0},
		{4, 8, 0}, {4, 9, 2}, {4, 10, 4}, {4, 11, 4}, {4, 12, 2}, {4, 13, 4},
		{4, 14, 4}, {4, 15, 14}, {4, 16, 12}, {4, 17, 1}, {4, 18, 8}, {4, 19, 5},
		{4, 20, 3}, {4, 21, 7}, {4, 22, 3}, {4, 23, 0}, {5, 0, 2}, {5, 1, 1},
		{5, 2, 0}, {5, 3, 3}, {5, 4, 0}, {5, 5, 0}, {5, 6, 0}, {5, 7, 0}, {5, 8, 2},
		{5, 9, 0}, {5, 10, 4}, {5, 11, 1}, {5, 12, 5}, {5, 13, 10}, {5, 14, 5},
		{5, 15, 7}, {5, 16, 11}, {5, 17, 6}, {5, 18, 0}, {5, 19, 5}, {5, 20, 3},
		{5, 21, 4}, {5, 22, 2}, {5, 23, 0}, {6, 0, 1}, {6, 1, 0}, {6, 2, 0},
		{6, 3, 0}, {6, 4, 0}, {6, 5, 0}, {6, 6, 0}, {6, 7, 0}, {6, 8, 0},
		{6, 9, 0}, {6, 10, 1}, {6, 11, 0}, {6, 12, 2}, {6, 13, 1}, {6, 14, 3},
		{6, 15, 4}, {6, 16, 0}, {6, 17, 0}, {6, 18, 0}, {6, 19, 0}, {6, 20, 1},
		{6, 21, 2}, {6, 22, 2}, {6, 23, 6},
	}

	weekDays = [...]string{"Saturday", "Friday", "Thursday", "Wednesday", "Tuesday", "Monday", "Sunday"}

	dayHrs = [...]string{
		"12a", "1a", "2a", "3a", "4a", "5a", "6a", "7a", "8a", "9a", "10a", "11a",
		"12p", "1p", "2p", "3p", "4p", "5p", "6p", "7p", "8p", "9p", "10p", "11p",
	}
)

func genHeatMapData() []opts.HeatMapData {
	items := make([]opts.HeatMapData, 0)
	for i := 0; i < len(hmData); i++ {
		if hmData[i][2] == 0 {
			items = append(items, opts.HeatMapData{Value: [3]interface{}{hmData[i][1], hmData[i][0], "-"}})
		} else {
			items = append(items, opts.HeatMapData{Value: [3]interface{}{hmData[i][1], hmData[i][0], hmData[i][2]}})
		}
	}
	return items
}

func main() {
	hm := charts.NewHeatMap()
	hm.SetGlobalOptions(
		charts.WithTitleOpts(opts.Title{
			Title: "basic heatmap example",
		}),
		charts.WithXAxisOpts(opts.XAxis{
			Type:      "category",
			Data:      dayHrs,
			SplitArea: &opts.SplitArea{Show: opts.Bool(true)},
		}),
		charts.WithYAxisOpts(opts.YAxis{
			Type:      "category",
			Data:      weekDays,
			SplitArea: &opts.SplitArea{Show: opts.Bool(true)},
		}),
		charts.WithVisualMapOpts(opts.VisualMap{
			Calculable: opts.Bool(true),
			Min:        0,
			Max:        10,
			InRange: &opts.VisualMapInRange{
				Color: []string{"#50a3ba", "#eac736", "#d94e5d"},
			},
		}),
	)

	hm.AddSeries("heatmap", genHeatMapData())

	f, _ := os.Create("heatmap.html")
	hm.Render(f)
}

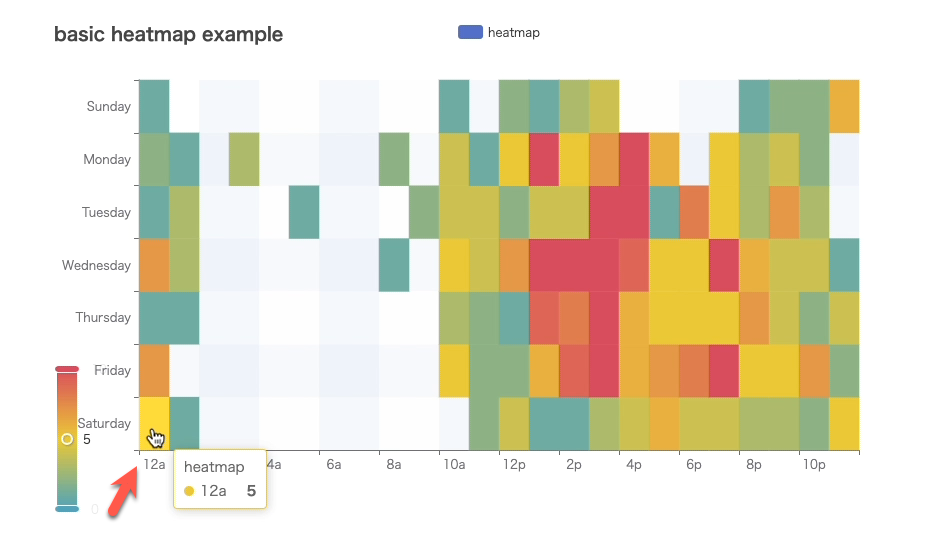

のようなプログラムで出力できます。結果は

のようになります。

ヒートマップを出力する時のポイントは、

X軸、Y軸の設定

タイプをcategoryにしてデータに配列を設定します。

	weekDays = [...]string{"Saturday", "Friday", "Thursday", "Wednesday", "Tuesday", "Monday", "Sunday"}

	dayHrs = [...]string{
		"12a", "1a", "2a", "3a", "4a", "5a", "6a", "7a", "8a", "9a", "10a", "11a",
		"12p", "1p", "2p", "3p", "4p", "5p", "6p", "7p", "8p", "9p", "10p", "11p",
	}

|
		charts.WithXAxisOpts(opts.XAxis{
			Type:      "category",
			Data:      dayHrs,
			SplitArea: &opts.SplitArea{Show: opts.Bool(true)},
		}),
		charts.WithYAxisOpts(opts.YAxis{
			Type:      "category",
			Data:      weekDays,
			SplitArea: &opts.SplitArea{Show: opts.Bool(true)},
		}),

データ

データは、

X座標、Y座標、数値

の３つの数値の配列です。

hmData = [][3]int{
		{0, 0, 5}

items = append(items, opts.HeatMapData{Value: [3]interface{}{hmData[i][1], hmData[i][0], hmData[i][2]}})

座標(0,0)の原点は、

の位置です。Y軸は上へ、X軸は、右へいくほど大きくなります。

応用

このヒートマップは

のソフトの中で曜日と時間帯や日付と時間帯のログの件数を表現するために使っています。

X軸とY軸を変更すれば、

のような表現もできます。
