【Flutter】OS標準の戻る機能で WebView のページを戻る

Posted at

初めに

WebView を触る機会があり、OS標準の戻る機能でページを戻りたいと思ったので実装し、記事にまとめました。

Webページを表示させる方法はflutter_inappviewを使用しました。

サンプルコード

公式ドキュメントにあるサンプルコードです。
今回はページの戻る処理に焦点をおくため詳しい実装は解説致しません。

サンプルコード
import 'dart:async';
import 'dart:io';
import 'package:flutter/material.dart';
import 'package:flutter_inappwebview/flutter_inappwebview.dart';
import 'package:url_launcher/url_launcher.dart';

Future main() async {
  WidgetsFlutterBinding.ensureInitialized();

  if (Platform.isAndroid) {
    await AndroidInAppWebViewController.setWebContentsDebuggingEnabled(true);
  }

  runApp(const MaterialApp(home: MyApp()));
}

class MyApp extends StatefulWidget {
  const MyApp({super.key});

  @override
  createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  final GlobalKey webViewKey = GlobalKey();

  InAppWebViewController? webViewController;
  InAppWebViewGroupOptions options = InAppWebViewGroupOptions(
      crossPlatform: InAppWebViewOptions(
        useShouldOverrideUrlLoading: true,
        mediaPlaybackRequiresUserGesture: false,
      ),
      android: AndroidInAppWebViewOptions(
        useHybridComposition: true,
      ),
      ios: IOSInAppWebViewOptions(
        allowsInlineMediaPlayback: true,
      ));

  late PullToRefreshController pullToRefreshController;
  String url = "";
  double progress = 0;
  final urlController = TextEditingController();

  @override
  void initState() {
    super.initState();

    pullToRefreshController = PullToRefreshController(
      options: PullToRefreshOptions(
        color: Colors.blue,
      ),
      onRefresh: () async {
        if (Platform.isAndroid) {
          webViewController?.reload();
        } else if (Platform.isIOS) {
          webViewController?.loadUrl(
              urlRequest: URLRequest(url: await webViewController?.getUrl()));
        }
      },
    );
  }

  @override
  void dispose() {
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: const Text("Official InAppWebView website")),
        body: SafeArea(
            child: Column(children: <Widget>[
          TextField(
            decoration: const InputDecoration(prefixIcon: Icon(Icons.search)),
            controller: urlController,
            keyboardType: TextInputType.url,
            onSubmitted: (value) {
              var url = Uri.parse(value);
              if (url.scheme.isEmpty) {
                // set google top page if search query is empty.
                url = Uri.parse("https://www.google.com/search?q=$value");
              }
              // webViewController load url
              webViewController?.loadUrl(urlRequest: URLRequest(url: url));
            },
          ),
          Expanded(
            child: Stack(
              children: [
                InAppWebView(
                  key: webViewKey,
                  initialUrlRequest:
                      URLRequest(url: Uri.parse("https://inappwebview.dev/")),
                  initialOptions: options,
                  pullToRefreshController: pullToRefreshController,
                  onWebViewCreated: (controller) {
                    webViewController = controller;
                  },
                  onLoadStart: (controller, url) {
                    setState(() {
                      this.url = url.toString();
                      urlController.text = this.url;
                    });
                  },
                  androidOnPermissionRequest:
                      (controller, origin, resources) async {
                    return PermissionRequestResponse(
                      resources: resources,
                      action: PermissionRequestResponseAction.GRANT,
                    );
                  },
                  shouldOverrideUrlLoading:
                      (controller, navigationAction) async {
                    var uri = navigationAction.request.url!;

                    if (![
                      "http",
                      "https",
                      "file",
                      "chrome",
                      "data",
                      "javascript",
                      "about"
                    ].contains(uri.scheme)) {
                      if (await canLaunchUrl(Uri.parse(url))) {
                        // Launch the App
                        await launchUrl(
                          Uri.parse(url),
                        );
                        // and cancel the request
                        return NavigationActionPolicy.CANCEL;
                      }
                    }

                    return NavigationActionPolicy.ALLOW;
                  },
                  onLoadStop: (controller, url) async {
                    pullToRefreshController.endRefreshing();
                    setState(() {
                      this.url = url.toString();
                      urlController.text = this.url;
                    });
                  },
                  onLoadError: (controller, url, code, message) {
                    pullToRefreshController.endRefreshing();
                  },
                  onProgressChanged: (controller, progress) {
                    if (progress == 100) {
                      pullToRefreshController.endRefreshing();
                    }
                    setState(() {
                      this.progress = progress / 100;
                      urlController.text = url;
                    });
                  },
                  onUpdateVisitedHistory: (controller, url, androidIsReload) {
                    setState(() {
                      this.url = url.toString();
                      urlController.text = this.url;
                    });
                  },
                  onConsoleMessage: (controller, consoleMessage) {
                    print(consoleMessage);
                  },
                ),
                progress < 1.0
                    ? LinearProgressIndicator(value: progress)
                    : Container(),
              ],
            ),
          ),
          ButtonBar(
            alignment: MainAxisAlignment.center,
            children: <Widget>[
              ElevatedButton(
                child: const Icon(Icons.arrow_back),
                onPressed: () {
                  webViewController?.goBack();
                },
              ),
              ElevatedButton(
                child: const Icon(Icons.arrow_forward),
                onPressed: () {
                  webViewController?.goForward();
                },
              ),
              ElevatedButton(
                child: const Icon(Icons.refresh),
                onPressed: () {
                  webViewController?.reload();
                },
              ),
            ],
          ),
        ])));
  }
}


下部の矢印ボタンでWebページを戻っていますね。
この処理に該当する部分を以下に抜粋します。
webViewController?.goBack();が前のページに戻る処理です。

ButtonBar(
            alignment: MainAxisAlignment.center,
            children: <Widget>[
              ElevatedButton(
                child: const Icon(Icons.arrow_back),
                onPressed: () {
                  webViewController?.goBack(); // コントローラーを使用して戻る処理
                },
              ),
              ElevatedButton(
                child: const Icon(Icons.arrow_forward),
                onPressed: () {
                  webViewController?.goForward();
                },
              ),
              ElevatedButton(
                child: const Icon(Icons.refresh),
                onPressed: () {
                  webViewController?.reload();
                },
              ),
            ],
          ),

OS標準の戻る機能を使用

しかしこのコードでの問題点は、OS標準の戻る機能を使用すると、Webページスタックを認識してくれないということです。

OS標準の戻る機能
Android 画面の左端をスワイプ、戻るボタンの押下
iOS 画面の左端をスワイプ

戻る機能を使うと、ホーム画面まで戻ってしまいます。

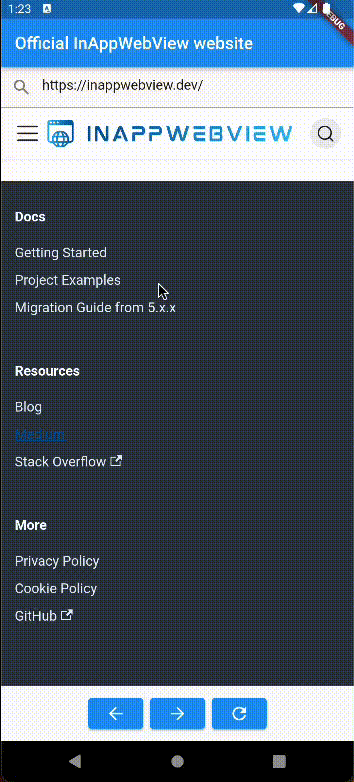

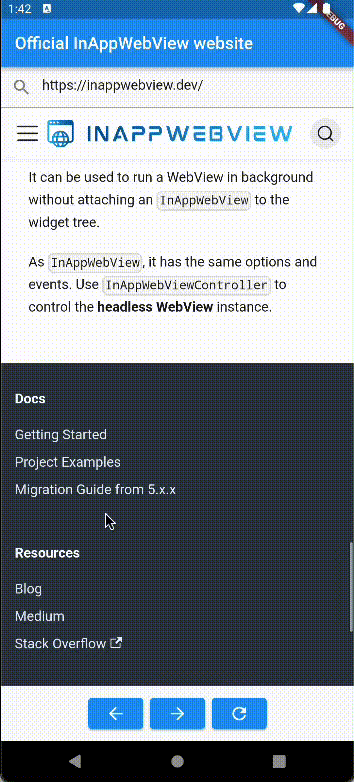

ボタンで戻る 左スワイプで戻る

WillPopScope で制御

Flutterの標準クラスのWillPopScopeでは、ダイアログや画面のオープン/クローズを検知してくれます。

1. WebView を WillPopScope でラップする

今回はScaffold内のbodyにあたります。
onWillPop には、戻る処理が実行された際に実行するコールバックを渡します。
戻り値には、boolを返し、

  • true: 戻る処理実行
  • false: 戻る処理を実行しない
@override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: const Text("Official InAppWebView website")),
        body: WillPopScope(
          onWillPop: () {
            return true;
          },
          child: SafeArea(
                :

2. 戻るWebページが存在する場合は、OS標準の戻る処理を実行しない

InAppWebViewController classの、canGoBackメソッドで前のページが存在するかを判定することが可能です。
bool canGoBackWebPageが

  • true: webViewController!.goBack();でWebページを戻る
  • false: OS標準の戻る機能を実行
@override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: const Text("Official InAppWebView website")),
        body: WillPopScope(
          onWillPop: () async {
            if (webViewController == null) {
              return true;
            }
            final canGoBackWebPage = await webViewController!.canGoBack();
            if (canGoBackWebPage) {
              webViewController!.goBack();
              return false;
            }

            return true;
          },
          child: SafeArea(
                :

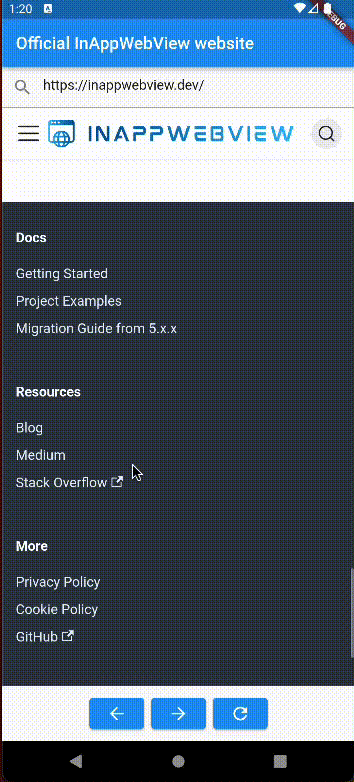

ボタンで戻る 左スワイプで戻る
最終的なコード
import 'dart:async';
import 'dart:io';
import 'package:flutter/material.dart';
import 'package:flutter_inappwebview/flutter_inappwebview.dart';
import 'package:url_launcher/url_launcher.dart';

Future main() async {
  WidgetsFlutterBinding.ensureInitialized();

  if (Platform.isAndroid) {
    await AndroidInAppWebViewController.setWebContentsDebuggingEnabled(true);
  }

  runApp(const MaterialApp(home: MyApp()));
}

class MyApp extends StatefulWidget {
  const MyApp({super.key});

  @override
  createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  final GlobalKey webViewKey = GlobalKey();

  InAppWebViewController? webViewController;
  InAppWebViewGroupOptions options = InAppWebViewGroupOptions(
      crossPlatform: InAppWebViewOptions(
        useShouldOverrideUrlLoading: true,
        mediaPlaybackRequiresUserGesture: false,
      ),
      android: AndroidInAppWebViewOptions(
        useHybridComposition: true,
      ),
      ios: IOSInAppWebViewOptions(
        allowsInlineMediaPlayback: true,
      ));

  late PullToRefreshController pullToRefreshController;
  String url = "";
  double progress = 0;
  final urlController = TextEditingController();

  @override
  void initState() {
    super.initState();

    pullToRefreshController = PullToRefreshController(
      options: PullToRefreshOptions(
        color: Colors.blue,
      ),
      onRefresh: () async {
        if (Platform.isAndroid) {
          webViewController?.reload();
        } else if (Platform.isIOS) {
          webViewController?.loadUrl(
              urlRequest: URLRequest(url: await webViewController?.getUrl()));
        }
      },
    );
  }

  @override
  void dispose() {
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: const Text("Official InAppWebView website")),
        body: WillPopScope(
          onWillPop: () async {
            if (webViewController == null) {
              return true;
            }
            final canGoBackWebPage = await webViewController!.canGoBack();
            if (canGoBackWebPage) {
              webViewController!.goBack();
              return false;
            }

            return true;
          },
          child: SafeArea(
              child: Column(children: <Widget>[
            TextField(
              decoration: const InputDecoration(prefixIcon: Icon(Icons.search)),
              controller: urlController,
              keyboardType: TextInputType.url,
              onSubmitted: (value) {
                var url = Uri.parse(value);
                if (url.scheme.isEmpty) {
                  // set google top page if search query is empty.
                  url = Uri.parse("https://www.google.com/search?q=$value");
                }
                // webViewController load url
                webViewController?.loadUrl(urlRequest: URLRequest(url: url));
              },
            ),
            Expanded(
              child: Stack(
                children: [
                  InAppWebView(
                    key: webViewKey,
                    initialUrlRequest:
                        URLRequest(url: Uri.parse("https://inappwebview.dev/")),
                    initialOptions: options,
                    pullToRefreshController: pullToRefreshController,
                    onWebViewCreated: (controller) {
                      webViewController = controller;
                    },
                    onLoadStart: (controller, url) {
                      setState(() {
                        this.url = url.toString();
                        urlController.text = this.url;
                      });
                    },
                    androidOnPermissionRequest:
                        (controller, origin, resources) async {
                      return PermissionRequestResponse(
                        resources: resources,
                        action: PermissionRequestResponseAction.GRANT,
                      );
                    },
                    shouldOverrideUrlLoading:
                        (controller, navigationAction) async {
                      var uri = navigationAction.request.url!;

                      if (![
                        "http",
                        "https",
                        "file",
                        "chrome",
                        "data",
                        "javascript",
                        "about"
                      ].contains(uri.scheme)) {
                        if (await canLaunchUrl(Uri.parse(url))) {
                          // Launch the App
                          await launchUrl(
                            Uri.parse(url),
                          );
                          // and cancel the request
                          return NavigationActionPolicy.CANCEL;
                        }
                      }

                      return NavigationActionPolicy.ALLOW;
                    },
                    onLoadStop: (controller, url) async {
                      pullToRefreshController.endRefreshing();
                      setState(() {
                        this.url = url.toString();
                        urlController.text = this.url;
                      });
                    },
                    onLoadError: (controller, url, code, message) {
                      pullToRefreshController.endRefreshing();
                    },
                    onProgressChanged: (controller, progress) {
                      if (progress == 100) {
                        pullToRefreshController.endRefreshing();
                      }
                      setState(() {
                        this.progress = progress / 100;
                        urlController.text = url;
                      });
                    },
                    onUpdateVisitedHistory: (controller, url, androidIsReload) {
                      setState(() {
                        this.url = url.toString();
                        urlController.text = this.url;
                      });
                    },
                    onConsoleMessage: (controller, consoleMessage) {
                      print(consoleMessage);
                    },
                  ),
                  progress < 1.0
                      ? LinearProgressIndicator(value: progress)
                      : Container(),
                ],
              ),
            ),
            ButtonBar(
              alignment: MainAxisAlignment.center,
              children: <Widget>[
                ElevatedButton(
                  child: const Icon(Icons.arrow_back),
                  onPressed: () {
                    webViewController?.goBack();
                  },
                ),
                ElevatedButton(
                  child: const Icon(Icons.arrow_forward),
                  onPressed: () {
                    webViewController?.goForward();
                  },
                ),
                ElevatedButton(
                  child: const Icon(Icons.refresh),
                  onPressed: () {
                    webViewController?.reload();
                  },
                ),
              ],
            ),
          ])),
        ));
  }
}

終わりに

今回は、OS標準の戻る機能とWebページの戻る処理の連携を実装しました。
そもそもflutter_inappwebviewが便利すぎるおかげでこの処理も実装できているんですよね。
もっと記事にできる要素がないか、読み込んでこようと思います。

参考文献

3
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
3
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
