CloudFormationを使ってAWSのVPCをはじめとしたネットワークを構築しよう！

Last updated at Posted at 2023-09-10

概要

今回はCloudFormationを使って

  • VPC
  • パブリックサブネットとプライベートサブネット
  • IGW
  • ルートテーブルおよびルーティングの設定

を構築したいと思います

前提

  • 東京リージョンを使用
  • AWSを使用
  • ネットワークに関する基本的な知識をある程度持っている

ディレクトリ構成

構成は以下の通りです

tree
.
└── templates
    └── network
        └── vpc.yml

vpc.yml

vpc.yml
AWSTemplateFormatVersion: 2010-09-09
Description: 'VPC Stack'

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  # 入力パラメータのグループ化と順序を指定
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Common Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "VPC Configuration"
        Parameters:
          - VPCCIDR
          - ELBPublicSubnet1CIDR
          - ELBPublicSubnet2CIDR
          - ECSPublicSubnet1CIDR
          - ECSPublicSubnet2CIDR
          - RDSPrivateSubnet1CIDR
          - RDSPrivateSubnet2CIDR

# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Please type the ProjectName. (ex: my-project)"
    Type: String
    Default: my-project
    ConstraintDescription: "ProjectName is required."
    MinLength: 1
  Environment:
    Description: "Please select Environment."
    Type: String
    Default: dev
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select."
  VPCCIDR:
    Description: "Please type the VPC CIDR."
    Type: String
    Default: 10.0.0.0/16
  ELBPublicSubnet1CIDR:
    Description: "Please type the ELB Public Subnet 1 CIDR."
    Type: String
    Default: 10.0.1.0/24
  ELBPublicSubnet2CIDR:
    Description: "Please type the ELB Public Subnet 2 CIDR."
    Type: String
    Default: 10.0.2.0/24
  ECSPublicSubnet1CIDR:
    Description: "Please type the ECS Public Subnet 1 CIDR."
    Type: String
    Default: 10.0.3.0/24
  ECSPublicSubnet2CIDR:
    Description: "Please type the ECS Public Subnet 2 CIDR."
    Type: String
    Default: 10.0.4.0/24
  RDSPrivateSubnet1CIDR:
    Description: "Please type the RDS Private Subnet 1 CIDR."
    Type: String
    Default: 10.0.5.0/24
  RDSPrivateSubnet2CIDR:
    Description: "Please type the RDS Private Subnet 2 CIDR."
    Type: String
    Default: 10.0.6.0/24

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # VPC
  # -------------------------------------
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VPCCIDR
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-vpc
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

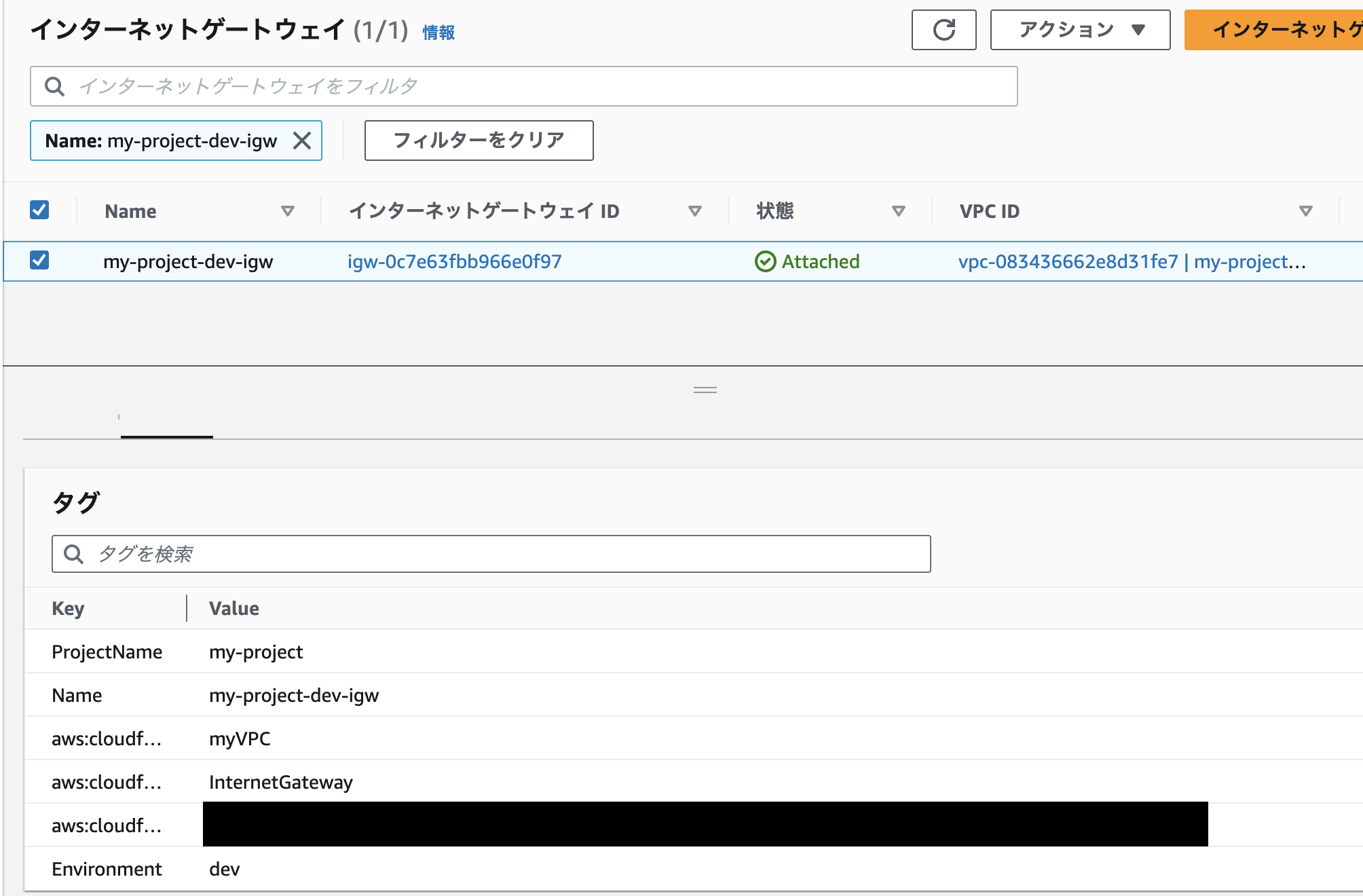

  # VPC内にインターネットゲートウェイがないとパブリックサブネットからインターネットへアクセスできないので作成
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          # Parametersで入力した値を対応する変数に置き換える
          # https://docs.aws.amazon.com/ja_jp/AWSCloudFormation/latest/UserGuide/intrinsic-function-reference-sub.html
          Value: !Sub ${ProjectName}-${Environment}-igw
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

  # インターネットゲートウェイをVPCにアタッチする
  AttachInternetGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId : !Ref InternetGateway

  # -------------------------------------
  # Public Subnet
  # -------------------------------------
  ELBPublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Select [0, !GetAZs ""]
      VpcId: !Ref VPC
      CidrBlock: !Ref ELBPublicSubnet1CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-pub-alb",
                !Select [2, !Split ["-", !Select [0, !GetAZs ""]]],
              ],
            ]
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  ELBPublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Select [1, !GetAZs ""]
      VpcId: !Ref VPC
      CidrBlock: !Ref ELBPublicSubnet2CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-pub-alb",
                !Select [2, !Split ["-", !Select [1, !GetAZs ""]]],
              ],
            ]
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  ECSPublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Ref ECSPublicSubnet1CIDR
      # パブリックIPv4アドレスの自動割り当て
      # パブリックなのでtrueにする
      MapPublicIpOnLaunch: true
      VpcId: !Ref VPC
      AvailabilityZone: !Select [0, !GetAZs ""]
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-pub-ecs",
                !Select [2, !Split ["-", !Select [0, !GetAZs ""]]],
              ],
            ]
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  ECSPublicSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      CidrBlock: !Ref ECSPublicSubnet2CIDR
      MapPublicIpOnLaunch: true
      VpcId: !Ref VPC
      AvailabilityZone: !Select [1, !GetAZs ""]
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-pub-ecs",
                !Select [2, !Split ["-", !Select [1, !GetAZs ""]]],
              ],
            ]
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  RDSPrivateSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      # パブリックIPv4アドレスの自動割り当て
      # プライベートなのでfalseにする
      CidrBlock: !Ref RDSPrivateSubnet1CIDR
      MapPublicIpOnLaunch: false
      # VPCのLogicalIDを!Refで参照してあげることでVPCのIDを自動的に当てはめる
      VpcId: !Ref VPC
      AvailabilityZone: !Select [0, !GetAZs ""]
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-priv-rds",
                !Select [2, !Split ["-", !Select [0, !GetAZs ""]]],
              ],
            ]
  RDSPrivateSubnet2:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Select [1, !GetAZs ""]
      VpcId: !Ref VPC
      CidrBlock: !Ref RDSPrivateSubnet2CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-priv-rds",
                !Select [2, !Split ["-", !Select [1, !GetAZs ""]]],
              ],
            ]
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  # -------------------------------------
  # Public Route Table
  # -------------------------------------
  ELBPublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      # どのVPCと紐づけるか定義する
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-pub-alb-rtb
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  # ELBのルーティング
  ELBPublicRoute:
    Type: AWS::EC2::Route
    # インターネットゲートウェイと紐付ける
    DependsOn: AttachInternetGateway
    Properties:
      RouteTableId: !Ref ELBPublicRouteTable
      # インターネット(0.0.0.0/0)へのアクセスを許可
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway
  # ルートテーブルとサブネットを紐づける
  ELBPublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref ELBPublicSubnet1
      RouteTableId: !Ref ELBPublicRouteTable
  ELBPublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref ELBPublicSubnet2
      RouteTableId: !Ref ELBPublicRouteTable
  ECSPublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-pub-ecs-rtb
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  ECSPublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachInternetGateway
    Properties:
      RouteTableId: !Ref ECSPublicRouteTable
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway
  ECSPublicSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref ECSPublicSubnet1
      RouteTableId: !Ref ECSPublicRouteTable
  ECSPublicSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref ECSPublicSubnet2
      RouteTableId: !Ref ECSPublicRouteTable
  # -------------------------------------
  # Private Route Table
  # -------------------------------------
  RDSPrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-priv-rds-rtb
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  RDSPrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref RDSPrivateSubnet1
      RouteTableId: !Ref RDSPrivateRouteTable
  RDSPrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref RDSPrivateSubnet2
      RouteTableId: !Ref RDSPrivateRouteTable

# -------------------------------------
# Outputs
# -------------------------------------
# https://docs.aws.amazon.com/ja_jp/AWSCloudFormation/latest/UserGuide/outputs-section-structure.html
Outputs:
  VPC:
    Description: "A reference to the created VPC."
    Value: !Ref VPC
  PublicSubnets:
    Description: "A list of the public subnets."
    Value:
      !Join [
        ",",
        [
          !Ref ECSPublicSubnet1,
          !Ref ECSPublicSubnet2,
          !Ref ELBPublicSubnet1,
          !Ref ELBPublicSubnet2,
        ],
      ]
  PrivateSubnets:
    Description: "A list of the private subnets."
    Value: !Join [",", [!Ref RDSPrivateSubnet1, !Ref RDSPrivateSubnet2]]
  ELBPublicSubnet1:
    Description: "A reference to the public subnet in the 1st Availability Zone."
    Value: !Ref ELBPublicSubnet1
  ELBPublicSubnet2:
    Description: "A reference to the public subnet in the 2nd Availability Zone."
    Value: !Ref ELBPublicSubnet2
  ECSPublicSubnet1:
    Description: "A reference to the public subnet in the 1st Availability Zone."
    Value: !Ref ECSPublicSubnet1
  ECSPublicSubnet2:
    Description: "A reference to the public subnet in the 2nd Availability Zone."
    Value: !Ref ECSPublicSubnet2
  RDSPrivateSubnet1:
    Description: "A reference to the private subnet in the 1st Availability Zone."
    Value: !Ref RDSPrivateSubnet1
  RDSPrivateSubnet2:
    Description: "A reference to the private subnet in the 2nd Availability Zone."
    Value: !Ref RDSPrivateSubnet2

1つずつ解説していきます

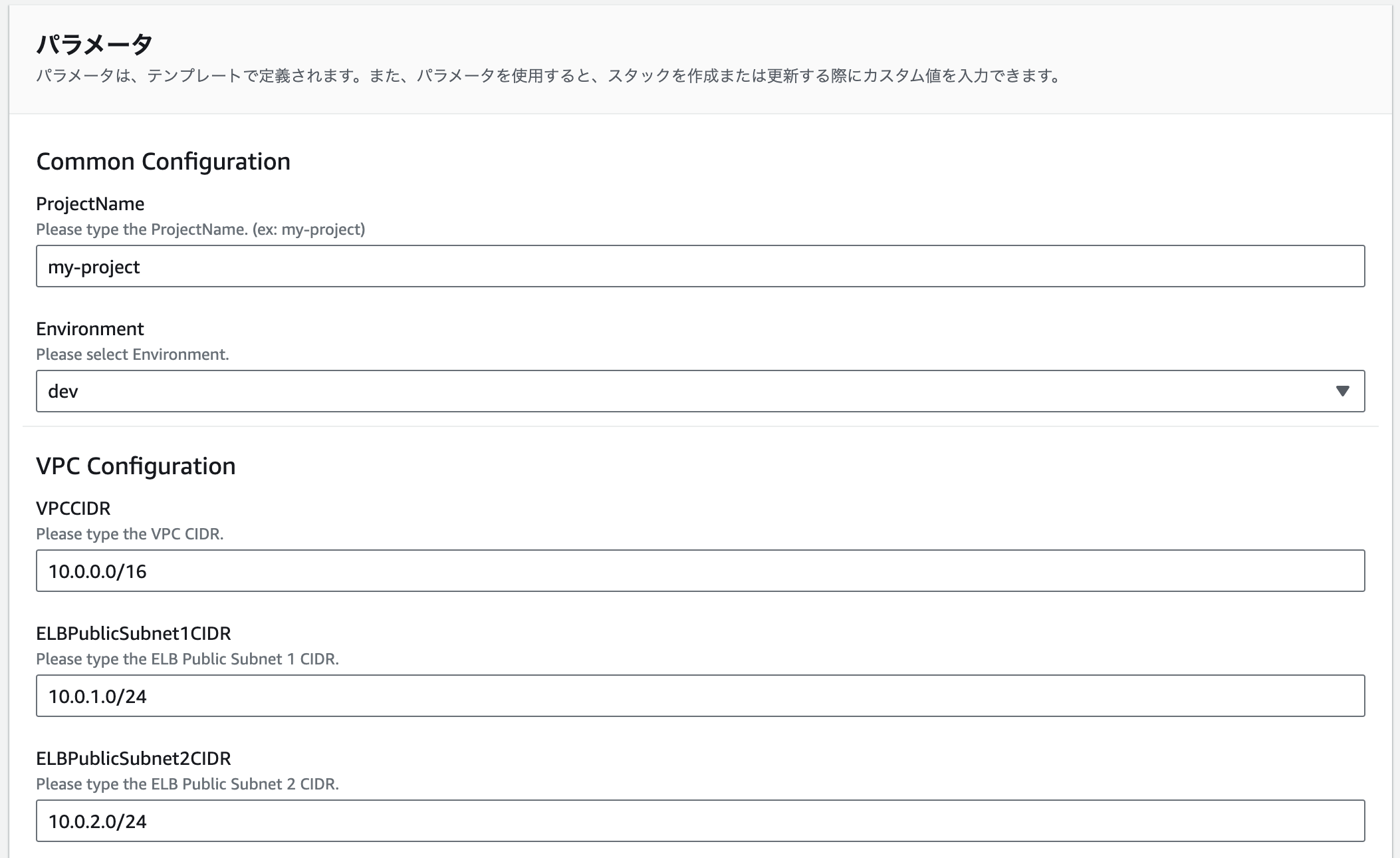

Metadata

Metadataを使用する際に

AWS::CloudFormation::Interface:

と記載することで後述するParametersをグループ分けして見やすくすることができます
今回は

  • Common Configuration(汎用的な設定)
    • プロジェクト名や環境(dev,stg,prd)などタグ付けに必要な変数
  • VPC Configuration(VPCの設定)
    • VPC,ALB,ECS,RDSのCIDRの設定

2種類に分類します

vpc.yml
# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  # 入力パラメータのグループ化と順序を指定
  AWS::CloudFormation::Interface:
    ParameterGroups:
      - Label:
          default: "Common Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "VPC Configuration"
        Parameters:
          - VPCCIDR
          - ELBPublicSubnet1CIDR
          - ELBPublicSubnet2CIDR
          - ECSPublicSubnet1CIDR
          - ECSPublicSubnet2CIDR
          - RDSPrivateSubnet1CIDR
          - RDSPrivateSubnet2CIDR

Parameters

Metadataで説明したパラメータのデフォルト値の設定などを行います

vpc.yml
# -------------------------------------
# Parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Please type the ProjectName. (ex: my-project)"
    Type: String
    Default: my-project
    ConstraintDescription: "ProjectName is required."
    MinLength: 1
  Environment:
    Description: "Please select Environment."
    Type: String
    Default: dev
    # AllowedValuesを設定することでパラメータ指定時にドロップダウン形式で選択できる
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select."
  VPCCIDR:
    Description: "Please type the VPC CIDR."
    Type: String
    Default: 10.0.0.0/16
  ELBPublicSubnet1CIDR:
    Description: "Please type the ELB Public Subnet 1 CIDR."
    Type: String
    Default: 10.0.1.0/24
  ELBPublicSubnet2CIDR:
    Description: "Please type the ELB Public Subnet 2 CIDR."
    Type: String
    Default: 10.0.2.0/24
  ECSPublicSubnet1CIDR:
    Description: "Please type the ECS Public Subnet 1 CIDR."
    Type: String
    Default: 10.0.3.0/24
  ECSPublicSubnet2CIDR:
    Description: "Please type the ECS Public Subnet 2 CIDR."
    Type: String
    Default: 10.0.4.0/24
  RDSPrivateSubnet1CIDR:
    Description: "Please type the RDS Private Subnet 1 CIDR."
    Type: String
    Default: 10.0.5.0/24
  RDSPrivateSubnet2CIDR:
    Description: "Please type the RDS Private Subnet 2 CIDR."
    Type: String
    Default: 10.0.6.0/24

VPC

VPCを作成します

vpc.yml
Resources:
  # -------------------------------------
  # VPC
  # -------------------------------------
  VPC:
    Type: AWS::EC2::VPC
    Properties:
      CidrBlock: !Ref VPCCIDR
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-vpc
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

Internet Gateway

パブリックサブネットからインターネットへアクセスできるようにするためにVPC内にインターネットゲートウェイを作成します

vpc.yml
  InternetGateway:
    Type: AWS::EC2::InternetGateway
    Properties:
      Tags:
        - Key: Name
          # Parametersで入力した値を対応する変数に置き換える
          # https://docs.aws.amazon.com/ja_jp/AWSCloudFormation/latest/UserGuide/intrinsic-function-reference-sub.html
          Value: !Sub ${ProjectName}-${Environment}-igw
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

  # インターネットゲートウェイをVPCにアタッチする
  AttachInternetGateway:
    Type: AWS::EC2::VPCGatewayAttachment
    Properties:
      VpcId: !Ref VPC
      InternetGatewayId : !Ref InternetGateway

パブリックサブネット

vpc.yml
  ELBPublicSubnet1:
    Type: AWS::EC2::Subnet
    Properties:
      AvailabilityZone: !Select [0, !GetAZs ""]
      VpcId: !Ref VPC
      CidrBlock: !Ref ELBPublicSubnet1CIDR
      MapPublicIpOnLaunch: false
      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-pub-alb",
                !Select [2, !Split ["-", !Select [0, !GetAZs ""]]],
              ],
            ]
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

ELBのパブリックサブネットを例に説明します
AvailabilityZoneをハードコーディングするのは推奨されていないので

!Select [0, !GetAZs ""]

を使用するとリージョン内のAZの配列のうち指定した配列のindex番号を取得します
(東京リージョンだと仮定してap-northeast-1aが指定されます)

詳細はAWSの公式ドキュメントを参照してください

タグについても説明します

!Select [0, !GetAZs ""]

でAZ(ap-norteast-1aと仮定します)を取得し、
!Split関数を使って"-"でAZを配列にして分離します

["ap","northeast","1a"]

その後、

!Select [2, !Split ["-", !Select [0, !GetAZs ""]]],

をすることで

["ap","northeast","1a"]

の2番目のindexの値(1a)を取得します
最後に!Join関数を使って
"${ProjectName}-${Environment}-pub-alb"と"1a"を"-"で合体させます

  • ProjectNameがmy-project
  • Environmentがdev

と仮定すると、Nameタグの値が

my-project-dev-pub-albー1a

になり、AZに応じたより汎用的なタグ名になります

      Tags:
        - Key: Name
          Value:
            !Join [
              "-",
              [
                !Sub "${ProjectName}-${Environment}-pub-alb",
                !Select [2, !Split ["-", !Select [0, !GetAZs ""]]],
              ],
            ]

他のパブリックサブネットもプライベートサブネットも同様に作成します

パブリックルートテーブル

ELBを例に説明します
ルートテーブルをどの

  • サブネット
  • VPC
  • インタネットゲートウェイ
    と紐づけるかと

ルーティング(パブリックなのですべてのIPアドレスを許可)
を設定する必要があります

vpc.yml
  # -------------------------------------
  # Public Route Table
  # -------------------------------------
  ELBPublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      # どのVPCと紐づけるか定義する
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-pub-alb-rtb
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  # ELBのルーティング
  ELBPublicRoute:
    Type: AWS::EC2::Route
    # インターネットゲートウェイと紐付ける
    DependsOn: AttachInternetGateway
    Properties:
      RouteTableId: !Ref ELBPublicRouteTable
      # インターネット(0.0.0.0/0)へのアクセスを許可
      DestinationCidrBlock: 0.0.0.0/0
      GatewayId: !Ref InternetGateway

ECSも同様の設定を行います

プライベートルートテーブル

プライベートルートテーブルからインターネットへアクセスすることはないのでInternetGatewayの設定は不要です

vpc.yml
  # -------------------------------------
  # Private Route Table
  # -------------------------------------
  RDSPrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-priv-rds-rtb
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  RDSPrivateSubnet1RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref RDSPrivateSubnet1
      RouteTableId: !Ref RDSPrivateRouteTable
  RDSPrivateSubnet2RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      SubnetId: !Ref RDSPrivateSubnet2
      RouteTableId: !Ref RDSPrivateRouteTable

Outputs

Stack作成後に出力する情報を記載し、他のスタックでも利用できるようにします

vpc.yml
# -------------------------------------
# Outputs
# -------------------------------------
# https://docs.aws.amazon.com/ja_jp/AWSCloudFormation/latest/UserGuide/outputs-section-structure.html
Outputs:
  VPC:
    Description: "A reference to the created VPC."
    Value: !Ref VPC
  PublicSubnets:
    Description: "A list of the public subnets."
    Value:
      !Join [
        ",",
        [
          !Ref ECSPublicSubnet1,
          !Ref ECSPublicSubnet2,
          !Ref ELBPublicSubnet1,
          !Ref ELBPublicSubnet2,
        ],
      ]
  PrivateSubnets:
    Description: "A list of the private subnets."
    Value: !Join [",", [!Ref RDSPrivateSubnet1, !Ref RDSPrivateSubnet2]]
  ELBPublicSubnet1:
    Description: "A reference to the public subnet in the 1st Availability Zone."
    Value: !Ref ELBPublicSubnet1
  ELBPublicSubnet2:
    Description: "A reference to the public subnet in the 2nd Availability Zone."
    Value: !Ref ELBPublicSubnet2
  ECSPublicSubnet1:
    Description: "A reference to the public subnet in the 1st Availability Zone."
    Value: !Ref ECSPublicSubnet1
  ECSPublicSubnet2:
    Description: "A reference to the public subnet in the 2nd Availability Zone."
    Value: !Ref ECSPublicSubnet2
  RDSPrivateSubnet1:
    Description: "A reference to the private subnet in the 1st Availability Zone."
    Value: !Ref RDSPrivateSubnet1
  RDSPrivateSubnet2:
    Description: "A reference to the private subnet in the 2nd Availability Zone."
    Value: !Ref RDSPrivateSubnet2

実際に作成してみよう！

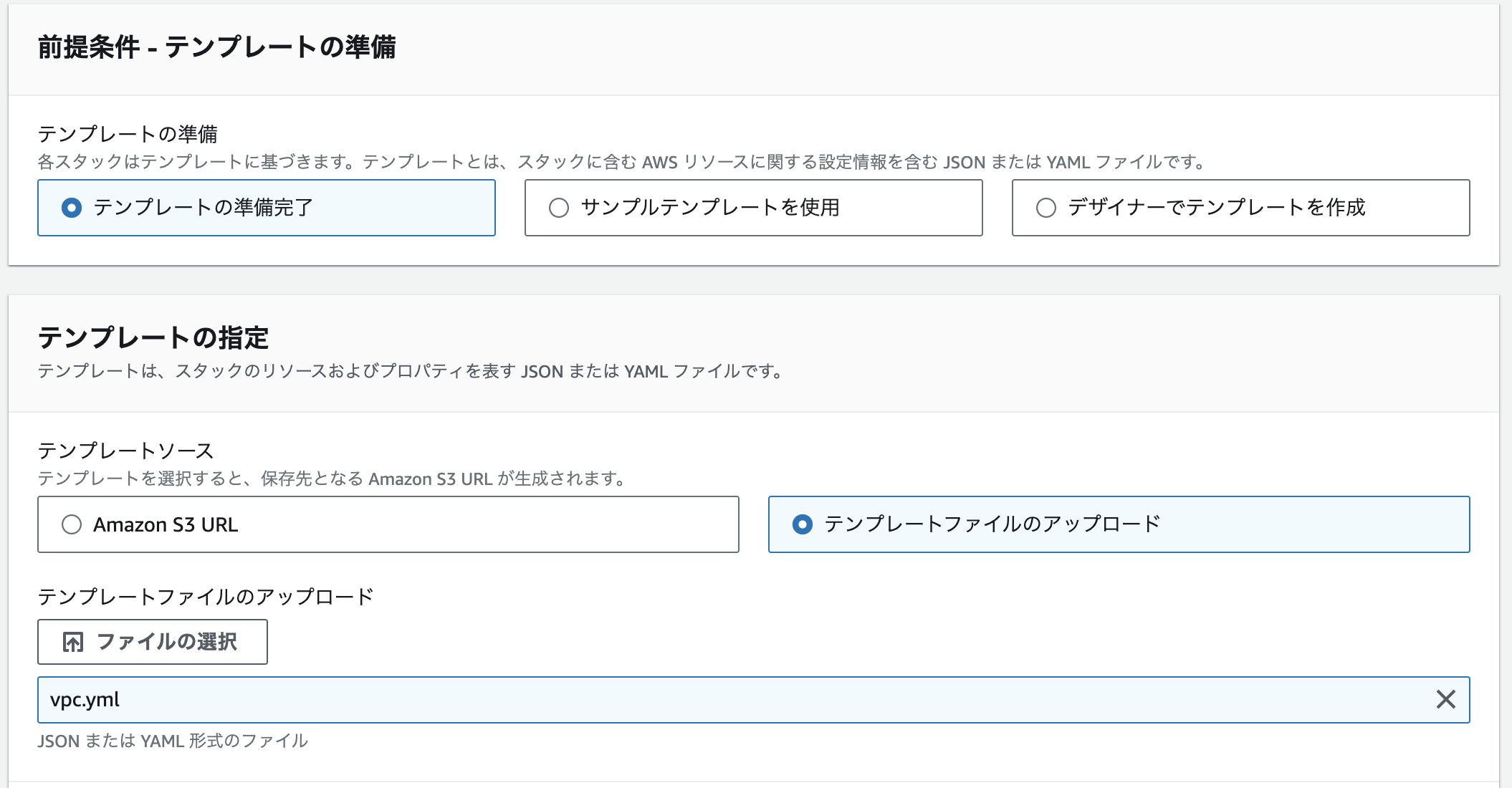

今回作成したvpc.ymlを選択します
スクリーンショット 2023-09-10 10.39.36.png

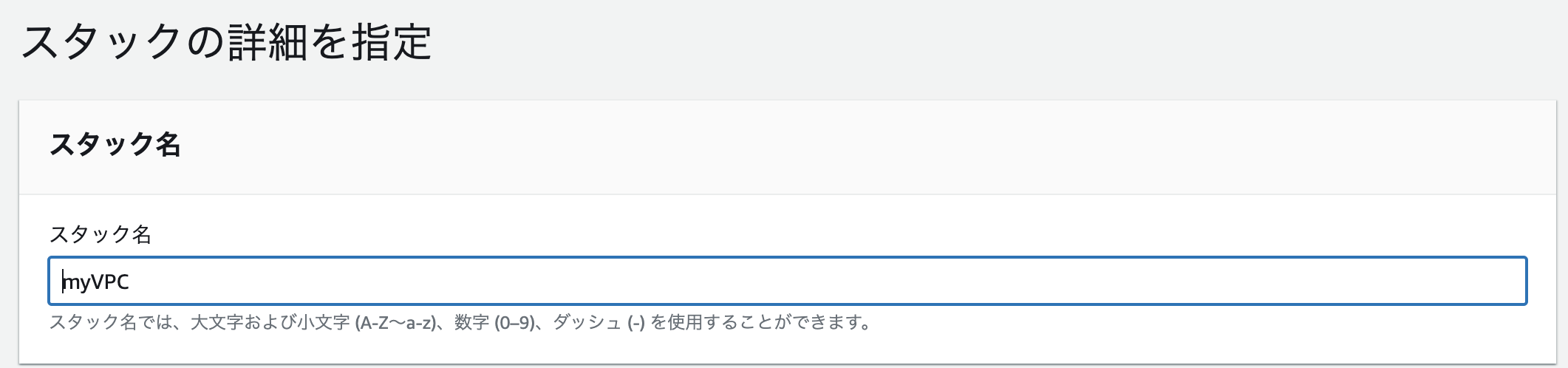

スタック名を記載します
今回はmyVPCにします
スクリーンショット 2023-09-10 14.44.14.png

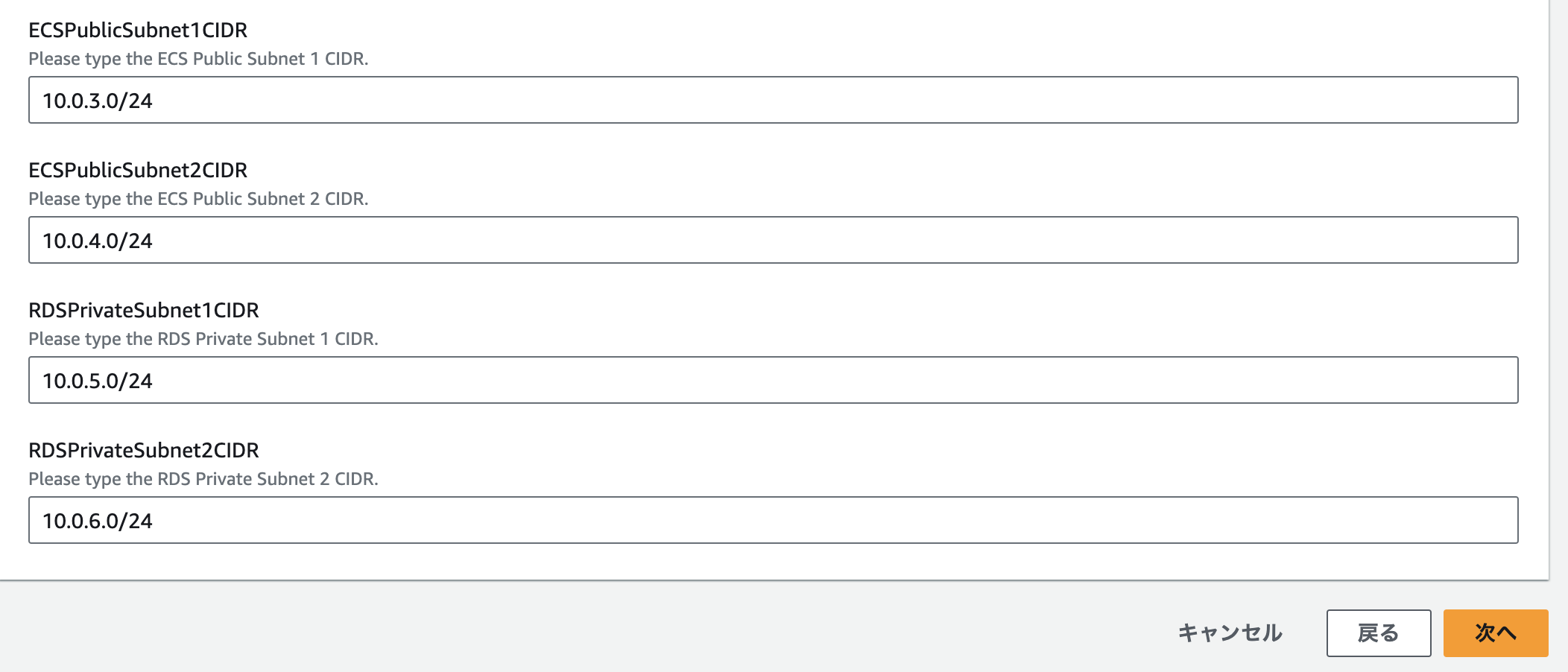

Parametersで作成したパラメータとデフォルト値が表示されていることを確認できます
また、Metadataを定義したことでパラメータが

  • Common Configuration
  • VPC Configuration

の2つに分類されていることが確認できました

スクリーンショット 2023-09-10 15.29.14.png
スクリーンショット 2023-09-10 15.29.36.png

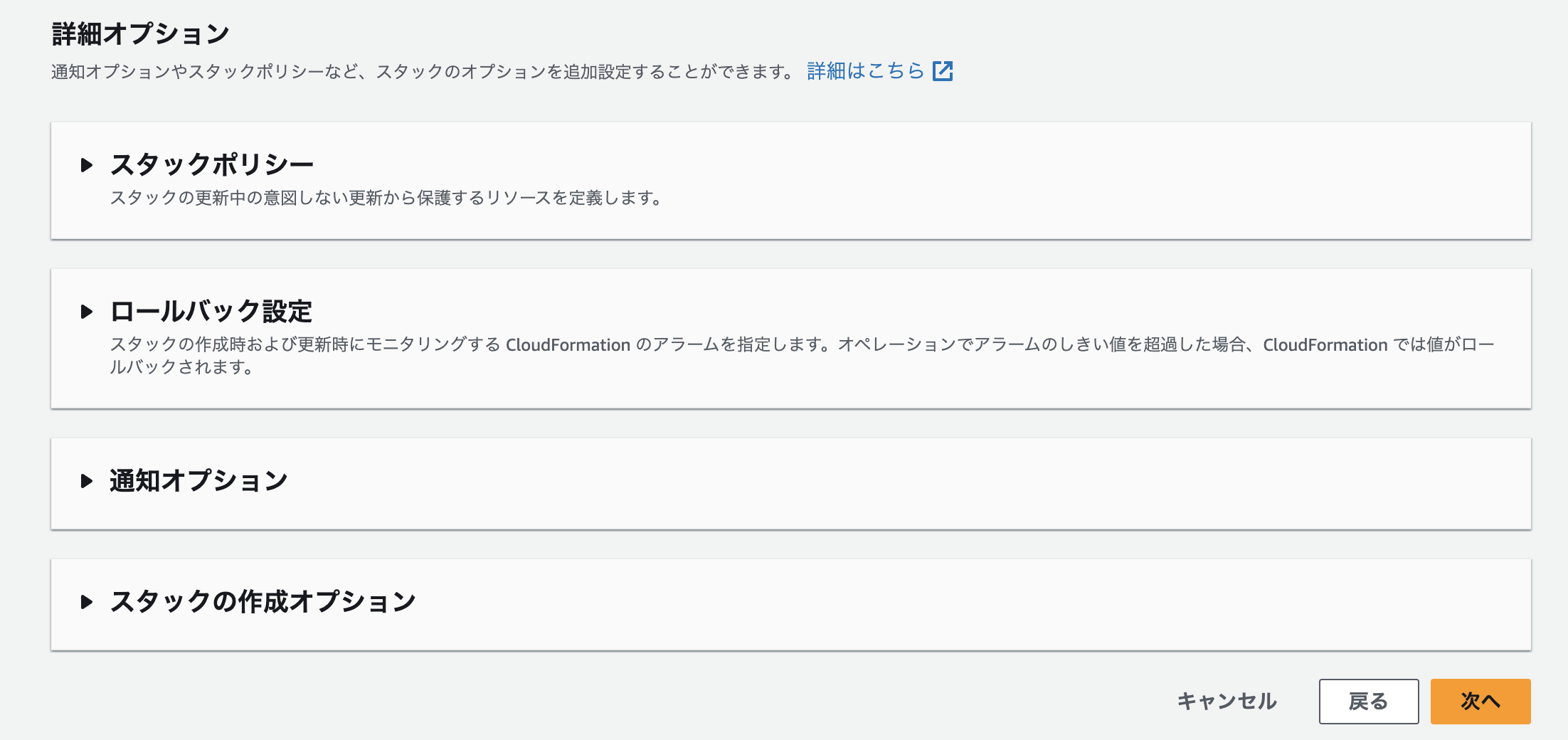

スタックのオプションは特に何も選択せずに次へを押します
スクリーンショット 2023-09-10 14.48.08.png

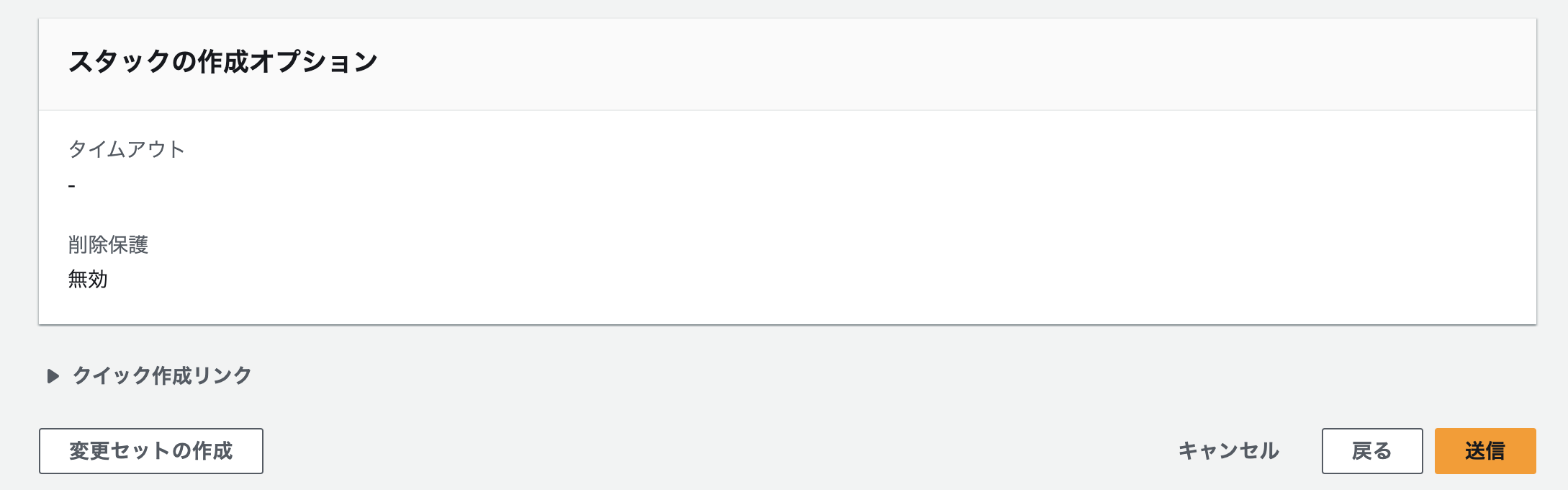

問題なければ送信を押します
スクリーンショット 2023-09-10 14.48.41.png

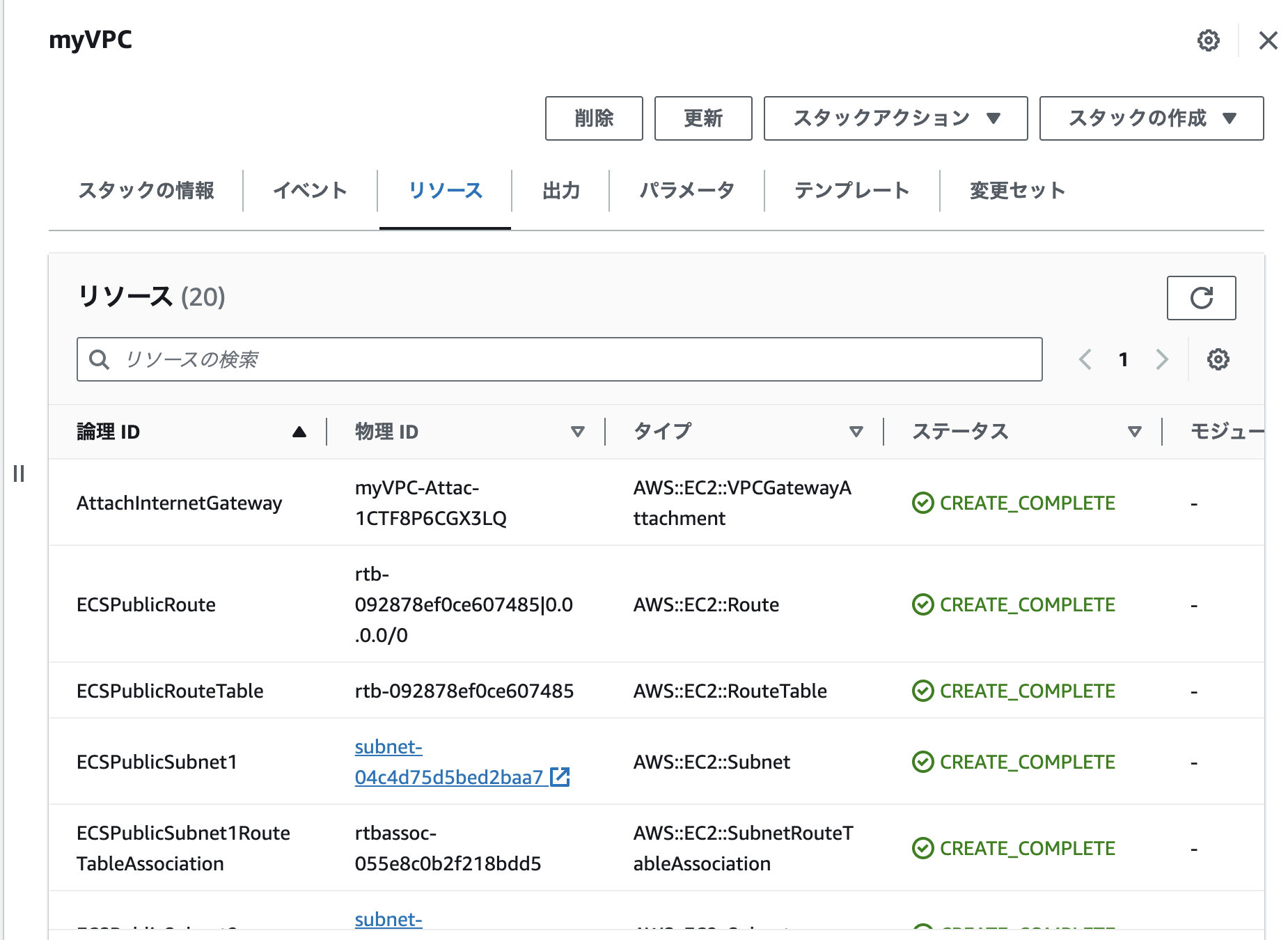

以下のように全てのリソースの作成が完了したら成功です
スクリーンショット 2023-09-10 14.52.08.png

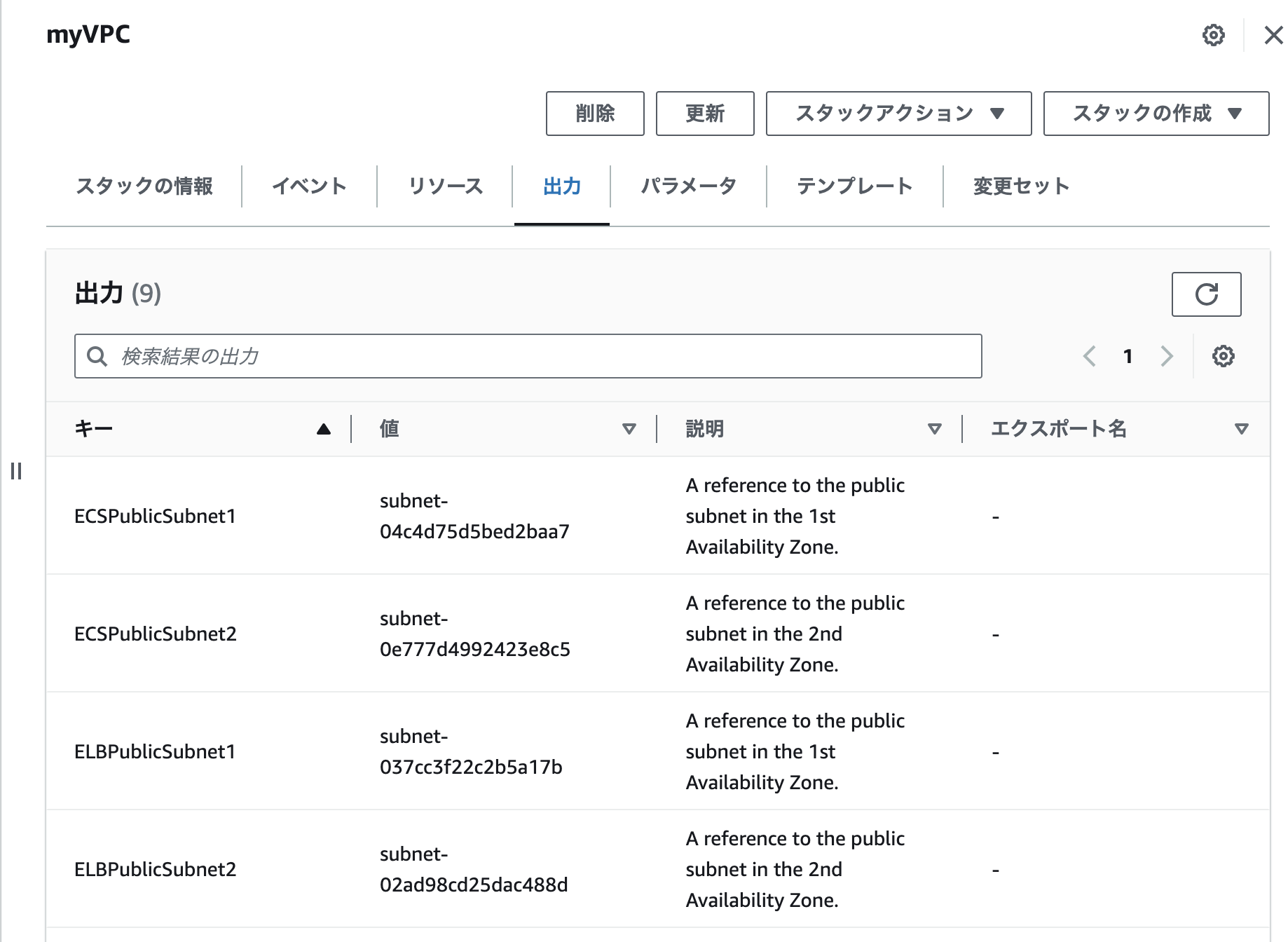

出力も確認できました
スクリーンショット 2023-09-10 14.53.02.png

リソースを確認しよう！

以下のようにリソースが作成されたら成功です

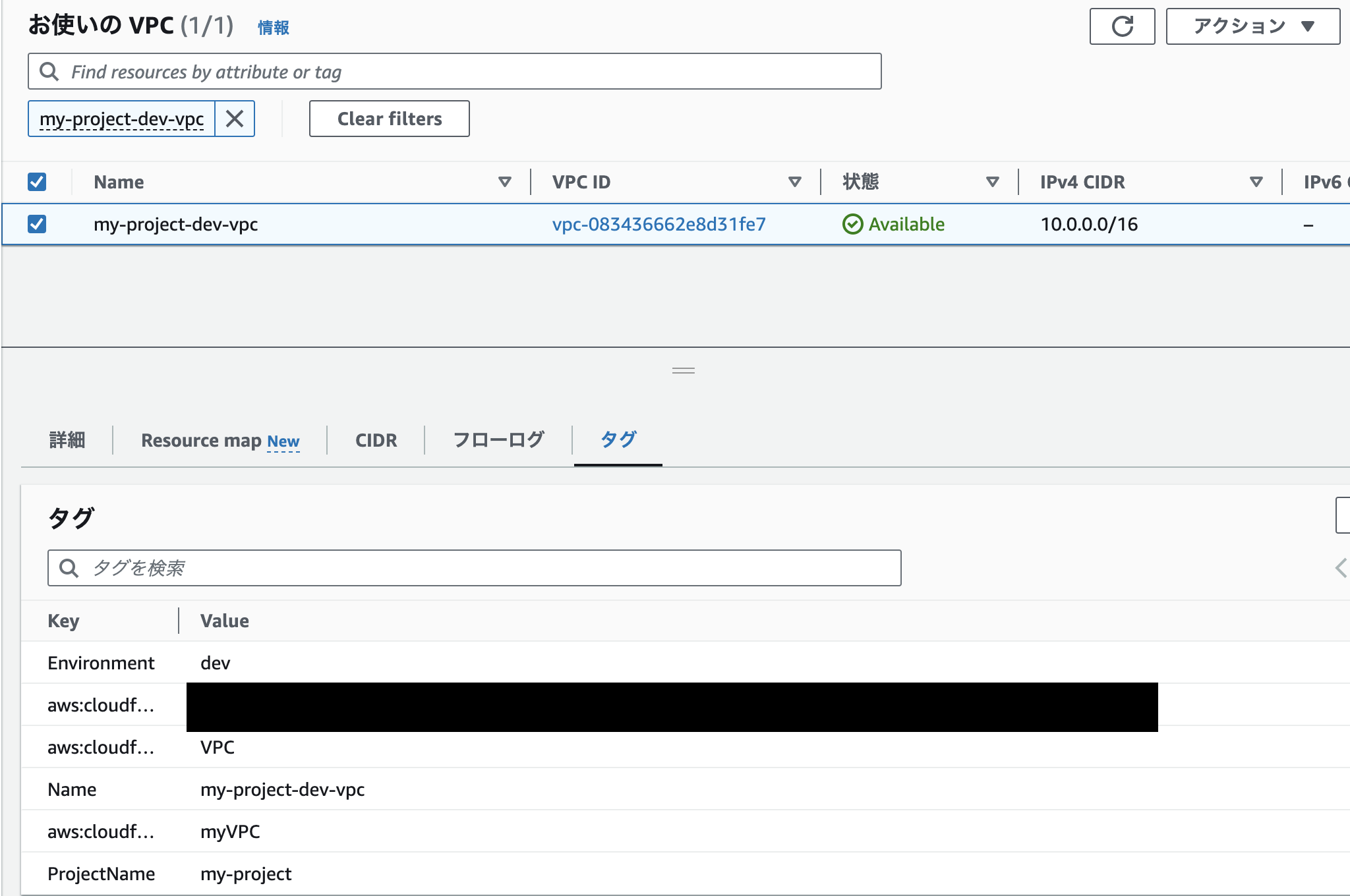

VPC

スクリーンショット 2023-09-10 15.35.18.png

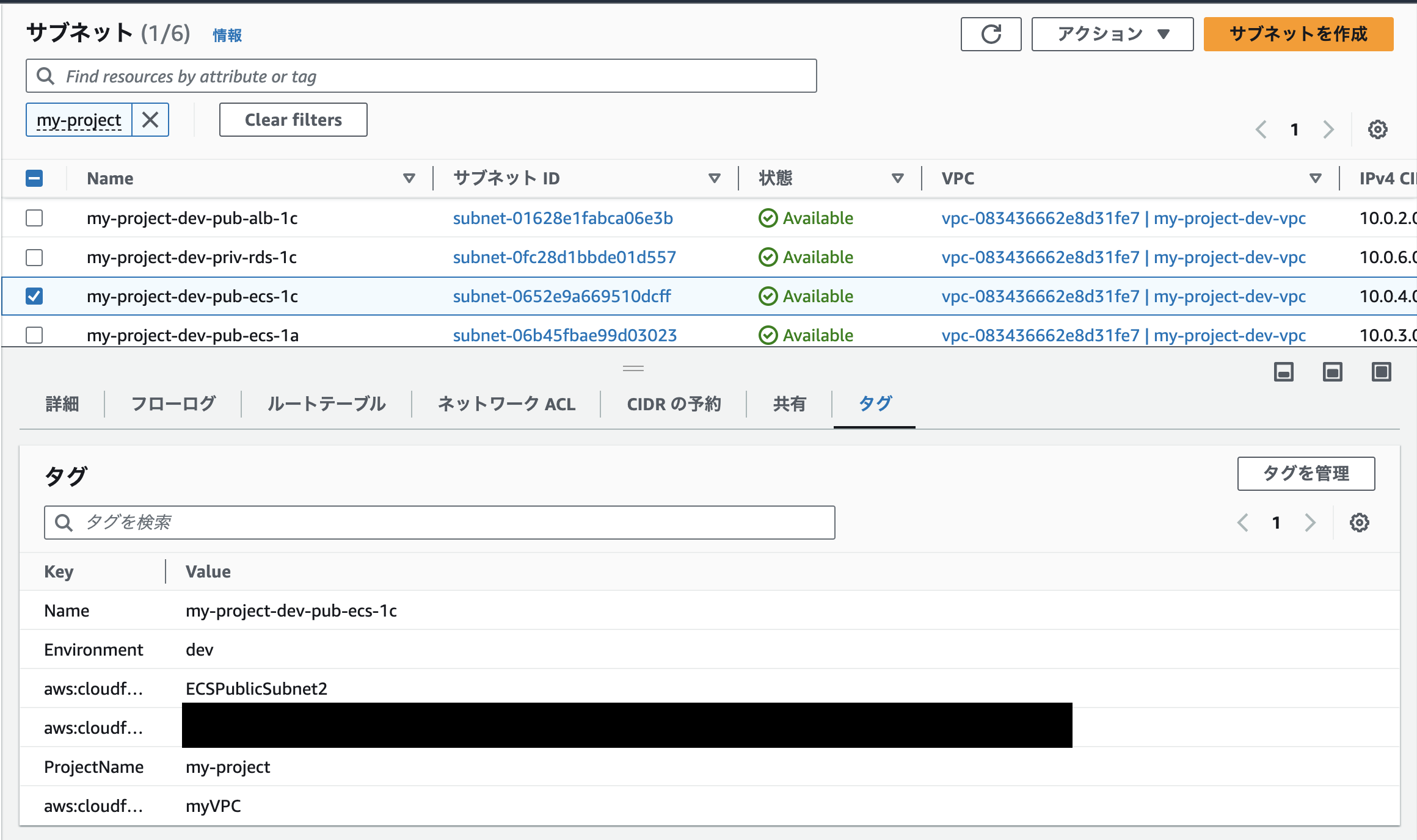

サブネット

スクリーンショット 2023-09-10 15.37.06.png

インターネットゲートウェイ

スクリーンショット 2023-09-10 15.38.36.png

不要なリソースを削除しよう！

不要な課金を防ぐために使用しないリソースは削除しましょう
スクリーンショット 2023-09-10 15.07.56.png

参考

0
1
1

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
