まずはcreate-react-appで雛形を作ります。
$ create-react-app electron_app
$ cd electron_app
$ yarn start
でサンプル画面を表示させます。
ここからスタートです。
以下の記事を参考にします。
https://medium.freecodecamp.org/building-an-electron-application-with-create-react-app-97945861647c
Electronをインストールします。
$ yarn add electron --dev
package.jsonを編集します。
package.json
{
"name": "electron_app",
"version": "0.1.0",
"private": true,
"main": "src/electron-starter.js",
"dependencies": {
"react": "^16.2.0",
"react-dom": "^16.2.0",
"react-scripts": "1.1.0"
},
"scripts": {
"start": "react-scripts start",
"build": "react-scripts build",
"test": "react-scripts test --env=jsdom",
"eject": "react-scripts eject",
"electron": "electron ."
},
"devDependencies": {
"electron": "^1.7.10"
}
}
scriptsにelectronを追加しています。
src/electron-starter.jsを作成します。
src/electron-starter.js
const electron = require('electron');
// Module to control application life.
const app = electron.app;
// Module to create native browser window.
const BrowserWindow = electron.BrowserWindow;
const path = require('path');
const url = require('url');
// Keep a global reference of the window object, if you don't, the window will
// be closed automatically when the JavaScript object is garbage collected.
let mainWindow;
function createWindow() {
// Create the browser window.
mainWindow = new BrowserWindow({width: 800, height: 600});
// and load the index.html of the app.
/*
const startUrl = process.env.ELECTRON_START_URL || url.format({
pathname: path.join(__dirname, '/../build/index.html'),
protocol: 'file:',
slashes: true
});
mainWindow.loadURL(startUrl);
*/
mainWindow.loadURL('http://localhost:3000');
// Open the DevTools.
mainWindow.webContents.openDevTools();
// Emitted when the window is closed.
mainWindow.on('closed', function () {
// Dereference the window object, usually you would store windows
// in an array if your app supports multi windows, this is the time
// when you should delete the corresponding element.
mainWindow = null
})
}
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on('ready', createWindow);
// Quit when all windows are closed.
app.on('window-all-closed', function () {
// On OS X it is common for applications and their menu bar
// to stay active until the user quits explicitly with Cmd + Q
if (process.platform !== 'darwin') {
app.quit()
}
});
app.on('activate', function () {
// On OS X it's common to re-create a window in the app when the
// dock icon is clicked and there are no other windows open.
if (mainWindow === null) {
createWindow()
}
});
// In this file you can include the rest of your app's specific main process
// code. You can also put them in separate files and require them here.
ここまでやって、yarn startでhttp://localhost:3000に内容を表示させつつ、yarn electronを実行すると、Electron上にReact Appが表示されます。
さて、今度はyarn buildしたアプリケーションをelectronで表示させてみます。
create-react-appで作成したindex.htmlはデフォルトだと相対パスを利用してJavaScriptを読み込みます。すると、Electron AppからはJavaScriptファイルが見つからず、FILE NOT FOUNDのようなエラーが出ます。
それを防ぐために、package.jsonに"homepage": "./",を追加します。
package.json
{
"name": "electron_app",
"version": "0.1.0",
"private": true,
"main": "src/electron-starter.js",
"dependencies": {
"react": "^16.2.0",
"react-dom": "^16.2.0",
"react-scripts": "1.1.0"
},
"homepage": "./",
"scripts": {
"start": "react-scripts start",
"build": "react-scripts build",
"test": "react-scripts test --env=jsdom",
"eject": "react-scripts eject",
"electron": "electron ."
},
"devDependencies": {
"electron": "^1.7.10"
}
}
スターターとなるJavaScriptのlard urlも変更します。
const startUrl = process.env.ELECTRON_START_URL || url.format({
pathname: path.join(__dirname, '/../build/index.html'),
protocol: 'file:',
slashes: true
});
mainWindow.loadURL(startUrl);
このようにbuild/index.htmlを表示させるように変更しました。
src/electron-starter.js
const electron = require('electron');
// Module to control application life.
const app = electron.app;
// Module to create native browser window.
const BrowserWindow = electron.BrowserWindow;
const path = require('path');
const url = require('url');
// Keep a global reference of the window object, if you don't, the window will
// be closed automatically when the JavaScript object is garbage collected.
let mainWindow;
function createWindow() {
// Create the browser window.
mainWindow = new BrowserWindow({width: 800, height: 600});
// and load the index.html of the app.
const startUrl = process.env.ELECTRON_START_URL || url.format({
pathname: path.join(__dirname, '/../build/index.html'),
protocol: 'file:',
slashes: true
});
mainWindow.loadURL(startUrl);
//mainWindow.loadURL('http://localhost:3000');
// Open the DevTools.
mainWindow.webContents.openDevTools();
// Emitted when the window is closed.
mainWindow.on('closed', function () {
// Dereference the window object, usually you would store windows
// in an array if your app supports multi windows, this is the time
// when you should delete the corresponding element.
mainWindow = null
})
}
// This method will be called when Electron has finished
// initialization and is ready to create browser windows.
// Some APIs can only be used after this event occurs.
app.on('ready', createWindow);
// Quit when all windows are closed.
app.on('window-all-closed', function () {
// On OS X it is common for applications and their menu bar
// to stay active until the user quits explicitly with Cmd + Q
if (process.platform !== 'darwin') {
app.quit()
}
});
app.on('activate', function () {
// On OS X it's common to re-create a window in the app when the
// dock icon is clicked and there are no other windows open.
if (mainWindow === null) {
createWindow()
}
});
// In this file you can include the rest of your app's specific main process
// code. You can also put them in separate files and require them here.

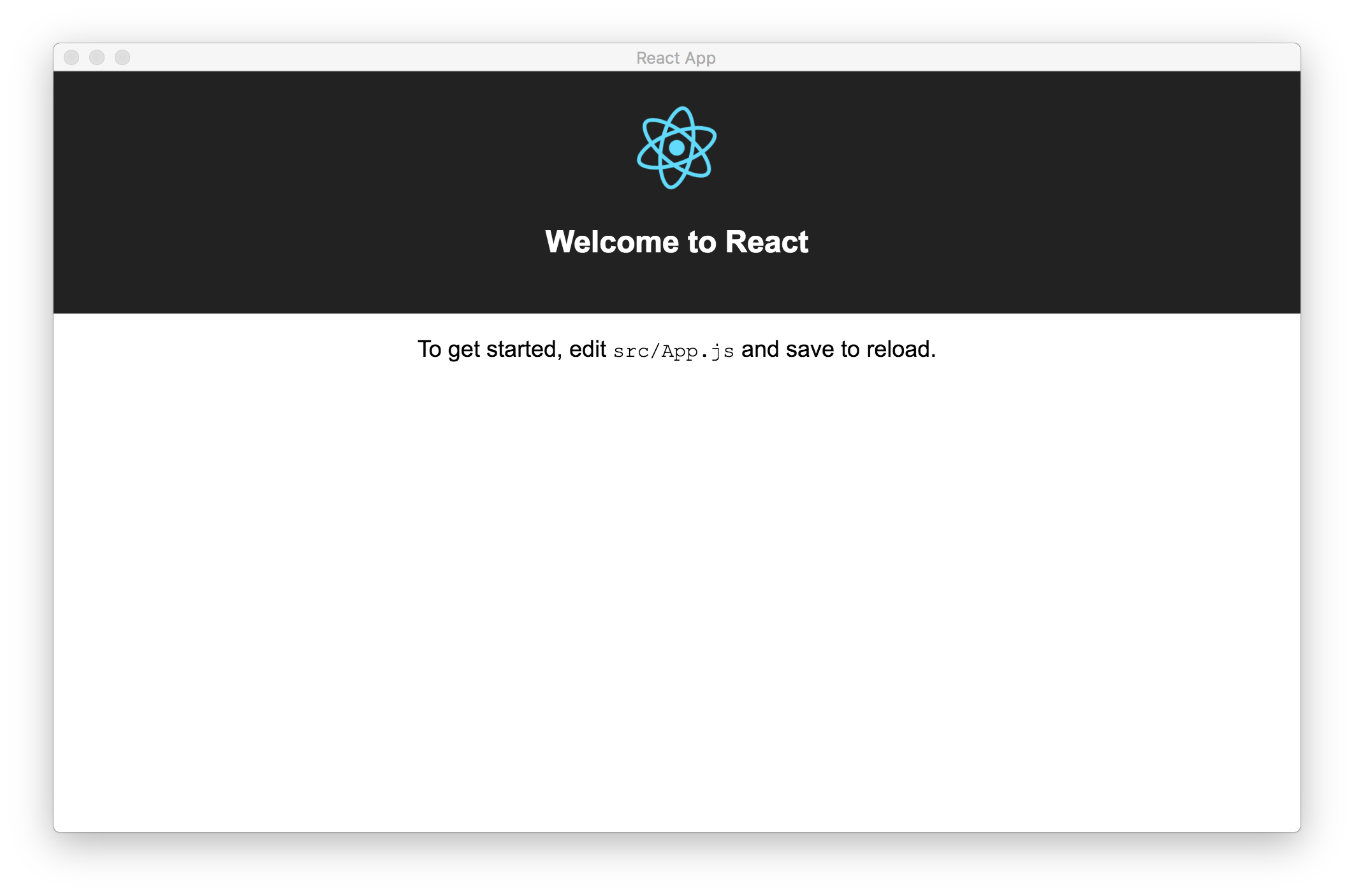

yarn buildしてyarn electronを実行すれば、Electron Appが立ち上がり、デフォルトの画面が表示されます。
