IBM Cloud: ZoneまたぎのHA構成環境をkeepalivedを使って自動化してみた

1
Last updated at Posted at 2025-12-25

1. はじめに

似たような構成をここでもやったことがあるが、要はkeepalivedで自動化しただけ。


2. 各サーバーでIP Spoofingを有効にする

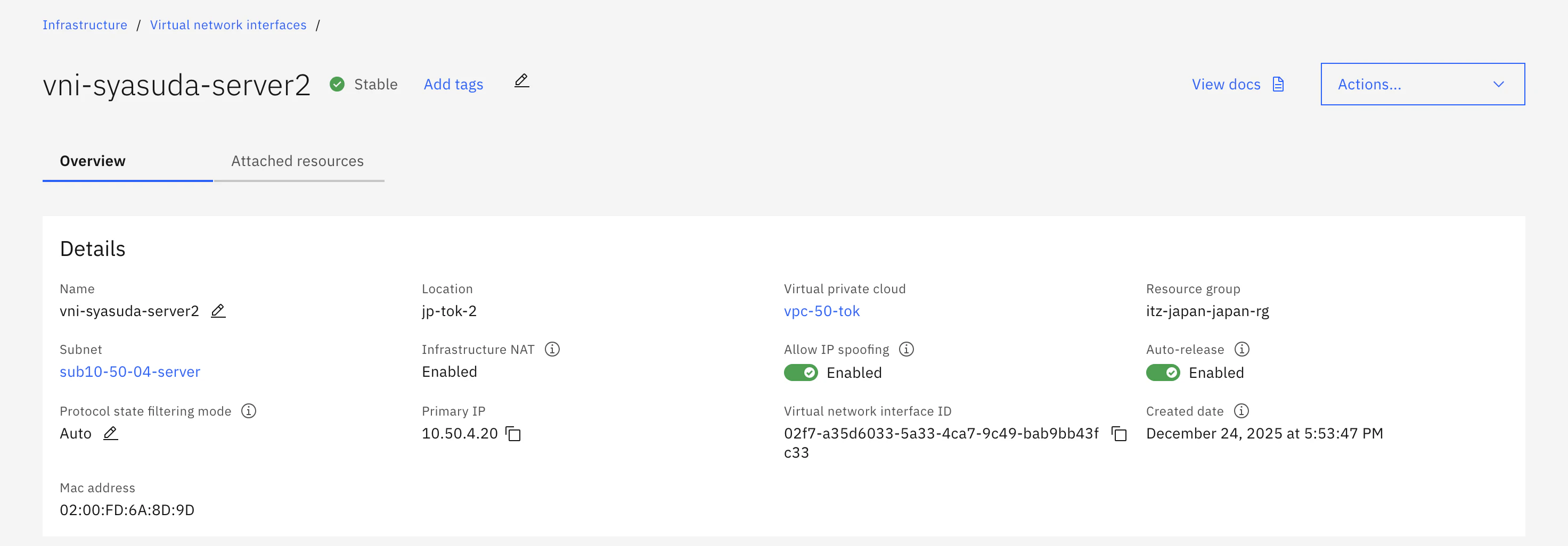

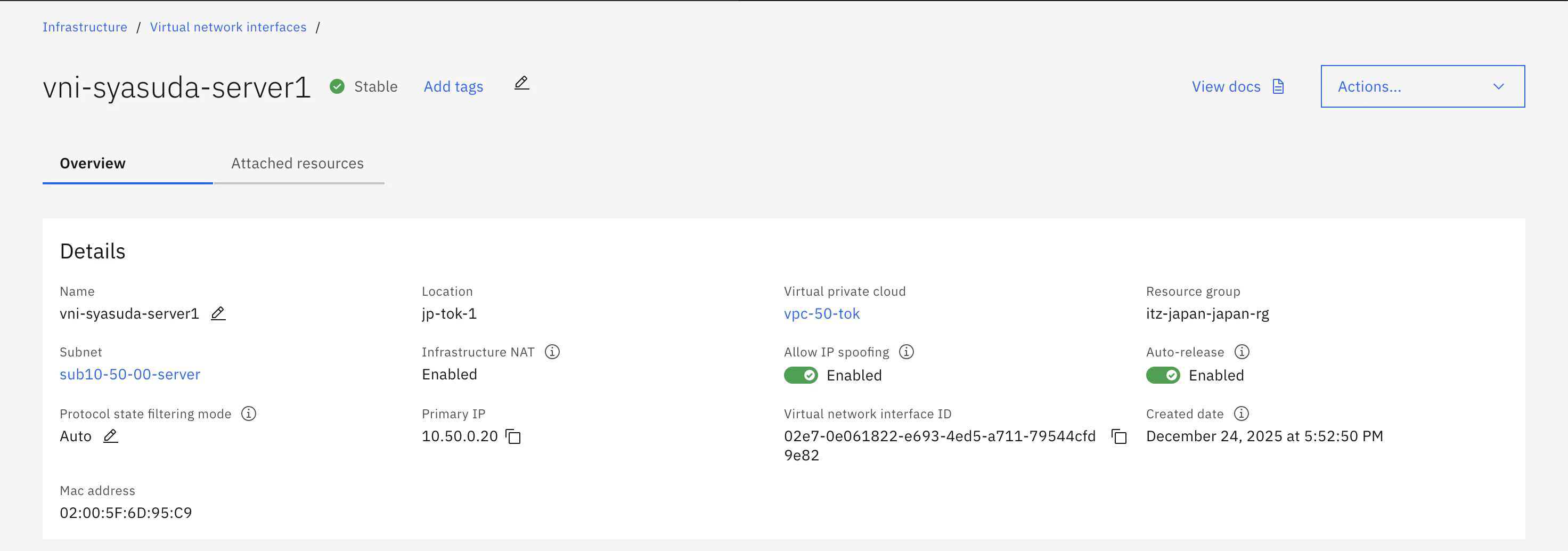

3. Apacheの設定

Apacheインストール
[root@syasuda-server1 ~]# dnf install -y httpd
[root@syasuda-server1 ~]# echo "This is $(hostname)" >  /var/www/html/index.html
[root@syasuda-server1 ~]# systemctl enable httpd
[root@syasuda-server1 ~]# systemctl start httpd

4. keepalivedの設定

共通
[root@syasuda-server1 ~]# dnf install -y keepalived
[root@syasuda-server1 ~]# mv /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf_old
1台目
[root@syasuda-server1 ~]# cat << 'EOF' > /etc/keepalived/keepalived.conf
global_defs {
    router_id KEEPALIVED_REPLICA
}

vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 200
    advert_int 1
    nopreempt

    unicast_src_ip 10.50.0.20
    unicast_peer {
        10.50.4.20
    }

    virtual_ipaddress {
        192.168.200.10
        192.168.200.11
        192.168.200.12
    }

    notify "/usr/bin/bash /work/ibmcloud-scripts/changeroute-to-1.sh"

}
EOF
2台目
[root@syasuda-server2 ~]# cat << 'EOF' > /etc/keepalived/keepalived.conf
global_defs {
    router_id KEEPALIVED_REPLICA
}

vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 51
    priority 100
    advert_int 1
    nopreempt

    unicast_src_ip 10.50.4.20
    unicast_peer {
        10.50.0.20
    }

    virtual_ipaddress {
        192.168.200.10
        192.168.200.11
        192.168.200.12
    }

    notify "/usr/bin/bash /work/ibmcloud-scripts/changeroute-to-2.sh"

}
EOF
共通
[root@syasuda-server1 ~]# systemctl enable keepalived
[root@syasuda-server1 ~]# systemctl start keepalived

5. Custom Routeの設定


  • Ingress routeとしてTransit GatewayやDirect LinkにAdvertiseするように構成してある

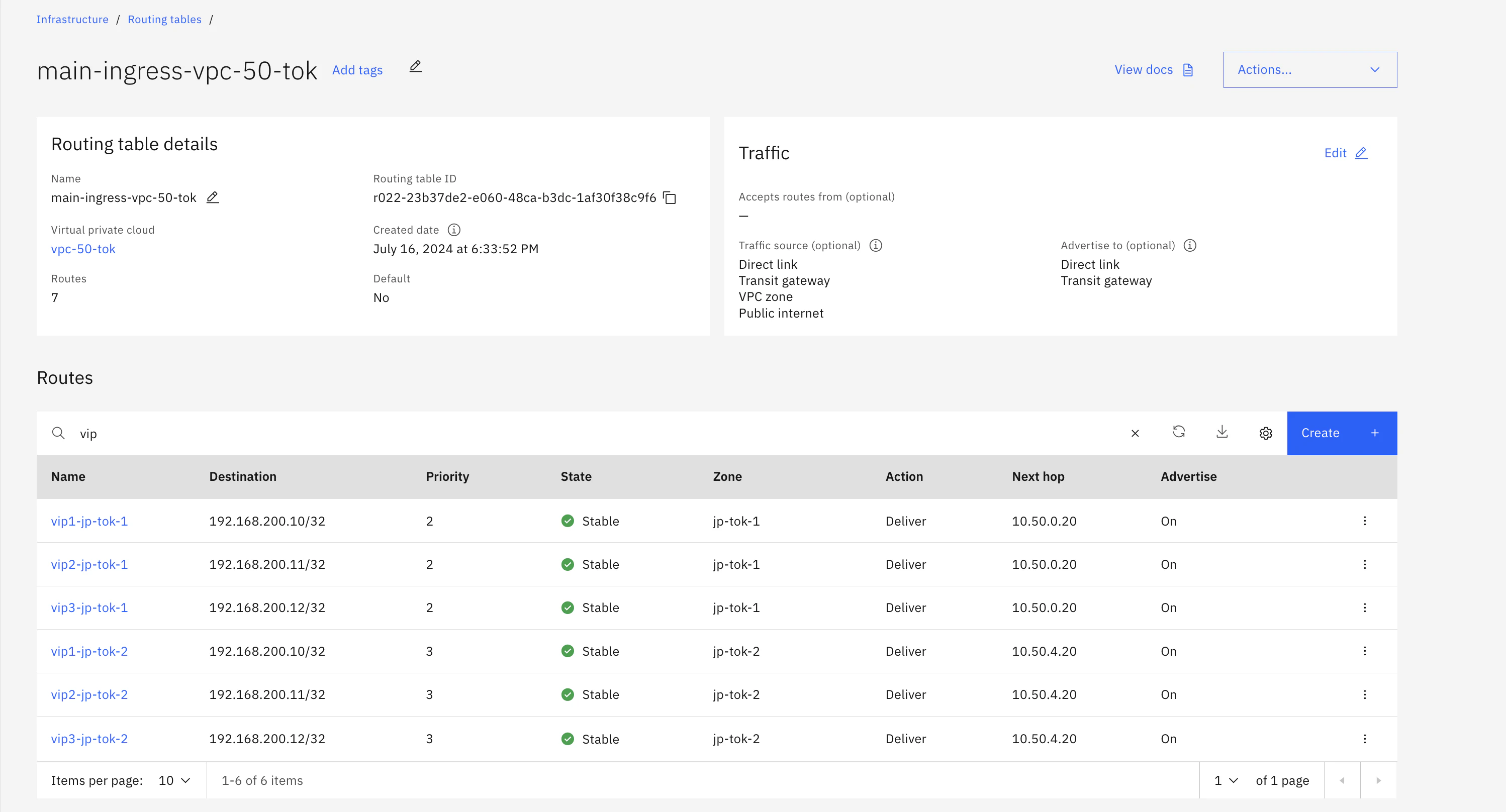

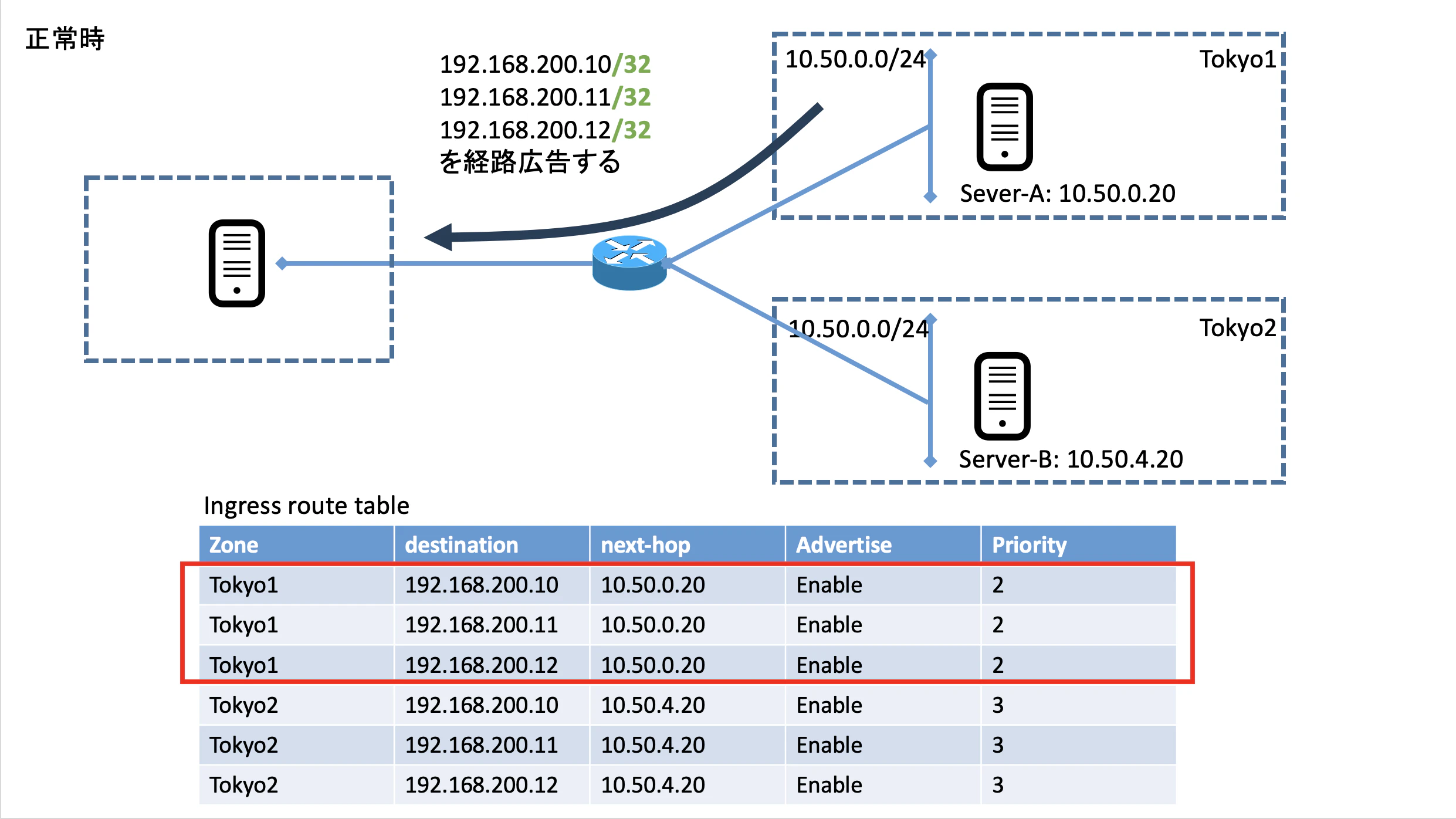

  • jp-tok-1正常時：jp-tok-1がpriority 2, jp-tok-2がpriority 3 => jp-tok-1が優先

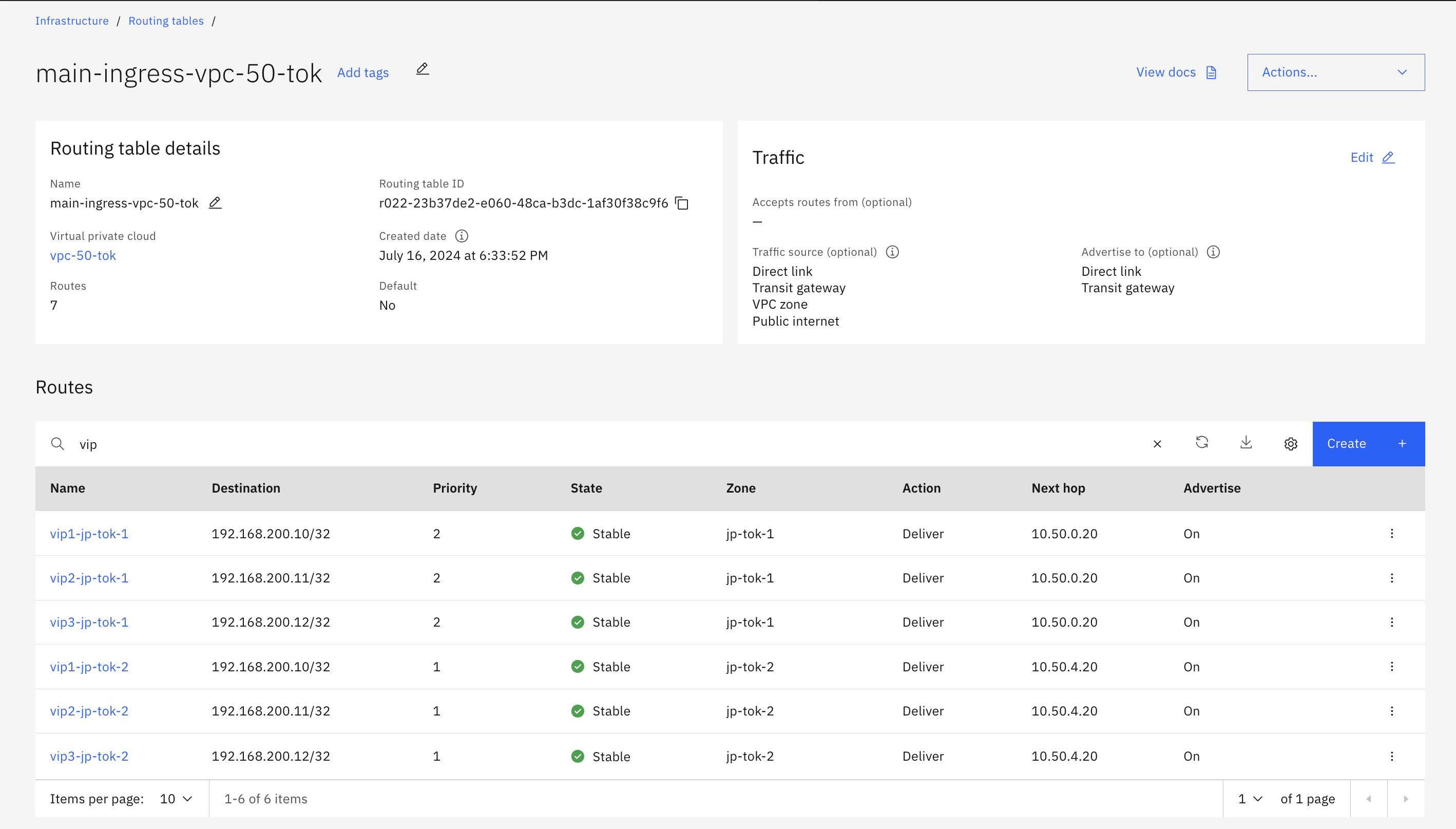

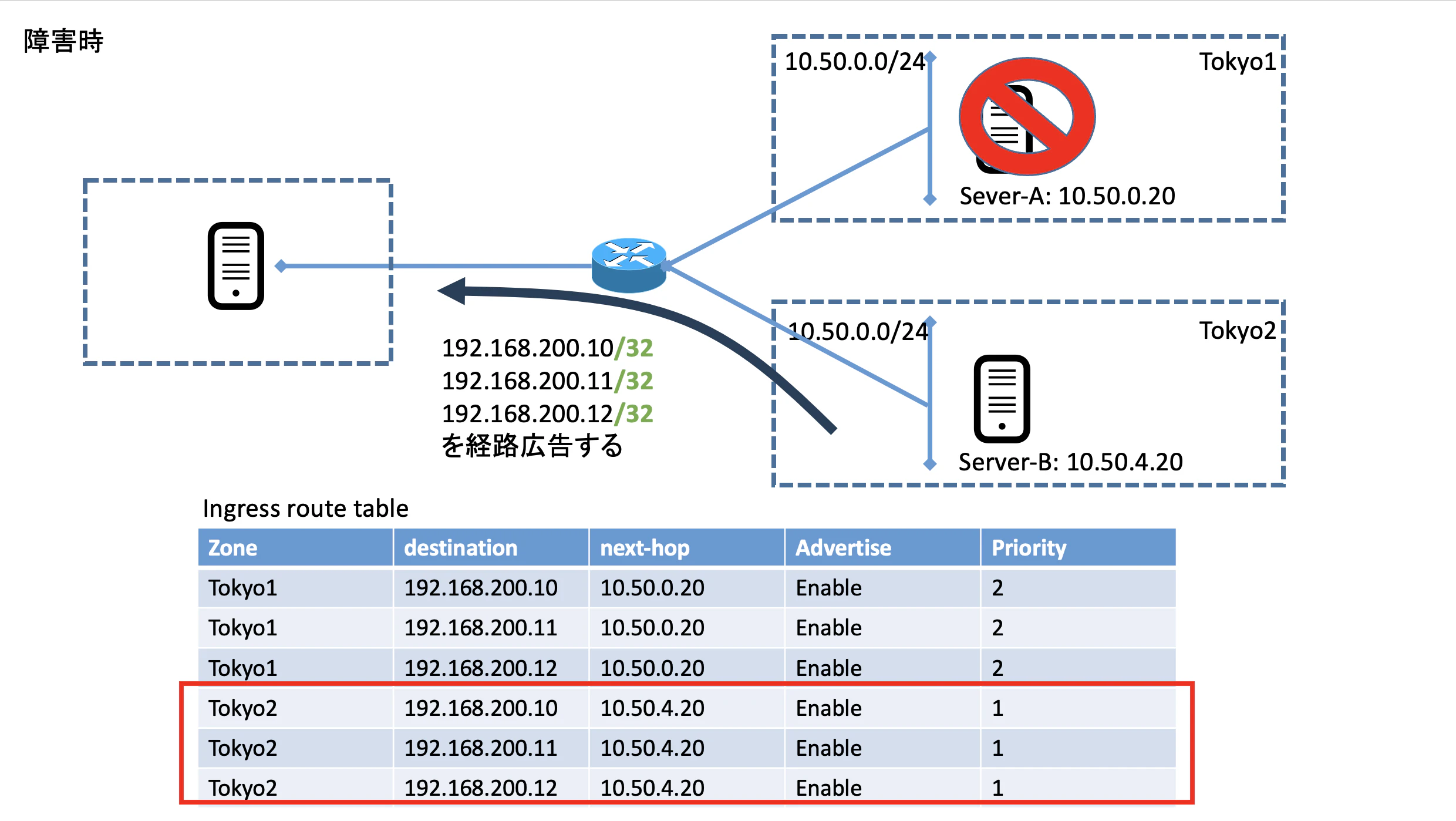

と構成しておき、jp-tok-2側のkeepalivedがMASTERになった時はjp-tok-2のpriorityを1に変更することで経路を切り替えるスクリプトを実行する。

6. IBM Cloud CLIおよびスクリプトのセットアップ

共通
[root@syasuda-server1 ~]# curl -fsSL https://clis.cloud.ibm.com/install/linux | sh
[root@syasuda-server1 ~]# ibmcloud plugin install is
[root@syasuda-server1 ~]# mkdir -p /work/ibmcloud-scripts
[root@syasuda-server1 ~]# echo <API Key情報 > /work/ibmcloud-scripts/ibmcloud_apikey
1台目: このスクリプトが呼ばれた時にはjp-tok-2の優先度を3にする
[root@syasuda-server1 ~]# cat << 'EOF' > /work/ibmcloud-scripts/changeroute-to-1.sh
export LANG=C
export IBMCLOUD_HOME=/root
export LOGNAME=changeroute.log
SCRIPT_DIR="$(cd "$(dirname "${BASH_SOURCE[0]}")" && pwd)"
{
  echo "##############################################"
  date +"%Y-%m-%d %H:%M:%S %Z (%z)"
  whoami
  env
  echo "##############################################"
  ibmcloud login -a cloud.ibm.com --apikey @${SCRIPT_DIR}/ibmcloud_apikey -r jp-tok
  ibmcloud is vpc-routing-table-route-update vpc-50-tok main-ingress-vpc-50-tok vip1-jp-tok-2 --priority 1
  ibmcloud is vpc-routing-table-route-update vpc-50-tok main-ingress-vpc-50-tok vip2-jp-tok-2 --priority 1
  ibmcloud is vpc-routing-table-route-update vpc-50-tok main-ingress-vpc-50-tok vip3-jp-tok-2 --priority 1
} >> ${SCRIPT_DIR}/${LOGNAME} 2>&1
EOF
2台目：このスクリプトが呼ばれた時にはjp-tok-2の優先度を1にする
[root@syasuda-server2 ~]# cat << 'EOF' > /work/ibmcloud-scripts/changeroute-to-2.sh
export LANG=C
export IBMCLOUD_HOME=/root
export LOGNAME=changeroute.log
SCRIPT_DIR="$(cd "$(dirname "${BASH_SOURCE[0]}")" && pwd)"
{
  echo "##############################################"
  date +"%Y-%m-%d %H:%M:%S %Z (%z)"
  env
  echo "##############################################"
  ibmcloud login -a cloud.ibm.com --apikey @${SCRIPT_DIR}/ibmcloud_apikey -r jp-tok
  ibmcloud is vpc-routing-table-route-update vpc-50-tok main-ingress-vpc-50-tok vip1-jp-tok-2 --priority 3
  ibmcloud is vpc-routing-table-route-update vpc-50-tok main-ingress-vpc-50-tok vip2-jp-tok-2 --priority 3
  ibmcloud is vpc-routing-table-route-update vpc-50-tok main-ingress-vpc-50-tok vip3-jp-tok-2 --priority 3
} >> ${SCRIPT_DIR}/${LOGNAME} 2>&1
EOF

昔、ここでも書いたように、ibmcloud CLIはホームディレクトリ配下に.bluemixという構成ファイルを作成し、そこでセッション情報やPlugin情報を管理します。notifyで実行されるスクリプトが実行される際には、どこに構成ファイルがあるかがわからないため、ibmcloud isをインストールしているにも関わらずが見つからないというエラーになる可能性があります。それを避けるために、ここではIBMCLOUD_HOME環境変数を明示的に指定しています。

7. 動作確認

7-1. tcpdumpでUnicast方式のVRRPが実行されていることを確認

[root@syasuda-server1 ~]# tcpdump -i any proto 112 -nn
tcpdump: data link type LINUX_SLL2
dropped privs to tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
09:53:15.298027 eth0  Out IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:16.298185 eth0  Out IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:17.298433 eth0  Out IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:18.298606 eth0  Out IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:19.298778 eth0  Out IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, vrid 51, prio 200, authtype none, intvl 1s, length 28

[root@syasuda-server2 ~]# tcpdump -i any proto 112 -nn
tcpdump: data link type LINUX_SLL2
dropped privs to tcpdump
tcpdump: verbose output suppressed, use -v[v]... for full protocol decode
listening on any, link-type LINUX_SLL2 (Linux cooked v2), snapshot length 262144 bytes
09:53:22.297512 eth0  In  IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, (ttl 254), vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:23.297820 eth0  In  IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, (ttl 254), vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:24.297843 eth0  In  IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, (ttl 254), vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:25.298142 eth0  In  IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, (ttl 254), vrid 51, prio 200, authtype none, intvl 1s, length 28
09:53:26.298221 eth0  In  IP 10.50.0.20 > 10.50.4.20: VRRPv2, Advertisement, (ttl 254), vrid 51, prio 200, authtype none, intvl 1s, length 28

7-2. 最初はjp-tok-1側にVIPが割り振られている。

[root@syasuda-server1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:00:5f:6d:95:c9 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
    inet 10.50.0.20/24 brd 10.50.0.255 scope global dynamic noprefixroute eth0
       valid_lft 328sec preferred_lft 328sec
    inet 192.168.200.10/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet 192.168.200.11/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet 192.168.200.12/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::5fff:fe6d:95c9/64 scope link noprefixroute
       valid_lft forever preferred_lft forever


[root@syasuda-server2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:00:fd:6a:8d:9d brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
    inet 10.50.4.20/24 brd 10.50.4.255 scope global dynamic noprefixroute eth0
       valid_lft 323sec preferred_lft 323sec
    inet6 fe80::fdff:fe6a:8d9d/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
HTTPアクセスでの確認(jp-tok-1側でのapacheで応答）
syasuda@MacBook-Pro ~ % curl 192.168.200.10
This is syasuda-server1

syasuda@MacBook-Pro ~ % curl 192.168.200.11
This is syasuda-server1

syasuda@MacBook-Pro ~ % curl 192.168.200.12
This is syasuda-server1


7-3. jp-tok-1側のサーバーを再起動する

VIPはjp-tok-2側に移動した
[root@syasuda-server1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:00:5f:6d:95:c9 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
    inet 10.50.0.20/24 brd 10.50.0.255 scope global dynamic noprefixroute eth0
       valid_lft 349sec preferred_lft 349sec
    inet6 fe80::5fff:fe6d:95c9/64 scope link noprefixroute
       valid_lft forever preferred_lft forever


[root@syasuda-server2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:00:fd:6a:8d:9d brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
    inet 10.50.4.20/24 brd 10.50.4.255 scope global dynamic noprefixroute eth0
       valid_lft 276sec preferred_lft 276sec
    inet 192.168.200.10/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet 192.168.200.11/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet 192.168.200.12/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::fdff:fe6a:8d9d/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
HTTPアクセスでの確認(jp-tok-2側でのapacheで応答）
syasuda@MacBook-Pro ~ % curl 192.168.200.10
This is syasuda-server2

syasuda@MacBook-Pro ~ % curl 192.168.200.11
This is syasuda-server2

syasuda@MacBook-Pro ~ % curl 192.168.200.12
This is syasuda-server2


7-4. jp-tok-2側のサーバーを再起動する

VIPがjp-tok-1側に移動した
[root@syasuda-server1 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:00:5f:6d:95:c9 brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
    inet 10.50.0.20/24 brd 10.50.0.255 scope global dynamic noprefixroute eth0
       valid_lft 244sec preferred_lft 244sec
    inet 192.168.200.10/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet 192.168.200.11/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet 192.168.200.12/32 scope global eth0
       valid_lft forever preferred_lft forever
    inet6 fe80::5fff:fe6d:95c9/64 scope link noprefixroute
       valid_lft forever preferred_lft forever

[root@syasuda-server2 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 02:00:fd:6a:8d:9d brd ff:ff:ff:ff:ff:ff
    altname enp0s3
    altname ens3
    inet 10.50.4.20/24 brd 10.50.4.255 scope global dynamic noprefixroute eth0
       valid_lft 358sec preferred_lft 358sec
    inet6 fe80::fdff:fe6a:8d9d/64 scope link noprefixroute
       valid_lft forever preferred_lft forever
HTTPアクセスでの確認(jp-tok-1側でのapacheで応答）
syasuda@MacBook-Pro ~ % curl 192.168.200.10
This is syasuda-server1

syasuda@MacBook-Pro ~ % curl 192.168.200.11
This is syasuda-server1

syasuda@MacBook-Pro ~ % curl 192.168.200.12
This is syasuda-server1
