はじめに

IBM CloudにおけるVSI for VPCのWindows環境では、cloudbase-initを利用した初期化設定を行なっている。
その設定内容などを確認してみた。

参考docs: https://cloud.ibm.com/docs/vpc?topic=vpc-create-windows-custom-image

Windows Serverのイメージの作成と起動の流れ

1. Unattend.xml を指定して Sysprep を実行(Sysprepの generalize フェーズ）。
Windows の SID や固有情報がリセットされ、配布用の汎用イメージに変換される。
    ↓
2. サーバーをシャットダウン。
    ↓
--- 初回初期化起動 ---
3. Sysprepの specialize フェーズ
初回ブート直後に実行され、Windows が新しい環境（ハードウェア、ネットワークなど）へ適応するフェーズ。
このタイミングで cloudbase-init-unattend.conf を元に cloudbase-init が実行される。
    ↓
4. Sysprepの oobe フェーズ
Windows の初回起動時に実行される Out-Of-Box Experience（セットアップ画面）に相当するフェーズ。
    ↓
--- 通常起動（２回目起動も含む） ---
5. Windows が通常起動し、cloudbase-init.conf を元に cloudbase-init が実行される。

VSI for VPC上に配置されていたSysprep用設定ファイル(Unattend.xml, cloudbase-init-unattend.conf)

  • Unattend.xml: sysprepコマンド実行時に指定するファイル。Sysprep の各フェーズ（特に / oobe）を制御する Windows 標準の XML。
  • cloudbase-init-unattend.conf: sysprep 実行のタイミングで cloudbase-init が使う設定ファイル（Unattend.xml内で指定されている）。specialize フェーズで Cloudbase-Init を初期実行するときに読む専用の設定
C:\Program Files\Cloudbase Solutions\Cloudbase-Init\conf\Unattend.xml
<?xml version="1.0" encoding="utf-8"?>
<unattend xmlns="urn:schemas-microsoft-com:unattend">
        <settings pass="generalize">
                <component name="Microsoft-Windows-PnpSysprep" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS"
                        xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State"
                        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                        <PersistAllDeviceInstalls>false</PersistAllDeviceInstalls>
                </component>
        </settings>
        <settings pass="oobeSystem">
                <component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS"
                        xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State">
                        <OOBE>
                                <HideEULAPage>true</HideEULAPage>
                                <NetworkLocation>Work</NetworkLocation>
                                <ProtectYourPC>1</ProtectYourPC>
                                <SkipMachineOOBE>true</SkipMachineOOBE>
                                <SkipUserOOBE>true</SkipUserOOBE>
                        </OOBE>
                </component>
        </settings>
        <settings pass="specialize">
                <component name="Microsoft-Windows-Deployment" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS"
                        xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State"
                        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                        <RunSynchronous>
                                <RunSynchronousCommand wcm:action="add">
                                        <Order>1</Order>
                                        <Path>cmd.exe /c ""C:\Program Files\Cloudbase Solutions\Cloudbase-Init\Python\Scripts\cloudbase-init.exe" --config-file "C:\Program Files\Cloudbase Solutions\Cloudbase-Init\conf\cloudbase-init-unattend.conf" &amp;&amp; exit 1 || exit 2"</Path>
                                        <Description>Run Cloudbase-Init to set the hostname</Description>
                                        <WillReboot>OnRequest</WillReboot>
                                </RunSynchronousCommand>
                        </RunSynchronous>
                </component>
        </settings>
</unattend>
C:\Program Files\Cloudbase Solutions\Cloudbase-Init\conf\cloudbase-init-unattend.conf
[DEFAULT]
#  "cloudbase-init-unattend.conf" is used during the Sysprep phase
username=Administrator
inject_user_password=true
first_logon_behaviour=no
config_drive_types=vfat,iso
config_drive_locations=hdd,partition
allow_reboot=false
stop_service_on_exit=false
mtu_use_dhcp_config=false
ntp_use_dhcp_config=true
bsdtar_path=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\bin\bsdtar.exe
mtools_path=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\bin\
debug=true
log_dir=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\log\
log_file=cloudbase-init-unattend.log
default_log_levels=comtypes=INFO,suds=INFO,iso8601=WARN,requests=WARN
local_scripts_path=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\LocalScripts\
metadata_services=cloudbaseinit.metadata.services.configdrive.ConfigDriveService
# enabled plugins - executed in order
plugins=cloudbaseinit.plugins.common.mtu.MTUPlugin,
        cloudbaseinit.plugins.common.sethostname.SetHostNamePlugin,
        cloudbaseinit.plugins.windows.createuser.CreateUserPlugin,
        cloudbaseinit.plugins.windows.extendvolumes.ExtendVolumesPlugin,
        cloudbaseinit.plugins.common.setuserpassword.SetUserPasswordPlugin,
        cloudbaseinit.plugins.common.localscripts.LocalScriptsPlugin

VSI for VPC上に配置されていたcloudbase-init用設定ファイル(cloudbase-init.conf)

C:\Program Files\Cloudbase Solutions\Cloudbase-Init\conf\cloudbase-init.conf
[DEFAULT]
#  "cloudbase-init.conf" is used for every boot
config_drive_types=vfat,iso
config_drive_locations=hdd,partition
activate_windows=true
kms_host=kms.adn.networklayer.com:1688
mtu_use_dhcp_config=false
ntp_use_dhcp_config=true
real_time_clock_utc=false
bsdtar_path=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\bin\bsdtar.exe
mtools_path=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\bin\
debug=true
log_dir=C:\Program Files\Cloudbase Solutions\Cloudbase-Init\log\
log_file=cloudbase-init.log
default_log_levels=comtypes=INFO,suds=INFO,iso8601=WARN,requests=WARN
metadata_services=cloudbaseinit.metadata.services.configdrive.ConfigDriveService
# enabled plugins - executed in order
plugins=cloudbaseinit.plugins.common.mtu.MTUPlugin,
        cloudbaseinit.plugins.windows.ntpclient.NTPClientPlugin,
        cloudbaseinit.plugins.windows.licensing.WindowsLicensingPlugin,
        cloudbaseinit.plugins.windows.extendvolumes.ExtendVolumesPlugin,
        cloudbaseinit.plugins.common.userdata.UserDataPlugin
  • ConfigDriveServiceを使って(VSI for VPCのLinux版と同様に）プロビジョニング時に払い出されるDISKからメタデータを取得していることがわかる。
  • Bring Your Own Licenseを利用したい場合は以下を削除する。
    • activate_windows=true
    • kms_host=kms.adn.networklayer.com:1688

cloudbase-initが読み込むメタ情報が含まれるDISKを確認する

ログによると、<Disk: \\.\PHYSICALDRIVE1>が使われていそう。

PS C:\> Select-String -Path "C:\Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log" -Pattern "disk", "user_data"

Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:73:2025-12-22 07:25:19.468 4696 WARNING
cloudbaseinit.metadata.services.osconfigdrive.windows [-] ISO extraction failed on <Partition: \\?\GLOBALROOT\Device\Harddisk0\Partition2> with
WindowsCloudbaseInitException("Cannot open file: 'The process cannot access the file because it is being used by another process.'",):
cloudbaseinit.exception.WindowsCloudbaseInitException: Cannot open file: 'The process cannot access the file because it is being used by another process.'
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:74:2025-12-22 07:25:19.485 4696 WARNING
cloudbaseinit.metadata.services.osconfigdrive.windows [-] ISO extraction failed on <Partition: \\?\GLOBALROOT\Device\Harddisk0\Partition3> with
WindowsCloudbaseInitException("Cannot open file: 'The process cannot access the file because it is being used by another process.'",):
cloudbaseinit.exception.WindowsCloudbaseInitException: Cannot open file: 'The process cannot access the file because it is being used by another process.'
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:76:2025-12-22 07:25:19.577 4696 INFO
cloudbaseinit.metadata.services.osconfigdrive.windows [-] ISO9660 disk found on <Disk: \\.\PHYSICALDRIVE1>
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:178:2025-12-22 07:25:35.552 4696 DEBUG cloudbaseinit.plugins.common.userdata [-]
Processing userdata _process_user_data C:\Program Files\Cloudbase Solutions\Cloudbase-Init\Python\lib\site-packages\cloudbaseinit\plugins\common\userdata.py:109
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:221:2025-12-22 07:25:46.927 4696 DEBUG cloudbaseinit.plugins.common.fileexecutils [-]
User_data stdout:
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:223:2025-12-22 07:25:46.927 4696 DEBUG cloudbaseinit.plugins.common.fileexecutils [-]
User_data stderr:
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:228:2025-12-22 07:25:49.140 4696 DEBUG cloudbaseinit.plugins.common.fileexecutils [-]
User_data stdout:
Program Files\Cloudbase Solutions\Cloudbase-Init\log\cloudbase-init.log:230:2025-12-22 07:25:49.140 4696 DEBUG cloudbaseinit.plugins.common.fileexecutils [-]
User_data stderr:
（以下略）

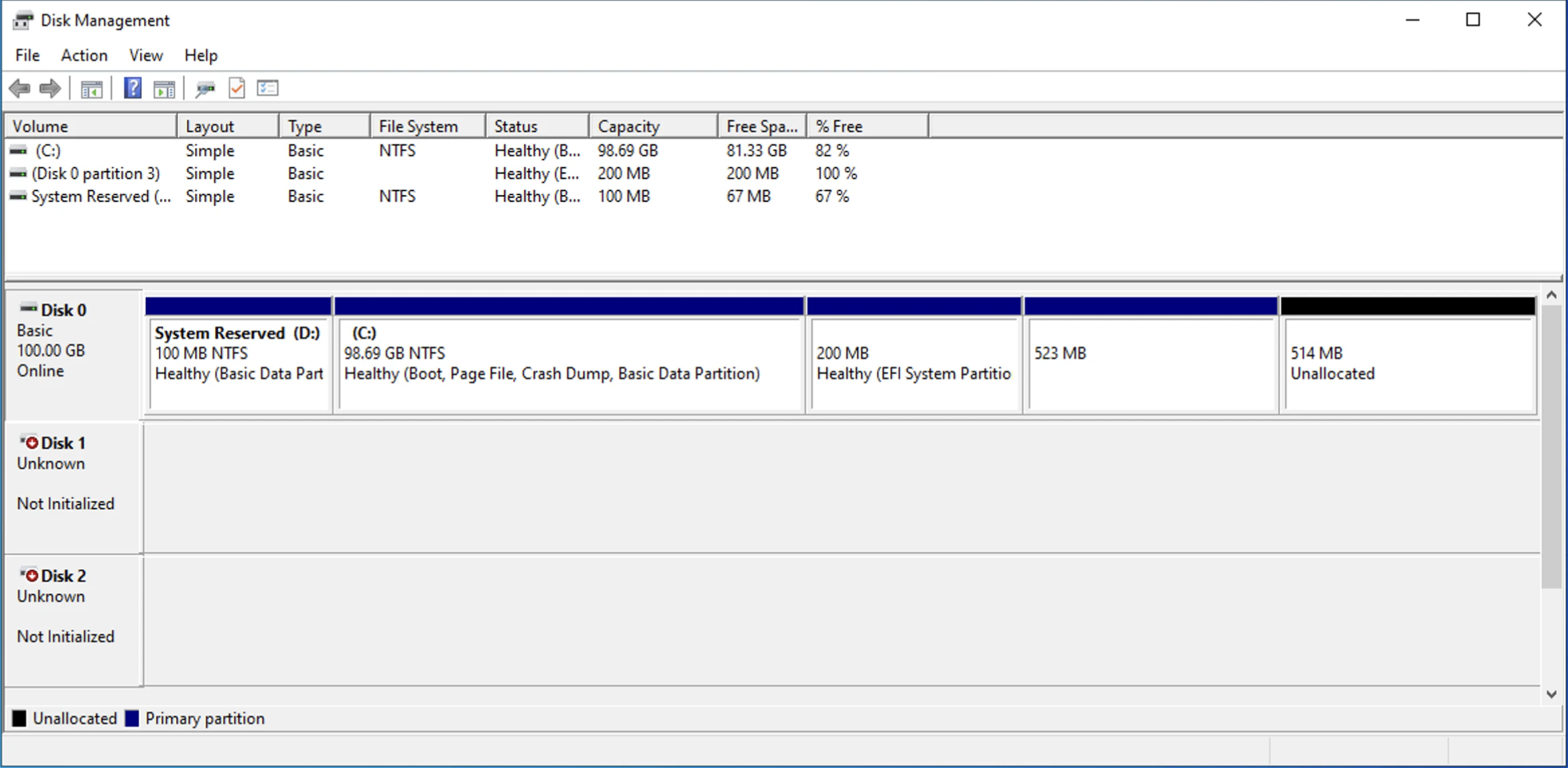

<Disk: \\.\PHYSICALDRIVE1> の中身を確認する


PS C:\>  Get-CimInstance Win32_DiskDrive | Sort

DeviceID           Caption                             Partitions Size         Model
--------           -------                             ---------- ----         -----
\\.\PHYSICALDRIVE0 QEMU QEMU HARDDISK SCSI Disk Device 4          107372805120 QEMU QEMU HARDDISK SCSI Disk Device
\\.\PHYSICALDRIVE1 QEMU QEMU HARDDISK SCSI Disk Device 0          387072       QEMU QEMU HARDDISK SCSI Disk Device
\\.\PHYSICALDRIVE2 Red Hat VirtIO SCSI Disk Device     0          45056        Red Hat VirtIO SCSI Disk Device
以下のスクリプトを実行
$src = "\\.\PHYSICALDRIVE1"
$dst = "C:\configdrive.iso"

# PHYSICALDRIVE1 のサイズを取得
$disk = Get-CimInstance Win32_DiskDrive | Where-Object DeviceID -eq $src
$size = [int64]$disk.Size

$in = [System.IO.File]::Open($src, 'Open', 'Read', 'ReadWrite')
$out = [System.IO.File]::Create($dst)

$bufferSize = 64KB
$buffer = New-Object byte[] $bufferSize

$remaining = $size

while ($remaining -gt 0) {
    $toRead = [Math]::Min($bufferSize, $remaining)
    $read = $in.Read($buffer, 0, $toRead)
    if ($read -le 0) { break }
    $out.Write($buffer, 0, $read)
    $remaining -= $read
}

$in.Close()
$out.Close()

Write-Host "Copy completed: $dst"

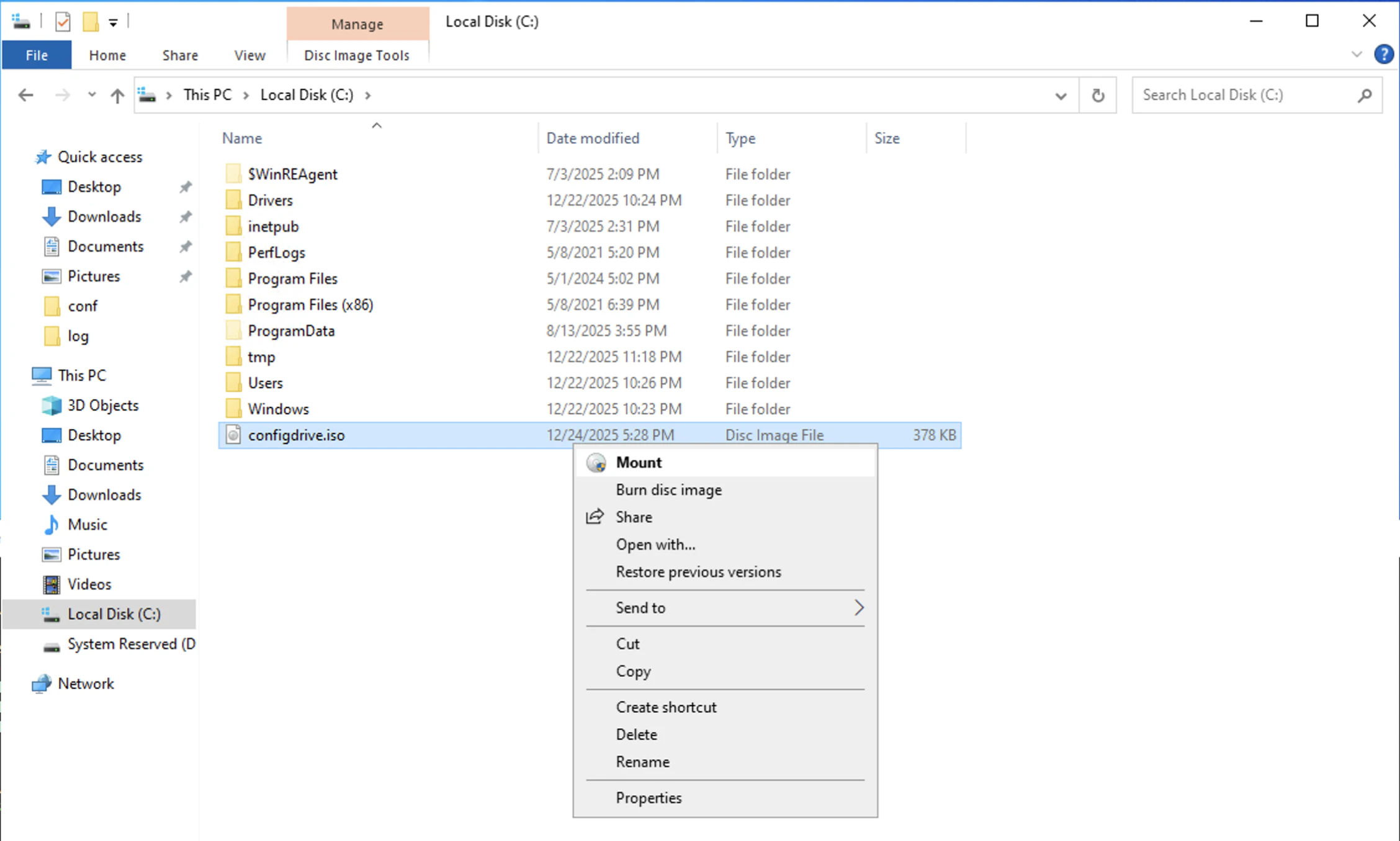

上記で作成されたisoをマウントすると、

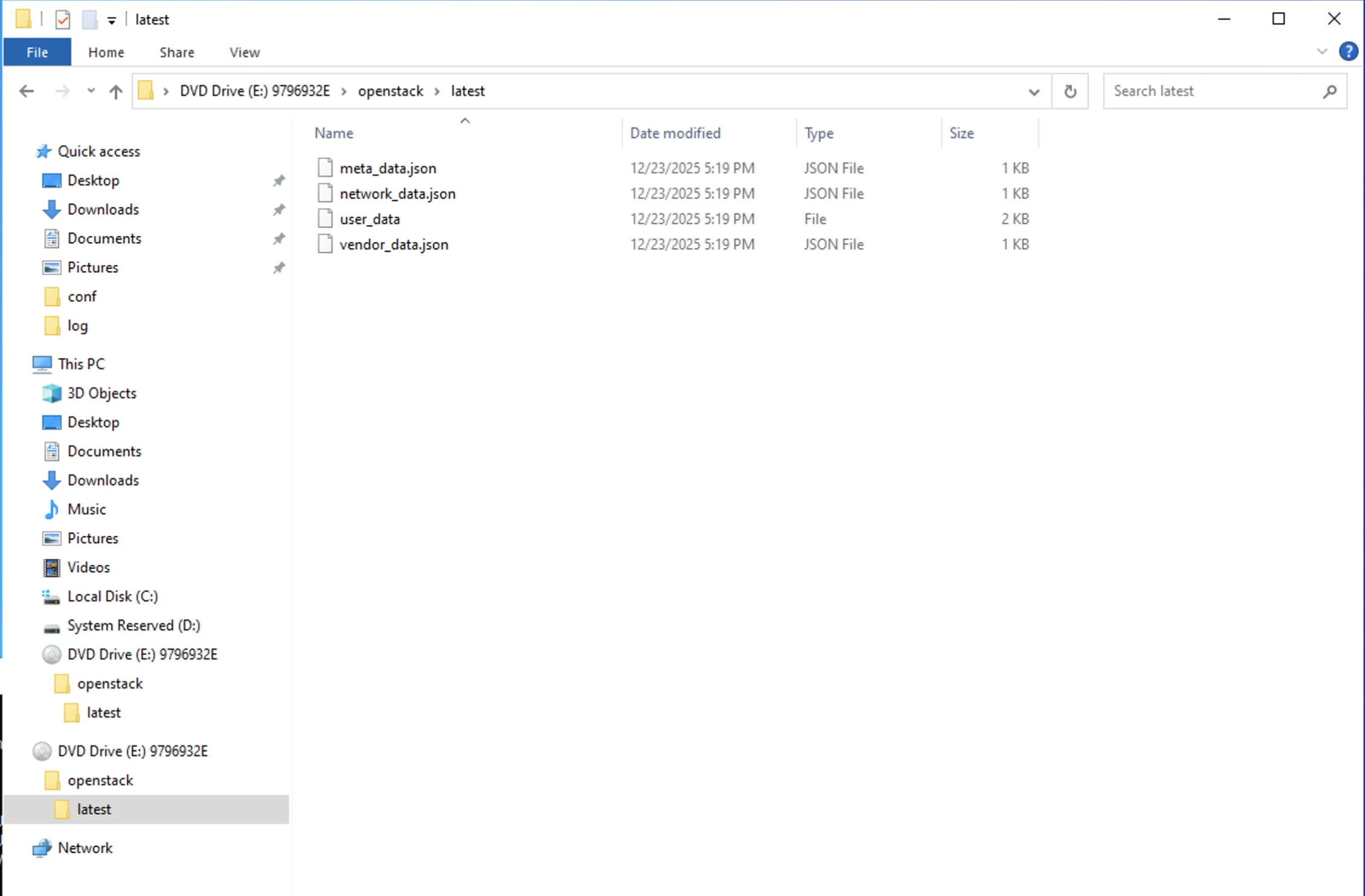

  • isoをマウントimage.png
  • メタデータを確認image.png
meta_data.json
{"hostname":"syasuda-win01","name":"syasuda-win01","uuid":"xxxx_xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx-xxxxx","admin_pass":""}
network_data.json
{}
user_data
Content-Type: multipart/mixed; boundary=c70c0bce2cb7bc7ddc1c02162b7eb2c4fbbced4a42cbe8e0e9c98103afe3
MIME-Version: 1.0

--c70c0bce2cb7bc7ddc1c02162b7eb2c4fbbced4a42cbe8e0e9c98103afe3
Content-Type: text/x-shellscript; charset="us-ascii"
MIME-Version: 1.0
Content-Transfer-Encoding: 7bit
Content-Disposition: attachment; filename="enable-rdp.ps1"
#ps1_sysnative

function enable-rdp () {
    Set-ItemProperty 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\' -Name fDenyTSConnections -Value 0
    Set-ItemProperty 'HKLM:\SYSTEM\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp\' -Name 'UserAuthentication' -Value 1
    Enable-NetFireWallRule -DisplayGroup 'Remote Desktop'
}

enable-rdp
--c70c0bce2cb7bc7ddc1c02162b7eb2c4fbbced4a42cbe8e0e9c98103afe3
Content-Type: text/x-shellscript; charset="us-ascii"
MIME-Version: 1.0
Content-Transfer-Encoding: 7bit
Content-Disposition: attachment; filename="enable-ping.ps1"
#ps1_sysnative

function enable-ping () {
    Set-NetFirewallRule -DisplayName "File and Printer Sharing (Echo Request - ICMPv4-In)" -enabled True
    Set-NetFirewallRule -DisplayName "File and Printer Sharing (Echo Request - ICMPv6-In)" -enabled True
}

enable-ping
--c70c0bce2cb7bc7ddc1c02162b7eb2c4fbbced4a42cbe8e0e9c98103afe3--
vendor_data.json
{}
0
0
0
