UPF性能の簡易測定

Posted at 2024-02-14

本記事では、ローカル5G SAを想定して、データプレーンを形成する幾つかのオープンソースのUPFに関する簡単な性能測定について説明します。性能測定には、Hewlett Packard Enterpriseの技術者が開発したPachetRusherを使用しました。

UPF性能測定の簡単な概要

5GCにOpen5GSを使用して、PacketRusherで幾つかのオープンソースUPFの性能を簡単に測定します。この構成はVirtualbox VMを使用していることに注意してください。

この環境は以下の条件を満たす最小構成になります。

C-Plane、U-Plane(UPF)、RAN&UE(性能測定ツール)を各1つ

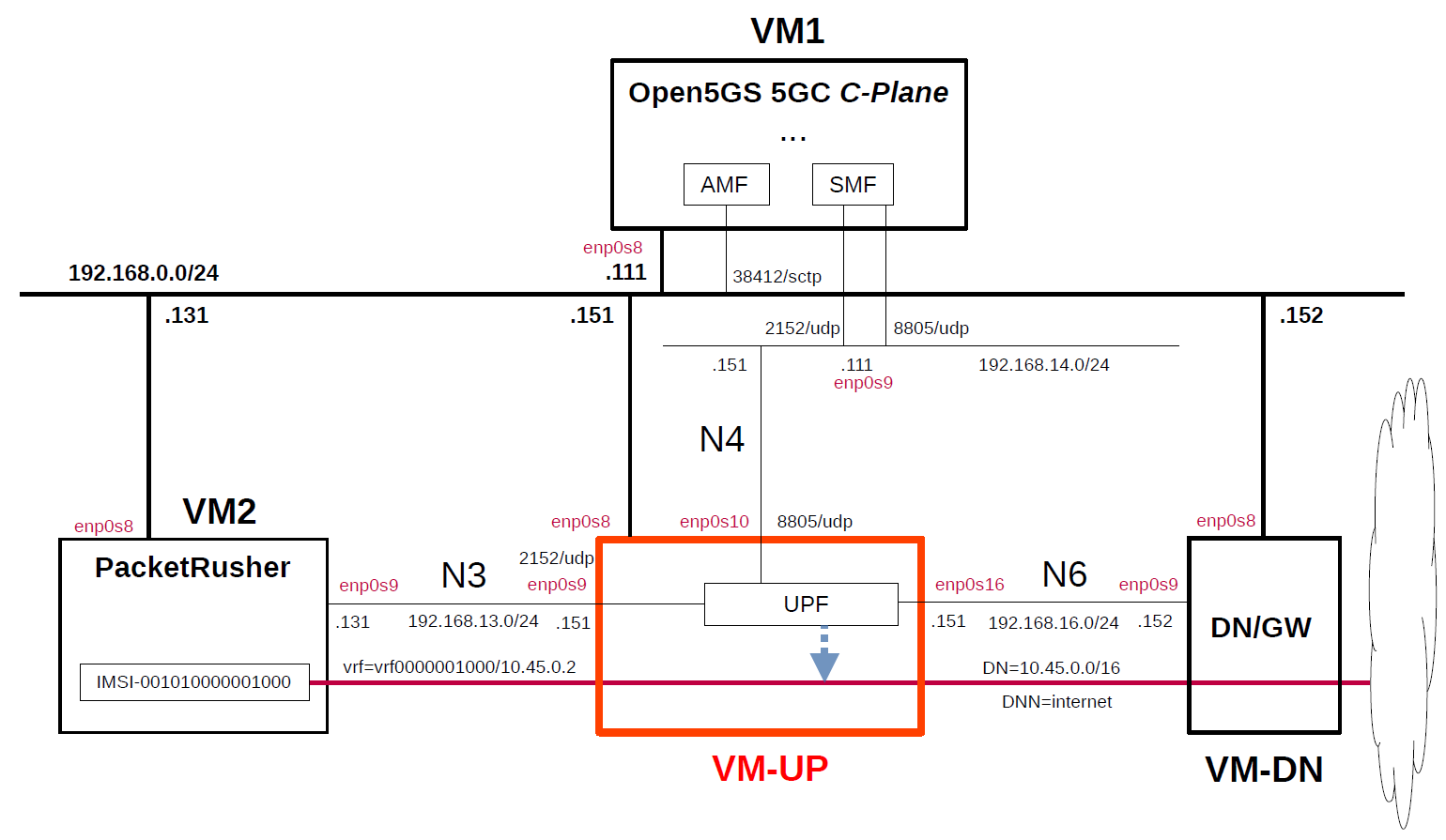

構築した環境は以下の通りです。

5GCとRAN&UEに使用しているOSSは以下の通りです。

5GC - Open5GS v2.7.0 (2023.12.04) - https://github.com/open5gs/open5gs
for Open5GS UPF, UPG-VPP and eUPF
5GC - free5GC v3.3.0 (2023.11.03) - https://github.com/free5gc/free5gc
for free5GC UPF
RAN&UE - PacketRusher (2023.12.06) - https://github.com/HewlettPackard/PacketRusher

UPFに使用しているOSSは以下の通りです。

Open5GS UPF v2.7.0 (2023.12.04) - https://github.com/open5gs/open5gs
UPG-VPP v1.11.0 (2023.12.11) - https://github.com/travelping/upg-vpp
eUPF v0.6.0 (2023.12.05) - https://github.com/edgecomllc/eupf
free5GC UPF v3.3.0 (2023.11.12) - https://github.com/free5gc/free5gc

各VMは以下の通りです。

VM	SW & Role	IP address	OS	CPU	Memory	HDD
VM1	Open5GS 5GC C-Plane	192.168.0.111/24	Ubuntu 22.04	1	2GB	20GB
VM-UP	each UPF U-Plane	192.168.0.151/24	Ubuntu 22.04 or 20.04	2	8GB	20GB
VM-DN	Data Network Gateway	192.168.0.152/24	Ubuntu 22.04	2	2GB	10GB
VM2	PacketRusher RAN&UE	192.168.0.131/24	Ubuntu 22.04	2	2GB	10GB

各VM-UP(UPFs)は以下の通りです。

#	SW	Date	Commit	OS
a	Open5GS UPF v2.7.0	2023.12.04	`177e561ba86c35d56ecf44d1775a3f4f03139cce`	Ubuntu 22.04
b	UPG-VPP v1.11.0	2023.12.11	`065b2ec85b8bd8f9631d1b854f7b37f11e6a1e1b`	Ubuntu 20.04
c	eUPF v0.6.0	2023.12.05	`d3e78b8fe10868e534c74cb793ae76923ac4a5e0`	Ubuntu 22.04
d	free5GC UPF v3.3.0	2023.11.12	`9b9272d9fda970f6af8bb7f1b01d4932c3bfbc8d`	Ubuntu 22.04

VM-UP以外の各VMのネットワークインターフェースは以下の通りです。

VM	Device	Network Adapter	Adapter Type	IP address	Interface
VM1	enp0s3	NAT(default)	82540EM	10.0.2.15/24	(VM default NW)
	enp0s8	Bridged Adapter	82540EM	192.168.0.111/24	(Mgmt NW)
	enp0s9	NAT Network	virtio-net	192.168.14.111/24	N4
VM-DN	enp0s3	NAT(default)	82540EM	10.0.2.15/24	(VM default NW)
	enp0s8	Bridged Adapter	82540EM	192.168.0.152/24	(Mgmt NW)
	enp0s9	NAT Network	virtio-net	192.168.16.152/24	N6 default GW for VM-UP
VM2	enp0s3	NAT(default)	82540EM	10.0.2.15/24	(VM default NW)
	enp0s8	Bridged Adapter	82540EM	192.168.0.131/24	(Mgmt NW)
	enp0s9	NAT Network	virtio-net	192.168.13.131/24	N3

各VM-UP(UPFs)ネットワークインターフェースは以下の通りです。
注記。a～cのUPFはOpen5GS CNに接続しますが、dのfree5GC UPFはPFCP Association SetupでFTUPに対応していないため、free5GC CNに接続させます。

#	SW	Device	Network Adapter	Adapter Type	IP address	Interface
a	Open5GS UPF	~~enp0s3~~	~~NAT(default)~~	~~82540EM~~	~~10.0.2.15/24~~	~~(VM default NW)~~ down
		enp0s8	Bridged Adapter	82540EM	192.168.0.151/24	(Mgmt NW)
		enp0s9	NAT Network	virtio-net	192.168.13.151/24	N3
		enp0s10	NAT Network	virtio-net	192.168.14.151/24	N4
		enp0s16	NAT Network	virtio-net	192.168.16.151/24	N6
b	UPG-VPP	enp0s3	NAT(default)	82540EM	10.0.2.15/24	(VM default NW)
		enp0s8	Bridged Adapter	82540EM	192.168.0.151/24	(Mgmt NW)
		enp0s9	NAT Network	82540EM	192.168.13.151/24	N3 (Under DPDK by vfio-pci)
		enp0s10	NAT Network	82540EM	192.168.14.151/24	N4 (Under DPDK by vfio-pci)
		enp0s16	NAT Network	82540EM	192.168.16.151/24	N6 (Under DPDK by vfio-pci)
c	eUPF	~~enp0s3~~	~~NAT(default)~~	~~82540EM~~	~~10.0.2.15/24~~	~~(VM default NW)~~ down
		enp0s8	Bridged Adapter	82540EM	192.168.0.151/24	(Mgmt NW)
		enp0s9	NAT Network	virtio-net	192.168.13.151/24	N3 (XDP)
		enp0s10	NAT Network	virtio-net	192.168.14.151/24	N4
		enp0s16	NAT Network	virtio-net	192.168.16.151/24	N6 (XDP)
d	free5GC UPF	~~enp0s3~~	~~NAT(default)~~	~~82540EM~~	~~10.0.2.15/24~~	~~(VM default NW)~~ down
		enp0s8	Bridged Adapter	82540EM	192.168.0.151/24	(Mgmt NW)
		enp0s9	NAT Network	virtio-net	192.168.13.151/24	N3
		enp0s10	NAT Network	virtio-net	192.168.14.151/24	N4
		enp0s16	NAT Network	virtio-net	192.168.16.151/24	N6

5GのNF間のインターフェースの内、N3、N4、N6については、VirtualboxのNATネットワークで以下の通りに設定しました。

Network Name	Network CIDR
N3	192.168.13.0/24
N4	192.168.14.0/24
N6	192.168.16.0/24

加入者情報は以下の通りです。(その他の項目はデフォルト値)
Open5GSとfree5GCの各WebConsoleから加入者情報を登録して下さい。

IMSI	DNN	DN	Key & OPc	S-NSSAI
001010000001000	internet	10.45.0.0/16	`Key:465B5CE8B199B49FAA5F0A2EE238A6BC` `OPc:E8ED289DEBA952E4283B54E88E6183CA`	SST:1 SD:010203

Open5GS、free5GC、UPFs、PacketRusherの各設定ファイルの変更点

Open5GS、free5GC、UPFs、PacketRusherの各設定ファイルについては以下を参照して下さい。

Open5GS v2.7.0 (2023.12.04) - https://open5gs.org/open5gs/docs/guide/02-building-open5gs-from-sources/
free5GC v3.3.0 (2023.11.03) - https://free5gc.org/guide/
UPG-VPP v1.11.0 (2023.12.11) - https://github.com/s5uishida/install_vpp_upf_dpdk#annex_1
eUPF v0.6.0 (2023.12.05) - https://github.com/s5uishida/install_eupf
free5GC UPF v3.3.0 (2023.11.12) - https://free5gc.org/guide/
PacketRusher (2023.12.06) - https://github.com/HewlettPackard/PacketRusher/wiki

Open5GS 5GC C-Planeの設定ファイルの変更点

open5gs/install/etc/open5gs/amf.yaml

--- amf.yaml.orig       2023-12-05 03:49:16.000000000 +0900
+++ amf.yaml    2023-12-07 04:38:12.000000000 +0900
@@ -19,29 +19,30 @@
         - uri: http://127.0.0.200:7777
   ngap:
     server:
-      - address: 127.0.0.5
+      - address: 192.168.0.111
   metrics:
     server:
       - address: 127.0.0.5
         port: 9090
   guami:
     - plmn_id:
-        mcc: 999
-        mnc: 70
+        mcc: 001
+        mnc: 01
       amf_id:
         region: 2
         set: 1
   tai:
     - plmn_id:
-        mcc: 999
-        mnc: 70
+        mcc: 001
+        mnc: 01
       tac: 1
   plmn_support:
     - plmn_id:
-        mcc: 999
-        mnc: 70
+        mcc: 001
+        mnc: 01
       s_nssai:
         - sst: 1
+          sd: 010203
   security:
     integrity_order : [ NIA2, NIA1, NIA0 ]
     ciphering_order : [ NEA0, NEA1, NEA2 ]

open5gs/install/etc/open5gs/nrf.yaml

--- nrf.yaml.orig       2023-12-05 03:49:16.000000000 +0900
+++ nrf.yaml    2023-12-07 03:41:26.000000000 +0900
@@ -10,8 +10,8 @@
 nrf:
   serving:  # 5G roaming requires PLMN in NRF
     - plmn_id:
-        mcc: 999
-        mnc: 70
+        mcc: 001
+        mnc: 01
   sbi:
     server:
       - address: 127.0.0.10

open5gs/install/etc/open5gs/smf.yaml

--- smf.yaml.orig       2023-12-05 03:49:16.000000000 +0900
+++ smf.yaml    2023-12-07 03:45:36.000000000 +0900
@@ -19,28 +19,27 @@
         - uri: http://127.0.0.200:7777
   pfcp:
     server:
-      - address: 127.0.0.4
+      - address: 192.168.14.111
     client:
       upf:
-        - address: 127.0.0.7
+        - address: 192.168.14.151
+          dnn: internet
   gtpc:
     server:
       - address: 127.0.0.4
   gtpu:
     server:
-      - address: 127.0.0.4
+      - address: 192.168.14.111
   metrics:
     server:
       - address: 127.0.0.4
         port: 9090
   session:
     - subnet: 10.45.0.1/16
-    - subnet: 2001:db8:cafe::1/48
+      dnn: internet
   dns:
     - 8.8.8.8
     - 8.8.4.4
-    - 2001:4860:4860::8888
-    - 2001:4860:4860::8844
   mtu: 1400
 #  p-cscf:
 #    - 127.0.0.1

free5GC 5GC C-Planeの設定ファイルの変更点

free5gc/config/amfcfg.yaml

--- amfcfg.yaml.orig    2023-12-07 03:01:50.000000000 +0900
+++ amfcfg.yaml 2023-12-07 05:00:50.000000000 +0900
@@ -5,7 +5,7 @@
 configuration:
   amfName: AMF # the name of this AMF
   ngapIpList:  # the IP list of N2 interfaces on this AMF
-    - 127.0.0.18
+    - 192.168.0.111
   ngapPort: 38412 # the SCTP port listened by NGAP
   sbi: # Service-based interface information
     scheme: http # the protocol for sbi (http or https)
@@ -24,18 +24,18 @@
   servedGuamiList: # Guami (Globally Unique AMF ID) list supported by this AMF
     # <GUAMI> = <MCC><MNC><AMF ID>
     - plmnId: # Public Land Mobile Network ID, <PLMN ID> = <MCC><MNC>
-        mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-        mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+        mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+        mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
       amfId: cafe00 # AMF identifier (3 bytes hex string, range: 000000~FFFFFF)
   supportTaiList:  # the TAI (Tracking Area Identifier) list supported by this AMF
     - plmnId: # Public Land Mobile Network ID, <PLMN ID> = <MCC><MNC>
-        mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-        mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+        mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+        mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
       tac: 000001 # Tracking Area Code (3 bytes hex string, range: 000000~FFFFFF)
   plmnSupportList: # the PLMNs (Public land mobile network) list supported by this AMF
     - plmnId: # Public Land Mobile Network ID, <PLMN ID> = <MCC><MNC>
-        mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-        mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+        mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+        mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
       snssaiList: # the S-NSSAI (Single Network Slice Selection Assistance Information) list supported by this AMF
         - sst: 1 # Slice/Service Type (uinteger, range: 0~255)
           sd: 010203 # Slice Differentiator (3 bytes hex string, range: 000000~FFFFFF)

free5gc/config/ausfcfg.yaml

--- ausfcfg.yaml.orig   2023-12-07 03:35:34.000000000 +0900
+++ ausfcfg.yaml        2023-12-07 04:57:32.000000000 +0900
@@ -15,8 +15,8 @@
     - nausf-auth # Nausf_UEAuthentication service
   nrfUri: http://127.0.0.10:8000 # a valid URI of NRF
   plmnSupportList: # the PLMNs (Public Land Mobile Network) list supported by this AUSF
-    - mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-      mnc: 93  # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+    - mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+      mnc: 01  # Mobile Network Code (2 or 3 digits string, digit: 0~9)
     - mcc: 123 # Mobile Country Code (3 digits string, digit: 0~9)
       mnc: 45  # Mobile Network Code (2 or 3 digits string, digit: 0~9)
   groupId: ausfGroup001 # ID for the group of the AUSF

free5gc/config/nrfcfg.yaml

--- nrfcfg.yaml.orig    2023-12-07 03:35:34.000000000 +0900
+++ nrfcfg.yaml 2023-12-07 04:57:38.000000000 +0900
@@ -14,8 +14,8 @@
       pem: cert/nrf.pem # NRF TLS Certificate
       key: cert/nrf.key # NRF TLS Private key
   DefaultPlmnId:
-    mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-    mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+    mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+    mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
   serviceNameList: # the SBI services provided by this NRF, refer to TS 29.510
     - nnrf-nfm # Nnrf_NFManagement service
     - nnrf-disc # Nnrf_NFDiscovery service

free5gc/config/nssfcfg.yaml

--- nssfcfg.yaml.orig   2023-12-07 03:35:34.000000000 +0900
+++ nssfcfg.yaml        2023-12-07 04:59:44.000000000 +0900
@@ -17,12 +17,12 @@
     - nnssf-nssaiavailability # Nnssf_NSSAIAvailability service
   nrfUri: http://127.0.0.10:8000 # a valid URI of NRF
   supportedPlmnList: # the PLMNs (Public land mobile network) list supported by this NSSF
-    - mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-      mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+    - mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+      mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
   supportedNssaiInPlmnList: # Supported S-NSSAI List for each PLMN
     - plmnId: # Public Land Mobile Network ID, <PLMN ID> = <MCC><MNC>
-        mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-        mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+        mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+        mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
       supportedSnssaiList: # Supported S-NSSAIs of the PLMN
         - sst: 1 # Slice/Service Type (uinteger, range: 0~255)
           sd: 010203 # Slice Differentiator (3 bytes hex string, range: 000000~FFFFFF)

free5gc/config/smfcfg.yaml

--- smfcfg.yaml.orig    2023-12-07 03:35:34.000000000 +0900
+++ smfcfg.yaml 2023-12-07 20:14:45.568066057 +0900
@@ -34,22 +34,22 @@
             ipv4: 8.8.8.8
             ipv6: 2001:4860:4860::8888
   plmnList: # the list of PLMN IDs that this SMF belongs to (optional, remove this key when unnecessary)
-    - mcc: 208 # Mobile Country Code (3 digits string, digit: 0~9)
-      mnc: 93 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
+    - mcc: 001 # Mobile Country Code (3 digits string, digit: 0~9)
+      mnc: 01 # Mobile Network Code (2 or 3 digits string, digit: 0~9)
   locality: area1 # Name of the location where a set of AMF, SMF, PCF and UPFs are located
   pfcp: # the IP address of N4 interface on this SMF (PFCP)
     # addr config is deprecated in smf config v1.0.3, please use the following config
-    nodeID: 127.0.0.1 # the Node ID of this SMF
-    listenAddr: 127.0.0.1 # the IP/FQDN of N4 interface on this SMF (PFCP)
-    externalAddr: 127.0.0.1 # the IP/FQDN of N4 interface on this SMF (PFCP)
+    nodeID: 192.168.14.111 # the Node ID of this SMF
+    listenAddr: 192.168.14.111 # the IP/FQDN of N4 interface on this SMF (PFCP)
+    externalAddr: 192.168.14.111 # the IP/FQDN of N4 interface on this SMF (PFCP)
   userplaneInformation: # list of userplane information
     upNodes: # information of userplane node (AN or UPF)
       gNB1: # the name of the node
         type: AN # the type of the node (AN or UPF)
       UPF: # the name of the node
         type: UPF # the type of the node (AN or UPF)
-        nodeID: 127.0.0.8 # the Node ID of this UPF
-        addr: 127.0.0.8 # the IP/FQDN of N4 interface on this UPF (PFCP)
+        nodeID: 192.168.14.151 # the Node ID of this UPF
+        addr: 192.168.14.151 # the IP/FQDN of N4 interface on this UPF (PFCP)
         sNssaiUpfInfos: # S-NSSAI information list for this UPF
           - sNssai: # S-NSSAI (Single Network Slice Selection Assistance Information)
               sst: 1 # Slice/Service Type (uinteger, range: 0~255)
@@ -57,9 +57,9 @@
             dnnUpfInfoList: # DNN information list for this S-NSSAI
               - dnn: internet
                 pools:
-                  - cidr: 10.60.0.0/16
+                  - cidr: 10.45.0.0/16
                 staticPools:
-                  - cidr: 10.60.100.0/24
+                  - cidr: 10.45.100.0/24
           - sNssai: # S-NSSAI (Single Network Slice Selection Assistance Information)
               sst: 1 # Slice/Service Type (uinteger, range: 0~255)
               sd: 112233 # Slice Differentiator (3 bytes hex string, range: 000000~FFFFFF)
@@ -72,7 +72,7 @@
         interfaces: # Interface list for this UPF
           - interfaceType: N3 # the type of the interface (N3 or N9)
             endpoints: # the IP address of this N3/N9 interface on this UPF
-              - 127.0.0.8
+              - 192.168.13.151
             networkInstances:  # Data Network Name (DNN)
               - internet
     links: # the topology graph of userplane, A and B represent the two nodes of each link
@@ -89,8 +89,10 @@
     expireTime: 16s   # default is 6 seconds
     maxRetryTimes: 3 # the max number of retransmission
   nrfUri: http://127.0.0.10:8000 # a valid URI of NRF
-  #urrPeriod: 10 # default usage report period in seconds
-  #urrThreshold: 1000 # default usage report threshold in bytes
+  urrPeriod: 10 # default usage report period in seconds
+  urrThreshold: 1000 # default usage report threshold in bytes
+  ulcl: false
+  nwInstFqdnEncoding: true

 logger: # log output setting
   enable: true # true or false

各UPFの設定ファイルの変更点

a-1. Open5GS 5GC UPF (TUN)の設定ファイルの変更点

open5gs/install/etc/open5gs/upf.yaml

--- upf.yaml.orig       2023-12-05 03:49:16.000000000 +0900
+++ upf.yaml        2023-12-07 04:35:22.000000000 +0900
@@ -10,16 +10,17 @@
 upf:
   pfcp:
     server:
-      - address: 127.0.0.7
+      - address: 192.168.14.151
     client:
 #      smf:     #  UPF PFCP Client try to associate SMF PFCP Server
 #        - address: 127.0.0.4
   gtpu:
     server:
-      - address: 127.0.0.7
+      - address: 192.168.13.151
   session:
     - subnet: 10.45.0.1/16
-    - subnet: 2001:db8:cafe::1/48
+      dnn: internet
+      dev: ogstun
   metrics:
     server:
       - address: 127.0.0.7

a-2. Open5GS 5GC UPF (TAP)の設定ファイルの変更点

open5gs/install/etc/open5gs/upf.yaml

--- upf.yaml.orig       2023-12-05 03:49:16.000000000 +0900
+++ upf.yaml        2023-12-07 06:45:28.000000000 +0900
@@ -10,16 +10,17 @@
 upf:
   pfcp:
     server:
-      - address: 127.0.0.7
+      - address: 192.168.14.151
     client:
 #      smf:     #  UPF PFCP Client try to associate SMF PFCP Server
 #        - address: 127.0.0.4
   gtpu:
     server:
-      - address: 127.0.0.7
+      - address: 192.168.13.151
   session:
     - subnet: 10.45.0.1/16
-    - subnet: 2001:db8:cafe::1/48
+      dnn: internet
+      dev: ogstap
   metrics:
     server:
       - address: 127.0.0.7

b. UPG-VPPの設定ファイルの変更点

元の設定ファイルは、こちらを参照して下さい。

openair-upf/startup.conf
元ファイルからの変更はありません。
openair-upf/init.conf
元ファイルからの変更はありません。

c. eUPFの設定ファイルの変更点

元の設定ファイルは、こちらを参照して下さい。

eupf/config.yml
元ファイルからの変更はありません。

d. free5GC 5GC UPFの設定ファイルの変更点

free5gc/config/upfcfg.yaml

--- upfcfg.yaml.orig    2023-12-07 03:35:34.000000000 +0900
+++ upfcfg.yaml 2023-12-07 05:05:20.000000000 +0900
@@ -3,8 +3,8 @@

 # The listen IP and nodeID of the N4 interface on this UPF (Can't set to 0.0.0.0)
 pfcp:
-  addr: 127.0.0.8   # IP addr for listening
-  nodeID: 127.0.0.8 # External IP or FQDN can be reached
+  addr: 192.168.14.151   # IP addr for listening
+  nodeID: 192.168.14.151 # External IP or FQDN can be reached
   retransTimeout: 1s # retransmission timeout
   maxRetrans: 3 # the max number of retransmission

@@ -13,7 +13,7 @@
   # The IP list of the N3/N9 interfaces on this UPF
   # If there are multiple connection, set addr to 0.0.0.0 or list all the addresses
   ifList:
-    - addr: 127.0.0.8
+    - addr: 192.168.13.151
       type: N3
       # name: upf.5gc.nctu.me
       # ifname: gtpif
@@ -22,7 +22,7 @@
 # The DNN list supported by UPF
 dnnList:
   - dnn: internet # Data Network Name
-    cidr: 10.60.0.0/24 # Classless Inter-Domain Routing for assigned IPv4 pool of UE
+    cidr: 10.45.0.0/16 # Classless Inter-Domain Routing for assigned IPv4 pool of UE
     # natifname: eth0

 logger: # log output setting

PacketRusherの設定ファイルの変更点

PacketRusher/config/config.yml

--- config.yml.orig     2023-12-07 04:20:41.373516955 +0900
+++ config.yml  2023-12-07 04:31:09.823888487 +0900
@@ -1,33 +1,33 @@
 gnodeb:
   controlif:
-    ip: "192.168.11.13"
+    ip: "192.168.0.131"
     port: 9487
   dataif:
-    ip: "192.168.11.13"
+    ip: "192.168.13.131"
     port: 2152
   plmnlist:
-    mcc: "999"
-    mnc: "70"
+    mcc: "001"
+    mnc: "01"
     tac: "000001"
     gnbid: "000008"
   slicesupportlist:
     sst: "01"
-    sd: "000001" # optional, can be removed if not used
+    sd: "010203" # optional, can be removed if not used

 ue:
-  msin: "0000000120"
-  key: "00112233445566778899AABBCCDDEEFF"
-  opc: "00112233445566778899AABBCCDDEEFF"
+  msin: "0000001000"
+  key: "465B5CE8B199B49FAA5F0A2EE238A6BC"
+  opc: "E8ED289DEBA952E4283B54E88E6183CA"
   amf: "8000"
   sqn: "00000000"
   dnn: "internet"
   routingindicator: "0000"
   hplmn:
-    mcc: "999"
-    mnc: "70"
+    mcc: "001"
+    mnc: "01"
   snssai:
     sst: 01
-    sd: "000001" # optional, can be removed if not used
+    sd: "010203" # optional, can be removed if not used
   integrity:
     nia0: false
     nia1: false
@@ -39,7 +39,7 @@
     nea2: true
     nea3: false
 amfif:
-  ip: "192.168.11.30"
+  ip: "192.168.0.111"
   port: 38412
 logs:
     level: 4

各UPFとData Network Gatewayのネットワーク設定

a-1. Open5GS 5GC UPF (TUN)のネットワーク設定

まず、/etc/sysctl.confファイルの次の行のコメントを解除し、OSに反映させます。

net.ipv4.ip_forward=1

# sysctl -p

次に、VM-UPのデフォルトインターフェースenp0s3を落とし、デフォルトGWをN6インターフェースenp0s16のVM-DN IPアドレスに設定します。

# ip link set dev enp0s3 down
# ip route add default via 192.168.16.152 dev enp0s16

そして、TUNnelインターフェースを設定します。

# ip tuntap add name ogstun mode tun
# ip addr add 10.45.0.1/16 dev ogstun
# ip link set ogstun up

a-2. Open5GS 5GC UPF (TAP)のネットワーク設定

まず、/etc/sysctl.confファイルの次の行のコメントを解除し、OSに反映させます。

net.ipv4.ip_forward=1

# sysctl -p

次に、VM-UPのデフォルトインターフェースenp0s3を落とし、デフォルトGWをN6インターフェースenp0s16のVM-DN IPアドレスに設定します。

# ip link set dev enp0s3 down
# ip route add default via 192.168.16.152 dev enp0s16

そして、TAPインターフェースを設定します。

# ip tuntap add name ogstap mode tap
# ip addr add 10.45.0.1/16 dev ogstap
# ip link set ogstap up

b. UPG-VPPのネットワーク設定

こちらを参考にして下さい。

c. eUPFのネットワーク設定

まず、/etc/sysctl.confファイルの次の行のコメントを解除し、OSに反映させます。

net.ipv4.ip_forward=1

# sysctl -p

次に、VM-UPのデフォルトインターフェースenp0s3を落とし、デフォルトGWをN6インターフェースenp0s16のVM-DN IPアドレスに設定します。

# ip link set dev enp0s3 down
# ip route add default via 192.168.16.152 dev enp0s16

d. free5GC 5GC UPFのネットワーク設定

まず、/etc/sysctl.confファイルの次の行のコメントを解除し、OSに反映させます。

net.ipv4.ip_forward=1

# sysctl -p

次に、VM-UPのデフォルトインターフェースenp0s3を落とし、デフォルトGWをN6インターフェースenp0s16のVM-DN IPアドレスに設定します。

# ip link set dev enp0s3 down
# ip route add default via 192.168.16.152 dev enp0s16

Data Network Gatewayのネットワーク設定

まず、/etc/sysctl.confファイルの次の行のコメントを解除し、OSに反映させます。

net.ipv4.ip_forward=1

# sysctl -p

次に、NAPTとeUPFのN6 IPアドレスへのルーティングを設定します。

# iptables -t nat -A POSTROUTING -s 10.45.0.0/16 -j MASQUERADE
# ip route add 10.45.0.0/16 via 192.168.16.151 dev enp0s9

Open5GS、free5GC、各UPF、PacketRusherビルド

Open5GS、free5GC、UPFs、PacketRusherの各ビルドについては以下を参照して下さい。

Open5GS v2.7.0 (2023.12.04) - https://open5gs.org/open5gs/docs/guide/02-building-open5gs-from-sources/
free5GC v3.3.0 (2023.11.03) - https://free5gc.org/guide/
UPG-VPP v1.11.0 (2023.12.11) - https://github.com/s5uishida/install_vpp_upf_dpdk#annex_1
eUPF v0.6.0 (2023.12.05) - https://github.com/s5uishida/install_eupf
free5GC UPF v3.3.0 (2023.11.12) - https://free5gc.org/guide/
PacketRusher (2023.12.06) - https://github.com/HewlettPackard/PacketRusher/wiki

Open5GSとfree5GC C-PlaneマシンにMongoDBをインストールして下さい。なお、MongoDBのデータベースを簡単に確認するには、MongoDB Compassが便利です。

Open5GS、free5GC、各UPF実行

性能測定の対象のUPFを選択し、最初にUPFを起動し、次に5GC(Open5GS or free5GC)を起動します。

UPF実行

a-1. Open5GS 5GC UPF (TUN)実行

TUNインターフェース向けに設定ファイルを変更して下さい。

# cd open5gs
# ./install/bin/open5gs-upfd

a-2. Open5GS 5GC UPF (TAP)実行

TAPインターフェース向けに設定ファイルを変更して下さい。

# cd open5gs
# ./install/bin/open5gs-upfd

b. UPG-VPP実行

こちらを参考にして下さい。

c. eUPF実行

こちらを参考にして下さい。

d. free5GC 5GC UPF実行

# cd free5gc
# ./bin/upf

5GC C-Plane実行

Open5GS 5GC C-Plane実行

./install/bin/open5gs-nrfd &
sleep 2
./install/bin/open5gs-scpd &
sleep 2
./install/bin/open5gs-amfd &
sleep 2
./install/bin/open5gs-smfd &
./install/bin/open5gs-ausfd &
./install/bin/open5gs-udmd &
./install/bin/open5gs-udrd &
./install/bin/open5gs-pcfd &
./install/bin/open5gs-nssfd &
./install/bin/open5gs-bsfd &

free5GC 5GC C-Plane実行

以下のシェルスクリプトを作成して、実行します。

#!/usr/bin/env bash

PID_LIST=()

NF_LIST="nrf amf smf udr pcf udm nssf ausf chf"

export GIN_MODE=release

for NF in ${NF_LIST}; do
    ./bin/${NF} &
    PID_LIST+=($!)
    sleep 1
done

function terminate()
{
    sudo kill -SIGTERM ${PID_LIST[${#PID_LIST[@]}-2]} ${PID_LIST[${#PID_LIST[@]}-1]}
    sleep 2
}

trap terminate SIGINT
wait ${PID_LIST}

PacketRusherを用いて性能測定

ここでは、1つのUEによる1つの接続のみを測定します。
まず、PacketRusherを実行して、性能測定に使用する接続を確立します。次に、Data Network Gateway VM上にiperf3サーバを起動します。

VM2上でPacketRusherを実行

一つのUE相当の接続を確立します。

# cd PacketRusher
# ./packetrusher ue
INFO[0000] PacketRusher version 1.0.1
INFO[0000] ---------------------------------------
INFO[0000] [TESTER] Starting test function: Testing an ue attached with configuration
INFO[0000] [TESTER][UE] Number of UEs: 1
INFO[0000] [TESTER][UE] disableTunnel is false
INFO[0000] [TESTER][GNB] Control interface IP/Port: 192.168.0.131/9487
INFO[0000] [TESTER][GNB] Data interface IP/Port: 192.168.13.131/2152
INFO[0000] [TESTER][AMF] AMF IP/Port: 192.168.0.111/38412
INFO[0000] ---------------------------------------
INFO[0000] [GNB] SCTP/NGAP service is running
INFO[0000] [GNB] Initiating NG Setup Request
INFO[0000] [GNB][SCTP] Receive message in 0 stream
INFO[0000] [GNB][NGAP] Receive NG Setup Response
INFO[0000] [GNB][AMF] AMF Name: open5gs-amf0
INFO[0000] [GNB][AMF] State of AMF: Active
INFO[0000] [GNB][AMF] Capacity of AMF: 255
INFO[0000] [GNB][AMF] PLMNs Identities Supported by AMF -- mcc: 001 mnc:01
INFO[0000] [GNB][AMF] List of AMF slices Supported by AMF -- sst:01 sd:010203
INFO[0001] [TESTER] TESTING REGISTRATION USING IMSI 0000001000 UE
INFO[0001] [UE] Initiating Registration
INFO[0001] [UE] Switched from state 0 to state 1
INFO[0001] [GNB][SCTP] Receive message in 1 stream
INFO[0001] [GNB][NGAP] Receive Downlink NAS Transport
INFO[0001] [UE][NAS] Message without security header
INFO[0001] [UE][NAS] Receive Authentication Request
INFO[0001] [UE][NAS][MAC] Authenticity of the authentication request message: OK
INFO[0001] [UE][NAS][SQN] SQN of the authentication request message: VALID
INFO[0001] [UE][NAS] Send authentication response
INFO[0001] [UE] Switched from state 1 to state 2
INFO[0001] [GNB][SCTP] Receive message in 1 stream
INFO[0001] [GNB][NGAP] Receive Downlink NAS Transport
INFO[0001] [UE][NAS] Message with security header
INFO[0001] [UE][NAS] Message with integrity and with NEW 5G NAS SECURITY CONTEXT
INFO[0001] [UE][NAS] successful NAS MAC verification
INFO[0001] [UE][NAS] Receive Security Mode Command
INFO[0001] [UE][NAS] Type of ciphering algorithm is 5G-EA0
INFO[0001] [UE][NAS] Type of integrity protection algorithm is 128-5G-IA2
INFO[0001] [GNB][SCTP] Receive message in 1 stream
INFO[0001] [GNB][NGAP] Receive Initial Context Setup Request
INFO[0001] [GNB][UE] UE Context was created with successful
INFO[0001] [GNB][UE] UE RAN ID 1
INFO[0001] [GNB][UE] UE AMF ID 1
INFO[0001] [GNB][UE] UE Mobility Restrict --Plmn-- Mcc: not informed Mnc: not informed
INFO[0001] [GNB][UE] UE Masked Imeisv: 1110000000ffff00
INFO[0001] [GNB][UE] Allowed Nssai-- Sst: [01] Sd: [010203]
INFO[0001] [GNB][NAS][UE] Send Registration Accept.
INFO[0001] [GNB][NGAP][AMF] Send Initial Context Setup Response.
INFO[0001] [GNB] Initiating Initial Context Setup Response
INFO[0001] [UE][NAS] Message with security header
INFO[0001] [UE][NAS] Message with integrity and ciphered
INFO[0001] [UE][NAS] successful NAS MAC verification
INFO[0001] [UE][NAS] successful NAS CIPHERING
INFO[0001] [UE][NAS] Receive Registration Accept
INFO[0001] [UE][NAS] UE 5G GUTI: [192 0 1 200]
INFO[0001] [UE] Switched from state 2 to state 3
INFO[0001] [UE] Initiating New PDU Session
INFO[0001] [UE] Initiating New PDU Session
INFO[0001] [GNB][SCTP] Receive message in 1 stream
INFO[0001] [GNB][NGAP] Receive Downlink NAS Transport
INFO[0001] [UE][NAS] Message with security header
INFO[0001] [UE][NAS] Message with integrity and ciphered
INFO[0001] [UE][NAS] successful NAS MAC verification
INFO[0001] [UE][NAS] successful NAS CIPHERING
INFO[0001] [UE][NAS] Receive Configuration Update Command
INFO[0001] [UE] Initiating Configuration Update Complete
INFO[0001] [GNB][SCTP] Receive message in 1 stream
INFO[0001] [GNB][NGAP] Receive PDU Session Resource Setup Request
INFO[0001] [GNB][NGAP][UE] PDU Session was created with successful.
INFO[0001] [GNB][NGAP][UE] PDU Session Id: 1
INFO[0001] [GNB][NGAP][UE] NSSAI Selected --- sst: NSSAI was not selected sd: NSSAI was not selected
INFO[0001] [GNB][NGAP][UE] PDU Session Type: ipv4
INFO[0001] [GNB][NGAP][UE] QOS Flow Identifier: 1
INFO[0001] [GNB][NGAP][UE] Uplink Teid: 655784950
INFO[0001] [GNB][NGAP][UE] Downlink Teid: 1
INFO[0001] [GNB][NGAP][UE] Non-Dynamic-5QI: 9
INFO[0001] [GNB][NGAP][UE] Priority Level ARP: 8
INFO[0001] [GNB][NGAP][UE] UPF Address: 192.168.13.151 :2152
INFO[0001] [GNB] Initiating PDU Session Resource Setup Response
INFO[0001] [UE][NAS] Message with security header
INFO[0001] [UE][NAS] Message with integrity and ciphered
INFO[0001] [UE][NAS] successful NAS MAC verification
INFO[0001] [UE][NAS] successful NAS CIPHERING
INFO[0001] [UE][NAS] Receive DL NAS Transport
INFO[0001] [UE][NAS] Receiving PDU Session Establishment Accept
INFO[0001] [UE][NAS] PDU session QoS RULES: [1 0 6 49 49 1 1 255 1]
INFO[0001] [UE][NAS] PDU session DNN: internet
INFO[0001] [UE][NAS] PDU session NSSAI -- sst: 1 sd: 123
INFO[0001] [UE][NAS] PDU address received: 10.45.0.2
INFO[0002] [UE][GTP] Interface val0000001000 has successfully been configured for UE 10.45.0.2
INFO[0002] [UE][GTP] You can do traffic for this UE using VRF vrf0000001000, eg:
INFO[0002] [UE][GTP] sudo ip vrf exec vrf0000001000 iperf3 -c IPERF_SERVER -p PORT -t 9000

UE/VRF のコンテキストでコマンドを実行する度にip vrf exec vrf0000001000コマンドを記述することを避けるには、次のようにコマンドを実行します。

# ip vrf exec vrf0000001000 bash

これにより、シェル内のすべてのコマンドがtunnelを使用するようになります。

Data Network Gateway (VM-DN)上でiPerf3サーバを実行

# iperf3 -s

VM2上でpingとiPerf3クライアントを実行

Data Network GatewayのN6インターフェイスのアドレス(192.168.16.152)に対してpingとiperf3クライアントを試します。

例）下記測定で使用したUPFはUPG-VPP v1.11.0です。

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=63 time=0.345 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=63 time=0.325 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=63 time=0.417 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=63 time=0.337 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=63 time=0.692 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=63 time=0.300 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=63 time=0.440 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=63 time=0.319 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=63 time=0.521 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=63 time=0.290 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9205ms
rtt min/avg/max/mdev = 0.290/0.398/0.692/0.119 ms

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 51488 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   132 MBytes  1.11 Gbits/sec  164    255 KBytes
[  5]   1.00-2.00   sec   135 MBytes  1.13 Gbits/sec   82    270 KBytes
[  5]   2.00-3.00   sec   140 MBytes  1.17 Gbits/sec   85    370 KBytes
[  5]   3.00-4.00   sec   140 MBytes  1.17 Gbits/sec  129    277 KBytes
[  5]   4.00-5.00   sec   137 MBytes  1.15 Gbits/sec   23    236 KBytes
[  5]   5.00-6.00   sec   137 MBytes  1.15 Gbits/sec   28    368 KBytes
[  5]   6.00-7.00   sec   137 MBytes  1.15 Gbits/sec  121    269 KBytes
[  5]   7.00-8.00   sec   129 MBytes  1.08 Gbits/sec   28    295 KBytes
[  5]   8.00-9.00   sec   131 MBytes  1.10 Gbits/sec   95    223 KBytes
[  5]   9.00-10.00  sec   136 MBytes  1.14 Gbits/sec   30    361 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  1.32 GBytes  1.14 Gbits/sec  785             sender
[  5]   0.00-10.04  sec  1.32 GBytes  1.13 Gbits/sec                  receiver

iperf Done.

測定結果

以下の測定値は、VM2上のPacketRusherによって割り当てられたIPアドレス10.45.0.0/16とVM-DN上のData Network GatewayのN6インターフェイスのIP アドレス192.168.16.152の間で測定した値です。

5GCにOpen5GS C-Planeを使用した場合

#	UPF	Date	1) TCP throughput	2) UDP throughput	2) UDP packet loss	3) RTT (msec)
a-1	Open5GS UPF v2.7.0 (TUN)	2023.12.04	S:205 Mbps R:204 Mbps	S:458 Mbps R:319 Mbps	30%	1.081
a-2	Open5GS UPF v2.7.0 (TAP)	2023.12.04	S:275 Mbps R:273 Mbps	S:465 Mbps R:314 Mbps	32%	1.198
b	UPG-VPP v1.11.0	2023.12.11	S:1.14 Gbps R:1.13 Gbps	S:461 Mbps R:455 Mbps	0.96%	0.398
c	4) eUPF v0.6.0	2023.12.05	S:359 Mbps R:356 Mbps	S:426 Mbps R:409 Mbps	3.6%	0.882

a-1. Open5GS UPF v2.7.0 (TUN)のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 44534 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  20.8 MBytes   175 Mbits/sec    8   80.0 KBytes
[  5]   1.00-2.00   sec  25.6 MBytes   215 Mbits/sec   14   92.4 KBytes
[  5]   2.00-3.00   sec  24.1 MBytes   202 Mbits/sec   21   99.3 KBytes
[  5]   3.00-4.00   sec  25.6 MBytes   215 Mbits/sec   22    105 KBytes
[  5]   4.00-5.00   sec  24.2 MBytes   203 Mbits/sec    8    109 KBytes
[  5]   5.00-6.00   sec  26.1 MBytes   219 Mbits/sec   22   92.4 KBytes
[  5]   6.00-7.00   sec  26.4 MBytes   221 Mbits/sec   10    106 KBytes
[  5]   7.00-8.00   sec  23.3 MBytes   195 Mbits/sec   10    105 KBytes
[  5]   8.00-9.00   sec  22.2 MBytes   187 Mbits/sec   12    105 KBytes
[  5]   9.00-10.00  sec  26.5 MBytes   222 Mbits/sec   15   82.7 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec   245 MBytes   205 Mbits/sec  142             sender
[  5]   0.00-10.04  sec   244 MBytes   204 Mbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 40673 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  57.8 MBytes   485 Mbits/sec  42949
[  5]   1.00-2.00   sec  46.3 MBytes   389 Mbits/sec  34418
[  5]   2.00-3.00   sec  56.0 MBytes   470 Mbits/sec  41565
[  5]   3.00-4.00   sec  56.4 MBytes   473 Mbits/sec  41911
[  5]   4.00-5.00   sec  53.5 MBytes   449 Mbits/sec  39720
[  5]   5.00-6.00   sec  61.5 MBytes   516 Mbits/sec  45651
[  5]   6.00-7.00   sec  49.3 MBytes   413 Mbits/sec  36579
[  5]   7.00-8.00   sec  56.6 MBytes   475 Mbits/sec  42031
[  5]   8.00-9.00   sec  53.3 MBytes   447 Mbits/sec  39616
[  5]   9.00-10.00  sec  55.1 MBytes   463 Mbits/sec  40948
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   546 MBytes   458 Mbits/sec  0.000 ms  0/405388 (0%)  sender
[  5]   0.00-10.04  sec   382 MBytes   319 Mbits/sec  0.040 ms  121698/405375 (30%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=63 time=1.09 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=63 time=0.993 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=63 time=0.879 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=63 time=1.24 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=63 time=1.08 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=63 time=1.17 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=63 time=1.25 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=63 time=1.10 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=63 time=1.09 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=63 time=0.922 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9011ms
rtt min/avg/max/mdev = 0.879/1.081/1.252/0.116 ms

a-2. Open5GS UPF v2.7.0 (TAP)のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 59000 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  36.4 MBytes   305 Mbits/sec   47    102 KBytes
[  5]   1.00-2.00   sec  38.0 MBytes   319 Mbits/sec   40   84.1 KBytes
[  5]   2.00-3.00   sec  35.6 MBytes   299 Mbits/sec   25   77.2 KBytes
[  5]   3.00-4.00   sec  25.1 MBytes   210 Mbits/sec   16   89.6 KBytes
[  5]   4.00-5.00   sec  26.0 MBytes   218 Mbits/sec   26   96.5 KBytes
[  5]   5.00-6.00   sec  35.3 MBytes   296 Mbits/sec   18    116 KBytes
[  5]   6.00-7.00   sec  39.3 MBytes   329 Mbits/sec   37   95.1 KBytes
[  5]   7.00-8.00   sec  38.0 MBytes   319 Mbits/sec   28    102 KBytes
[  5]   8.00-9.00   sec  25.9 MBytes   217 Mbits/sec   16   75.8 KBytes
[  5]   9.00-10.00  sec  27.9 MBytes   233 Mbits/sec   15   97.9 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec   327 MBytes   275 Mbits/sec  268             sender
[  5]   0.00-10.04  sec   327 MBytes   273 Mbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 36906 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  59.6 MBytes   500 Mbits/sec  44260
[  5]   1.00-2.00   sec  59.6 MBytes   500 Mbits/sec  44232
[  5]   2.00-3.00   sec  59.6 MBytes   500 Mbits/sec  44294
[  5]   3.00-4.00   sec  55.3 MBytes   464 Mbits/sec  41030
[  5]   4.00-5.00   sec  53.2 MBytes   446 Mbits/sec  39492
[  5]   5.00-6.00   sec  54.0 MBytes   453 Mbits/sec  40119
[  5]   6.00-7.00   sec  53.5 MBytes   448 Mbits/sec  39703
[  5]   7.00-8.00   sec  47.0 MBytes   395 Mbits/sec  34927
[  5]   8.00-9.00   sec  54.8 MBytes   460 Mbits/sec  40721
[  5]   9.00-10.00  sec  58.1 MBytes   487 Mbits/sec  43113
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   555 MBytes   465 Mbits/sec  0.000 ms  0/411891 (0%)  sender
[  5]   0.00-10.04  sec   375 MBytes   314 Mbits/sec  0.016 ms  133181/411891 (32%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=63 time=1.87 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=63 time=0.860 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=63 time=1.17 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=63 time=1.02 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=63 time=1.01 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=63 time=1.15 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=63 time=1.09 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=63 time=1.16 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=63 time=0.936 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=63 time=1.72 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9036ms
rtt min/avg/max/mdev = 0.860/1.198/1.867/0.313 ms

b. UPG-VPP v1.11.0のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 51488 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   132 MBytes  1.11 Gbits/sec  164    255 KBytes
[  5]   1.00-2.00   sec   135 MBytes  1.13 Gbits/sec   82    270 KBytes
[  5]   2.00-3.00   sec   140 MBytes  1.17 Gbits/sec   85    370 KBytes
[  5]   3.00-4.00   sec   140 MBytes  1.17 Gbits/sec  129    277 KBytes
[  5]   4.00-5.00   sec   137 MBytes  1.15 Gbits/sec   23    236 KBytes
[  5]   5.00-6.00   sec   137 MBytes  1.15 Gbits/sec   28    368 KBytes
[  5]   6.00-7.00   sec   137 MBytes  1.15 Gbits/sec  121    269 KBytes
[  5]   7.00-8.00   sec   129 MBytes  1.08 Gbits/sec   28    295 KBytes
[  5]   8.00-9.00   sec   131 MBytes  1.10 Gbits/sec   95    223 KBytes
[  5]   9.00-10.00  sec   136 MBytes  1.14 Gbits/sec   30    361 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  1.32 GBytes  1.14 Gbits/sec  785             sender
[  5]   0.00-10.04  sec  1.32 GBytes  1.13 Gbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 38553 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  55.9 MBytes   469 Mbits/sec  41483
[  5]   1.00-2.00   sec  52.2 MBytes   438 Mbits/sec  38746
[  5]   2.00-3.00   sec  62.1 MBytes   521 Mbits/sec  46107
[  5]   3.00-4.00   sec  53.7 MBytes   450 Mbits/sec  39849
[  5]   4.00-5.00   sec  54.0 MBytes   453 Mbits/sec  40135
[  5]   5.00-6.00   sec  50.6 MBytes   425 Mbits/sec  37609
[  5]   6.00-7.00   sec  53.0 MBytes   445 Mbits/sec  39367
[  5]   7.00-8.00   sec  52.7 MBytes   442 Mbits/sec  39120
[  5]   8.00-9.00   sec  58.2 MBytes   488 Mbits/sec  43203
[  5]   9.00-10.00  sec  57.2 MBytes   480 Mbits/sec  42467
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   550 MBytes   461 Mbits/sec  0.000 ms  0/408086 (0%)  sender
[  5]   0.00-10.04  sec   544 MBytes   455 Mbits/sec  0.018 ms  3914/408086 (0.96%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=63 time=0.345 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=63 time=0.325 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=63 time=0.417 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=63 time=0.337 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=63 time=0.692 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=63 time=0.300 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=63 time=0.440 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=63 time=0.319 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=63 time=0.521 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=63 time=0.290 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9205ms
rtt min/avg/max/mdev = 0.290/0.398/0.692/0.119 ms

c. eUPF v0.6.0のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 50792 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  45.1 MBytes   379 Mbits/sec  101    178 KBytes
[  5]   1.00-2.00   sec  41.8 MBytes   351 Mbits/sec   29    188 KBytes
[  5]   2.00-3.00   sec  44.3 MBytes   372 Mbits/sec   31    230 KBytes
[  5]   3.00-4.00   sec  47.0 MBytes   394 Mbits/sec   40    245 KBytes
[  5]   4.00-5.00   sec  40.1 MBytes   337 Mbits/sec   82    165 KBytes
[  5]   5.00-6.00   sec  41.5 MBytes   348 Mbits/sec   28    211 KBytes
[  5]   6.00-7.00   sec  48.5 MBytes   406 Mbits/sec   37    290 KBytes
[  5]   7.00-8.00   sec  44.4 MBytes   373 Mbits/sec   52    194 KBytes
[  5]   8.00-9.00   sec  38.2 MBytes   320 Mbits/sec   36    190 KBytes
[  5]   9.00-10.00  sec  37.1 MBytes   311 Mbits/sec   35    185 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec   428 MBytes   359 Mbits/sec  471             sender
[  5]   0.00-10.04  sec   426 MBytes   356 Mbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.2 port 32867 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  59.5 MBytes   499 Mbits/sec  44186
[  5]   1.00-2.00   sec  59.6 MBytes   500 Mbits/sec  44249
[  5]   2.00-3.00   sec  59.7 MBytes   501 Mbits/sec  44314
[  5]   3.00-4.00   sec  51.4 MBytes   431 Mbits/sec  38199
[  5]   4.00-5.00   sec  46.0 MBytes   386 Mbits/sec  34180
[  5]   5.00-6.00   sec  43.2 MBytes   362 Mbits/sec  32048
[  5]   6.00-7.00   sec  45.0 MBytes   378 Mbits/sec  33432
[  5]   7.00-8.00   sec  47.7 MBytes   400 Mbits/sec  35413
[  5]   8.00-9.00   sec  48.7 MBytes   409 Mbits/sec  36185
[  5]   9.00-10.00  sec  47.1 MBytes   395 Mbits/sec  35008
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   508 MBytes   426 Mbits/sec  0.000 ms  0/377214 (0%)  sender
[  5]   0.00-10.04  sec   490 MBytes   409 Mbits/sec  0.024 ms  13452/377209 (3.6%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=64 time=0.642 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=64 time=1.05 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=64 time=0.842 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=64 time=0.915 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=64 time=0.927 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=64 time=0.865 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=64 time=0.894 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=64 time=0.955 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=64 time=0.852 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=64 time=0.875 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9091ms
rtt min/avg/max/mdev = 0.642/0.882/1.053/0.099 ms

5GCにfree5GC C-Planeを使用した場合

#	UPF	Date	1) TCP throughput	2) UDP throughput	2) UDP packet loss	3) RTT (msec)
b	UPG-VPP v1.11.0	2023.12.11	S:1.13 Gbps R:1.13 Gbps	S:500 Mbps R:492 Mbps	1.3%	0.366
c	4) eUPF v0.6.0	2023.12.05	S:358 Mbps R:355 Mbps	S:392 Mbps R:382 Mbps	2%	0.850
d	free5GC UPF v3.3.0	2023.11.12	S:233 Mbps R:229 Mbps	S:499 Mbps R:382 Mbps	23%	0.786

b. UPG-VPP v1.11.0のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.1 port 33028 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   131 MBytes  1.10 Gbits/sec  145    239 KBytes
[  5]   1.00-2.00   sec   136 MBytes  1.14 Gbits/sec   88    265 KBytes
[  5]   2.00-3.00   sec   131 MBytes  1.10 Gbits/sec    6    298 KBytes
[  5]   3.00-4.00   sec   130 MBytes  1.09 Gbits/sec   19    346 KBytes
[  5]   4.00-5.00   sec   144 MBytes  1.21 Gbits/sec   64    370 KBytes
[  5]   5.00-6.00   sec   133 MBytes  1.12 Gbits/sec   42    244 KBytes
[  5]   6.00-7.00   sec   132 MBytes  1.11 Gbits/sec   43    296 KBytes
[  5]   7.00-8.00   sec   138 MBytes  1.15 Gbits/sec   89    327 KBytes
[  5]   8.00-9.00   sec   139 MBytes  1.16 Gbits/sec   49    285 KBytes
[  5]   9.00-10.00  sec   136 MBytes  1.14 Gbits/sec   80    316 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  1.32 GBytes  1.13 Gbits/sec  625             sender
[  5]   0.00-10.04  sec  1.32 GBytes  1.13 Gbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.1 port 49554 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  59.6 MBytes   500 Mbits/sec  44257
[  5]   1.00-2.00   sec  59.6 MBytes   500 Mbits/sec  44243
[  5]   2.00-3.00   sec  59.6 MBytes   500 Mbits/sec  44282
[  5]   3.00-4.00   sec  59.6 MBytes   500 Mbits/sec  44250
[  5]   4.00-5.00   sec  59.6 MBytes   500 Mbits/sec  44275
[  5]   5.00-6.00   sec  59.6 MBytes   500 Mbits/sec  44263
[  5]   6.00-7.00   sec  59.6 MBytes   500 Mbits/sec  44223
[  5]   7.00-8.00   sec  59.6 MBytes   500 Mbits/sec  44287
[  5]   8.00-9.00   sec  59.6 MBytes   500 Mbits/sec  44261
[  5]   9.00-10.00  sec  59.6 MBytes   500 Mbits/sec  44278
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   596 MBytes   500 Mbits/sec  0.000 ms  0/442619 (0%)  sender
[  5]   0.00-10.04  sec   589 MBytes   492 Mbits/sec  0.013 ms  5535/442619 (1.3%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=63 time=0.306 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=63 time=0.413 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=63 time=0.534 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=63 time=0.281 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=63 time=0.368 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=63 time=0.361 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=63 time=0.272 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=63 time=0.322 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=63 time=0.309 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=63 time=0.500 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9233ms
rtt min/avg/max/mdev = 0.272/0.366/0.534/0.085 ms

c. eUPF v0.6.0のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.1 port 44176 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  37.7 MBytes   316 Mbits/sec  119    200 KBytes
[  5]   1.00-2.00   sec  46.6 MBytes   391 Mbits/sec   21    239 KBytes
[  5]   2.00-3.00   sec  45.1 MBytes   378 Mbits/sec    4    305 KBytes
[  5]   3.00-4.00   sec  38.5 MBytes   323 Mbits/sec   64    186 KBytes
[  5]   4.00-5.00   sec  43.2 MBytes   362 Mbits/sec   46    258 KBytes
[  5]   5.00-6.00   sec  41.4 MBytes   348 Mbits/sec   28    182 KBytes
[  5]   6.00-7.00   sec  43.9 MBytes   368 Mbits/sec    3    256 KBytes
[  5]   7.00-8.00   sec  45.0 MBytes   377 Mbits/sec   50    170 KBytes
[  5]   8.00-9.00   sec  41.9 MBytes   351 Mbits/sec   43    181 KBytes
[  5]   9.00-10.00  sec  43.8 MBytes   367 Mbits/sec   56    167 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec   427 MBytes   358 Mbits/sec  434             sender
[  5]   0.00-10.05  sec   425 MBytes   355 Mbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.1 port 50301 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  45.7 MBytes   383 Mbits/sec  33907
[  5]   1.00-2.00   sec  42.3 MBytes   355 Mbits/sec  31389
[  5]   2.00-3.00   sec  45.9 MBytes   385 Mbits/sec  34066
[  5]   3.00-4.00   sec  47.3 MBytes   397 Mbits/sec  35153
[  5]   4.00-5.00   sec  47.4 MBytes   397 Mbits/sec  35178
[  5]   5.00-6.00   sec  46.2 MBytes   388 Mbits/sec  34314
[  5]   6.00-7.00   sec  52.0 MBytes   436 Mbits/sec  38619
[  5]   7.00-8.00   sec  46.0 MBytes   386 Mbits/sec  34189
[  5]   8.00-9.00   sec  50.2 MBytes   421 Mbits/sec  37243
[  5]   9.00-10.00  sec  44.3 MBytes   371 Mbits/sec  32866
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   467 MBytes   392 Mbits/sec  0.000 ms  0/346924 (0%)  sender
[  5]   0.00-10.04  sec   458 MBytes   382 Mbits/sec  0.032 ms  7034/346924 (2%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=64 time=1.10 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=64 time=0.986 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=64 time=0.797 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=64 time=0.751 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=64 time=0.716 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=64 time=0.797 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=64 time=0.779 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=64 time=0.751 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=64 time=0.971 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=64 time=0.855 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9148ms
rtt min/avg/max/mdev = 0.716/0.850/1.102/0.120 ms

d. free5GC UPF v3.3.0のPingとiPerf3ログ

# iperf3 -c 192.168.16.152
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.1 port 60170 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec  32.2 MBytes   270 Mbits/sec  116    307 KBytes
[  5]   1.00-2.00   sec  27.9 MBytes   234 Mbits/sec   11    291 KBytes
[  5]   2.00-3.00   sec  29.4 MBytes   246 Mbits/sec    9    259 KBytes
[  5]   3.00-4.00   sec  24.9 MBytes   209 Mbits/sec    0    324 KBytes
[  5]   4.00-5.00   sec  30.6 MBytes   257 Mbits/sec    0    389 KBytes
[  5]   5.00-6.00   sec  23.3 MBytes   196 Mbits/sec   17    323 KBytes
[  5]   6.00-7.00   sec  27.5 MBytes   231 Mbits/sec   60    266 KBytes
[  5]   7.00-8.00   sec  27.9 MBytes   234 Mbits/sec    0    335 KBytes
[  5]   8.00-9.00   sec  26.9 MBytes   226 Mbits/sec   18    303 KBytes
[  5]   9.00-10.00  sec  26.6 MBytes   223 Mbits/sec    4    272 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec   277 MBytes   233 Mbits/sec  235             sender
[  5]   0.00-10.05  sec   274 MBytes   229 Mbits/sec                  receiver

iperf Done.

# iperf3 -c 192.168.16.152 -u -b 500M
Connecting to host 192.168.16.152, port 5201
[  5] local 10.45.0.1 port 51844 connected to 192.168.16.152 port 5201
[ ID] Interval           Transfer     Bitrate         Total Datagrams
[  5]   0.00-1.00   sec  58.2 MBytes   488 Mbits/sec  43230
[  5]   1.00-2.00   sec  60.9 MBytes   511 Mbits/sec  45216
[  5]   2.00-3.00   sec  59.6 MBytes   500 Mbits/sec  44289
[  5]   3.00-4.00   sec  59.5 MBytes   499 Mbits/sec  44183
[  5]   4.00-5.00   sec  58.3 MBytes   489 Mbits/sec  43279
[  5]   5.00-6.00   sec  60.5 MBytes   507 Mbits/sec  44919
[  5]   6.00-7.00   sec  59.6 MBytes   500 Mbits/sec  44242
[  5]   7.00-8.00   sec  60.2 MBytes   505 Mbits/sec  44708
[  5]   8.00-9.00   sec  58.4 MBytes   490 Mbits/sec  43391
[  5]   9.00-10.00  sec  60.1 MBytes   504 Mbits/sec  44626
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Jitter    Lost/Total Datagrams
[  5]   0.00-10.00  sec   595 MBytes   499 Mbits/sec  0.000 ms  0/442083 (0%)  sender
[  5]   0.00-10.04  sec   457 MBytes   382 Mbits/sec  0.180 ms  102488/442055 (23%)  receiver

iperf Done.

# ping 192.168.16.152 -c 10
PING 192.168.16.152 (192.168.16.152) 56(84) bytes of data.
64 bytes from 192.168.16.152: icmp_seq=1 ttl=63 time=0.575 ms
64 bytes from 192.168.16.152: icmp_seq=2 ttl=63 time=1.03 ms
64 bytes from 192.168.16.152: icmp_seq=3 ttl=63 time=0.903 ms
64 bytes from 192.168.16.152: icmp_seq=4 ttl=63 time=0.811 ms
64 bytes from 192.168.16.152: icmp_seq=5 ttl=63 time=0.711 ms
64 bytes from 192.168.16.152: icmp_seq=6 ttl=63 time=0.632 ms
64 bytes from 192.168.16.152: icmp_seq=7 ttl=63 time=0.784 ms
64 bytes from 192.168.16.152: icmp_seq=8 ttl=63 time=0.821 ms
64 bytes from 192.168.16.152: icmp_seq=9 ttl=63 time=0.748 ms
64 bytes from 192.168.16.152: icmp_seq=10 ttl=63 time=0.844 ms

--- 192.168.16.152 ping statistics ---
10 packets transmitted, 10 received, 0% packet loss, time 9103ms
rtt min/avg/max/mdev = 0.575/0.786/1.032/0.124 ms

iperf3 -c 192.168.16.152
iperf3 -c 192.168.16.152 -u -b 500M
UDP packet loss は、性能限界を比較するために意図的に負荷(500 Mbps)をかけて測定した値です。
ping 192.168.16.152 -c 10
Virtualbox VM上で実行している都合、xdp_attach_modeをgenericに設定した場合の測定値です。 genericモードはkernelレベルで実装されるため、性能向上には寄与しないことに注意して下さい。native(driverレベルの実装)またはoffload(NICレベルの実装)に設定すると、性能向上が期待できます。参考までに、XDPをサポートするドライバの一覧はこちらにあります。

これらの測定結果から、UPG-VPPがVirtualbox VM上でも比較的優れた性能を示しています。今回の測定は非常に単純な測定であり、Virtualbox VM間の測定ではあまり意味がないかもしれませんが、UPFの相対的な性能比較の観点から若干参考になるかもしれません。

最後に

本記事では、以下の技術を採用したオープンソースのUPFについて、簡単に性能を比較してみました。

VPP+DPDK
eBPF/XDP
GTP Linux kernel module
ユーザ空間におけるGTP処理(TUNnelインターフェース)
ユーザ空間におけるGTP処理(TAPインターフェース)

今回、性能測定に使用したツールをPacketRusherの開発者からご紹介頂き、丁度その頃、eBPF/XDP UFPのeUPFがFTUPに対応したことで他のUPFと同じNW構成で稼働できるようになったことから、幾つか主要な技術で実装されたUPFの性能比較を簡単に実施しました。ただ、測定環境はVirtualbox VMのため、各UPF VMのリソース条件を揃え易い半面、実性能の観点ではあまり参考にならないと考えています。なお、ネットワーク性能がUPF処理の頭打ちにならないよう、ネットワークアダプタにはvirtio-netを採用する等、若干考慮してNWを構成しました。そのため、今回の測定結果は、あくまでリソースを同一に揃えたUPFによる相対的な性能評価と位置付けています。実機のNICによるUPFの性能を検証する上で、少しでも参考になれれば幸いです。

最後に、元記事はGithubに書いたものです。HPE Developer BlogのPacketRusher紹介記事からもリンクして頂きました。

主な変更履歴

[2024.02.14] 初版。

You get articles that match your needs
You can efficiently read back useful information
You can use dark theme

What you can do with signing up
