cscの作法 その39

概要

cscの作法、調べてみた。
chartやってみた。

環境

.NETFramework4.8

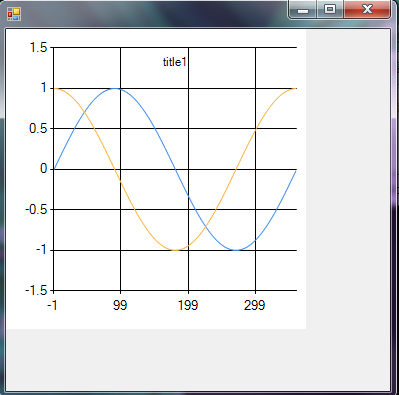

写真

コンパイル

csc chart1.cs /r:System.Windows.Forms.DataVisualization.dll

サンプルコード

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using System.Windows.Forms.DataVisualization.Charting;

namespace myapp
{
	class ChartSample1 {
		public partial class form1: Form {
			private Chart chart;
			public form1() {
				this.Size = new Size(400, 400);
				this.Load += new System.EventHandler(this.form1_Load);
			}
			private void form1_Load(object sender, EventArgs e) {
				this.chart = new Chart();
				chart.ChartAreas.Clear();
				chart.Titles.Clear();
				chart.Series.Clear();
				ChartArea area = new ChartArea("area1");
				Title title = new Title("title1");
				title.DockedToChartArea = "area1";
				Series series1 = new Series();
				Series series2 = new Series();
				series1.ChartType = SeriesChartType.Line;
				series2.ChartType = SeriesChartType.Line;
				for (int i = 0; i < 360; i++)
				{
					series1.Points.AddXY(i, Math.Sin(i * Math.PI / 180.0));
					series2.Points.AddXY(i, Math.Cos(i * Math.PI / 180.0));
				}
				series1.ChartArea = "area1";
				series2.ChartArea = "area1";
				chart.ChartAreas.Add(area);
				chart.Titles.Add(title);
				chart.Series.Add(series1);
				chart.Series.Add(series2);
				this.Controls.Add(this.chart);
			}
		}
		static void Main() {
			Application.Run(new form1());
		}
	}
}

以上。
