概要
ilasmでstack machineやってみた。
練習問題やってみた。
練習問題
ilasmをrom化せよ。
数９を四個使って、１から１５まで求めよ。

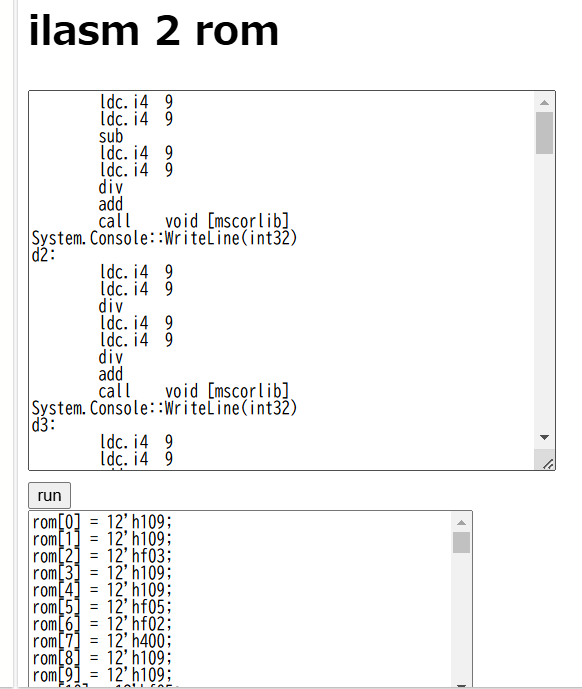

写真
サンプルコード
var out = document.getElementById("out");
var src = document.getElementById("src");
function hexs(val) {
var v = val.charCodeAt(0);
var w = v.toString(16);
w = "0000" + w;
code = w.substring(w.length - 2, w.length);
return code
}
function hex(val) {
var v = parseInt(val);
var w = v.toString(16);
w = "0000" + w;
code = w.substring(w.length - 2, w.length);
return code
}
function run() {
var str = src.value;
str = str.replace(/\t/g, " ");
str = str.replace(/ /g, " ");
str = str.replace(/ /g, " ");
str = str.replace(/ /g, " ");
var codes = str.split("\n");
var pc = 0;
var len = codes.length;
var i;
var label = {};
var res = "";
var adr = 1;
for (i = 0; i < len; i++)
{
if (codes[i].indexOf(":") > -1)
{
label[codes[i]] = adr;
}
else if (codes[i].indexOf("ldstr") > -1)
{
adr += 6;
}
else
{
adr++;
}
}
adr = 0;
while (i > 0)
{
var code = codes[pc].split(" ");
switch (code[1])
{
case "ldstr":
res += "rom[" + adr + "] = 12'h201;\n";
adr++;
res += "rom[" + adr + "] = 12'h2" + hexs(code[2][1]) + ";\n";
adr++;
res += "rom[" + adr + "] = 12'h2" + hexs(code[2][2]) + ";\n";
adr++;
res += "rom[" + adr + "] = 12'h2" + hexs(code[2][3]) + ";\n";
adr++;
res += "rom[" + adr + "] = 12'h2" + hexs(code[2][4]) + ";\n";
adr++;
res += "rom[" + adr + "] = 12'h200;\n";
pc++;
adr++;
break;
case "ldc.i4":
res += "rom[" + adr + "] = 12'h1" + hex(code[2]) + ";\n";
pc++;
adr++;
break;
case "stloc":
if (code[2] == "a")
res += "rom[" + adr + "] = 12'hf09;\n";
if (code[2] == "b")
res += "rom[" + adr + "] = 12'hf0b;\n";
pc++;
adr++;
break;
case "ldloc":
if (code[2] == "a")
res += "rom[" + adr + "] = 12'hf0a;\n";
if (code[2] == "b")
res += "rom[" + adr + "] = 12'hf0c;\n";
pc++;
adr++;
break;
case "call":
if (code[4] == "System.Console::WriteLine(int32)")
res += "rom[" + adr + "] = 12'h400;\n";
if (code[4] == "System.Console::WriteLine(string)")
res += "rom[" + adr + "] = 12'h500;\n";
pc++;
adr++;
break;
case "br":
res += "rom[" + adr + "] = 12'h9" + hex(label[code[2] + ":"]) + ";\n";
pc++;
adr++;
break;
case "brtrue":
res += "rom[" + adr + "] = 12'hb" + hex(label[code[2] + ":"]) + ";\n";
pc++;
adr++;
break;
case "brfalse":
res += "rom[" + adr + "] = 12'ha" + hex(label[code[2] + ":"]) + ";\n";
pc++;
adr++;
break;
case "bgt":
res += "rom[" + adr + "] = 12'h7" + hex(label[code[2] + ":"]) + ";\n";
pc++;
adr++;
break;
case "dup":
res += "rom[" + adr + "] = 12'hf00;\n";
pc++;
adr++;
break;
case "pop":
res += "rom[" + adr + "] = 12'hf01;\n";
pc++;
adr++;
break;
case "add":
res += "rom[" + adr + "] = 12'hf02;\n";
pc++;
adr++;
break;
case "mul":
res += "rom[" + adr + "] = 12'hf04;\n";
pc++;
adr++;
break;
case "sub":
res += "rom[" + adr + "] = 12'hf03;\n";
pc++;
adr++;
break;
case "div":
res += "rom[" + adr + "] = 12'hf05;\n";
pc++;
adr++;
break;
case "rem":
res += "rom[" + adr + "] = 12'hf06;\n";
pc++;
adr++;
break;
case "ret":
res += "rom[" + adr + "] = 12'h001;\n";
i = 0;
break;
case undefined:
pc++;
break;
default:
alert(code[1]);
pc++;
break;
}
}
out.value = res;
}
投入したソース
ldc.i4 9
ldc.i4 9
sub
ldc.i4 9
ldc.i4 9
div
add
call void [mscorlib] System.Console::WriteLine(int32)
d2:
ldc.i4 9
ldc.i4 9
div
ldc.i4 9
ldc.i4 9
div
add
call void [mscorlib] System.Console::WriteLine(int32)
d3:
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
add
ldc.i4 9
div
call void [mscorlib] System.Console::WriteLine(int32)
d4:
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
div
ldc.i4 9
pop
dup
add
call void [mscorlib] System.Console::WriteLine(int32)
d5:
ldc.i4 9
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
div
dup
add
sub
call void [mscorlib] System.Console::WriteLine(int32)
d6:
ldc.i4 9
dup
ldc.i4 9
add
ldc.i4 9
add
ldc.i4 9
div
sub
call void [mscorlib] System.Console::WriteLine(int32)
d7:
ldc.i4 9
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
div
sub
call void [mscorlib] System.Console::WriteLine(int32)
d8:
ldc.i4 9
ldc.i4 9
ldc.i4 9
div
sub
ldc.i4 9
pop
call void [mscorlib] System.Console::WriteLine(int32)
d9:
ldc.i4 9
ldc.i4 9
sub
ldc.i4 9
mul
ldc.i4 9
add
call void [mscorlib] System.Console::WriteLine(int32)
d10:
ldc.i4 9
ldc.i4 9
div
ldc.i4 9
add
ldc.i4 9
pop
call void [mscorlib] System.Console::WriteLine(int32)
d11:
ldc.i4 9
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
div
add
call void [mscorlib] System.Console::WriteLine(int32)
d12:
ldc.i4 9
dup
ldc.i4 9
ldc.i4 9
add
add
ldc.i4 9
div
add
call void [mscorlib] System.Console::WriteLine(int32)
d13:
ldc.i4 9
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
div
dup
add
add
call void [mscorlib] System.Console::WriteLine(int32)
d14:
ldc.i4 9
dup
ldc.i4 9
ldc.i4 9
add
ldc.i4 9
div
dup
add
sub
add
call void [mscorlib] System.Console::WriteLine(int32)
d15:
ldc.i4 9
dup
dup
ldc.i4 9
add
ldc.i4 9
add
ldc.i4 9
div
sub
add
call void [mscorlib] System.Console::WriteLine(int32)
ret
実行結果
rom[0] = 12'h109;
rom[1] = 12'h109;
rom[2] = 12'hf03;
rom[3] = 12'h109;
rom[4] = 12'h109;
rom[5] = 12'hf05;
rom[6] = 12'hf02;
rom[7] = 12'h400;
rom[8] = 12'h109;
rom[9] = 12'h109;
rom[10] = 12'hf05;
rom[11] = 12'h109;
rom[12] = 12'h109;
rom[13] = 12'hf05;
rom[14] = 12'hf02;
rom[15] = 12'h400;
rom[16] = 12'h109;
rom[17] = 12'h109;
rom[18] = 12'hf02;
rom[19] = 12'h109;
rom[20] = 12'hf02;
rom[21] = 12'h109;
rom[22] = 12'hf05;
rom[23] = 12'h400;
rom[24] = 12'h109;
rom[25] = 12'h109;
rom[26] = 12'hf02;
rom[27] = 12'h109;
rom[28] = 12'hf05;
rom[29] = 12'h109;
rom[30] = 12'hf01;
rom[31] = 12'hf00;
rom[32] = 12'hf02;
rom[33] = 12'h400;
rom[34] = 12'h109;
rom[35] = 12'h109;
rom[36] = 12'h109;
rom[37] = 12'hf02;
rom[38] = 12'h109;
rom[39] = 12'hf05;
rom[40] = 12'hf00;
rom[41] = 12'hf02;
rom[42] = 12'hf03;
rom[43] = 12'h400;
rom[44] = 12'h109;
rom[45] = 12'hf00;
rom[46] = 12'h109;
rom[47] = 12'hf02;
rom[48] = 12'h109;
rom[49] = 12'hf02;
rom[50] = 12'h109;
rom[51] = 12'hf05;
rom[52] = 12'hf03;
rom[53] = 12'h400;
rom[54] = 12'h109;
rom[55] = 12'h109;
rom[56] = 12'h109;
rom[57] = 12'hf02;
rom[58] = 12'h109;
rom[59] = 12'hf05;
rom[60] = 12'hf03;
rom[61] = 12'h400;
rom[62] = 12'h109;
rom[63] = 12'h109;
rom[64] = 12'h109;
rom[65] = 12'hf05;
rom[66] = 12'hf03;
rom[67] = 12'h109;
rom[68] = 12'hf01;
rom[69] = 12'h400;
rom[70] = 12'h109;
rom[71] = 12'h109;
rom[72] = 12'hf03;
rom[73] = 12'h109;
rom[74] = 12'hf04;
rom[75] = 12'h109;
rom[76] = 12'hf02;
rom[77] = 12'h400;
rom[78] = 12'h109;
rom[79] = 12'h109;
rom[80] = 12'hf05;
rom[81] = 12'h109;
rom[82] = 12'hf02;
rom[83] = 12'h109;
rom[84] = 12'hf01;
rom[85] = 12'h400;
rom[86] = 12'h109;
rom[87] = 12'h109;
rom[88] = 12'h109;
rom[89] = 12'hf02;
rom[90] = 12'h109;
rom[91] = 12'hf05;
rom[92] = 12'hf02;
rom[93] = 12'h400;
rom[94] = 12'h109;
rom[95] = 12'hf00;
rom[96] = 12'h109;
rom[97] = 12'h109;
rom[98] = 12'hf02;
rom[99] = 12'hf02;
rom[100] = 12'h109;
rom[101] = 12'hf05;
rom[102] = 12'hf02;
rom[103] = 12'h400;
rom[104] = 12'h109;
rom[105] = 12'h109;
rom[106] = 12'h109;
rom[107] = 12'hf02;
rom[108] = 12'h109;
rom[109] = 12'hf05;
rom[110] = 12'hf00;
rom[111] = 12'hf02;
rom[112] = 12'hf02;
rom[113] = 12'h400;
rom[114] = 12'h109;
rom[115] = 12'hf00;
rom[116] = 12'h109;
rom[117] = 12'h109;
rom[118] = 12'hf02;
rom[119] = 12'h109;
rom[120] = 12'hf05;
rom[121] = 12'hf00;
rom[122] = 12'hf02;
rom[123] = 12'hf03;
rom[124] = 12'hf02;
rom[125] = 12'h400;
rom[126] = 12'h109;
rom[127] = 12'hf00;
rom[128] = 12'hf00;
rom[129] = 12'h109;
rom[130] = 12'hf02;
rom[131] = 12'h109;
rom[132] = 12'hf02;
rom[133] = 12'h109;
rom[134] = 12'hf05;
rom[135] = 12'hf03;
rom[136] = 12'hf02;
rom[137] = 12'h400;
rom[138] = 12'h001;
成果物
以上。
