chainerの作法 その7

概要

chainaerの作法を調べてみた。
open-ai gymやってみた。

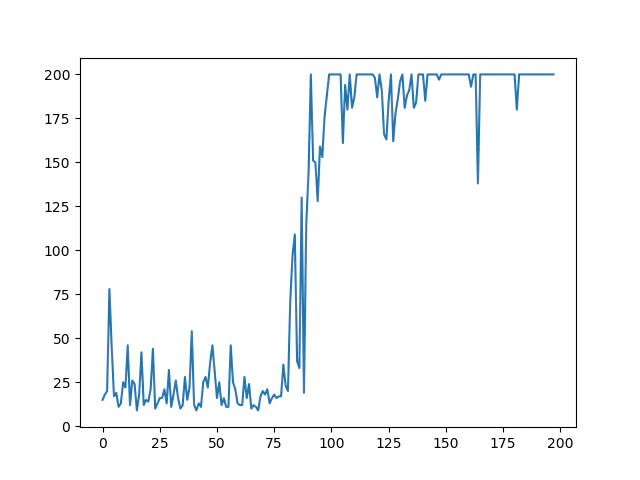

写真

サンプルコード

import collections
import copy
import random
import gym
import numpy as np
import chainer
from chainer import functions as F
from chainer import links as L
from chainer import optimizers, Chain, no_backprop_mode
import matplotlib.pyplot as plt


class QFunction(Chain):
	def __init__(self, obs_size, n_actions, n_units = 100):
		super(QFunction, self).__init__(l0 = L.Linear(obs_size, n_units), l1 = L.Linear(n_units, n_units), l2 = L.Linear(n_units, n_actions))
	def __call__(self, x):
		h = F.relu(self.l0(x))
		h = F.relu(self.l1(h))
		return self.l2(h)

def get_greedy_action(Q, obs):
	obs = Q.xp.asarray(obs[None], dtype = np.float32)
	with no_backprop_mode():
		q = Q(obs).data[0]
	return int(q.argmax())

def mean_clipped_loss(y, t):
	return F.mean(F.huber_loss(y, t, delta = 1.0, reduce = 'no'))

def update(Q, target_Q, opt, samples, gamma = 0.99, target_type = 'double_dqn'):
	xp = Q.xp
	obs = xp.asarray([sample[0] for sample in samples], dtype = np.float32)
	action = xp.asarray([sample[1] for sample in samples], dtype = np.int32)
	reward = xp.asarray([sample[2] for sample in samples], dtype = np.float32)
	done = xp.asarray([sample[3] for sample in samples], dtype = np.float32)
	obs_next = xp.asarray([sample[4] for sample in samples], dtype = np.float32)
	y = F.select_item(Q(obs), action)
	with no_backprop_mode():
		if target_type == 'dqn':
			next_q = F.max(target_Q(obs_next), axis = 1)
		elif target_type == 'double_dqn':
			next_q = F.select_item(target_Q(obs_next), F.argmax(Q(obs_next), axis = 1))
		else:
			raise ValueError('Unsupported target_type: {}'.format(target_type))
		target = reward + gamma * (1 - done) * next_q
	loss = mean_clipped_loss(y, target)
	Q.cleargrads()
	loss.backward()
	opt.update()

def main():
	env = gym.make('CartPole-v0')
	assert isinstance(env.observation_space, gym.spaces.Box)
	assert isinstance(env.action_space, gym.spaces.Discrete)
	obs_size = env.observation_space.low.size
	n_actions = env.action_space.n
	reward_threshold = env.spec.reward_threshold
	print (obs_size, n_actions, reward_threshold)
	if reward_threshold is not None:
		print ('{} defines "solving" as getting average reward of {} over 100 ' 'consecutive trials.'.format('CartPole-v0', reward_threshold))
	else:
		print ('{} is an unsolved environment, which means it does not have a ' 'specified reward threshold at which it\'s considered ' 'solved.'.format('CartPole-v0'))
	D = collections.deque(maxlen = 10 ** 6)
	Rs = collections.deque(maxlen = 100)
	iteration = 0
	Q = QFunction(obs_size, n_actions, n_units = 100)
	target_Q = copy.deepcopy(Q)
	opt = optimizers.Adam(eps = 1e-2)
	opt.setup(Q)
	reward_trend = []
	for episode in range(200):
		obs = env.reset()
		done = False
		R = 0.0
		timestep = 0
		while not done and timestep < env.spec.timestep_limit:
			env.render()
			epsilon = 1.0 if len(D) < 500 else max(0.01, np.interp(iteration, [0, 5000], [1.0, 0.01]))
			if np.random.rand() < epsilon:
				action = env.action_space.sample()
			else:
				action = get_greedy_action(Q, obs)
			new_obs, reward, done, _ = env.step(action)
			R += reward
			D.append((obs, action, reward * 1e-2, done, new_obs))
			obs = new_obs
			if len(D) >= 500:
				sample_indices = random.sample(range(len(D)), 64)
				samples = [D[i] for i in sample_indices]
				update(Q, target_Q, opt, samples, target_type = 'dqn')
			if iteration % 100 == 0:
				target_Q = copy.deepcopy(Q)
			iteration += 1
			timestep += 1
		Rs.append(R)
		reward_trend.append(R)
		average_R = np.mean(Rs)
		print ('episode: {} iteration: {} reward: {} average_R: {}'.format(episode, iteration, R, average_R))
		if reward_threshold is not None and average_R >= reward_threshold:
			print ('Solved {} by getting average reward of ' '{} >= {} over 100 consecutive episodes.'.format('CartPole-v0', average_R, reward_threshold))
			break
	plt.plot(reward_trend)
	plt.savefig("cart0.png")
	plt.show()

if __name__ == '__main__':
	main()

以上。
