概要　

windowsでiverilogやってみた。
cpu(kemu)見つけたので、アセンブラ、シミュレーター書いてみた。

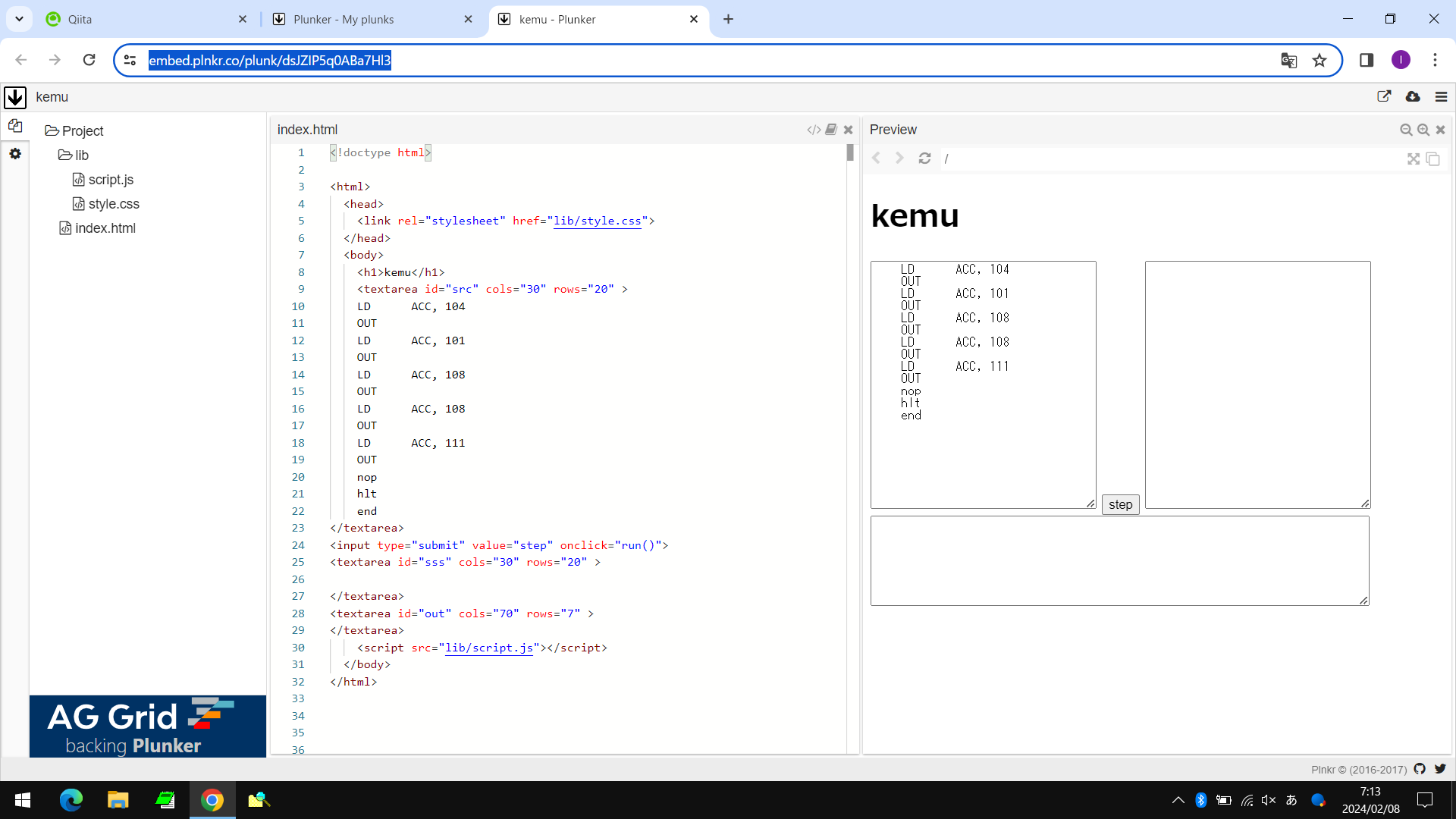

写真

投入したアセンブラ

「hello」を出力。

  LD      ACC, 104
  OUT
  LD      ACC, 101
  OUT
  LD      ACC, 108
  OUT
  LD      ACC, 108
  OUT
  LD      ACC, 111
  OUT
  nop
  HLT
  END

生成されたバイナリー

62 68 10 62 65 10 62 6c 10 62 6c 10 62 6f 10 00 0f

ステップ実行結果

pc acc flag out phase
01  00  00  00  01
01  00  00  00  02
02  00  00  00  03
02  68  00  00  00
pc acc flag out phase
03  68  00  00  01
03  68  00  00  02
03  68  00  68  03
03  68  00  68  00
pc acc flag out phase
04  68  00  68  01
04  68  00  68  02
05  68  00  68  03
05  65  00  68  00
pc acc flag out phase
06  65  00  68  01
06  65  00  68  02
06  65  00  65  03
06  65  00  65  00
pc acc flag out phase
07  65  00  65  01
07  65  00  65  02
08  65  00  65  03
08  6c  00  65  00
pc acc flag out phase
09  6c  00  65  01
09  6c  00  65  02
09  6c  00  6c  03
09  6c  00  6c  00
pc acc flag out phase
0a  6c  00  6c  01
0a  6c  00  6c  02
0b  6c  00  6c  03
0b  6c  00  6c  00
pc acc flag out phase
0c  6c  00  6c  01
0c  6c  00  6c  02
0c  6c  00  6c  03
0c  6c  00  6c  00
pc acc flag out phase
0d  6c  00  6c  01
0d  6c  00  6c  02
0e  6c  00  6c  03
0e  6f  00  6c  00
pc acc flag out phase
0f  6f  00  6c  01
0f  6f  00  6c  02
0f  6f  00  6f  03
0f  6f  00  6f  00
pc acc flag out phase
10  6f  00  6f  01
10  6f  00  6f  02
10  6f  00  6f  00
pc acc flag out phase
11  6f  00  6f  01
11  6f  00  6f  02
11  6f  00  6f  00
pc acc flag out phase
11  6f  00  6f  00
