windows11で、sketchup6 その87

概要

windows11に、sketchup6を入れてみた。
rubyで、3Dを書く。
練習問題やってみた。

練習問題

時計を動かせ。

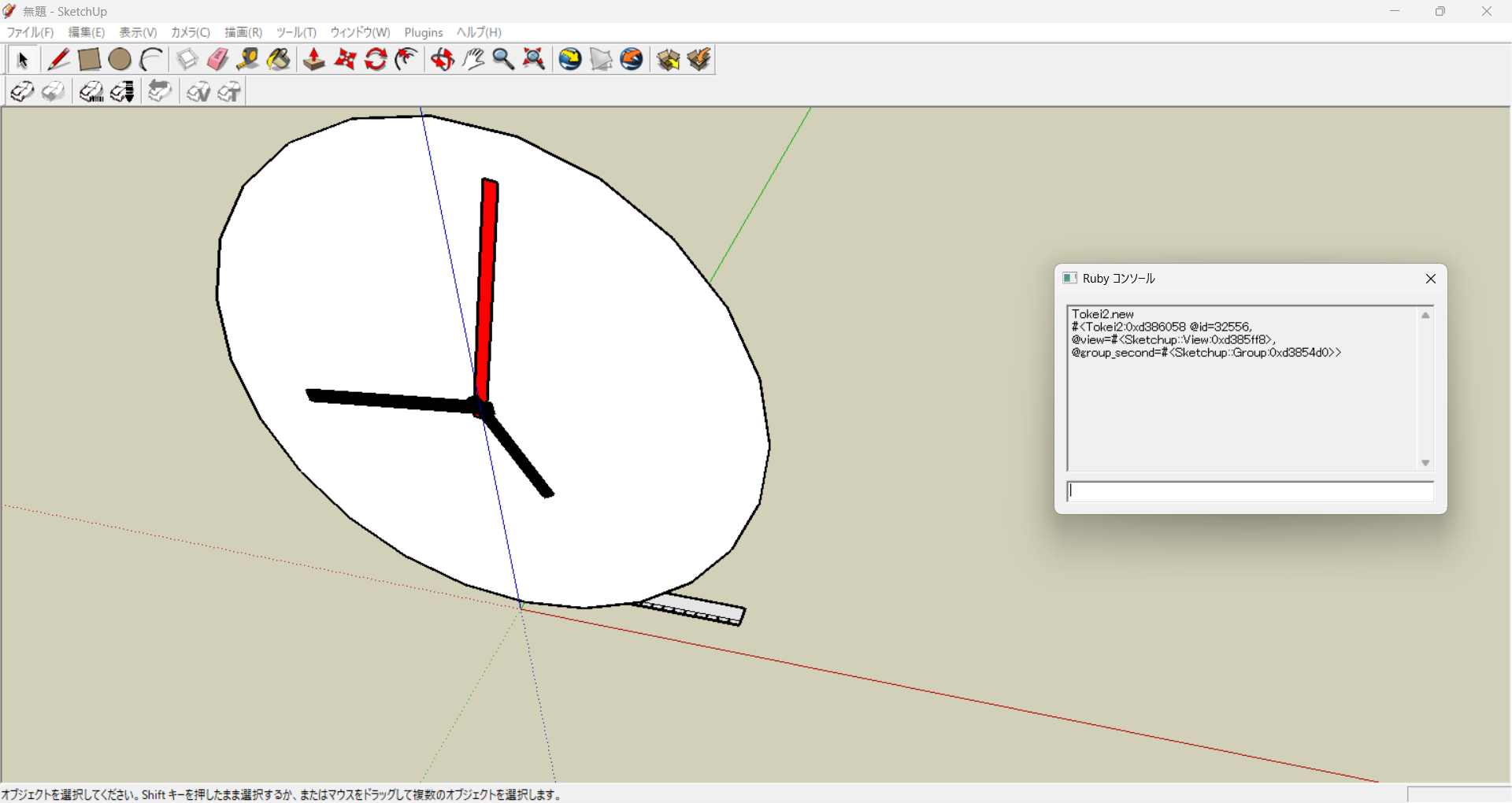

写真

サンプルコード

起動　Tokei2.new

class Tokei2
	def initialize
		model = Sketchup.active_model
		entities = model.active_entities
		@view = model.active_view
		@id = 0
		group_circle = entities.add_group
		circle = group_circle.entities.add_circle [0, 1, 22], [0, 1, 0], 22
		circle_face = group_circle.entities.add_face circle
		circle_face.pushpull -0.1
		depth = 10
		width = 1
		pts = []
		pts[0] = [0, 0, 0]
		pts[1] = [width, 0, 0]
		pts[2] = [width, 0, depth]
		pts[3] = [0, 0, depth]
		group_hour = entities.add_group
		face_hour = group_hour.entities.add_face pts
		face_hour.material = "black"
		face_hour.pushpull 0.015
		trans = Geom::Transformation.translation [-0.5, 0, 21]
		group_hour.transform! trans
		rot = Geom::Transformation.new [0, 0, 22], [0, 1, 0], Time.now.hour * 30.degrees
		group_hour.transform! rot
		depth = 16
		width = 1
		pts = []
		pts[0] = [0, 0, 0]
		pts[1] = [width, 0, 0]
		pts[2] = [width, 0, depth]
		pts[3] = [0, 0, depth]
		group_minute = entities.add_group
		face_minute = group_minute.entities.add_face pts
		face_minute.material = "black"
		face_minute.pushpull 0.015
		trans = Geom::Transformation.translation [-0.5, 0, 21]
		group_minute.transform! trans
		rot = Geom::Transformation.new [0, 0, 22], [0, 1, 0], Time.now.min * 6.degrees
		group_minute.transform! rot
		depth = 20
		width = 1
		pts = []
		pts[0] = [0, 0, 0]
		pts[1] = [width, 0, 0]
		pts[2] = [width, 0, depth]
		pts[3] = [0, 0, depth]
		@group_second = entities.add_group
		face_second = @group_second.entities.add_face pts
		face_second.material = "red"
		face_second.pushpull 0.01
		trans = Geom::Transformation.translation [-0.5, 0, 21]
		@group_second.transform! trans
		rot = Geom::Transformation.new [0, 0, 22], [0, 1, 0], Time.now.sec * 6.degrees
		@group_second.transform! rot
		@id = UI.start_timer(1.0, true) {
			tick
		}
	end
	def tick
		rot = Geom::Transformation.new [0, 0, 22], [0, 1, 0], 6.degrees
		@group_second.transform! rot
		@view.invalidate
	end
end

以上。
