はじめに

RAID 6 でシステム構築することになったから、テスト構築時のメモ

【2024年01月版】要点だけ覚える初心者向け RAID メモ【RAID0, RAID1, RAID5, RAID6, RAID10, RAID50, RAID60】 にまとめ記事があります。

環境

macOS 上の VMWare Fusion でテスト的に構築。
(Parallelsだと、6台のディスクを追加できなかった)
ディスクは、NVMeを 6台で、OSを含めると 7台を使用。
Ubuntu22.04 は ARM版、AMD版でも変わらない。

RAID 6 は、mdadm を使用して構築する。

$ uname -a
Linux **** 5.15.0-92-generic #102-Ubuntu SMP Wed Jan 10 09:37:39 UTC 2024 aarch64 aarch64 aarch64 GNU/Linux
$ cat /etc/os-release
PRETTY_NAME="Ubuntu 22.04.3 LTS"
NAME="Ubuntu"
VERSION_ID="22.04"
VERSION="22.04.3 LTS (Jammy Jellyfish)"
VERSION_CODENAME=jammy
ID=ubuntu
ID_LIKE=debian
HOME_URL="https://www.ubuntu.com/"
SUPPORT_URL="https://help.ubuntu.com/"
BUG_REPORT_URL="https://bugs.launchpad.net/ubuntu/"
PRIVACY_POLICY_URL="https://www.ubuntu.com/legal/terms-and-policies/privacy-policy"
UBUNTU_CODENAME=jammy
$ cat /etc/lsb-release
DISTRIB_ID=Ubuntu
DISTRIB_RELEASE=22.04
DISTRIB_CODENAME=jammy
DISTRIB_DESCRIPTION="Ubuntu 22.04.3 LTS"

手順

作成

• OS上で、OS以外の 4 つ以上のディスクを認識させる、今回は active に 4台、 standby に 2台の合計 6台を使用
• RAID 6 の RAIDアレイ を作成
• RAIDアレイに ホットスペアを追加
• 構成情報を出力して、mdadm の設定ファイルを更新
• RAIDアレイがシステム起動時に利用可能となるように initramfs を更新
• 物理ボリュームの作成
• ボリュームグループの作成
• 論理ボリュームの作成
• ファイルシステムの作成
• マウントポイントの作成
• マウント

障害復旧

• シミュレートでディスクトラブルを発生させ、自動的にリビルドされることを確認する
• ディスクトラブルが発生したディスクをRAIDアレイから外す
• 新たなスタンバイディスクをRAIDアレイに追加する

削除

• アンマウント
• 論理ボリュームを削除
• ボリュームグループを削除
• 物理ボリュームを削除
• RAIDアレイを停止
• 自動マウントの設定を削除
• mdadm の設定ファイルを更新
• initramfs を更新

やりかた

準備

• VMWare Fusion に Ubuntu22.04 の Server を通常インストール

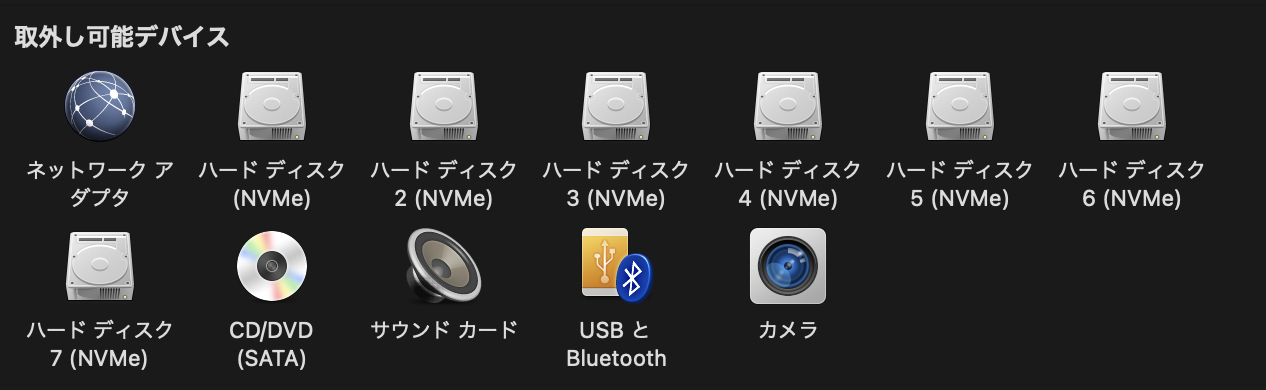

• VMWare Fusion の設定から、HDD(NVMe)を 6つ割り当てる

デバイスを確認

HDDデバイスとして、nvme のディスクを 6つ割り当て済み

$ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE MOUNTPOINTS
  :
  :
nvme0n2     259:4    0     2G  0 disk
nvme0n3     259:5    0     2G  0 disk
nvme0n4     259:6    0     2G  0 disk
nvme0n5     259:7    0     2G  0 disk
nvme0n6     259:8    0     2G  0 disk
nvme0n7     259:9    0     2G  0 disk
$ cat /proc/mdstat
Personalities : [linear] [multipath] [raid0] [raid1] [raid6] [raid5] [raid4] [raid10]
unused devices: <none>

RAID 6 の RAIDアレイ を作成

RAIDアレイ /dev/md0 を作成する。active となるディスクを指定する。

sudo mdadm --create --verbose /dev/md0 --level=6 --raid-devices=4 /dev/nvme0n2 /dev/nvme0n3 /dev/nvme0n4 /dev/nvme0n5

作成中。

$ cat /proc/mdstat
Personalities : [linear] [multipath] [raid0] [raid1] [raid6] [raid5] [raid4] [raid10]
md0 : active raid6 nvme0n5[3] nvme0n4[2] nvme0n3[1] nvme0n2[0]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]
      [======>..............]  resync = 32.9% (689340/2094080) finish=0.1min speed=172335K/sec

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 4
       Persistence : Superblock is persistent

       Update Time : Fri Jan 26 06:14:23 2024
             State : clean
    Active Devices : 4
   Working Devices : 4
    Failed Devices : 0
     Spare Devices : 0

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 17

    Number   Major   Minor   RaidDevice State
       0     259        4        0      active sync   /dev/nvme0n2
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

作成完了。RAIDアレイ /dev/md0 が作成されている。

$ cat /proc/mdstat
Personalities : [linear] [multipath] [raid0] [raid1] [raid6] [raid5] [raid4] [raid10]
md0 : active raid6 nvme0n5[3] nvme0n4[2] nvme0n3[1] nvme0n2[0]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 4
       Persistence : Superblock is persistent

       Update Time : Fri Jan 26 06:14:23 2024
             State : clean
    Active Devices : 4
   Working Devices : 4
    Failed Devices : 0
     Spare Devices : 0

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 17

    Number   Major   Minor   RaidDevice State
       0     259        4        0      active sync   /dev/nvme0n2
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

ログの確認

$ sudo dmesg --ctime
[Fri Jan 26 08:18:20 2024] md/raid:md0: not clean -- starting background reconstruction
[Fri Jan 26 08:18:20 2024] md/raid:md0: device nvme0n5 operational as raid disk 3
[Fri Jan 26 08:18:20 2024] md/raid:md0: device nvme0n4 operational as raid disk 2
[Fri Jan 26 08:18:20 2024] md/raid:md0: device nvme0n3 operational as raid disk 1
[Fri Jan 26 08:18:20 2024] md/raid:md0: device nvme0n2 operational as raid disk 0
[Fri Jan 26 08:18:20 2024] md/raid:md0: raid level 6 active with 4 out of 4 devices, algorithm 2
[Fri Jan 26 08:18:20 2024] md0: detected capacity change from 0 to 8376320
[Fri Jan 26 08:18:20 2024] md: resync of RAID array md0
[Fri Jan 26 08:18:31 2024] md: md0: resync done.
$ sudo journalctl
Jan 26 08:18:21 ha06 kernel: md/raid:md0: not clean -- starting background reconstruction
Jan 26 08:18:21 ha06 kernel: md/raid:md0: device nvme0n5 operational as raid disk 3
Jan 26 08:18:21 ha06 kernel: md/raid:md0: device nvme0n4 operational as raid disk 2
Jan 26 08:18:21 ha06 kernel: md/raid:md0: device nvme0n3 operational as raid disk 1
Jan 26 08:18:21 ha06 kernel: md/raid:md0: device nvme0n2 operational as raid disk 0
Jan 26 08:18:21 ha06 kernel: md/raid:md0: raid level 6 active with 4 out of 4 devices, algorithm 2
Jan 26 08:18:21 ha06 kernel: md0: detected capacity change from 0 to 8376320
Jan 26 08:18:21 ha06 kernel: md: resync of RAID array md0
Jan 26 08:18:21 ha06 systemd[1]: Started MD array monitor.
Jan 26 08:18:32 ha06 kernel: md: md0: resync done.

RAIDアレイに ホットスペアを追加

standby となるディスクを指定する

$ sudo mdadm --manage /dev/md0 --add /dev/nvme0n6 /dev/nvme0n7
mdadm: added /dev/nvme0n6
mdadm: added /dev/nvme0n7
$ cat /proc/mdstat
Personalities : [linear] [multipath] [raid0] [raid1] [raid6] [raid5] [raid4] [raid10]
md0 : active raid6 nvme0n7[5](S) nvme0n6[4](S) nvme0n5[3] nvme0n4[2] nvme0n3[1] nvme0n2[0]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 6
       Persistence : Superblock is persistent

       Update Time : Fri Jan 26 06:17:38 2024
             State : clean
    Active Devices : 4
   Working Devices : 6
    Failed Devices : 0
     Spare Devices : 2

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 19

    Number   Major   Minor   RaidDevice State
       0     259        4        0      active sync   /dev/nvme0n2
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

       4     259        8        -      spare   /dev/nvme0n6
       5     259        9        -      spare   /dev/nvme0n7
$ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINTS
  :
  :
nvme0n2     259:4    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n3     259:5    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n4     259:6    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n5     259:7    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n6     259:8    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n7     259:9    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6

構成情報を出力して、mdadm の設定ファイルを更新

$ sudo mdadm --detail --scan | sudo tee -a /etc/mdadm/mdadm.conf
$ cat /etc/mdadm/mdadm.conf
 :
 :
# This configuration was auto-generated on Thu, 10 Aug 2023 00:29:22 +0000 by mkconf
ARRAY /dev/md0 metadata=1.2 spares=2 name=****:0 UUID=********:********:********:********

RAIDアレイがシステム起動時に利用可能となるように initramfs を更新

$ sudo update-initramfs -u
update-initramfs: Generating /boot/initrd.img-5.15.0-92-generic

再起動しても　RAIDアレイ /dev/md0 が利用できることを確認

$ sudo reboot
  :
  :
$ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINTS
  :
  :
nvme0n2     259:4    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n3     259:5    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n4     259:6    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n5     259:7    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n6     259:8    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
nvme0n7     259:9    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
$ cat /proc/mdstat
Personalities : [raid6] [raid5] [raid4] [linear] [multipath] [raid0] [raid1] [raid10]
md0 : active raid6 nvme0n4[2] nvme0n5[3] nvme0n6[4](S) nvme0n7[5](S) nvme0n2[0] nvme0n3[1]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 6
       Persistence : Superblock is persistent

       Update Time : Fri Jan 26 06:17:38 2024
             State : clean
    Active Devices : 4
   Working Devices : 6
    Failed Devices : 0
     Spare Devices : 2

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 19

    Number   Major   Minor   RaidDevice State
       0     259        4        0      active sync   /dev/nvme0n2
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

       4     259        8        -      spare   /dev/nvme0n6
       5     259        9        -      spare   /dev/nvme0n7

物理ボリュームの作成

$ sudo pvcreate /dev/md0
  Physical volume "/dev/md0" successfully created.

ボリュームグループの作成

$ sudo vgcreate vg1 /dev/md0
  Volume group "vg1" successfully created

論理ボリュームの作成

$ sudo lvcreate -l100%FREE -n lv1 vg1
  Logical volume "lv1" created.

物理ボリューム・ボリュームグループ・論理ボリュームの確認

$ sudo pvs
  PV             VG  Fmt  Attr PSize   PFree
  /dev/md0       vg1 lvm2 a--    3.99g    0
$ sudo vgs
  VG  #PV #LV #SN Attr   VSize   VFree
  vg1   1   1   0 wz--n-   3.99g    0
$ sudo lvs
  LV   VG  Attr       LSize   Pool Origin Data%  Meta%  Move Log Cpy%Sync Convert
  lv1  vg1 -wi-a-----   3.99g

ファイルシステムの作成

$ sudo mkfs.ext4 /dev/vg1/lv1
mke2fs 1.46.5 (30-Dec-2021)
Creating filesystem with 1046528 4k blocks and 261632 inodes
Filesystem UUID: 9d61abc8-2882-49ab-8de1-0d8df71623e0
Superblock backups stored on blocks:
	32768, 98304, 163840, 229376, 294912, 819200, 884736

Allocating group tables: done
Writing inode tables: done
Creating journal (16384 blocks): done
Writing superblocks and filesystem accounting information: done

マウントポイントの作成

$ sudo mkdir -p /mnt/raid6

自動マウントの設定

blkid で UUID を取得して、/etc/fstab に書き込む

$ sudo blkid /dev/vg1/lv1
/dev/vg1/lv1: UUID="********-****-****-****-************" BLOCK_SIZE="4096" TYPE="ext4"
$ sudo vim /etc/fstab
$ cat /etc/fstab
 :
 :
 :
UUID=********-****-****-****-************ /mnt/raid6 ext4 defaults 0 0

マウント

$ sudo mount -a
$ df -h
Filesystem           Size  Used Avail Use% Mounted on
  :
  :
/dev/mapper/vg1-lv1  3.9G   24K  3.7G   1% /mnt/raid6
$ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINTS
  :
  :
nvme0n2     259:4    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n3     259:5    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n4     259:6    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n5     259:7    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n6     259:8    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n7     259:9    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6

書き込み確認

$ df -h
Filesystem           Size  Used Avail Use% Mounted on
  :
  :
/dev/mapper/vg1-lv1  3.9G   24K  3.7G   1% /mnt/raid6
$ sudo dd if=/dev/random of=/mnt/raid6/test.dat bs=1M status=progress
4093640704 bytes (4.1 GB, 3.8 GiB) copied, 8 s, 512 MB/s
dd: error writing '/mnt/raid6/test.dat': No space left on device
3928+0 records in
3927+0 records out
4118343680 bytes (4.1 GB, 3.8 GiB) copied, 8.05844 s, 511 MB/s
$ df -h
Filesystem           Size  Used Avail Use% Mounted on
  :
  :
/dev/mapper/vg1-lv1  3.9G  3.9G     0 100% /mnt/raid6
$ sudo rm /mnt/raid6/test.dat
$ df -h
Filesystem           Size  Used Avail Use% Mounted on
  :
  :
/dev/mapper/vg1-lv1  3.9G   24K  3.7G   1% /mnt/raid6
$ cd /mnt/raid6
$ sudo f3write ./
F3 write 8.0
Copyright (C) 2010 Digirati Internet LTDA.
This is free software; see the source for copying conditions.

Free space: 3.85 GB
Creating file 1.h2w ... OK!
Creating file 2.h2w ... OK!
Creating file 3.h2w ... OK!
Creating file 4.h2w ... OK!
Free space: 16.00 MB
Average writing speed: 522.84 MB/s
$ sudo f3read ./
F3 read 8.0
Copyright (C) 2010 Digirati Internet LTDA.
This is free software; see the source for copying conditions.

                  SECTORS      ok/corrupted/changed/overwritten
Validating file 1.h2w ... 2097152/        0/      0/      0
Validating file 2.h2w ... 2097152/        0/      0/      0
Validating file 3.h2w ... 2097152/        0/      0/      0
Validating file 4.h2w ... 1752136/        0/      0/      0

  Data OK: 3.84 GB (8043592 sectors)
Data LOST: 0.00 Byte (0 sectors)
	       Corrupted: 0.00 Byte (0 sectors)
	Slightly changed: 0.00 Byte (0 sectors)
	     Overwritten: 0.00 Byte (0 sectors)
Average reading speed: 1.20 GB/s

障害復旧

シミュレートでディスクトラブルを発生させ、自動的にリビルドされることを確認

$ sudo mdadm /dev/md0 --fail /dev/nvme0n2
mdadm: set /dev/nvme0n2 faulty in /dev/md0

リビルド中。

$ cat /proc/mdstat
Personalities : [raid6] [raid5] [raid4] [linear] [multipath] [raid0] [raid1] [raid10]
md0 : active raid6 nvme0n4[2] nvme0n5[3] nvme0n6[4] nvme0n7[5](S) nvme0n2[0](F) nvme0n3[1]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/3] [_UUU]
      [=======>.............]  recovery = 38.4% (804736/2094080) finish=0.1min speed=201184K/sec

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 6
       Persistence : Superblock is persistent

       Update Time : Thu Jan 25 21:59:13 2024
             State : clean, degraded, recovering
    Active Devices : 3
   Working Devices : 5
    Failed Devices : 1
     Spare Devices : 2

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

    Rebuild Status : 76% complete

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 33

    Number   Major   Minor   RaidDevice State
       4     259        8        0      spare rebuilding   /dev/nvme0n6
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

       0     259        4        -      faulty   /dev/nvme0n2
       5     259        9        -      spare   /dev/nvme0n7

リビルド完了。active なディスクに、/dev/nvme0n6 が含まれ、faulty なディスクに /dev/nvme0n2 が含まれている。

$ cat /proc/mdstat
Personalities : [raid6] [raid5] [raid4] [linear] [multipath] [raid0] [raid1] [raid10]
md0 : active raid6 nvme0n4[2] nvme0n5[3] nvme0n6[4] nvme0n7[5](S) nvme0n2[0](F) nvme0n3[1]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 6
       Persistence : Superblock is persistent

       Update Time : Thu Jan 25 21:59:16 2024
             State : clean
    Active Devices : 4
   Working Devices : 5
    Failed Devices : 1
     Spare Devices : 1

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 38

    Number   Major   Minor   RaidDevice State
       4     259        8        0      active sync   /dev/nvme0n6
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

       0     259        4        -      faulty   /dev/nvme0n2
       5     259        9        -      spare   /dev/nvme0n7

ログの確認

mdadm が障害時にメールを送ろうとしてる。
/etc/mdadm/mdadm.conf の MAILADDR root で設定しておくとメールが飛ばせる。

$ sudo dmesg --ctime
  :
  :
[Fri Jan 26 08:29:48 2024] md/raid:md0: Disk failure on nvme0n2, disabling device.
[Fri Jan 26 08:29:48 2024] md/raid:md0: Operation continuing on 3 devices.
[Fri Jan 26 08:29:48 2024] md: recovery of RAID array md0
[Fri Jan 26 08:29:58 2024] md: md0: recovery done.
$ sudo journalctl
  :
  :
Jan 26 08:29:49 ha06 kernel: md/raid:md0: Disk failure on nvme0n2, disabling device.
Jan 26 08:29:49 ha06 kernel: md/raid:md0: Operation continuing on 3 devices.
Jan 26 08:29:49 ha06 mdadm[1480]: sh: 1: /usr/sbin/sendmail: not found
Jan 26 08:29:49 ha06 kernel: md: recovery of RAID array md0
Jan 26 08:29:59 ha06 kernel: md: md0: recovery done.

リビルド確認

$ sudo f3read ./
F3 read 8.0
Copyright (C) 2010 Digirati Internet LTDA.
This is free software; see the source for copying conditions.

                  SECTORS      ok/corrupted/changed/overwritten
Validating file 1.h2w ... 2097152/        0/      0/      0
Validating file 2.h2w ... 2097152/        0/      0/      0
Validating file 3.h2w ... 2097152/        0/      0/      0
Validating file 4.h2w ... 1752136/        0/      0/      0

  Data OK: 3.84 GB (8043592 sectors)
Data LOST: 0.00 Byte (0 sectors)
	       Corrupted: 0.00 Byte (0 sectors)
	Slightly changed: 0.00 Byte (0 sectors)
	     Overwritten: 0.00 Byte (0 sectors)
Average reading speed: 357.17 MB/s

ディスクトラブルが発生したディスクをRAIDアレイから外す

$ sudo mdadm /dev/md0 --remove /dev/nvme0n2
mdadm: hot removed /dev/nvme0n2 from /dev/md0
$ cat /proc/mdstat
Personalities : [raid6] [raid5] [raid4] [linear] [multipath] [raid0] [raid1] [raid10]
md0 : active raid6 nvme0n4[2] nvme0n5[3] nvme0n6[4] nvme0n7[5](S) nvme0n3[1]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

unused devices: <none>
sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 5
       Persistence : Superblock is persistent

       Update Time : Thu Jan 25 22:10:59 2024
             State : clean
    Active Devices : 4
   Working Devices : 5
    Failed Devices : 0
     Spare Devices : 1

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 39

    Number   Major   Minor   RaidDevice State
       4     259        8        0      active sync   /dev/nvme0n6
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

       5     259        9        -      spare   /dev/nvme0n7
$ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE  MOUNTPOINTS
  :
  :
nvme0n2     259:4    0     2G  0 disk
nvme0n3     259:5    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n4     259:6    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n5     259:7    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n6     259:8    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6
nvme0n7     259:9    0     2G  0 disk
└─md0         9:0    0     4G  0 raid6
  └─vg1-lv1 253:1    0     4G  0 lvm   /mnt/raid6

新たなスタンバイディスクをRAIDアレイに追加する

/dev/nvme0n2 は取り替えたものとする。

$ sudo mdadm /dev/md0 --add /dev/nvme0n2
$ cat /proc/mdstat
Personalities : [raid6] [raid5] [raid4] [linear] [multipath] [raid0] [raid1] [raid10]
md0 : active raid6 nvme0n2[6](S) nvme0n4[2] nvme0n5[3] nvme0n6[4] nvme0n7[5](S) nvme0n3[1]
      4188160 blocks super 1.2 level 6, 512k chunk, algorithm 2 [4/4] [UUUU]

unused devices: <none>
$ sudo mdadm --detail /dev/md0
/dev/md0:
           Version : 1.2
     Creation Time : Fri Jan 26 06:14:13 2024
        Raid Level : raid6
        Array Size : 4188160 (3.99 GiB 4.29 GB)
     Used Dev Size : 2094080 (2045.00 MiB 2144.34 MB)
      Raid Devices : 4
     Total Devices : 6
       Persistence : Superblock is persistent

       Update Time : Thu Jan 25 22:16:09 2024
             State : clean
    Active Devices : 4
   Working Devices : 6
    Failed Devices : 0
     Spare Devices : 2

            Layout : left-symmetric
        Chunk Size : 512K

Consistency Policy : resync

              Name : ****:0  (local to host ****)
              UUID : ********:********:********:********
            Events : 40

    Number   Major   Minor   RaidDevice State
       4     259        8        0      active sync   /dev/nvme0n6
       1     259        5        1      active sync   /dev/nvme0n3
       2     259        6        2      active sync   /dev/nvme0n4
       3     259        7        3      active sync   /dev/nvme0n5

       5     259        9        -      spare   /dev/nvme0n7
       6     259        4        -      spare   /dev/nvme0n2

削除

アンマウント

umount: /mnt/raid6: target is busy. となる場合は、fuser /mnt/raid6 でリソースを使用しているプロセスを特定して開放する。

$ sudo umount /dev/vg1/lv1

論理ボリュームを削除

$ sudo lvremove vg1/lv1
Do you really want to remove and DISCARD active logical volume vg1/lv1? [y/n]: y
  Logical volume "lv1" successfully removed

ボリュームグループを削除

$ sudo vgremove vg1
  Volume group "vg1" successfully removed

物理ボリュームを削除

$ sudo pvremove /dev/md0
  Labels on physical volume "/dev/md0" successfully wiped.

RAIDアレイを停止

$ sudo mdadm --stop /dev/md0
mdadm: stopped /dev/md0
$ sudo mdadm --zero-superblock /dev/nvme0n2 /dev/nvme0n3 /dev/nvme0n4 /dev/nvme0n5 /dev/nvme0n6 /dev/nvme0n7

削除確認

$ lsblk
NAME        MAJ:MIN RM   SIZE RO TYPE MOUNTPOINTS
  :
  :
nvme0n2     259:4    0     2G  0 disk
nvme0n3     259:5    0     2G  0 disk
nvme0n4     259:6    0     2G  0 disk
nvme0n5     259:7    0     2G  0 disk
nvme0n6     259:8    0     2G  0 disk
nvme0n7     259:9    0     2G  0 disk

自動マウントの設定を削除

/mnt/raid6 の行を削除する

$ sudo vim /etc/fstab

mdadm の設定ファイルを更新

ARRAY /dev/md0 の行を削除する

$ sudo vim /etc/mdadm/mdadm.conf

initramfs を更新

$ sudo update-initramfs -u

再起動

自動マウントの設定の削除を忘れていると、起動が途中でとまるので注意

さいごに

かんたんでしたね
