Yocto で RaspberryPi3 OS を3種類の方法で build する

More than 3 years have passed since last update.

RaspberryPi3 の OS を Yocto でビルドします。
2017年夏時点で何種類かの OS がビルド出来るのでまとめます。
#他にも知ってるよという方は教えて頂ければ幸いです。

動機・この記事の重視した点

動機は以下を満たす RaspberryPi3 用の OS を作りたかったためです。
試行錯誤し、結果何種類か作ったのでまとめて記事にします。

  • (Raspbian ではなく Yocto でビルドし)カスタマイズ出来ること(ライブラリを追加したかったり、 gcc の version を決め打ちしたかったり。この辺の「Yocto の local.conf のいじり方」を別途記事にする需要ありますかねぇ?)
  • GUI が存在すること
  • Yocto の SDK が作成出来ること

用語

用語 意味
SDK Yocto 的クロスビルド環境 ラズパイ上で動作するアプリを Ubuntu PC でクロスビルドするときには必要。ホストビルド(ラズパイで動作するアプリをラズパイでビルド)するだけなら不要

種類

今回3種類ビルドします。
好きなものを使ってください。

その1:CUI

$ bitbake rpi-basic-image

その2:GUI。X11

$ bitbake core-image-sato

その3:GUI。Wayland/Weston(desktop-shell)

$ bitbake core-image-weston

スクリーンショット

rpi-basic-image (CUI)

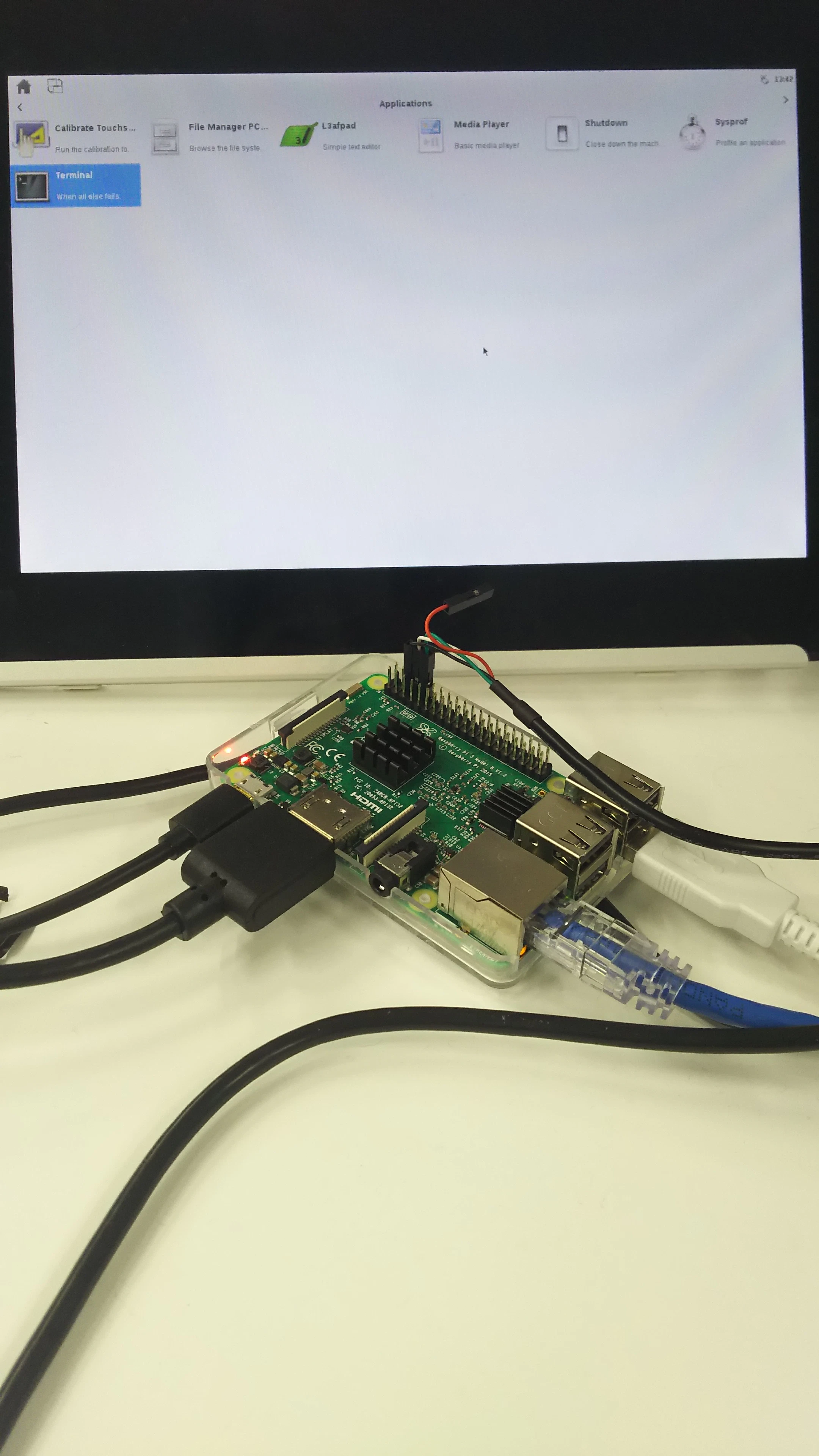

core-image-sato (GUI, X11)


core-image-weston (GUI, Wayland/Weston(desktop-shell))

DSC_0001 (1).JPG

環境

PC
OS: Ubuntu 14.04
CPU: Intel Core i7-4770 CPU @ 3.40GHz × 8
RAM: 15.6 GB
Disk: SSD

RaspberryPi3

ビルドと実行

rpi-basic-image (CUI)

ビルド

$ sudo apt-get install gawk wget git-core diffstat unzip texinfo gcc-multilib build-essential chrpath socat libsdl1.2-dev xterm
$ git clone git://git.yoctoproject.org/poky
$ cd poky
$ git checkout pyro // 現時点の最新 stable。オリジナルの記事は morty ブランチを使用。
Branch pyro set up to track remote branch pyro from origin.
Switched to a new branch 'pyro'
$ git clone -b pyro git://git.openembedded.org/openembedded-core
$ git clone -b pyro git://git.openembedded.org/meta-openembedded
$ git clone -b pyro git://git.yoctoproject.org/meta-raspberrypi
$ ../bitbake/bin/bitbake-layers add-layer ../meta-yocto
$ ../bitbake/bin/bitbake-layers add-layer ../meta-raspberrypi
$ source oe-init-build-env

You had no conf/local.conf file. This configuration file has therefore been
created for you with some default values. You may wish to edit it to, for
example, select a different MACHINE (target hardware). See conf/local.conf
for more information as common configuration options are commented.

You had no conf/bblayers.conf file. This configuration file has therefore been
created for you with some default values. To add additional metadata layers
into your configuration please add entries to conf/bblayers.conf.

The Yocto Project has extensive documentation about OE including a reference
manual which can be found at:
    http://yoctoproject.org/documentation

For more information about OpenEmbedded see their website:
    http://www.openembedded.org/

### Shell environment set up for builds. ###

You can now run 'bitbake <target>'

Common targets are:
    core-image-minimal
    core-image-sato
    meta-toolchain
    meta-ide-support

You can also run generated qemu images with a command like 'runqemu qemux86'
$ ../bitbake/bin/bitbake-layers add-layer ../meta-yocto
$ ../bitbake/bin/bitbake-layers add-layer ../meta-raspberrypi
$ cat conf/bblayers.conf
# POKY_BBLAYERS_CONF_VERSION is increased each time build/conf/bblayers.conf
# changes incompatibly
POKY_BBLAYERS_CONF_VERSION = "2"

BBPATH = "${TOPDIR}"
BBFILES ?= ""

BBLAYERS ?= " \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto/poky/meta \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto/poky/meta-poky \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto/poky/meta-yocto-bsp \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto/poky/meta-yocto \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto/poky/meta-raspberrypi \
  "
$ vi ./conf/local.conf
- MACHINE ??= "qemux86"
+ MACHINE ??= "raspberrypi3"
+ DL_DIR = "/opt2/Yocto/downloads/raspberrypi"
+ SSTATE_DIR ?= "/opt2/Yocto/sstate/raspberrypi"
$ time bitbake rpi-basic-image
WARNING: Host distribution "ubuntu-14.04" has not been validated with this version of the build system; you may possibly experience unexpected failures. It is recommended that you use a tested distribution.
Parsing recipes: 100% |###########################################################################################| Time: 0:00:22
Parsing of 851 .bb files complete (0 cached, 851 parsed). 1320 targets, 73 skipped, 0 masked, 0 errors.
NOTE: Resolving any missing task queue dependencies

Build Configuration:
BB_VERSION        = "1.34.0"
BUILD_SYS         = "x86_64-linux"
NATIVELSBSTRING   = "ubuntu-14.04"
TARGET_SYS        = "arm-poky-linux-gnueabi"
MACHINE           = "raspberrypi3"
DISTRO            = "poky"
DISTRO_VERSION    = "2.3.1"
TUNE_FEATURES     = "arm armv7ve vfp thumb neon vfpv4 callconvention-hard cortexa7"
TARGET_FPU        = "hard"
meta
meta-poky
meta-yocto-bsp
meta-yocto        = "pyro:5686f4e1fe5229705b8c7d35895aa03827796d13"
meta-raspberrypi  = "pyro:8ba2d6fc80b31c87d25c87c863e2a77752b07c3c"

NOTE: Fetching uninative binary shim from http://downloads.yoctoproject.org/releases/uninative/1.6/x86_64-nativesdk-libc.tar.bz2;sha256sum=2b4fffa308d9f19e0742a1a404ff42495fb50c165e5ca0458cedca157372691a
--2017-07-22 20:35:01--  http://downloads.yoctoproject.org/releases/uninative/1.6/x86_64-nativesdk-libc.tar.bz2
Resolving downloads.yoctoproject.org (downloads.yoctoproject.org)... 198.145.20.127
Connecting to downloads.yoctoproject.org (downloads.yoctoproject.org)|198.145.20.127|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 2535308 (2.4M) [application/octet-stream]
Saving to: ‘/opt/Yocto/downloads/raspberrypi/uninative/2b4fffa308d9f19e0742a1a404ff42495fb50c165e5ca0458cedca157372691a/x86_64-nativesdk-libc.tar.bz2’

2017-07-22 20:35:03 (987 KB/s) - ‘/opt/Yocto/downloads/raspberrypi/uninative/2b4fffa308d9f19e0742a1a404ff42495fb50c165e5ca0458cedca157372691a/x86_64-nativesdk-libc.tar.bz2’ saved [2535308/2535308]

Initialising tasks: 100% |########################################################################################| Time: 0:00:03
NOTE: Executing SetScene Tasks
NOTE: Executing RunQueue Tasks
WARNING: libpng-native-1.6.28-r0 do_fetch: Failed to fetch URL http://distfiles.gentoo.org/distfiles/libpng-1.6.28.tar.xz, attempting MIRRORS if available
NOTE: Tasks Summary: Attempted 2512 tasks of which 6 didn't need to be rerun and all succeeded.

Summary: There were 2 WARNING messages shown.
$
$ ls ./tmp/deploy/images/raspberrypi3/ | grep sdimg
rpi-basic-image-raspberrypi3-20170722131637.rootfs.rpi-sdimg
rpi-basic-image-raspberrypi3.rpi-sdimg

microSD にコピー

$ mount
/dev/sdi1 on /media/nxdev/sdcard type ext2 (rw,nosuid,nodev,uhelper=udisks2)
$ umount /dev/sdi1
$ sudo dd if=./tmp/deploy/images/raspberrypi3/rpi-basic-image-raspberrypi3.rpi-sdimg of=/dev/sdi bs=4M
33+0 レコード入力
33+0 レコード出力
138412032 バイト (138 MB) コピーされました、 36.3876 秒、 3.8 MB/秒

※sdi がデバイス名だった場合。実際は各自の環境に合わせてください。

実機電源ON

root でログイン。
# startx で not found。X 起動出来ず。


ディスク使用量

合計 8GB 必要でした。
${BUILDTOP}/poky = ビルドディレクトリ
/opt/Yocto/sstate/raspberrypi/ = sstate キャッシュディレクトリ(local.conf で指定)
/opt/Yocto/downloads/raspberrypi/ = ダウンロードディレクトリ(local.conf で指定)

${BUILDTOP}/poky$ du -sh ./
2.4G    ./

$ du -sh /opt/Yocto/sstate/raspberrypi/
1.3G    /opt/Yocto/sstate/raspberrypi/

$ du -sh /opt/Yocto/downloads/raspberrypi/
4.3G    /opt/Yocto/downloads/raspberrypi/

core-image-sato (GUI, X11)

ビルド

$ sudo apt-get install gawk wget git-core diffstat unzip texinfo gcc-multilib build-essential chrpath socat libsdl1.2-dev xterm
$ git clone git://git.yoctoproject.org/poky.git -b morty
$ cd poky
$ git clone git://git.yoctoproject.org/meta-raspberrypi -b morty
$ git clone https://github.com/mickey-happygolucky/meta-hdmi5inch-rpi.git -b morty
$ source poky/oe-init-build-env
$ bitbake-layers add-layer ../poky/meta-raspberrypi
$ bitbake-layers add-layer ../poky/meta-hdmi5inch-rpi

$ cat conf/bblayers.conf
# POKY_BBLAYERS_CONF_VERSION is increased each time build/conf/bblayers.conf
# changes incompatibly
POKY_BBLAYERS_CONF_VERSION = "2"

BBPATH = "${TOPDIR}"
BBFILES ?= ""

BBLAYERS ?= " \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto12_morty22_sato/poky/meta \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto12_morty22_sato/poky/meta-poky \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto12_morty22_sato/poky/meta-yocto-bsp \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto12_morty22_sato/poky/meta-raspberrypi \
  /media/nxdev/SanDiskSDD960G/Proj/EmbeddedFW/yocto12_morty22_sato/poky/meta-openembedded/meta-oe \
  "

$ vi conf/local  // 以下3行追加
+ MACHINE ?= "raspberrypi3"
+ DL_DIR = "/opt2/Yocto/downloads/raspberrypi"
+ SSTATE_DIR ?= "/opt2/Yocto/sstate/raspberrypi"

$ time bitbake core-image-sato  // OS Image ビルド
Parsing recipes: 100% |#################################################################################################################################| Time: 0:00:31
Parsing of 1505 .bb files complete (0 cached, 1505 parsed). 2077 targets, 132 skipped, 0 masked, 0 errors.
NOTE: Resolving any missing task queue dependencies

Build Configuration:
BB_VERSION        = "1.32.0"
BUILD_SYS         = "x86_64-linux"
NATIVELSBSTRING   = "Ubuntu-14.04"
TARGET_SYS        = "arm-poky-linux-gnueabi"
MACHINE           = "raspberrypi3"
DISTRO            = "poky"
DISTRO_VERSION    = "2.2.2"
TUNE_FEATURES     = "arm armv7ve vfp thumb neon vfpv4 callconvention-hard cortexa7"
TARGET_FPU        = "hard"
meta
meta-poky
meta-yocto-bsp    = "morty:7d5822bf4cb2089687c3c9a908cf4a4ef4e9a53a"
meta-raspberrypi  = "morty:380bf2ff445c2049bdea15f3bb36e8cb36540345"
meta-oe           = "morty:fe5c83312de11e80b85680ef237f8acb04b4b26e"
meta-nodejs       = "master:eec531e97a17bfd406f3bf76dee4057dcf5286a4"

Initialising tasks: 100% |##############################################################################################################################| Time: 0:00:09
NOTE: Executing SetScene Tasks
NOTE: Executing RunQueue Tasks
NOTE: Tasks Summary: Attempted 6234 tasks of which 3040 didn't need to be rerun and all succeeded.

real    41m51.710s
user    242m5.610s
sys    51m32.270s

$ time bitbake core-image-sato -c populate_sdk
Parsing recipes: 100% |#################################################################################################################################| Time: 0:00:22
Parsing of 1505 .bb files complete (0 cached, 1505 parsed). 2077 targets, 132 skipped, 0 masked, 0 errors.
NOTE: Resolving any missing task queue dependencies

Build Configuration:
BB_VERSION        = "1.32.0"
BUILD_SYS         = "x86_64-linux"
NATIVELSBSTRING   = "universal-4.9"
TARGET_SYS        = "arm-poky-linux-gnueabi"
MACHINE           = "raspberrypi3"
DISTRO            = "poky"
DISTRO_VERSION    = "2.2.2"
TUNE_FEATURES     = "arm armv7ve vfp thumb neon vfpv4 callconvention-hard cortexa7"
TARGET_FPU        = "hard"
meta
meta-poky
meta-yocto-bsp    = "morty:7d5822bf4cb2089687c3c9a908cf4a4ef4e9a53a"
meta-raspberrypi  = "morty:380bf2ff445c2049bdea15f3bb36e8cb36540345"
meta-oe           = "morty:fe5c83312de11e80b85680ef237f8acb04b4b26e"
meta-nodejs       = "master:eec531e97a17bfd406f3bf76dee4057dcf5286a4"

Initialising tasks: 100% |##############################################################################################################################| Time: 0:00:08
NOTE: Executing SetScene Tasks
NOTE: Executing RunQueue Tasks
NOTE: Tasks Summary: Attempted 5518 tasks of which 5314 didn't need to be rerun and all succeeded.

real    14m31.534s
user    58m56.546s
sys    5m52.275s
$

microSD にコピー

$ mount
/dev/sdi1 on /media/nxdev/sdcard type ext2 (rw,nosuid,nodev,uhelper=udisks2)
$ umount /dev/sdi1
$ sudo dd if=./tmp/deploy/images/raspberrypi3/core-image-sato-raspberrypi3.rpi-sdimg of=/dev/sdi bs=4M

※sdi がデバイス名だった場合。実際は各自の環境に合わせてください。

実機電源ON


ディスク使用量

合計約 52.5GB 必要でした。

${BUILDTOP}/poky = ビルドディレクトリ
/opt/Yocto/sstate/raspberrypi/ = sstate キャッシュディレクトリ(local.conf で指定)
/opt/Yocto/downloads/raspberrypi/ = ダウンロードディレクトリ(local.conf で指定)

${BUILDTOP}/poky$ du -sh ./
28G ./

$ du -sh /opt/Yocto/sstate/raspberrypi/
18G /opt/Yocto/sstate/raspberrypi/

$ du -sh /opt/Yocto/downloads/raspberrypi/
6.5G    /opt/Yocto/downloads/raspberrypi/

core-image-weston (GUI, Wayland/Weston(desktop-shell))

ビルド

$ sudo apt-get install gawk wget git-core diffstat unzip texinfo gcc-multilib build-essential chrpath socat libsdl1.2-dev xterm
$ git clone git://git.yoctoproject.org/poky.git -b morty
$ cd poky
$ git clone git://git.yoctoproject.org/meta-raspberrypi -b morty
$ git clone git://git.openembedded.org/meta-openembedded -b morty
$ git clone https://github.com/imyller/meta-nodejs.git
$ source oe-init-build-env
$ bitbake-layers add-layer ../meta-raspberrypi
$ bitbake-layers add-layer ../meta-openembedded/meta-oe

$ vi ./conf/local.conf
- MACHINE ??= "qemux86"
+ MACHINE ?= "raspberrypi3"
+ DISTRO_FEATURES_append = " wayland opengl"
+ DISTRO_FEATURES_remove = " x11"
+ MACHINE_FEATURES += "vc4graphics"
+ DL_DIR = "/opt/Yocto/downloads/raspberrypi"
+ SSTATE_DIR ?= "/opt/Yocto/sstate/raspberrypi"
+ CONNECTIVITY_CHECK_URIS = ""

$ time bitbake core-image-weston
$ time bitbake core-image-weston -c populate_sdk

microSD にコピー

$ sudo dd if=tmp/deploy/images/raspberrypi3/core-image-weston-raspberrypi3.rpi-sdimg of=/dev/sdi bs=100M

※sdi がデバイス名だった場合。実際は各自の環境に合わせてください。

ディスク使用量

合計約 37.5GB 必要でした。
${BUILDTOP}/poky = ビルドディレクトリ
/opt/Yocto/sstate/raspberrypi/ = sstate キャッシュディレクトリ(local.conf で指定)
/opt/Yocto/downloads/raspberrypi/ = ダウンロードディレクトリ(local.conf で指定)

${BUILDTOP}/poky$ du -sh ./
13G ./

$ du -sh /opt/Yocto/sstate/raspberrypi/
18G /opt/Yocto/sstate/raspberrypi/

$ du -sh /opt/Yocto/downloads/raspberrypi/
6.5G    /opt/Yocto/downloads/raspberrypi/

まとめ

まとめます。

OS image 名 一言特徴 SDK 作成可否
rpi-basic-image CUI
core-image-sato GUI, X11
core-image-weston GUI, Wayland/Weston(desktop-shell)

その他

ビルドコマンド

$ vi ./conf/local.conf
- MACHINE ??= "qemux86"
+ MACHINE ??= "raspberrypi3"
+ DL_DIR = "/opt/Yocto/downloads/raspberrypi"
+ SSTATE_DIR ?= "/opt/Yocto/sstate/raspberrypi"

DL_DIR , SSTATE_DIR は Yocto ビルドの高速化設定です。
詳しくは Yocto build 時間を10時間から10分に高速化した話
にまとめているので良かったら参考にどうぞです。

参考

Yocto 全体

YoctoProject Release Activity

rpi-basic-image (CUI)

Yocto ProjectによるRaspberry Pi用のカスタムLinux作成
raspberrypi3でyocto

core-image-sato (GUI, X11)

meta-raspberrypi mortyでcore-image-satoが起動できない時の対処 その2

core-image-weston (GUI, Wayland/Weston(desktop-shell))

ラズベリーパイ3 pyroでweston
raspberrypi2 yoctoでweston(wayland)

9
Help us understand the problem. What is going on with this article?
Why not register and get more from Qiita?
  1. We will deliver articles that match you
    By following users and tags, you can catch up information on technical fields that you are interested in as a whole
  2. you can read useful information later efficiently
    By "stocking" the articles you like, you can search right away
access
SDNからセンサ、家電、電子書籍まで。ACCESSはあらゆるレイヤのデバイス、サービスを「繋げて」いきます。

Comments

No comments
Sign up for free and join this conversation.
Sign Up
If you already have a Qiita account Login
9
Help us understand the problem. What is going on with this article?
