【UE5】BehaviorTree MoveToタスクにSelfActor以外のObjectKeyが指定できない!?

Posted at

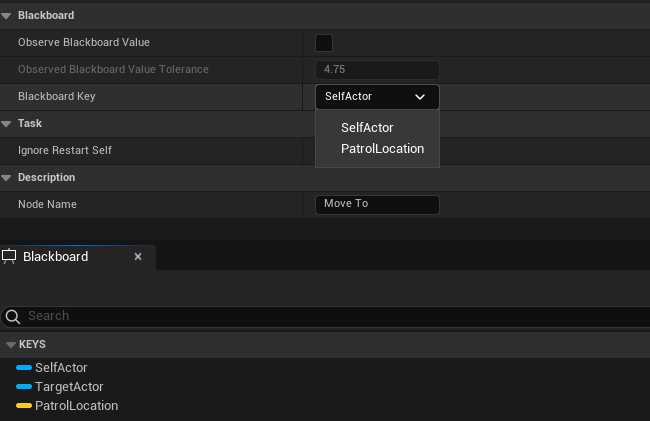

MoveToタスクのBlackboardKeyパラメータ

MoveToタスクにはVectorもしくはActorが指定できるとのことだが、
Object型で追加したKeyのTargetActorが候補に出てこない。。


最初から用意されてるSelfActorはでてくるのにどうして、、

実装を見てみる

調べたところどうやら FBlackboardKeySelector でBlackboardKeyの型を制限しているみたい

BTTask_BlackboardBase.h
class UBTTask_BlackboardBase : public UBTTaskNode
{
	GENERATED_UCLASS_BODY()

	/** initialize any asset related data */
	AIMODULE_API virtual void InitializeFromAsset(UBehaviorTree& Asset) override;

	/** get name of selected blackboard key */
	AIMODULE_API FName GetSelectedBlackboardKey() const;

protected:

	/** blackboard key selector */
	UPROPERTY(EditAnywhere, Category=Blackboard)
	struct FBlackboardKeySelector BlackboardKey;
};

MoveToTaskの実装を見てみる

BTTask_MoveTo.cpp
UBTTask_MoveTo::UBTTask_MoveTo(const FObjectInitializer& ObjectInitializer) : Super(ObjectInitializer)
{
	NodeName = "Move To";
	INIT_TASK_NODE_NOTIFY_FLAGS();

	AcceptableRadius = GET_AI_CONFIG_VAR(AcceptanceRadius);
	bReachTestIncludesGoalRadius = bReachTestIncludesAgentRadius = bStopOnOverlap = GET_AI_CONFIG_VAR(bFinishMoveOnGoalOverlap);
	bAllowStrafe = GET_AI_CONFIG_VAR(bAllowStrafing);
	bAllowPartialPath = GET_AI_CONFIG_VAR(bAcceptPartialPaths);
	bTrackMovingGoal = true;
	bRequireNavigableEndLocation = true;
	bProjectGoalLocation = true;
	bUsePathfinding = true;

	bStopOnOverlapNeedsUpdate = true;

	ObservedBlackboardValueTolerance = AcceptableRadius * 0.95f;

	// accept only actors and vectors
	BlackboardKey.AddObjectFilter(this, GET_MEMBER_NAME_CHECKED(UBTTask_MoveTo, BlackboardKey), AActor::StaticClass());
	BlackboardKey.AddVectorFilter(this, GET_MEMBER_NAME_CHECKED(UBTTask_MoveTo, BlackboardKey));
}

なにやらObject型とVector型で制限していそう…!
……ん? Object型はさらにActorクラスで制限している!
これが原因っぽい

改めて自分の実装を確認する

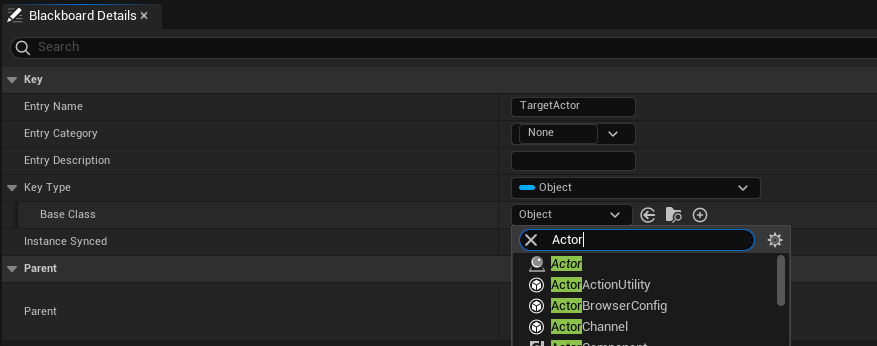

追加したキーのKeyTypeを見てみるとObject以外にさらに設定できそうな項目が…!
Actorクラスを設定したところ、無事MoveTaskの候補にでてくるようになりました!

下記ドキュメントにはちゃんとActor型に設定している項目がありました。。
めんどくさがらずにドキュメントはちゃんと読もう😥
