Lattice FPGA / Diamond ProgrammerでサポートされているSPI Flashのリストを確認する方法

Posted at

Lattice FPGA / Diamond ProgrammerでサポートされているSPI Flashのリストを確認する方法

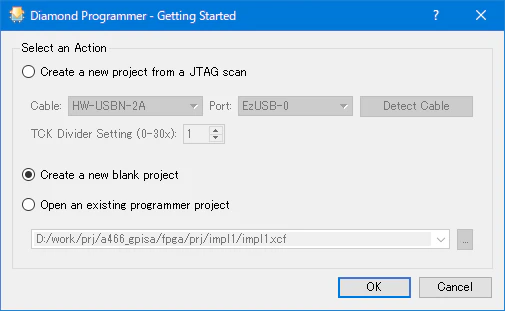

(1)　Diamond Programmerを起動する (Create a new blank projectをチェック)

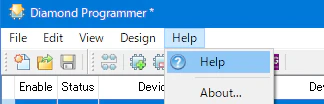

(2)　Helpを起動する。

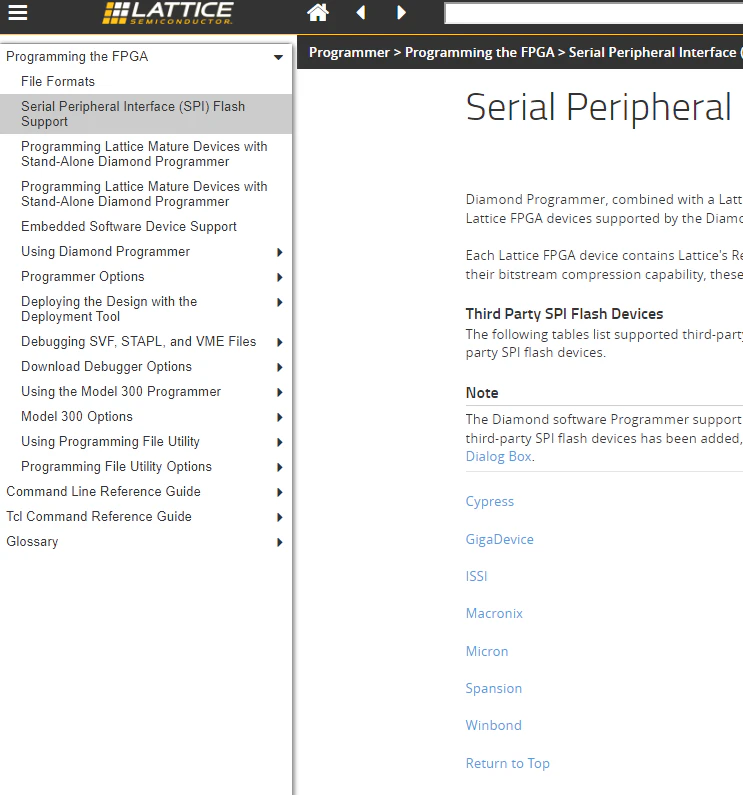

(3)　一覧を確認できる
ヘルプメニューのSerial Peripheral Interface(SPI)Flash Supportを選択すると対応SPI Flash一覧が表示される。

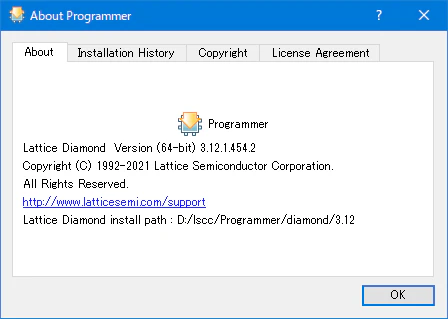

(補足) 確認したDiamond Programmerバージョン


(補足2) 必要となるSPI Flashサイズの確認方法

各デバイスのsysCONFIG Usage Guideに記載あり
(Bitstream Size等で検索)
