@knakaqi(Kouji Nakashima)

RGB LED +Sensor +deepSleep(esp8266) with Atmega328P

Posted at 2017-01-14

esp8266+ MCU(ATmega328P)連携の作例となり。
3.3V系arduino 、arduinoライブラリ等を使用した製作事例の一部となります。

RGB LED+ Analog Sensor の飾り系でDeepSleep(省エネ)版

youtube

Parts

RGB LED /OST4ML8132A_OptoSupply (1 PCS) / 40 JPY
http://akizukidenshi.com/catalog/g/gI-08347/

Sensor LM60BIZ / 100JPY
breadBoard / 100JPY

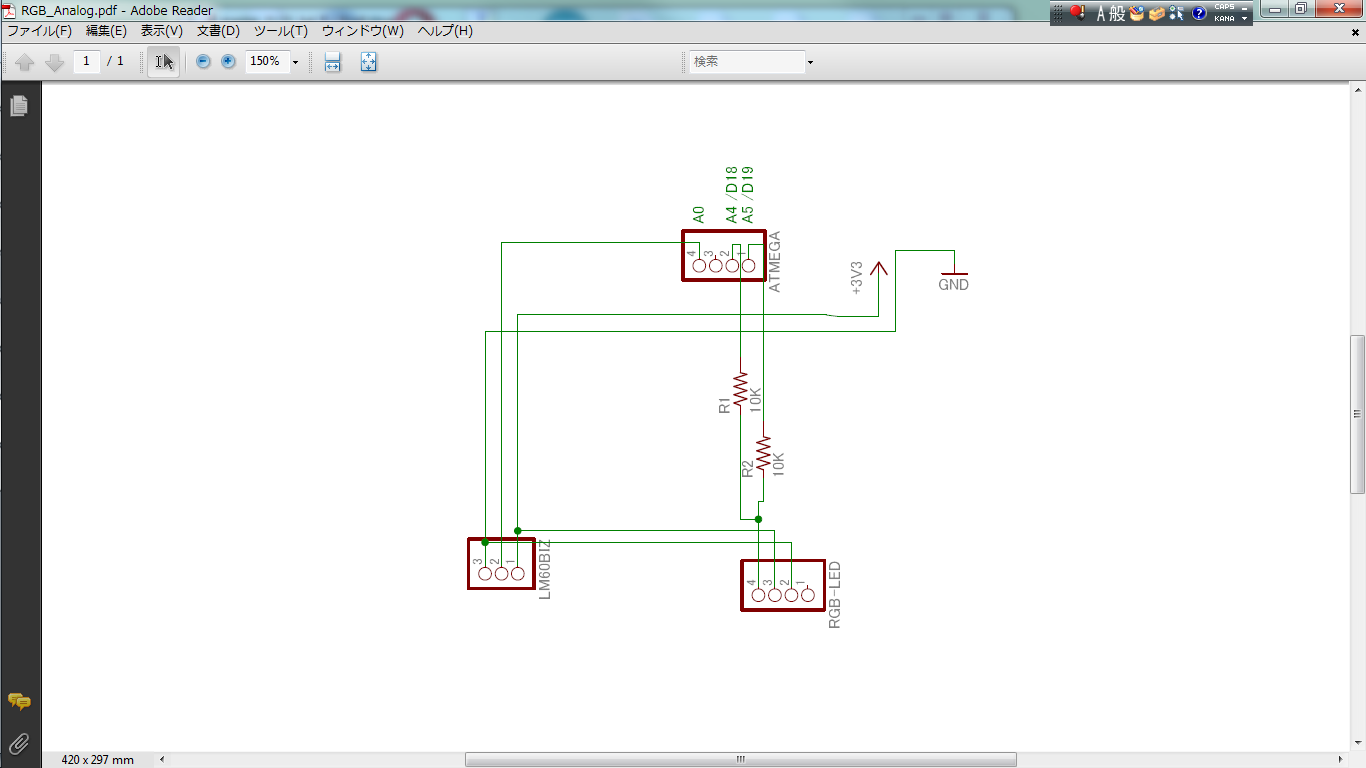

Schematic

https://github.com/kuc-arc-f/makeKuc-RGB-Analog2/blob/master/pcb/RGB_Analog.pdf

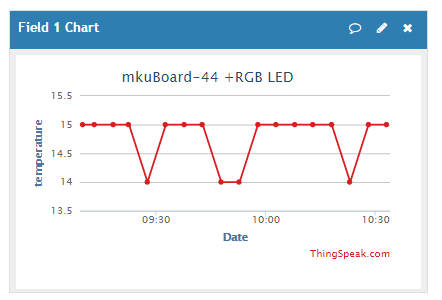

analog DATA

Driver ,Git

related- Parts: mkuBoard-44

related: List :
