Cloudflare HTTP DDoS Attack Protection Managed Ruleset の挙動を確認する

Last updated at Posted at 2022-05-10

Cloudflare HTTP DDoS Attack Protection Managed Ruleset とは

これまで Cloudflare の DDoS 保護ルールはブラックボックスでしたが、HTTP DDoS に関してはマネージドルールの一覧がユーザーに公開され、カスタマイズもできるようになりました。

ダッシュボードでルール情報を確認

https://dash.cloudflare.com/?to=/:account/:zone/security/ddos から確認できます。

image-20220511002443210

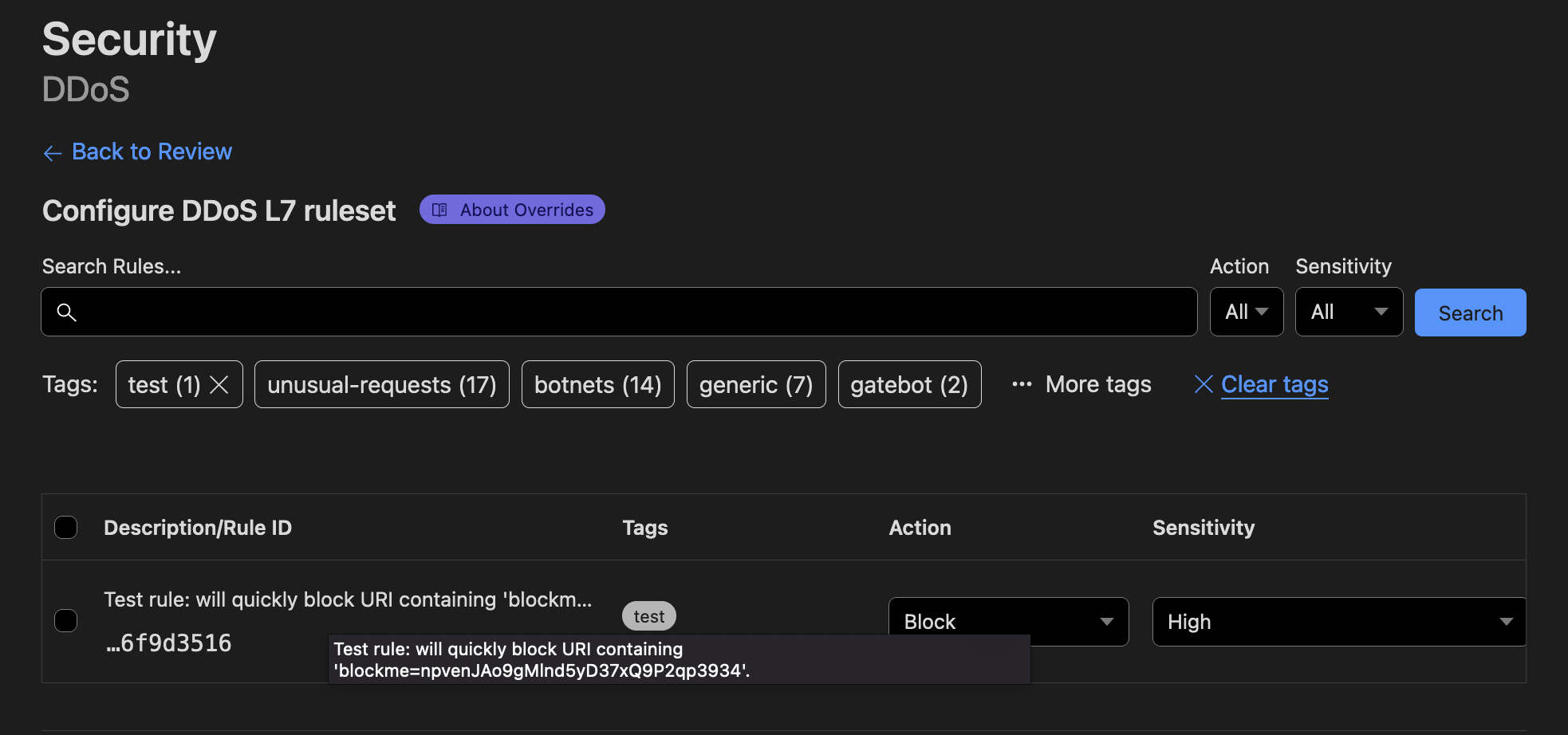

その中から Test rule を使って挙動の確認ができます。

image-20220511002639029

API でルール情報を確認

API からも取得できる情報を確認しましょう。

Cloudflare を CLI で操作する - Qiita

export ZONE_ID='YOUR_ZONE_ID'
cli4 zones/:$ZONE_ID/rulesets | jq -r '.[] | select (.phase=="ddos_l7")'

{
  "description": "Automatic mitigation of HTTP-based DDoS attacks. Cloudflare routinely adds signatures to address new attack vectors. Additional configuration allows you to customize the sensitivity of each rule and the performed mitigation action.",
  "id": "4d21379b4f9f4bb088e0729962c8b3cf",
  "kind": "managed",
  "last_updated": "2022-05-10T14:30:42.926686Z",
  "name": "DDoS L7 ruleset",
  "phase": "ddos_l7",
  "version": "636"
}

ルール一覧の中に先ほどの Test rule も確認できます。

cli4 zones/:$ZONE_ID/rulesets/:4d21379b4f9f4bb088e0729962c8b3cf | jq -r '.rules[] | select (.categories[]=="test")'

{
  "action": "block",
  "categories": [
    "test"
  ],
  "description": "Test rule: will quickly block URI containing 'blockme=npvenJAo9gMlnd5yD37xQ9P2qp3934'.",
  "enabled": true,
  "id": "ca3c07df048b4c2c9c9350116f9d3516",
  "last_updated": "2022-05-10T14:30:42.926686Z",
  "ref": "GEN0006",
  "version": "326"
}

テストルールを使った挙動の確認

具体的な閾値は公開されていませんが、テスト用にトリガーされやすい（？）ルールとなっているようです。

以下のスクリプトを流して確認します。後半は 403 でブロックされたことがわかります。

export FQDN='example.com'

for i in {1..200}; \
do echo $i $(curl 'https://'$FQDN'/?blockme=npvenJAo9gMlnd5yD37xQ9P2qp3934' -v -s 2>&1 | grep '< HTTP/'); done
コマンド1回目結果
1 < HTTP/2 200
2 < HTTP/2 200
3 < HTTP/2 200
4 < HTTP/2 200
5 < HTTP/2 200
6 < HTTP/2 200
7 < HTTP/2 200
8 < HTTP/2 200
9 < HTTP/2 200
10 < HTTP/2 200
11 < HTTP/2 200
12 < HTTP/2 200
13 < HTTP/2 200
14 < HTTP/2 200
15 < HTTP/2 200
16 < HTTP/2 200
17 < HTTP/2 200
18 < HTTP/2 200
19 < HTTP/2 200
20 < HTTP/2 200
21 < HTTP/2 200
22 < HTTP/2 200
23 < HTTP/2 200
24 < HTTP/2 200
25 < HTTP/2 200
26 < HTTP/2 200
27 < HTTP/2 200
28 < HTTP/2 200
29 < HTTP/2 200
30 < HTTP/2 200
31 < HTTP/2 200
32 < HTTP/2 200
33 < HTTP/2 200
34 < HTTP/2 200
35 < HTTP/2 200
36 < HTTP/2 200
37 < HTTP/2 200
38 < HTTP/2 200
39 < HTTP/2 200
40 < HTTP/2 200
41 < HTTP/2 200
42 < HTTP/2 200
43 < HTTP/2 200
44 < HTTP/2 200
45 < HTTP/2 200
46 < HTTP/2 200
47 < HTTP/2 200
48 < HTTP/2 200
49 < HTTP/2 200
50 < HTTP/2 200
51 < HTTP/2 200
52 < HTTP/2 200
53 < HTTP/2 200
54 < HTTP/2 200
55 < HTTP/2 200
56 < HTTP/2 200
57 < HTTP/2 200
58 < HTTP/2 200
59 < HTTP/2 200
60 < HTTP/2 200
61 < HTTP/2 200
62 < HTTP/2 200
63 < HTTP/2 200
64 < HTTP/2 200
65 < HTTP/2 200
66 < HTTP/2 200
67 < HTTP/2 200
68 < HTTP/2 200
69 < HTTP/2 200
70 < HTTP/2 200
71 < HTTP/2 200
72 < HTTP/2 200
73 < HTTP/2 200
74 < HTTP/2 200
75 < HTTP/2 200
76 < HTTP/2 200
77 < HTTP/2 200
78 < HTTP/2 200
79 < HTTP/2 200
80 < HTTP/2 200
81 < HTTP/2 200
82 < HTTP/2 200
83 < HTTP/2 200
84 < HTTP/2 200
85 < HTTP/2 200
86 < HTTP/2 200
87 < HTTP/2 200
88 < HTTP/2 200
89 < HTTP/2 200
90 < HTTP/2 200
91 < HTTP/2 200
92 < HTTP/2 200
93 < HTTP/2 200
94 < HTTP/2 200
95 < HTTP/2 200
96 < HTTP/2 200
97 < HTTP/2 200
98 < HTTP/2 200
99 < HTTP/2 200
100 < HTTP/2 200
101 < HTTP/2 200
102 < HTTP/2 200
103 < HTTP/2 200
104 < HTTP/2 200
105 < HTTP/2 200
106 < HTTP/2 200
107 < HTTP/2 200
108 < HTTP/2 200
109 < HTTP/2 200
110 < HTTP/2 200
111 < HTTP/2 200
112 < HTTP/2 200
113 < HTTP/2 200
114 < HTTP/2 200
115 < HTTP/2 200
116 < HTTP/2 200
117 < HTTP/2 200
118 < HTTP/2 200
119 < HTTP/2 200
120 < HTTP/2 200
121 < HTTP/2 200
122 < HTTP/2 200
123 < HTTP/2 200
124 < HTTP/2 200
125 < HTTP/2 200
126 < HTTP/2 200
127 < HTTP/2 200
128 < HTTP/2 200
129 < HTTP/2 200
130 < HTTP/2 200
131 < HTTP/2 200
132 < HTTP/2 200
133 < HTTP/2 200
134 < HTTP/2 200
135 < HTTP/2 200
136 < HTTP/2 200
137 < HTTP/2 200
138 < HTTP/2 200
139 < HTTP/2 200
140 < HTTP/2 200
141 < HTTP/2 200
142 < HTTP/2 200
143 < HTTP/2 200
144 < HTTP/2 200
145 < HTTP/2 200
146 < HTTP/2 200
147 < HTTP/2 200
148 < HTTP/2 200
149 < HTTP/2 200
150 < HTTP/2 200
151 < HTTP/2 200
152 < HTTP/2 200
153 < HTTP/2 200
154 < HTTP/2 200
155 < HTTP/2 200
156 < HTTP/2 200
157 < HTTP/2 200
158 < HTTP/2 200
159 < HTTP/2 200
160 < HTTP/2 200
161 < HTTP/2 200
162 < HTTP/2 200
163 < HTTP/2 200
164 < HTTP/2 200
165 < HTTP/2 200
166 < HTTP/2 200
167 < HTTP/2 200
168 < HTTP/2 200
169 < HTTP/2 200
170 < HTTP/2 200
171 < HTTP/2 200
172 < HTTP/2 200
173 < HTTP/2 200
174 < HTTP/2 200
175 < HTTP/2 200
176 < HTTP/2 200
177 < HTTP/2 200
178 < HTTP/2 200
179 < HTTP/2 200
180 < HTTP/2 200
181 < HTTP/2 200
182 < HTTP/2 200
183 < HTTP/2 200
184 < HTTP/2 200
185 < HTTP/2 200
186 < HTTP/2 200
187 < HTTP/2 200
188 < HTTP/2 200
189 < HTTP/2 200
190 < HTTP/2 403
191 < HTTP/2 200
192 < HTTP/2 200
193 < HTTP/2 200
194 < HTTP/2 200
195 < HTTP/2 200
196 < HTTP/2 200
197 < HTTP/2 200
198 < HTTP/2 200
199 < HTTP/2 403
200 < HTTP/2 403
コマンド2回目結果
1 < HTTP/2 403
2 < HTTP/2 403
3 < HTTP/2 403
4 < HTTP/2 403
5 < HTTP/2 403
6 < HTTP/2 403
7 < HTTP/2 200
8 < HTTP/2 403
9 < HTTP/2 403
10 < HTTP/2 403
11 < HTTP/2 403
12 < HTTP/2 403
13 < HTTP/2 403
14 < HTTP/2 403
15 < HTTP/2 403
16 < HTTP/2 403
17 < HTTP/2 403
18 < HTTP/2 403
19 < HTTP/2 403
20 < HTTP/2 200
21 < HTTP/2 403
22 < HTTP/2 200
23 < HTTP/2 403
24 < HTTP/2 403
25 < HTTP/2 200
26 < HTTP/2 403
27 < HTTP/2 403
28 < HTTP/2 200
29 < HTTP/2 403
30 < HTTP/2 403
31 < HTTP/2 403
32 < HTTP/2 403
33 < HTTP/2 403
34 < HTTP/2 200
35 < HTTP/2 403
36 < HTTP/2 403
37 < HTTP/2 403
38 < HTTP/2 403
39 < HTTP/2 200
40 < HTTP/2 403
41 < HTTP/2 200
42 < HTTP/2 403
43 < HTTP/2 403
44 < HTTP/2 403
45 < HTTP/2 403
46 < HTTP/2 403
47 < HTTP/2 403
48 < HTTP/2 403
49 < HTTP/2 403
50 < HTTP/2 403
51 < HTTP/2 403
52 < HTTP/2 403
53 < HTTP/2 403
54 < HTTP/2 403
55 < HTTP/2 403
56 < HTTP/2 403
57 < HTTP/2 403
58 < HTTP/2 403
59 < HTTP/2 403
60 < HTTP/2 403
61 < HTTP/2 403
62 < HTTP/2 403
63 < HTTP/2 200
64 < HTTP/2 403
65 < HTTP/2 403
66 < HTTP/2 403
67 < HTTP/2 403
68 < HTTP/2 403
69 < HTTP/2 200
70 < HTTP/2 403
71 < HTTP/2 403
72 < HTTP/2 403
73 < HTTP/2 403
74 < HTTP/2 403
75 < HTTP/2 403
76 < HTTP/2 403
77 < HTTP/2 403
78 < HTTP/2 403
79 < HTTP/2 403
80 < HTTP/2 403
81 < HTTP/2 403
82 < HTTP/2 403
83 < HTTP/2 403
84 < HTTP/2 403
85 < HTTP/2 403
86 < HTTP/2 403
87 < HTTP/2 403
88 < HTTP/2 403
89 < HTTP/2 403
90 < HTTP/2 403
91 < HTTP/2 403
92 < HTTP/2 403
93 < HTTP/2 403
94 < HTTP/2 403
95 < HTTP/2 403
96 < HTTP/2 403
97 < HTTP/2 403
98 < HTTP/2 403
99 < HTTP/2 403
100 < HTTP/2 403
101 < HTTP/2 403
102 < HTTP/2 403
103 < HTTP/2 403
104 < HTTP/2 403
105 < HTTP/2 403
106 < HTTP/2 403
107 < HTTP/2 403
108 < HTTP/2 403
109 < HTTP/2 403
110 < HTTP/2 403
111 < HTTP/2 403
112 < HTTP/2 403
113 < HTTP/2 403
114 < HTTP/2 403
115 < HTTP/2 403
116 < HTTP/2 403
117 < HTTP/2 403
118 < HTTP/2 403
119 < HTTP/2 403
120 < HTTP/2 403
121 < HTTP/2 403
122 < HTTP/2 403
123 < HTTP/2 403
124 < HTTP/2 403
125 < HTTP/2 403
126 < HTTP/2 403
127 < HTTP/2 403
128 < HTTP/2 403
129 < HTTP/2 403
130 < HTTP/2 403
131 < HTTP/2 403
132 < HTTP/2 403
133 < HTTP/2 403
134 < HTTP/2 403
135 < HTTP/2 403
136 < HTTP/2 403
137 < HTTP/2 403
138 < HTTP/2 403
139 < HTTP/2 403
140 < HTTP/2 403
141 < HTTP/2 403
142 < HTTP/2 403
143 < HTTP/2 403
144 < HTTP/2 403
145 < HTTP/2 403
146 < HTTP/2 403
147 < HTTP/2 403
148 < HTTP/2 403
149 < HTTP/2 403
150 < HTTP/2 403
151 < HTTP/2 403
152 < HTTP/2 403
153 < HTTP/2 403
154 < HTTP/2 403
155 < HTTP/2 403
156 < HTTP/2 403
157 < HTTP/2 403
158 < HTTP/2 403
159 < HTTP/2 403
160 < HTTP/2 403
161 < HTTP/2 403
162 < HTTP/2 403
163 < HTTP/2 403
164 < HTTP/2 403
165 < HTTP/2 403
166 < HTTP/2 403
167 < HTTP/2 403
168 < HTTP/2 403
169 < HTTP/2 403
170 < HTTP/2 403
171 < HTTP/2 403
172 < HTTP/2 403
173 < HTTP/2 403
174 < HTTP/2 403
175 < HTTP/2 403
176 < HTTP/2 403
177 < HTTP/2 403
178 < HTTP/2 403
179 < HTTP/2 403
180 < HTTP/2 403
181 < HTTP/2 403
182 < HTTP/2 403
183 < HTTP/2 403
184 < HTTP/2 403
185 < HTTP/2 403
186 < HTTP/2 403
187 < HTTP/2 403
188 < HTTP/2 403
189 < HTTP/2 403
190 < HTTP/2 403
191 < HTTP/2 403
192 < HTTP/2 403
193 < HTTP/2 403
194 < HTTP/2 403
195 < HTTP/2 403
196 < HTTP/2 403
197 < HTTP/2 403
198 < HTTP/2 403
199 < HTTP/2 403
200 < HTTP/2 403

また、実際にアクセスしてみると、このようなページになります。

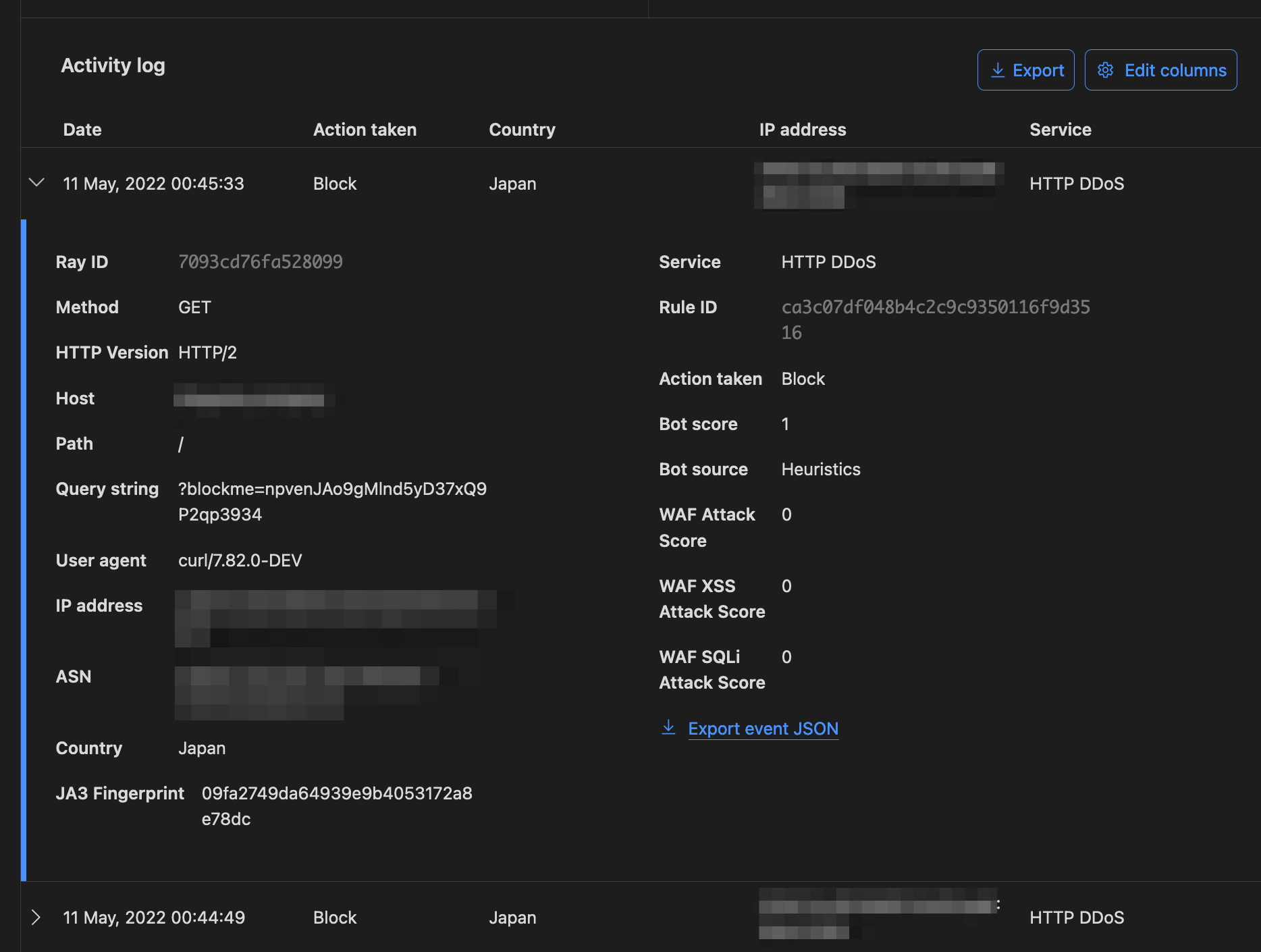

ダッシュボードで結果を確認

image-20220511004636107

image-20220511004833935

通知

こちらの KB を参考にして、事前に DDoS アラートを構成しておけば、基準を満たした際に以下のようなメール通知を受信することもできました。

検知したルール ID まで含めた詳細な内容のメールとなっているので、助かります。

CloudflareのDDoSアラートについて理解する – Cloudflareヘルプセンター


参考：ログ

ddos_log.json
{
  "BotDetectionIDs": [
    33554817
  ],
  "BotScore": 1,
  "BotScoreSrc": "Heuristics",
  "BotTags": [],
  "CacheCacheStatus": "unknown",
  "CacheReserveUsed": false,
  "CacheResponseBytes": 0,
  "CacheResponseStatus": 0,
  "CacheTieredFill": false,
  "ClientASN": 2527,
  "ClientCountry": "jp",
  "ClientDeviceType": "desktop",
  "ClientIP": "x.x.x.x",
  "ClientIPClass": "noRecord",
  "ClientMTLSAuthCertFingerprint": "",
  "ClientMTLSAuthStatus": "unknown",
  "ClientRegionCode": "13",
  "ClientRequestBytes": 2959,
  "ClientRequestHost": "example.com",
  "ClientRequestMethod": "GET",
  "ClientRequestPath": "/",
  "ClientRequestProtocol": "HTTP/2",
  "ClientRequestReferer": "",
  "ClientRequestScheme": "https",
  "ClientRequestSource": "eyeball",
  "ClientRequestURI": "/?blockme=npvenJAo9gMlnd5yD37xQ9P2qp3934",
  "ClientRequestUserAgent": "curl/7.82.0-DEV",
  "ClientSSLCipher": "AEAD-AES128-GCM-SHA256",
  "ClientSSLProtocol": "TLSv1.3",
  "ClientSrcPort": 51071,
  "ClientTCPRTTMs": 5,
  "ClientXRequestedWith": "",
  "ContentScanObjResults": [],
  "ContentScanObjTypes": [],
  "EdgeCFConnectingO2O": false,
  "EdgeColoCode": "NRT",
  "EdgeColoID": 408,
  "EdgeEndTimestamp": 1675178658281000000,
  "EdgePathingOp": "ban",
  "EdgePathingSrc": "protect",
  "EdgePathingStatus": "l7ddos",
  "EdgeRateLimitAction": "",
  "EdgeRateLimitID": 0,
  "EdgeRequestHost": "",
  "EdgeResponseBodyBytes": 1467,
  "EdgeResponseBytes": 2453,
  "EdgeResponseCompressionRatio": 1,
  "EdgeResponseContentType": "text/html",
  "EdgeResponseStatus": 403,
  "EdgeServerIP": "",
  "EdgeStartTimestamp": 1675178658269000000,
  "EdgeTimeToFirstByteMs": 27,
  "FirewallMatchesActions": [
    "block"
  ],
  "FirewallMatchesRuleIDs": [
    "ca3c07df048b4c2c9c9350116f9d3516"
  ],
  "FirewallMatchesSources": [
    "l7ddos"
  ],
  "JA3Hash": "09fa2749da64939e9b4053172a8e78dc",
  "OriginDNSResponseTimeMs": 0,
  "OriginIP": "",
  "OriginRequestHeaderSendDurationMs": 0,
  "OriginResponseBytes": 0,
  "OriginResponseDurationMs": 0,
  "OriginResponseHTTPExpires": "",
  "OriginResponseHTTPLastModified": "",
  "OriginResponseHeaderReceiveDurationMs": 0,
  "OriginResponseStatus": 0,
  "OriginResponseTime": 0,
  "OriginSSLProtocol": "unknown",
  "OriginTCPHandshakeDurationMs": 0,
  "OriginTLSHandshakeDurationMs": 0,
  "ParentRayID": "00",
  "RayID": "792374162a26af42",
  "SecurityLevel": "unk",
  "SmartRouteColoID": 0,
  "UpperTierColoID": 0,
  "WAFAction": "unknown",
  "WAFAttackScore": 87,
  "WAFFlags": "0",
  "WAFMatchedVar": "",
  "WAFProfile": "unknown",
  "WAFRCEAttackScore": 88,
  "WAFRuleID": "",
  "WAFRuleMessage": "",
  "WAFSQLiAttackScore": 98,
  "WAFXSSAttackScore": 98,
  "WorkerCPUTime": 0,
  "WorkerStatus": "unknown",
  "WorkerSubrequest": false,
  "WorkerSubrequestCount": 0,
  "WorkerWallTimeUs": 0,
  "ZoneID": XXXXXXXXX,
  "ZoneName": "example.com"
}
0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
