JMeterのテストを生成AIで編集する

1
Posted at

概要

JMeterのテストはUI上からは、範囲指定してコピーができないため、テストの設定などを生成AIにテキストとして渡すのが困難である。
今回はJMeterがテストとして読み込むファイルを特定し、そのファイルを生成AIで編集する。

JMXファイル

JMeterはテストの設定をJMXファイル(.jmx)で管理している。

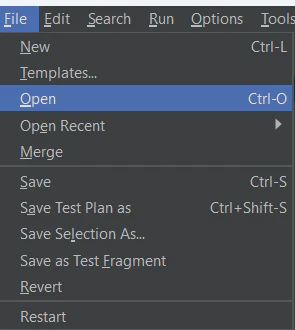

[File]→[Open]でJMeterが読み込むファイルを指定できる。
自分の環境では、bin下のフォルダにある。

JMXファイルの例

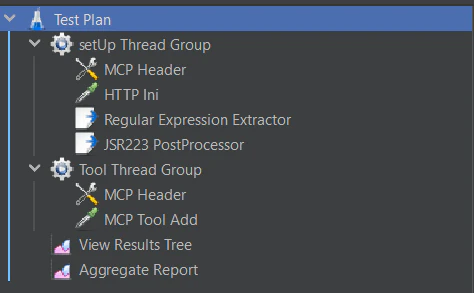

UI上のテスト


JMXファイルの中身


JMXファイルの編集

前回のテストをベースにランダムな足し算をするように編集させてみる。

手順

  1. 既存のJMXファイルをメモ帳などで開く
  2. JMXファイルの中身をコピーして生成AIに張り付けて、編集内容を指示する（JMXファイル全体をコピペできる形で出力してもらうほうが望ましい）
  3. メモ帳などに張り付けてJMXファイルとして保存する
  4. JMeterで保存したファイルを読み込む

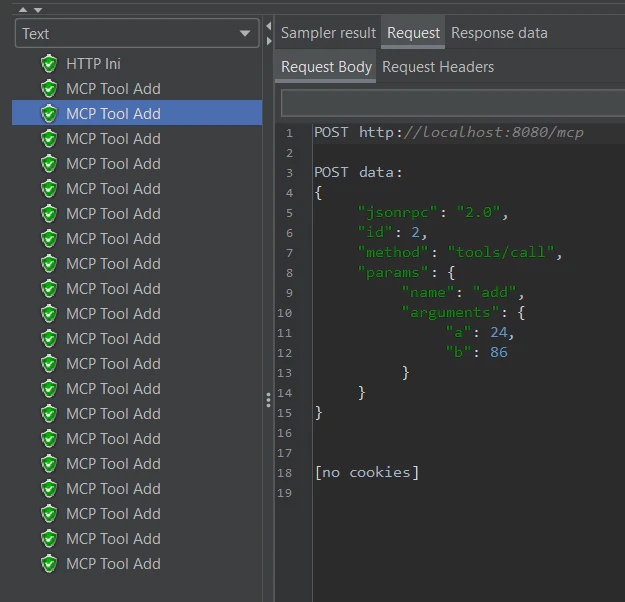

編集後テスト結果

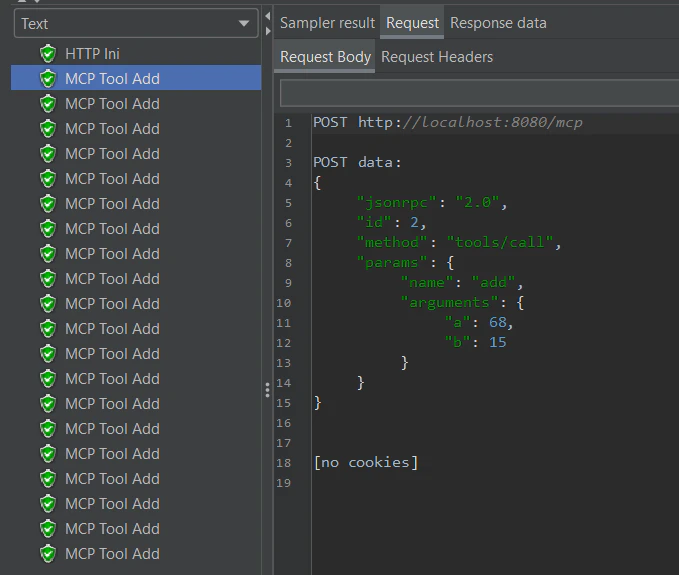

違う引数が呼び出されている

(参考)編集前JMXファイル

これを読み込めば、前回のテストを再現できる。

<?xml version="1.0" encoding="UTF-8"?>
<jmeterTestPlan version="1.2" properties="5.0" jmeter="5.6.3">
  <hashTree>
    <TestPlan guiclass="TestPlanGui" testclass="TestPlan" testname="Test Plan">
      <elementProp name="TestPlan.user_defined_variables" elementType="Arguments" guiclass="ArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
        <collectionProp name="Arguments.arguments"/>
      </elementProp>
    </TestPlan>
    <hashTree>
      <SetupThreadGroup guiclass="SetupThreadGroupGui" testclass="SetupThreadGroup" testname="setUp Thread Group">
        <intProp name="ThreadGroup.num_threads">1</intProp>
        <intProp name="ThreadGroup.ramp_time">1</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="Loop Controller">
          <stringProp name="LoopController.loops">1</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </SetupThreadGroup>
      <hashTree>
        <HeaderManager guiclass="HeaderPanel" testclass="HeaderManager" testname="MCP Header">
          <collectionProp name="HeaderManager.headers">
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Accept</stringProp>
              <stringProp name="Header.value">application/json, text/event-stream</stringProp>
            </elementProp>
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Content-Type</stringProp>
              <stringProp name="Header.value">application/json</stringProp>
            </elementProp>
          </collectionProp>
        </HeaderManager>
        <hashTree/>
        <HTTPSamplerProxy guiclass="HttpTestSampleGui" testclass="HTTPSamplerProxy" testname="HTTP Ini">
          <stringProp name="HTTPSampler.domain">localhost</stringProp>
          <stringProp name="HTTPSampler.port">8080</stringProp>
          <stringProp name="HTTPSampler.protocol">http</stringProp>
          <stringProp name="HTTPSampler.path">mcp</stringProp>
          <boolProp name="HTTPSampler.follow_redirects">true</boolProp>
          <stringProp name="HTTPSampler.method">POST</stringProp>
          <boolProp name="HTTPSampler.use_keepalive">true</boolProp>
          <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
          <elementProp name="HTTPsampler.Arguments" elementType="Arguments">
            <collectionProp name="Arguments.arguments">
              <elementProp name="" elementType="HTTPArgument">
                <boolProp name="HTTPArgument.always_encode">false</boolProp>
                <stringProp name="Argument.value">{&#xd;
	&quot;jsonrpc&quot;: &quot;2.0&quot;,&#xd;
	&quot;id&quot;: 1,&#xd;
	&quot;method&quot;: &quot;initialize&quot;,&#xd;
	&quot;params&quot;: {&#xd;
		&quot;protocolVersion&quot;: &quot;2025-11-25&quot;,&#xd;
		&quot;capabilities&quot;: {},&#xd;
		&quot;clientInfo&quot;: {&#xd;
			&quot;name&quot;: &quot;jmeter&quot;,&#xd;
			&quot;version&quot;: &quot;1.0&quot;&#xd;
		}&#xd;
	}&#xd;
}&#xd;
</stringProp>
                <stringProp name="Argument.metadata">=</stringProp>
              </elementProp>
            </collectionProp>
          </elementProp>
        </HTTPSamplerProxy>
        <hashTree/>
        <RegexExtractor guiclass="RegexExtractorGui" testclass="RegexExtractor" testname="Regular Expression Extractor">
          <stringProp name="RegexExtractor.useHeaders">true</stringProp>
          <stringProp name="RegexExtractor.refname">session_id</stringProp>
          <stringProp name="RegexExtractor.regex">Mcp-Session-Id:\s*(.+)</stringProp>
          <stringProp name="RegexExtractor.template">$1$</stringProp>
          <stringProp name="RegexExtractor.default"></stringProp>
          <boolProp name="RegexExtractor.default_empty_value">false</boolProp>
          <stringProp name="RegexExtractor.match_number">1</stringProp>
        </RegexExtractor>
        <hashTree/>
        <JSR223PostProcessor guiclass="TestBeanGUI" testclass="JSR223PostProcessor" testname="JSR223 PostProcessor">
          <stringProp name="cacheKey">true</stringProp>
          <stringProp name="filename"></stringProp>
          <stringProp name="parameters"></stringProp>
          <stringProp name="script">props.put(&quot;session_id&quot;, vars.get(&quot;session_id&quot;));</stringProp>
          <stringProp name="scriptLanguage">groovy</stringProp>
        </JSR223PostProcessor>
        <hashTree/>
      </hashTree>
      <ThreadGroup guiclass="ThreadGroupGui" testclass="ThreadGroup" testname="Tool Thread Group">
        <intProp name="ThreadGroup.num_threads">10</intProp>
        <intProp name="ThreadGroup.ramp_time">0</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="Loop Controller">
          <stringProp name="LoopController.loops">2</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </ThreadGroup>
      <hashTree>
        <HeaderManager guiclass="HeaderPanel" testclass="HeaderManager" testname="MCP Header">
          <collectionProp name="HeaderManager.headers">
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Accept</stringProp>
              <stringProp name="Header.value">application/json, text/event-stream</stringProp>
            </elementProp>
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Content-Type</stringProp>
              <stringProp name="Header.value">application/json</stringProp>
            </elementProp>
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Mcp-Session-Id</stringProp>
              <stringProp name="Header.value">${__P(session_id)}</stringProp>
            </elementProp>
          </collectionProp>
        </HeaderManager>
        <hashTree/>
        <HTTPSamplerProxy guiclass="HttpTestSampleGui" testclass="HTTPSamplerProxy" testname="MCP Tool Add">
          <stringProp name="HTTPSampler.domain">localhost</stringProp>
          <stringProp name="HTTPSampler.port">8080</stringProp>
          <stringProp name="HTTPSampler.protocol">http</stringProp>
          <stringProp name="HTTPSampler.path">mcp</stringProp>
          <boolProp name="HTTPSampler.follow_redirects">true</boolProp>
          <stringProp name="HTTPSampler.method">POST</stringProp>
          <boolProp name="HTTPSampler.use_keepalive">true</boolProp>
          <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
          <elementProp name="HTTPsampler.Arguments" elementType="Arguments">
            <collectionProp name="Arguments.arguments">
              <elementProp name="" elementType="HTTPArgument">
                <boolProp name="HTTPArgument.always_encode">false</boolProp>
                <stringProp name="Argument.value">{&#xd;
	&quot;jsonrpc&quot;: &quot;2.0&quot;,&#xd;
	&quot;id&quot;: 2,&#xd;
	&quot;method&quot;: &quot;tools/call&quot;,&#xd;
    &quot;params&quot;: {&#xd;
        &quot;name&quot;: &quot;add&quot;,&#xd;
        &quot;arguments&quot;: {&#xd;
            &quot;a&quot;: 22,&#xd;
            &quot;b&quot;: 11&#xd;
        }&#xd;
    }&#xd;
}&#xd;
</stringProp>
                <stringProp name="Argument.metadata">=</stringProp>
              </elementProp>
            </collectionProp>
          </elementProp>
        </HTTPSamplerProxy>
        <hashTree/>
      </hashTree>
      <ResultCollector guiclass="ViewResultsFullVisualizer" testclass="ResultCollector" testname="View Results Tree">
        <boolProp name="ResultCollector.error_logging">false</boolProp>
        <objProp>
          <name>saveConfig</name>
          <value class="SampleSaveConfiguration">
            <time>true</time>
            <latency>true</latency>
            <timestamp>true</timestamp>
            <success>true</success>
            <label>true</label>
            <code>true</code>
            <message>true</message>
            <threadName>true</threadName>
            <dataType>true</dataType>
            <encoding>false</encoding>
            <assertions>true</assertions>
            <subresults>true</subresults>
            <responseData>false</responseData>
            <samplerData>false</samplerData>
            <xml>false</xml>
            <fieldNames>true</fieldNames>
            <responseHeaders>false</responseHeaders>
            <requestHeaders>false</requestHeaders>
            <responseDataOnError>false</responseDataOnError>
            <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
            <assertionsResultsToSave>0</assertionsResultsToSave>
            <bytes>true</bytes>
            <sentBytes>true</sentBytes>
            <url>true</url>
            <threadCounts>true</threadCounts>
            <idleTime>true</idleTime>
            <connectTime>true</connectTime>
          </value>
        </objProp>
        <stringProp name="filename"></stringProp>
      </ResultCollector>
      <hashTree/>
      <ResultCollector guiclass="StatVisualizer" testclass="ResultCollector" testname="Aggregate Report">
        <boolProp name="ResultCollector.error_logging">false</boolProp>
        <objProp>
          <name>saveConfig</name>
          <value class="SampleSaveConfiguration">
            <time>true</time>
            <latency>true</latency>
            <timestamp>true</timestamp>
            <success>true</success>
            <label>true</label>
            <code>true</code>
            <message>true</message>
            <threadName>true</threadName>
            <dataType>true</dataType>
            <encoding>false</encoding>
            <assertions>true</assertions>
            <subresults>true</subresults>
            <responseData>false</responseData>
            <samplerData>false</samplerData>
            <xml>false</xml>
            <fieldNames>true</fieldNames>
            <responseHeaders>false</responseHeaders>
            <requestHeaders>false</requestHeaders>
            <responseDataOnError>false</responseDataOnError>
            <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
            <assertionsResultsToSave>0</assertionsResultsToSave>
            <bytes>true</bytes>
            <sentBytes>true</sentBytes>
            <url>true</url>
            <threadCounts>true</threadCounts>
            <idleTime>true</idleTime>
            <connectTime>true</connectTime>
          </value>
        </objProp>
        <stringProp name="filename"></stringProp>
      </ResultCollector>
      <hashTree/>
    </hashTree>
  </hashTree>
</jmeterTestPlan>

(参考)編集後JMXファイル

これを読み込めば、今回編集したテストを再現できる。

<?xml version="1.0" encoding="UTF-8"?>
<jmeterTestPlan version="1.2" properties="5.0" jmeter="5.6.3">
  <hashTree>
    <TestPlan guiclass="TestPlanGui" testclass="TestPlan" testname="Test Plan">
      <elementProp name="TestPlan.user_defined_variables" elementType="Arguments" guiclass="ArgumentsPanel" testclass="Arguments" testname="User Defined Variables">
        <collectionProp name="Arguments.arguments"/>
      </elementProp>
    </TestPlan>
    <hashTree>
      <SetupThreadGroup guiclass="SetupThreadGroupGui" testclass="SetupThreadGroup" testname="setUp Thread Group">
        <intProp name="ThreadGroup.num_threads">1</intProp>
        <intProp name="ThreadGroup.ramp_time">1</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="Loop Controller">
          <stringProp name="LoopController.loops">1</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </SetupThreadGroup>
      <hashTree>
        <HeaderManager guiclass="HeaderPanel" testclass="HeaderManager" testname="MCP Header">
          <collectionProp name="HeaderManager.headers">
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Accept</stringProp>
              <stringProp name="Header.value">application/json, text/event-stream</stringProp>
            </elementProp>
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Content-Type</stringProp>
              <stringProp name="Header.value">application/json</stringProp>
            </elementProp>
          </collectionProp>
        </HeaderManager>
        <hashTree/>
        <HTTPSamplerProxy guiclass="HttpTestSampleGui" testclass="HTTPSamplerProxy" testname="HTTP Ini">
          <stringProp name="HTTPSampler.domain">localhost</stringProp>
          <stringProp name="HTTPSampler.port">8080</stringProp>
          <stringProp name="HTTPSampler.protocol">http</stringProp>
          <stringProp name="HTTPSampler.path">mcp</stringProp>
          <boolProp name="HTTPSampler.follow_redirects">true</boolProp>
          <stringProp name="HTTPSampler.method">POST</stringProp>
          <boolProp name="HTTPSampler.use_keepalive">true</boolProp>
          <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
          <elementProp name="HTTPsampler.Arguments" elementType="Arguments">
            <collectionProp name="Arguments.arguments">
              <elementProp name="" elementType="HTTPArgument">
                <boolProp name="HTTPArgument.always_encode">false</boolProp>
                <stringProp name="Argument.value">{&#xd;
	&quot;jsonrpc&quot;: &quot;2.0&quot;,&#xd;
	&quot;id&quot;: 1,&#xd;
	&quot;method&quot;: &quot;initialize&quot;,&#xd;
	&quot;params&quot;: {&#xd;
		&quot;protocolVersion&quot;: &quot;2025-11-25&quot;,&#xd;
		&quot;capabilities&quot;: {},&#xd;
		&quot;clientInfo&quot;: {&#xd;
			&quot;name&quot;: &quot;jmeter&quot;,&#xd;
			&quot;version&quot;: &quot;1.0&quot;&#xd;
		}&#xd;
	}&#xd;
}&#xd;
</stringProp>
                <stringProp name="Argument.metadata">=</stringProp>
              </elementProp>
            </collectionProp>
          </elementProp>
        </HTTPSamplerProxy>
        <hashTree/>
        <RegexExtractor guiclass="RegexExtractorGui" testclass="RegexExtractor" testname="Regular Expression Extractor">
          <stringProp name="RegexExtractor.useHeaders">true</stringProp>
          <stringProp name="RegexExtractor.refname">session_id</stringProp>
          <stringProp name="RegexExtractor.regex">Mcp-Session-Id:\s*(.+)</stringProp>
          <stringProp name="RegexExtractor.template">$1$</stringProp>
          <stringProp name="RegexExtractor.default"></stringProp>
          <boolProp name="RegexExtractor.default_empty_value">false</boolProp>
          <stringProp name="RegexExtractor.match_number">1</stringProp>
        </RegexExtractor>
        <hashTree/>
        <JSR223PostProcessor guiclass="TestBeanGUI" testclass="JSR223PostProcessor" testname="JSR223 PostProcessor">
          <stringProp name="cacheKey">true</stringProp>
          <stringProp name="script">props.put(&quot;session_id&quot;, vars.get(&quot;session_id&quot;));</stringProp>
          <stringProp name="scriptLanguage">groovy</stringProp>
          <stringProp name="parameters"></stringProp>
          <stringProp name="filename"></stringProp>
        </JSR223PostProcessor>
        <hashTree/>
      </hashTree>
      <ThreadGroup guiclass="ThreadGroupGui" testclass="ThreadGroup" testname="Tool Thread Group">
        <intProp name="ThreadGroup.num_threads">10</intProp>
        <intProp name="ThreadGroup.ramp_time">0</intProp>
        <boolProp name="ThreadGroup.same_user_on_next_iteration">true</boolProp>
        <stringProp name="ThreadGroup.on_sample_error">continue</stringProp>
        <elementProp name="ThreadGroup.main_controller" elementType="LoopController" guiclass="LoopControlPanel" testclass="LoopController" testname="Loop Controller">
          <stringProp name="LoopController.loops">2</stringProp>
          <boolProp name="LoopController.continue_forever">false</boolProp>
        </elementProp>
      </ThreadGroup>
      <hashTree>
        <HeaderManager guiclass="HeaderPanel" testclass="HeaderManager" testname="MCP Header">
          <collectionProp name="HeaderManager.headers">
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Accept</stringProp>
              <stringProp name="Header.value">application/json, text/event-stream</stringProp>
            </elementProp>
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Content-Type</stringProp>
              <stringProp name="Header.value">application/json</stringProp>
            </elementProp>
            <elementProp name="" elementType="Header">
              <stringProp name="Header.name">Mcp-Session-Id</stringProp>
              <stringProp name="Header.value">${__P(session_id)}</stringProp>
            </elementProp>
          </collectionProp>
        </HeaderManager>
        <hashTree/>
        <HTTPSamplerProxy guiclass="HttpTestSampleGui" testclass="HTTPSamplerProxy" testname="MCP Tool Add">
          <stringProp name="HTTPSampler.domain">localhost</stringProp>
          <stringProp name="HTTPSampler.port">8080</stringProp>
          <stringProp name="HTTPSampler.protocol">http</stringProp>
          <stringProp name="HTTPSampler.path">mcp</stringProp>
          <boolProp name="HTTPSampler.follow_redirects">true</boolProp>
          <stringProp name="HTTPSampler.method">POST</stringProp>
          <boolProp name="HTTPSampler.use_keepalive">true</boolProp>
          <boolProp name="HTTPSampler.postBodyRaw">true</boolProp>
          <elementProp name="HTTPsampler.Arguments" elementType="Arguments">
            <collectionProp name="Arguments.arguments">
              <elementProp name="" elementType="HTTPArgument">
                <boolProp name="HTTPArgument.always_encode">false</boolProp>
                <stringProp name="Argument.value">{&#xd;
	&quot;jsonrpc&quot;: &quot;2.0&quot;,&#xd;
	&quot;id&quot;: 2,&#xd;
	&quot;method&quot;: &quot;tools/call&quot;,&#xd;
	&quot;params&quot;: {&#xd;
		&quot;name&quot;: &quot;add&quot;,&#xd;
		&quot;arguments&quot;: {&#xd;
			&quot;a&quot;: ${__Random(1,100,a_val)},&#xd;
			&quot;b&quot;: ${__Random(1,100,b_val)}&#xd;
		}&#xd;
	}&#xd;
}&#xd;
</stringProp>
                <stringProp name="Argument.metadata">=</stringProp>
              </elementProp>
            </collectionProp>
          </elementProp>
        </HTTPSamplerProxy>
        <hashTree/>
      </hashTree>
      <ResultCollector guiclass="ViewResultsFullVisualizer" testclass="ResultCollector" testname="View Results Tree">
        <boolProp name="ResultCollector.error_logging">false</boolProp>
        <objProp>
          <name>saveConfig</name>
          <value class="SampleSaveConfiguration">
            <time>true</time>
            <latency>true</latency>
            <timestamp>true</timestamp>
            <success>true</success>
            <label>true</label>
            <code>true</code>
            <message>true</message>
            <threadName>true</threadName>
            <dataType>true</dataType>
            <encoding>false</encoding>
            <assertions>true</assertions>
            <subresults>true</subresults>
            <responseData>false</responseData>
            <samplerData>false</samplerData>
            <xml>false</xml>
            <fieldNames>true</fieldNames>
            <responseHeaders>false</responseHeaders>
            <requestHeaders>false</requestHeaders>
            <responseDataOnError>false</responseDataOnError>
            <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
            <assertionsResultsToSave>0</assertionsResultsToSave>
            <bytes>true</bytes>
            <sentBytes>true</sentBytes>
            <url>true</url>
            <threadCounts>true</threadCounts>
            <idleTime>true</idleTime>
            <connectTime>true</connectTime>
          </value>
        </objProp>
        <stringProp name="filename"></stringProp>
      </ResultCollector>
      <hashTree/>
      <ResultCollector guiclass="StatVisualizer" testclass="ResultCollector" testname="Aggregate Report">
        <boolProp name="ResultCollector.error_logging">false</boolProp>
        <objProp>
          <name>saveConfig</name>
          <value class="SampleSaveConfiguration">
            <time>true</time>
            <latency>true</latency>
            <timestamp>true</timestamp>
            <success>true</success>
            <label>true</label>
            <code>true</code>
            <message>true</message>
            <threadName>true</threadName>
            <dataType>true</dataType>
            <encoding>false</encoding>
            <assertions>true</assertions>
            <subresults>true</subresults>
            <responseData>false</responseData>
            <samplerData>false</samplerData>
            <xml>false</xml>
            <fieldNames>true</fieldNames>
            <responseHeaders>false</responseHeaders>
            <requestHeaders>false</requestHeaders>
            <responseDataOnError>false</responseDataOnError>
            <saveAssertionResultsFailureMessage>true</saveAssertionResultsFailureMessage>
            <assertionsResultsToSave>0</assertionsResultsToSave>
            <bytes>true</bytes>
            <sentBytes>true</sentBytes>
            <url>true</url>
            <threadCounts>true</threadCounts>
            <idleTime>true</idleTime>
            <connectTime>true</connectTime>
          </value>
        </objProp>
        <stringProp name="filename"></stringProp>
      </ResultCollector>
      <hashTree/>
    </hashTree>
  </hashTree>
</jmeterTestPlan>
1
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
