Ubuntu で Kubernetes 三昧その10(Secrets)からの続きです。
@masternode1:~/kubernetes-examples/secrets/vault$ cat install.md
helm repo add hashicorp https://helm.releases.hashicorp.com
helm install vault hashicorp/vault --set='ui.enabled=true' --set='ui.serviceType=LoadBalancer' --namespace vault --create-namespace
kubectl exec --stdin=true --tty=true vault-0 -n vault -- vault operator init
Run the below three times with three unseal keys.
kubectl exec --stdin=true --tty=true vault-0 -n vault -- vault operator unseal
まずは、helm をインストールします。
@masternode1:~/kubernetes-examples/secrets/vault$ helm repo add hashicorp https://helm.releases.hashicorp.com
コマンド 'helm' が見つかりません。次の方法でインストールできます:
sudo snap install helm
@masternode1:~/kubernetes-examples/secrets/vault$ sudo snap install helm --classic
helm 3.18.3 from Snapcrafters✪ installed
hashicorp/vault をインストールします。
@masternode1:~/kubernetes-examples/secrets/vault$ helm repo add hashicorp https://helm.releases.hashicorp.com
"hashicorp" has been added to your repositories
@masternode1:~/kubernetes-examples/secrets/vault$ helm install vault hashicorp/vault --set='ui.enabled=true' --set='ui.serviceType=LoadBalancer' --namespace vault --create-namespace
NAME: vault
LAST DEPLOYED: Wed Jul 2 20:51:35 2025
NAMESPACE: vault
STATUS: deployed
REVISION: 1
NOTES:
Thank you for installing HashiCorp Vault!
Now that you have deployed Vault, you should look over the docs on using
Vault with Kubernetes available here:
https://developer.hashicorp.com/vault/docs
Your release is named vault. To learn more about the release, try:
$ helm status vault
$ helm get manifest vault
@masternode1:~/kubernetes-examples/secrets/vault$ kubectl get all -n vault
NAME READY STATUS RESTARTS AGE
pod/vault-0 0/1 Pending 0 83s
pod/vault-agent-injector-56459c7545-5v2m5 1/1 Running 0 83s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/vault ClusterIP 10.103.59.184 <none> 8200/TCP,8201/TCP 83s
service/vault-agent-injector-svc ClusterIP 10.104.192.132 <none> 443/TCP 83s
service/vault-internal ClusterIP None <none> 8200/TCP,8201/TCP 83s
service/vault-ui LoadBalancer 10.96.59.83 <pending> 8200:30217/TCP 83s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/vault-agent-injector 1/1 1 1 83s
NAME DESIRED CURRENT READY AGE
replicaset.apps/vault-agent-injector-56459c7545 1 1 1 83s
NAME READY AGE
statefulset.apps/vault 0/1 83s
ワーカーノードです。
@workernode1:~$ sudo mkdir -p /mnt/vault-data
@workernode1:~$ sudo chmod 777 /mnt/vault-data
マスターノードです。
@masternode1:~/kubernetes-examples$ kubectl apply -f - <<EOF
> apiVersion: v1
kind: PersistentVolume
metadata:
name: vault-pv-manual
spec:
capacity:
storage: 10Gi
volumeMode: Filesystem
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
hostPath:
path: "/mnt/vault-data"
> EOF
persistentvolume/vault-pv-manual created
初期化します。
@masternode1:~/kubernetes-examples$ kubectl exec --stdin=true --tty=true vault-0 -n vault -- vault operator init
Unseal Key 1: ybXa8LSkhRoxDa9KVv8iERD0VGcZTd0TP2sLsIQRdiin
Unseal Key 2: b8l8jB9RjVzBrYJzomAJU1oE2SuX09FuvnkofpcVWhaO
Unseal Key 3: HXvx5VBbm3P6KVxOEUcYTeCHmBVxqlFZP6jjjpKBOGYO
Unseal Key 4: GOQUVslh6SIVQo6b0ntCcQBHdEyXaJcUyxtMYvnp3vhM
Unseal Key 5: W4YWTyJ5iH8HBT3d1V+EBxA2HroMa08q02C/E47qQB99
Initial Root Token: hvs.4XKmcafXeepjBRJPkG2W5DAw
Vault initialized with 5 key shares and a key threshold of 3. Please securely
distribute the key shares printed above. When the Vault is re-sealed,
restarted, or stopped, you must supply at least 3 of these keys to unseal it
before it can start servicing requests.
Vault does not store the generated root key. Without at least 3 keys to
reconstruct the root key, Vault will remain permanently sealed!
It is possible to generate new unseal keys, provided you have a quorum of
existing unseal keys shares. See "vault operator rekey" for more information.
@masternode1:~/kubernetes-examples$ kubectl get pods -n vault
NAME READY STATUS RESTARTS AGE
vault-0 0/1 Running 0 9m51s
vault-agent-injector-56459c7545-5v2m5 1/1 Running 0 9m51s
unseal を実行します。
1回目
@masternode1:~/kubernetes-examples$ kubectl exec vault-0 -n vault -- vault operator unseal ybXa8LSkhRoxDa9KVv8iERD0VGcZTd0TP2sLsIQRdiin
Key Value
--- -----
Seal Type shamir
Initialized true
Sealed true
Total Shares 5
Threshold 3
Unseal Progress 1/3
Unseal Nonce 3d14d5c9-1213-d366-cfa2-d112eee04566
Version 1.19.0
Build Date 2025-03-04T12:36:40Z
Storage Type file
HA Enabled false
２回目
@masternode1:~/kubernetes-examples$ kubectl exec vault-0 -n vault -- vault operator unseal b8l8jB9RjVzBrYJzomAJU1oE2SuX09FuvnkofpcVWhaO
Key Value
--- -----
Seal Type shamir
Initialized true
Sealed true
Total Shares 5
Threshold 3
Unseal Progress 2/3
Unseal Nonce 3d14d5c9-1213-d366-cfa2-d112eee04566
Version 1.19.0
Build Date 2025-03-04T12:36:40Z
Storage Type file
HA Enabled false
3回目
@masternode1:~/kubernetes-examples$ kubectl exec vault-0 -n vault -- vault operator unseal HXvx5VBbm3P6KVxOEUcYTeCHmBVxqlFZP6jjjpKBOGYO
Key Value
--- -----
Seal Type shamir
Initialized true
Sealed false
Total Shares 5
Threshold 3
Version 1.19.0
Build Date 2025-03-04T12:36:40Z
Storage Type file
Cluster Name vault-cluster-810b11e4
Cluster ID 4f4a36cf-8a2c-1828-b966-68cd7dcea5d1
HA Enabled false
完了しました。
@masternode1:~/kubernetes-examples$ kubectl get pods -n vault
NAME READY STATUS RESTARTS AGE
vault-0 1/1 Running 0 16m
vault-agent-injector-56459c7545-5v2m5 1/1 Running 0 16m
サービスを確認します。
masternode1:~/kubernetes-examples$ kubectl get svc -n vault
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
vault ClusterIP 10.103.59.184 <none> 8200/TCP,8201/TCP 18m
vault-agent-injector-svc ClusterIP 10.104.192.132 <none> 443/TCP 18m
vault-internal ClusterIP None <none> 8200/TCP,8201/TCP 18m
vault-ui LoadBalancer 10.96.59.83 <pending> 8200:30217/TCP 18m

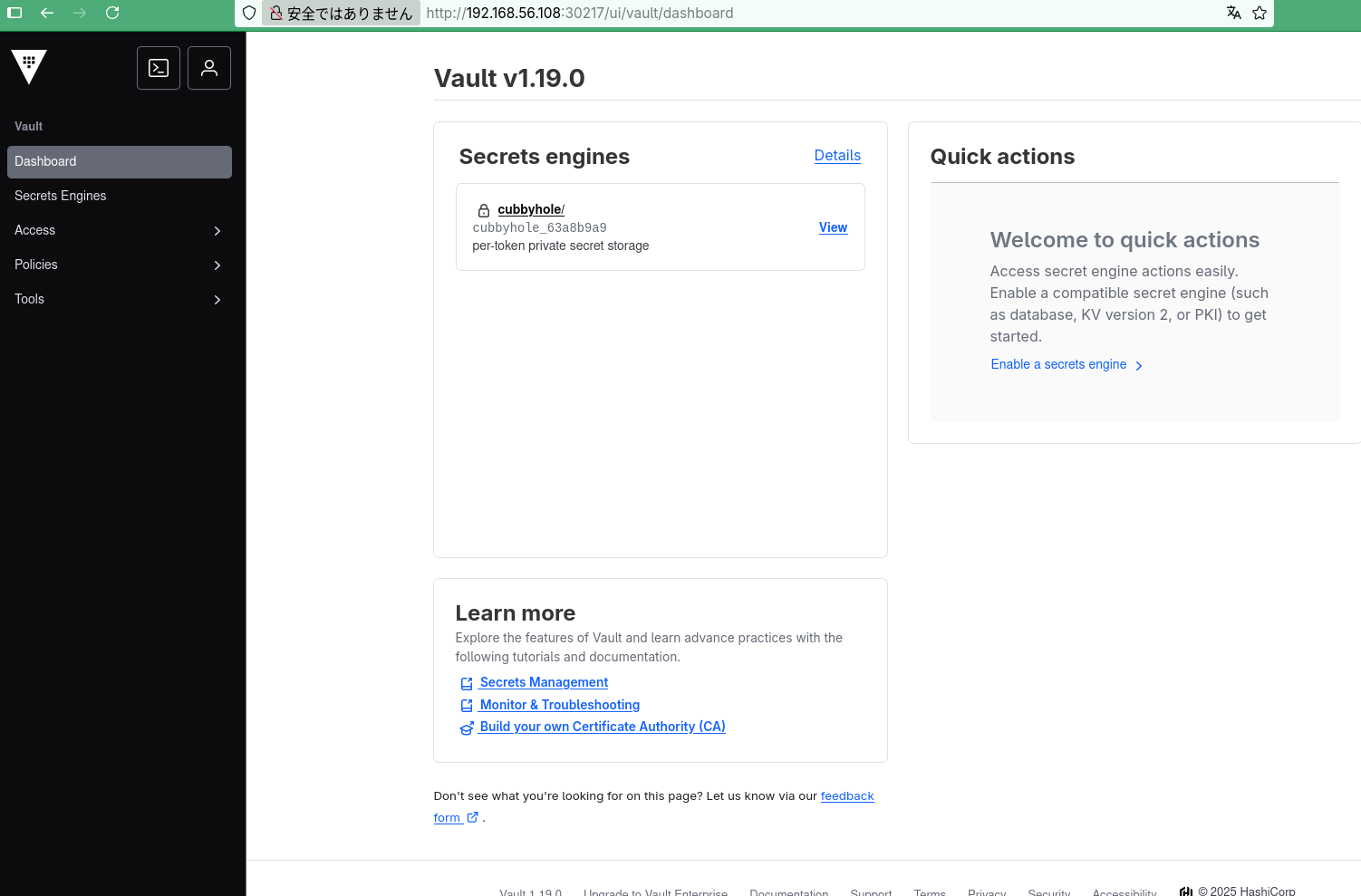

この、vault-ui が、web ui になりますが、http://<ワーカーノードのIP>:30217 で接続します。

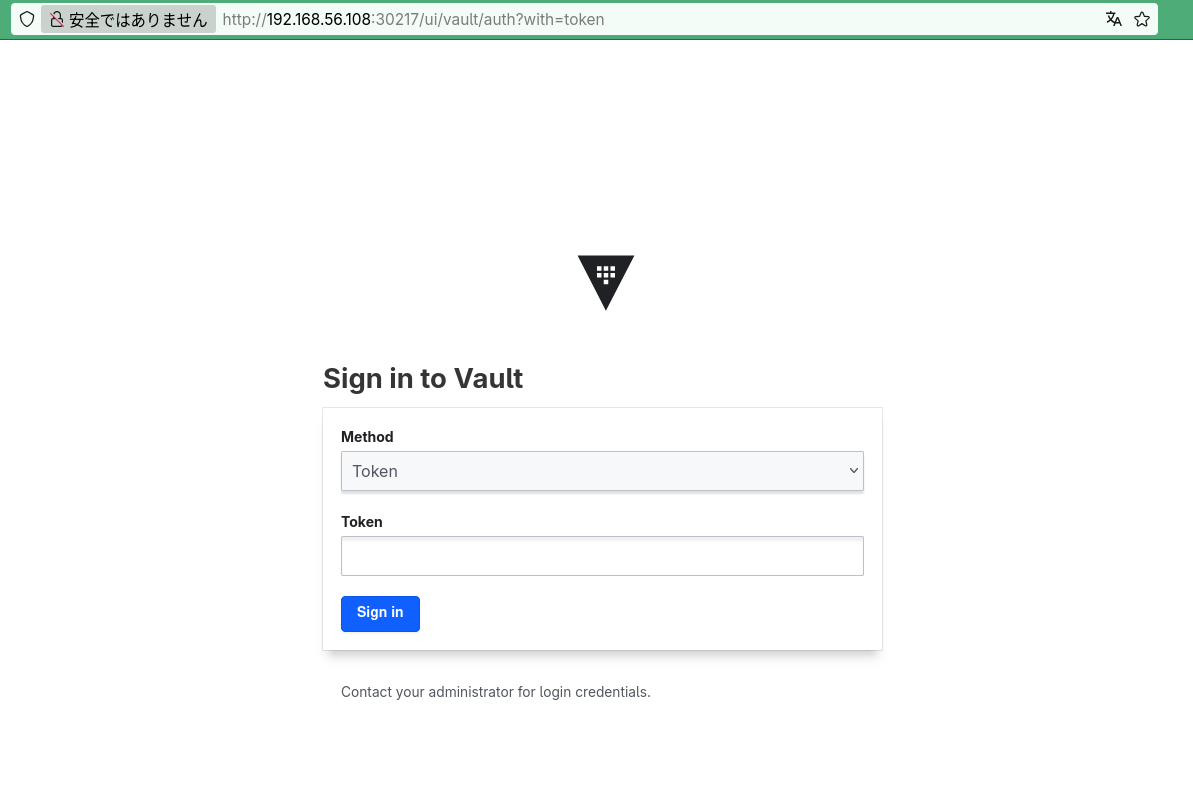

初期化の際に表示されたトークンでログイン可能です。
...(snip)...
nitial Root Token: hvs.4XKmcafXeepjBRJPkG2W5DAw
...(snip)...
