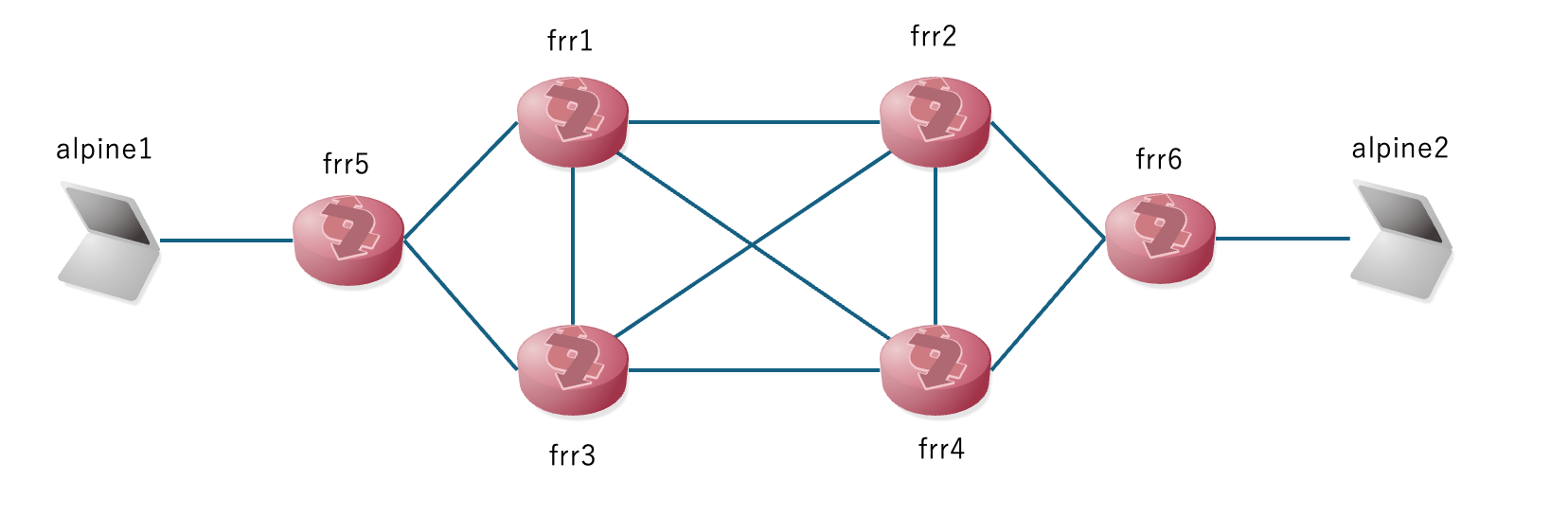

SRv6の勉強をしようと思った時にコンテナ版FRRを使えば簡単に環境準備ができるかなと思い、下記構成での構築を検討した。その際、思いの外docker-composeを利用した状態でのコンテナへの複数IF及び固定IP付与に手こずったので、忘れないようにメモ
環境
- MacbookPro(2020)
- Podman-desktop(1.9.1)
docerk-compose
ポイントとしては、複数のyamlファイルを作成して実行することで複数IFへの固定IP付与が可能となる。
下記yamlファイルはvolumesとか色々今回の内容としては不要な部分も記載しているが、上図の環境を構築する際にはそのまま使用できるyamlファイルなのでそのまま記載
一つ目のyamlファイル
version: '3'
services:
frr1:
image: frrouting/frr
container_name: frr1
hostname: frr1
privileged: true
volumes:
- ./frr1:/etc/frr
networks:
net1_2:
ipv4_address: 192.168.12.1
frr2:
image: frrouting/frr
container_name: frr2
hostname: frr2
privileged: true
volumes:
- ./frr2:/etc/frr
networks:
net1_2:
ipv4_address: 192.168.12.2
frr3:
image: frrouting/frr
container_name: frr3
hostname: frr3
privileged: true
volumes:
- ./frr3:/etc/frr
networks:
net1_3:
ipv4_address: 192.168.13.3
frr4:
image: frrouting/frr
container_name: frr4
hostname: frr4
privileged: true
volumes:
- ./frr4:/etc/frr
networks:
net1_4:
ipv4_address: 192.168.14.4
networks:
net1_2:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.12.0/24
net1_3:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.13.0/24
net1_4:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.14.0/24
net2_3:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.23.0/24
net2_4:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.24.0/24
net3_4:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.34.0/24
volumes:
frr1:
frr2:
frr3:
frr4:
二つ目のyamlファイル
version: '3'
services:
frr1:
networks:
net1_3:
ipv4_address: 192.168.13.1
frr2:
networks:
net2_3:
ipv4_address: 192.168.23.2
frr3:
networks:
net2_3:
ipv4_address: 192.168.23.3
frr4:
networks:
net2_4:
ipv4_address: 192.168.24.4
三つ目のyamlファイル
version: '3'
services:
frr1:
networks:
net1_4:
ipv4_address: 192.168.14.1
frr2:
networks:
net2_4:
ipv4_address: 192.168.24.2
frr3:
networks:
net3_4:
ipv4_address: 192.168.34.3
frr4:
networks:
net3_4:
ipv4_address: 192.168.34.4
実行
-f で複数ファイルを指定してコマンドを実行する形となる
gemunopedy@gemunopedynoMacBook-Pro frr % podman compose -f frr-compose.yaml -f frr2-compose.yaml -f frr3-compose.yaml up --detach
>>>> Executing external compose provider "/usr/local/bin/docker-compose". Please refer to the documentation for details. <<<<
[+] Running 10/10
✔ Network frr_net3_4 Created 0.0s
✔ Network frr_net1_2 Created 0.0s
✔ Network frr_net1_3 Created 0.0s
✔ Network frr_net1_4 Created 0.0s
✔ Network frr_net2_3 Created 0.0s
✔ Network frr_net2_4 Created 0.0s
✔ Container frr1 Started 0.2s
✔ Container frr4 Started 0.2s
✔ Container frr3 Started 0.2s
✔ Container frr2 Started 0.2s
gemunopedy@gemunopedynoMacBook-Pro frr %

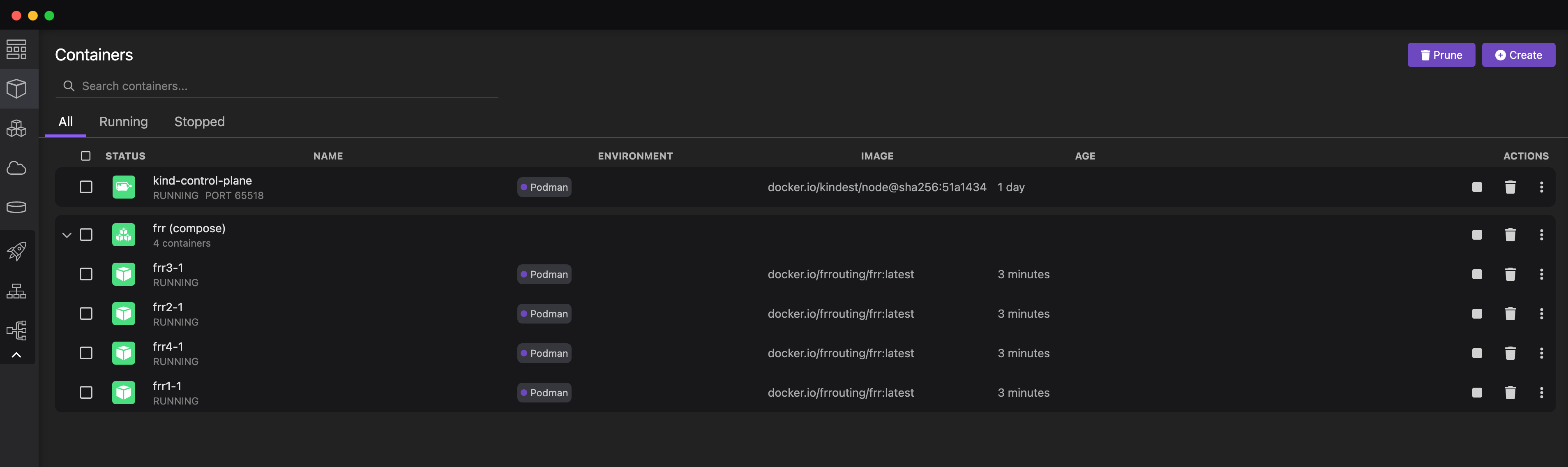

コンテナも正しく起動している
コンテナに直接ログインしてみての確認。ip aにて各IFに指定したアドレスが付与されている。
gemunopedy@gemunopedynoMacBook-Pro frr % podman exec -it frr1 /bin/sh
/ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet 1.1.1.1/32 brd 1.1.1.1 scope global lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth1@if306: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
link/ether ca:53:e7:43:66:95 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 192.168.12.1/24 brd 192.168.12.255 scope global eth1
valid_lft forever preferred_lft forever
inet6 fe80::c853:e7ff:fe43:6695/64 scope link
valid_lft forever preferred_lft forever
3: eth0@if307: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
link/ether 22:6b:dc:d1:d7:1d brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 192.168.14.1/24 brd 192.168.14.255 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::206b:dcff:fed1:d71d/64 scope link
valid_lft forever preferred_lft forever
4: eth2@if309: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default qlen 1000
link/ether 7e:c3:16:40:64:25 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 192.168.13.1/24 brd 192.168.13.255 scope global eth2
valid_lft forever preferred_lft forever
inet6 fe80::7cc3:16ff:fe40:6425/64 scope link
valid_lft forever preferred_lft forever
/ #
frr上で対向routerに対してping確認を実施
/ # vtysh
Hello, this is FRRouting (version 8.4_git).
Copyright 1996-2005 Kunihiro Ishiguro, et al.
frr1# show int bri
Interface Status VRF Addresses
--------- ------ --- ---------
eth0 up default 192.168.14.1/24
eth1 up default 192.168.12.1/24
eth2 up default 192.168.13.1/24
lo up default 1.1.1.1/32
frr1# ping 192.168.12.2
PING 192.168.12.2 (192.168.12.2): 56 data bytes
64 bytes from 192.168.12.2: seq=0 ttl=64 time=1.719 ms
64 bytes from 192.168.12.2: seq=1 ttl=64 time=0.066 ms
64 bytes from 192.168.12.2: seq=2 ttl=64 time=0.105 ms
^C
--- 192.168.12.2 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.066/0.630/1.719 ms
frr1# ping 192.168.13.3
PING 192.168.13.3 (192.168.13.3): 56 data bytes
64 bytes from 192.168.13.3: seq=0 ttl=64 time=0.780 ms
64 bytes from 192.168.13.3: seq=1 ttl=64 time=0.078 ms
64 bytes from 192.168.13.3: seq=2 ttl=64 time=0.102 ms
^C
--- 192.168.13.3 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.078/0.320/0.780 ms
frr1# ping 192.168.14.4
PING 192.168.14.4 (192.168.14.4): 56 data bytes
64 bytes from 192.168.14.4: seq=0 ttl=64 time=0.109 ms
64 bytes from 192.168.14.4: seq=1 ttl=64 time=0.082 ms
64 bytes from 192.168.14.4: seq=2 ttl=64 time=0.092 ms
^C
--- 192.168.14.4 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.082/0.094/0.109 ms
frr1#
良さそう。これでサクッとSRv6の勉強に着手できそう。（あくまで着手するだけ）
ハマりポイント（ダメなやり方）
どう頑張っても1yamlファイルだとうまくいかなかった。記載方法は二つ試してみた一つは、networksに複数記載するやり方（不要部分省略）
version: '3'
services:
frr1:
image: frrouting/frr
privileged: true
networks:
- net1_2: 192.168.12.1
- net1_3: 192.168.13.1
networks:
net1_2:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.12.0/24
net1_3:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.13.0/24
もう一つはaux_addressにて指定する方法
version: '3'
services:
frr1:
image: frrouting/frr
container_name: frr1
hostname: frr1
privileged: true
volumes:
- ./frr1:/etc/frr
networks:
- net1_2
- net1_3
networks:
net1_2:
driver: bridge
ipam:
driver: default
config:
- subnet: 192.168.12.0/24
aux_addresses:
frr1: 192.168.12.1
ダメな時は、そもそもコンテナが作成されなかったり、作成されたと思っても固定IPが振られていなかったり、zebraが起動しなかったりとした
