JetpackCompose NavBackStackEntry - Composable のスタックとライフサイクル

Todo ページと Poke ページで遷移します。

LocalLifecycleStateLogger() をそれぞれに貼ります。

@Composable
fun TodoScreen(
  viewModel: TodoViewModel = hiltViewModel()
) {

  LocalLifecycleStateLogger(" TodoScreen") // *

@Composable
fun PokeScreen(
  viewModel: TodoViewModel = hiltViewModel()
) {

  LocalLifecycleStateLogger(" PokeScreen") // *

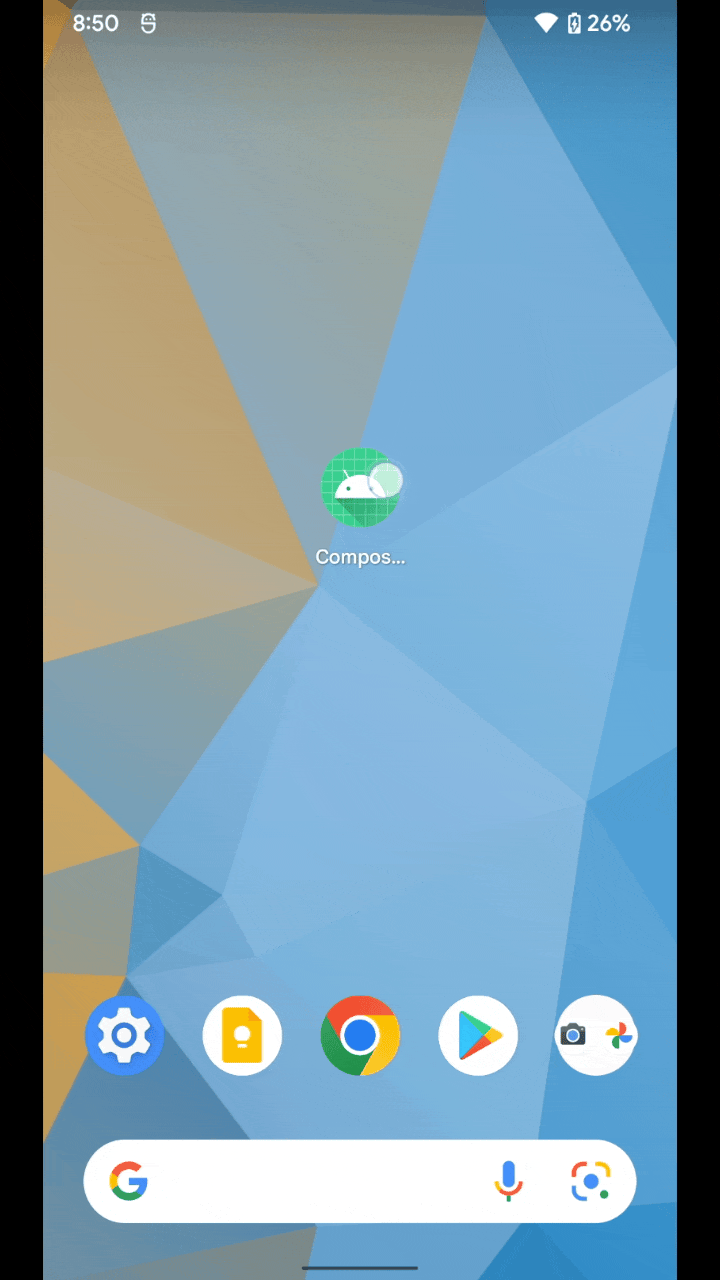

以下の順序でタップしてスタックを重ねます。

アプリ起動

  ↓ ① click

TodoScreen

  ↓ ② click

PokeScreen

  ↓ ③ click

TodoScreen

  ↓ ④ back

PokeScreen

  ↓ ⑤ back

TodoScreen

  ↓ ⑥ back

アプリ終了

出力結果。

D: @@@ MainScreen - MainActivity@a542ab9 -> ON_CREATE
D: @@@ MainScreen - MainActivity@a542ab9 -> ON_START
D: @@@ MainScreen - MainActivity@a542ab9 -> ON_RESUME
D: @@@  TodoViewModel@abae21d initialized.
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_CREATE
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_START
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_RESUME
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_PAUSE
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_STOP
D: @@@  PokeViewModel@ad0cefd initialized.
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_CREATE
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_START
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_RESUME
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_PAUSE
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_STOP
D: @@@  TodoViewModel@577b5b1 initialized.
D: @@@  TodoScreen - NavBackStackEntry@f1d51055 -> ON_CREATE
D: @@@  TodoScreen - NavBackStackEntry@f1d51055 -> ON_START
D: @@@  TodoScreen - NavBackStackEntry@f1d51055 -> ON_RESUME
D: @@@  TodoScreen - NavBackStackEntry@f1d51055 -> ON_PAUSE
D: @@@  TodoScreen - NavBackStackEntry@f1d51055 -> ON_STOP
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_CREATE
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_START
D: @@@  TodoScreen - NavBackStackEntry@f1d51055 -> ON_DESTROY
D: @@@  TodoViewModel@577b5b1 onCleared.
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_RESUME
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_PAUSE
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_STOP
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_CREATE
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_START
D: @@@  PokeScreen - NavBackStackEntry@4049e1c3 -> ON_DESTROY
D: @@@  PokeViewModel@ad0cefd onCleared.
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_RESUME
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_PAUSE
D: @@@ MainScreen - MainActivity@a542ab9 -> ON_PAUSE
D: @@@  TodoScreen - NavBackStackEntry@8ad648d7 -> ON_STOP
D: @@@ MainScreen - MainActivity@a542ab9 -> ON_STOP

ログから 各Screen = NavBackStackEntry のスタック状態を考えます。

  -

  ↓ ① click

 TodoScreen1 ↔ TodoViewModel1
MainScreen1 - MainActivity

  ↓ ② click

 PokeScreen1 ↔ PokeViewModel1
 TodoScreen1 ↔ TodoViewModel1
MainScreen1 - MainActivity

  ↓ ③ click

 TodoScreen2 ↔ TodoViewModel2
 PokeScreen1 ↔ PokeViewModel1
 TodoScreen1 ↔ TodoViewModel1
MainScreen@1 - MainActivity

  ↓ ④ back

 PokeScreen1 ↔ TodoViewModel2
 TodoScreen1 ↔ TodoViewModel1
MainScreen1 - MainActivity

  ↓ ⑤ back

 TodoScreen1 ↔ TodoViewModel1
MainScreen1 - MainActivity

  ↓ ⑥ back

  -

意図通りに、画面がスタックされ、ライフサイクルされ、ViewModel もそれに合わせて生き死にすることが確認できます。
