STM32C0116-DK、電圧計を作って遊ぶ。だいたいDC30Vぐらい(でも30V入れる時は、要注意)

Last updated at Posted at 2025-08-21

いろいろ注意

  • いろいろ、最近は、ちゃんと集計を、取って、いないがメーター作りばかり、している気がする? みんな、メーター好き?
  • いろいろ、前回(いつ)は、白バックの5桁の方が人気があるのか?(秋月的には、白抜き(白抜きは、インクの乗らない部分
  • 過去ログを見よ
  • インクルドファイルがわかる人
  • 自己責任の意味がわかる人
  • 標準のI2Cは、(PC14,PB7)
  • PA3に0.33Vの時は、3.3Vと表示される

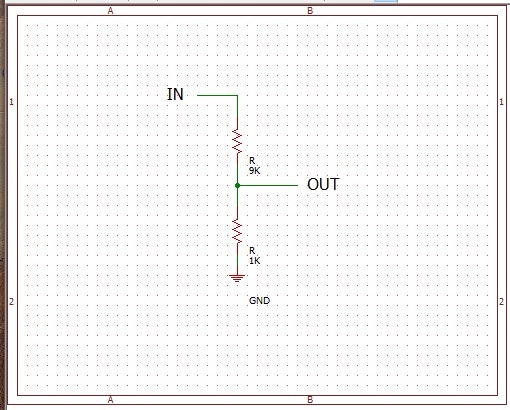

  • 10分の1にする

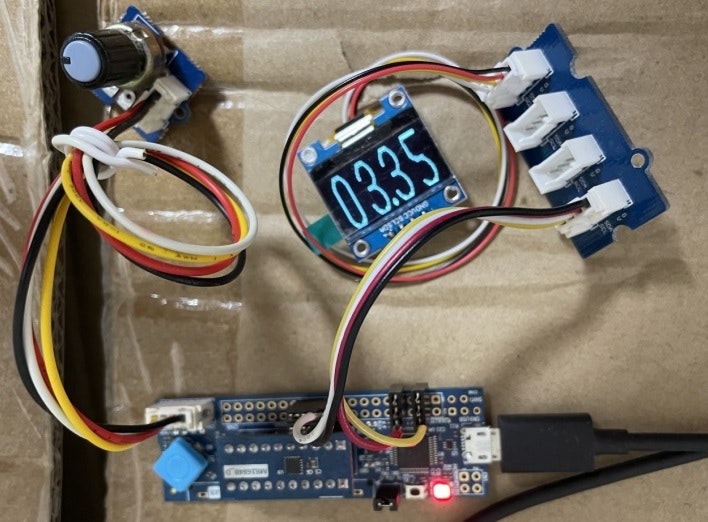

結果


プログラム



//秋月のOLEDとアイテンドウのOLEDのアドレスは3C
//ssd1306_BIG32x64_Voltage_Meter_C0116_1


//ヘッダー
#include <Arduino.h>
#include <Wire.h>
#include "h_furima1.h"


//定義
#define MAX_PAGE (7)
#define MAX_COL (127)

#define COMMAND_MODE 0x80  // continuation bit is set!
#define DATA_MODE 0x40

#define SET_COLUMN_ADDRESS 0x21  // takes two bytes, start address and end address of display data RAM
#define SET_PAGE_ADDRESS 0x22    // takes two bytes, start address and end address of display data RAM

#define SET_MEMORY_ADDRESSING_MODE 0x20  // takes one byte as given above
#define HORIZONTAL_ADDRESSING_MODE 0x00


//I2Cに配列を転送する
void write_s(uint8_t *str1, uint8_t len1) {

  Wire.beginTransmission(0x3c);

  for (int ii = 0; ii < len1; ii++) {

    //一文字出力
    Wire.write(*str1++);

  }  //for

  Wire.endTransmission();

}  //write_s


//セットページアドレス
void setPageAddress(uint8_t start, uint8_t end) {
  uint8_t databytes[6] = { COMMAND_MODE, SET_PAGE_ADDRESS, COMMAND_MODE, start, COMMAND_MODE, end };
  write_s(databytes, 6);
}  //setPageAddress


//セットカラムアクセス
void setColumnAddress(uint8_t start, uint8_t end) {
  uint8_t databytes[6] = { COMMAND_MODE, SET_COLUMN_ADDRESS, COMMAND_MODE, start, COMMAND_MODE, end };
  write_s(databytes, 6);
}  //setColumnAddress


//セットメモリーアドレシングモード
void setMemoryAddressingMode() {
  uint8_t databytes[4] = { COMMAND_MODE, SET_MEMORY_ADDRESSING_MODE, COMMAND_MODE, HORIZONTAL_ADDRESSING_MODE };
  write_s(databytes, 4);
}  //setMemoryAddressingMode


//ドットを打つ
void Dot(int x, int y, int c) {
  //データの配列の定義
  static uint8_t databytes[2] = { DATA_MODE, 0x00 };
  static int qq = 0;  //一時

  qq = qq | (c << (y & 0x07));

  if ((y & 0x07) == 7) {  //1バイト分、貯まったら
    databytes[1] = qq;
    qq = 0;
    write_s(databytes, 2);  //I2Cに1バイト書き出す
  }                         //end if
}  //DOt


//キャラクターRAMの内容
unsigned char st_p[4] = {
  //1    2    3    4
  '1', '2', '3', '4'
};

//小数点の非表示
//#define SYOUSUU 0
//小数点の表示
#define SYOUSUU 8

//スプライトの定義
char Sprite1[] = {
  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,  //' '
  0x18, 0x18, 0x3c, 0x3c, 0x3c, 0x3c, 0x18, 0x18   //'.'
};

//スプライトの座標
int ux1 = 60;
int uy1 = 56;

//再表示
void display(void) {

  int y;
  int x;
  int a;
  int ch;

  //範囲の設定 (OLED内部のx,yカウンターを初期化してホームポジション0,0に)
  setPageAddress(0, MAX_PAGE);   // all pages
  setColumnAddress(0, MAX_COL);  // all columns

  for (int ii = 0; ii < 8192; ii++) {

    //SSD1306のバッファーの配置順のxとyを求める
    y = ((ii & 0b0001110000000000) >> 7) + (ii & 0b0111);
    x =  (ii & 0b0000001111111000) >> 3;

    //↓開始　「デカ文字」のメイン処理
    ch = st_p[x >> 5] - '0';  //キャラクターRAMから
    //座標と文字からキャラクターパターンを求める
    a = pgm_read_byte_near(ch_data7 + (ch << 8) + (y << 2) + ((x >> 3) & 0x03));
    a = ~a;
    a = a << ((x)&0x07);
    a = a & 0x80;
    //↑終了

    //↓スプライト1の表示(小数点)
    if ((x + 1) > ux1 && x < (ux1 + 8) && (y + 1) > uy1 && y < (uy1 + 8)) {
      //相対座標からキャラクターパターンを求める
      a = Sprite1[y - uy1 + SYOUSUU] << (x - ux1);
      a = a & 0x80;
    }  //ux1,uy1
    //↑終了

    if (a != 0) {
      Dot(x, y, 1);  //白のドットを打つ
    } else {
      Dot(x, y, 0);  //黒のドットを打つ
    }  //end if

  }  //for ii

}  //circlar_meter


//SSD1306の初期化
void display_begin(void) {

  //I2Cの初期化
  Wire.begin();  //C011
  delay(200);

  //SSD1306の初期化スペル(魔法)
  //0x80,0x8D,0x80,0x14,0x80,0xAF
  write_s((uint8_t *)"\200\215\200\024\200\257", 6);
  delay(100);

  //セットメモリーアドレシングモード (画面の終端に来たら画面の先頭に)
  setMemoryAddressingMode();

}  //display_begin


//初期化
void setup() {

  //SSD1306の初期化
  display_begin();

  //シリアルポートの初期化 debug
  //Serial.begin(9600);  // シリアル通信の速度を9600bpsにする。

  //ADCの初期化(3.3Vを4096に分解)
  analogReadResolution(12);  //センサーの分解度4096

}  //setup


//メインループ
void loop() {

  int sensorValue;  //センサーの値
  int Voltage;      //電圧

  sensorValue = analogRead(A3);          //センサーから値を読み込む A3は、PA3の事
  Voltage = (sensorValue * 3300) >> 12;  //センサーの値から電圧に変換

  //Voltage = 1234;

  //整数から文字列に変換する
  Voltage = Voltage + 1000;
  String thisString1 = String(Voltage);
  char *str1 = (char *)thisString1.c_str();

  //いつ、消えてもおかしく無いので、直下でコピーする。
  st_p[0] = str1[0] - 1;  //1000足したから1引く
  st_p[1] = str1[1];
  st_p[2] = str1[2];
  st_p[3] = str1[3];

  //再表示
  display();
  //Serial.println(str1); //debug
  delay(1000);  // Wait 1 seconds for next

}  //loop

h_furima1.h



//「デカ文字」
const unsigned char ch_data7[] PROGMEM = {

// 'f32x64_0_9', 32x640px

  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xe1, 0x87, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x8f, 0xf8, 0xff, 0xff, 0x8f, 0xf8, 0xff,
  0xff, 0xc3, 0xe1, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xf0, 0x3f, 0xff, 0xff, 0xf0, 0x3f, 0xff, 0xff, 0xe0, 0x3f, 0xff, 0xff, 0xe0, 0x3f, 0xff,
  0xff, 0xce, 0x7f, 0xff, 0xff, 0xce, 0x7f, 0xff, 0xff, 0x9e, 0x7f, 0xff, 0xff, 0x9e, 0x7f, 0xff,
  0xff, 0xbe, 0x7f, 0xff, 0xff, 0xbe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xe0, 0x07, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xc0, 0x03, 0xff, 0xff, 0xc0, 0x03, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xe1, 0x87, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xff, 0x7f, 0xfe, 0x7f, 0xff, 0x7f, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff, 0xfe, 0xff,
  0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xf9, 0xff,
  0xff, 0xff, 0xf3, 0xff, 0xff, 0xff, 0xf3, 0xff, 0xff, 0xf8, 0x07, 0xff, 0xff, 0xf8, 0x07, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff,
  0xff, 0xcf, 0xff, 0xff, 0xff, 0xcf, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff,
  0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0x7f, 0xff, 0xff, 0xff, 0x7f, 0xff, 0xff,
  0xff, 0x1f, 0xe0, 0x7f, 0xff, 0x1f, 0xe0, 0x7f, 0xff, 0x80, 0x00, 0x7f, 0xff, 0x80, 0x00, 0x7f,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xe1, 0x87, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff, 0xfe, 0xff,
  0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xf9, 0xff,
  0xff, 0xff, 0xf3, 0xff, 0xff, 0xff, 0xf3, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xf0, 0x07, 0xff,
  0xff, 0xf0, 0x07, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xe3, 0xff,
  0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xfc, 0xff,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f,
  0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xff, 0x3f, 0xff, 0x7f, 0xff, 0x3f, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0x8f, 0xfc, 0xff,
  0xff, 0xc3, 0xe1, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0xc3, 0xff,
  0xff, 0xff, 0xc7, 0xff, 0xff, 0xff, 0xc7, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff, 0xff, 0x8f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff,
  0xff, 0xfc, 0x3f, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xff,
  0xff, 0xf0, 0xff, 0xff, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xe1, 0x9f, 0xff, 0xff, 0xe1, 0x9f, 0xff,
  0xff, 0xc3, 0x9f, 0xff, 0xff, 0xc3, 0x9f, 0xff, 0xff, 0x87, 0x9f, 0xff, 0xff, 0x87, 0x9f, 0xff,
  0xff, 0x1f, 0x9f, 0xff, 0xff, 0x1f, 0x9f, 0xff, 0xff, 0x3f, 0x9f, 0xff, 0xff, 0x3f, 0x9f, 0xff,
  0xfe, 0x3f, 0x9f, 0xff, 0xfe, 0x3f, 0x9f, 0xff, 0xfe, 0x7f, 0x9f, 0xff, 0xfe, 0x7f, 0x9f, 0xff,
  0xfe, 0x7f, 0x1f, 0x7f, 0xfe, 0x7f, 0x1f, 0x7f, 0xfe, 0x00, 0x00, 0x7f, 0xfe, 0x00, 0x00, 0x7f,
  0xfe, 0x00, 0x00, 0x7f, 0xfe, 0x00, 0x00, 0x7f, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0x00, 0x00, 0x7f, 0xff, 0x00, 0x00, 0x7f, 0xff, 0x00, 0x00, 0x7f, 0xff, 0x00, 0x00, 0x7f,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff,
  0xfe, 0xff, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff,
  0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff,
  0xff, 0x83, 0xff, 0xff, 0xff, 0x83, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xe0, 0x07, 0xff,
  0xff, 0xf0, 0x07, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xe3, 0xff,
  0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xfc, 0xff,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f,
  0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f,
  0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x7f, 0xff, 0xff, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0x8f, 0xfc, 0xff,
  0xff, 0xc3, 0xe1, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xe1, 0x87, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0xff, 0xfe, 0x7f, 0xfe, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x00, 0x07, 0xff, 0xfe, 0x00, 0x07, 0xff,
  0xfe, 0x00, 0x03, 0xff, 0xfe, 0x00, 0x03, 0xff, 0xfe, 0x1f, 0xf3, 0xff, 0xfe, 0x1f, 0xf3, 0xff,
  0xfe, 0x3f, 0xf9, 0xff, 0xfe, 0x3f, 0xf9, 0xff, 0xfe, 0x7f, 0xfc, 0xff, 0xfe, 0x7f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xff, 0x3f, 0xff, 0x7f, 0xff, 0x3f, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0x8f, 0xfc, 0xff,
  0xff, 0xc3, 0xe1, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xfc, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0x3f, 0xfc, 0x00, 0x00, 0x3f,
  0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f,
  0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xf8, 0xff,
  0xff, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xe3, 0xff,
  0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0xcf, 0xff, 0xff, 0xff, 0xcf, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff,
  0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f, 0xff,
  0xff, 0xf8, 0xff, 0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xf0, 0xff, 0xff,
  0xff, 0xe1, 0xff, 0xff, 0xff, 0xe1, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff,
  0xff, 0xc3, 0xff, 0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff,
  0xff, 0x0f, 0xff, 0xff, 0xff, 0x0f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff,
  0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff,
  0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff,
  0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff,
  0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xe1, 0x87, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0xff, 0xff, 0x3f, 0xfe, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xe0, 0x07, 0xff,
  0xff, 0xf0, 0x07, 0xff, 0xff, 0xf0, 0x07, 0xff, 0xff, 0xe3, 0xe3, 0xff, 0xff, 0xe3, 0xe3, 0xff,
  0xff, 0xcf, 0xf9, 0xff, 0xff, 0xcf, 0xf9, 0xff, 0xff, 0x9f, 0xfc, 0xff, 0xff, 0x9f, 0xfc, 0xff,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xff, 0x3f, 0xff, 0x7f, 0xff, 0x3f, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0x8f, 0xfc, 0xff,
  0xff, 0xc3, 0xe1, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xe1, 0x87, 0xff,
  0xff, 0xcf, 0xf3, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0x7f, 0xff, 0x3f, 0xfc, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x9f, 0xfe, 0x7f, 0xff, 0x9f, 0xfe, 0x7f,
  0xff, 0xcf, 0xf0, 0x7f, 0xff, 0xcf, 0xf0, 0x7f, 0xff, 0xe0, 0x00, 0x7f, 0xff, 0xe0, 0x00, 0x7f,
  0xff, 0xf0, 0x06, 0x7f, 0xff, 0xf0, 0x06, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f,
  0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f,
  0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xc1, 0xff, 0xff, 0xff, 0xc1, 0xff,
  0xff, 0xff, 0x03, 0xff, 0xff, 0xff, 0x03, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff,

// 'q_-1_1', 32x32px '-1'    <= ':'

  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfc, 0x9f,
  0xff, 0xff, 0xf9, 0x9f, 0xff, 0xff, 0xf3, 0x9f, 0xff, 0xff, 0xe7, 0x9f, 0xff, 0xff, 0xcf, 0x9f,
  0xff, 0xff, 0x9f, 0x9f, 0xff, 0xff, 0xbf, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xc0, 0x00, 0x1f, 0x9f,
  0xc0, 0x00, 0x1f, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f,
  0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xf8, 0x01, 0xff, 0xff, 0xf8, 0x01,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,

// 'q_-_1', 32x32px  '-'   <= ';'

  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x03,
  0xc0, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,

// 'q_SP_1', 32x32px ' '    <= '<'

  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff

};
1
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
