React+TypeScript useRefでエラーが発生してしまう
React+TypeScript useRefでエラーが発生してしまう
Reactで書いたコードにTypeScriptを実装しようとしているのですが
Workspace.tsxファイルの
technologyRefs.current[i] = React.createRef()
という箇所でtypescriptのエラーが発生してしまいます。
Type 'RefObject<unknown>' is missing
the following properties from type 'HTMLDivElement': align, addEventListener,
removeEventListener, accessKey, and 284 more.
import './Workspace.css'
import React, { useEffect, useState, useRef, MutableRefObject } from "react"
import Technology from "./Technology";
import Arrow from "./Arrow";
import {useArrow, ArrowPosRect} from "../hooks/useArrow";
import useComponentArray from "../hooks/useComponentArray";
import useTechnology from '../hooks/useTechnology';
const Workspace = (props: workspaceProps) => {
const technologyRefs: {current: HTMLDivElement[]} = useRef<HTMLDivElement[]>([])
const [topTechnologyId, setTopTechnologyId] = useState("")
const [selectedNodeIds, setSelectedNodeIds] = useState<string[]>([])
const [arrows, setArrows] = useState([])
const [
liftUpTechnology,
liftDown,
selectTechnology
] = useTechnology(topTechnologyId, setTopTechnologyId, selectedNodeIds, setSelectedNodeIds)
const [getArrowProperties]: [(startElementId: string, endElementId: string) => ArrowPosRect] = useArrow(technologyRefs)
const arrowHandler = () => {
selectedNodeIds.forEach((selectedNodeId) => {
const arrowProperties = getArrowProperties(topTechnologyId, selectedNodeId)
setArrows(arrows => {return(
[
...arrows,
<Arrow
width={arrowProperties.rect.width}
height={arrowProperties.rect.height}
startPosition={[arrowProperties.positions.startPosition.x, arrowProperties.positions.startPosition.y]}
/>
]
)})
})
}
const resetTechnologies = () => {
setSelectedNodeIds([])
setTopTechnologyId(null)
}
return(
<div className="workspace" onMouseDown={resetTechnologies}>
{arrows}
<button onMouseDown={(e) =>{
arrowHandler()
e.stopPropagation()
}
}>矢印描画</button>
{props.technologies.map((technology, i) => {
technologyRefs.current[i] = React.createRef() //ここでエラー発生
return(
<div draggable
onMouseDown={(e) => {
selectTechnology(e)
e.stopPropagation()
}}
onDragStart={liftUpTechnology}
onDragEnd={liftDown}
>
<Technology
name={technology.name}
key={technology.id}
id={technology.id}
ref={technologyRefs.current[i]}
selectedNodeIds={selectedNodeIds}
topTechnologyId={topTechnologyId}
/>
</div>
)
})}
</div>
)
}
export default Workspace

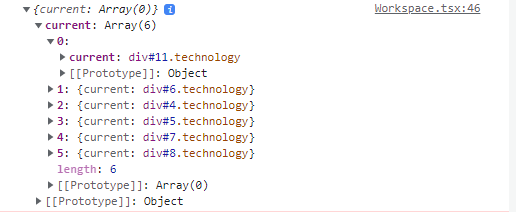

technologyRefsの中は下画像のような感じになっています。
Technologyコンポーネントは以下のように実装しています。
import React, { useEffect, forwardRef } from "react"
type TechnologyProps = {
id: string;
name: string;
topTechnologyId: string | null;
selectedNodeIds: string[];
};
const Technology = forwardRef<HTMLDivElement, TechnologyProps>((props: TechnologyProps, technologyRef: React.RefObject<HTMLDivElement>) => {
useEffect(() => {
if (technologyRef.current) {
if (props.selectedNodeIds.includes(props.id.toString())) {
technologyRef.current.style.border = 'dashed'
} else {
technologyRef.current.style.border = 'solid'
}
if (props.topTechnologyId == props.id) {
technologyRef.current.style.borderColor = "red"
}
}
}, [props.topTechnologyId, props.selectedNodeIds, technologyRef])
return (
<>
<div ref={technologyRef}
className='technology'
id={props.id}
style={{ cursor: "pointer" }}
>
{props.name}
</div>
</>
)
})
export default Technology
technologyRefsの中に配列で要素を入れているからエラーが発生するのでしょうか…?
すみませんが、ご教授頂けますとありがたいです。
以上、よろしくお願い致します。
