【TechShop Tokyo】真空成形のノウハウ

Last updated at Posted at 2016-06-28

症状

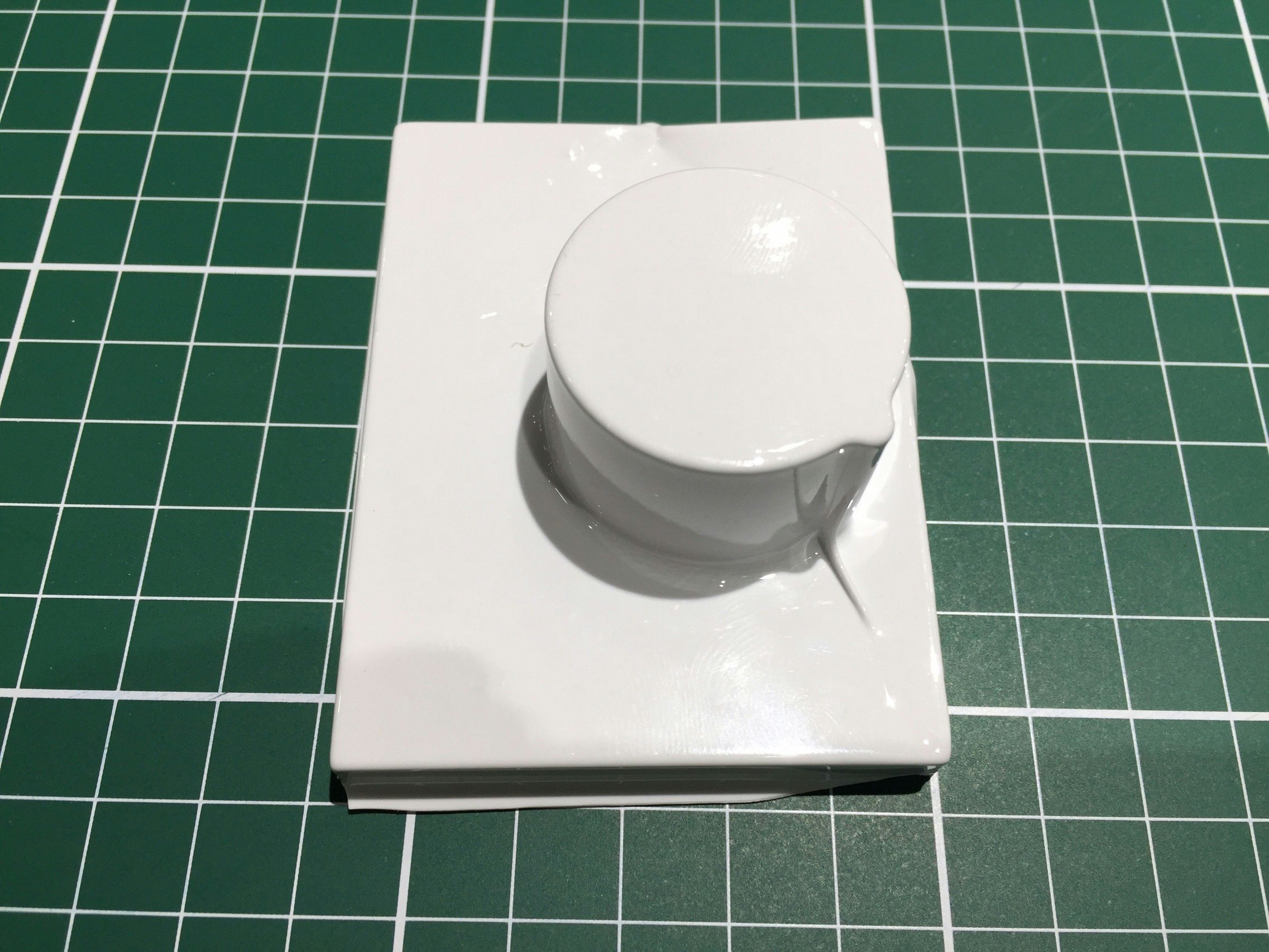

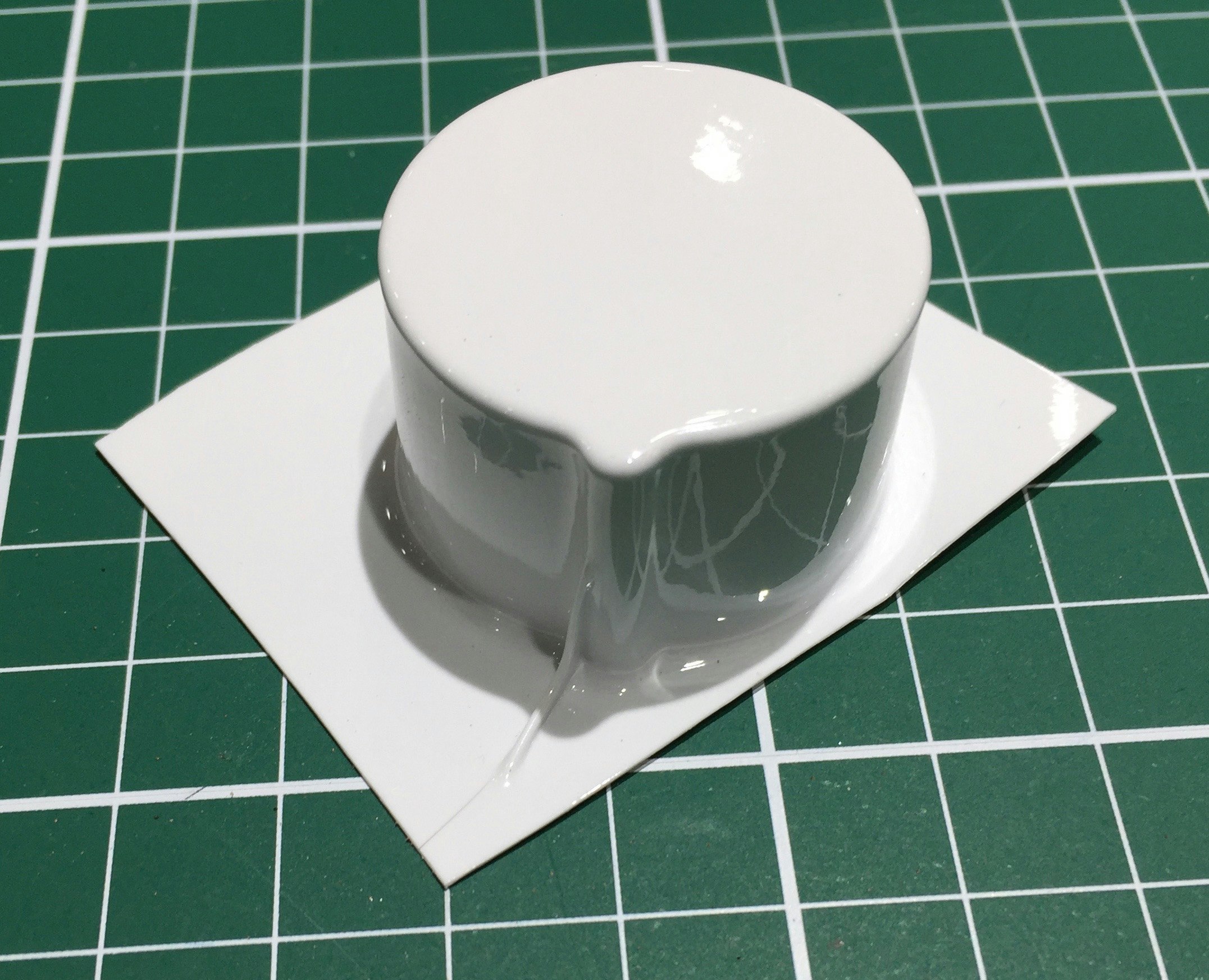

材料のあまりによるブリッジの発生

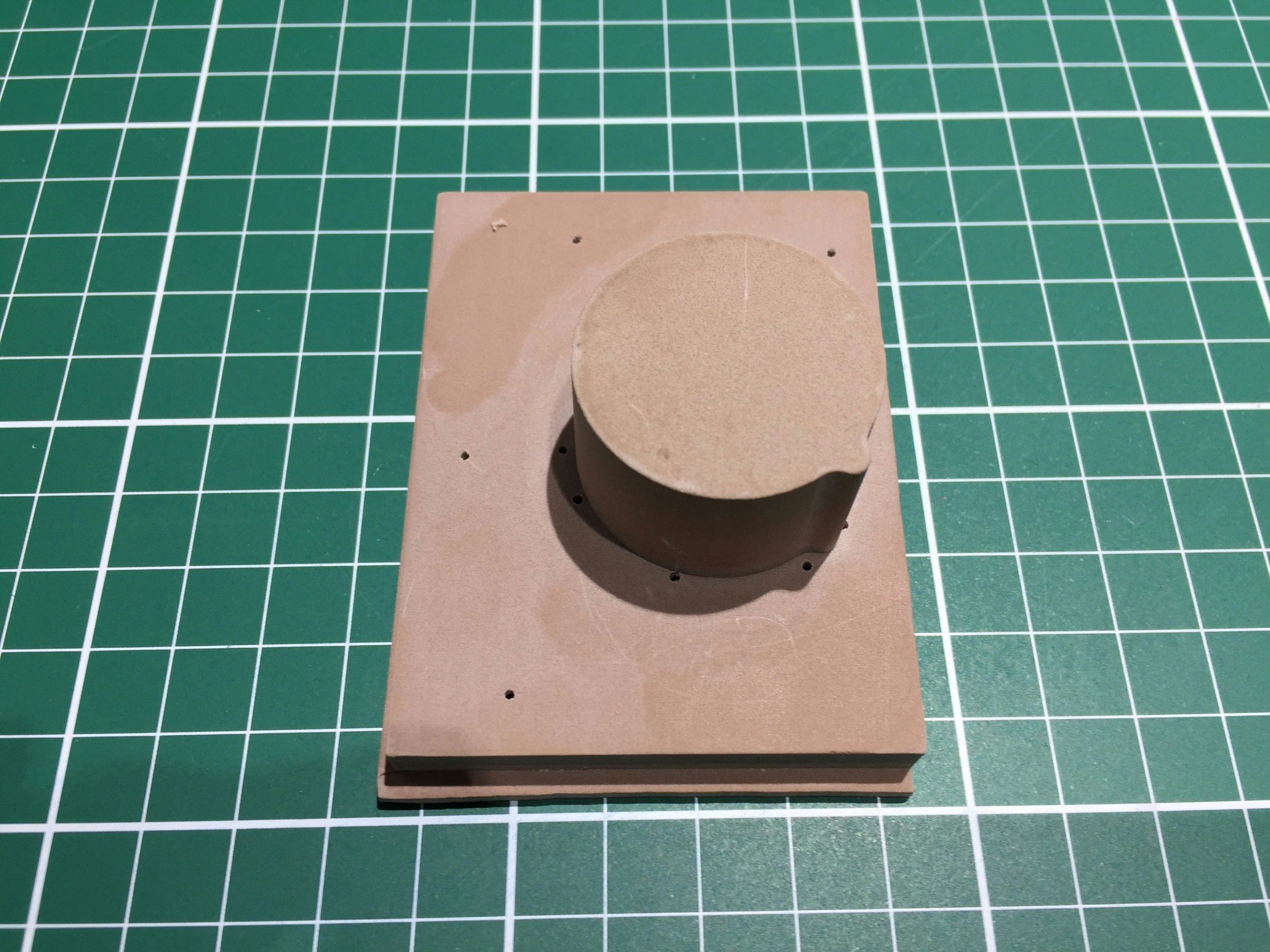

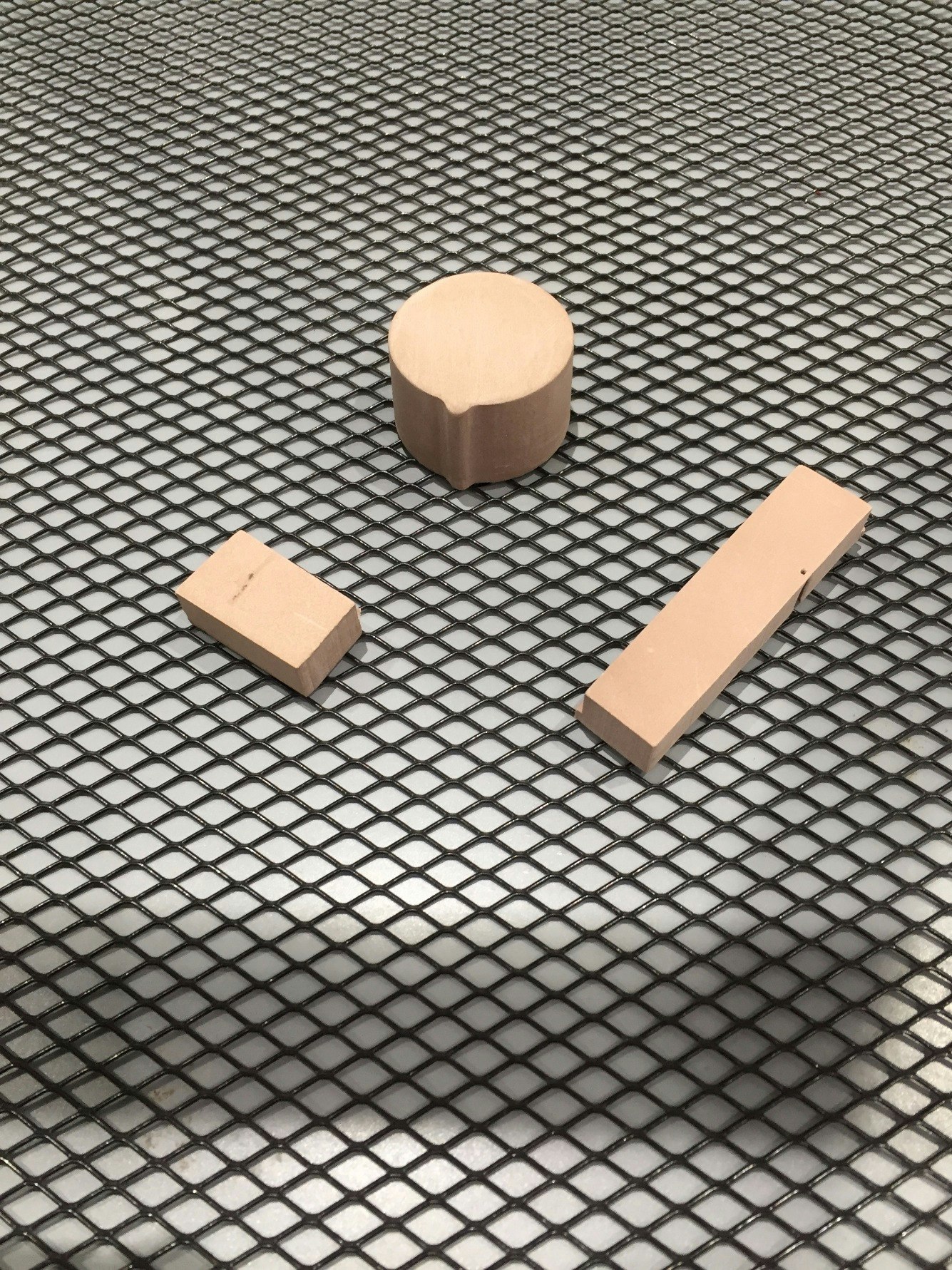

使用した型

対策

あまりを伸ばす型を考案

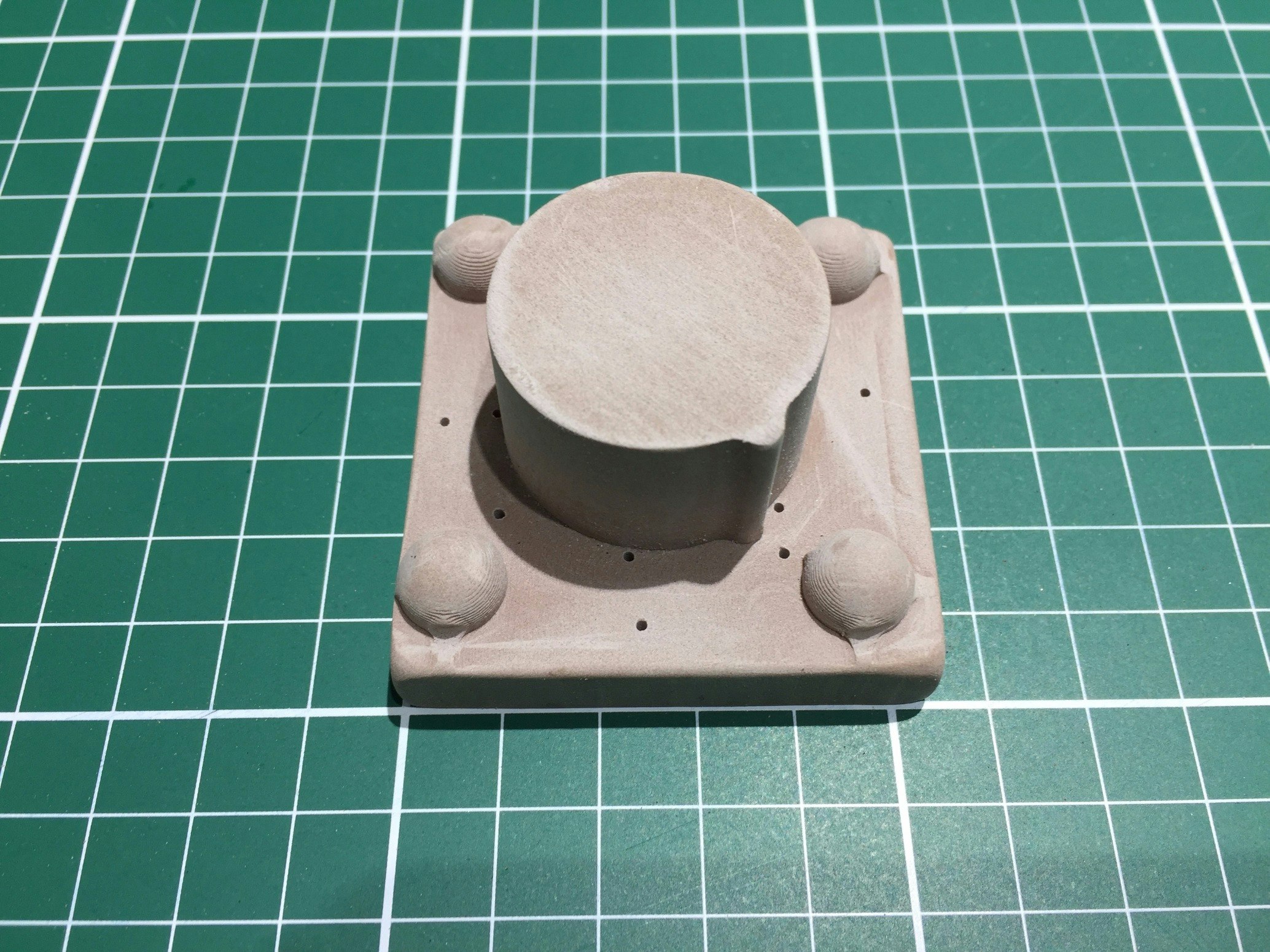

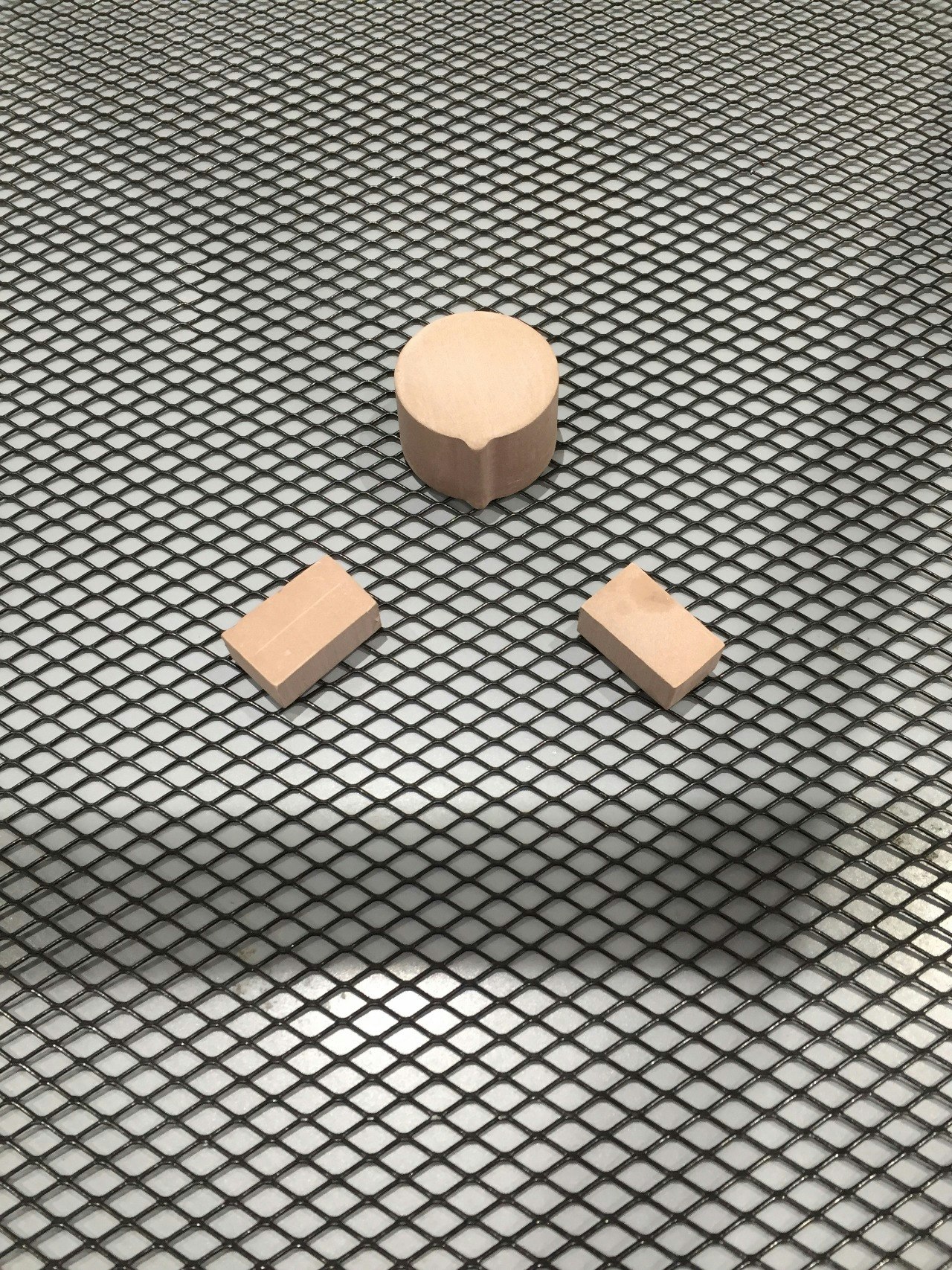

案1

四辺に球を出して伸ばしてみる

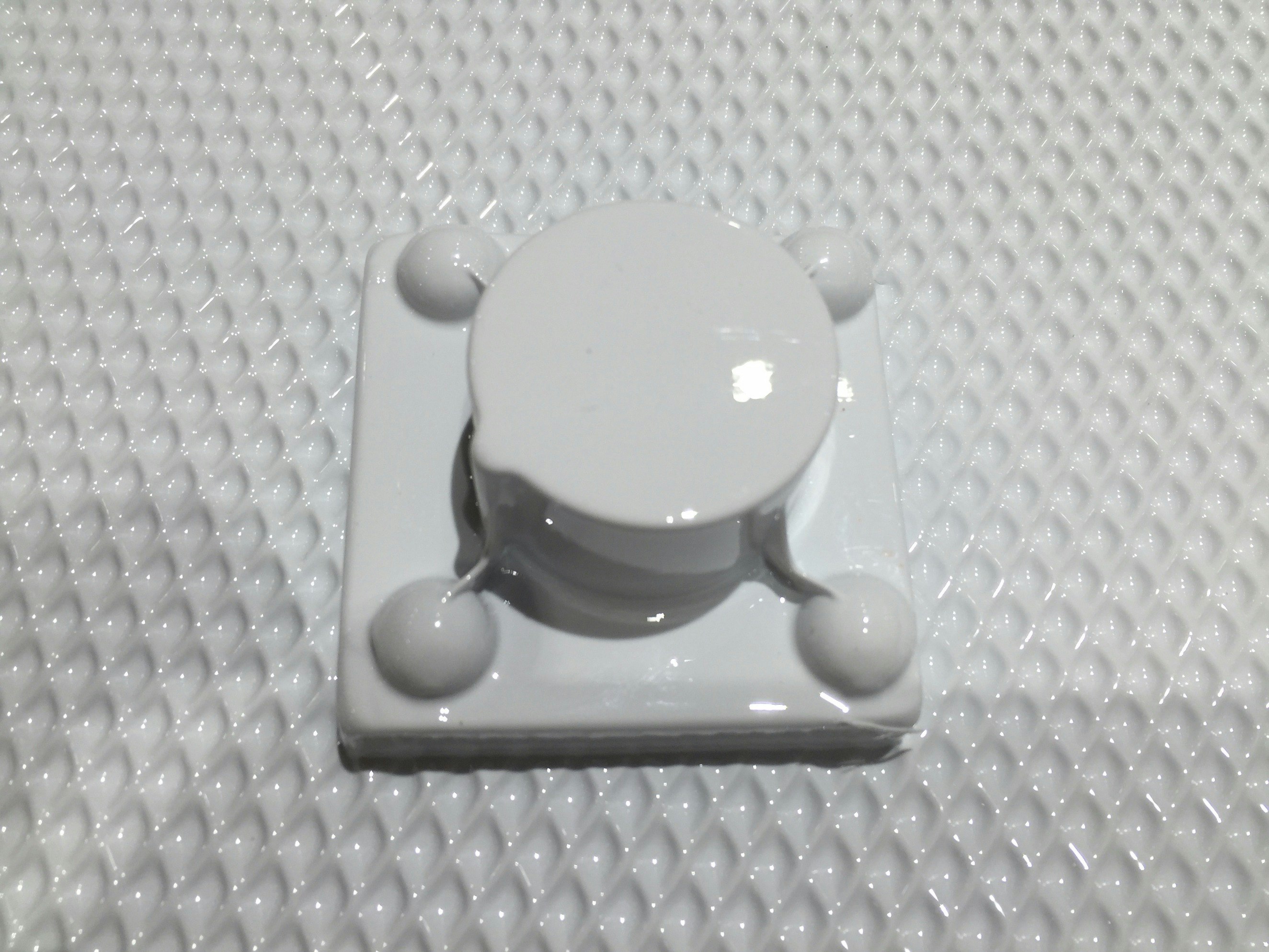

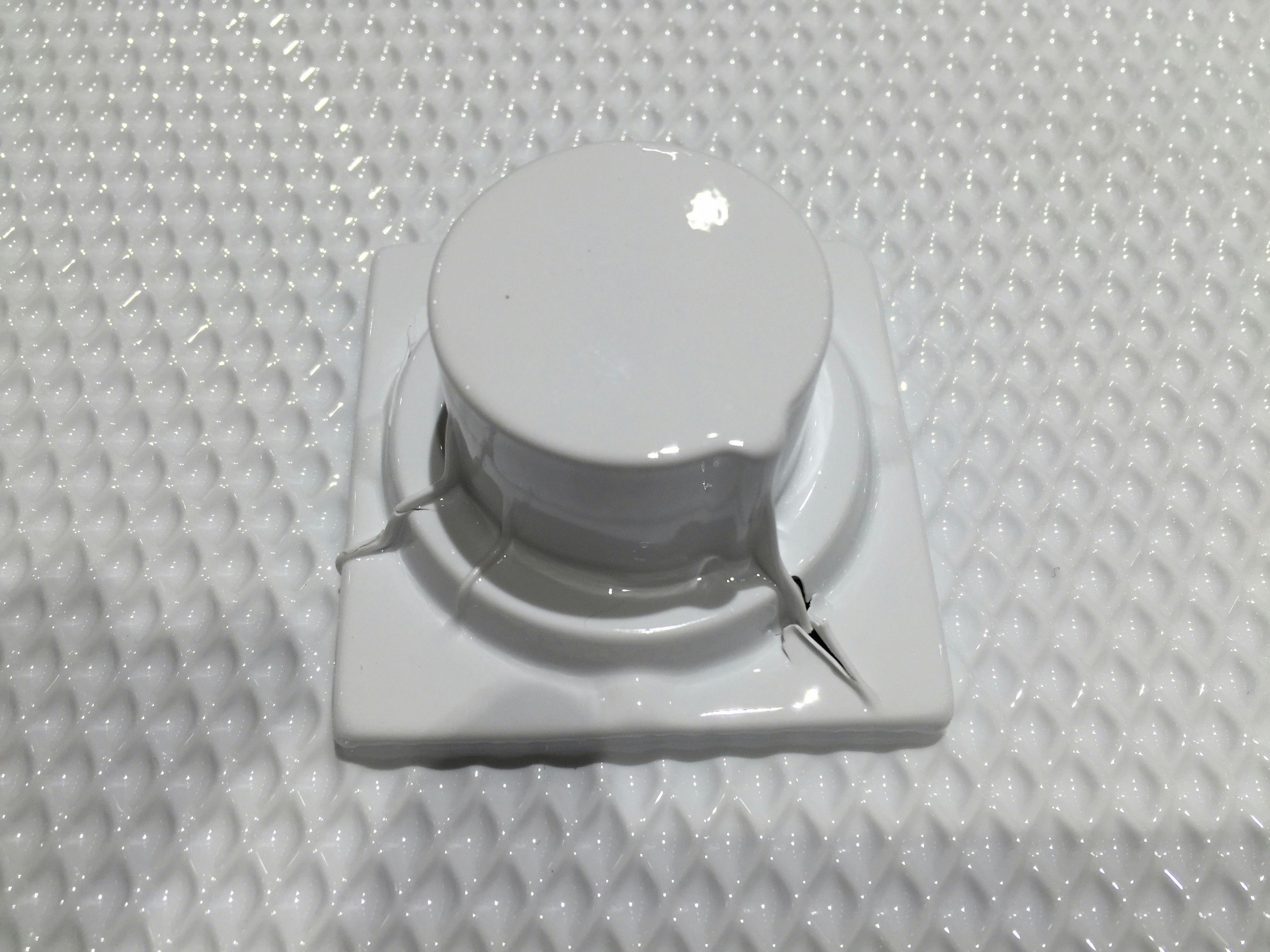

球との間にブリッジ。全然ダメ。

案2

下部に土台の円柱をつける
土台つけても全然ダメ。

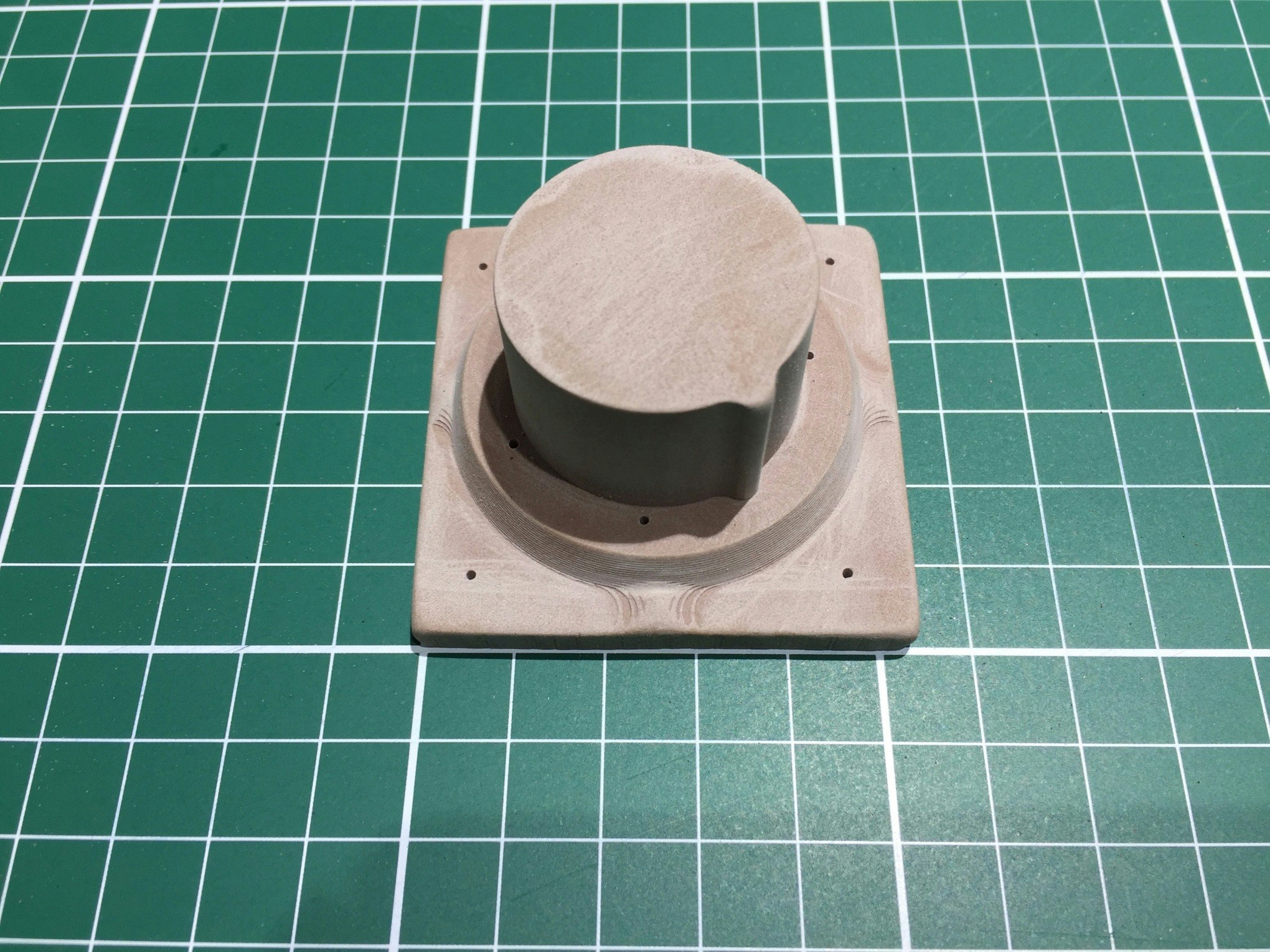

方針転換

土台をなくす。
ブリッジ激減。

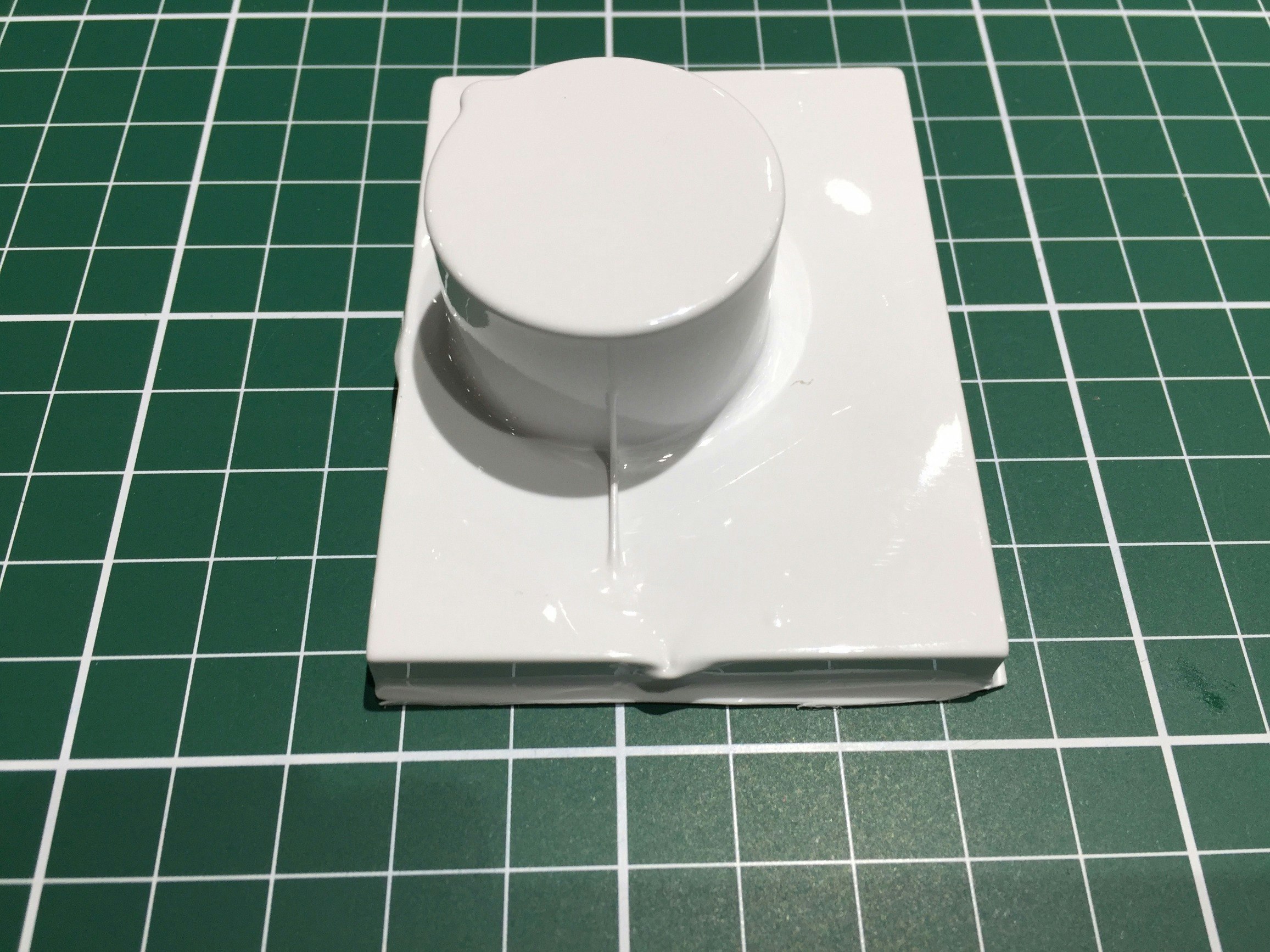

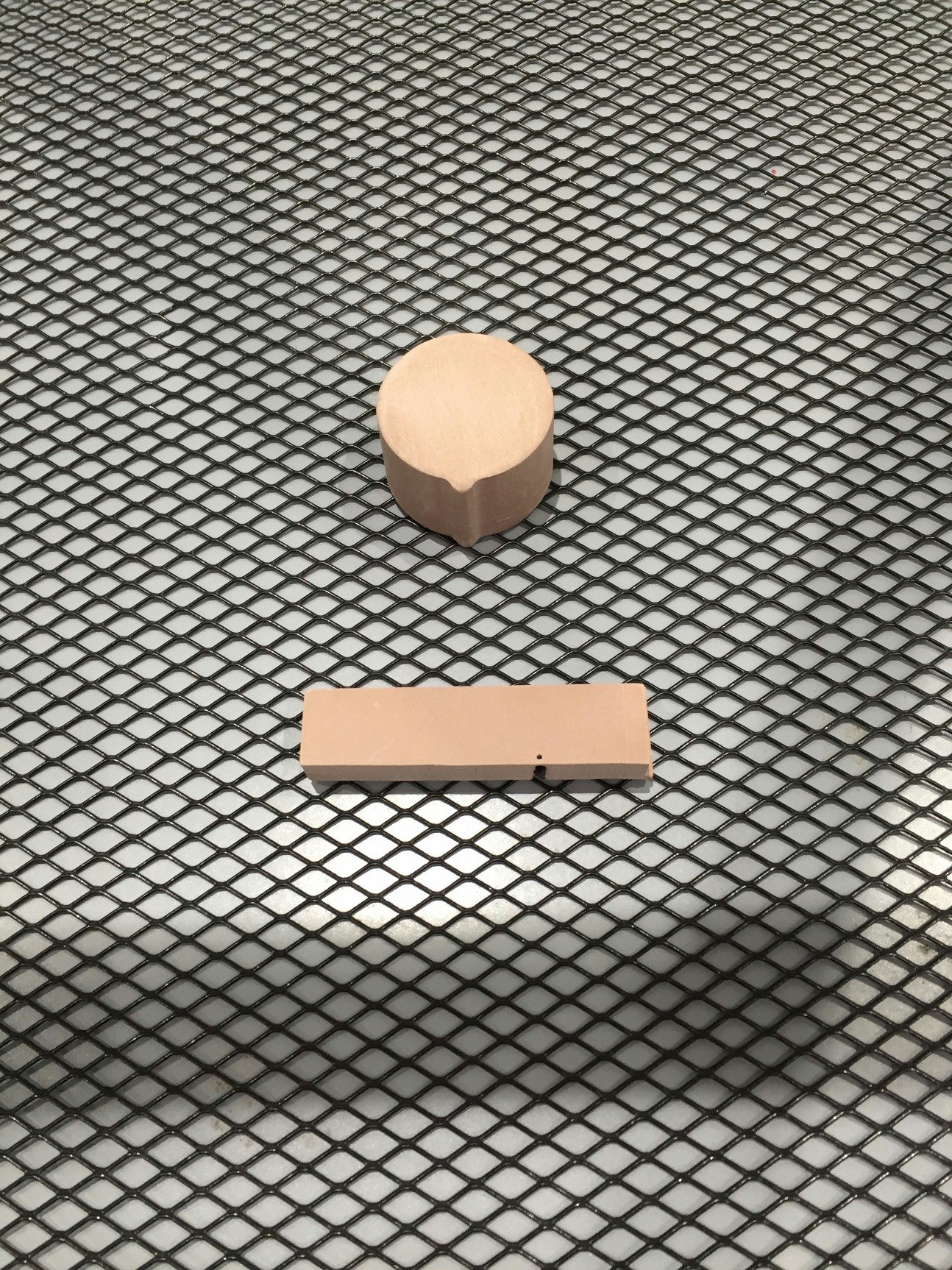

伸びたPETを引っ張るために、正方形をおく
いいところまで行ったけど、ブリッジがまだ残ってる
あと一歩

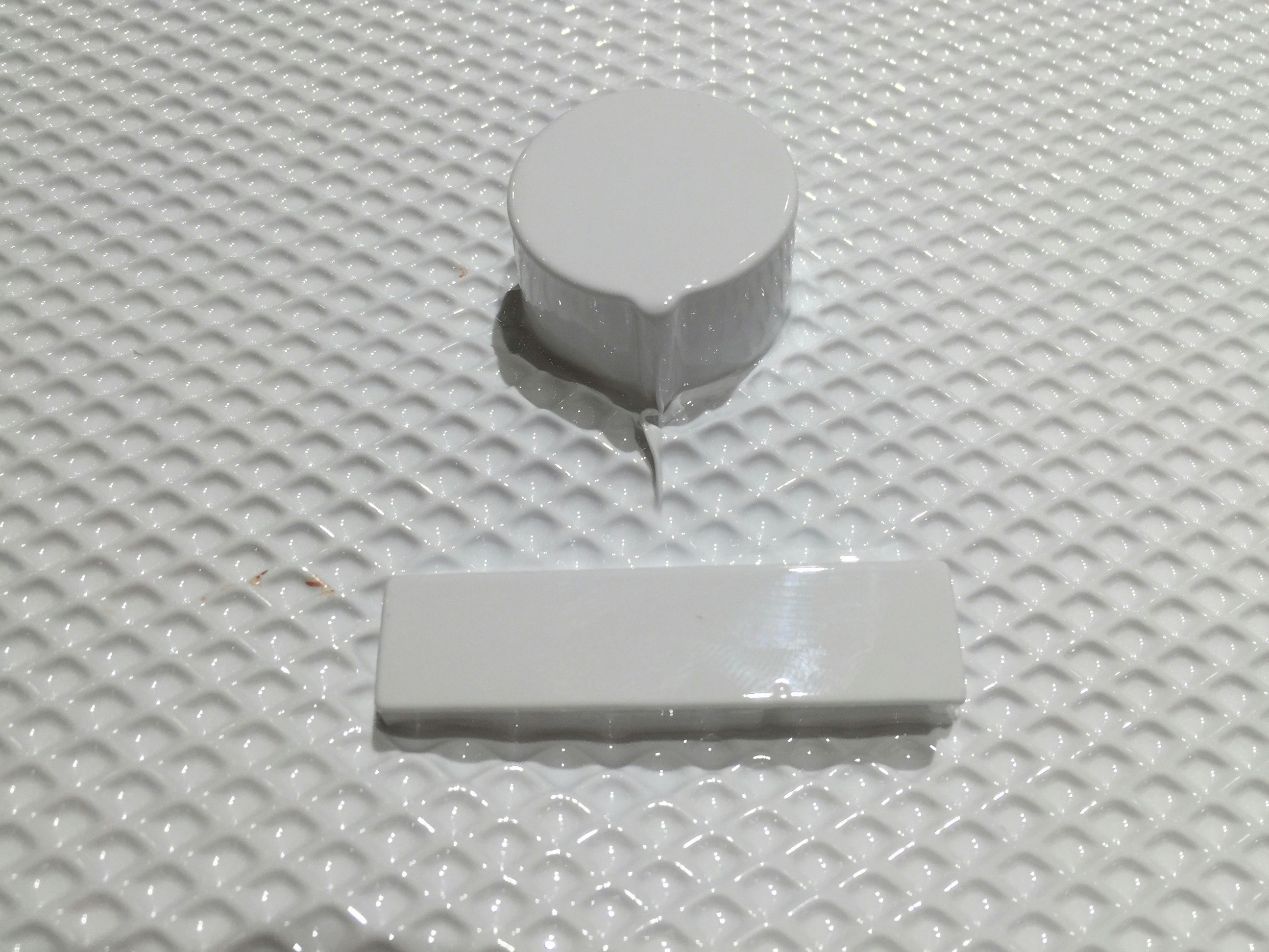

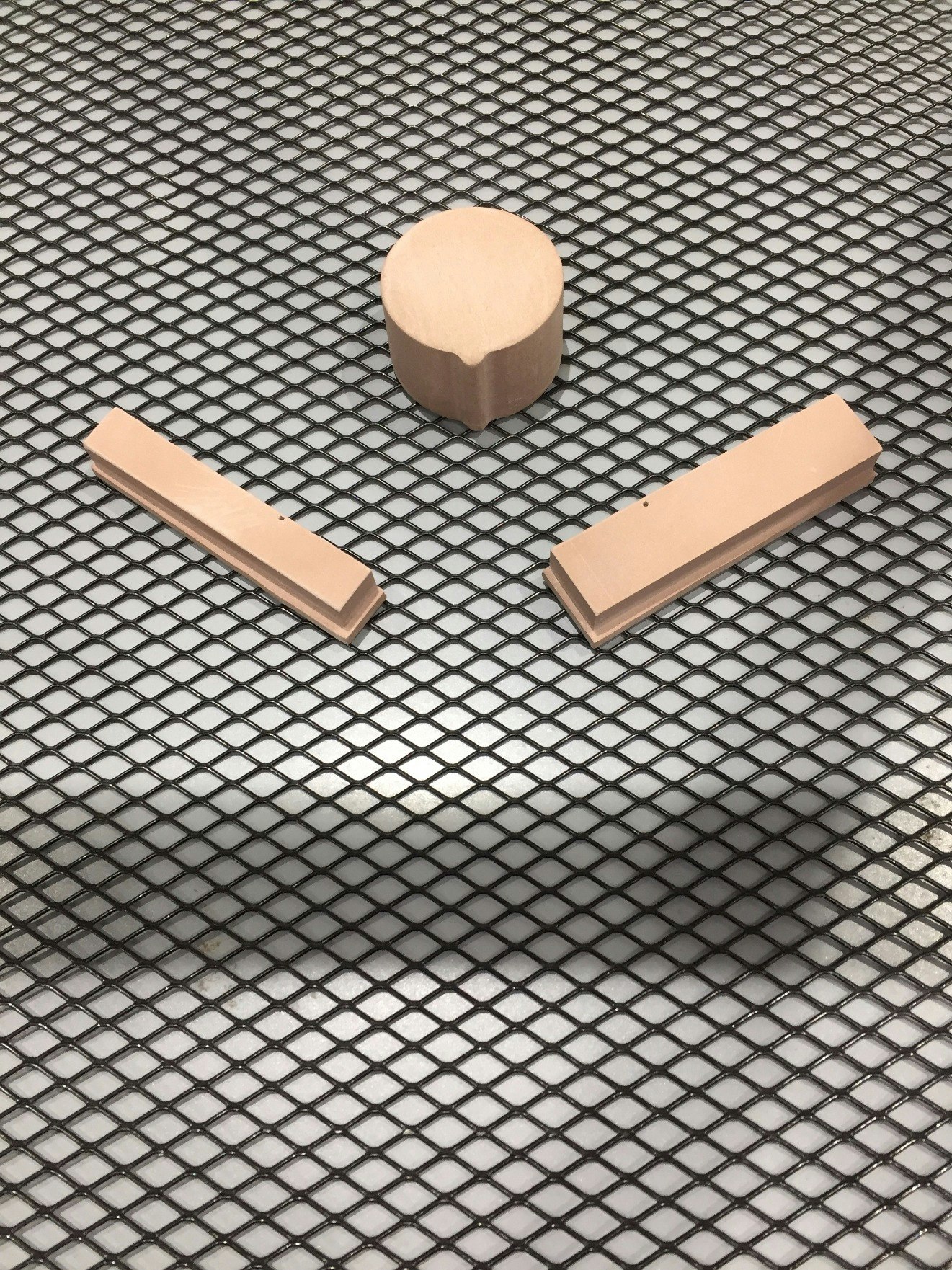

正解

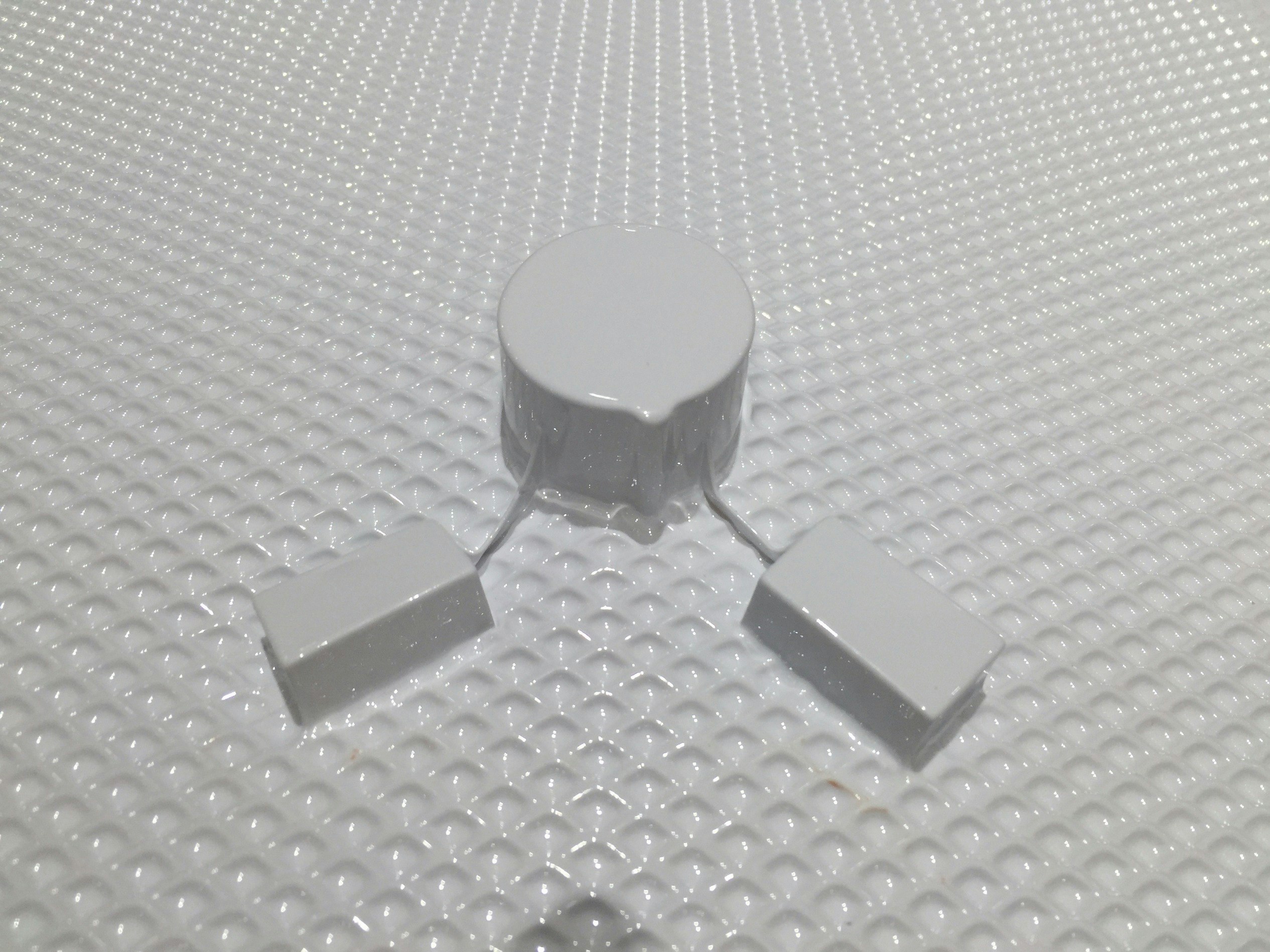

正解はこのパターン

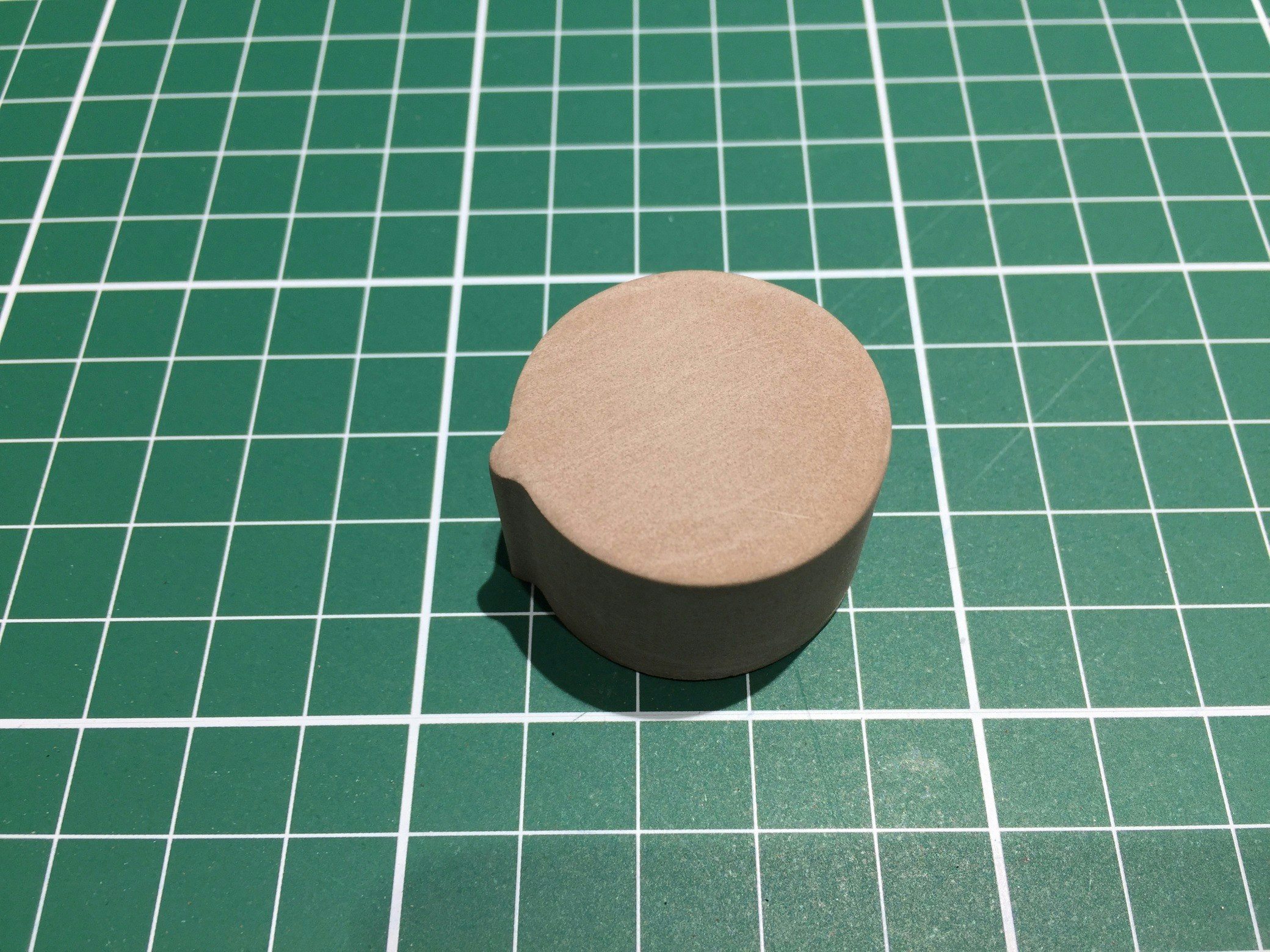

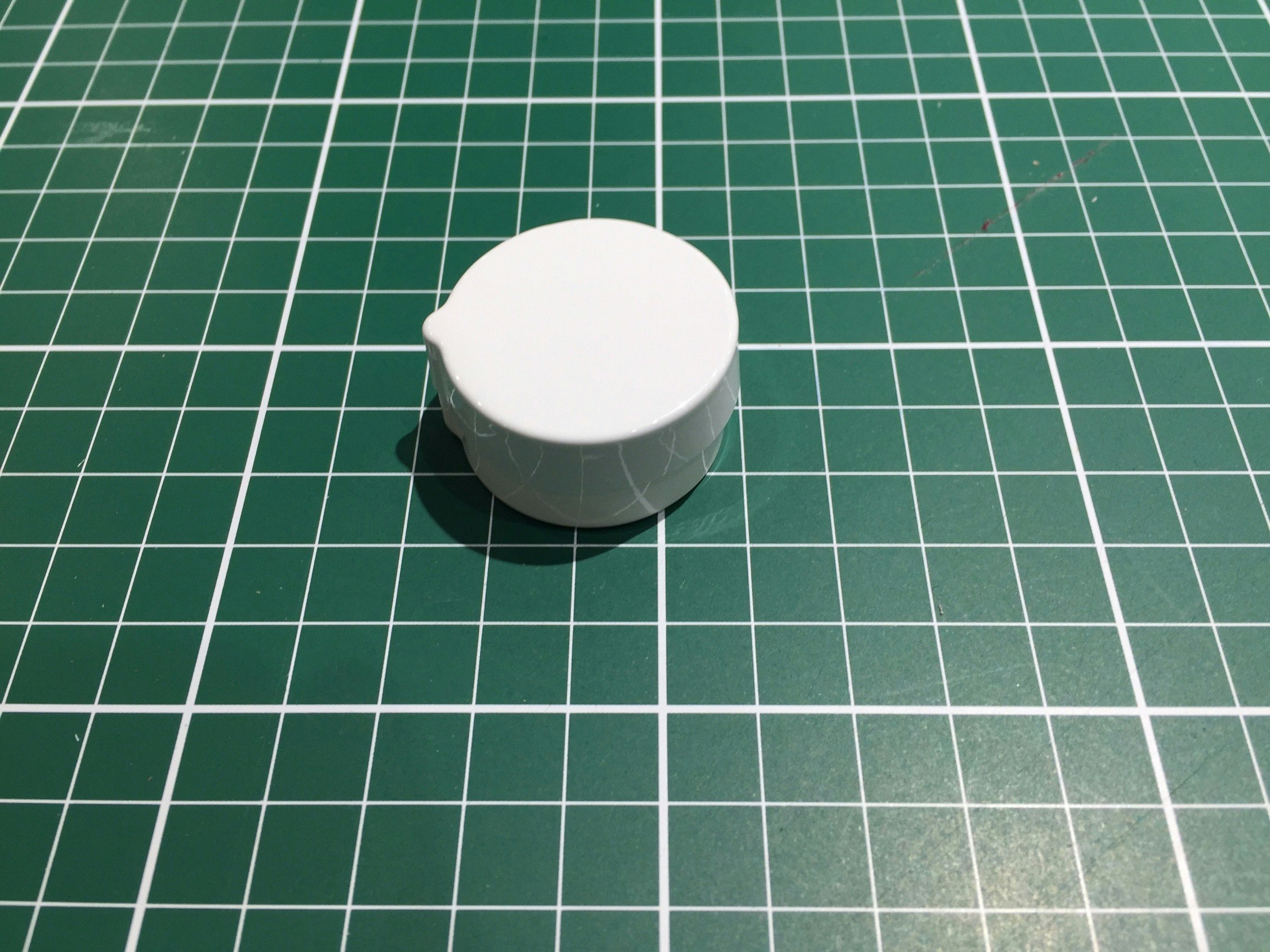

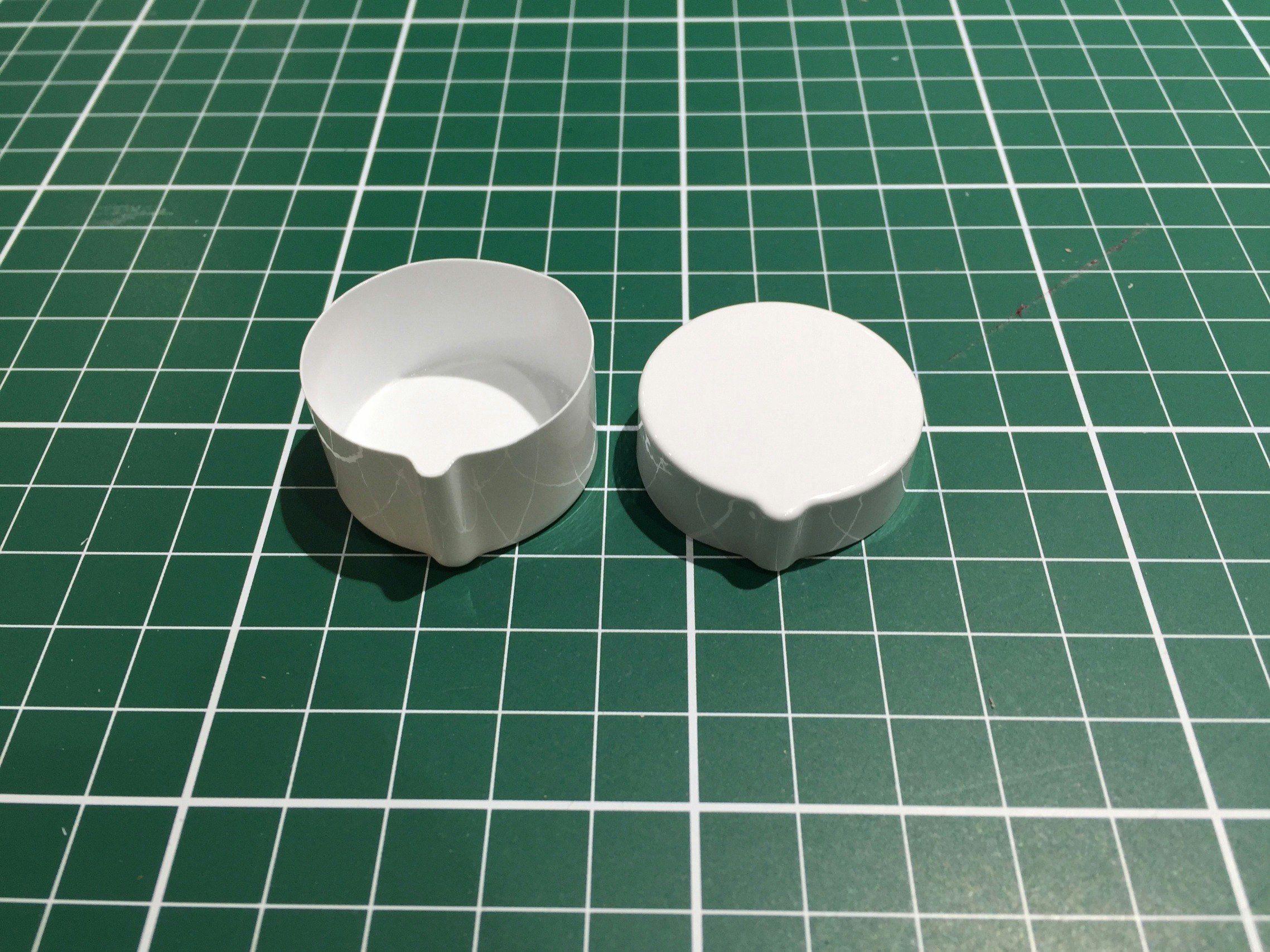

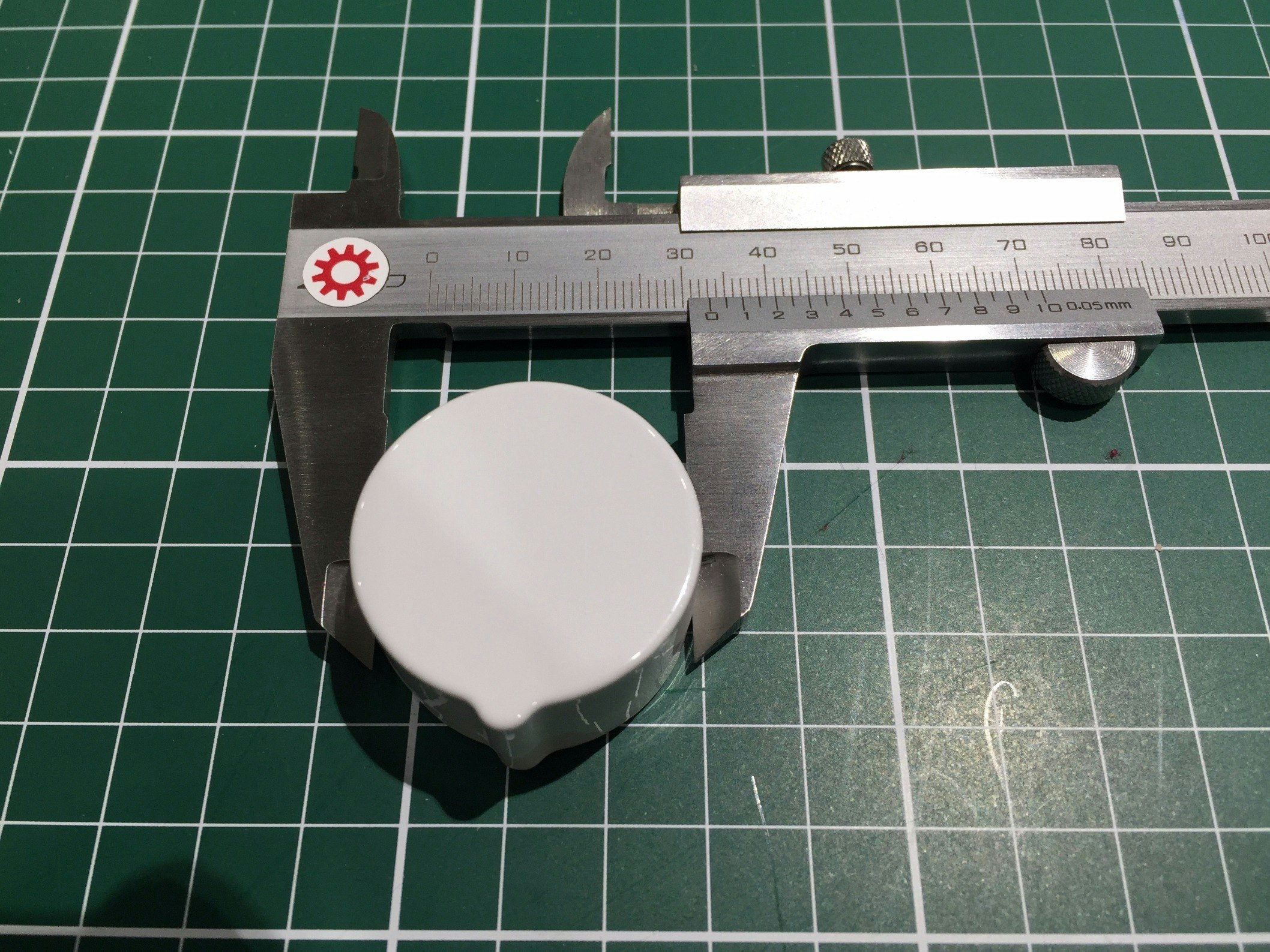

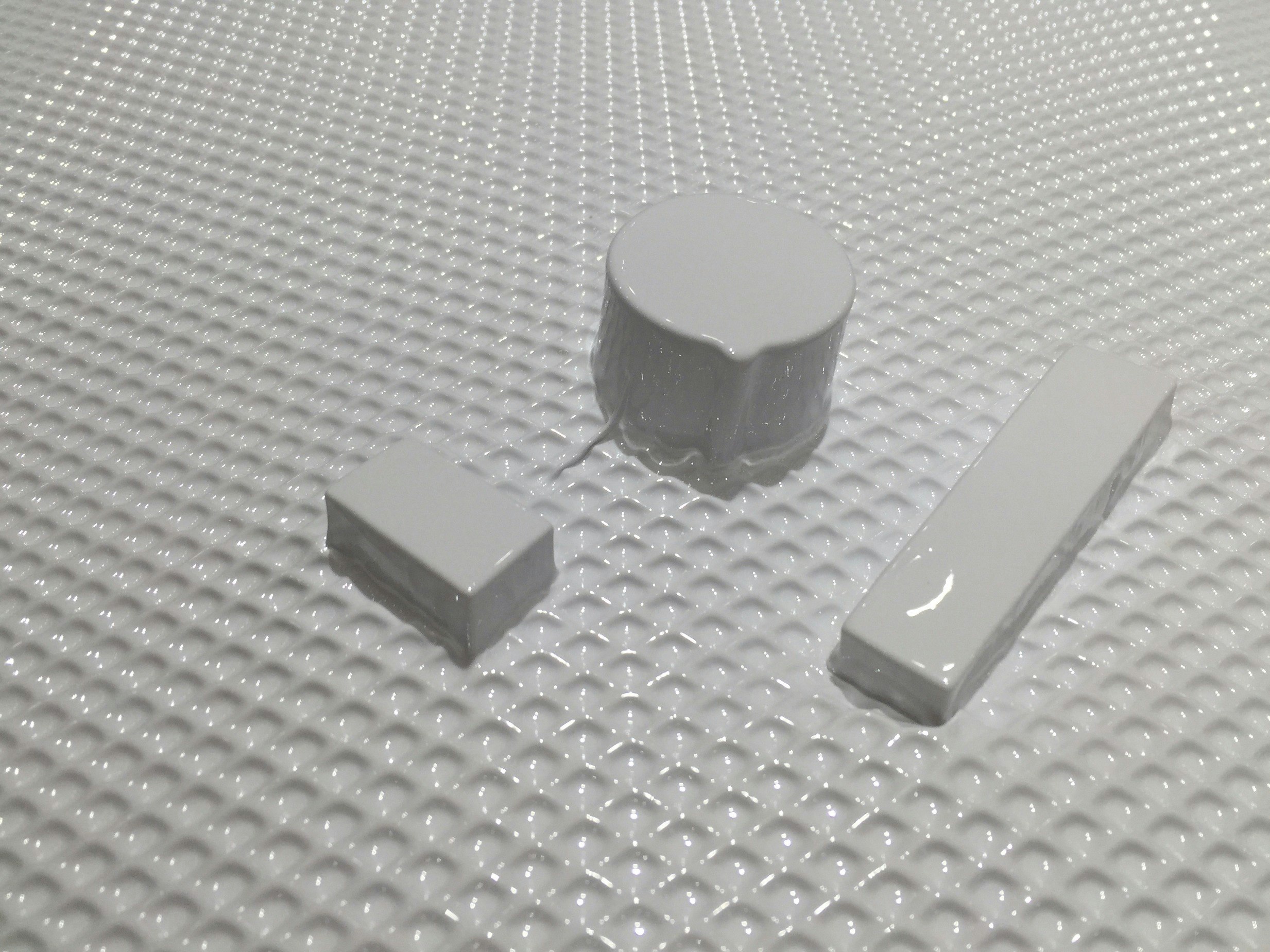

完成
