番外編:CSS フレームワークについて

Posted at

本編はこちらです。


本編では扱いませんでしたが、実開発ではデザインについても考えなければいけません。
世の中には Bootstrap をはじめ様々な CSS フレームワークがありますので、それらから選択するのが無難です。ちなみに React 開発においては、Material UI という CSS フレームワークが一番人気だそうです。
参考までに、本記事の構成に Material UI の AppBar コンポーネントを取り入れた例をご紹介しておきます。

Material UI のインストール

npm で開発環境にインストールします。
Material UI 本体の他に、アイコン集もインストールします。

npm install -D @material-ui/core @material-ui/icons

App コンポーネントの実装

src/client/App.tsx ファイルを下記の内容に書き換えます。

import * as React from "react";
import { Switch, Route, Link } from "react-router-dom";
import AppBar from "@material-ui/core/AppBar";
import Toolbar from "@material-ui/core/Toolbar";
import Typography from "@material-ui/core/Typography";
import IconButton from "@material-ui/core/IconButton";
import MenuIcon from "@material-ui/icons/Menu";
import Drawer from "@material-ui/core/Drawer";
import List from "@material-ui/core/List";
import ListItem from "@material-ui/core/ListItem";
import ListItemIcon from "@material-ui/core/ListItemIcon";
import ListItemText from "@material-ui/core/ListItemText";
import Container from "@material-ui/core/Container";
import HomeIcon from "@material-ui/icons/Home";
import HomeWorkIcon from "@material-ui/icons/HomeWork";

import "./favicon.ico";
import * as styles from "./App.styl";
import Home from "./Home";
import HomeWork from "./HomeWork";

const App = () => {
    const [drawerState, setDrawerState] = React.useState(false);
    const toggleDrawer = (state: boolean) => (event: any) => {
        if (event.type === "keydown" && (event.key === "Tab" || event.key === "Shift")) {
            return;
        }
        setDrawerState(state);
    };

    return (
        <>
            <AppBar position="static">
                <Toolbar>
                    <IconButton edge="start" className={styles.menuButton} color="inherit" aria-label="menu" onClick={toggleDrawer(true)}>
                        <MenuIcon />
                    </IconButton>
                    <Typography variant="h6" className={styles.title}>
                        Sample
                    </Typography>
                </Toolbar>
            </AppBar>
            <Drawer open={drawerState} role="presentation" className={styles.list} onClose={toggleDrawer(false)} onClick={toggleDrawer(false)} onKeyDown={toggleDrawer(false)}>
                <List>
                    <ListItem button key="home" component={Link} to="/">
                        <ListItemIcon><HomeIcon /></ListItemIcon>
                        <ListItemText primary="Home" />
                    </ListItem>
                    <ListItem button key="homework" component={Link} to="/homework">
                        <ListItemIcon><HomeWorkIcon /></ListItemIcon>
                        <ListItemText primary="Home Work" />
                    </ListItem>
                </List>
            </Drawer>
            <Container maxWidth="sm">
                <Switch>
                    <Route exact path="/" component={Home} />
                    <Route exact path="/homework" component={HomeWork} />
                </Switch>
            </Container>
        </>
    );
};

export default App;

src/client/App.styl ファイルを下記の内容に書き換えます。

$spacing = 8px
$basicBackgroundColor = #A0A0FF
$basicForegroundColor = #0000A0

$heading
    color: $basicForegroundColor


:global(body)
    background-color: $basicBackgroundColor

.root
    flex-grow: 1

.menuButton
    margin-right: $spacing * 2

.title
    flex-grow: 1

.list
    width: 250

実行

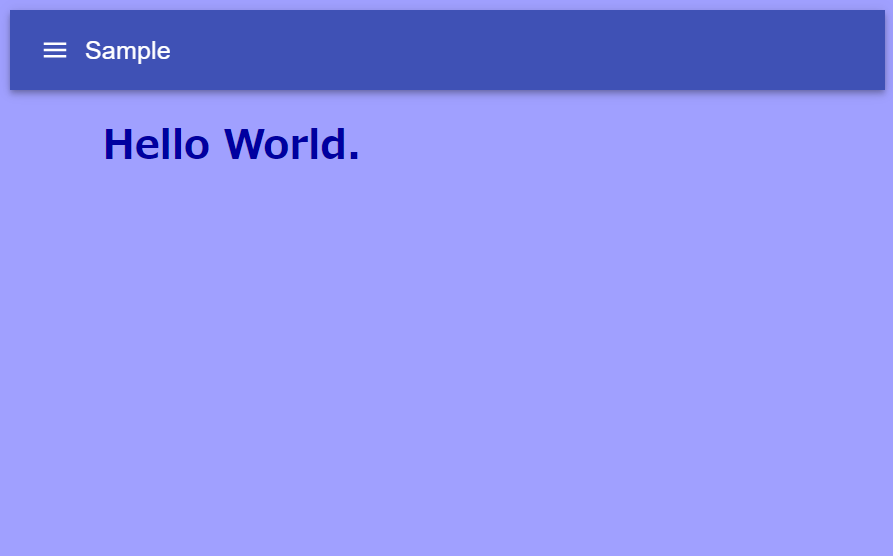

実行すると見慣れたバーが追加されています。

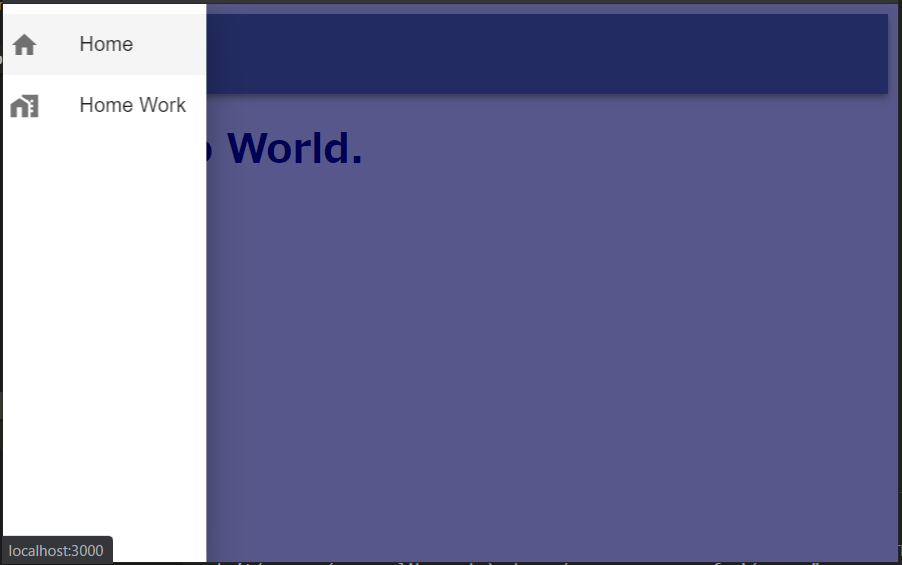

メニューボタンを押すとメニューが開きます。

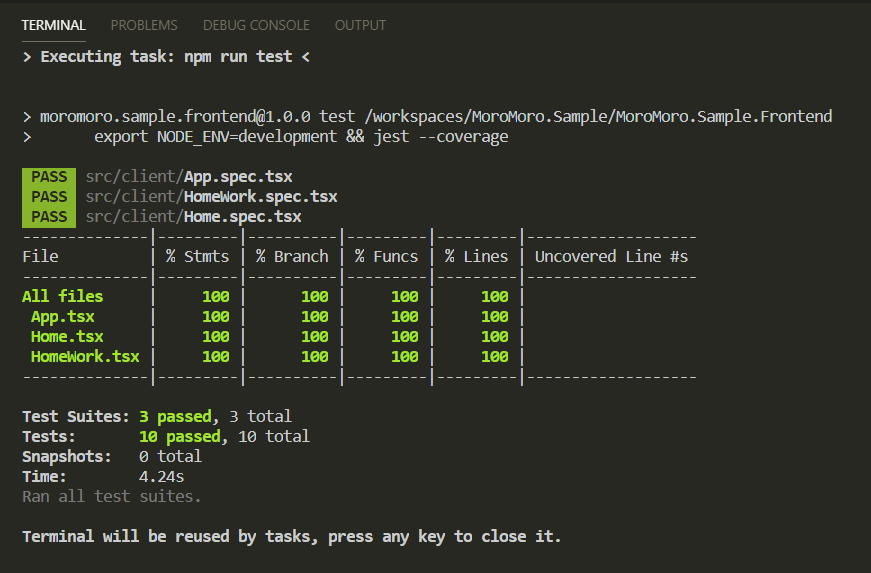

テスト

src/client/App.spec.tsx ファイルを下記の内容に書き換えます。

import * as React from "react";
import { MemoryRouter } from "react-router-dom";
import { render, cleanup, fireEvent } from "@testing-library/react";
import "@testing-library/jest-dom/extend-expect";

const homeMock = jest.fn(() => <></>);
jest.mock("./Home", () => ({ __esModule: true, default: homeMock }));

const homeworkMock = jest.fn(() => <></>);
jest.mock("./HomeWork", () => ({ __esModule: true, default: homeworkMock }));

import App from "./App";

afterEach(cleanup);
afterEach(jest.clearAllMocks);
afterAll(() => {
    jest.unmock("./Home");
    jest.unmock("./HomeWork");
});

describe("App", () => {
    it("最初に Home を表示すること", () => {
        render(<MemoryRouter><App /></MemoryRouter>);
        expect(homeMock).toBeCalled();
    });

    it("メニューを開けること", () => {
        const root = render(<MemoryRouter><App /></MemoryRouter>);

        const menuButton = root.getByLabelText("menu");
        fireEvent.click(menuButton);

        expect(root.getByRole("presentation")).not.toBeNull();
    });

    it("メニューをクリックするとメニューが閉じること", () => {
        const root = render(<MemoryRouter><App /></MemoryRouter>);

        const menuButton = root.getByLabelText("menu");
        fireEvent.click(menuButton);

        const menu = root.getByRole("presentation");
        fireEvent.click(menu);

        expect(() => root.getByRole("presentation")).toThrow();
    });

    it("キーを押下するとメニューが閉じること", () => {
        const root = render(<MemoryRouter><App /></MemoryRouter>);

        const menuButton = root.getByLabelText("menu");
        fireEvent.click(menuButton);

        const menu = root.getByRole("presentation");
        fireEvent.keyDown(menu, { key: "a", code: 65 });

        expect(() => root.getByRole("presentation")).toThrow();
    });

    it.each([
        ["Tab", 9],
        ["Shift", 16]
    ])("一部のキーを押下してもメニューが閉じないこと [%s, %d]", (key, code) => {
        const root = render(<MemoryRouter><App /></MemoryRouter>);

        const menuButton = root.getByLabelText("menu");
        fireEvent.click(menuButton);

        const menu = root.getByRole("presentation");
        fireEvent.keyDown(menu, { key, code });

        expect(root.getByRole("presentation")).not.toBeNull();
    });

    it("メニューから Home を表示できること", () => {
        const root = render(<MemoryRouter><App /></MemoryRouter>);
        expect(homeMock).toBeCalled();
        homeMock.mockClear();

        const menuButton = root.getByLabelText("menu");
        fireEvent.click(menuButton);

        const menuHomeButton = root.getByText("Home", { exact: true });
        fireEvent.click(menuHomeButton);

        expect(() => root.getByRole("presentation")).toThrow();
        expect(homeMock).toBeCalled();
    });

    it("メニューから Home Work を表示できること", () => {
        const root = render(<MemoryRouter><App /></MemoryRouter>);
        expect(homeworkMock).not.toBeCalled();

        const menuButton = root.getByLabelText("menu");
        fireEvent.click(menuButton);

        const menuHomeWorkButton = root.getByText("Home Work", { exact: true });
        fireEvent.click(menuHomeWorkButton);

        expect(() => root.getByRole("presentation")).toThrow();
        expect(homeworkMock).toBeCalled();
    });
});

いい感じです。
