1. 簡単に理論から DirectXTK +HLSLでスキニング(入門編)

0
Last updated at Posted at 2026-05-07

スキニングの解説

3DCGモデルのメッシュ(表面)を、内部の骨格(ボーン)の動きに連動させて変形させる技術

ボーンとは?

ボーンは身も蓋も無いことを言ってしまえば…
メッシュという肉や皮を動かす骨のことを言うが、

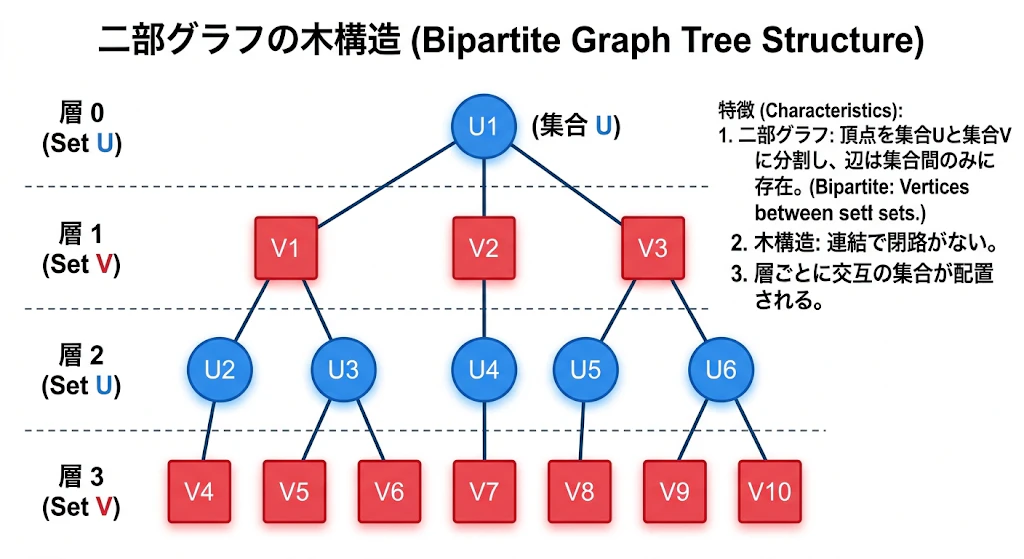

もっと正確に言うなら二部グラフ木構造をしているグラフとなる

ボーンは以下の頂点

ルート関節(グラフの開始地点)
親子ノード関節

で構成されており…

ボーンのポーズをとる場合

ルート→n番目のボーン→n +1番目のボーン…→当該ボーンまでを再帰的に座標変換することで

ポーズを決められる


まぁ簡単な話、鎖ですな
また、頂点を初期姿勢から動かすために「初期姿勢の逆行列(Inverse Bind Matrix)」が必要となる

スキニングとは?

先述したボーンのルートや親子ノードという頂点
に座標操作と座標変換を施してポーズをとることを指す
