概要
IstanbulJS - レポート改善案で列挙した奇妙な点を解決するため、IstanbulJSのソースコードを修正する。TypeScript用に記載しているが、JavaScriptにも対応する。
前提
TypeScriptを使う場合は、予め [React + TypeScript] カバレッジレポートの取得方法 を実施しておくこと。
ルール
本修正で行うハイライトのルールを以下のように定義する。
ステートメント
- 末尾の
;はステートメントではないため、ハイライトしない。 - ステートメントの後に続く空白文字やコメントなど、プログラムとして意味の無い箇所はハイライトしない。
- 複数行にまたがるステートメントは、全ての行をハイライトする。
ブランチ
if 節
-
else if節のifキーワード以降を、複数行にまたがって全てハイライトする。
switch 節
-
case節、default節の範囲は:までとし、後に続く空白文字やコメントなど、プログラムとして意味の無い箇所はハイライトしない。
関数
記法により、定義部の範囲を以下の通りとする。
Function Declaration
function foo(): void をハイライトする。
function foo(): void {
}
Function Expression
無名関数の場合
function(): void をハイライトする。
const foo = function(): void {
}
名前付き関数の場合
function foo(): void をハイライトする。
const foo = function foo(): void {
}
Arrow Function
括弧がある場合
(bar): void をハイライトする。
const foo = (bar): void => {
}
括弧がない場合
bar をハイライトする。
const foo = bar => {
}

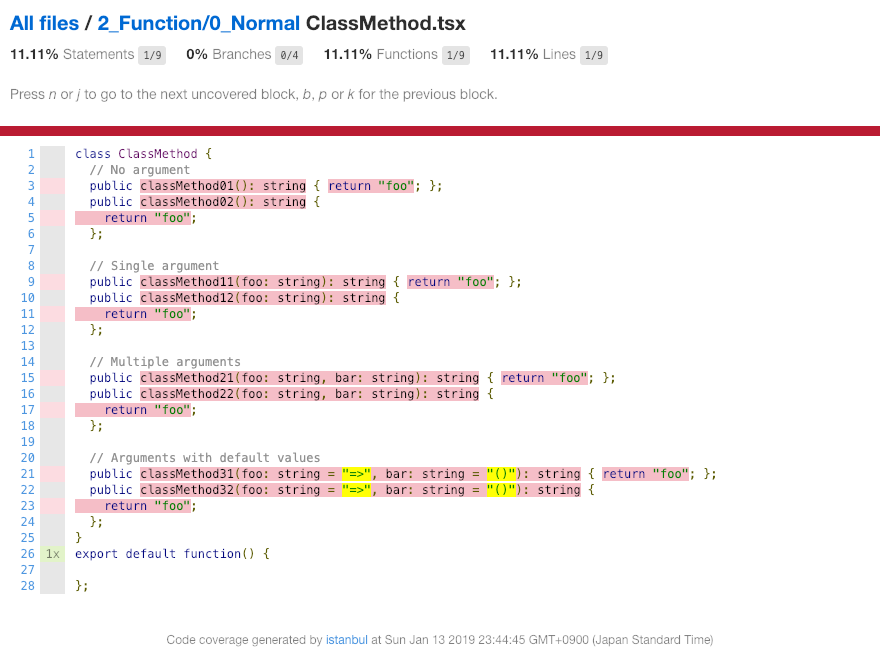

Class Method
アクセス修飾子がある場合
foo(): void をハイライトする。
public foo(): void {
}
アクセス修飾子がない場合
foo(): void をハイライトする。
foo(): void {
}
修正ファイル
visitor.js
目的
関数の定義部を、上述のルールに沿うよう修正する。
パッケージ
📦 istanbul-lib-instrument@1.10.2
コード
node_modules/istanbul-lib-instrument/dist/visitor.js
'use strict';
Object.defineProperty(exports, "__esModule", {
value: true
});
var _createClass = function () { function defineProperties(target, props) { for (var i = 0; i < props.length; i++) { var descriptor = props[i]; descriptor.enumerable = descriptor.enumerable || false; descriptor.configurable = true; if ("value" in descriptor) descriptor.writable = true; Object.defineProperty(target, descriptor.key, descriptor); } } return function (Constructor, protoProps, staticProps) { if (protoProps) defineProperties(Constructor.prototype, protoProps); if (staticProps) defineProperties(Constructor, staticProps); return Constructor; }; }();
var _sourceCoverage = require('./source-coverage');
var _constants = require('./constants');
var _crypto = require('crypto');
var _babelTemplate = require('babel-template');
var _babelTemplate2 = _interopRequireDefault(_babelTemplate);
function _interopRequireDefault(obj) { return obj && obj.__esModule ? obj : { default: obj }; }
function _classCallCheck(instance, Constructor) { if (!(instance instanceof Constructor)) { throw new TypeError("Cannot call a class as a function"); } }
// istanbul ignore comment pattern
var COMMENT_RE = /^\s*istanbul\s+ignore\s+(if|else|next)(?=\W|$)/;
// istanbul ignore file pattern
var COMMENT_FILE_RE = /^\s*istanbul\s+ignore\s+(file)(?=\W|$)/;
// source map URL pattern
var SOURCE_MAP_RE = /[#@]\s*sourceMappingURL=(.*)\s*$/m;
// generate a variable name from hashing the supplied file path
function genVar(filename) {
var hash = (0, _crypto.createHash)(_constants.SHA);
hash.update(filename);
return 'cov_' + parseInt(hash.digest('hex').substr(0, 12), 16).toString(36);
}
// VisitState holds the state of the visitor, provides helper functions
// and is the `this` for the individual coverage visitors.
var VisitState = function () {
function VisitState(types, sourceFilePath, inputSourceMap) {
_classCallCheck(this, VisitState);
this.varName = genVar(sourceFilePath);
this.attrs = {};
this.nextIgnore = null;
this.cov = new _sourceCoverage.SourceCoverage(sourceFilePath);
if (typeof inputSourceMap !== "undefined") {
this.cov.inputSourceMap(inputSourceMap);
}
this.types = types;
this.sourceMappingURL = null;
}
// should we ignore the node? Yes, if specifically ignoring
// or if the node is generated.
_createClass(VisitState, [{
key: 'shouldIgnore',
value: function shouldIgnore(path) {
return this.nextIgnore || !path.node.loc;
}
// extract the ignore comment hint (next|if|else) or null
}, {
key: 'hintFor',
value: function hintFor(node) {
var hint = null;
if (node.leadingComments) {
node.leadingComments.forEach(function (c) {
var v = (c.value || /* istanbul ignore next: paranoid check */"").trim();
var groups = v.match(COMMENT_RE);
if (groups) {
hint = groups[1];
}
});
}
return hint;
}
// extract a source map URL from comments and keep track of it
}, {
key: 'maybeAssignSourceMapURL',
value: function maybeAssignSourceMapURL(node) {
var that = this;
var extractURL = function extractURL(comments) {
if (!comments) {
return;
}
comments.forEach(function (c) {
var v = (c.value || /* istanbul ignore next: paranoid check */"").trim();
var groups = v.match(SOURCE_MAP_RE);
if (groups) {
that.sourceMappingURL = groups[1];
}
});
};
extractURL(node.leadingComments);
extractURL(node.trailingComments);
}
// for these expressions the statement counter needs to be hoisted, so
// function name inference can be preserved
}, {
key: 'counterNeedsHoisting',
value: function counterNeedsHoisting(path) {
return path.isFunctionExpression() || path.isArrowFunctionExpression() || path.isClassExpression();
}
// all the generic stuff that needs to be done on enter for every node
}, {
key: 'onEnter',
value: function onEnter(path) {
var n = path.node;
this.maybeAssignSourceMapURL(n);
// if already ignoring, nothing more to do
if (this.nextIgnore !== null) {
return;
}
// check hint to see if ignore should be turned on
var hint = this.hintFor(n);
if (hint === 'next') {
this.nextIgnore = n;
return;
}
// else check custom node attribute set by a prior visitor
if (this.getAttr(path.node, 'skip-all') !== null) {
this.nextIgnore = n;
}
}
// all the generic stuff on exit of a node,
// including reseting ignores and custom node attrs
}, {
key: 'onExit',
value: function onExit(path) {
// restore ignore status, if needed
if (path.node === this.nextIgnore) {
this.nextIgnore = null;
}
// nuke all attributes for the node
delete path.node.__cov__;
}
// set a node attribute for the supplied node
}, {
key: 'setAttr',
value: function setAttr(node, name, value) {
node.__cov__ = node.__cov__ || {};
node.__cov__[name] = value;
}
// retrieve a node attribute for the supplied node or null
}, {
key: 'getAttr',
value: function getAttr(node, name) {
var c = node.__cov__;
if (!c) {
return null;
}
return c[name];
}
//
}, {
key: 'increase',
value: function increase(type, id, index) {
var T = this.types;
var wrap = index !== null
// If `index` present, turn `x` into `x[index]`.
? function (x) {
return T.memberExpression(x, T.numericLiteral(index), true);
} : function (x) {
return x;
};
return T.updateExpression('++', wrap(T.memberExpression(T.memberExpression(T.identifier(this.varName), T.identifier(type)), T.numericLiteral(id), true)));
}
}, {
key: 'insertCounter',
value: function insertCounter(path, increment) {
var T = this.types;
if (path.isBlockStatement()) {
path.node.body.unshift(T.expressionStatement(increment));
} else if (path.isStatement()) {
path.insertBefore(T.expressionStatement(increment));
} else if (this.counterNeedsHoisting(path) && T.isVariableDeclarator(path.parentPath)) {
// make an attempt to hoist the statement counter, so that
// function names are maintained.
var parent = path.parentPath.parentPath;
if (parent && T.isExportNamedDeclaration(parent.parentPath)) {
parent.parentPath.insertBefore(T.expressionStatement(increment));
} else if (parent && (T.isProgram(parent.parentPath) || T.isBlockStatement(parent.parentPath))) {
parent.insertBefore(T.expressionStatement(increment));
} else {
path.replaceWith(T.sequenceExpression([increment, path.node]));
}
} else /* istanbul ignore else: not expected */if (path.isExpression()) {
path.replaceWith(T.sequenceExpression([increment, path.node]));
} else {
console.error('Unable to insert counter for node type:', path.node.type);
}
}
}, {
key: 'insertStatementCounter',
value: function insertStatementCounter(path) {
/* istanbul ignore if: paranoid check */
if (!(path.node && path.node.loc)) {
return;
}
if (path.getSource().slice(-1) === ';') {
path.node.loc.end.column--;
}
var index = this.cov.newStatement(path.node.loc);
var increment = this.increase('s', index, null);
this.insertCounter(path, increment);
}
}, {
key: 'insertFunctionCounter',
value: function insertFunctionCounter(path) {
var T = this.types;
/* istanbul ignore if: paranoid check */
if (!(path.node && path.node.loc)) {
return;
}
var n = path.node;
var dloc = null;
var name = undefined;
var source = path.getSource();
var getDeclLoc = function getDeclLoc(isParameterParenthesized) {
var offsetCol = null,
offsetLine = null,
lastParam = null;
if (n.params.length > 0) {
lastParam = n.params[n.params.length - 1];
offsetCol = lastParam.end - n.start + (isParameterParenthesized ? 1 : 0);
} else {
offsetCol = source.indexOf(")") + 1;
}
offsetLine = source.substr(0, offsetCol).split(/(?:\r?\n)|\r/).length - 1;
return {
start: n.loc.start,
end: {
line: n.loc.start.line + offsetLine,
column: n.loc.start.column + offsetCol
}
};
};
// get location for declaration
switch (n.type) {
case "FunctionDeclaration":
/* istanbul ignore else: paranoid check */
dloc = getDeclLoc(true);
name = n.id ? n.id.name : n.name;
break;
case "FunctionExpression":
dloc = getDeclLoc(true);
name = n.id ? n.id.name : n.name;
break;
case "ClassMethod":
dloc = getDeclLoc(true);
name = n.key ? n.key.name : n.name;
break;
case "ArrowFunctionExpression":
var isParameterParenthesized = source.substr(0, 1) === "(";
dloc = getDeclLoc(isParameterParenthesized);
var isReturnStatement = n.body.body.length === 1 && n.body.body[0].type === "ReturnStatement";
var returnStatement = isReturnStatement ? n.body.body[0] : undefined;
var isReturnStatementParenthesized = returnStatement && returnStatement.argument.extra && returnStatement.argument.extra.parenthesized === true;
if (isReturnStatementParenthesized) {
var lines = source.split(/(?:\r?\n)|\r/);
var offsetStartCol = n.body.body[0].argument.extra.parenStart - n.start;
var offsetStartLine = source.substr(0, offsetStartCol).split(/(?:\r?\n)|\r/).length - 1;
var offsetEndLine = lines.length - 1;
var offsetEndCol = lines[offsetEndLine].lastIndexOf(")") + 1;
n.body.loc = {
start: {
line: dloc.start.line + offsetStartLine,
column: offsetStartLine > 0 ? offsetStartCol : dloc.start.column + offsetStartCol
},
end: {
line: dloc.start.line + offsetEndLine,
column: offsetEndLine > 0 ? offsetEndCol : dloc.start.column + offsetEndCol
}
};
}
break;
}
if (!dloc) {
dloc = {
start: n.loc.start,
end: { line: n.loc.start.line, column: n.loc.start.column + 1 }
};
name = n.id ? n.id.name : n.name;
}
var index = this.cov.newFunction(name, dloc, n.body.loc);
var increment = this.increase('f', index, null);
var body = path.get('body');
/* istanbul ignore else: not expected */
if (body.isBlockStatement()) {
body.node.body.unshift(T.expressionStatement(increment));
} else {
console.error('Unable to process function body node type:', n.type);
}
}
}, {
key: 'getBranchIncrement',
value: function getBranchIncrement(branchName, loc) {
var index = this.cov.addBranchPath(branchName, loc);
return this.increase('b', branchName, index);
}
}, {
key: 'insertBranchCounter',
value: function insertBranchCounter(path, branchName, loc) {
var increment = this.getBranchIncrement(branchName, loc || path.node.loc);
this.insertCounter(path, increment);
}
}, {
key: 'findLeaves',
value: function findLeaves(node, accumulator, parent, property) {
if (!node) {
return;
}
if (node.type === "LogicalExpression") {
var hint = this.hintFor(node);
if (hint !== 'next') {
this.findLeaves(node.left, accumulator, node, 'left');
this.findLeaves(node.right, accumulator, node, 'right');
}
} else {
accumulator.push({
node: node,
parent: parent,
property: property
});
}
}
}]);
return VisitState;
}();
// generic function that takes a set of visitor methods and
// returns a visitor object with `enter` and `exit` properties,
// such that:
//
// * standard entry processing is done
// * the supplied visitors are called only when ignore is not in effect
// This relieves them from worrying about ignore states and generated nodes.
// * standard exit processing is done
//
function entries() {
var enter = Array.prototype.slice.call(arguments);
// the enter function
var wrappedEntry = function wrappedEntry(path, node) {
this.onEnter(path);
if (this.shouldIgnore(path)) {
return;
}
var that = this;
enter.forEach(function (e) {
e.call(that, path, node);
});
};
var exit = function exit(path, node) {
this.onExit(path, node);
};
return {
enter: wrappedEntry,
exit: exit
};
}
function coverStatement(path) {
this.insertStatementCounter(path);
}
/* istanbul ignore next: no node.js support */
function coverAssignmentPattern(path) {
var n = path.node;
var b = this.cov.newBranch('default-arg', n.loc);
this.insertBranchCounter(path.get('right'), b);
}
function coverFunction(path) {
this.insertFunctionCounter(path);
}
function coverVariableDeclarator(path) {
this.insertStatementCounter(path.get('init'));
}
function skipInit(path) {
if (path.node.init) {
this.setAttr(path.node.init, 'skip-all', true);
}
}
function makeBlock(path) {
var T = this.types;
if (!path.node) {
path.replaceWith(T.blockStatement([]));
}
if (!path.isBlockStatement()) {
path.replaceWith(T.blockStatement([path.node]));
path.node.loc = path.node.body[0].loc;
}
}
function blockProp(prop) {
return function (path) {
makeBlock.call(this, path.get(prop));
};
}
function makeParenthesizedExpression(path) {
var T = this.types;
if (path.node) {
path.replaceWith(T.parenthesizedExpression(path.node));
}
}
function parenthesizedExpressionProp(prop) {
return function (path) {
makeParenthesizedExpression.call(this, path.get(prop));
};
}
function convertArrowExpression(path) {
var n = path.node;
var T = this.types;
if (!T.isBlockStatement(n.body)) {
var bloc = n.body.loc;
if (n.expression === true) {
n.expression = false;
}
n.body = T.blockStatement([T.returnStatement(n.body)]);
// restore body location
n.body.loc = bloc;
// set up the location for the return statement so it gets
// instrumented
n.body.body[0].loc = bloc;
}
}
function coverIfBranches(path) {
var n = path.node,
hint = this.hintFor(n),
ignoreIf = hint === 'if',
ignoreElse = hint === 'else',
branch = this.cov.newBranch('if', n.loc);
if (ignoreIf) {
this.setAttr(n.consequent, 'skip-all', true);
} else {
this.insertBranchCounter(path.get('consequent'), branch, n.loc);
}
if (ignoreElse) {
this.setAttr(n.alternate, 'skip-all', true);
} else {
this.insertBranchCounter(path.get('alternate'), branch, n.loc);
}
}
function createSwitchBranch(path) {
var b = this.cov.newBranch('switch', path.node.loc);
this.setAttr(path.node, 'branchName', b);
}
function coverSwitchCase(path) {
var T = this.types;
var b = this.getAttr(path.parentPath.node, 'branchName');
/* istanbul ignore if: paranoid check */
if (b === null) {
throw new Error('Unable to get switch branch name');
}
var increment = this.getBranchIncrement(b, path.node.loc);
path.node.consequent.unshift(T.expressionStatement(increment));
}
function coverTernary(path) {
var n = path.node,
branch = this.cov.newBranch('cond-expr', path.node.loc),
cHint = this.hintFor(n.consequent),
aHint = this.hintFor(n.alternate);
if (cHint !== 'next') {
this.insertBranchCounter(path.get('consequent'), branch);
}
if (aHint !== 'next') {
this.insertBranchCounter(path.get('alternate'), branch);
}
}
function coverLogicalExpression(path) {
var T = this.types;
if (path.parentPath.node.type === "LogicalExpression") {
return; // already processed
}
var leaves = [];
this.findLeaves(path.node, leaves);
var b = this.cov.newBranch("binary-expr", path.node.loc);
for (var i = 0; i < leaves.length; i += 1) {
var leaf = leaves[i];
var hint = this.hintFor(leaf.node);
if (hint === 'next') {
continue;
}
var increment = this.getBranchIncrement(b, leaf.node.loc);
if (!increment) {
continue;
}
leaf.parent[leaf.property] = T.sequenceExpression([increment, leaf.node]);
}
}
var codeVisitor = {
ArrowFunctionExpression: entries(convertArrowExpression, coverFunction),
AssignmentPattern: entries(coverAssignmentPattern),
BlockStatement: entries(), // ignore processing only
ClassMethod: entries(coverFunction),
ClassDeclaration: entries(parenthesizedExpressionProp('superClass')),
ExpressionStatement: entries(coverStatement),
BreakStatement: entries(coverStatement),
ContinueStatement: entries(coverStatement),
DebuggerStatement: entries(coverStatement),
ReturnStatement: entries(coverStatement),
ThrowStatement: entries(coverStatement),
TryStatement: entries(coverStatement),
VariableDeclaration: entries(), // ignore processing only
VariableDeclarator: entries(coverVariableDeclarator),
IfStatement: entries(blockProp('consequent'), blockProp('alternate'), coverStatement, coverIfBranches),
ForStatement: entries(blockProp('body'), skipInit, coverStatement),
ForInStatement: entries(blockProp('body'), skipInit, coverStatement),
ForOfStatement: entries(blockProp('body'), skipInit, coverStatement),
WhileStatement: entries(blockProp('body'), coverStatement),
DoWhileStatement: entries(blockProp('body'), coverStatement),
SwitchStatement: entries(createSwitchBranch, coverStatement),
SwitchCase: entries(coverSwitchCase),
WithStatement: entries(blockProp('body'), coverStatement),
FunctionDeclaration: entries(coverFunction),
FunctionExpression: entries(coverFunction),
LabeledStatement: entries(coverStatement),
ConditionalExpression: entries(coverTernary),
LogicalExpression: entries(coverLogicalExpression)
};
// the template to insert at the top of the program.
var coverageTemplate = (0, _babelTemplate2.default)('\n var COVERAGE_VAR = (function () {\n var path = PATH,\n hash = HASH,\n Function = (function(){}).constructor,\n global = (new Function(\'return this\'))(),\n gcv = GLOBAL_COVERAGE_VAR,\n coverageData = INITIAL,\n coverage = global[gcv] || (global[gcv] = {});\n if (coverage[path] && coverage[path].hash === hash) {\n return coverage[path];\n }\n coverageData.hash = hash;\n return coverage[path] = coverageData;\n })();\n');
// the rewire plugin (and potentially other babel middleware)
// may cause files to be instrumented twice, see:
// https://github.com/istanbuljs/babel-plugin-istanbul/issues/94
// we should only instrument code for coverage the first time
// it's run through istanbul-lib-instrument.
function alreadyInstrumented(path, visitState) {
return path.scope.hasBinding(visitState.varName);
}
function shouldIgnoreFile(programNode) {
return programNode.parent && programNode.parent.comments.some(function (c) {
return COMMENT_FILE_RE.test(c.value);
});
}
/**
* programVisitor is a `babel` adaptor for instrumentation.
* It returns an object with two methods `enter` and `exit`.
* These should be assigned to or called from `Program` entry and exit functions
* in a babel visitor.
* These functions do not make assumptions about the state set by Babel and thus
* can be used in a context other than a Babel plugin.
*
* The exit function returns an object that currently has the following keys:
*
* `fileCoverage` - the file coverage object created for the source file.
* `sourceMappingURL` - any source mapping URL found when processing the file.
*
* @param {Object} types - an instance of babel-types
* @param {string} sourceFilePath - the path to source file
* @param {Object} opts - additional options
* @param {string} [opts.coverageVariable=__coverage__] the global coverage variable name.
* @param {object} [opts.inputSourceMap=undefined] the input source map, that maps the uninstrumented code back to the
* original code.
*/
function programVisitor(types) {
var sourceFilePath = arguments.length > 1 && arguments[1] !== undefined ? arguments[1] : 'unknown.js';
var opts = arguments.length > 2 && arguments[2] !== undefined ? arguments[2] : { coverageVariable: '__coverage__', inputSourceMap: undefined };
var T = types;
var visitState = new VisitState(types, sourceFilePath, opts.inputSourceMap);
return {
enter: function enter(path) {
if (shouldIgnoreFile(path.find(function (p) {
return p.isProgram();
}))) {
return;
}
if (alreadyInstrumented(path, visitState)) {
return;
}
path.traverse(codeVisitor, visitState);
},
exit: function exit(path) {
if (alreadyInstrumented(path, visitState)) {
return;
}
visitState.cov.freeze();
var coverageData = visitState.cov.toJSON();
if (shouldIgnoreFile(path.find(function (p) {
return p.isProgram();
}))) {
return { fileCoverage: coverageData, sourceMappingURL: visitState.sourceMappingURL };
}
coverageData[_constants.MAGIC_KEY] = _constants.MAGIC_VALUE;
var hash = (0, _crypto.createHash)(_constants.SHA).update(JSON.stringify(coverageData)).digest('hex');
var coverageNode = T.valueToNode(coverageData);
delete coverageData[_constants.MAGIC_KEY];
var cv = coverageTemplate({
GLOBAL_COVERAGE_VAR: T.stringLiteral(opts.coverageVariable),
COVERAGE_VAR: T.identifier(visitState.varName),
PATH: T.stringLiteral(sourceFilePath),
INITIAL: coverageNode,
HASH: T.stringLiteral(hash)
});
cv._blockHoist = 5;
path.node.body.unshift(cv);
return {
fileCoverage: coverageData,
sourceMappingURL: visitState.sourceMappingURL
};
}
};
}
exports.default = programVisitor;
annotator.js
目的
ハイライトのアルゴリズムを、上述のルールに沿うよう修正する。
パッケージ
コード
🚨 TypeScriptを使わない場合のパスは node_modules/istanbul-reports/lib/html/annotator.js である。
node_modules/nyc/node_modules/istanbul-reports/lib/html/annotator.js
/*
Copyright 2012-2015, Yahoo Inc.
Copyrights licensed under the New BSD License. See the accompanying LICENSE file for terms.
*/
"use strict";
var InsertionText = require('./insertion-text'),
lt = '\u0001',
gt = '\u0002',
RE_LT = /</g,
RE_GT = />/g,
RE_AMP = /&/g,
RE_lt = /\u0001/g,
RE_gt = /\u0002/g;
function title(str) {
return ' title="' + str + '" ';
}
function customEscape(text) {
text = String(text);
return text.replace(RE_AMP, '&')
.replace(RE_LT, '<')
.replace(RE_GT, '>')
.replace(RE_lt, '<')
.replace(RE_gt, '>');
}
function annotateLines(fileCoverage, structuredText) {
var lineStats = fileCoverage.getLineCoverage();
if (!lineStats) {
return;
}
Object.keys(lineStats).forEach(function (lineNumber) {
var count = lineStats[lineNumber];
if (structuredText[lineNumber]) {
structuredText[lineNumber].covered = count > 0 ? 'yes' : 'no';
structuredText[lineNumber].hits = count;
}
});
}
function annotateStatements(fileCoverage, structuredText) {
var statementStats = fileCoverage.s,
statementMeta = fileCoverage.statementMap;
var statements = [];
Object.keys(statementStats).forEach(function (stName) {
var count = statementStats[stName],
meta = statementMeta[stName],
type = count > 0 ? 'yes' : 'no',
startLine = meta.start.line,
startCol = meta.start.column,
endFirstCol = meta.end.column,
endLastCol = endFirstCol,
endLine = meta.end.line,
openSpan = lt + 'span class="'
+ (meta.skip ? 'cstat-skip' : 'cstat-no')
+ ' start-line-' + startLine
+ ' start-column-' + startCol
+ '"' + title('statement not covered') + gt,
closeSpan = lt + '/span' + gt,
i,
text,
lines = [];
if (type === 'no' && structuredText[startLine]) {
if (endLine !== startLine) {
endFirstCol = structuredText[startLine].text.originalLength();
}
text = structuredText[startLine].text;
lines.push({
insertionText: text,
args: [
startCol,
openSpan,
startCol < endLastCol ? endFirstCol : text.originalLength(),
closeSpan
]
});
for (i = startLine + 1; i < endLine; i++) {
text = structuredText[i].text;
lines.push({
insertionText: text,
args: [
text.startPos,
openSpan,
text.originalLength(),
closeSpan
]
});
}
if (endLine !== startLine) {
text = structuredText[endLine].text;
lines.push({
insertionText: text,
args: [
text.startPos,
openSpan,
endLastCol,
closeSpan
]
});
}
statements.push({
startPos: meta.start,
lines: lines
});
}
});
// reverse sort
statements.sort(function (b, a) {
return a.startPos.line === b.startPos.line ? a.startPos.column - b.startPos.column : a.startPos.line - b.startPos.line;
});
statements.map(function (statement) {
statement.lines.map(function (line) {
var insertionText = line.insertionText;
var args = line.args;
insertionText.wrap.apply(insertionText, args);
})
});
}
function annotateFunctions(fileCoverage, structuredText) {
var fnStats = fileCoverage.f,
fnMeta = fileCoverage.fnMap;
if (!fnStats) {
return;
}
Object.keys(fnStats).forEach(function (fName) {
var count = fnStats[fName],
meta = fnMeta[fName],
type = count > 0 ? 'yes' : 'no',
startCol = meta.decl.start.column,
endCol = meta.decl.end.column,
startLine = meta.decl.start.line,
endLine = meta.decl.end.line,
openSpan = lt + 'span class="'
+ (meta.skip ? 'fstat-skip' : 'fstat-no')
+ ' start-line-' + startLine
+ ' start-column-' + startCol + '"'
+ title('function not covered') + gt,
closeSpan = lt + '/span' + gt,
i,
text,
lines = [];
if (type === 'no' && structuredText[startLine]) {
text = structuredText[startLine].text;
lines.push({
insertionText: text,
args: [
startCol,
openSpan,
endLine === startLine ? endCol : text.originalLength(),
closeSpan
]
});
for (i = startLine + 1; i < endLine; i++) {
text = structuredText[i].text;
lines.push({
insertionText: text,
args: [
text.startPos,
openSpan,
text.originalLength(),
closeSpan
]
});
}
if (endLine !== startLine) {
text = structuredText[endLine].text;
lines.push({
insertionText: text,
args: [
text.startPos,
openSpan,
endCol,
closeSpan
]
});
}
lines.map(function (line) {
var insertionText = line.insertionText;
var args = line.args;
insertionText.wrap.apply(insertionText, args);
});
}
});
}
function annotateBranches(fileCoverage, structuredText) {
var branchStats = fileCoverage.b,
branchMeta = fileCoverage.branchMap;
var branches = [];
if (!branchStats) {
return;
}
Object.keys(branchStats).forEach(function (branchName) {
var branchArray = branchStats[branchName],
sumCount = branchArray.reduce(function (p, n) {
return p + n;
}, 0),
metaArray = branchMeta[branchName],
i,
j,
match,
lines,
offset,
mergedClause,
count,
meta,
type,
startCol,
endCol,
startLine,
endLine,
openSpan,
closeSpan,
text,
lines = [];
// only highlight if partial branches are missing or if there is a
// single uncovered branch.
if (sumCount > 0 || (sumCount === 0 && branchArray.length === 1)) {
for (i = 0; i < branchArray.length && i < metaArray.locations.length; i += 1) {
j = 1;
mergedClause = "";
count = branchArray[i];
meta = metaArray.locations[i];
type = count > 0 ? 'yes' : 'no';
startCol = meta.start.column;
endCol = meta.end.column;
startLine = meta.start.line;
endLine = meta.end.line;
openSpan = lt + 'span class="branch-' + i + ' '
+ (meta.skip ? 'cbranch-skip' : 'cbranch-no')
+ ' start-line-' + startLine
+ ' start-column-' + startCol + '"'
+ title('branch not covered') + gt;
closeSpan = lt + '/span' + gt;
if (count === 0 && structuredText[startLine]) { //skip branches taken
if (branchMeta[branchName].type === 'if') {
// 'if' is a special case
// since the else branch might not be visible, being non-existent
text = structuredText[metaArray.loc.start.line].text;
text.insertAt(metaArray.loc.start.column, lt + 'span class="' +
(meta.skip ? 'skip-if-branch' : 'missing-if-branch') + '"' +
title((i === 0 ? 'if' : 'else') + ' path not taken') + gt +
(i === 0 ? 'I' : 'E') + lt + '/span' + gt, true, false);
} else if (branchMeta[branchName].type === 'switch') {
text = structuredText[startLine].text;
offset = text.offsets.reduce(function (accumulator, currentValue) {
return accumulator + currentValue.len;
}, 0);
lines = text.toString().substr(startCol + offset);
while((match = lines.match(/^\s*(?:case\s+[^\[\('"`:]*[\[\(]?\s*['"`]?(?:\s*:|.*?[\)\]]\s*:|.*?[^\\]['"`]\s*:)|default\s*:)/)) === null) {
mergedClause += text.toString();
text.wrap(text.startPos,
openSpan,
text.originalLength(),
closeSpan);
text = structuredText[startLine + j].text;
lines += text.toString();
j++;
}
if (j === 1) {
// 'case' or 'default' clause is not splitted
text.wrap(startCol,
openSpan,
startCol + match[0].length,
closeSpan);
} else {
// 'case' or 'default' clause is splitted
text.wrap(text.startPos,
openSpan,
startCol + match[0].length - mergedClause.length,
closeSpan);
}
} else {
text = structuredText[startLine].text;
if (endLine !== startLine) {
endCol = text.originalLength();
}
text.wrap(startCol,
openSpan,
startCol < endCol ? endCol : text.originalLength(),
closeSpan);
}
}
}
}
});
}
function annotateSourceCode(fileCoverage, sourceStore) {
var codeArray,
lineCoverageArray;
try {
var sourceText = sourceStore.getSource(fileCoverage.path),
code = sourceText.split(/(?:\r?\n)|\r/),
count = 0,
structured = code.map(function (str) {
count += 1;
return {
line: count,
covered: 'neutral',
hits: 0,
text: new InsertionText(str, true)
};
});
structured.unshift({line: 0, covered: null, text: new InsertionText("")});
annotateLines(fileCoverage, structured);
//note: order is important, since statements typically result in spanning the whole line and doing branches late
//causes mismatched tags
annotateBranches(fileCoverage, structured);
annotateFunctions(fileCoverage, structured);
annotateStatements(fileCoverage, structured);
structured.shift();
codeArray = structured.map(function (item) {
return customEscape(item.text.toString()) || ' ';
});
lineCoverageArray = structured.map(function (item) {
return {
covered: item.covered,
hits: item.hits > 0 ? item.hits + 'x' : ' '
};
});
return {
annotatedCode: codeArray,
lineCoverage: lineCoverageArray,
maxLines: structured.length
};
} catch (ex) {
codeArray = [ ex.message ];
lineCoverageArray = [ { covered: 'no', hits: 0 } ];
String(ex.stack || '').split(/\r?\n/).forEach(function (line) {
codeArray.push(line);
lineCoverageArray.push({ covered: 'no', hits: 0 });
});
return {
annotatedCode: codeArray,
lineCoverage: lineCoverageArray,
maxLines: codeArray.length
};
}
}
module.exports = {
annotateSourceCode: annotateSourceCode
};
block-navigation.js
目的
複数行にまたがったステートメントや節をひとまとめにしてフォーカスさせる。
パッケージ
コード
🚨 istanbul-reports@1.xには存在しない。
🚨 TypeScriptを使わない場合のパスは node_modules/istanbul-reports/lib/html/assets/block-navigation.js である。
node_modules/nyc/node_modules/istanbul-reports/lib/html/assets/block-navigation.js
var jumpToCode = (function init () {
// Classes of code we would like to highlight
var missingCoverageClasses = [ '.cbranch-no', '.cstat-no', '.fstat-no' ];
// Selecter that finds elements on the page to which we can jump
var selector = missingCoverageClasses.join(', ');
// The NodeList of matching elements
var missingCoverageElements = document.querySelectorAll(selector);
// Group of NodeList which has same class
var groups = {};
for (var i = 0, l = missingCoverageElements.length; i < l; i++) {
var node = missingCoverageElements[i];
var className = node.className;
if (groups[className] === undefined) {
groups[className] = [];
}
groups[className].push(node);
}
// Convert NodeList to Array
var missingCoverageGroups = Object.keys(groups).map(function(className) {
return groups[className];
});
var currentIndex;
function toggleClass(index) {
if (currentIndex === undefined) {
currentIndex = 0;
}
missingCoverageGroups[currentIndex].map(function(node) {
return node.classList.remove('highlighted');
});
missingCoverageGroups[index].map(function(node) {
return node.classList.add('highlighted');
});
}
function makeCurrent(index) {
toggleClass(index);
currentIndex = index;
missingCoverageGroups[index][0]
.scrollIntoView({ behavior: 'smooth', block: 'center', inline: 'center' });
}
function goToPrevious() {
var nextIndex = 0;
if (typeof currentIndex !== 'number' || currentIndex === 0) {
nextIndex = missingCoverageGroups.length - 1;
} else if (missingCoverageGroups.length > 1) {
nextIndex = currentIndex - 1;
}
makeCurrent(nextIndex);
}
function goToNext() {
var nextIndex = 0;
if (typeof currentIndex === 'number' && currentIndex < (missingCoverageGroups.length - 1)) {
nextIndex = currentIndex + 1;
}
makeCurrent(nextIndex);
}
return function jump(event) {
switch (event.which) {
case 78: // n
case 74: // j
goToNext();
break;
case 66: // b
case 75: // k
case 80: // p
goToPrevious();
break;
}
};
}());
window.addEventListener('keydown', jumpToCode);
insertion-text.js
目的
ハイライト範囲の後に続く空白文字やコメントなど、プログラムとして意味の無い箇所のハイライトを抑制する。
パッケージ
コード
🚨 TypeScriptを使わない場合のパスは node_modules/istanbul-reports/lib/html/insertion-text.js である。
node_modules/nyc/node_modules/istanbul-reports/lib/html/insertion-text.js
wrap: function (startPos, startText, endPos, endText, consumeBlanks) {
this.insertAt(startPos, startText, true, consumeBlanks);
- this.insertAt(endPos, endText, false, consumeBlanks);
+ this.insertAt(endPos, endText, false, false);
return this;
},
typescript.js
目的
ソースマップを正しく行うため。
パッケージ
コード
🚨 TypeScriptを使う場合のみ修正する。
node_modules/typescript/lib/typescript.js
function emitSignatureHead(node) {
emitTypeParameters(node, node.typeParameters);
emitParameters(node, node.parameters);
emitTypeAnnotation(node.type);
+ if (node.original && node.original.type) {
+ emitPos(node.original.type.end);
+ } else {
+ emitPos(node.body.pos);
+ }
}
function emitArrowFunctionHead(node) {
emitTypeParameters(node, node.typeParameters);
emitParametersForArrow(node, node.parameters);
emitTypeAnnotation(node.type);
+ emitPos(node.equalsGreaterThanToken.pos);
writeSpace();
emit(node.equalsGreaterThanToken);
}
function emitBlockFunctionBody(body) {
writeSpace();
- writePunctuation("{");
+ writeToken(18 /* OpenBraceToken */, body.pos, writePunctuation, body);
increaseIndent();
var emitBlockFunctionBody = shouldEmitBlockFunctionBodyOnSingleLine(body)
? emitBlockFunctionBodyOnSingleLine
: emitBlockFunctionBodyWorker;
if (emitBodyWithDetachedComments) {
emitBodyWithDetachedComments(body, body.statements, emitBlockFunctionBody);
}
else {
emitBlockFunctionBody(body);
}
decreaseIndent();
writeToken(19 /* CloseBraceToken */, body.statements.end, writePunctuation, body);
}
検証
修正を実施後に再度生成した各レポートが、上述のルールに従っているか検証する。
JavaScript - react-scripts@1.xのテンプレートを使用
👍 上述のルールに従ってハイライトされている。
JavaScript - react-scripts@2.xのテンプレートを使用
👍 上述のルールに従ってハイライトされている。
TypeScript - react-scripts@1.xのテンプレートを使用
👍 上述のルールに従ってハイライトされている。
TypeScript - react-scripts@2.xのテンプレートを使用
🙅 関数の定義部のハイライトが戻り値の型までカバーされていない。
🙅 クラスメソッドの public キーワードがハイライトされている。
まとめ
本記事では、IstanbulJSが生成するHTMLレポートのハイライト範囲を修正するコードを示した。この修正は#課題に示す問題により、以下の環境に限り有効である。
- JavaScript - react-scripts@1.xのテンプレートを使用
- JavaScript - react-scripts@2.xのテンプレートを使用
- TypeScript - react-scripts@1.xのテンプレートを使用
課題
TypeScript - react-scripts@2.xのテンプレートを使用した場合のレポート
#TypeScript - react-scripts@2.xのテンプレートを使用した場合のレポート にて、ハイライトが上述のルールに従っていない点について、別記事 にまとめた。
