【半田レス版】obnized M5StickC 回転Servoで2WD Car

はじめに

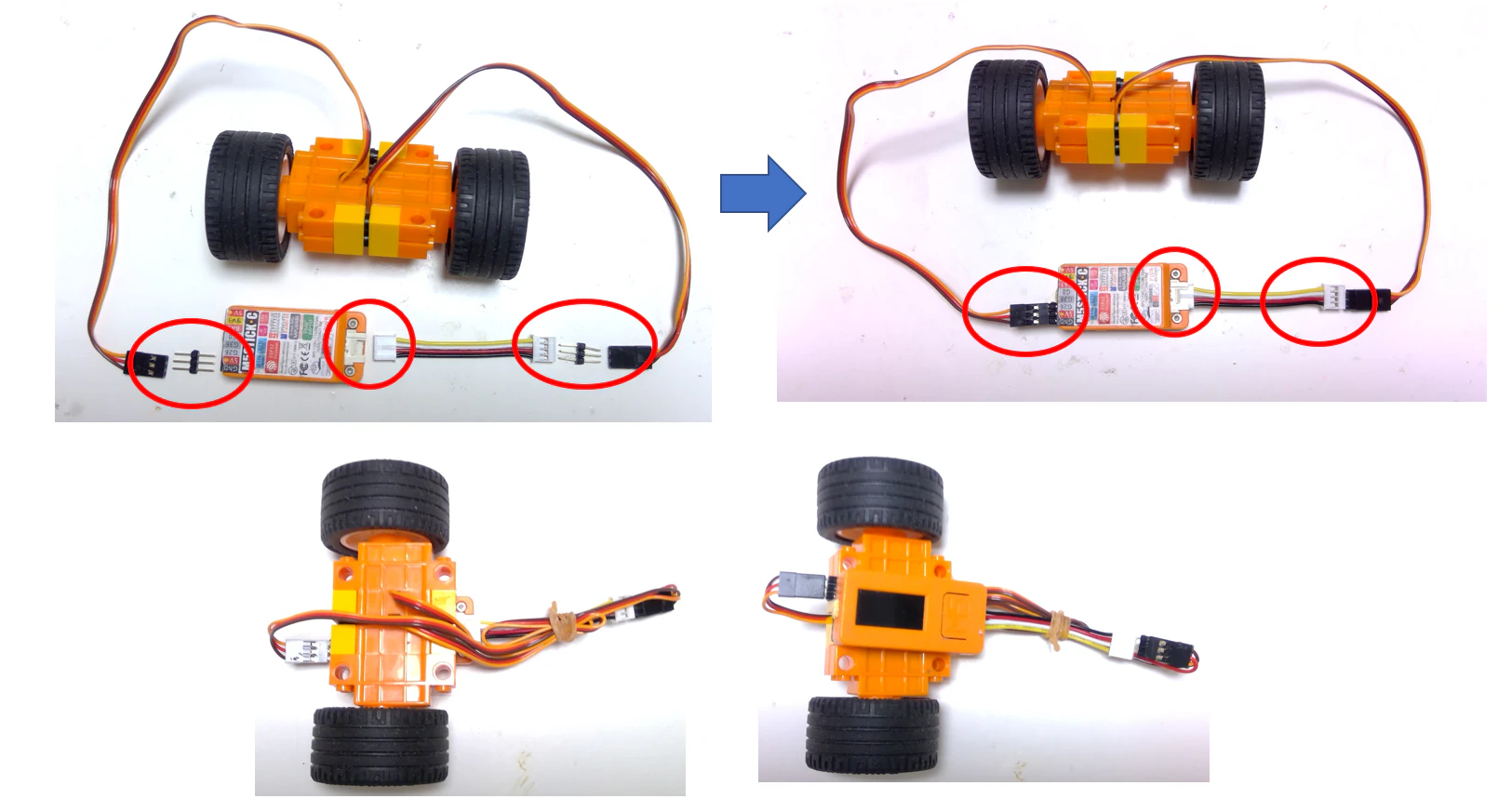

前に書いたobnized M5StickC 回転Servoで2WD Carの進化系です。半田付けなしで作れるような構成に改良しました。


■動画

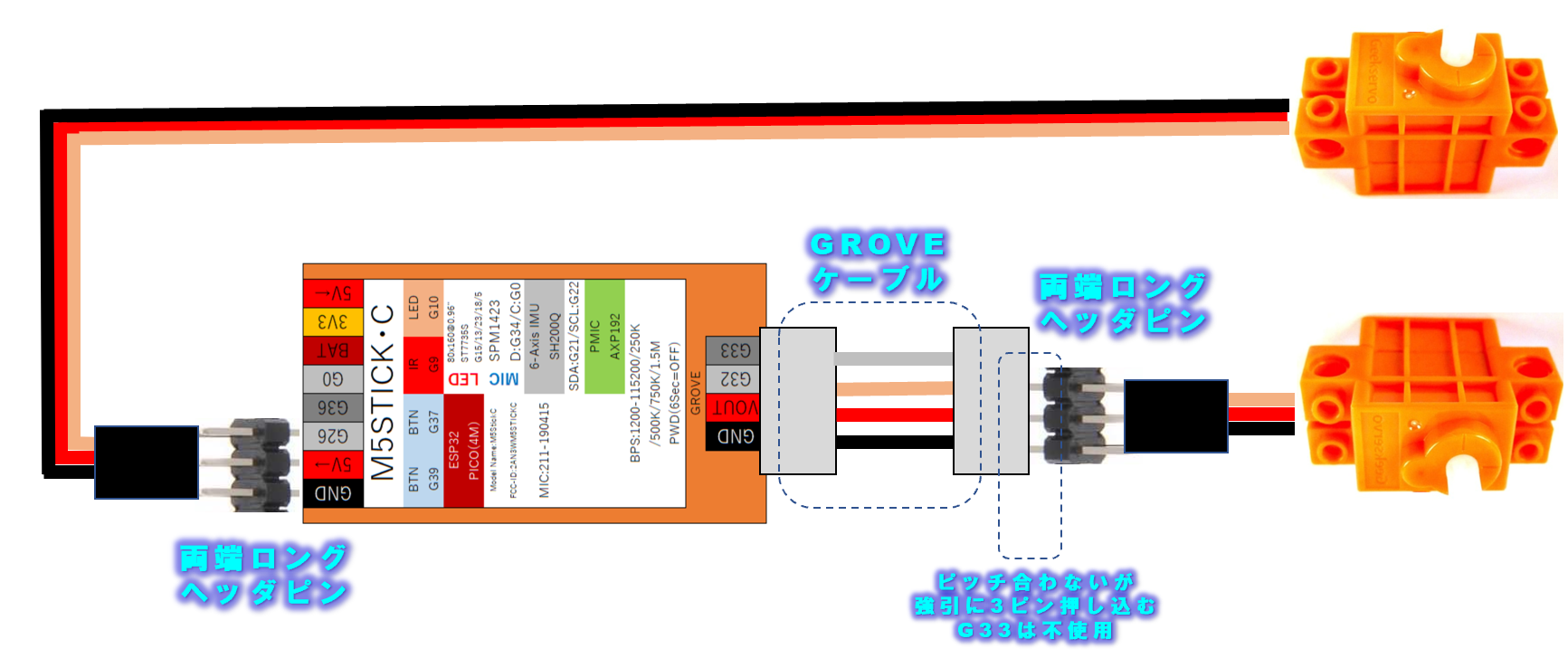

■接続図

下記の部品を使います
・5cm程度のGROVEケーブル。
・両端ロングのピンヘッダ、3ピン×2個。

半田付け不要で、だだ挿すだけです。

GROVE端子とピンヘッダはピッチが異なるのですが、慎重かつ強引に差し込めば何とかなります。なんならGROVEケーブルなしで、Servo端子を直接M5StickCのGROVE端子に刺せない事もないのですが、ヤバイのでお勧めはしません。でもやればできます。

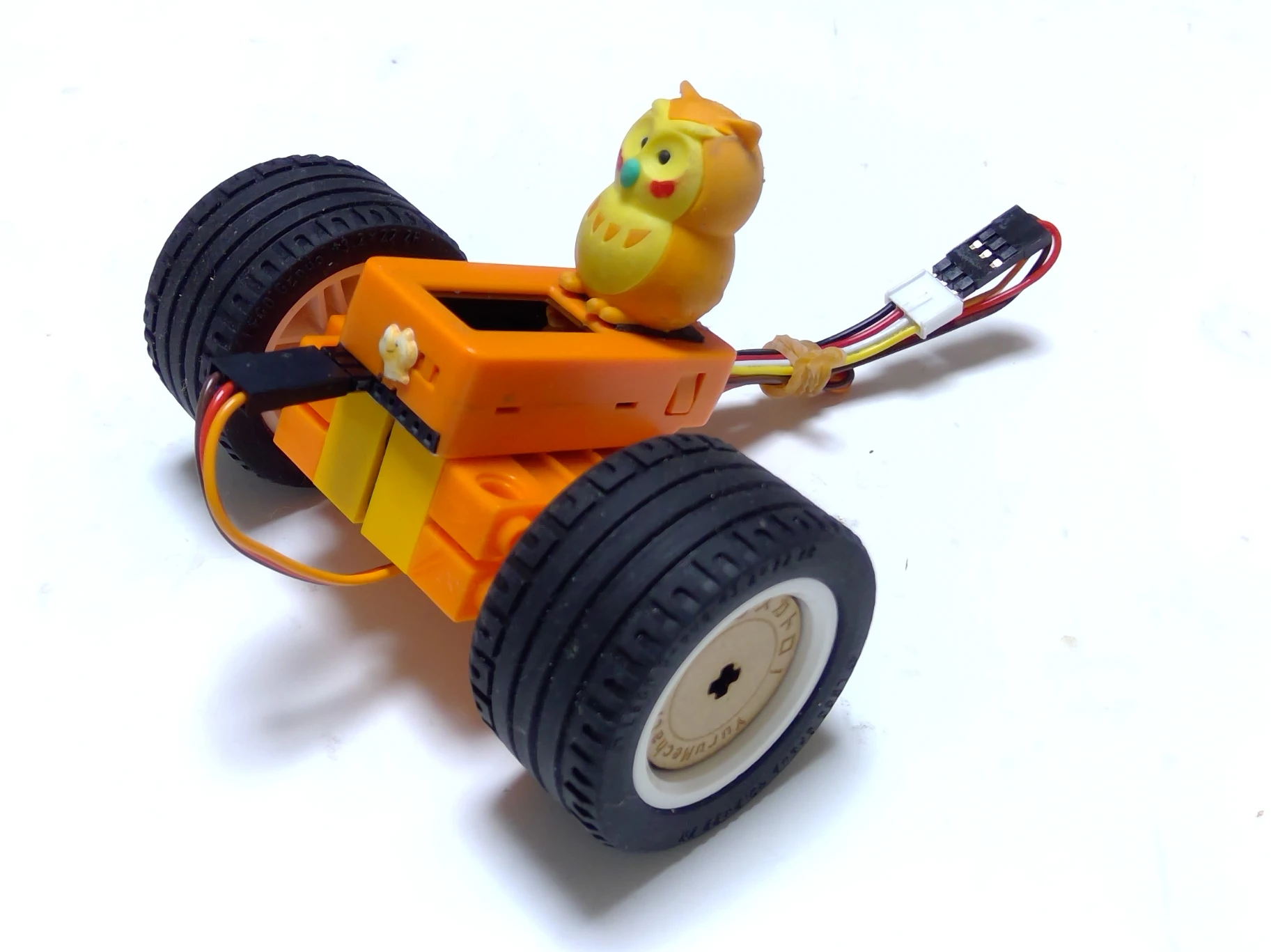

■車体(参考)

LEGOブロック等で適当に組み上げます。

■サンプルコード

<html>
<head>
  <meta charset="utf-8">
  <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css">
  <script src="https://obniz.io/js/jquery-3.2.1.min.js"></script>
  <script src="https://unpkg.com/obniz@3.2.0/obniz.js"  crossorigin="anonymous"></script>
  <script src="https://unpkg.com/m5stickcjs/m5stickc.js"></script>
</head>
<body>
  <div id="obniz-debug"></div>
  <font size="7">
    M5StickC 回転Servo 2WD Car<br><br>
  </font>
  <button id="FORWARD_LEFT"  class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button>
  <button id="FORWARD"       class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button>
  <button id="FORWARD_RIGHT" class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button><br><br>

  <button id="TURN_LEFT"     class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button>
  <button id="STOP"          class="btn btn-warning" style="width:30%;height:80px;font-size:60px;">STOP</button>
  <button id="TURN_RIGHT"    class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button><br><br>

  <button id="BACK_LEFT"     class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button>
  <button id="BACK"          class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button>
  <button id="BACK_RIGHT"    class="btn btn-warning" style="width:30%;height:80px;font-size:60px;"></button><br><br>

<script>
const Lhome =  92; //右停止
const Rhome =  92; //左停止
const LF    = +85; //左前進
const LB    = -85; //左後進
const RF    = -85; //右前進
const RB    = +85; //右後進

var obniz = new M5StickC('XXXX-XXXX');
obniz.onconnect = async function () {
  var Servo_L = obniz.wired("ServoMotor" , {signal:26} );
  var Servo_R = obniz.wired("ServoMotor" , {signal:32} );
  obniz.led.on();
  $("#FORWARD_LEFT").on('touchstart mousedown'    ,async ()=> { await FORWARD_LEFT();  })
  $("#FORWARD_LEFT").on('touchend mouseup'        ,async ()=> { await STOP();          })
  $("#FORWARD").on('touchstart mousedown'         ,async ()=> { await FORWARD();       })
  $("#FORWARD").on('touchend mouseup'             ,async ()=> { await STOP();          })
  $("#FORWARD_RIGHT").on('touchstart mousedown'   ,async ()=> { await FORWARD_RIGHT(); })
  $("#FORWARD_RIGHT").on('touchend mouseup'       ,async ()=> { await STOP();          })

  $("#TURN_LEFT").on('touchstart mousedown'       ,async ()=> { await TURN_LEFT();     })
  $("#TURN_LEFT").on('touchend mouseup'           ,async ()=> { await STOP();          })
  $("#STOP").on('touchend mouseup'                ,async ()=> { await STOP();          })
  $("#TURN_RIGHT").on('touchstart mousedown'      ,async ()=> { await TURN_RIGHT();    })
  $("#TURN_RIGHT").on('touchend mouseup'          ,async ()=> { await STOP();          })

  $("#BACK_LEFT").on('touchstart mousedown'       ,async ()=> { await BACK_LEFT();     })
  $("#BACK_LEFT").on('touchend mouseup'           ,async ()=> { await STOP();          })
  $("#BACK").on('touchstart mousedown'            ,async ()=> { await BACK();          })
  $("#BACK").on('touchend mouseup'                ,async ()=> { await STOP();          })
  $("#BACK_RIGHT").on('touchstart mousedown'      ,async ()=> { await BACK_RIGHT();    })
  $("#BACK_RIGHT").on('touchend mouseup'          ,async ()=> { await STOP();          })

  async function FORWARD(){
     Servo_L.angle(Lhome+LF);
     Servo_R.angle(Rhome+RF);
  }
  async function BACK(){
     Servo_L.angle(Lhome+LB);
     Servo_R.angle(Rhome+RB);
  }
  async function FORWARD_LEFT(){
     Servo_L.angle(Lhome);
     Servo_R.angle(Rhome+RF);
  }
  async function TURN_LEFT(){
     Servo_L.angle(Lhome+LB);
     Servo_R.angle(Rhome+RF);
  }
  async function FORWARD_RIGHT(){
     Servo_L.angle(Lhome+LF);
     Servo_R.angle(Rhome);
  }
  async function TURN_RIGHT(){
     Servo_L.angle(Lhome+LF);
     Servo_R.angle(Rhome+RB);
  }
  async function BACK_LEFT(){
     Servo_L.angle(Lhome);
     Servo_R.angle(Rhome+RB);
  }
  async function BACK_RIGHT(){
     Servo_L.angle(Lhome+LB);
     Servo_R.angle(Rhome);
  }
  async function STOP(){
     Servo_L.angle(Lhome);
     Servo_R.angle(Rhome);
  }
}
</script>
</body>
</html>

■最後に

とりあえず回転Servoを簡単に接続する方法はこれで完成です。次は何とかDC Motorも、より簡単に接続する方法を考えていきます。
