言語処理100本ノック2020 (55~59)

Last updated at Posted at 2023-11-02

はじめに

本記事は言語処理100本ノックの解説です。
100本のノックを全てこなした記録をQiitaに残します。
使用言語はPythonです。

今回は第6章: 機械学習(55~59)までの解答例をご紹介します。
6章前半(50~54)の解答例はこちらです。

55. 混同行列の作成

52で学習したロジスティック回帰モデルの混同行列（confusion matrix）を，学習データおよび評価データ上で作成せよ．

コード
from sklearn.metrics import confusion_matrix
import seaborn as sns
import matplotlib.pyplot as plt

labels = [0, 1, 2, 3]
cm = confusion_matrix(Y_train, Y_pred_train, labels = labels)
cm = pd.DataFrame(data=cm, index=["e", "b", "m", "t"], columns=["e", "b", "m", "t"])
sns.heatmap(cm, square=True, cbar=True, annot=True, cmap='Blues')
plt.xlabel("Predict")
plt.ylabel("True")
plt.title("Train_Coufision")
plt.savefig("[PATH]/Train_confusion.png")
plt.gcf().clear()

cm = confusion_matrix(Y_test, Y_pred_test, labels = labels)
cm = pd.DataFrame(data=cm, index=["e", "b", "m", "t"], columns=["e", "b", "m", "t"])
sns.heatmap(cm, square=True, cbar=True, annot=True, cmap="Blues")
plt.xlabel("Predict")
plt.ylabel("True")
plt.title("Test_Coufision")
plt.savefig("[PATH]/Test_confusion.png")

出力結果

コメント
数の多いカテゴリは予測しやすいですが、少ないのは微妙ですね。

56. 適合率，再現率，F1スコアの計測

52で学習したロジスティック回帰モデルの適合率，再現率，F1スコアを，評価データ上で計測せよ．カテゴリごとに適合率，再現率，F1スコアを求め，カテゴリごとの性能をマイクロ平均（micro-average）とマクロ平均（macro-average）で統合せよ．

コード
from sklearn.metrics import precision_score, recall_score, f1_score
df = pd.DataFrame(columns = ["適合率", "再現率", "F1値"], index=["e", "b", "m", "t", "macro-average", "micro-average"])
df.loc["e":"t", "適合率"] =  precision_score(Y_test, Y_pred_test,  average=None)
df.loc["e":"t", "再現率"] =  recall_score(Y_test, Y_pred_test, average=None)
df.loc["e":"t", "F1値"] =  f1_score(Y_test, Y_pred_test, average=None)
df.loc["e":"t", "適合率"] =  precision_score(Y_test, Y_pred_test,  average=None)
df.loc["macro-average", :] = [precision_score(Y_test, Y_pred_test,  average="macro"),  recall_score(Y_test, Y_pred_test, average="macro"),  f1_score(Y_test, Y_pred_test, average="macro")]
df.loc["micro-average", :] = [precision_score(Y_test, Y_pred_test,  average="micro"),  recall_score(Y_test, Y_pred_test, average="micro"),  f1_score(Y_test, Y_pred_test, average="micro")]
df

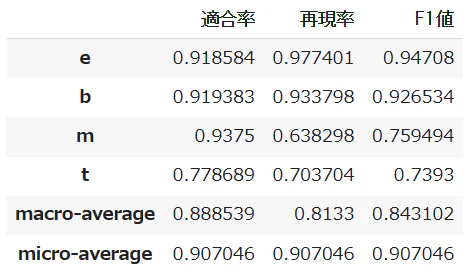

出力結果

コメント
scikit-learnには各指標を出す関数が用意されてていいですよ。

57. 特徴量の重みの確認

52で学習したロジスティック回帰モデルの中で，重みの高い特徴量トップ10と，重みの低い特徴量トップ10を確認せよ．

コード
import pickle
import pandas as pd
import numpy as np
lr = pickle.load(open("[PATH]/Logistic_model.sav", 'rb'))
vectorizer = pickle.load(open("[PATH]/vectorizer.sav", 'rb'))
weights = lr.coef_
cat_list = ["e", "b", "m", "t"]
df_result57 = pd.DataFrame()
df = pd.DataFrame()
for cat, weight in zip(cat_list, weights):
    top_word = []
    bottom_word = []
    sort_weight = sorted(weight, reverse = True)
    top = sort_weight[:10]
    bottom =  sort_weight[-10:]
    for t_index, b_index in zip(top, bottom):
        wn = np.where(weight == t_index)
        top_word.append(vectorizer.get_feature_names_out()[wn[0][0]])
        wb = np.where(weight == b_index)
        bottom_word.append(vectorizer.get_feature_names_out()[wb[0][0]])

    df["WEIGHT_TOP"] = top
    df["WORD_TOP"] = top_word
    df["WEIGHT_BOTTOM"] = bottom[::-1]
    df["WORD_BOTTOM"] = bottom_word[::-1]
    df["CATEGORY"] = cat
    df["RANK"] = list(range(1, 11))
    df = df.reindex(columns=["RANK", "CATEGORY", "WEIGHT_TOP", "WORD_TOP", "WEIGHT_BOTTOM", "WORD_BOTTOM"])
    df_result57 = pd.concat([df_result57, df])
df_result57.set_index("RANK", drop=True, inplace=True)
df_result57

出力結果

コメント
ロジスティック回帰は単に分類問題を解くだけでなく、どの特徴が分類に影響しているか調べられるところが面白いです。

58. 正則化パラメータの変更

ロジスティック回帰モデルを学習するとき，正則化パラメータを調整することで，学習時の過学習（overfitting）の度合いを制御できる．異なる正則化パラメータでロジスティック回帰モデルを学習し，学習データ，検証データ，および評価データ上の正解率を求めよ．実験の結果は，正則化パラメータを横軸，正解率を縦軸としたグラフにまとめよ．

コード
from sklearn.metrics import accuracy_score
from sklearn.linear_model import LogisticRegression
import matplotlib.pyplot as plt
import pandas as pd
import pickle
from tqdm import tqdm

def Encoder(sign):
    if sign == "e":
        code = 0
    elif sign == "b":
        code = 1
    elif sign == "m":
        code = 2
    elif sign == "t":
        code = 3
    else:
        pass
    return code
def LearningPreparation(name):
    df = pd.read_csv("[PATH]/{}.feature.txt".format(name), index_col = 0)
    df["CATEGORY"] = df["CATEGORY"].map(Encoder)
    X = df.iloc[:,2:].values.tolist()
    Y = df["CATEGORY"].values.tolist()
    return X, Y

C_list = [0.0001, 0.0005, 0.001, 0.005, 0.01, 0.05, 0.1, 0.5, 1, 5, 10, 50, 100, 500, 1000, 5000, 10000]
result58 = []
X_train, Y_train = LearningPreparation("train")
X_valid, Y_valid = LearningPreparation("valid")
X_test, Y_test = LearningPreparation("test")
for c in tqdm(C_list):
    lr = LogisticRegression(C = c)
    lr.fit(X_train, Y_train)
    Y_pred_train = lr.predict(X_train)
    train_result = accuracy_score(y_true = Y_train, y_pred = Y_pred_train)
    Y_pred_valid = lr.predict(X_valid)
    valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred_valid)
    Y_pred_test = lr.predict(X_test)
    test_result = accuracy_score(y_true = Y_test, y_pred = Y_pred_test)
    result58.append([c, train_result, valid_result, test_result])
###描画#####
C_list = [x[0] for x in result58]
train_list = [x[1] for x in result58]
valid_list = [x[2] for x in result58]
test_list = [x[3] for x in result58]

fig, ax = plt.subplots()
ctr, cva, cte = "red", "blue", "yellow"
ltr, lva, lte = "train", "valid", "test"
ax.set_xlabel("C")
ax.set_ylabel("accuracy")
ax.set_title("Train, Valid, Test accuracy")
ax.set_xscale('log')
ax.grid()
ax.plot(C_list, train_list, color = ctr, label = ltr)
ax.plot(C_list, valid_list, color = cva, label = lva)
ax.plot(C_list, test_list, color = cte, label = lte)
ax.legend(loc=0)
fig.tight_layout()
plt.show()
fig.savefig('[PATH]/Train_Valid_test_accuracy.png')

出力結果

コメント
ハイパーパラメータは対数的に変えていくと良いらしいです。

59. ハイパーパラメータの探索

学習アルゴリズムや学習パラメータを変えながら，カテゴリ分類モデルを学習せよ．検証データ上の正解率が最も高くなる学習アルゴリズム・パラメータを求めよ．また，その学習アルゴリズム・パラメータを用いたときの評価データ上の正解率を求めよ．

コード
from sklearn.metrics import accuracy_score
from sklearn.linear_model import LogisticRegression #ロジスティック回帰
from sklearn.svm import SVC#サポートベクターマシン
from sklearn.neighbors import KNeighborsClassifier
from sklearn.tree import DecisionTreeClassifier#決定木
from sklearn.gaussian_process.kernels import RBF#ガウス過程回帰
from sklearn.ensemble import RandomForestClassifier, AdaBoostClassifier#ランダムフォレスト、アダブースト
from sklearn.naive_bayes import GaussianNB#ガウシアンナイブベイズ
from sklearn.discriminant_analysis import QuadraticDiscriminantAnalysis#二次判別分析
from sklearn.neural_network import MLPClassifier#多層パーセプトロン
from tqdm import tqdm
import pickle
import pandas as pd

def savemodel(model):
    with open("[PATH]/bestmodel.pickle", mode="wb") as f:
        pickle.dump(model,f,protocol=2)

def savelog(name, acc, para):
    with open("[PATH]/log.txt", mode="a+") as f:
        f.write("{}, {}, {}\n".format(name, acc, para))

def Encoder(sign):
    if sign == "e":
        code = 0
    elif sign == "b":
        code = 1
    elif sign == "m":
        code = 2
    elif sign == "t":
        code = 3
    else:
        pass
    return code

def LearningPreparation(name):
    df = pd.read_csv("[PATH]/{}.feature.txt".format(name), index_col = 0)
    df["CATEGORY"] = df["CATEGORY"].map(Encoder)
    X = df.iloc[:,2:].values.tolist()
    Y = df["CATEGORY"].values.tolist()
    return X, Y

X_train, Y_train = LearningPreparation("train")
X_valid, Y_valid = LearningPreparation("valid")
X_test, Y_test = LearningPreparation("test")

tune_list = [0.01, 0.1, 1]
top_result = 0
model_name = ""
parameter_list = []

print("Linear SVM")
for c in tune_list:
    print(c)
    model = SVC(C = c, kernel="linear")
    model.fit(X_train, Y_train)
    Y_pred = model.predict(X_valid)
    valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
    if valid_result > top_result:
        model_name = "Linear SVM"
        top_result = valid_result
        parameter_list = [c]
        print("best result: {}".format(top_result))
        savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
        savemodel(model)

print("Gaussian SVM")
for c in tune_list:
    for ga in tune_list:
        print(c,ga)
        model = SVC(C = c, gamma = ga, kernel="rbf")
        model.fit(X_train, Y_train)
        Y_pred = model.predict(X_valid)
        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
        if valid_result > top_result:
            model_name = "Gaussian SVM"
            top_result = valid_result
            parameter_list = [c, ga]
            print("best result: {}".format(top_result))
            savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
            savemodel(model)

print("Poly SVM")
for de in [3, 5, 10]:
    for c in tune_list:
        for ga in tune_list:
            print(de,c,ga)
            model = SVC(C = c, gamma = ga, degree = de, kernel="poly")
            model.fit(X_train, Y_train)
            Y_pred = model.predict(X_valid)
            valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
            if valid_result > top_result:
                model_name = "Poly SVM"
                top_result = valid_result
                parameter_list = [de, c, ga]
                print("best result: {}".format(top_result))
                savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
                savemodel(model)

print("Sigmoid SVM")
for c in tune_list:
    for ga in tune_list:
        print(c,ga)
        model = SVC(C = c, gamma = ga, kernel="sigmoid")
        model.fit(X_train, Y_train)
        Y_pred = model.predict(X_valid)
        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
        if valid_result > top_result:
            model_name = "Sigmoid SVM"
            top_result = valid_result
            parameter_list = [c, ga]
            print("best result: {}".format(top_result))
            savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
            savemodel(model)

print("Logistic Regression")
for c in tune_list:
    print(c)
    model = LogisticRegression(C = c)
    model.fit(X_train, Y_train)
    Y_pred = model.predict(X_valid)
    valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
    if valid_result > top_result:
            model_name = "Logistic Regression"
            top_result = valid_result
            parameter_list = [c]
            print("best result: {}".format(top_result))
            savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
            savemodel(model)

print("KNeighborsClassifier")
for k in [1, 3, 5, 10]:
    print(k)
    model = KNeighborsClassifier(n_neighbors=k)
    model.fit(X_train, Y_train)
    Y_pred = model.predict(X_valid)
    valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
    if valid_result > top_result:
            model_name = "KNeighborsClassifier"
            top_result = valid_result
            parameter_list = [k]
            print("best result: {}".format(top_result))
            savemodel(model)

print("DecisionTreeClassifier")
for md in [3, 5, 10, 30, 50, 100]:
    print(md)
    model = DecisionTreeClassifier(max_depth=md)
    model.fit(X_train, Y_train)
    Y_pred = model.predict(X_valid)
    valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
    if valid_result > top_result:
            model_name = "DecisionTreeClassifier"
            top_model = model
            top_result = valid_result
            parameter_list = [md]
            print("best result: {}".format(top_result))
            savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
            savemodel(model)

print("AdaBoostClassifier")
model = AdaBoostClassifier()
model.fit(X_train, Y_train)
Y_pred = model.predict(X_valid)
valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
if valid_result > top_result:
        model_name = "AdaBoostClassifier"
        top_result = valid_result
        parameter_list = []
        print("best result: {}".format(top_result))
        savemodel(model)

print("GaussianNB")
model = GaussianNB()
model.fit(X_train, Y_train)
Y_pred = model.predict(X_valid)
valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
if valid_result > top_result:
        model_name = "GaussianNB"
        top_model = model
        top_result = valid_result
        parameter_list = []
        print("best result: {}".format(top_result))
        savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
        savemodel(model)

print("QuadraticDiscriminantAnalysis")
model = QuadraticDiscriminantAnalysis()
model.fit(X_train, Y_train)
Y_pred = model.predict(X_valid)
valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
if valid_result > top_result:
        model_name = "QuadraticDiscriminantAnalysis"
        top_result = valid_result
        parameter_list = []
        print("best result: {}".format(top_result))
        savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
        savemodel(model)

print("MLPClassifier 1-layer")
for activation in ["logistic", "tanh", "relu"]:
      for solver in ["sgd", "adam"]:
            for alpha in tune_list:
                  for hidden_layer_sizes in [50, 100, 300]:
                        print(activation,solver,alpha,hidden_layer_sizes)
                        model = MLPClassifier(activation=activation, solver=solver, hidden_layer_sizes = (hidden_layer_sizes), early_stopping=True)
                        model.fit(X_train, Y_train)
                        Y_pred = model.predict(X_valid)
                        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
                        if valid_result > top_result:
                                model_name = "MLPClassifier 1-layer"
                                top_result = valid_result
                                parameter_list = [activation, solver, alpha, hidden_layer_sizes]
                                print("best result: {}".format(top_result))
                                savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
                                savemodel(model)

print("MLPClassifier 2-layer")
for activation in ["logistic", "tanh", "relu"]:
      for solver in ["sgd", "adam"]:
            for alpha in tune_list:
                  for hidden_layer_sizes in [50, 100, 300]:
                        print(activation,solver,alpha,hidden_layer_sizes)
                        model = MLPClassifier(activation=activation, solver=solver, hidden_layer_sizes = (hidden_layer_sizes, hidden_layer_sizes), early_stopping=True)
                        model.fit(X_train, Y_train)
                        Y_pred = model.predict(X_valid)
                        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
                        if valid_result > top_result:
                                model_name = "MLPClassifier 2-layer"
                                top_result = valid_result
                                parameter_list = [activation, solver, alpha, hidden_layer_sizes,  hidden_layer_sizes]
                                print("best result: {}".format(top_result))
                                savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
                                savemodel(model)

print("MLPClassifier 3-layer")
for activation in ["logistic", "tanh", "relu"]:
      for solver in ["adam"]:
            for alpha in tune_list:
                  for hidden_layer_sizes in [50, 100, 300]:
                        print(activation,solver,alpha,hidden_layer_sizes)
                        model = MLPClassifier(activation=activation, solver=solver, hidden_layer_sizes = (hidden_layer_sizes, hidden_layer_sizes, hidden_layer_sizes), early_stopping=True)
                        model.fit(X_train, Y_train)
                        Y_pred = model.predict(X_valid)
                        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
                        if valid_result > top_result:
                                model_name = "MLPClassifier 3-layer"
                                top_result = valid_result
                                parameter_list = [activation, solver, alpha, hidden_layer_sizes,  hidden_layer_sizes]
                                print("best result: {}".format(top_result))
                                savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
                                savemodel(model)

print("MLPClassifier 4-layer")
for activation in ["logistic", "tanh", "relu"]:
      for solver in ["adam"]:
            for alpha in tune_list:
                  for hidden_layer_sizes in [50, 100, 300]:
                        print(activation,solver,alpha,hidden_layer_sizes)
                        model = MLPClassifier(activation=activation, solver=solver, hidden_layer_sizes = (hidden_layer_sizes, hidden_layer_sizes, hidden_layer_sizes, hidden_layer_sizes), early_stopping=True)
                        model.fit(X_train, Y_train)
                        Y_pred = model.predict(X_valid)
                        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
                        if valid_result > top_result:
                                model_name = "MLPClassifier 4-layer"
                                top_result = valid_result
                                parameter_list = [activation, solver, alpha, hidden_layer_sizes,  hidden_layer_sizes]
                                print("best result: {}".format(top_result))
                                savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
                                savemodel(model)

print("MLPClassifier 5-layer")
for activation in ["logistic", "tanh", "relu"]:
      for solver in ["adam"]:
            for alpha in tune_list:
                  for hidden_layer_sizes in [50, 100, 300]:
                        print(activation,solver,alpha,hidden_layer_sizes)
                        model = MLPClassifier(activation=activation, solver=solver, hidden_layer_sizes = (hidden_layer_sizes, hidden_layer_sizes, hidden_layer_sizes, hidden_layer_sizes, hidden_layer_sizes), early_stopping=True)
                        model.fit(X_train, Y_train)
                        Y_pred = model.predict(X_valid)
                        valid_result = accuracy_score(y_true = Y_valid, y_pred = Y_pred)
                        if valid_result > top_result:
                                model_name = "MLPClassifier 5-layer"
                                top_result = valid_result
                                parameter_list = [activation, solver, alpha, hidden_layer_sizes,  hidden_layer_sizes]
                                print("best result: {}".format(top_result))
                                savelog(model_name, valid_result, " ".join(map(str, parameter_list)))
                                savemodel(model)
print("Top Result")
print(top_result)
print("model_name")
print(model_name)
print("parameter_list")
print(parameter_list)
出力結果
Top Result
0.9220389805097451
model_name
MLPClassifier 1-layer
parameter_list
['logistic', 'adam', 1, 50]

コメント
scikit-learnで使える分類アルゴリズムを全部使いました。機械学習系の研究室の学生あるあるですが、ハイパーパラメータをチューニングして研究した気になってしまうので気を付けましょう(特大ブーメラン)。

他章の解答例

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
