asp.net coreでサービス作ったから宣伝兼ねて技術公開する -2_2.DB作成、DB接続-

Last updated at Posted at 2019-10-22

設定ファイルの修正

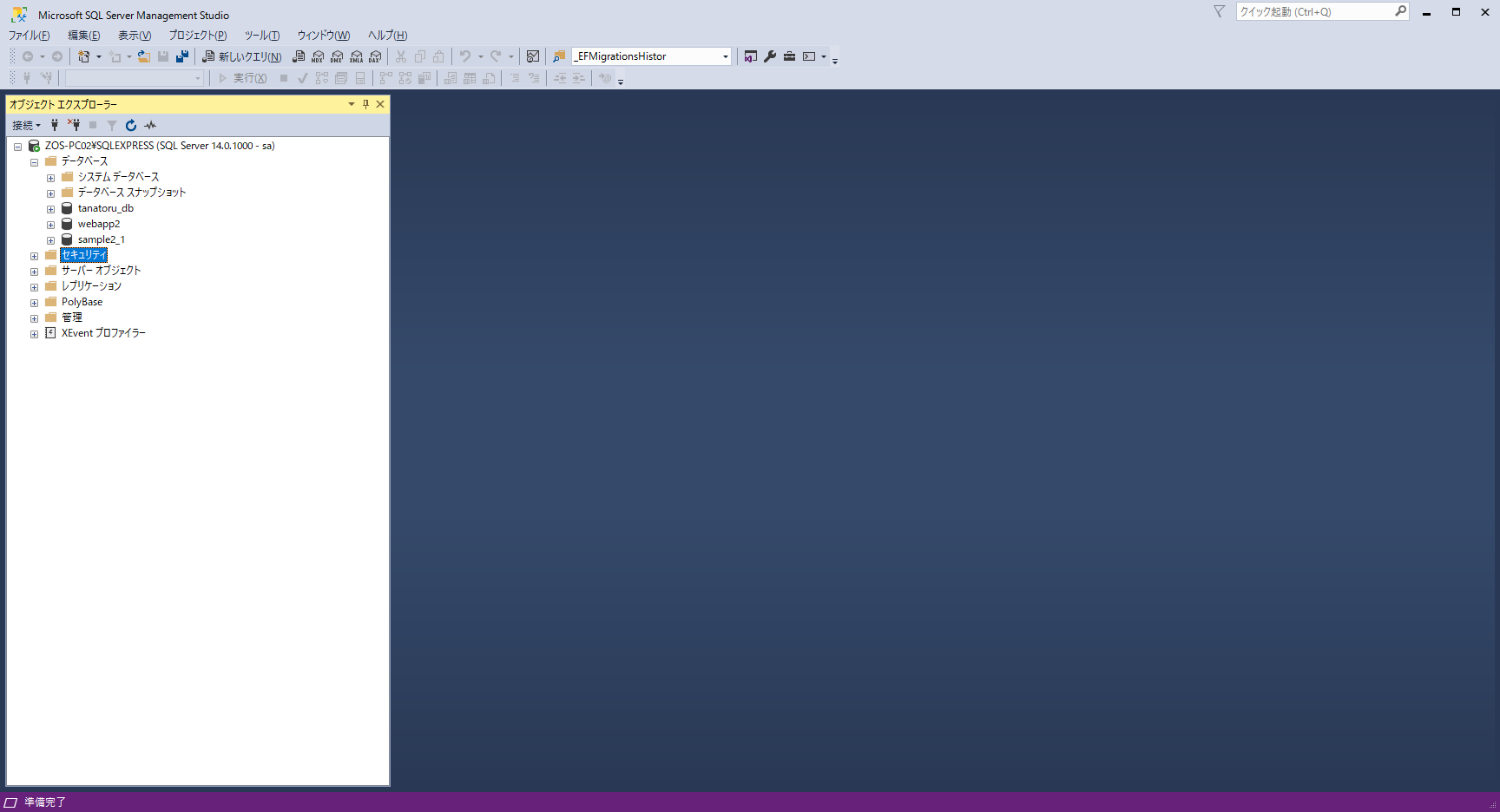

まず、SQLServer上に、予めDBを作成してください。

次に、プロジェクト直下のappsettings.jsonの修正を行います。


こちらの「ConnectionStrings」を修正することでSQLServerとの接続が行えます。

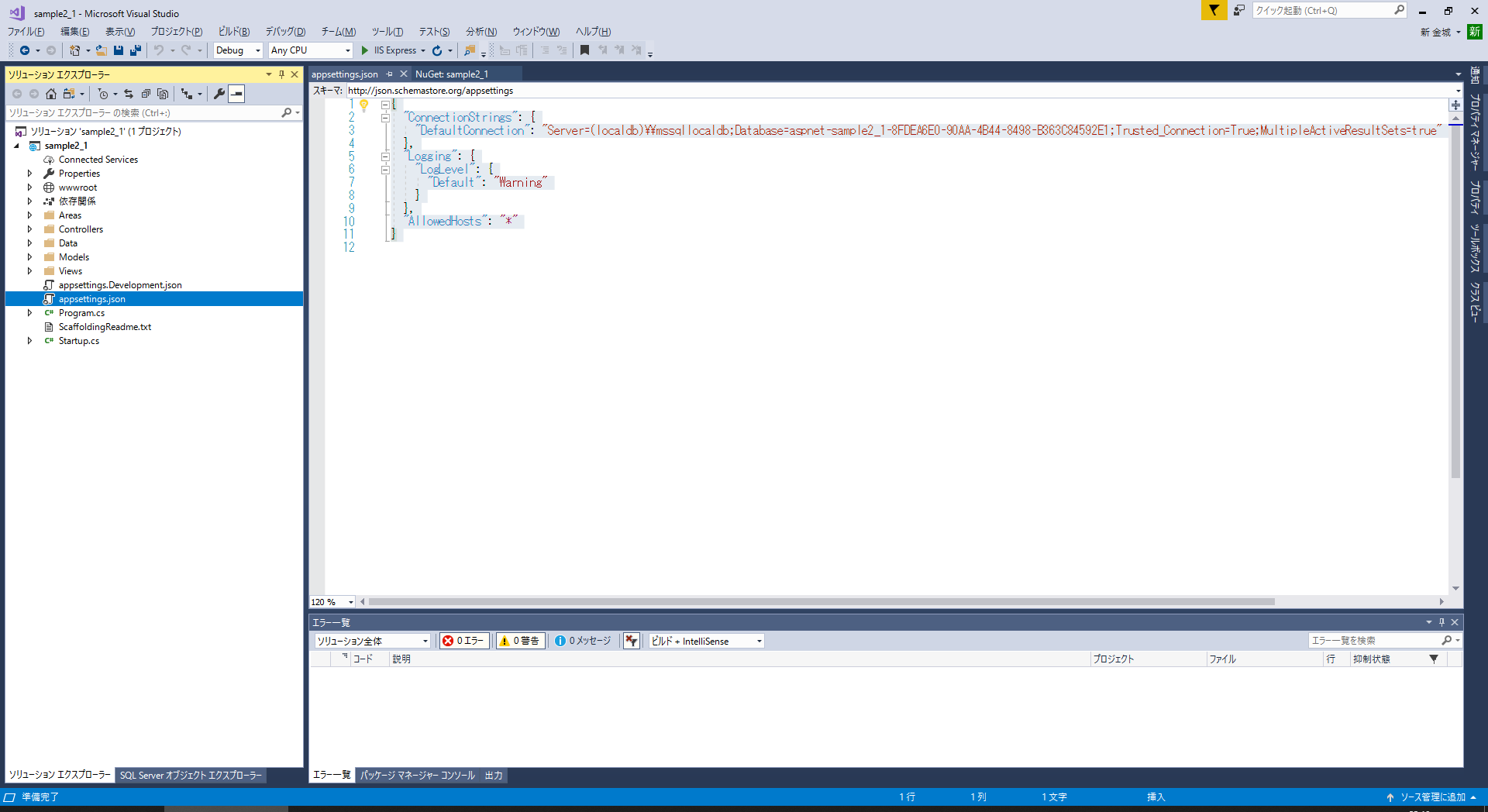

デフォルト:

appsettings.json
{
  "ConnectionStrings": {
    "DefaultConnection": "Server=(localdb)\\mssqllocaldb;Database=aspnet-sample2_1-8FDEA6E0-90AA-4B44-8498-B363C84592E1;Trusted_Connection=True;MultipleActiveResultSets=true"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Warning"
    }
  },
  "AllowedHosts": "*"
}

修正後:

appsettings.json
{
  "ConnectionStrings": {
    "DefaultConnection": "Data Source=ZOS-PC02\\SQLEXPRESS;Initial Catalog=sample2_1;Persist Security Info=True;User ID=sa;Password=PASS1WORD"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Warning"
    }
  },
  "AllowedHosts": "*"
}

※サーバ名、ユーザID、パスワードは、設定した内容に書き換えてください。

データモデルの確認

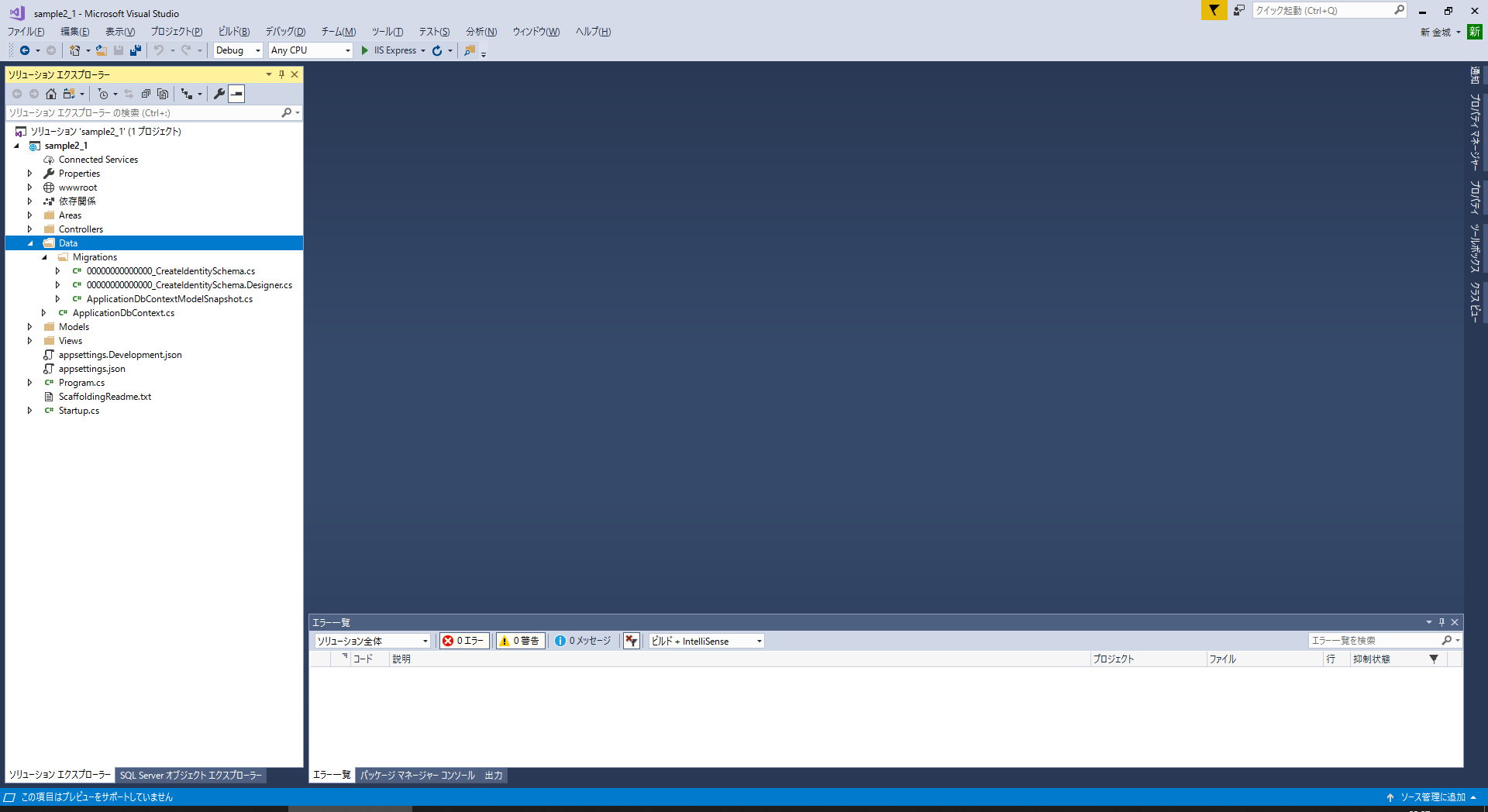

本プロジェクトを作成時に、Dataフォルダが自動生成されております。
これには、ユーザ認証機能のDB構成情報が含まれております。

[Migrations]フォルダには、構成変更をDBへ適用するSQL文を生成することソースが出来ます。

1.テーブルの構成情報をEntity形式で作成
2.Migrationsコマンドで、SQL文を生成
3.Migrationsコマンドで、DBへ適用

今回の場合は、[1,2]はプロジェクト作成時に行われているため、3のみの実施となります。

DBへのIdentityテーブルの作成

これはとても簡単です。

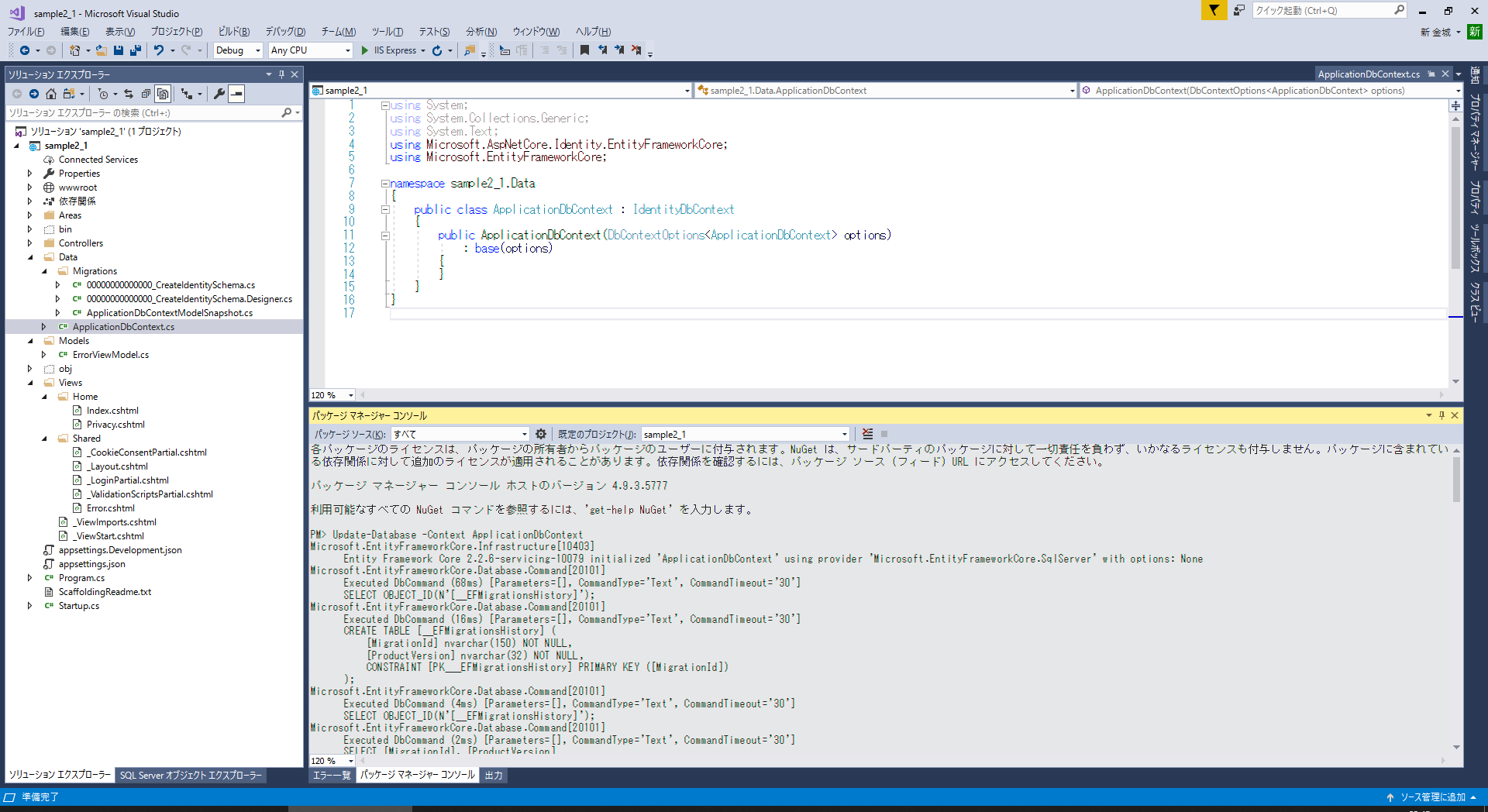

[パッケージマネージャ コンソール]から、以下コマンドを実行するだけ。

PM> Update-Database -Context ApplicationDbContext


実行ログ.
PM> Update-Database -Context ApplicationDbContext
Microsoft.EntityFrameworkCore.Infrastructure[10403]
      Entity Framework Core 2.2.6-servicing-10079 initialized 'ApplicationDbContext' using provider 'Microsoft.EntityFrameworkCore.SqlServer' with options: None
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (68ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT OBJECT_ID(N'[__EFMigrationsHistory]');
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (16ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [__EFMigrationsHistory] (
          [MigrationId] nvarchar(150) NOT NULL,
          [ProductVersion] nvarchar(32) NOT NULL,
          CONSTRAINT [PK___EFMigrationsHistory] PRIMARY KEY ([MigrationId])
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (4ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT OBJECT_ID(N'[__EFMigrationsHistory]');
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (2ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      SELECT [MigrationId], [ProductVersion]
      FROM [__EFMigrationsHistory]
      ORDER BY [MigrationId];
Microsoft.EntityFrameworkCore.Migrations[20402]
      Applying migration '00000000000000_CreateIdentitySchema'.
Applying migration '00000000000000_CreateIdentitySchema'.
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (3ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetRoles] (
          [Id] nvarchar(450) NOT NULL,
          [Name] nvarchar(256) NULL,
          [NormalizedName] nvarchar(256) NULL,
          [ConcurrencyStamp] nvarchar(max) NULL,
          CONSTRAINT [PK_AspNetRoles] PRIMARY KEY ([Id])
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (3ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetUsers] (
          [Id] nvarchar(450) NOT NULL,
          [UserName] nvarchar(256) NULL,
          [NormalizedUserName] nvarchar(256) NULL,
          [Email] nvarchar(256) NULL,
          [NormalizedEmail] nvarchar(256) NULL,
          [EmailConfirmed] bit NOT NULL,
          [PasswordHash] nvarchar(max) NULL,
          [SecurityStamp] nvarchar(max) NULL,
          [ConcurrencyStamp] nvarchar(max) NULL,
          [PhoneNumber] nvarchar(max) NULL,
          [PhoneNumberConfirmed] bit NOT NULL,
          [TwoFactorEnabled] bit NOT NULL,
          [LockoutEnd] datetimeoffset NULL,
          [LockoutEnabled] bit NOT NULL,
          [AccessFailedCount] int NOT NULL,
          CONSTRAINT [PK_AspNetUsers] PRIMARY KEY ([Id])
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (4ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetRoleClaims] (
          [Id] int NOT NULL IDENTITY,
          [RoleId] nvarchar(450) NOT NULL,
          [ClaimType] nvarchar(max) NULL,
          [ClaimValue] nvarchar(max) NULL,
          CONSTRAINT [PK_AspNetRoleClaims] PRIMARY KEY ([Id]),
          CONSTRAINT [FK_AspNetRoleClaims_AspNetRoles_RoleId] FOREIGN KEY ([RoleId]) REFERENCES [AspNetRoles] ([Id]) ON DELETE CASCADE
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetUserClaims] (
          [Id] int NOT NULL IDENTITY,
          [UserId] nvarchar(450) NOT NULL,
          [ClaimType] nvarchar(max) NULL,
          [ClaimValue] nvarchar(max) NULL,
          CONSTRAINT [PK_AspNetUserClaims] PRIMARY KEY ([Id]),
          CONSTRAINT [FK_AspNetUserClaims_AspNetUsers_UserId] FOREIGN KEY ([UserId]) REFERENCES [AspNetUsers] ([Id]) ON DELETE CASCADE
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetUserLogins] (
          [LoginProvider] nvarchar(128) NOT NULL,
          [ProviderKey] nvarchar(128) NOT NULL,
          [ProviderDisplayName] nvarchar(max) NULL,
          [UserId] nvarchar(450) NOT NULL,
          CONSTRAINT [PK_AspNetUserLogins] PRIMARY KEY ([LoginProvider], [ProviderKey]),
          CONSTRAINT [FK_AspNetUserLogins_AspNetUsers_UserId] FOREIGN KEY ([UserId]) REFERENCES [AspNetUsers] ([Id]) ON DELETE CASCADE
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (4ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetUserRoles] (
          [UserId] nvarchar(450) NOT NULL,
          [RoleId] nvarchar(450) NOT NULL,
          CONSTRAINT [PK_AspNetUserRoles] PRIMARY KEY ([UserId], [RoleId]),
          CONSTRAINT [FK_AspNetUserRoles_AspNetRoles_RoleId] FOREIGN KEY ([RoleId]) REFERENCES [AspNetRoles] ([Id]) ON DELETE CASCADE,
          CONSTRAINT [FK_AspNetUserRoles_AspNetUsers_UserId] FOREIGN KEY ([UserId]) REFERENCES [AspNetUsers] ([Id]) ON DELETE CASCADE
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (2ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE TABLE [AspNetUserTokens] (
          [UserId] nvarchar(450) NOT NULL,
          [LoginProvider] nvarchar(128) NOT NULL,
          [Name] nvarchar(128) NOT NULL,
          [Value] nvarchar(max) NULL,
          CONSTRAINT [PK_AspNetUserTokens] PRIMARY KEY ([UserId], [LoginProvider], [Name]),
          CONSTRAINT [FK_AspNetUserTokens_AspNetUsers_UserId] FOREIGN KEY ([UserId]) REFERENCES [AspNetUsers] ([Id]) ON DELETE CASCADE
      );
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (4ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE INDEX [IX_AspNetRoleClaims_RoleId] ON [AspNetRoleClaims] ([RoleId]);
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (4ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE UNIQUE INDEX [RoleNameIndex] ON [AspNetRoles] ([NormalizedName]) WHERE [NormalizedName] IS NOT NULL;
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE INDEX [IX_AspNetUserClaims_UserId] ON [AspNetUserClaims] ([UserId]);
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE INDEX [IX_AspNetUserLogins_UserId] ON [AspNetUserLogins] ([UserId]);
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE INDEX [IX_AspNetUserRoles_RoleId] ON [AspNetUserRoles] ([RoleId]);
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE INDEX [EmailIndex] ON [AspNetUsers] ([NormalizedEmail]);
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (1ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      CREATE UNIQUE INDEX [UserNameIndex] ON [AspNetUsers] ([NormalizedUserName]) WHERE [NormalizedUserName] IS NOT NULL;
Microsoft.EntityFrameworkCore.Database.Command[20101]
      Executed DbCommand (2ms) [Parameters=[], CommandType='Text', CommandTimeout='30']
      INSERT INTO [__EFMigrationsHistory] ([MigrationId], [ProductVersion])
      VALUES (N'00000000000000_CreateIdentitySchema', N'2.2.6-servicing-10079');
Done.
PM>

このように、VSから、SQLServerへCreate分を実行してくれます。

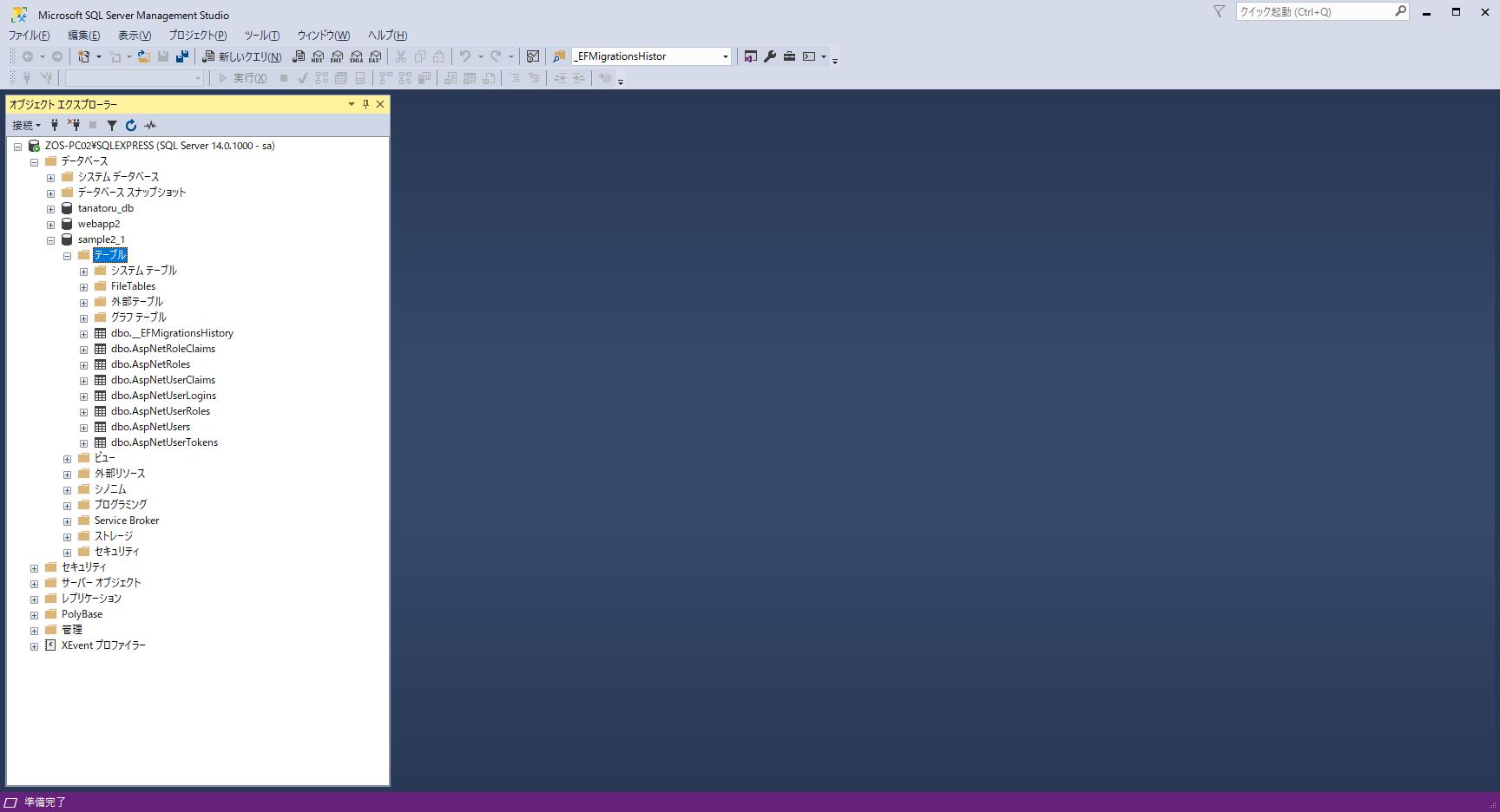

SQLServerで確認すると、テーブルが作成されたことがわかります。

初めてのユーザ登録

それでは、実際にデータの登録が行えるかを確認してみましょう。

[IIS Express]で実行:

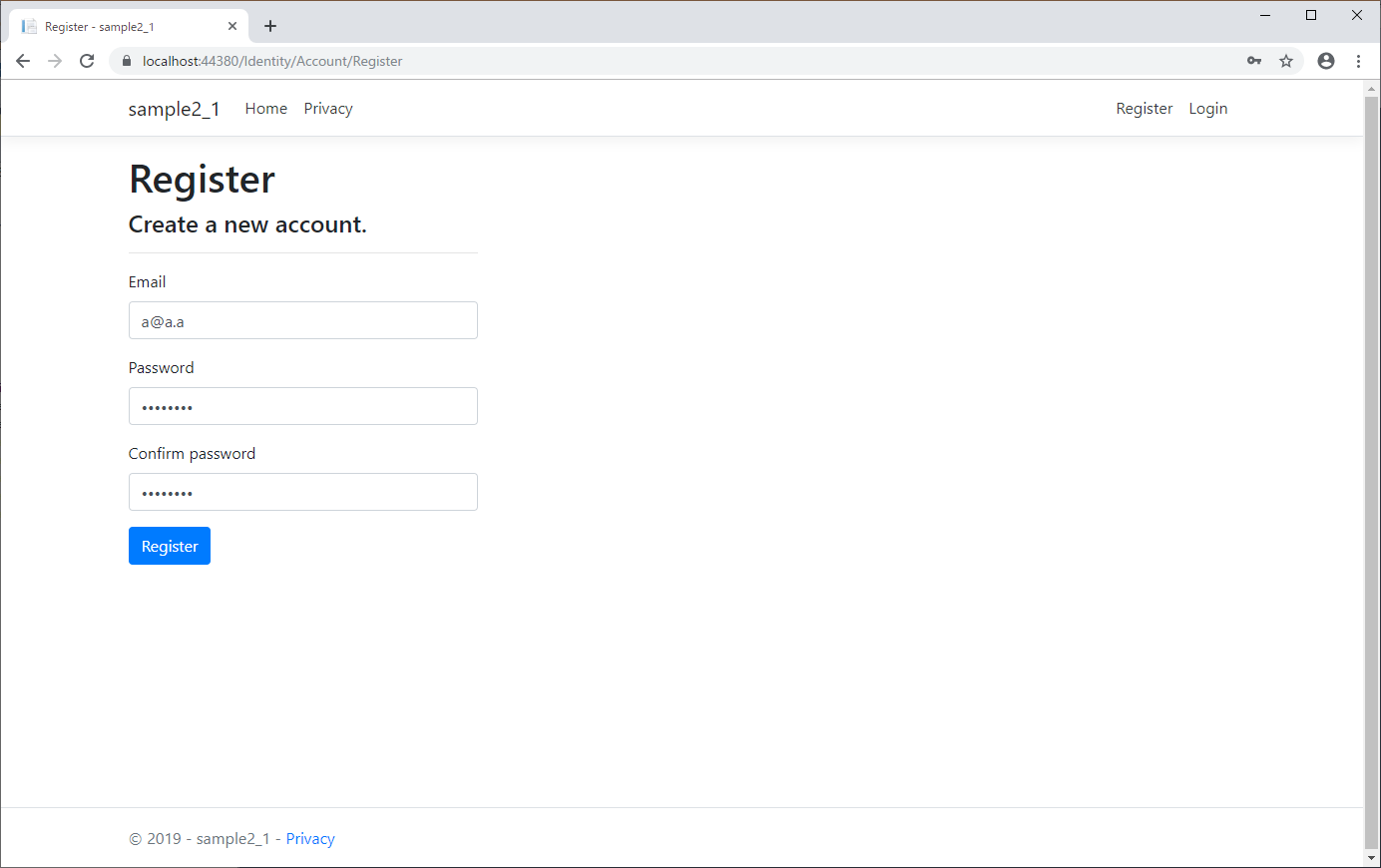

メールアドレス、パスワード入力:

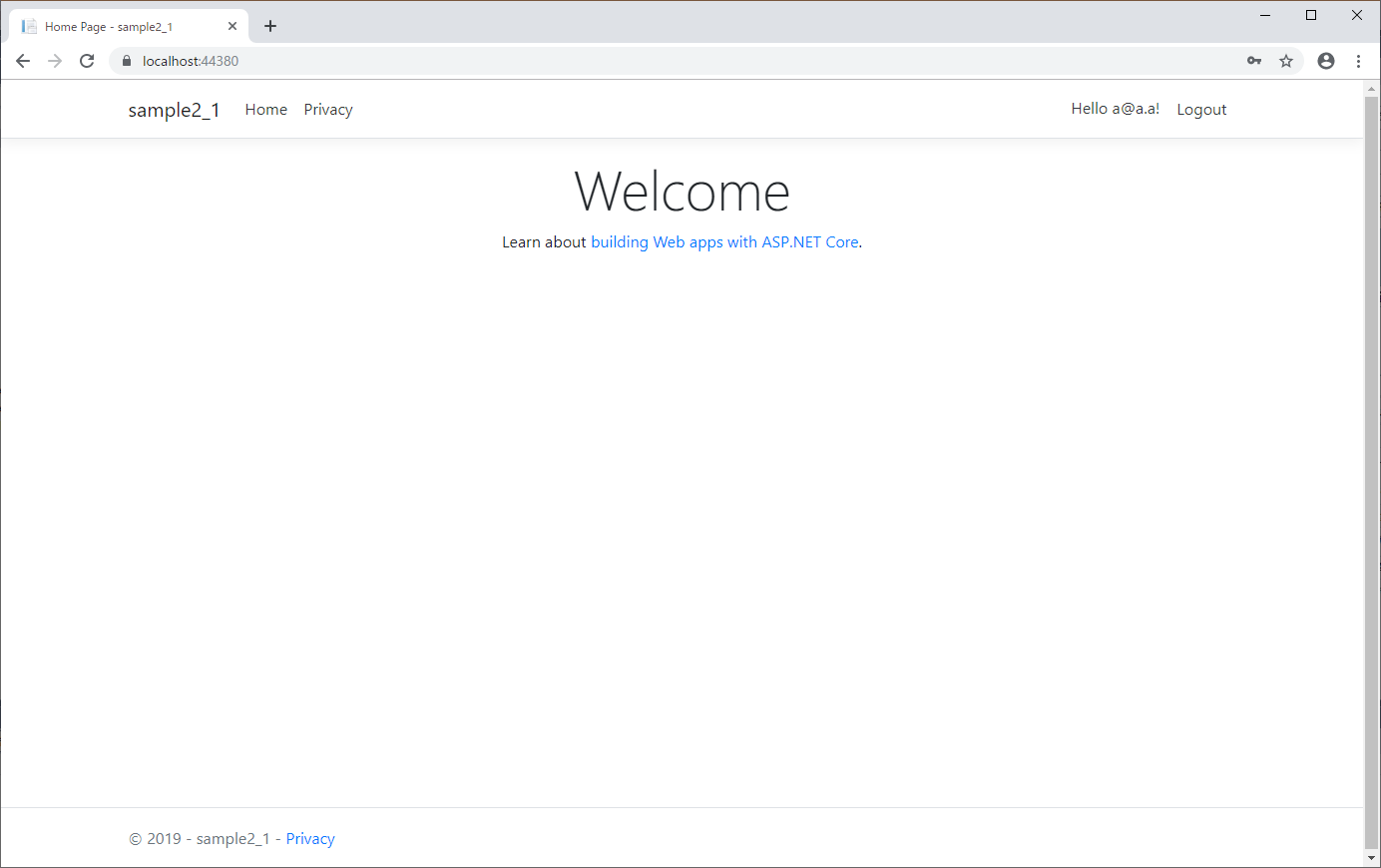

登録後のホーム画面:
「Hello a@a.a!」と入力したメールアドレスが表示されていることが確認できます。

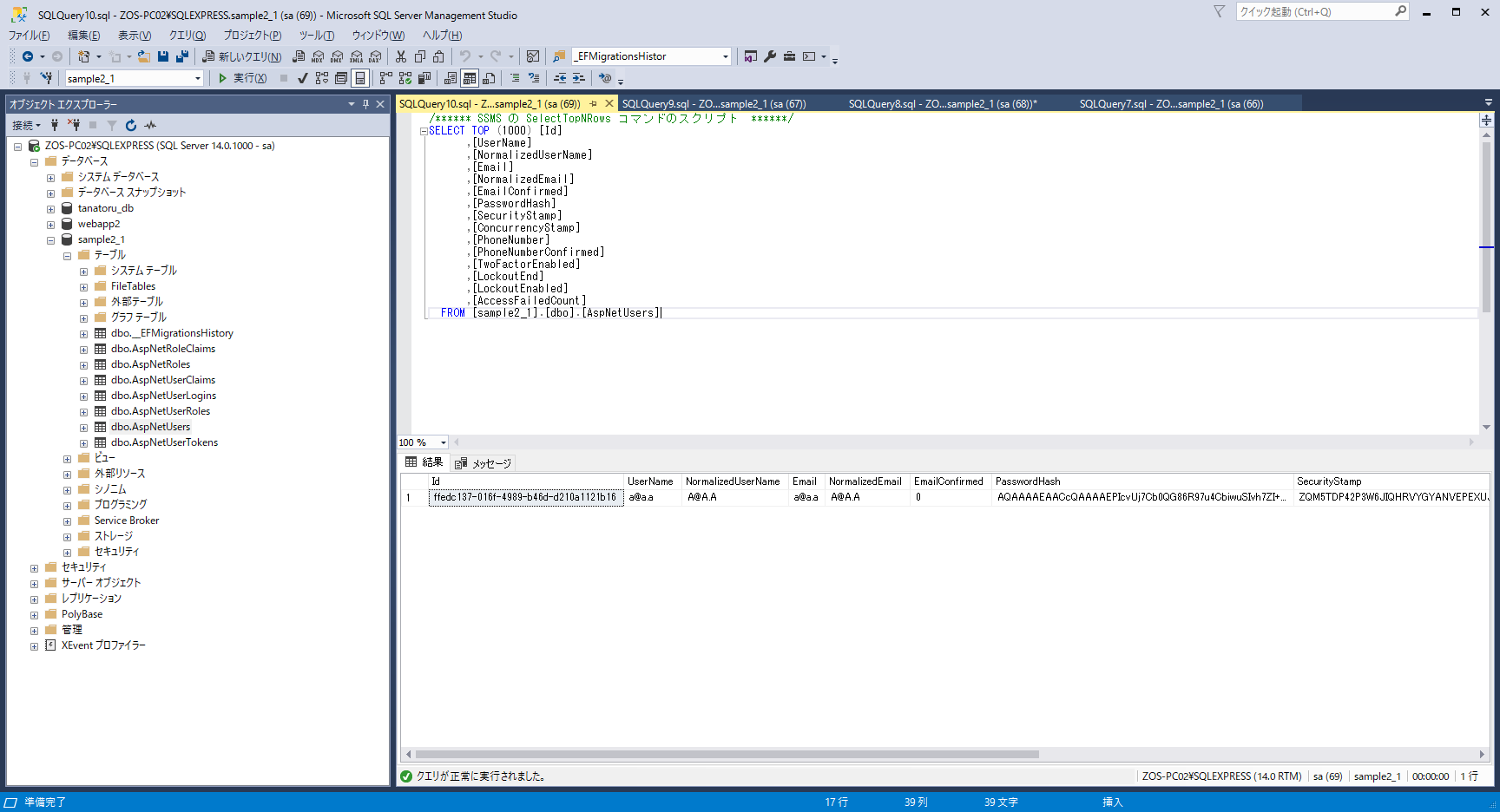

実際のDBデータを確認:
実際に確認したところ、1テーブルのみにデータが登録されていることがわかります。

これで、DBの接続までが実際に行えました。
メールアドレスの表示ではさみしいので、ユーザ名を入力・表示できるようにしたいと思います。


【是非お試しください】※完全無料です
TanaToru -本棚管理サービス-
 https://app.zero-one-system.co.jp/TanaToru/
