WorkFlow Manager View in Ambari 2.7 (HDP 3.0)

Last updated at Posted at 2018-09-30

参考記事：

Ambari でWorkFlow Manager View作成

WorkFlow Manager View 操作

マウスで開始ー終了の線をクリックしたら、緑のプラスが出る（入り口を探すには時間かかるｗ）

プラスが出た

プラスを押したら、いろいろ選択肢が出た

Shellを選択

こうなる

image.png歯車アイコンをクリックし、設定値を入れる



Ambariに保存しようとしたが、権限問題が発生：

Error occurred while saving workflow
Access Error to file due to access control
Hide Log
org.apache.oozie.ambari.view.exception.WfmWebException
    at org.apache.oozie.ambari.view.OozieProxyImpersonator.submitJob(OozieProxyImpersonator.java:229)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke(Method.java:498)
    at com.sun.jersey.spi.container.JavaMethodInvokerFactory$1.invoke(JavaMethodInvokerFactory.java:60)
    at com.sun.jersey.server.impl.model.method.dispatch.AbstractResourceMethodDispatchProvider$ResponseOutInvoker._dispatch(AbstractResourceMethodDispatchProvider.java:205)
    at com.sun.jersey.server.impl.model.method.dispatch.ResourceJavaMethodDispatcher.dispatch(ResourceJavaMethodDispatcher.java:75)
    at com.sun.jersey.server.impl.uri.rules.HttpMethodRule.accept(HttpMethodRule.java:302)
    at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
    at com.sun.jersey.server.impl.uri.rules.SubLocatorRule.accept(SubLocatorRule.java:137)
    at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
    at com.sun.jersey.server.impl.uri.rules.SubLocatorRule.accept(SubLocatorRule.java:137)
    at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
    at com.sun.jersey.server.impl.uri.rules.ResourceClassRule.accept(ResourceClassRule.java:108)
    at com.sun.jersey.server.impl.uri.rules.RightHandPathRule.accept(RightHandPathRule.java:147)
    at com.sun.jersey.server.impl.uri.rules.RootResourceClassesRule.accept(RootResourceClassesRule.java:84)
    at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1542)
    at com.sun.jersey.server.impl.application.WebApplicationImpl._handleRequest(WebApplicationImpl.java:1473)
    at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1419)
    at com.sun.jersey.server.impl.application.WebApplicationImpl.handleRequest(WebApplicationImpl.java:1409)
    at com.sun.jersey.spi.container.servlet.WebComponent.service(WebComponent.java:409)
    at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:558)
    at com.sun.jersey.spi.container.servlet.ServletContainer.service(ServletContainer.java:733)
    at javax.servlet.http.HttpServlet.service(HttpServlet.java:790)
    at org.eclipse.jetty.servlet.ServletHolder.handle(ServletHolder.java:865)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1655)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:317)
    at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.invoke(FilterSecurityInterceptor.java:127)
    at org.springframework.security.web.access.intercept.FilterSecurityInterceptor.doFilter(FilterSecurityInterceptor.java:91)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.apache.ambari.server.security.authorization.AmbariAuthorizationFilter.doFilter(AmbariAuthorizationFilter.java:291)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.access.ExceptionTranslationFilter.doFilter(ExceptionTranslationFilter.java:114)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.session.SessionManagementFilter.doFilter(SessionManagementFilter.java:137)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.authentication.AnonymousAuthenticationFilter.doFilter(AnonymousAuthenticationFilter.java:111)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter.doFilter(SecurityContextHolderAwareRequestFilter.java:170)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.savedrequest.RequestCacheAwareFilter.doFilter(RequestCacheAwareFilter.java:63)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.apache.ambari.server.security.authentication.AmbariDelegatingAuthenticationFilter.doFilter(AmbariDelegatingAuthenticationFilter.java:135)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.apache.ambari.server.security.authorization.AmbariUserAuthorizationFilter.doFilter(AmbariUserAuthorizationFilter.java:94)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.authentication.logout.LogoutFilter.doFilter(LogoutFilter.java:116)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.header.HeaderWriterFilter.doFilterInternal(HeaderWriterFilter.java:66)
    at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.context.SecurityContextPersistenceFilter.doFilter(SecurityContextPersistenceFilter.java:105)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter.doFilterInternal(WebAsyncManagerIntegrationFilter.java:56)
    at org.springframework.web.filter.OncePerRequestFilter.doFilter(OncePerRequestFilter.java:107)
    at org.springframework.security.web.FilterChainProxy$VirtualFilterChain.doFilter(FilterChainProxy.java:331)
    at org.springframework.security.web.FilterChainProxy.doFilterInternal(FilterChainProxy.java:214)
    at org.springframework.security.web.FilterChainProxy.doFilter(FilterChainProxy.java:177)
    at org.springframework.web.filter.DelegatingFilterProxy.invokeDelegate(DelegatingFilterProxy.java:347)
    at org.springframework.web.filter.DelegatingFilterProxy.doFilter(DelegatingFilterProxy.java:263)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.apache.ambari.server.api.MethodOverrideFilter.doFilter(MethodOverrideFilter.java:73)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.apache.ambari.server.api.AmbariPersistFilter.doFilter(AmbariPersistFilter.java:53)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.apache.ambari.server.view.AmbariViewsMDCLoggingFilter.doFilter(AmbariViewsMDCLoggingFilter.java:56)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.apache.ambari.server.view.ViewThrottleFilter.doFilter(ViewThrottleFilter.java:161)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.apache.ambari.server.security.AbstractSecurityHeaderFilter.doFilter(AbstractSecurityHeaderFilter.java:130)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.apache.ambari.server.security.AbstractSecurityHeaderFilter.doFilter(AbstractSecurityHeaderFilter.java:130)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.eclipse.jetty.servlets.GzipFilter.doFilter(GzipFilter.java:51)
    at org.eclipse.jetty.servlet.ServletHandler$CachedChain.doFilter(ServletHandler.java:1642)
    at org.eclipse.jetty.servlet.ServletHandler.doHandle(ServletHandler.java:533)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:146)
    at org.eclipse.jetty.security.SecurityHandler.handle(SecurityHandler.java:548)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:257)
    at org.eclipse.jetty.server.session.SessionHandler.doHandle(SessionHandler.java:1595)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextHandle(ScopedHandler.java:255)
    at org.eclipse.jetty.server.handler.ContextHandler.doHandle(ContextHandler.java:1317)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:203)
    at org.eclipse.jetty.servlet.ServletHandler.doScope(ServletHandler.java:473)
    at org.eclipse.jetty.server.session.SessionHandler.doScope(SessionHandler.java:1564)
    at org.eclipse.jetty.server.handler.ScopedHandler.nextScope(ScopedHandler.java:201)
    at org.eclipse.jetty.server.handler.ContextHandler.doScope(ContextHandler.java:1219)
    at org.eclipse.jetty.server.handler.ScopedHandler.handle(ScopedHandler.java:144)
    at org.eclipse.jetty.server.handler.gzip.GzipHandler.handle(GzipHandler.java:674)
    at org.apache.ambari.server.controller.AmbariHandlerList.processHandlers(AmbariHandlerList.java:221)
    at org.apache.ambari.server.controller.AmbariHandlerList.processHandlers(AmbariHandlerList.java:210)
    at org.apache.ambari.server.controller.AmbariHandlerList.handle(AmbariHandlerList.java:151)
    at org.eclipse.jetty.server.handler.HandlerWrapper.handle(HandlerWrapper.java:132)
    at org.eclipse.jetty.server.Server.handle(Server.java:531)
    at org.eclipse.jetty.server.HttpChannel.handle(HttpChannel.java:352)
    at org.eclipse.jetty.server.HttpConnection.onFillable(HttpConnection.java:260)
    at org.eclipse.jetty.io.AbstractConnection$ReadCallback.succeeded(AbstractConnection.java:281)
    at org.eclipse.jetty.io.FillInterest.fillable(FillInterest.java:102)
    at org.eclipse.jetty.io.ChannelEndPoint$2.run(ChannelEndPoint.java:118)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.runTask(EatWhatYouKill.java:333)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.doProduce(EatWhatYouKill.java:310)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.tryProduce(EatWhatYouKill.java:168)
    at org.eclipse.jetty.util.thread.strategy.EatWhatYouKill.run(EatWhatYouKill.java:126)
    at org.eclipse.jetty.util.thread.ReservedThreadExecutor$ReservedThread.run(ReservedThreadExecutor.java:366)
    at org.eclipse.jetty.util.thread.QueuedThreadPool.runJob(QueuedThreadPool.java:762)
    at org.eclipse.jetty.util.thread.QueuedThreadPool$2.run(QueuedThreadPool.java:680)
    at java.lang.Thread.run(Thread.java:745) Caused by: org.apache.hadoop.security.authorize.AuthorizationException: Unauthorized connection for super-user: root from IP 172.26.213.203
    at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
    at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62)
    at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
    at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
    at org.apache.hadoop.ipc.RemoteException.instantiateException(RemoteException.java:121)
    at org.apache.hadoop.ipc.RemoteException.unwrapRemoteException(RemoteException.java:110)
    at org.apache.hadoop.hdfs.web.WebHdfsFileSystem.toIOException(WebHdfsFileSystem.java:548)
    at org.apache.hadoop.hdfs.web.WebHdfsFileSystem.validateResponse(WebHdfsFileSystem.java:526)
    at org.apache.hadoop.hdfs.web.WebHdfsFileSystem.access$200(WebHdfsFileSystem.java:135)
    at org.apache.hadoop.hdfs.web.WebHdfsFileSystem$FsPathOutputStreamRunner$1.close(WebHdfsFileSystem.java:1019)
    at org.apache.oozie.ambari.view.HDFSFileUtils.writeToFile(HDFSFileUtils.java:89)
    at org.apache.oozie.ambari.view.WorkflowFilesService.createFile(WorkflowFilesService.java:42)
    at org.apache.oozie.ambari.view.OozieProxyImpersonator.submitJob(OozieProxyImpersonator.java:210) ... 108 more Caused by: org.apache.hadoop.ipc.RemoteException(org.apache.hadoop.security.authorize.AuthorizationException): Unauthorized connection for super-user: root from IP 172.26.213.203
    at org.apache.hadoop.hdfs.web.JsonUtilClient.toRemoteException(JsonUtilClient.java:85)
    at org.apache.hadoop.hdfs.web.WebHdfsFileSystem.validateResponse(WebHdfsFileSystem.java:509) ... 113 more

エラー画面：

対応方法：
https://community.hortonworks.com/questions/70679/i-am-getting-this-error-unauthorized-connection-fo.html
You need to add below properties to core-site.xml(custom core-site section of Ambari)

    hadoop.proxyuser.root.groups=*
    hadoop.proxyuser.root.hosts=*

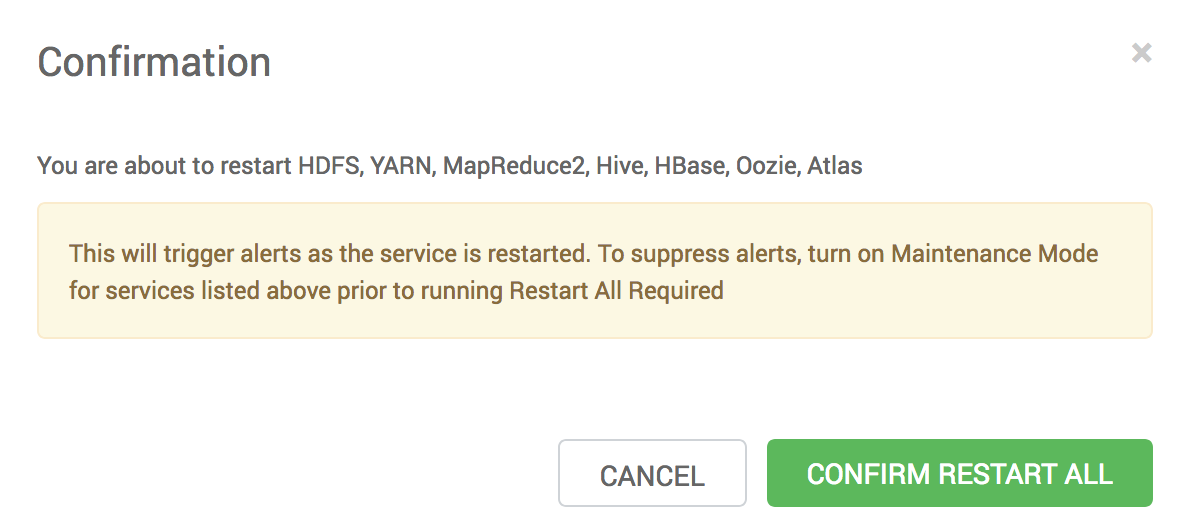

Screen Shot 2018-09-30 at 16.13.16.png 設定保存後、サービス＆反映。 E021A686-3868-4550-8859-692EB195C99F.png

これで問題解決。
WorkFlowの動作確認

WorkFlowの保存：

WorkFlow Submit

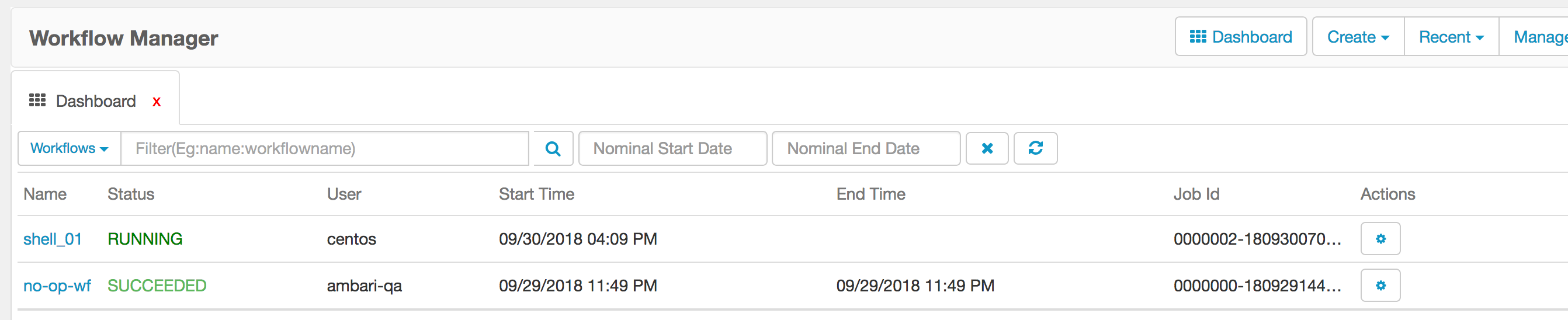

Screen Shot 2018-09-30 at 16.15.41.png Submit 後、結果一覧に表示される。

参考情報

参考情報：自動生成されたOozieのXMLファイル


<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<workflow-app xmlns="uri:oozie:workflow:0.5" name="shell_01">
    <start to="shell_1"/>
    <action name="shell_1">
        <shell xmlns="uri:oozie:shell-action:0.3">
            <job-tracker>${resourceManager}</job-tracker>
            <name-node>${nameNode}</name-node>
            <exec>echo</exec>
            <argument>"aaabbb"</argument>
            <capture-output/>
        </shell>
        <ok to="end"/>
        <error to="kill"/>
    </action>
    <kill name="kill">
        <message>${wf:errorMessage(wf:lastErrorNode())}</message>
    </kill>
    <end name="end"/>
</workflow-app>

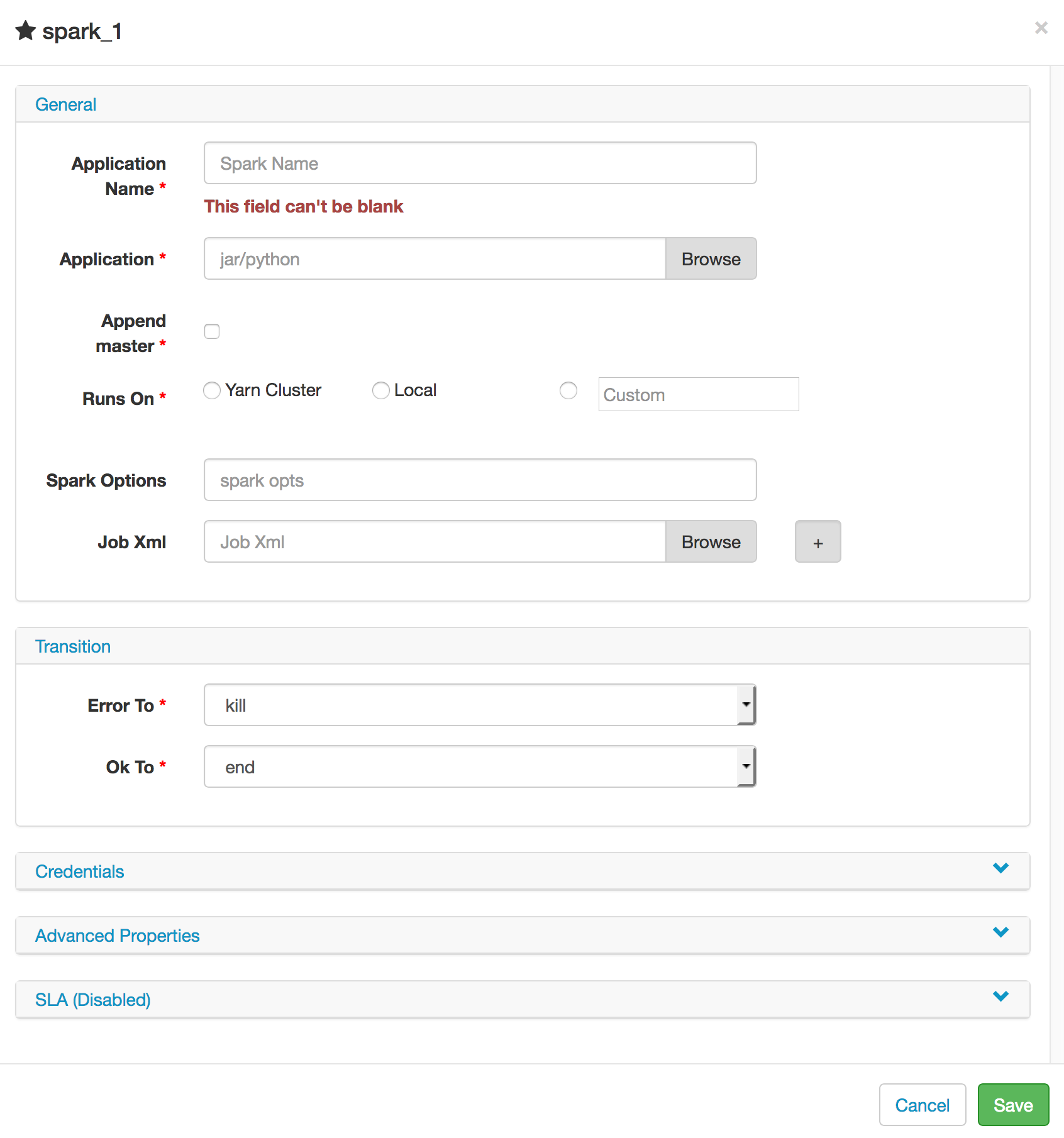

参考情報：Oozie - Sparkの設定


Screen Shot 2018-09-30 at 16.23.02.png
