D3.jsで棒グラフを描く

Posted at

昔少し利用したが、すっかり使い方を忘れていたので復習がてらのメモ

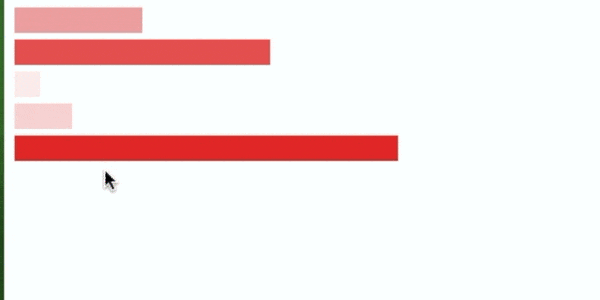

インタラクティブな横棒グラフの描画


HTML部分

<!DOCTYPE html>
    <head>
        <meta charset="utf-8">
        <title>グラフ</title>
        <!-- D3.jsの読み込み -->
        <script src="https://d3js.org/d3.v5.min.js"></script>
    </head>
    <body>
        <!-- グラフ描画するエリア -->
        <svg id="graphArea"></svg>

        <!-- グラフ描画するjs -->
        <script src="js/myGraph.js"></script>

    </body>
</html>

Javascript部分


// データセット
const dataSet = [100, 200, 20, 45, 300];
//グラフを描画
drawGraph(dataSet);

function drawGraph(dataSet) {
    const maxValue = Math.max(...dataSet);

    const OriginAttr = {
        fill: "rgba(255, 0, 0, 0)"
    };

    d3.select("#graphArea")
        .selectAll("rect")                                                    // 対象要素の設定
        .data(dataSet)                                                        // データセットを設定
        .enter()                                                              // データ数に応じて要素を追加
        .append("rect")                                                       // 四角形のSVGを作成
        .attr("x", 0)                                                         // X座標(始点)
        .attr("y", (d, i) => {return i * 25;})                                // Y座標(各データセットの描画位置)
        .attr("width", (d, i) => {return `${d}px`; })                         // 横棒グラフの横幅(X座標の終点)
        .attr("height", "20px")                                               // 横棒グラフの縦幅
        .attr("fill", (d, i) => {return `rgba(255, 0, 0, ${d/maxValue})`;})   // 棒グラフの色
        .on("mouseover", function() {
            OriginAttr.fill = this.attributes.fill.value;                     // 変更前の状態を記憶
            d3.select(this)
                .attr("fill", "blue");                                        // クリックされたグラフの色を変更
        })
        .on("mouseout", function() {
            d3.select(this)
                .attr("fill", OriginAttr.fill);                              // 変更前の状態に戻す
        });

}
